1. I/O devices
Peripheral devices (also called I/O devices) are pieces of equipment that exchange data with a CPU
Examples: switches, LED, CRT, printers, keyboard, keypad
Speed and characteristics of these devices are very different from that of CPU so they cannot be connected directly
Interface chips are needed to resolve this problem
Main function of an interface chip is to synchronize data transfer between CPU and I/O device
Data pins of interface chip are connected to CPU data bus and I/O port pins are connected to I/O device

2. I/O devices
Since a CPU may have multiple I/O devices, CPU data bus may be connected to data buses of multiple interface
An address decoder is used to select one device to respond to the CPU I/O request
Different CPUs deal with I/O devices differently
Some CPUs have dedicated instructions for performing input and output operations (isolated I/O)
Other CPUs use the same instruction for reading from memory and reading from input devices, as well as writing data into memory and writing data into output devices (memory-mapped I/O)
MCS-51 (8051) is memory mapped

3. Synchronization of CPU and interface chip
There must be a mechanism to make sure that there are valid data in the interface chip when CPU reads them
Input synchronization: two ways of doing this
Polling method
interface chip uses a status bit to indicate if it has valid data for CPU
CPU keeps checking status bit until it is set, and then reads data from interface chip
Simple method, used when CPU has nothing else to do
Interrupt driven method: interface chip interrupts the CPU when it has new data. CPU executes the ISR

4. Synchronization of CPU and interface chip
Output synchronization: two ways of doing this
Polling method
interface chip uses a status bit to indicate that the data register is empty
CPU keeps checking status bit until it is set, and then writes data into interface chip
Interrupt driven method: interface chip interrupts the CPU when it data register is empty. CPU executes the ISR

5. Synchronization of CPU and interface chip
Methods used to synchronize data transfer between interface chip and I/O devices:
Brute force method: interface chip returns voltage levels in its input ports to CPU and makes data written by CPU directly available on its output ports
All 8051 port can perform brute force I/O
Strobe method:
During input, the I/O device activates a strobe signal when data are stable. Interface chip latches the data
For output, interface chip places output data on output port. when data is stable, it activates a strobe signal. I/O device latches the data
Handshake method: two handshake signals are needed
One is asserted by interface chip and the other by I/O device

6. 8051 ports

7. 8051 ports
Ports 1, 2, and 3 have internal pullups, and Port 0 has open drain outputs.
To be used as an input, the port bit latch must contain a 1, which turns off the output driver FET.
For Ports 1, 2, and 3, the pin is pulled high by a weak internal pullup, and can be pulled low by an external source.
Port 0 differs in that its internal pullups are not active during normal port operation (writing a 1 to the bit latch leaves both output FETs off, so the pin floats).

8. 8051 I/O Ports: Hardware Specs
P0 is open drain.
Has to be pulled high by external 10K resistors.
Not needed if P0 is used for address lines
P1, P2, P3 have internal pull-ups
Port fan- out (number of devices it can drive) is limited.
Use buffers (74LS244, 74LS245,etc) to increase drive.
P1, P2, P3 can drive up to 4 LS-TTL inputs

9. 8051 - Switch On I/O Ports Case-1: Case-2: Case-3:
Gives a logic 0 on switch close
Current is 0.5ma on switch close
Case-2:
Gives a logic 1 on switch close
High current on switch close
Case-3:
Can damage port if 0 is output

10. Simple input devices DIP switches usually have 8 switches
Use the case-1 from previous page
Sequence of instructions to read a value from DIP switches:
mov P1,#FFH
mov A,P1,

11. Interfacing a Keypad
A 16-key keypad is built as shown in the figure below.
16 keys arranged as a 4X4 matrix.
Must “activate” each row by placing a 0 on its R output.
Then the column output is read.
If there is a 0 on one of the column bits, then the button at the column/row intersection has been pressed.
Otherwise, try next row.
Repeat constantly 1 2 3 5 6 7 D E F 9 A B C 8 4

12. Bouncing Contacts
Push-button switches, toggle switches, and electromechanical relays all have one thing in common: contacts.
Metal contacts make and break the circuit and carry the current in switches and relays. Because they are metal, contacts have mass.
Since at least one of the contacts is movable, it has springiness.
Since contacts are designed to open and close quickly, there is little resistance (damping) to their movement

13. Bouncing
Because the moving contacts have mass and springiness with low damping they will be "bouncy" as they make and break.
That is, when a normally open (N.O.) pair of contacts is closed, the contacts will come together and bounce off each other several times before finally coming to rest in a closed position.
The effect is called "contact bounce" or, in a switch, "switch bounce”.

14. The bouncing of the switch may last for several milliseconds.
Why is it a problem?
If such a switch is used as a source to an edge-triggered input such as INT0, then the MCS-51 will think that there were several “events” and respond several times.
The bouncing of the switch may last for several milliseconds.
Given that the MCS-51 operates at microsecond speed, a short ISR may execute several times in response to the above described bounciness

15. Hardware Solution
The simplest hardware solution uses an RC time constant to suppress the bounce. The time constant has to be larger than the switch bounce and is typically 0.1 seconds.
As long as capacitor voltage does not exceed a threshold value, the output signal will be continued to be recognized as a logic 1.
The buffer after the switch produces a sharp high-to-low transition.

16. Hardware Solution

17. Software Solution
It is also possible to counter the bouncing problem using software.
The easies way is the wait-and-see technique
When the input drops, an “appropriate” delay is executed (10 ms), then the value of the line is checked again to make sure the line has stopped bouncing

18. Interfacing a Keypad 8051 scan: mov P1,#EFH jnb P1.0,db_0
scan1: jnb P1.1,db_1
scan2: jnb P1.2,db_2
scan3: jnb P1.3,db_3
scan4: mov P1,#DFH
jnb P1.0,db_4
…..
P1.3
P1.2
P1.1
P1.0
P1.7
P1.6
P1.5
P1.4
8051 F E D C B A 9 8 7 6 5 4 3 2 1

19. Interfacing a Keypad get_code: mov DPRT, #key_tab movc A, @A+DPRT
db_0: lcall wt_10ms
jb P1.0, scan1
mov A, #0
ljmp get_code
db_1: lcall wt_10ms
jb P1.1, scan2
mov A, #1
….. …
get_code: mov DPRT, #key_tab
movc
ljmp scan
key_tab: db ‘ ABCDEF’
END

20. Simple output devices Case-1 Case-2 Case-3
LED is ON for an output of zero
Most LEDs drop 1.7 to 2.5 volts and need about 10ma
Current is (5-2)/470
Case-2
Too much current
Failure of Port or LED
Case-3
Not enough drive (1ma)
LED too dim

21. The 7-Segment Display 7 LEDs arranged to form the number 8.
By turning on and off the appropriate segments (LEDs), different combinations can be roduced.
useful for displaying the digits 0 through 9, and some characters. a b c f e g d

22. The 7-segment Display (Cont.)
7-segment displays come in 2 configurations:
Common Anode Common Cathode
As we have seen, it would be preferable to connect the cathode of each diode to the output pin.
Therefore, the common anode variety would be better for our interfacing needs.

23. Interfacing a 7-segment display
Also, as seen with interfacing the LED, a resistor will be needed to control the current flowing through the diode.
This leaves two possibilities:
Case 2 would be more appropriate as case 1 will produce different brightness depending on the number of LEDs turned on.

24. Use of current buffer
Interfacing to a DIP switch and 7-segment display
Output a ‘1’ to ON a segment
We can use to common cathode 7_seg

25. BCD to 7_Seg lookup table
p g f e d c b a
7_seg
hex
0000 3f
0001 30
0010 5b
0011 4f
0100 66
0101 6d
0110 7d
0111 07
1000 7f
1001 6f
mov a,p3
anl a,0fh
get_code: mov DPTR, #7s_tab
movc
mov p1,a
7s_tab: db 3fh,30h,5bh,4fh,66h
db 6dh,7dh,07h,7fh,6fh
END a a a a a a a a f b f b b f b f f b f b f b g g g g g g g e c e e c c c e c c e c c d d d d d d d

26. LCD Interfacing Liquid Crystal Displays (LCDs)
cheap and easy way to display text
Various configurations (1 line by 20 X char upto 8 lines X 80 ).
Integrated controller
The display has two register
command register
data register
By RS you can select register
Data lines (DB7-DB0) used to transfer data and commands

27. Alphanumeric LCD Interfacing
R/W RS
DB7–DB0
LCD controller
communications bus
Microcontroller 8
LCD Module
Pinout
8 data pins D7:D0
RS: Data or Command Register Select
R/W: Read or Write
E: Enable (Latch data)
RS – Register Select
RS = 0  Command Register
RS = 1  Data Register
R/W = 0  Write , R/W = 1  Read
E – Enable
Used to latch the data present on the data pins.
D0 – D7
Bi-directional data/command pins.
Alphanumeric characters are sent in ASCII format.

28. LCD Commands
The LCD’s internal controller can accept several commands and modify the display accordingly. These commands would be things like:
Clear screen
Return home
Decrement/Increment cursor
After writing to the LCD, it takes some time for it to complete its internal operations. During this time, it will not accept any new commands or data.
We need to insert time delay between any two commands or data sent to LCD

29. Pin Description

30. Command Codes

31. LCD Addressing

32. LCD Timing

34. Interfacing LCD with 8051 8051 LM015 RW E RS P1.7-P1.0 D7-D0 P3.4 P3.5

35. Interfacing LCD with 8051 mov A, command call cmd delay
mov A, another_cmd
mov A, #’A’
call data
mov A, #’B’ ….
Command and Data Write Routines
data:mov P1, A ;A is ascii data
setb P3.3 ;RS=1 data
clr P3.4 ;RW=0 for write
setb P3.5 ;H->L pulse on E
clr P3.5
ret
cmd:mov P1,A ;A has the cmd word
clr P3.3 ;RS=0 for cmd
setb P3.5 ;H->L pulse on E
Interfacing LCD with 8051

36. Example

37. Stepper Motors
more accurately controlled than a normal motor allowing fractional turns or n revolutions to be easily done
low speed, and lower torque than a comparable D.C. motor
useful for precise positioning for robotics
Servomotors require a position feedback signal for control

38. Stepper Motor Diagram

39. Stepper Motor Step Angles

40. Terminology Steps per second, RPM Number of teeth
SPS = (RPM * SPR) /60
Number of teeth
4-step, wave drive 4-step, 8-step
Motor speed (SPS)
Holding torque

41. Stepper Motor Types Variable Reluctance Permanent Magnet
reluctance magnet becomes temporarily magnetized when placed in a magnetic field (

42. Variable Reluctance Motors

43. Variable Reluctance Motors
This is usually a four wire motor – the common wire goes to the +ve supply and the windings are stepped through
Our example is a 30o motor
The rotor has 4 poles and the stator has 6 poles
Example
Rotor is magnet

44. Variable Reluctance Motors
To rotate we excite the 3 windings in sequence W W W
This gives two full revolutions

45. Unipolar Motors

46. Unipolar Motors To rotate we excite the 2 windings in sequence
W1a
W1b
W2a
W2b
This gives two full revolutions

47. Basic Actuation Wave Forms

48. Unipolar Motors To rotate we excite the 2 windings in sequence
W1a
W1b
W2a
W2b
This gives two full revolutions at 1.4 times greater torque but twice the power
When two windings are excited then the magnetic field has more power and since they are 90 degree then the total would be 1.4 times
But the power (the current) is doubled

49. Enhanced Waveforms
better torque
more precise control

50. Unipolar Motors
The two sequences are not the same, so by combining the two you can produce half stepping
W1a
W1b
W2a
W2b

51. Motor Control Circuits
For low current options the ULN200x family of Darlington Arrays will drive the windings direct.

52. Interfacing to Stepper Motors

53. Example

54. Digital to Analog Converter

55. Example – Step Ramp

56. Analog to Digital

57. Vin Range

58. Timing

59. Interfacing ADC

60. Example

61. Temperature Sensor

62. Printer Connection

63. IO Base Address for LPT

64. Printer’s Ports

65. 8255 8051 has limited number of I/O ports
one solution is to add parallel interface chip(s)
8255 is a Programmable Peripheral Interface PPI
Add it to 8051 to expand number of parallel ports
8051 I/O port does not have handshaking capability
8255 can add handshaking capability to 8051

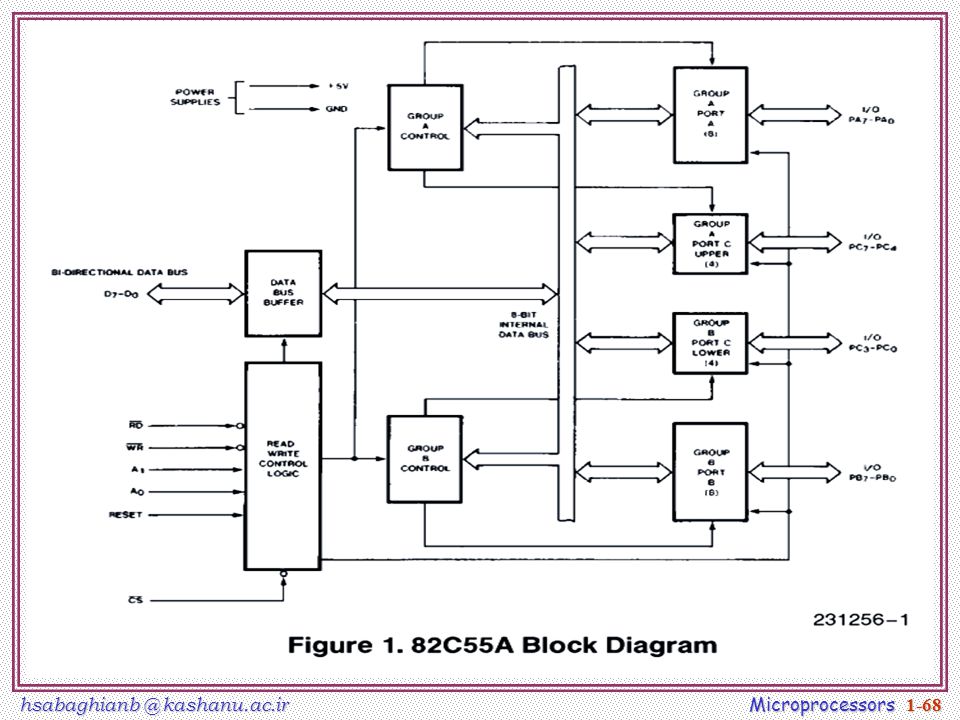

66. 8255 Programmable Peripheral Interface (PPI)
Has 3 8_bit ports A, B and C
Port C can be used as two 4 bit ports CL and Ch
Two address lines A0, A1 and a Chip select CS
8255 can be configured by writing a control-word in CR register

67. 8255 Control Word

69. 8255 Operating Modes Mode 0 : Simple I/O Mode 1: I/O with Handshake
Any of A, B, CL and CH can be programmed as input or output
Mode 1: I/O with Handshake
A and B can be used for I/O
C provides the handshake signals
Mode 2: Bi-directional with handshake
A is bi-directional with C providing handshake signals
B is simple I/O (mode-0) or handshake I/O (mode-1)
BSR (Bit Set Reset) Mode
Only C is available for bit mode access
Allows single bit manipulation for control applications

70. 8255 Mode Definition Summary

71. Mode 0
Provides simple input and output operations for each of the three ports.
No “handshaking” is required, data is simply written to or read from a specified port.
Two 8-bit ports and two 4-bit ports.
Any port can be input or output.
Outputs are latched.
Inputs are not latched

72. Mode 1 Mode 1 Basic functional Definitions:
Two Groups (Group A and Group B).
Each group has one 8-bit data port and one 4-bit control/data port.
The 8-bit data port can be either input or output. Both inputs and outputs are latched.
The 4-bit port is used for control and status of the 8-bit data port.

73. 8255 mode 1 (output)

74. Mode 1 – Control Signals Output Control Signal Definition
OBF (Output Buffer Full F/F). (C7 for A, C1 for B)
The OBF output will go “low” to indicate that the CPU has written data out to the specified port.
A signal to the device that there is data to be read.
ACK (Acknowledge Input). (C6 for A, C2 for B)
A “low” on this input informs the 8255 that the data from Port A or Port B has been accepted.
A response from the peripheral device indicating that it has read the data.
INTR (Interrupt Request). (C3 for A, C0 for B)
A “high” on this output can be used to interrupt the CPU when an output device has accepted data transmitted by the CPU.

75. Timing diagram for mode1(output)

76. 8255 mode 1 (input)

77. Mode 1 – Control Signals Input Control Signal Definition
STB (Strobe Input). (C4 for A, C2 for B)
A “low” on this input loads data into the input latch.
IBF (Input Buffer Full F/F) (C5 for A, C1 for B)
A “high” on this output indicates that the data has been loaded into the input latch; in essence, an acknowledgement from the 8255 to the device.
INTR (Interrupt Request) (C3 for A, C0 for B)
A “high” on this output can be used to interrupt the CPU when an input device is requesting service.

78. Timing diagram for mode1(input)

79. Mode 2 - Strobed Bidirectional Bus I/O
MODE 2 Basic Functional Definitions:
Used in Group A only.
One 8-bit, bi-directional bus port (Port A) and a 5-bit control port (Port C).
Both inputs and outputs are latched.
The 5-bit control port (Port C) is used for control and status for the 8-bit, bi-directional bus port (Port A).

80. Mode 2 Output Operations Input Operations
OBF (Output Buffer Full). The OBF output will go low to indicate that the CPU has written data out to port A.
ACK (Acknowledge). A low on this input enables the tri-state output buffer of Port A to send out the data. Otherwise, the output buffer will be in the high impedance state.
Input Operations
STB (Strobe Input). A low on this input loads data into the input latch.
IBF (Input Buffer Full F/F). A high on this output indicates that data has been loaded into the input latch.
Pin
Function
PC7
/OBF
PC6
/ACK
PC5
IBF
PC4
/STB
PC3
INTR
PC2
I/O
PC1
PC0

82. BSR Mode
If used in BSR mode, then the bits of port C can be set or reset individually

83. BSR Mode example Move dptr, 0093h Up: Move a, 09h ;set pc4
Acall delay
Mov a,08h ;clr pc4
Sjmp up

84. Interfacing 8255 with 8051 CS is used to interface 8255 with 8051
If CS is generated from lets say Address lines A15:A12 as follows, A15:A13 = 110
Address of 8255 is 110 xxxxx xxxx xx00b
Base address of 8255 is
b=C000H
Address of the registers
A = C000H
B = C001H
C = C002H
CR = C003H

85. Interfacing 8255 with 8051 8051 8255 74138 ALE 74373 /CS A0 O0 A1 O1
P2.7(A15)
P2.6(A14)
P2.5(A13) A2 A1 A0
74138
3×8 decoder
8051
/CS
8255 A0 A1
ALE O0 O1 O7
74373
P0.7-P0.0
(AD7-AD0)
D7-D0
D7-D0
/RD
/WR
/RD
/WR

86. 8255 Usage: Simple Example
8255 memory mapped to 8051 at address C000H base
A = C000H, B = C001H, C = C002H, CR = C003H
Control word for all ports as outputs in mode0
CR : b = 80H
test: mov A, #80H ; control word
mov DPTR, #C003H ; address of CR
movx @DPTR, A ; write control word
mov A, #55h ; will try to write 55 and AA
; alternatively
repeat:mov DPTR,#C000H ; address of PA
movx @DPTR, A ; write 55H to PA
inc DPTR ; now DPTR points to PB
movx @DPTR, A ; write 55H to PB
inc DPTR ; now DPTR points to PC
movx @DPTR, A ; write 55H to PC
cpl A ; toggle A (55AA, AA55)
acall MY_DELAY ; small delay subroutine
sjmp repeat ; for (1)
