1. WELCOME EVERYBODY!

2. How to make easier our weekdays?
Automatic recording
Universal remote controlling
Distant access
Securty system control
Controlling playing devices from PC

3. For example:
This old woman likes to watching TV, video, she has air conditioner and so many device which need a remote control. But she always conflicting with them, because she has too many remote control.
What will help to her?

4. TK-124 Multimedia remote control
CF-MEDIA Or
TK-124 Multimedia remote control

5. TK-124 Multimedia Remote control
3 way:
Automatic mode
Manual mode
Learning mode

6. KOMTECH CF-MEDIA

7. Connections

8. Connections Front

9. Connections Front System port for appliance configuration:
RS 232 Port for CFMC-1 configuration. This port is used to configurate the CFMC-1 by a PC. The system port also can be used for a remote device which controls the CFMC-1 by RS232.
Ethernet port:
This port is often used to connect the programming PC with the CFMC-1. A TCP/IP device can also be connected to the CFMC-1 by this front port.

10. Connections Front

11. LEDS 1 +5V status LED: Power supply status indicator of the CFMC-1.
TCP/IP Client status LED:
Status-bar indicators of the IP-Clients. If a red LED is on, the IP-Client is
registered at the CFMC-1. The registration of the TCP/IP port is done in CF
MEDIA Studio in the “Devices” section. For further details please see chapter
5.4. in the CF-MEDIA Studio manual.
+5V status LED:
Power supply status indicator of the CFMC-1.
RF with status LED:
Status indicator for the radio signal. The LED lits when a submitted
radio signal is received

12. Connections Front

13. Connections Front Compact Flash Slot:
You can connect the CF card here.

14. Connections Front

15. LEDS 2 CF-Active status LED:
Access Indicator for the Compact Flash card. The blue LED lights on, if access to the data stored on the CF-card is taken.
IR-Learn with status LED:
LED indicator for the active Infra-red learning system. For further information how to learn a IR remote control please see chapter 5.2. in the CF-MEDIA Studio manual.
IRC-Output/Event-Input/RSC-Output status LED:
LED status indicator for the different type of ports. The LEDS lit on when- a command is transferred to an IRC- (red) or RSC- (green) Port - an Event Input is used (yellow LED)
Relay status LED:
Relay control status indicator. A red LED lits on, when a relay is set to “ON” status.

16. Connections Back

17. Connections Back
7x COM x (Tx):
Up to 7 RSC-controled devices can be connected to one CFMC-1.
Only connect the following pins on the CFMC-1 RSC-port if you want to use a RS-422 connection:
- Pin 4 (TX+)
- Pin 5 (GND)
- Pin 9 (TX-)
Don’t use fully connected RSC-cables.

18. Pin configuration RS232 1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9
Device
CFMC-1
Connection Feamal- Feamel Cable
Connection Feamel-Male Cable
Pin configuration RS422

19. Connections Back

20. Connections Back RTS/CTS:
Request To Send (RTS)/ Clear To Send (CTS) short circuit switch for RS 232/422 Ports. Some RSC-devices use RTS/CTS for connection. RTS/CTS isn’t normally needed. If you put the dip switch to status on and you are using a fully connected cable a bridge between pin 7 (RTS) and 8 (CTS) is established. Dip switch 1 is the dip for the first RSC-port and dip switch 7 is the dip for the seventh RSC-port.

21. Connections Back

22. Connections Back
System Port:
The back system configuration port is working like the system port on the front panel. If you have a cable where pin2 and pin3 aren’t crossed you can cross the data lines by switching the dip switches.
Ground Bolt:
Ground bolt to connect the CFMC.1 to earth ground.

23. Connections Back

24. Connections Back 12x Relay:
Every CFMC-1 has 12 relay. The relay connection is executed by 2pole connectors. Every relay can hold up to 30 V with a maximum current of 1 A at resistive load.
Be careful to realize a external protection wiring for the relay contacts (flyback diode for DC, RC-combination for AC).

25. Connections Back

26. Connections Back
8x IRC-Output:
Every CFMC-1 can be connected with up to eight IR-devices. The infra-red connection is executed by 2pole connectors.
8x Event-Input:
Every CFMC-1 has eight event-inputs. The connection is executed with 2 pole connectors.

27. Connections Back

28. Connections Back

29. Connections Back
RF-Antenna:
Antenna port for KOMTECH 868 MHz radio control system.
DC IN +5V:
Power supply for the CFMC-1. The power supply is executed by an external power supply.

30. Connections Back

31. Connecitons Back 3x TCP/IP Ports: - TCP/IP devices
There are TCP/IP ports where you can connect
- TCP/IP devices
- another CF-MEDIA systems
- a PC to program a CFMC-1 unit
- a PC to transfer data from the PC to a CFMC-1 unit
- a Panel which is used a remote for the CFMC-1 unit
- a device who just wants to use the integrated network switch for data transmission in a private network.

32. What is it good for ?

34. Or an another example:
How he can solve this
problem?

35. Only with
CF-MEDIA

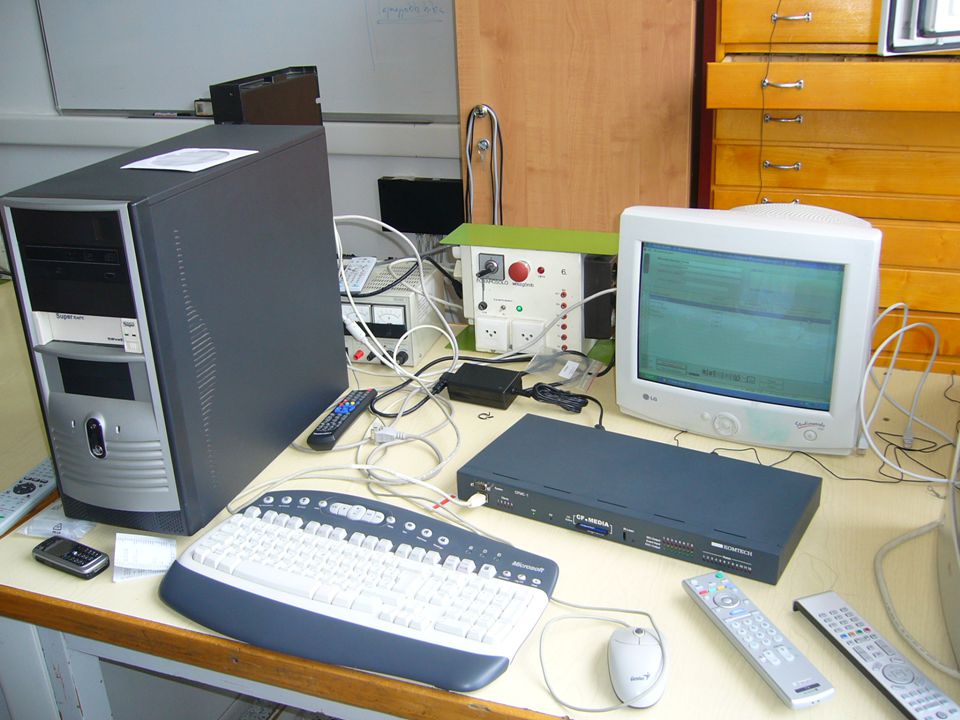

36. The two things in one piecePC
UTP
Cable or RS-232
CF-MEDIA
The two things in one piece

38. Thank you for listening us!
