1. SCADA PRO PRESENTATION Budapest, 21/2/2009 Dennis Ioakim Civil Engineer Managing Director ACE HELLAS SA

2. ARCHline XP - Scada Pro bidirectional Link: Two Programs, similar Interface, similar Functions SCADA PRO PRESENTATION

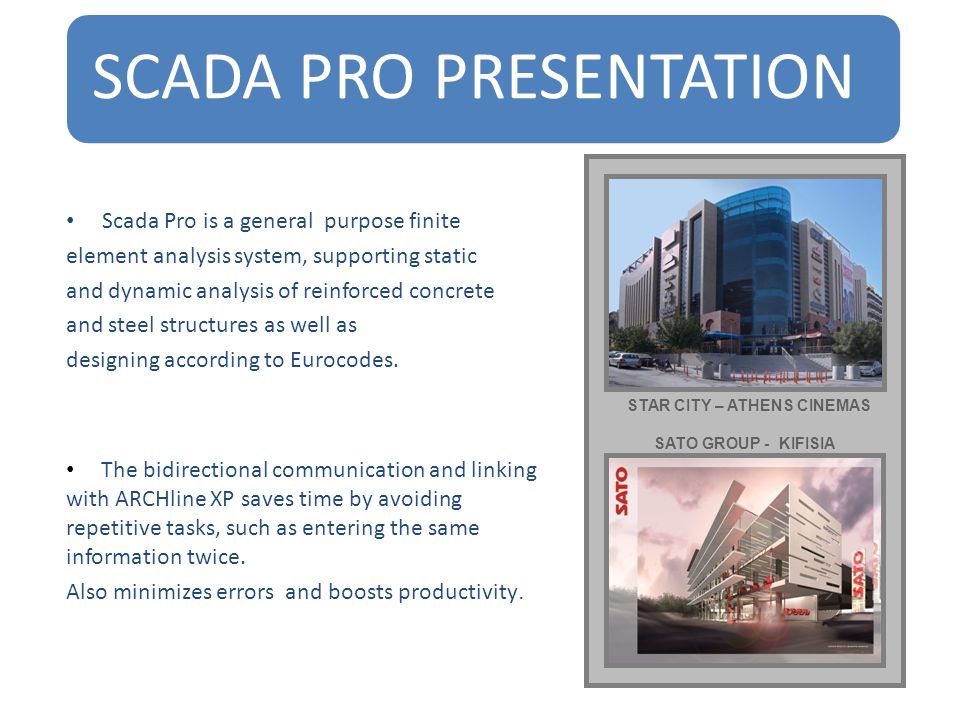

3. Scada Pro is a general purpose finite element analysis system, supporting static and dynamic analysis of reinforced concrete and steel structures as well as designing according to Eurocodes. The bidirectional communication and linking with ARCHline XP saves time by avoiding repetitive tasks, such as entering the same information twice. Also minimizes errors and boosts productivity. STAR CITY – ATHENS CINEMAS STAR CITY – ATHENS CINEMAS SATO GROUP - KIFISIA SATO GROUP - KIFISIA SCADA PRO PRESENTATION

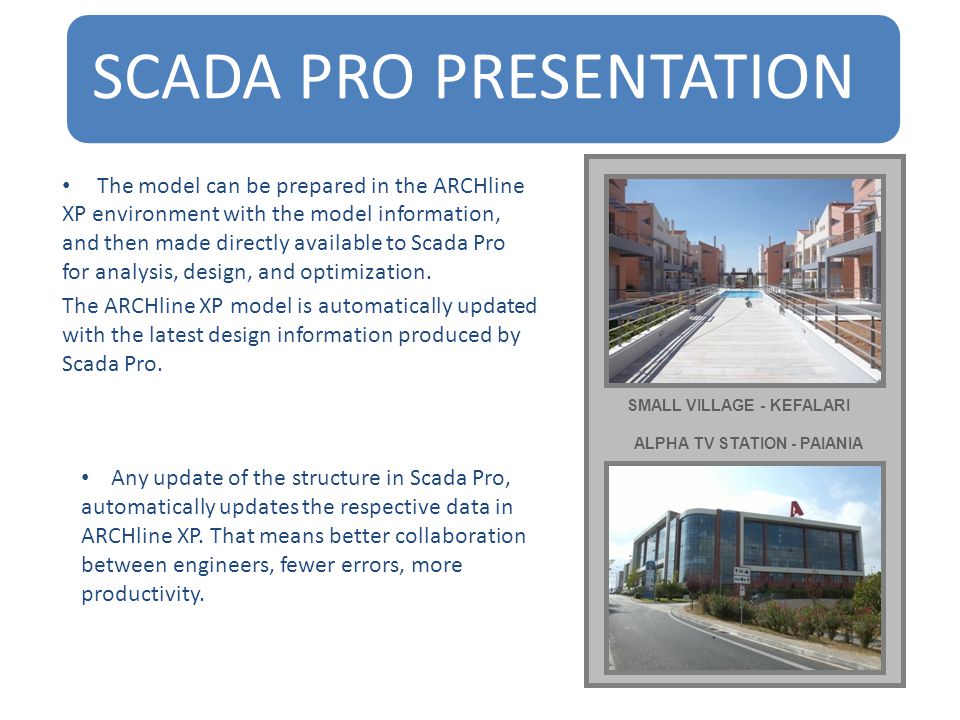

4. SMALL VILLAGE - KEFALARI SMALL VILLAGE - KEFALARI ALPHA TV STATION - PAIANIA The model can be prepared in the ARCHline XP environment with the model information, and then made directly available to Scada Pro for analysis, design, and optimization. The ARCHline XP model is automatically updated with the latest design information produced by Scada Pro. SCADA PRO PRESENTATION Any update of the structure in Scada Pro, automatically updates the respective data in ARCHline XP. That means better collaboration between engineers, fewer errors, more productivity.

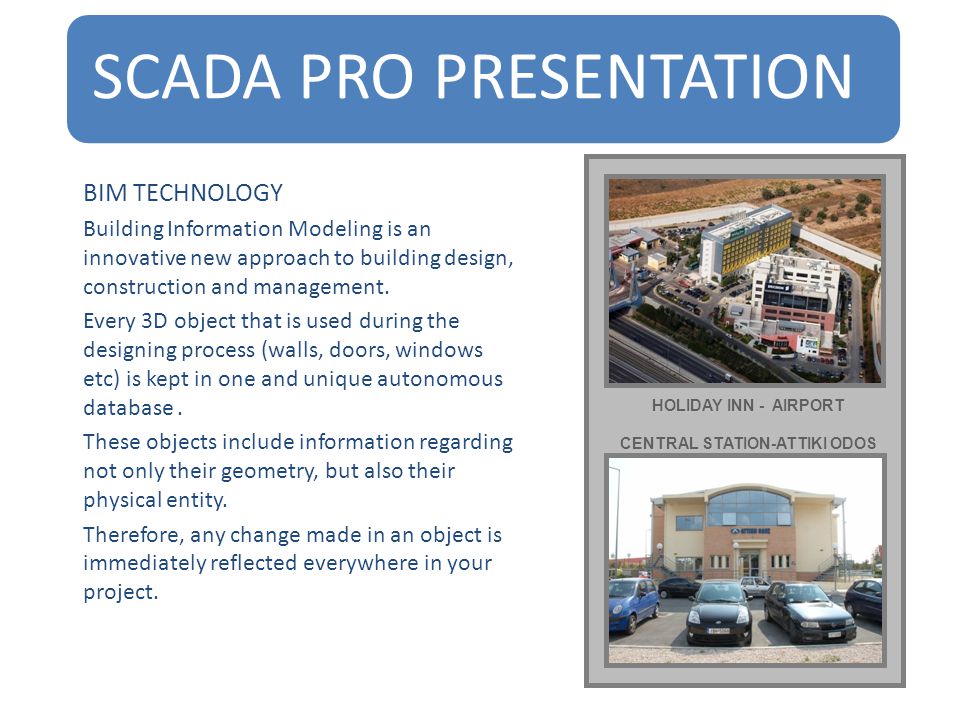

5. HOLIDAY INN - AIRPORT CENTRAL STATION-ATTIKI ODOS SCADA PRO PRESENTATION BIM TECHNOLOGY Building Information Modeling is an innovative new approach to building design, construction and management. Every 3D object that is used during the designing process (walls, doors, windows etc) is kept in one and unique autonomous database. These objects include information regarding not only their geometry, but also their physical entity. Therefore, any change made in an object is immediately reflected everywhere in your project.

6. SCADA Pro Construction Facility Management Architectural Design Energy Analysis & Certificate BIM Building Information Modeling Structural Analysis

7. Demonstration Video about bidirectional linking of ARCHline XP and Scada Pro

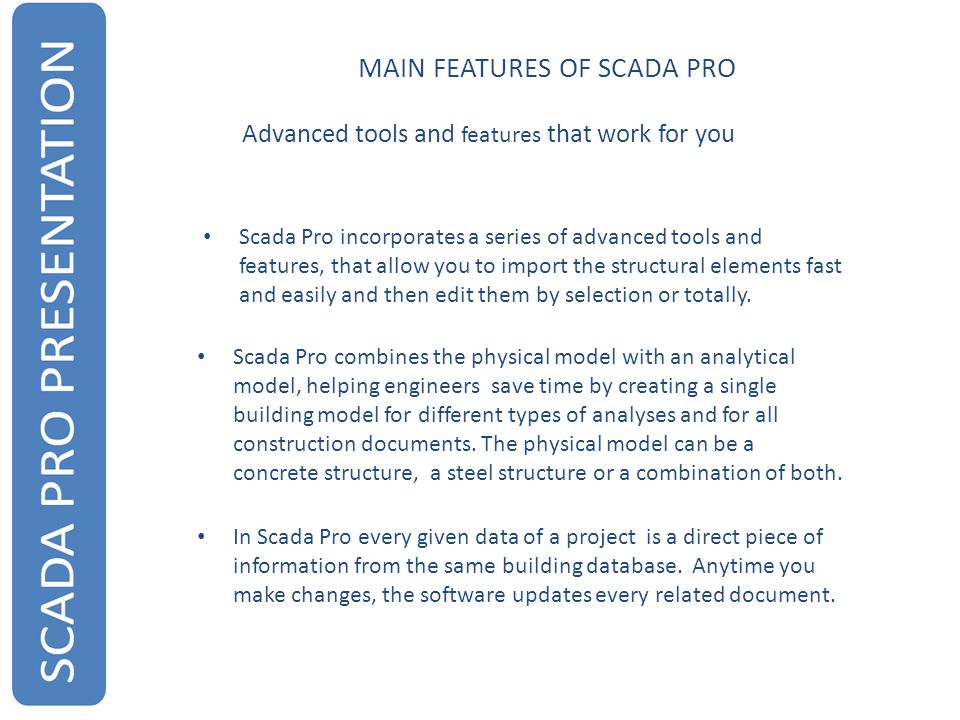

8. MAIN FEATURES OF SCADA PRO Advanced tools and features that work for you Scada Pro incorporates a series of advanced tools and features, that allow you to import the structural elements fast and easily and then edit them by selection or totally. Scada Pro combines the physical model with an analytical model, helping engineers save time by creating a single building model for different types of analyses and for all construction documents. The physical model can be a concrete structure, a steel structure or a combination of both. In Scada Pro every given data of a project is a direct piece of information from the same building database. Anytime you make changes, the software updates every related document.

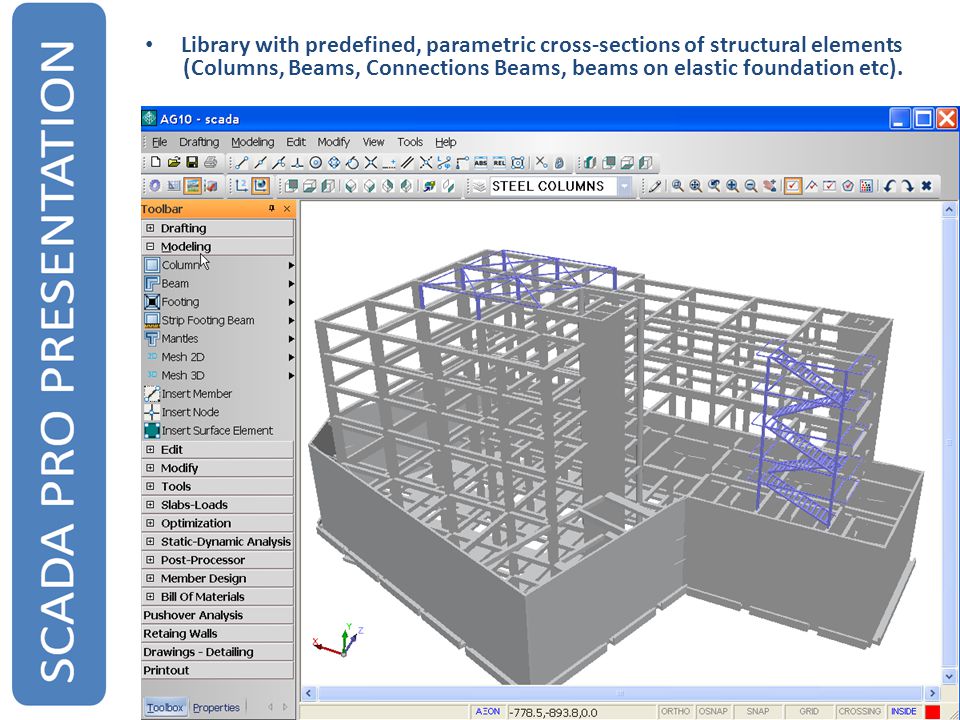

9. Library with predefined, parametric cross-sections of structural elements (Columns, Beams, Connections Beams, beams on elastic foundation etc).

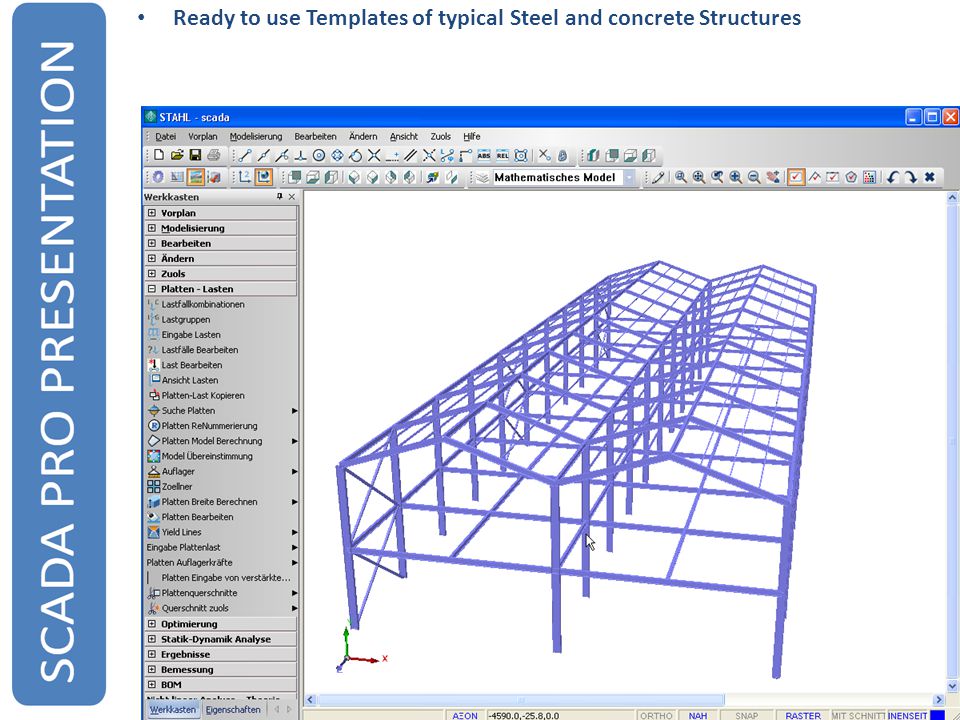

10. Ready to use Templates of typical Steel and concrete Structures

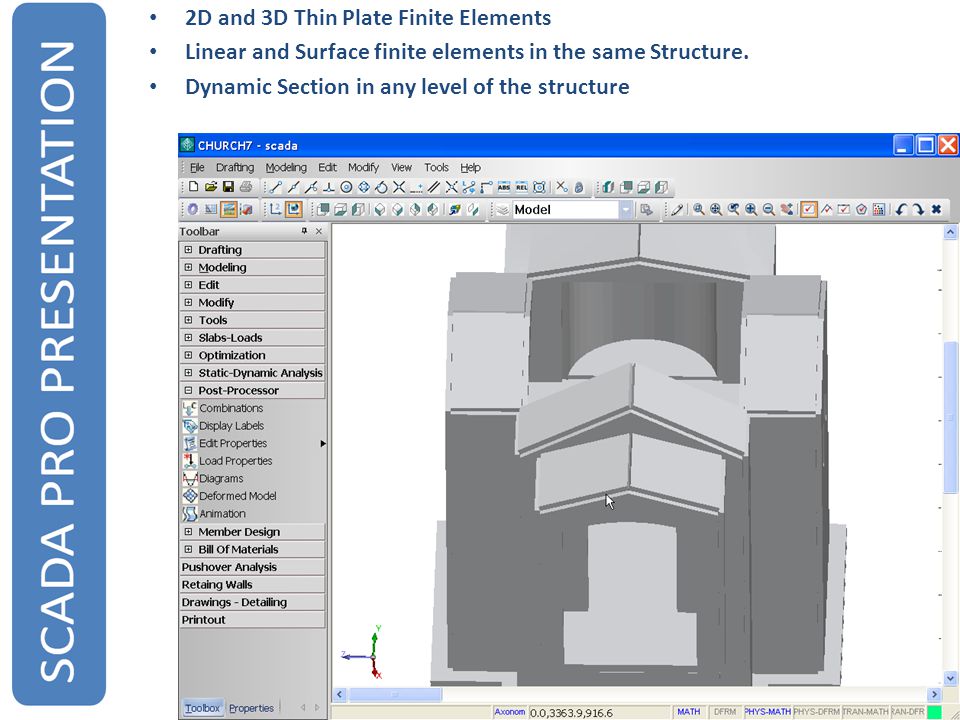

11. 2D and 3D Thin Plate Finite Elements Linear and Surface finite elements in the same Structure. Dynamic Section in any level of the structure

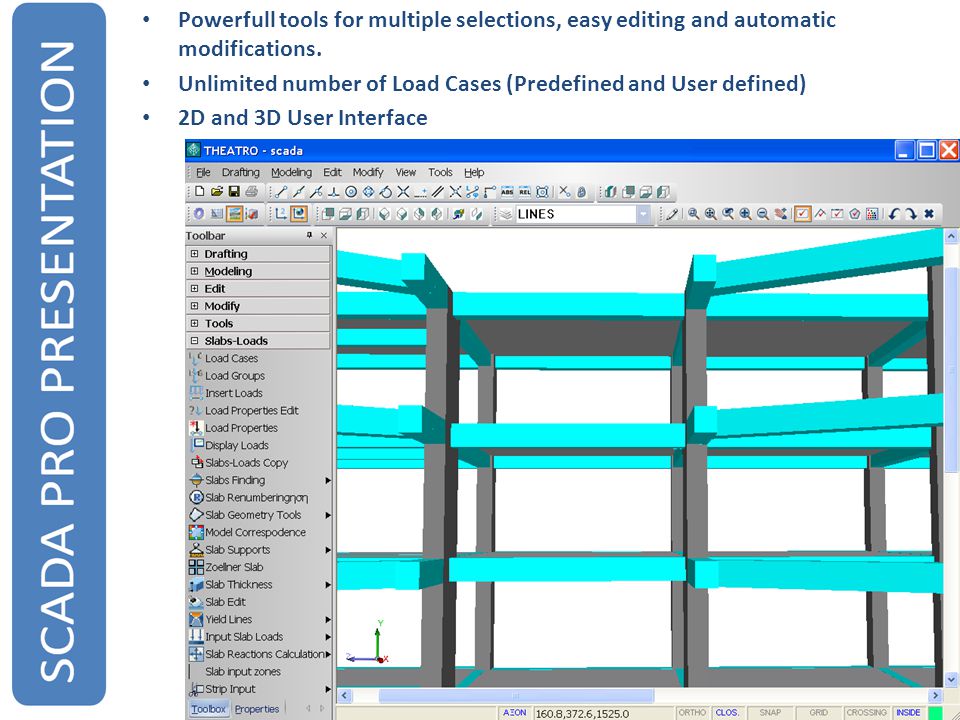

12. Powerfull tools for multiple selections, easy editing and automatic modifications. Unlimited number of Load Cases (Predefined and User defined) 2D and 3D User Interface

13. Deformed 3D Model - Animation - Static Analysis – Pushover Analysis – Dynamic Spectrum Analysis with Response Spectrum defined by the user Predefined Loading Combinations according to EC8. Easy Creation of combinations from the User.

14. 3D and 2D Diagrams and Stresses Animation

15. Design of Steel Members and Steel Connections with 3D graphical display.

16. Design of concrete cross-sections according to EC. Overall and selective calculation of Reinforcement. Easy to use editors per structural element for modifications of the reinforcement bars. Automatic creation of Drawings and structural details of the cross-sections. Detailed and Overall Bill of Materials. Complete and detailed Calculation’s Printout. Bidirectional communication with other applications compatible with AutoCAD and MS Office.

17. SCADA PRO PRESENTATION
