1. Random-Access Memory Distributed and Block RAM Discussion D10.3 Example 41

2. RAM

3. To run Core Generator, click Tools and CoreGen & Architecture Wizard

5. Then, select Memories & Storage Elements RAMs & ROMs Distributed Memory (ver 7.1) Select Project  Options

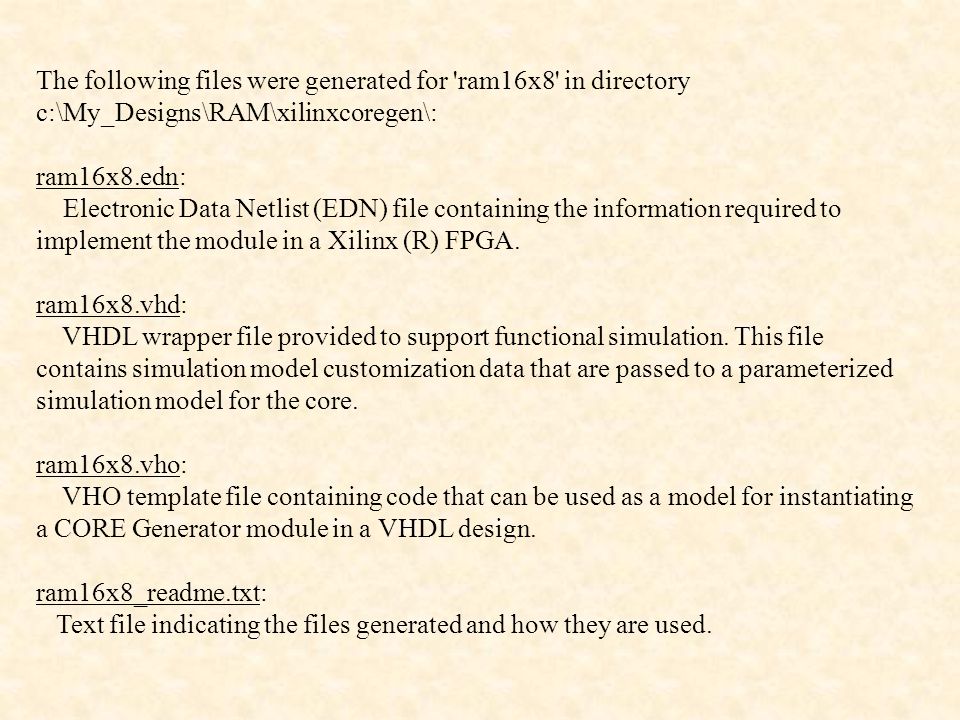

8. The following files were generated for 'ram16x8' in directory c:\My_Designs\RAM\xilinxcoregen\: ram16x8.edn: Electronic Data Netlist (EDN) file containing the information required to implement the module in a Xilinx (R) FPGA. ram16x8.vhd: VHDL wrapper file provided to support functional simulation. This file contains simulation model customization data that are passed to a parameterized simulation model for the core. ram16x8.vho: VHO template file containing code that can be used as a model for instantiating a CORE Generator module in a VHDL design. ram16x8_readme.txt: Text file indicating the files generated and how they are used.

9. State machine for writing to each location in the 16x8 RAM followed by reading the data from each location

10. -- Simple state machine for writing to and reading from RAM 16x8 library IEEE; use IEEE.STD_LOGIC_1164.ALL; use IEEE.STD_LOGIC_ARITH.ALL; use IEEE.STD_LOGIC_UNSIGNED.ALL; entity RAMsm is port ( clk : in std_logic; clr : in std_logic; we : out std_logic; data : out std_logic_vector(7 downto 0); addr : out std_logic_vector(3 downto 0) ); end RAMsm; RAMsm.vhd

11. architecture RAMsm of RAMsm is type state_type is (start, write, clear, read); signal present_state, next_state: state_type; signal addrcnt : std_logic_vector(3 downto 0); begin sreg: process(clk, clr) begin if clr = '1' then present_state <= start; elsif clk'event and clk = '1' then present_state <= next_state; case present_state is when start => addrcnt <= X"0"; --clear address variable when write => addrcnt <= addrcnt + 1;--incr address var when clear => addrcnt <= X"0"; --clear address variable when read => addrcnt <= addrcnt + 1;--incr address var when others => null; end case; end if; end process;

12. C1: process(present_state, addrcnt) begin case present_state is when start => next_state <= write; when write => if addrcnt < 15 then next_state <= write; else next_state <= clear; end if; when clear => next_state <= read; when read => if addrcnt < 15 then next_state <= read; else next_state <= start; end if; when others => null; end case; end process;

13. C2: process(present_state, addrcnt) begin we <= '0'; if present_state = write then we <= '1'; end if; end process; addr <= addrcnt; data <= "0000" & addrcnt; -- connect data to addr since we want to write -- the addr as the data for each location end RAMsm;

14. RAMtest.vhd (top-level) -- Top level for RAM16x8 and the simple RAM test state machine library IEEE; use IEEE.STD_LOGIC_1164.ALL; use IEEE.STD_LOGIC_ARITH.ALL; use IEEE.STD_LOGIC_UNSIGNED.ALL; entity RAMtest is port ( clk : in std_logic; clr : in std_logic; RAMdata : out std_logic_vector(7 downto 0) ); end RAMtest; architecture RAMtest of RAMtest is component ram16x8 is port ( A: in std_logic_vector(3 downto 0); CLK: in std_logic; D: in std_logic_vector(7 downto 0); WE: in std_logic; SPO: out std_logic_vector(7 downto 0)); end component;

15. component RAMsm is port ( clk : in std_logic; clr : in std_logic; we : out std_logic; data : out std_logic_vector(7 downto 0); addr : out std_logic_vector(3 downto 0)); end component; signal data : std_logic_vector(7 downto 0); signal addr : std_logic_vector(3 downto 0); signal we : std_logic; begin RAM: ram16x8 port map( A => addr, CLK => clk, D => data, WE => we, SPO => RAMdata); SM: RAMsm port map( clk => clk, clr => clr, we => we, data => data, addr => addr); end RAMtest;

16. Simulation for the test state machine, RAMsm Simulation for the RAM test component, RAMtest

17. Design Summary -------------- Logic Utilization: Number of Slice Flip Flops: 6 out of 3,840 1% Number of 4 input LUTs: 8 out of 3,840 1% Logic Distribution: Number of occupied Slices: 11 out of 1,920 1% Number of Slices containing only related logic: 11 out of 11 100% Number of Slices containing unrelated logic: 0 out of 11 0% Total Number 4 input LUTs: 16 out of 3,840 1% Number used as logic: 8 Number used as 16x1 RAMs: 8 Number of bonded IOBs: 10 out of 173 5% Number of GCLKs: 1 out of 8 12% Number of RPM macros: 1 Total equivalent gate count for design: 1,123 Additional JTAG gate count for IOBs: 480 Peak Memory Usage: 128 MB Design Summary for RAMtest including the 16x8 Distributed RAM

18. Using Block RAM to implement a 16x8 RAM module

19. ... component ram16x8block IS port ( addr: IN std_logic_VECTOR(3 downto 0); clk: IN std_logic; din: IN std_logic_VECTOR(7 downto 0); dout: OUT std_logic_VECTOR(7 downto 0); we: IN std_logic); END component;... RAM: ram16x8block port map( addr => addr, clk => clk, din => data, we => we, dout => RAMdata);... Component declaration and port map for the 16x8 Block RAM in RAMtest.vhd

20. Simulation for the Block RAM test component, RAMtest

21. Design Summary -------------- Logic Utilization: Number of Slice Flip Flops: 6 out of 3,840 1% Number of 4 input LUTs: 8 out of 3,840 1% Logic Distribution: Number of occupied Slices: 7 out of 1,920 1% Number of Slices containing only related logic: 7 out of 7 100% Number of Slices containing unrelated logic: 0 out of 7 0% Total Number of 4 input LUTs: 8 out of 3,840 1% Number of bonded IOBs: 10 out of 173 5% Number of Block RAMs: 1 out of 12 8% Number of GCLKs: 1 out of 8 12% Total equivalent gate count for design: 65,635 Additional JTAG gate count for IOBs: 480 Peak Memory Usage: 129 MB Design Summary for RAMtest including the 16x8 Block RAM
