1. Methodology from Chaos in IC Implementation Kwangok Jeong * and Andrew B. Kahng *,** * ECE Dept., UC San Diego ** CSE Dept., UC San Diego

2. (2)UCSD VLSI CAD Laboratory - ISQED 2010, March 24, 2010 Outline Motivation Assessment of “Chaos” Exploitation of “Chaotic” behavior Conclusion

3. (3)UCSD VLSI CAD Laboratory - ISQED 2010, March 24, 2010 Motivation Chip implementation flow is a “Chaos Machine” (Ward Vercruysse, Sun Microsystems, ISPD97 talk) Hard to predict behavior of back-end implementation “Inherent noise” (Kahng/Mantik, ISQED-2001) Equivalent inputs to tools result in different outputs Algorithms and EDA tools are not deterministic or predictable Most design optimization problems are NP-hard  Heuristic-based approaches Physical phenomena are too complex  Simplified models  How to exploit “chaotic behavior”

4. (4)UCSD VLSI CAD Laboratory - ISQED 2010, March 24, 2010 Scope of This Work We assess “chaotic” behavior in design process When it occurs in design processes Post-synthesis vs. post-routing Place- and-route tools’ view vs. signoff tools view What user inputs affect it most Input parameter sensitivity to synthesis tools Input parameter sensitivity to place-and-route tools We propose a practical method to exploit “chaos” in EDA tools, based on empirical analyses Sensitivity of input parameters to outcomes  Find safe/easy knobs that don’t change netlists/libraries Best-of-k: multi-start, multi-run methodologies

5. (5)UCSD VLSI CAD Laboratory - ISQED 2010, March 24, 2010 Outline Motivation Assessment of “Chaos” Exploitation of “Chaotic” behavior Conclusion

6. (6)UCSD VLSI CAD Laboratory - ISQED 2010, March 24, 2010 Analysis 1: Synthesis vs. Place-and-Route How strongly correlated are post-synthesis netlist quality and post-routing design quality? Timing quality of synthesized netlists vs. timing quality after placement and routing, and signoff Clock used @ synthesis (ns) WNS with 2ns clock after synthesis Clock used @ P&R WNS (ns) seen @ P&R WNS (ns) @ signoff 1.600.4002.00.171-0.249 1.800.2002.00.088-0.196 1.900.1012.00.112-0.195 1.950.0512.00.074-0.449 2.000.0012.00.088-0.252 2.10-0.0972.00.088-0.214 2.20-0.1962.00.120-0.281 2.40-0.3952.00.162-0.081 Worst quality netlist can result in best quality! *AES design

7. (7)UCSD VLSI CAD Laboratory - ISQED 2010, March 24, 2010 Analysis 2: Implementation Vs. Signoff Timing miscorrelation Delay calculation RC parasitic ~200ps underestimation Worst negative slack comparison from 29 testcases WNS (ns) Imp.Signoff AES0.1440.146 JPEG0.1290.095 LSU-0.002-0.005 EXU-0.171-0.183 Implementation Signoff How strongly correlated are P&R and signoff ?

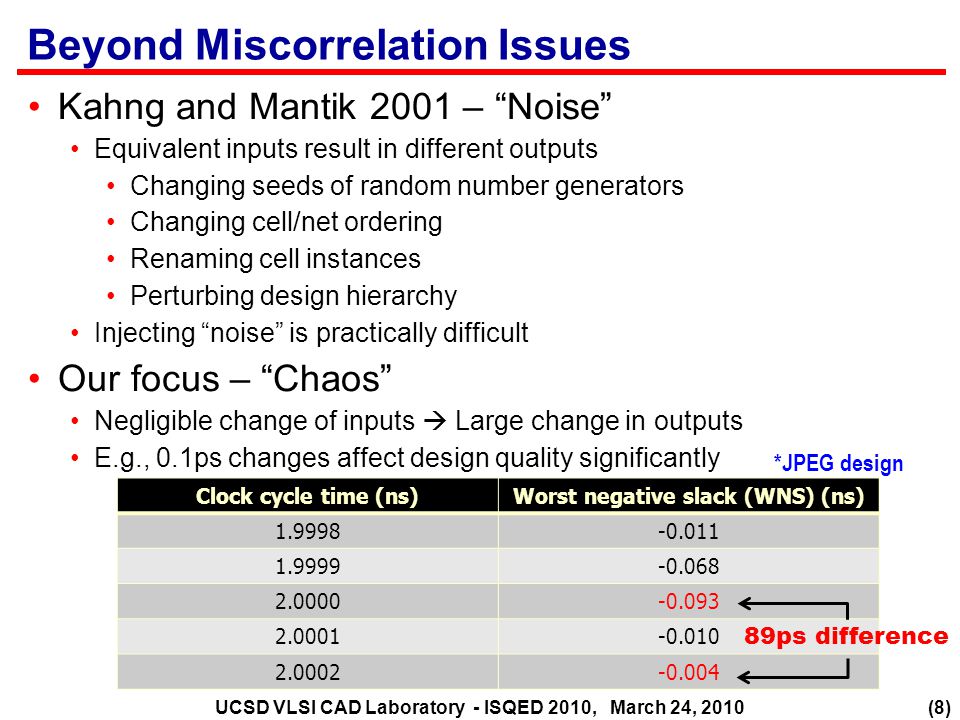

8. (8)UCSD VLSI CAD Laboratory - ISQED 2010, March 24, 2010 Beyond Miscorrelation Issues Kahng and Mantik 2001 – “Noise” Equivalent inputs result in different outputs Changing seeds of random number generators Changing cell/net ordering Renaming cell instances Perturbing design hierarchy Injecting “noise” is practically difficult Our focus – “Chaos” Negligible change of inputs  Large change in outputs E.g., 0.1ps changes affect design quality significantly Clock cycle time (ns)Worst negative slack (WNS) (ns) 1.9998-0.011 1.9999-0.068 2.0000-0.093 2.0001-0.010 2.0002-0.004 *JPEG design 89ps difference

9. (9)UCSD VLSI CAD Laboratory - ISQED 2010, March 24, 2010 What Inputs Can Be Perturbed? Tool-specific options: command options to turn on/off Not our concern, since these are tool-dependent Design-specific constraints: These knobs do not change design signatures  easy and safe knobs to perturb Timing-Related Constraints Clock cycle time (T)-3 / -2 / -1 / 0 / 1 / 2 / 3 ps Clock uncertainty (S)-3 / -2 / -1 / 0 / 1 / 2 / 3 ps Input/output delay (B)-3 / -2 / -1 / 0 / 1 / 2 / 3 ps Floorplan-Related Constraints Utilization (U)-3 / -2 / -1 / 0 / 1 / 2 / 3 % Aspect ratio (A)-0.03 / -0.02 / -0.01 / 0 / 0.01 / 0.02 / 0.03

10. (10)UCSD VLSI CAD Laboratory - ISQED 2010, March 24, 2010 Testbed Designs Implemented with TSMC 65nm GPLUS library Tools BlockSourceClock (ns)#CellsArea (um 2 ) AESOpencores1.72243848957 JPEGOpencores2.269845178696 LSUOpenSparcT11.224945113479 EXUOpenSparcT11.22038269780 ToolVendorPurpose Design CompilerSynopsysLogic synthesis RTL CompilerCadenceLogic synthesis SOC EncounterCadencePlace-and-route AstroSynopsysPlace-and-route STAR-RCXTSynopsysSignoff RC extraction PrimeTime-SISynopsysSignoff STA

11. (11)UCSD VLSI CAD Laboratory - ISQED 2010, March 24, 2010 Analysis 3: Noise in Synthesis – Timing What chaotic behavior is associated with input parameters of vendor synthesis tools? Ideally, results should not vary significantly However, worst negative slack can change by up to 52ps WNS (ns) (DesignCompiler)

12. (12)UCSD VLSI CAD Laboratory - ISQED 2010, March 24, 2010 Analysis 3: Noise in Synthesis – Area What chaotic behavior is associated with input parameters of vendor synthesis tools? Synthesized area can change by up to 6% Normalized Area (%) (DesignCompiler)

13. (13)UCSD VLSI CAD Laboratory - ISQED 2010, March 24, 2010 Analysis 4: Noise in P&R Tools What chaotic behavior is associated with input parameters of vendor place-and-route tools? Noise at place-and-route stage is even worse! WNS and TNS can change by up to 165ps and 46ns Astro WNS (ns)

14. (14)UCSD VLSI CAD Laboratory - ISQED 2010, March 24, 2010 Analysis 4: Noise in P&R Tools What chaotic behavior is associated with input parameters of vendor place-and-route tools? Noise at place-and-route stage is even worse! WNS and TNS can change by up to 190ps and 69ns Area can change by up to 16.4% SOC Encounter WNS (ns)

15. (15)UCSD VLSI CAD Laboratory - ISQED 2010, March 24, 2010 Outline Motivation Assessment of “Chaos” Exploitation of “Chaotic” behavior Conclusion

16. (16)UCSD VLSI CAD Laboratory - ISQED 2010, March 24, 2010 Exploiting Noise in Design Flow Multi-start and multi-run When there are idle machines in the compute farm  Multi-start: After running on k distinct machines with ignorable perturbations of inputs, choose best out of k different solutions When there are remaining timing-to-market  Multi-run: After running k sequential jobs with ignorable perturbations of inputs, choose best out of k different solutions Best-of-k method Find the best solution from many trials Larger k  better best solution How to determine k that produces predictably good results?

17. (17)UCSD VLSI CAD Laboratory - ISQED 2010, March 24, 2010 Best-of-k Using Sampling Which k results in consistent, reasonably good solution? To obtain statistics: “set of k trials” should be performed a large number (N) of times, for each value of k Naive procedure: for each k, Perform k trials by N times s k  average of best solutions For large N, s k is the expected (average) best solution, when we perform k trials Example: k = {1, 2, 3, 4, 5, 10}, N = 100  2,500 separate runs Many runs are required! Best-of-k sampling procedure: // find “virtual” solution space Perform N’ trials (N’ < N) Record solutions  set of solutions S // best-of-k sampling for each k sample k solutions out of S, N different times s k  average of best solutions Example: N’ = 50 (Sampling from S does not add cost)

18. (18)UCSD VLSI CAD Laboratory - ISQED 2010, March 24, 2010 Application of Best-of-k Sampling(1) Find best input parameters to perturb using best-of-k sampling k = 1, 2, 3, …, 10, and N =100  5,500 exp. in naive procedure S = 7 solutions from each of T, S, B, A, U perturbations Quality rank of input parameters in P&R E.g.) AES: clock cycle (T) or input/output delay (B) perturbations result in best solution quality *AES design *EXU design

19. (19)UCSD VLSI CAD Laboratory - ISQED 2010, March 24, 2010 Application of Best-of-k Sampling (2) Solution quality versus number of trials “k” (with N = 100) Average solution quality approaches the best solution as “k” increases Average solution quality is significantly better than worst possible solution quality  best-of-k can avoid bad luck Best-of-3 shows reasonably good solutions AES JPEG LSU EXU

20. (20)UCSD VLSI CAD Laboratory - ISQED 2010, March 24, 2010 Conclusion and Ongoing Work Experimental assessment of “chaotic” behavior in commercial EDA tools Miscorrelation issues between design stages are well-known Exploiting chaos: Intentional negligible input perturbations can significantly change outputs Proposed a methodology to exploit the chaotic tool behavior “best-of-k”: multi-start / multi-run methodology Efficient sampling method to determine the best number of trials We also find best input parameters to perturb using best-of-k sampling Ongoing work Analysis of potential advantages of “chaos” in advanced physical synthesis tools to reduce miscorrelation-related issues Evaluation of the benefits of chaos in more advanced signoff methodologies (signal integrity-enabled, path-based STA)

21. Thank You!

22. Backup

23. (23)UCSD VLSI CAD Laboratory - ISQED 2010, March 24, 2010 Potential Cause 1 Miscorrelation between synthesis and place-and- route Rank correlation of timing critical paths between synthesis and placement: 0.421 Not critical at synthesis, Critical at placement *AES design

24. (24)UCSD VLSI CAD Laboratory - ISQED 2010, March 24, 2010 Potential Cause 2: Parasitic Miscorrelation Miscorrelation in delay calculation With same RC parasitic file (.spef) May not be a major problem: A few tens of picoseconds difference Miscorrelation in RC extraction Implementation tool can underestimate capacitance by 18.6% Implementation Signoff WNS (ns) Imp.Signoff AES0.1440.146 JPEG0.1290.095 LSU-0.002-0.005 EXU-0.171-0.183

25. (25)UCSD VLSI CAD Laboratory - ISQED 2010, March 24, 2010 Inherent Noise: Detailed Results Noise is really random!  Difficult to predict Red texts are the best in each group DesignCriticality Clock (ns) SOCEAstroBlastFusion With original Clock Setup WNS (SOCE) (ns) WNS (PT) (ns) TNS (PT) (ns) WNS (Astro) (ns) WNS (PT) (ns) TNS (PT) (ns) WNS(BF) (ns) WNS (PT) (ns) TNS (PT) (ns) AES Tight clock (original 2.2ns) 2.1998-0.407-0.430-81.124-0.241-0.487-94.822-0.077-0.391-60.156 2.1999-0.392-0.420-73.533-0.218-0.512-89.316-0.067-0.397-58.728 2.2000-0.399-0.457-85.641-0.255-0.569-100.956-0.081-0.331-59.985 2.2001-0.436-0.439-82.053-0.280-0.535-110.341-0.074-0.442-61.048 2.2002-0.406-0.441-82.576-0.246-0.490-92.196-0.067-0.384-51.980 Loose clock (original 3.0ns) 2.9998-0.026-0.119-1.9650.040-0.280-35.4820.000-0.342-44.778 2.9999-0.091-0.095-2.1370.064-0.325-34.6990.001-0.469-46.154 3.0000-0.046-0.096-3.4990.049-0.346-36.565-0.001-0.448-48.369 3.0001-0.049-0.112-1.9720.083-0.239-23.040-0.008-0.373-44.683 3.0002-0.061-0.078-1.7180.057-0.287-31.9850.000-0.421-48.042 JPEG Tight clock (original 1.3ns) 1.2998-0.294-0.315-625.434-0.265-0.352-744.637-0.228-0.324-501.295 1.2999-0.263-0.281-566.317-0.240-0.418-701.361-0.166-0.266-410.594 1.3000-0.257-0.258-537.580-0.256-0.395-733.841-0.244-0.338-567.228 1.3001-0.249-0.303-561.013-0.239-0.321-719.196-0.202-0.304-475.253 1.3002-0.298-0.514-757.272-0.229-0.346-731.566-0.197-0.277-471.392 Loose clock (original 2.0ns) 1.9998-0.005-0.011 0.101-0.140-0.5200.000-0.216-11.407 1.99990.008-0.068 0.101-0.140-0.5200.000-0.167-12.021 2.0000-0.007-0.093-0.1370.101-0.131-1.240-0.002-0.196-15.189 2.0001-0.001-0.010 0.096-0.098-0.4490.001-0.181-16.782 2.00020.008-0.004-0.0060.099-0.066-0.279-0.006-0.178-12.220
