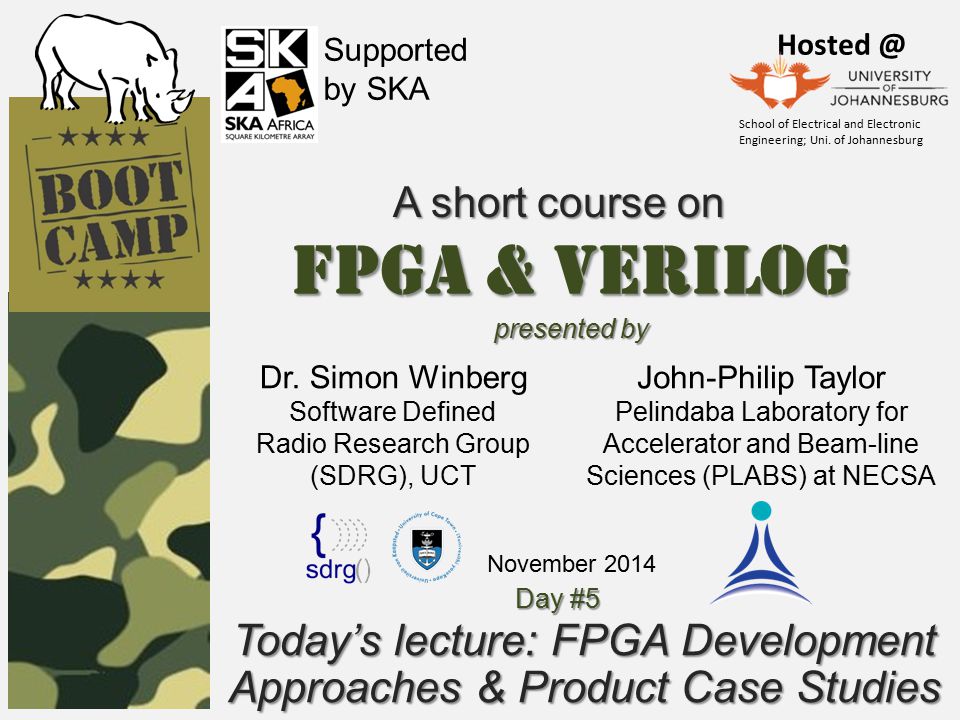

1. FPGA & Verilog A short course on Hosted @ School of Electrical and Electronic Engineering; Uni. of Johannesburg presented by Dr. Simon Winberg Software Defined Radio Research Group (SDRG), UCT John-Philip Taylor Pelindaba Laboratory for Accelerator and Beam-line Sciences (PLABS) at NECSA November 2014 Day #5 Today’s lecture: FPGA Development Approaches & Product Case Studies Supported by SKA

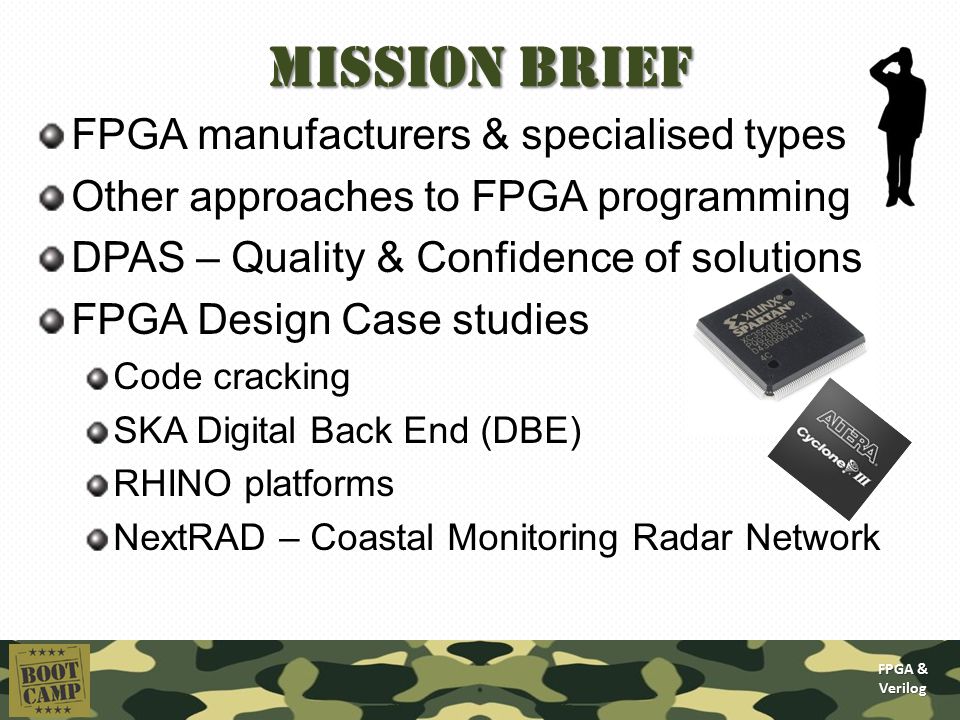

2. FPGA & Verilog Mission Brief FPGA manufacturers & specialised types Other approaches to FPGA programming DPAS – Quality & Confidence of solutions FPGA Design Case studies Code cracking SKA Digital Back End (DBE) RHINO platforms NextRAD – Coastal Monitoring Radar Network

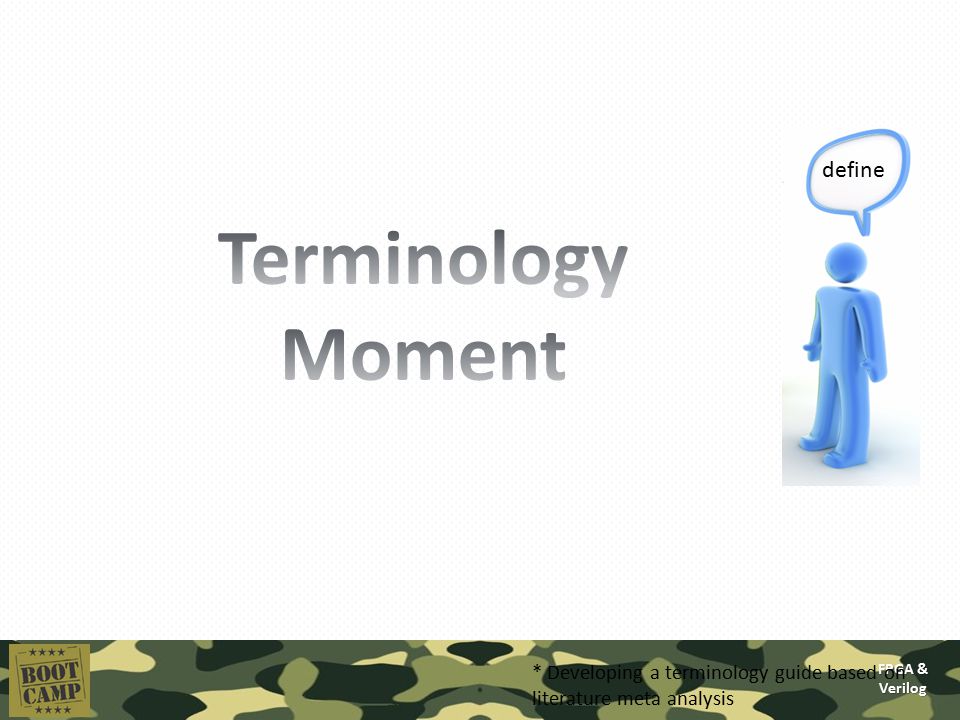

3. FPGA & Verilog * Developing a terminology guide based on literature meta analysis define

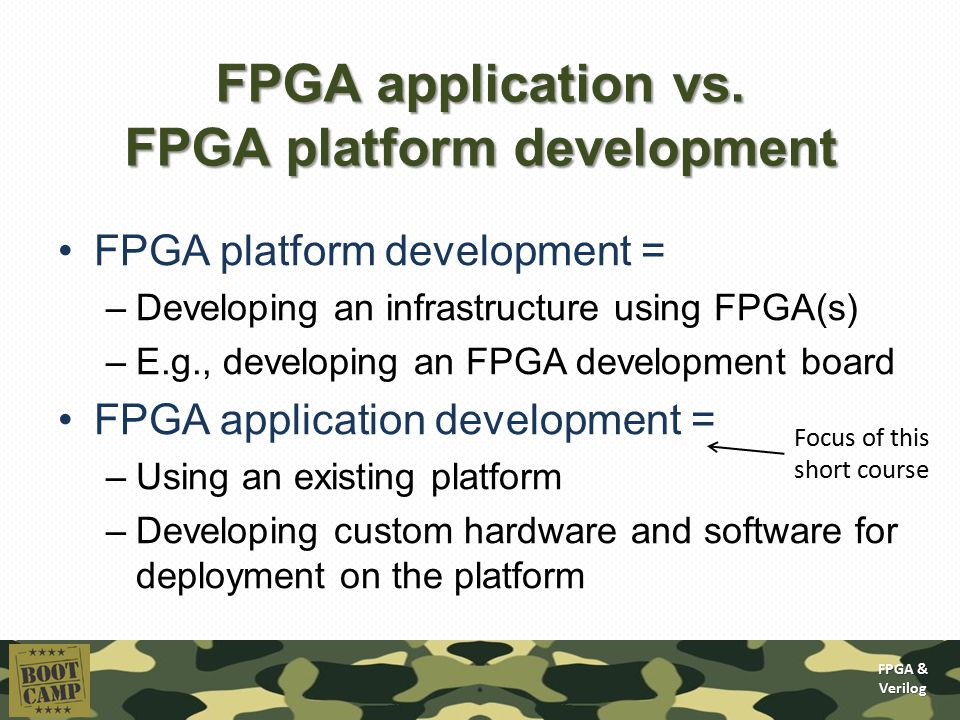

4. FPGA & Verilog FPGA application vs. FPGA platform development FPGA platform development = –Developing an infrastructure using FPGA(s) –E.g., developing an FPGA development board FPGA application development = –Using an existing platform –Developing custom hardware and software for deployment on the platform Focus of this short course

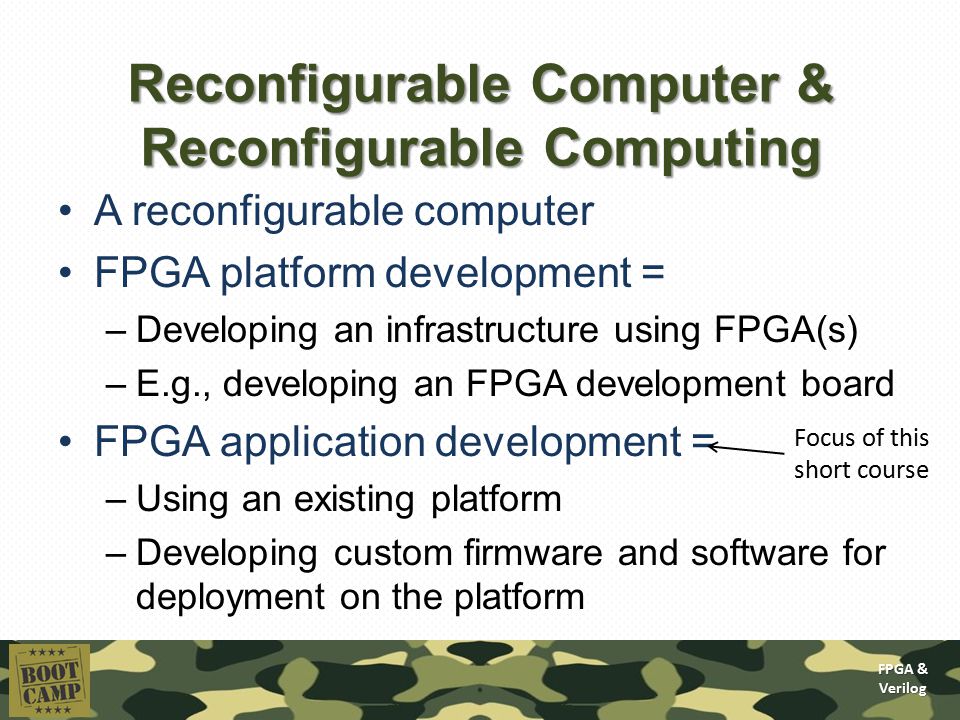

5. FPGA & Verilog Reconfigurable Computer & Reconfigurable Computing A reconfigurable computer FPGA platform development = –Developing an infrastructure using FPGA(s) –E.g., developing an FPGA development board FPGA application development = –Using an existing platform –Developing custom firmware and software for deployment on the platform Focus of this short course

6. FPGA & Verilog

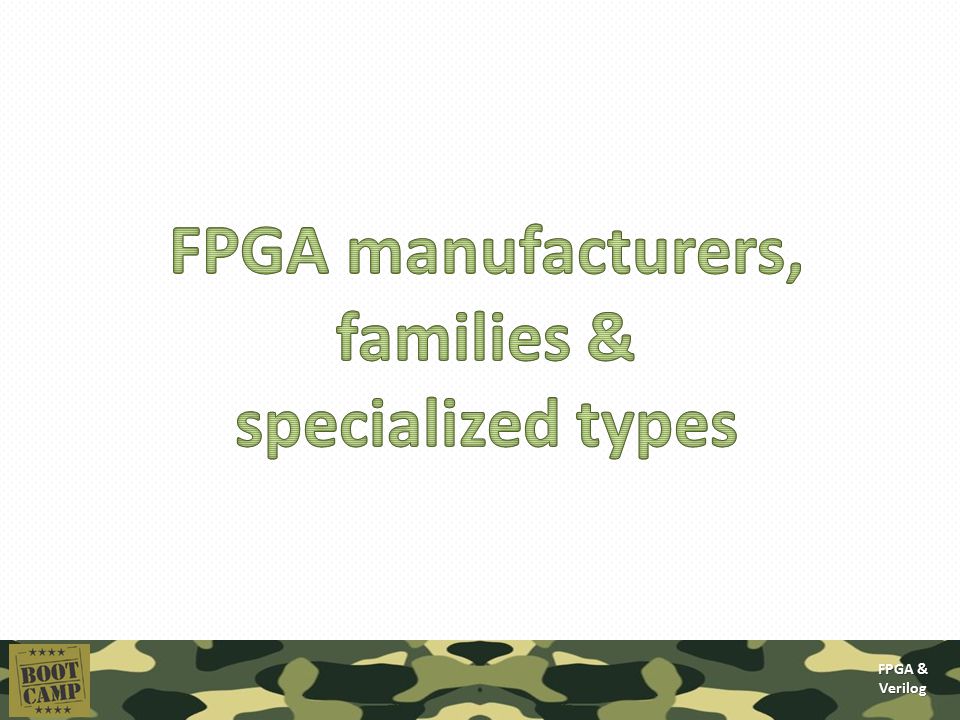

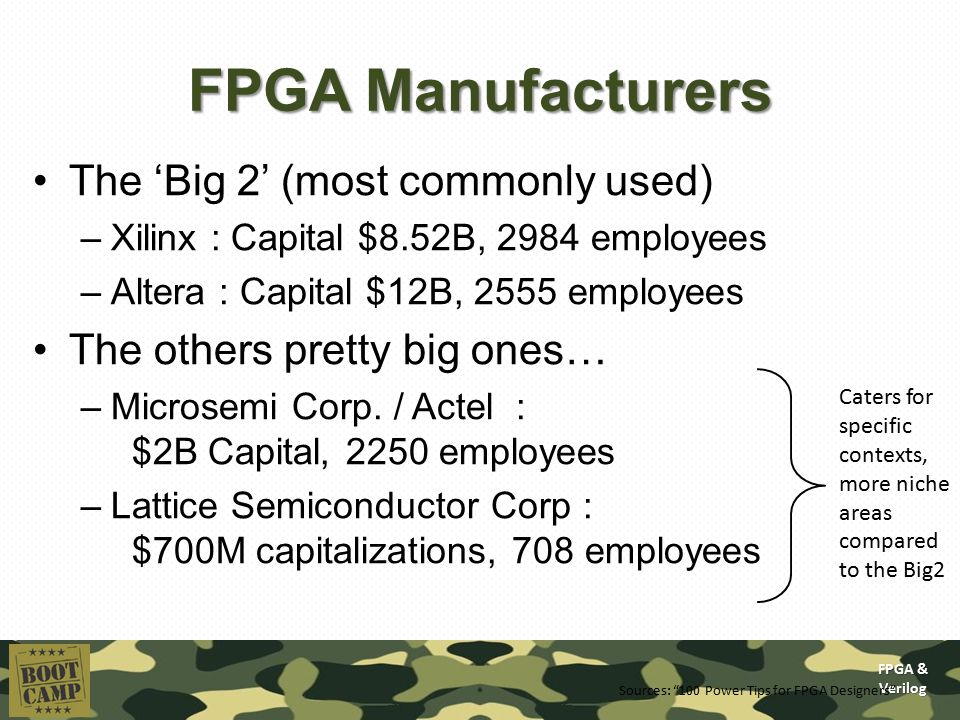

7. Verilog FPGA Manufacturers The ‘Big 2’ (most commonly used) –Xilinx : Capital $8.52B, 2984 employees –Altera : Capital $12B, 2555 employees The others pretty big ones… –Microsemi Corp. / Actel : $2B Capital, 2250 employees –Lattice Semiconductor Corp : $700M capitalizations, 708 employees Sources: “100 Power Tips for FPGA Designers” Caters for specific contexts, more niche areas compared to the Big2

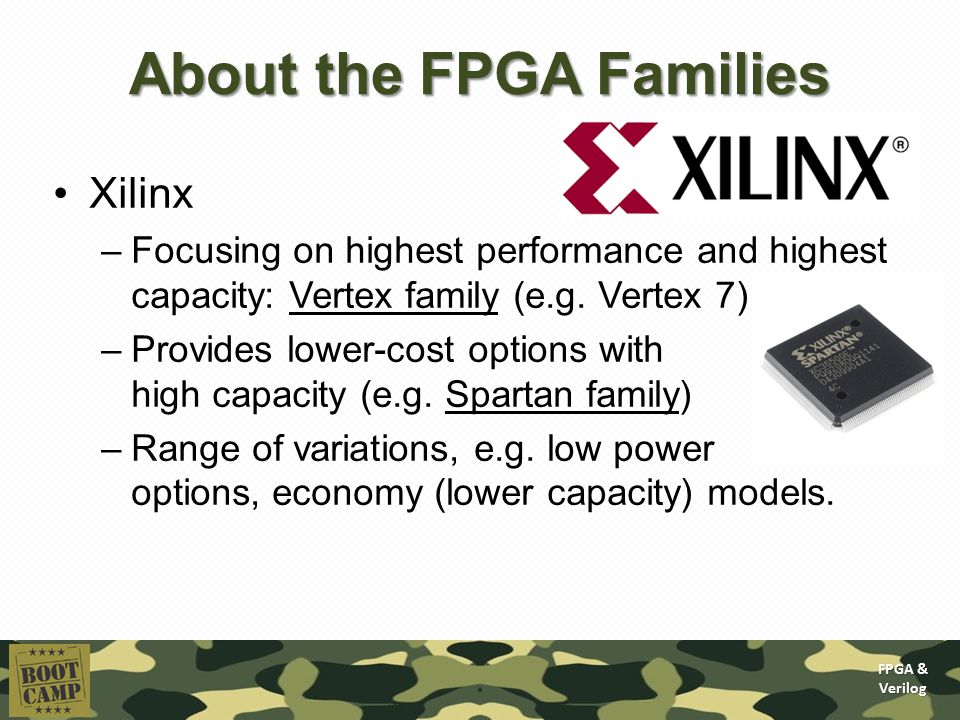

8. FPGA & Verilog About the FPGA Families Xilinx –Focusing on highest performance and highest capacity: Vertex family (e.g. Vertex 7) –Provides lower-cost options with high capacity (e.g. Spartan family) –Range of variations, e.g. low power options, economy (lower capacity) models.

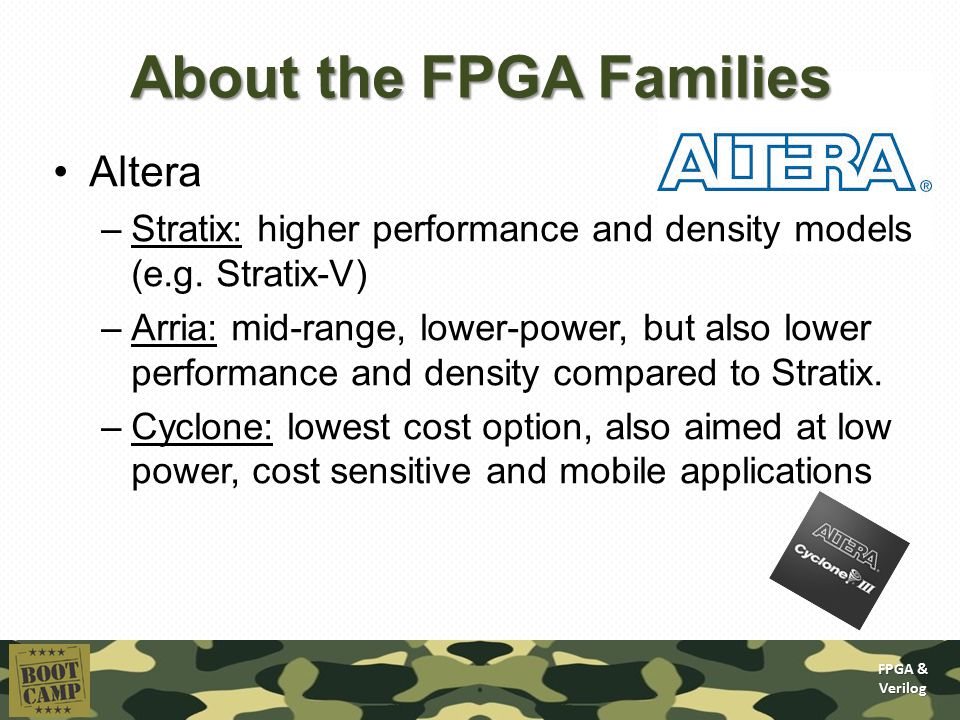

9. FPGA & Verilog About the FPGA Families Altera –Stratix: higher performance and density models (e.g. Stratix-V) –Arria: mid-range, lower-power, but also lower performance and density compared to Stratix. –Cyclone: lowest cost option, also aimed at low power, cost sensitive and mobile applications

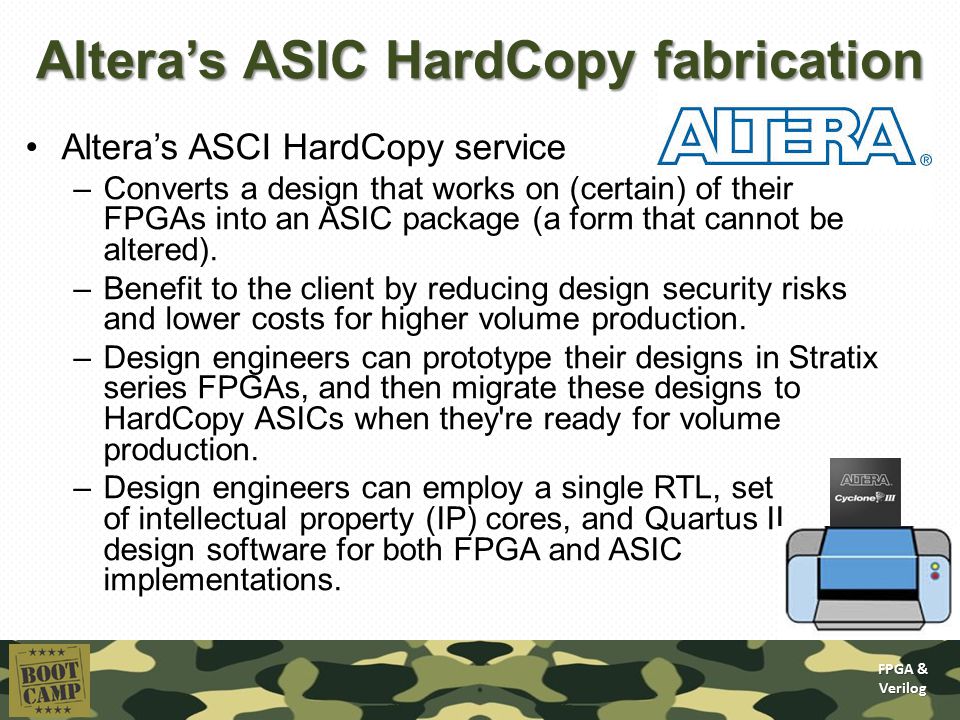

10. FPGA & Verilog Altera’s ASIC HardCopy fabrication Altera’s ASCI HardCopy service –Converts a design that works on (certain) of their FPGAs into an ASIC package (a form that cannot be altered). –Benefit to the client by reducing design security risks and lower costs for higher volume production. –Design engineers can prototype their designs in Stratix series FPGAs, and then migrate these designs to HardCopy ASICs when they're ready for volume production. –Design engineers can employ a single RTL, set of intellectual property (IP) cores, and Quartus II design software for both FPGA and ASIC implementations.

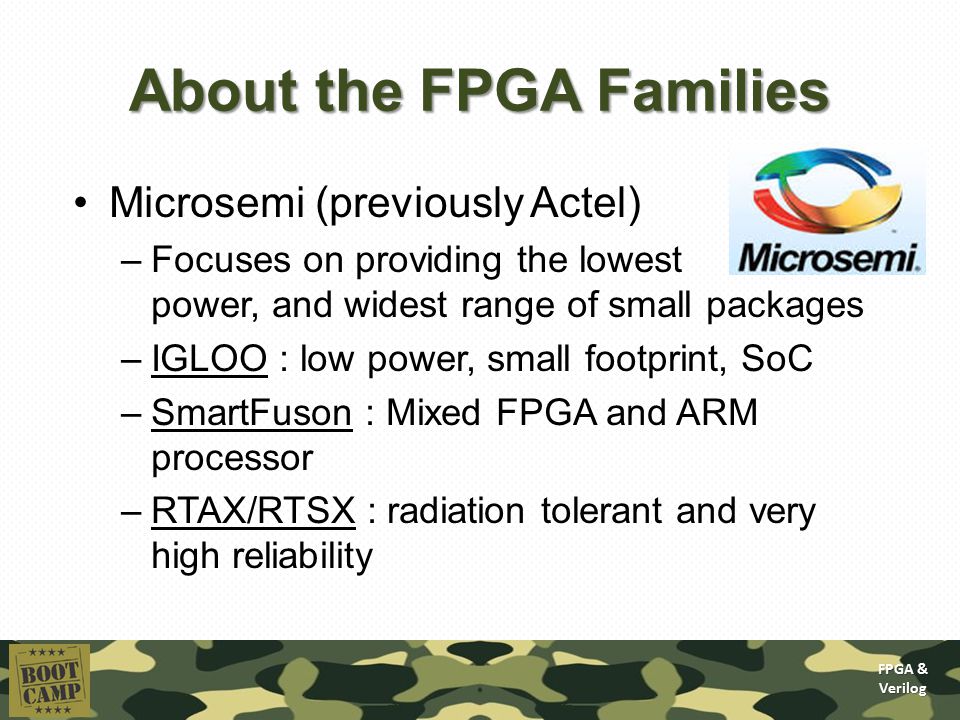

11. FPGA & Verilog About the FPGA Families Microsemi (previously Actel) –Focuses on providing the lowest power, and widest range of small packages –IGLOO : low power, small footprint, SoC –SmartFuson : Mixed FPGA and ARM processor –RTAX/RTSX : radiation tolerant and very high reliability

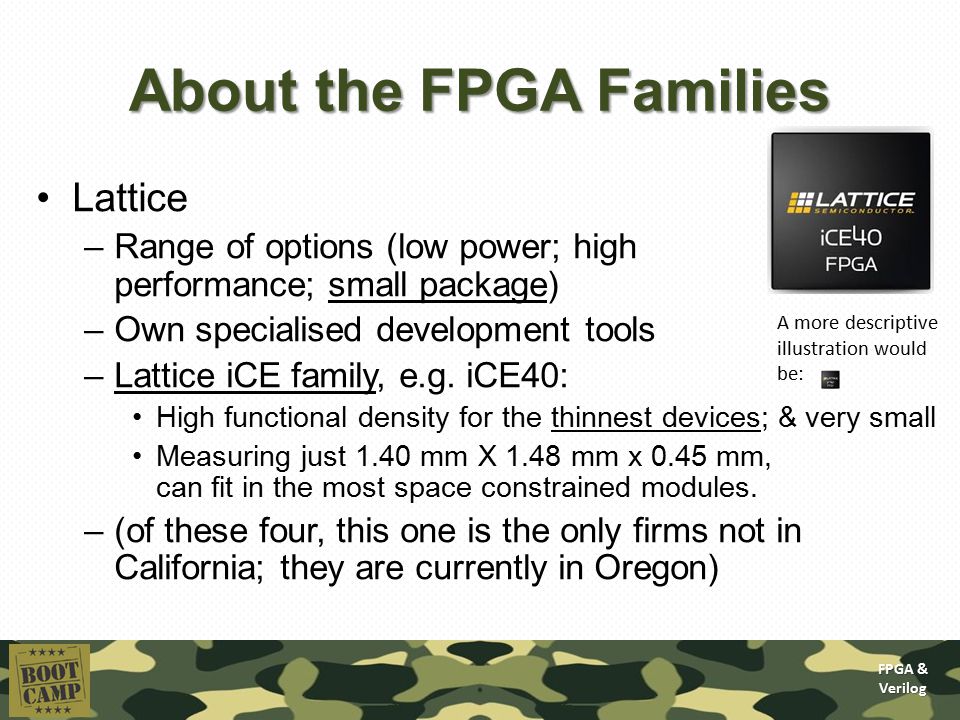

12. FPGA & Verilog About the FPGA Families Lattice –Range of options (low power; high performance; small package) –Own specialised development tools –Lattice iCE family, e.g. iCE40: High functional density for the thinnest devices; & very small Measuring just 1.40 mm X 1.48 mm x 0.45 mm, can fit in the most space constrained modules. –(of these four, this one is the only firms not in California; they are currently in Oregon) A more descriptive illustration would be:

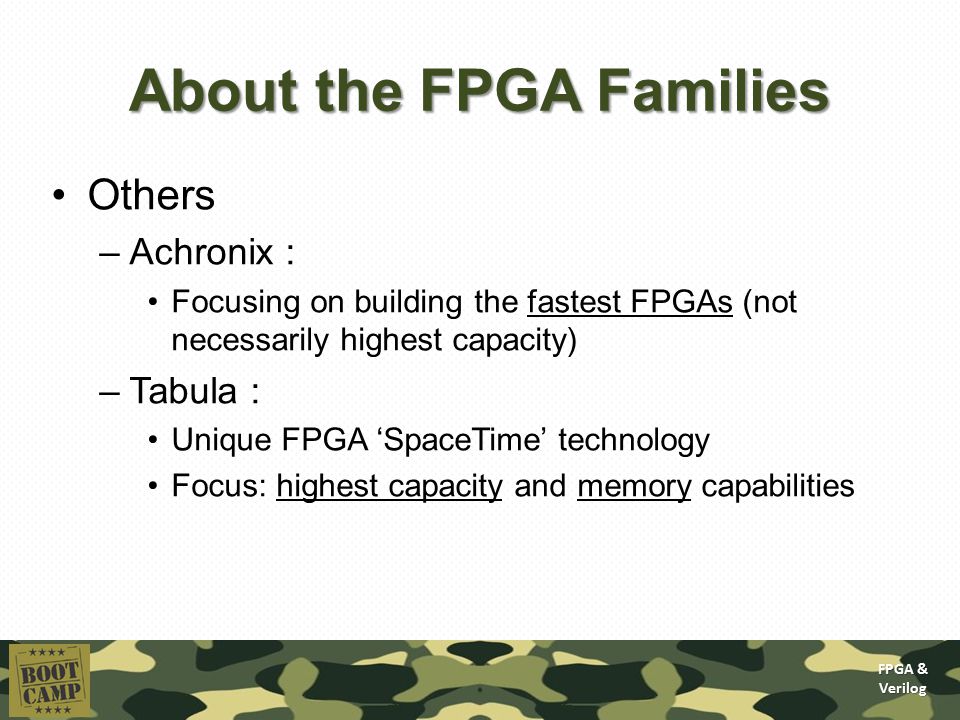

13. FPGA & Verilog About the FPGA Families Others –Achronix : Focusing on building the fastest FPGAs (not necessarily highest capacity) –Tabula : Unique FPGA ‘SpaceTime’ technology Focus: highest capacity and memory capabilities

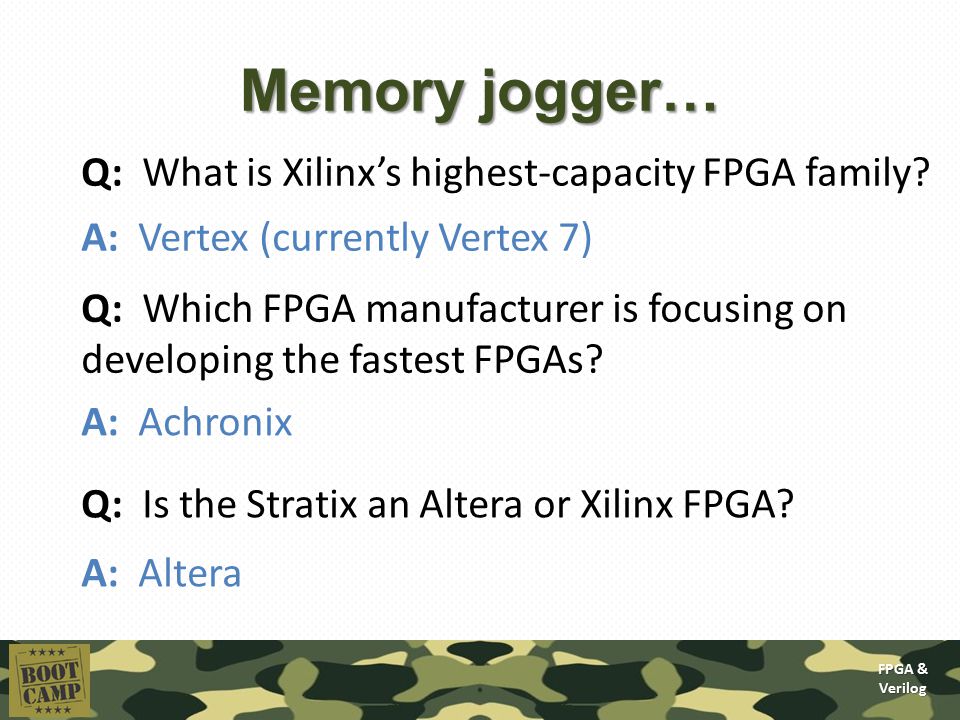

14. FPGA & Verilog Memory jogger… Q: What is Xilinx’s highest-capacity FPGA family? A: Vertex (currently Vertex 7) Q: Which FPGA manufacturer is focusing on developing the fastest FPGAs? A: Achronix Q: Is the Stratix an Altera or Xilinx FPGA? A: Altera

15. FPGA & Verilog

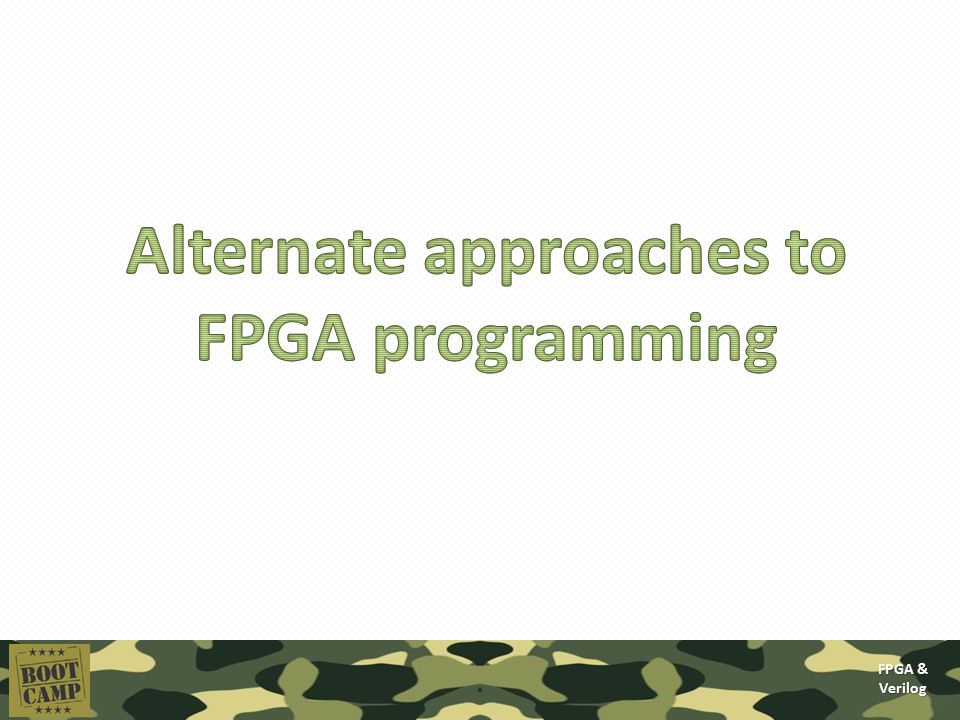

16. Verilog Do you have to use HDL to program FPGAs?

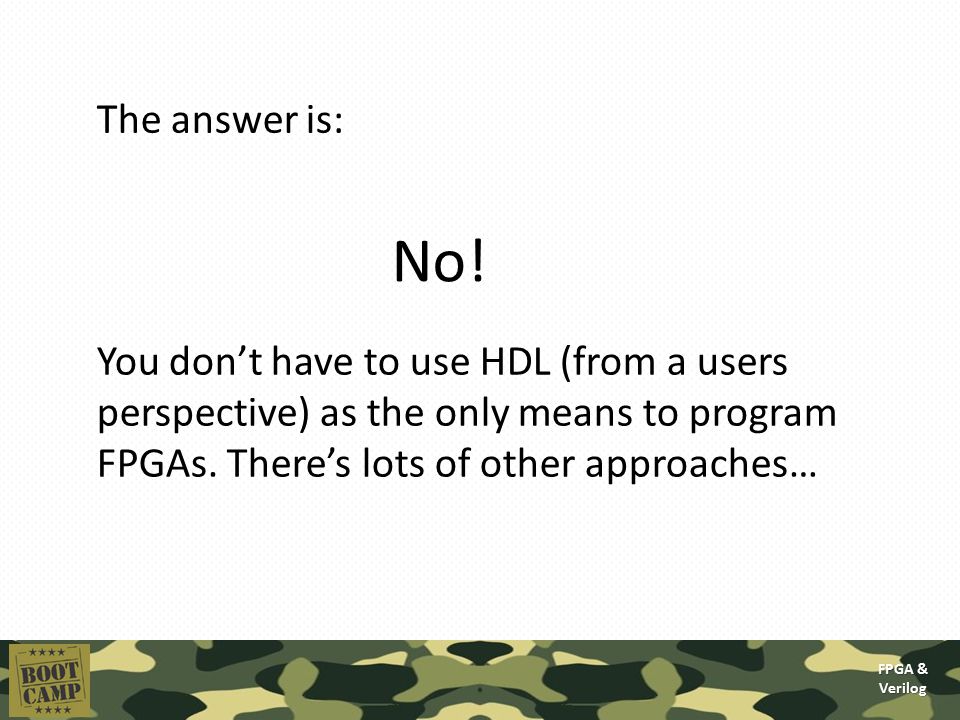

17. FPGA & Verilog The answer is: No! You don’t have to use HDL (from a users perspective) as the only means to program FPGAs. There’s lots of other approaches…

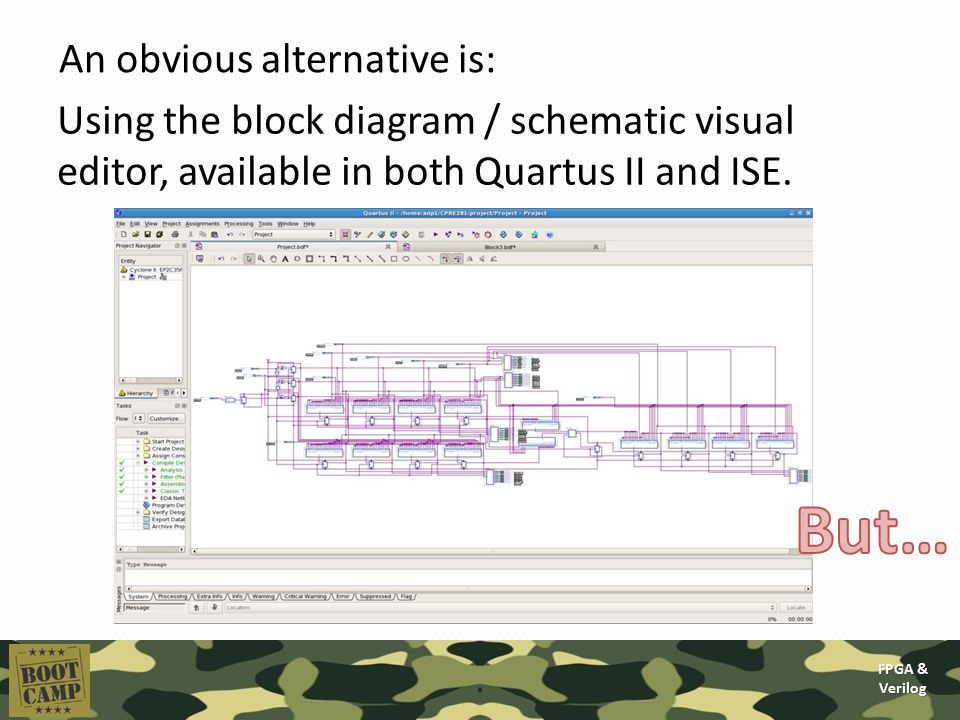

18. FPGA & Verilog An obvious alternative is: Using the block diagram / schematic visual editor, available in both Quartus II and ISE.

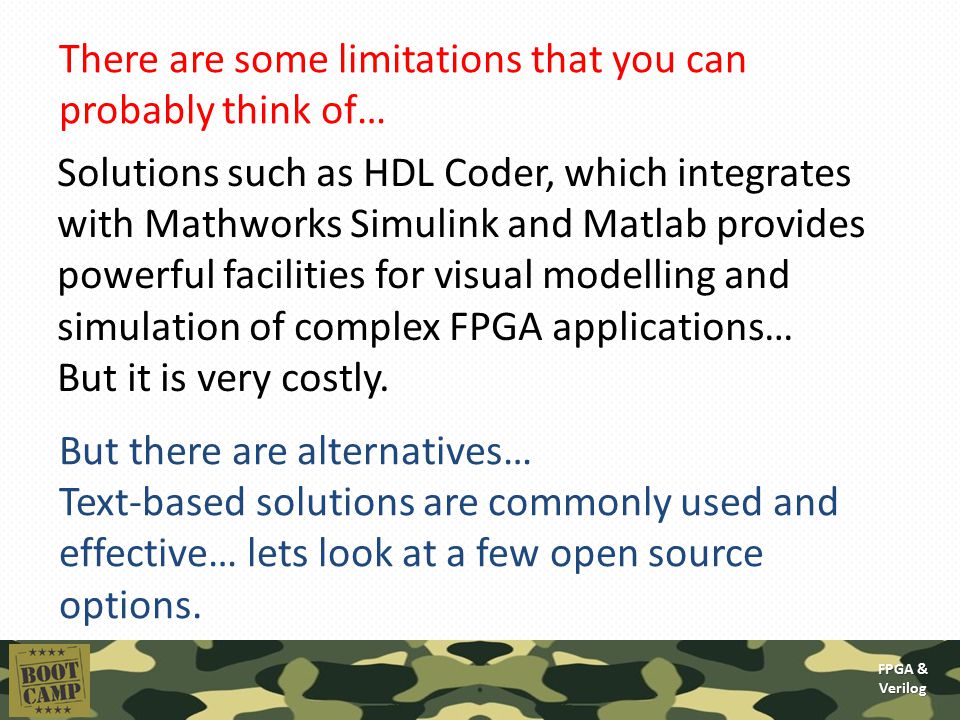

19. FPGA & Verilog There are some limitations that you can probably think of… Solutions such as HDL Coder, which integrates with Mathworks Simulink and Matlab provides powerful facilities for visual modelling and simulation of complex FPGA applications… But it is very costly. But there are alternatives… Text-based solutions are commonly used and effective… lets look at a few open source options.

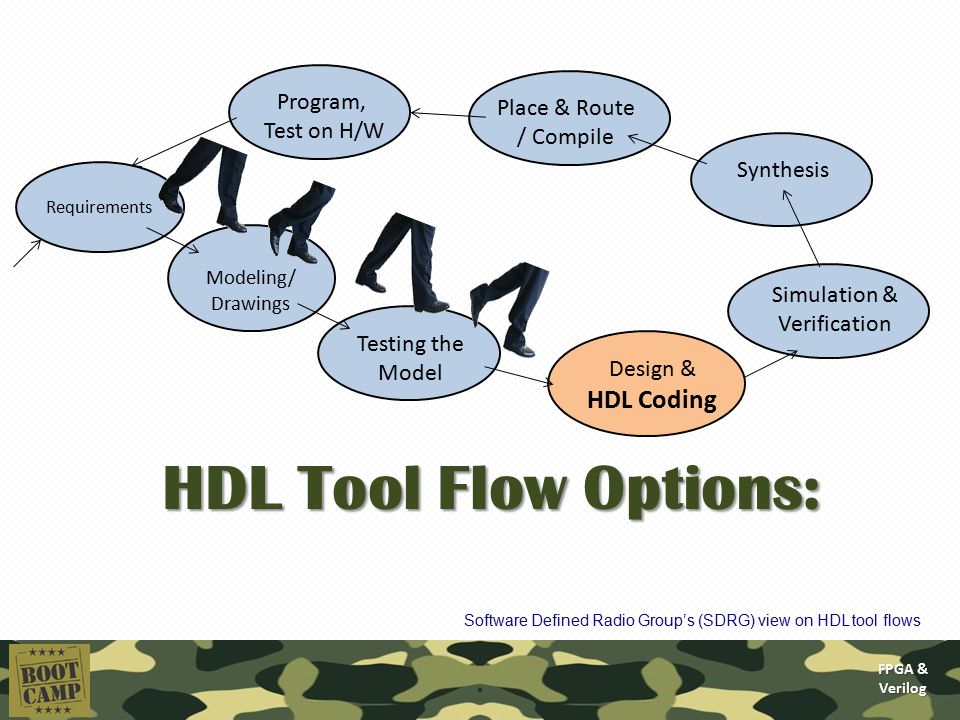

20. FPGA & Verilog HDL Tool Flow Options: Software Defined Radio Group’s (SDRG) view on HDL tool flows Requirements Modeling/ Drawings Design & HDL Coding Testing the Model Synthesis Program, Test on H/W Simulation & Verification Place & Route / Compile

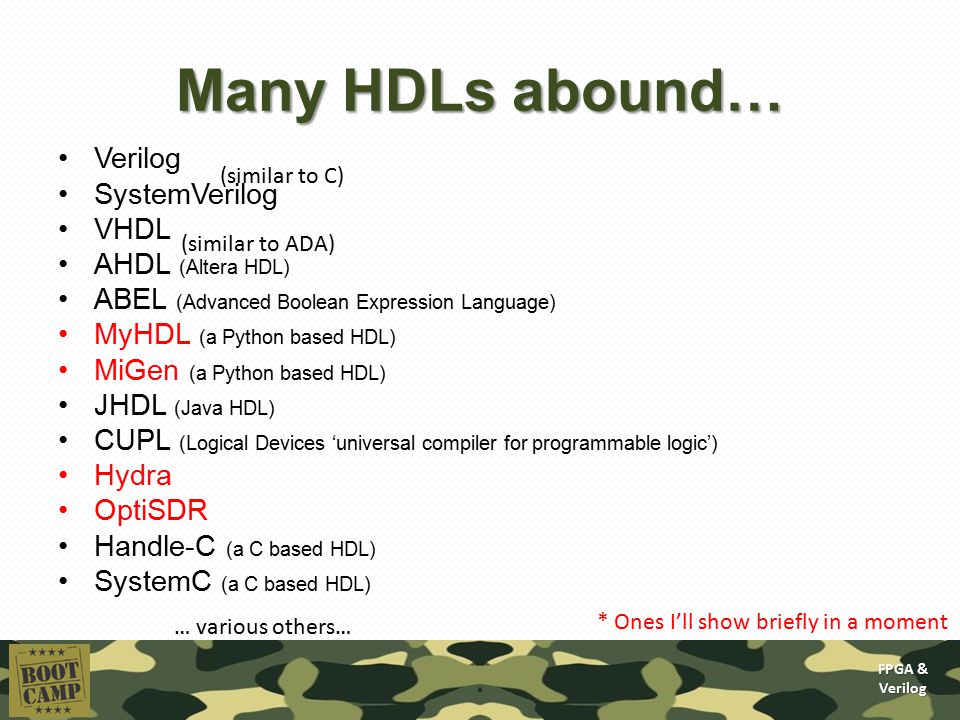

21. FPGA & Verilog Verilog SystemVerilog VHDL AHDL (Altera HDL) ABEL (Advanced Boolean Expression Language) MyHDL (a Python based HDL) MiGen (a Python based HDL) JHDL (Java HDL) CUPL (Logical Devices ‘universal compiler for programmable logic’) Hydra OptiSDR Handle-C (a C based HDL) SystemC (a C based HDL) Many HDLs abound… … various others… (similar to C) (similar to ADA) * Ones I’ll show briefly in a moment

22. FPGA & Verilog Synthesis & Simulation Most of the digital designs built up of some basic elements or components (e.g. registers, logic gates, counters, adders, RAM, etc.) Standard cell library is the collection of these building blocks available to run your design. These are specific to the PLD / FPGA you are using. The Synthesis tool: Inputs HDL; outputs gate level mapping Does take a bit of computation, but fairly quick compared to other steps From this point the implementation becomes platform dependent A very complex process: seeing how time and space can be rearranged, trade-offs made, analyse sequential dependence, identify parallelism, etc.

23. FPGA & Verilog Synthesis & Simulation Simulation: Generally, the more opportunities to test the design before committing it to hardware, the better. Behavioral simulation Simulation test bench support –collecting test vectors, sample signals, stimulae and expected responses, etc to test the design. Simulation can fit into various stages of a tool flow: Timing simulation / discrete event simulation HDL for Simulation HDL for Synthesis Post-synthesis simulation Code Test Simulation facilities of your tool flow are important! Functional simulation – verify that synthesized netlist matches the behavioural model. Deployment on hardware In-circuit verification (might hook up to simulation / test vectors)

24. FPGA & Verilog What tools are in place in the various tool flows out there? …

25. FPGA & Verilog

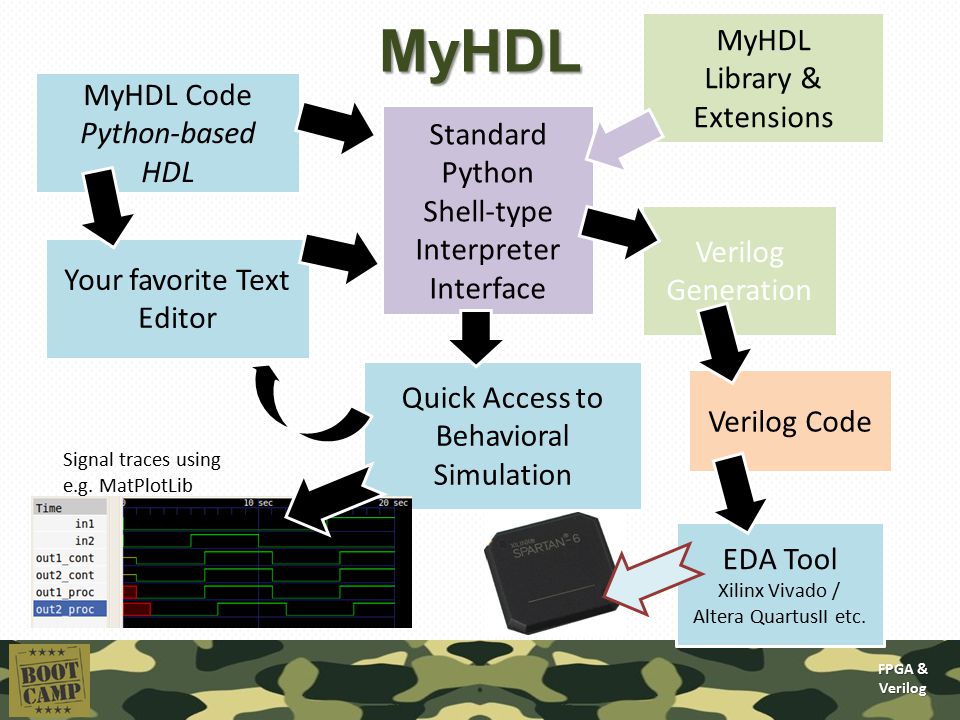

26. Verilog MyHDL Code Python-based HDL Standard Python Shell-type Interpreter Interface Quick Access to Behavioral Simulation Your favorite Text Editor MyHDL Library & Extensions Verilog Generation Verilog Code EDA Tool Xilinx Vivado / Altera QuartusII etc. Signal traces using e.g. MatPlotLib MyHDL

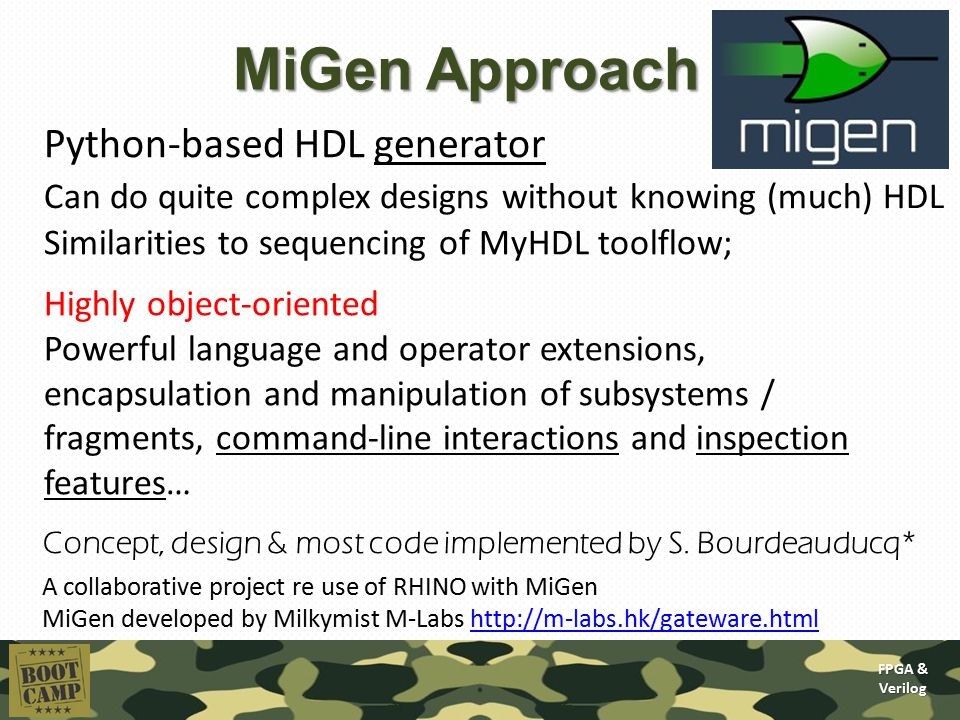

27. FPGA & Verilog MiGen Approach Python-based HDL generator Highly object-oriented Powerful language and operator extensions, encapsulation and manipulation of subsystems / fragments, command-line interactions and inspection features… Similarities to sequencing of MyHDL toolflow; Concept, design & most code implemented by S. Bourdeauducq* A collaborative project re use of RHINO with MiGen MiGen developed by Milkymist M-Labs http://m-labs.hk/gateware.htmlhttp://m-labs.hk/gateware.html Can do quite complex designs without knowing (much) HDL

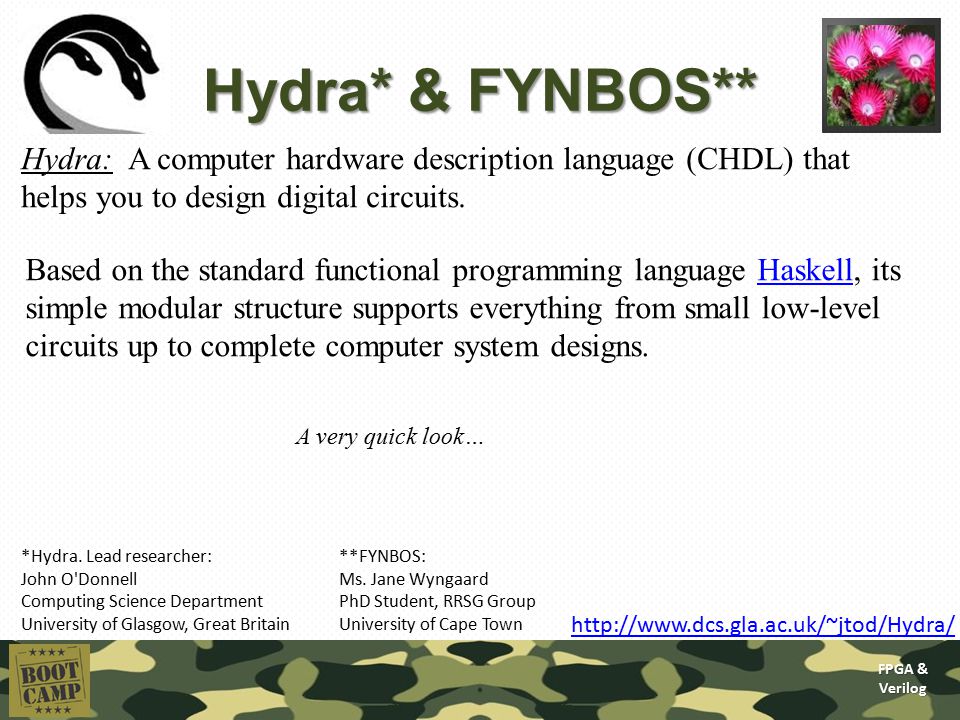

28. FPGA & Verilog Hydra* & FYNBOS** Hydra: A computer hardware description language (CHDL) that helps you to design digital circuits. http://www.dcs.gla.ac.uk/~jtod/Hydra/ Based on the standard functional programming language Haskell, its simple modular structure supports everything from small low-level circuits up to complete computer system designs. Haskell *Hydra. Lead researcher: John O'Donnell Computing Science Department University of Glasgow, Great Britain **FYNBOS: Ms. Jane Wyngaard PhD Student, RRSG Group University of Cape Town A very quick look…

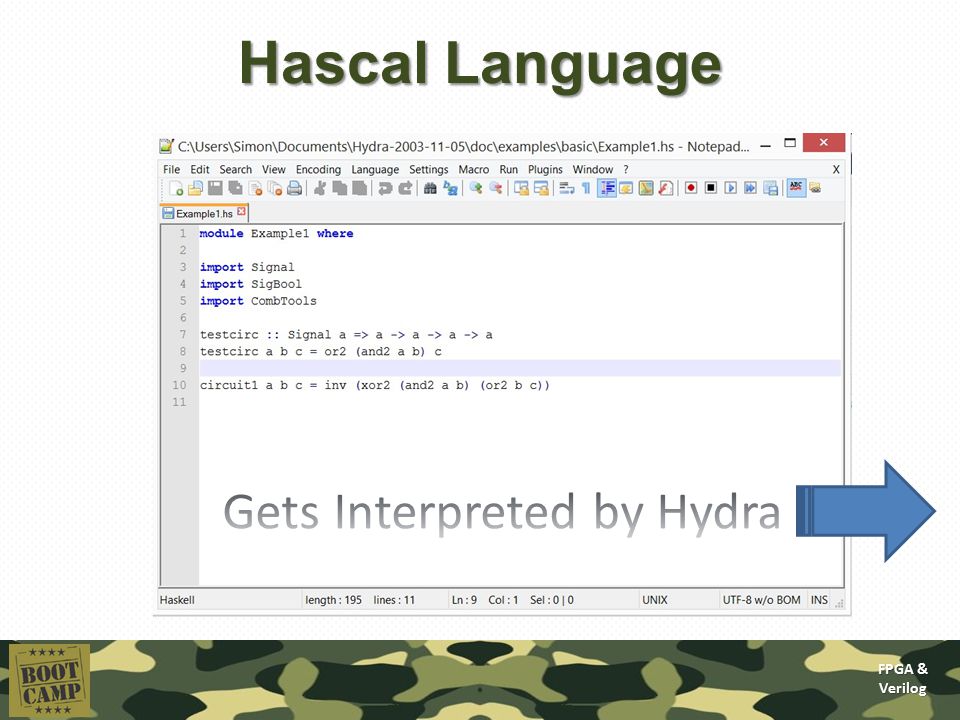

29. FPGA & Verilog Hascal Language

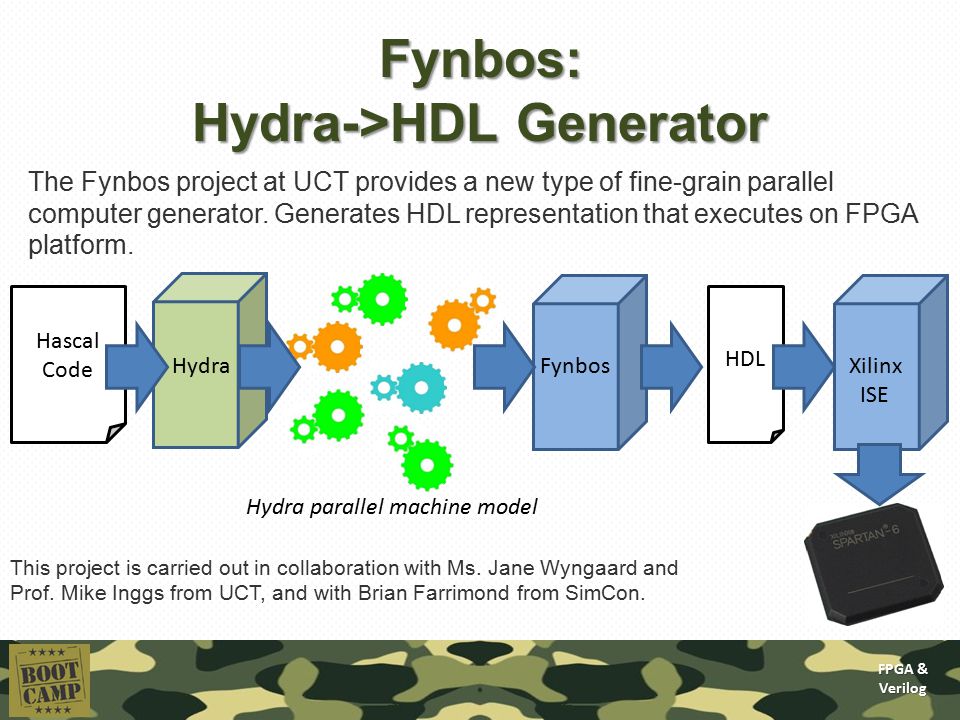

30. FPGA & Verilog Fynbos: Hydra->HDL Generator This project is carried out in collaboration with Ms. Jane Wyngaard and Prof. Mike Inggs from UCT, and with Brian Farrimond from SimCon. The Fynbos project at UCT provides a new type of fine-grain parallel computer generator. Generates HDL representation that executes on FPGA platform. Hascal Code HydraFynbos HDL Xilinx ISE Hydra parallel machine model

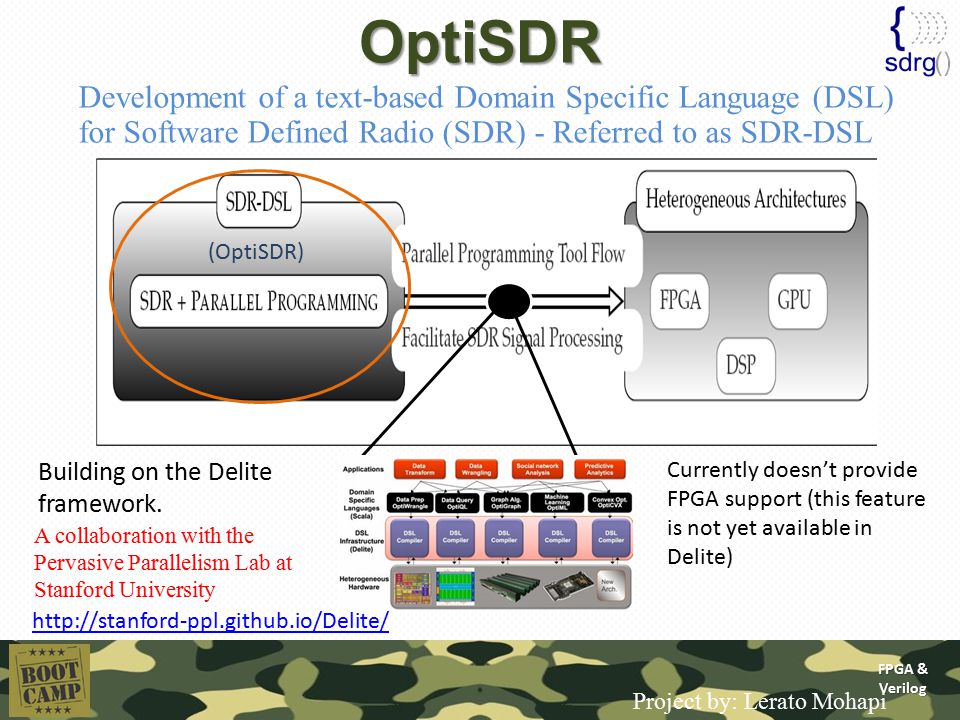

31. FPGA & Verilog OptiSDR Development of a text-based Domain Specific Language (DSL) for Software Defined Radio (SDR) - Referred to as SDR-DSL Project by: Lerato Mohapi A collaboration with the Pervasive Parallelism Lab at Stanford University (OptiSDR) Currently doesn’t provide FPGA support (this feature is not yet available in Delite) Building on the Delite framework. http://stanford-ppl.github.io/Delite/

32. FPGA & Verilog

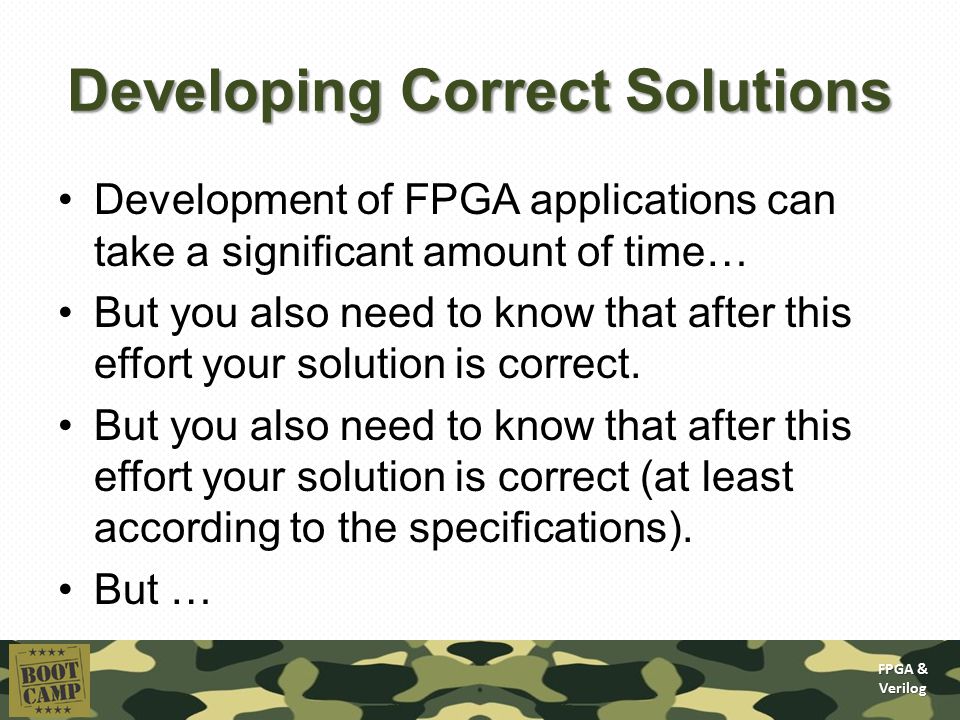

33. Verilog Developing Correct Solutions Development of FPGA applications can take a significant amount of time… But you also need to know that after this effort your solution is correct. But you also need to know that after this effort your solution is correct (at least according to the specifications). But …

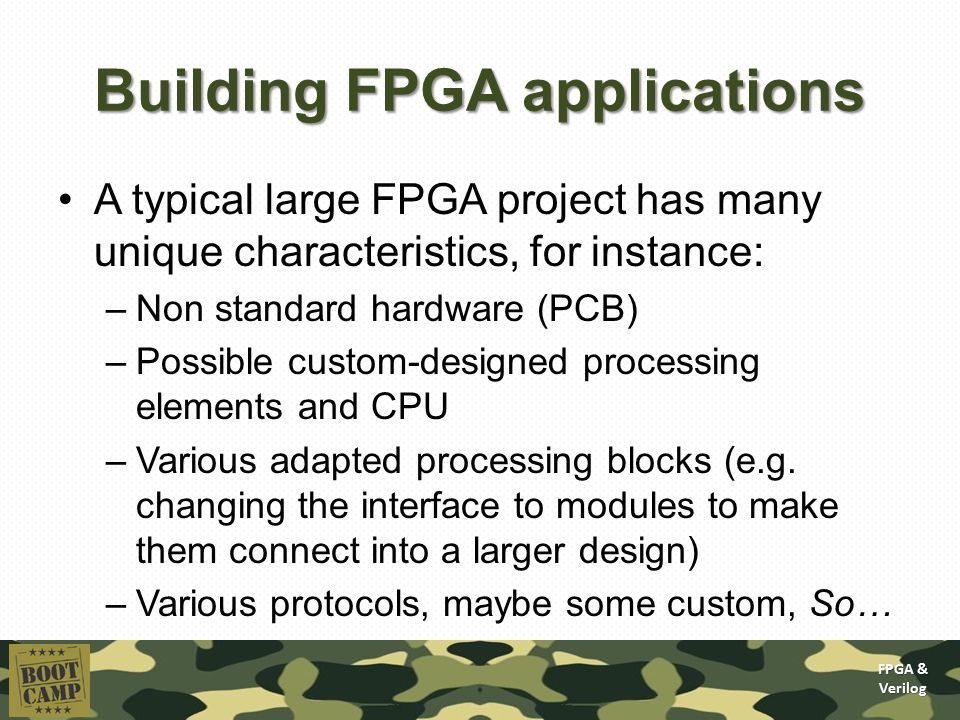

34. FPGA & Verilog Building FPGA applications A typical large FPGA project has many unique characteristics, for instance: –Non standard hardware (PCB) –Possible custom-designed processing elements and CPU –Various adapted processing blocks (e.g. changing the interface to modules to make them connect into a larger design) –Various protocols, maybe some custom, So…

35. FPGA & Verilog Building FPGA applications There are many places that bugs and design errors / misunderstandings can creep in Generally more so than –Regular PC-based solutions (use well understood, mature architecture & tools) –Embedded platforms (use mass produced, highly and thoroughly tested microcontrollers, big user communities). Which brings me to…

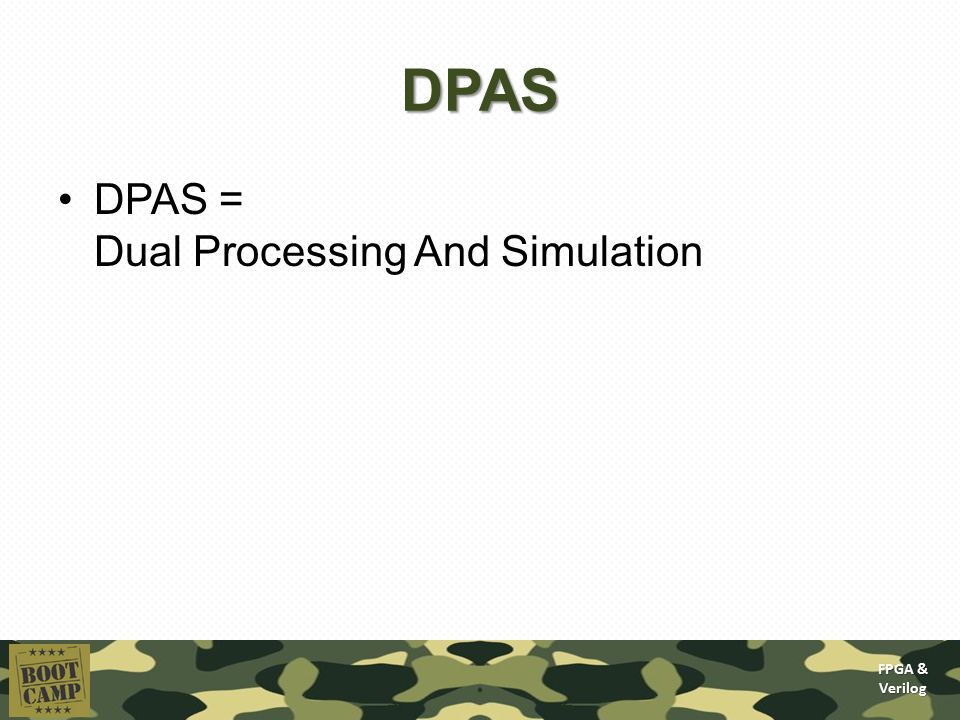

36. FPGA & Verilog DPAS DPAS = Dual Processing And Simulation

37. FPGA & Verilog Dual Processing? A technique to verify operation Essentially performing the same operation twice (if not more times) on different platforms (e.g. FPGA and PC to check for consistency in results). Often uses correlations.

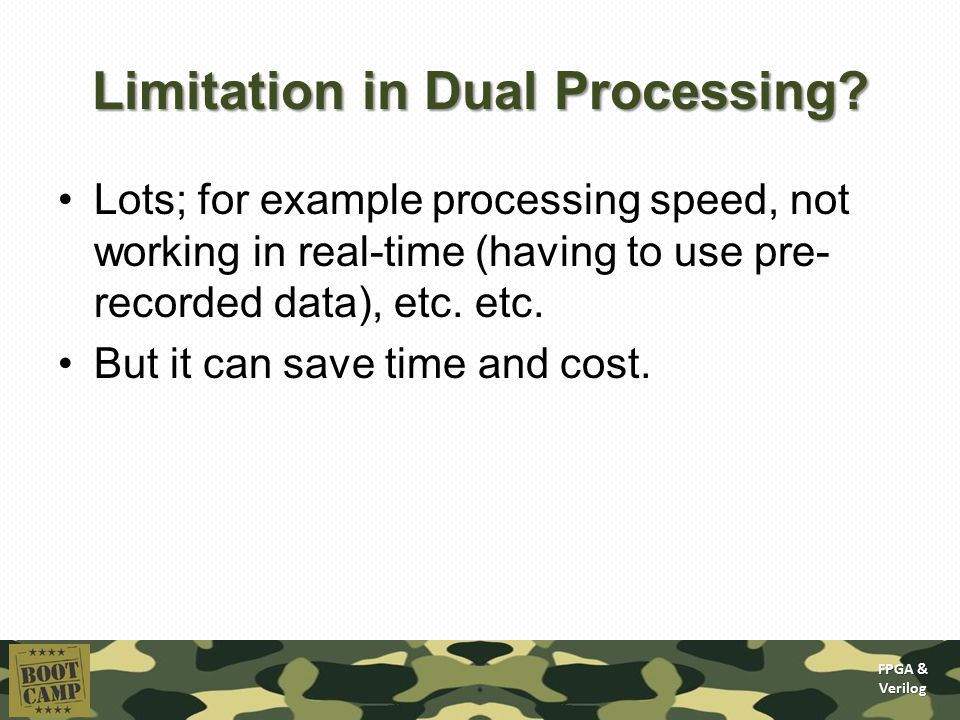

38. FPGA & Verilog Limitation in Dual Processing? Lots; for example processing speed, not working in real-time (having to use pre- recorded data), etc. etc. But it can save time and cost.

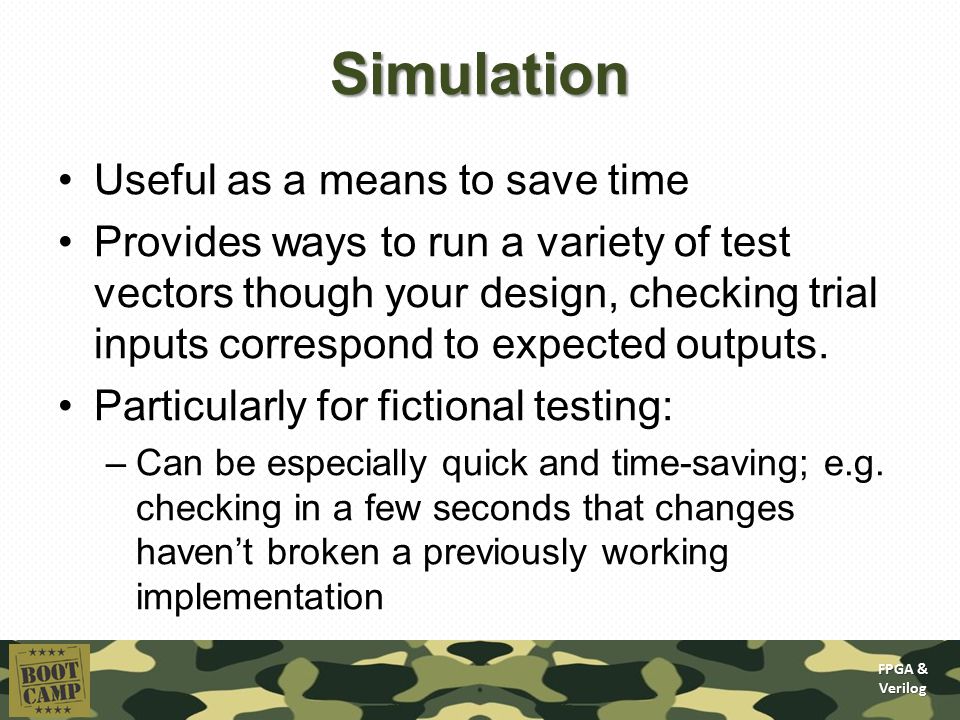

39. FPGA & Verilog Simulation Useful as a means to save time Provides ways to run a variety of test vectors though your design, checking trial inputs correspond to expected outputs. Particularly for fictional testing: –Can be especially quick and time-saving; e.g. checking in a few seconds that changes haven’t broken a previously working implementation

40. FPGA & Verilog On-hardware testing facilities Xilinx ChipScope / Altera SignalTap

41. FPGA & Verilog

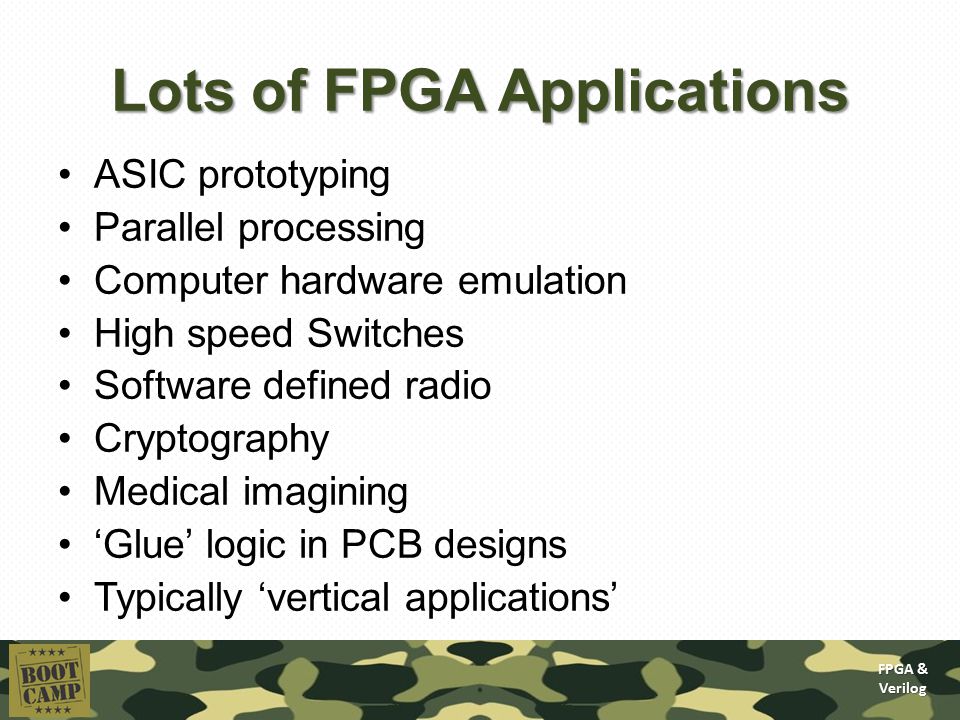

42. Verilog Lots of FPGA Applications ASIC prototyping Parallel processing Computer hardware emulation High speed Switches Software defined radio Cryptography Medical imagining ‘Glue’ logic in PCB designs Typically ‘vertical applications’

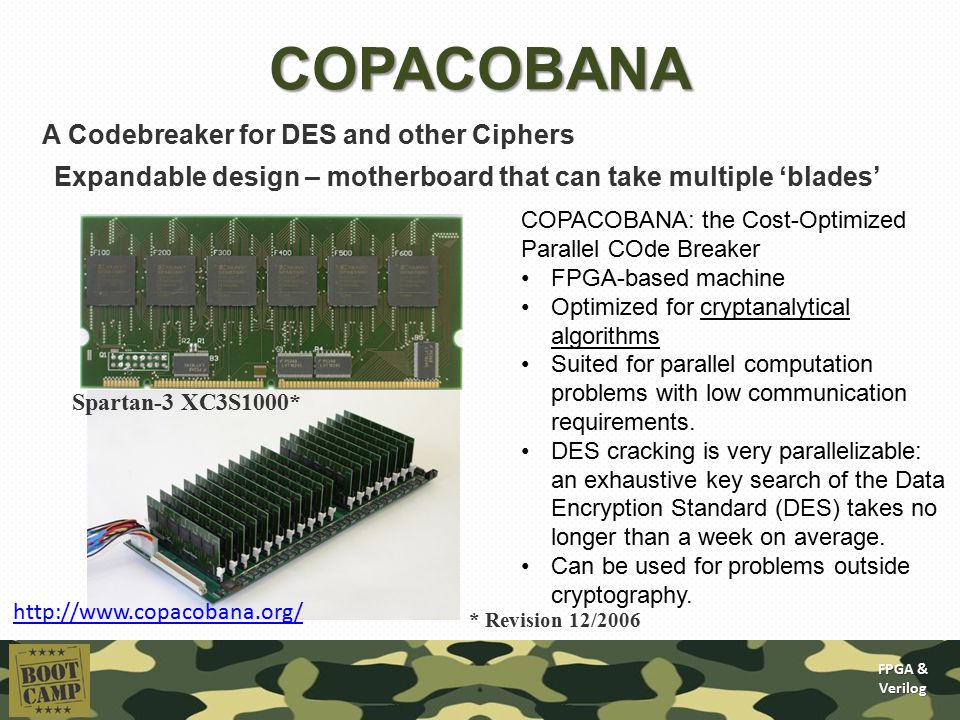

43. FPGA & Verilog COPACOBANA A Codebreaker for DES and other Ciphers Expandable design – motherboard that can take multiple ‘blades’ COPACOBANA: the Cost-Optimized Parallel COde Breaker FPGA-based machine Optimized for cryptanalytical algorithms Suited for parallel computation problems with low communication requirements. DES cracking is very parallelizable: an exhaustive key search of the Data Encryption Standard (DES) takes no longer than a week on average. Can be used for problems outside cryptography. http://www.copacobana.org/ Spartan-3 XC3S1000* * Revision 12/2006

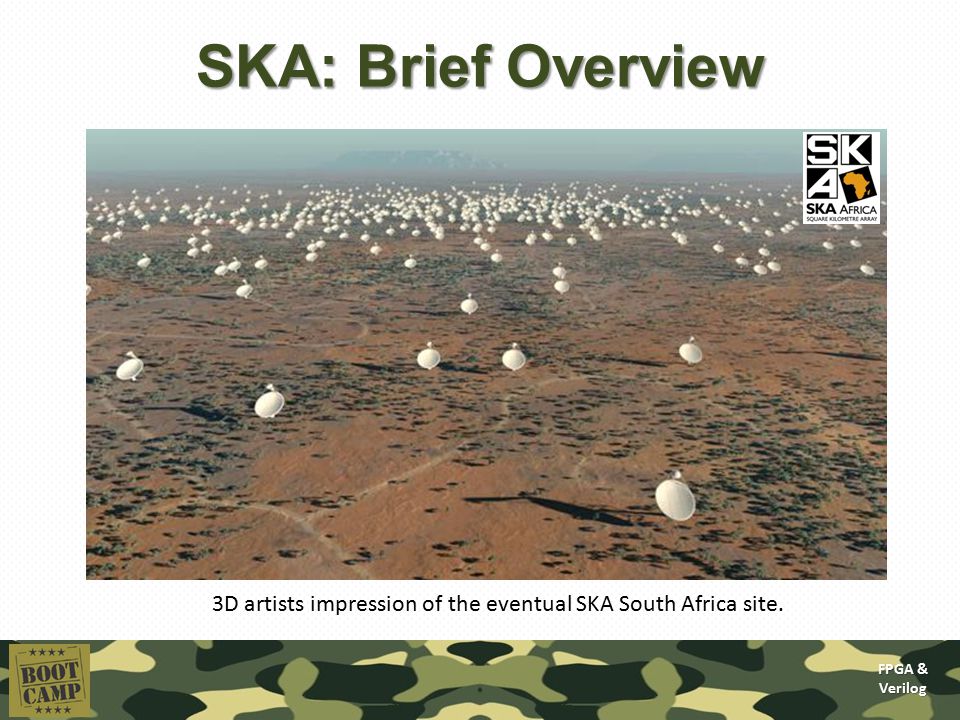

44. FPGA & Verilog SKA: Brief Overview 3D artists impression of the eventual SKA South Africa site.

45. FPGA & Verilog SKA: Brief Overview Find out more on the web at: http://www.ska.ac.za/http://www.ska.ac.za/ The SKA SA array will be the world's largest and most sensitive radio telescope: about 50x more sensitive, up to 10,000x faster (in survey speed) than the best radio telescopes currently available. It will sense radio waves from objects billions of light years away. Scientists expect the SKA will make new discoveries that we can't even imagine at present. Maybe they will find extra terrestrial life elsewhere else in the Universe! Why the name? The collecting areas of all the receivers of the SKA adds up to one square kilometre – that’s why it is called the "Square Kilometre Array". The SKA is taking shape from the efforts of many different countries working together - and to pay for - the SKA. At least 13 countries and close to 100 organisations (2013) are involved and more are in the process of joining the project.

46. FPGA & Verilog KAT7 – Built

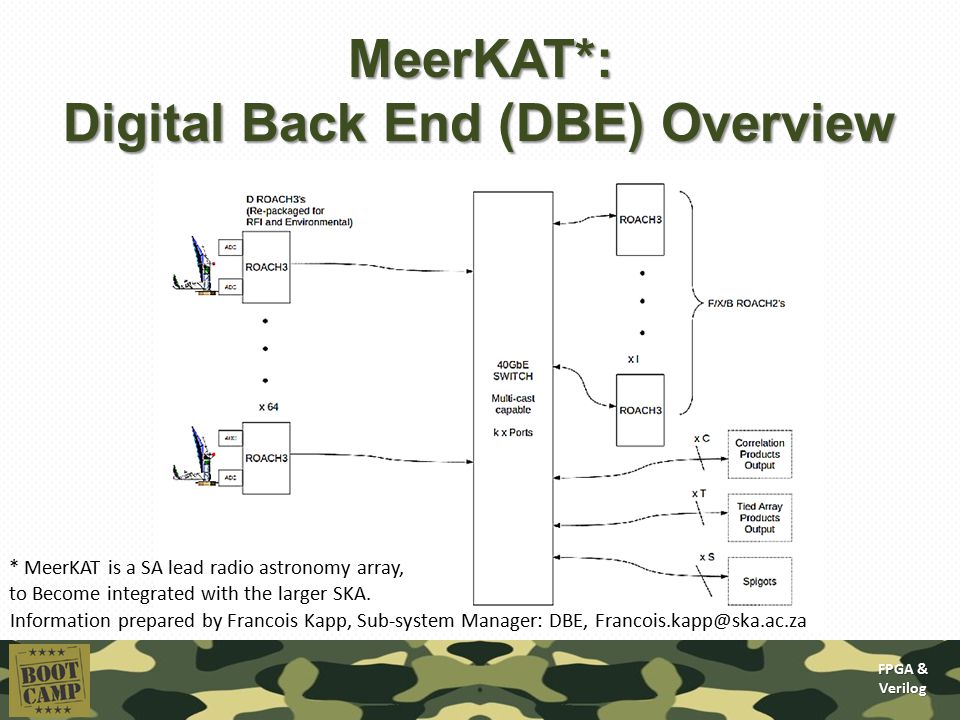

47. FPGA & Verilog MeerKAT*: Digital Back End (DBE) Overview Information prepared by Francois Kapp, Sub-system Manager: DBE, Francois.kapp@ska.ac.za * MeerKAT is a SA lead radio astronomy array, to Become integrated with the larger SKA.

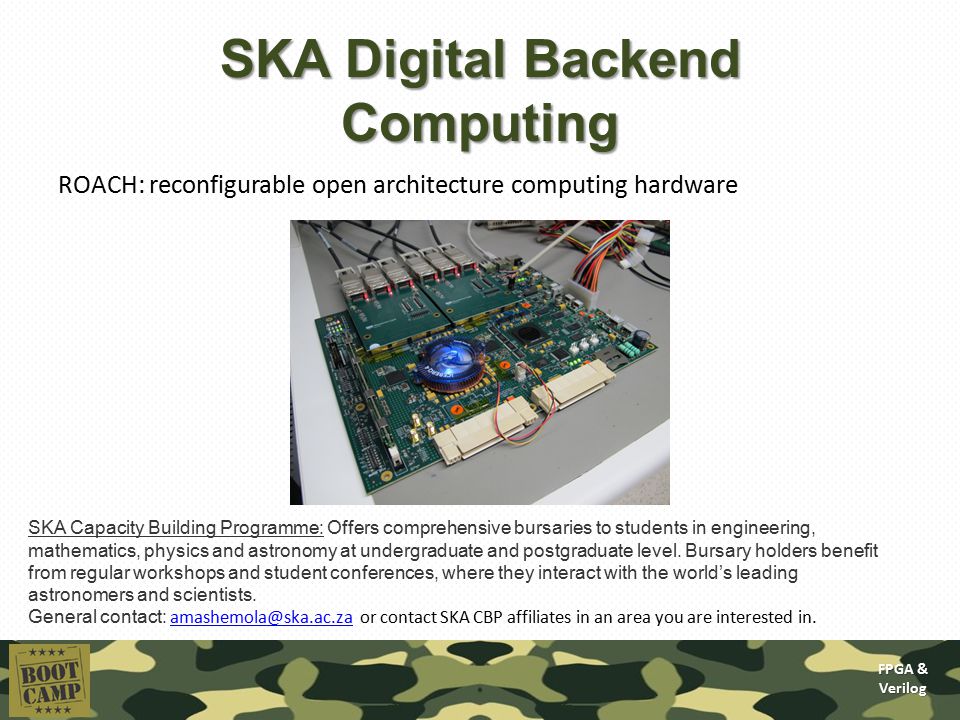

48. FPGA & Verilog SKA Digital Backend Computing ROACH: reconfigurable open architecture computing hardware SKA Capacity Building Programme: Offers comprehensive bursaries to students in engineering, mathematics, physics and astronomy at undergraduate and postgraduate level. Bursary holders benefit from regular workshops and student conferences, where they interact with the world’s leading astronomers and scientists. General contact: amashemola@ska.ac.za or contact SKA CBP affiliates in an area you are interested in. amashemola@ska.ac.za

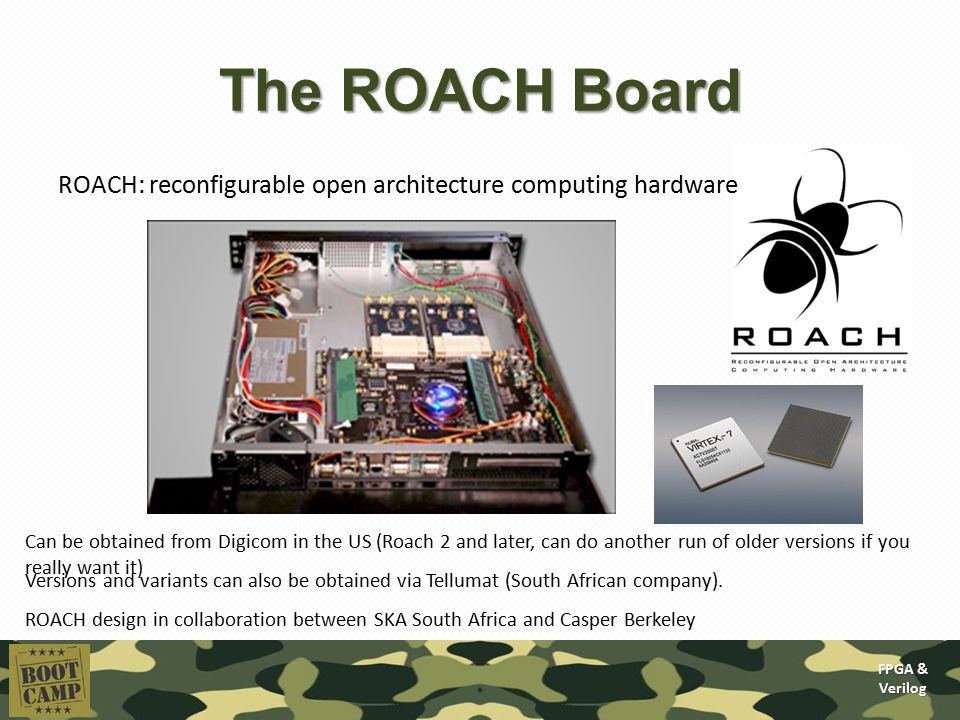

49. FPGA & Verilog The ROACH Board ROACH design in collaboration between SKA South Africa and Casper Berkeley ROACH: reconfigurable open architecture computing hardware Can be obtained from Digicom in the US (Roach 2 and later, can do another run of older versions if you really want it) Versions and variants can also be obtained via Tellumat (South African company).

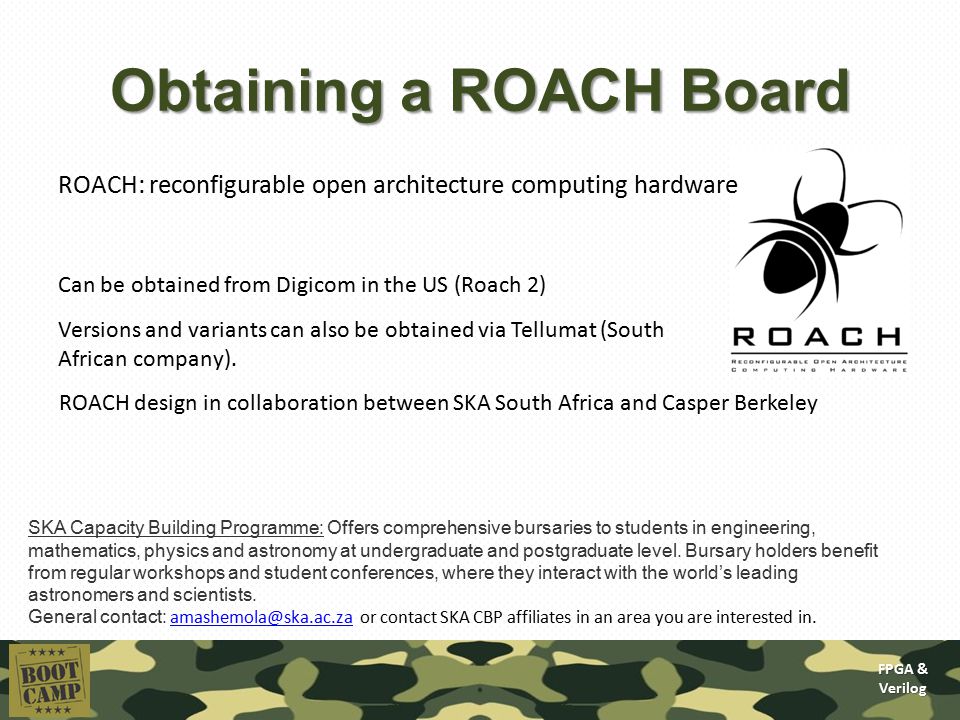

50. FPGA & Verilog Obtaining a ROACH Board ROACH design in collaboration between SKA South Africa and Casper Berkeley ROACH: reconfigurable open architecture computing hardware Can be obtained from Digicom in the US (Roach 2) SKA Capacity Building Programme: Offers comprehensive bursaries to students in engineering, mathematics, physics and astronomy at undergraduate and postgraduate level. Bursary holders benefit from regular workshops and student conferences, where they interact with the world’s leading astronomers and scientists. General contact: amashemola@ska.ac.za or contact SKA CBP affiliates in an area you are interested in. amashemola@ska.ac.za Versions and variants can also be obtained via Tellumat (South African company).

51. FPGA & Verilog Reconfigurable Hardware Interface for computiNg and radiO (RHINO) platform

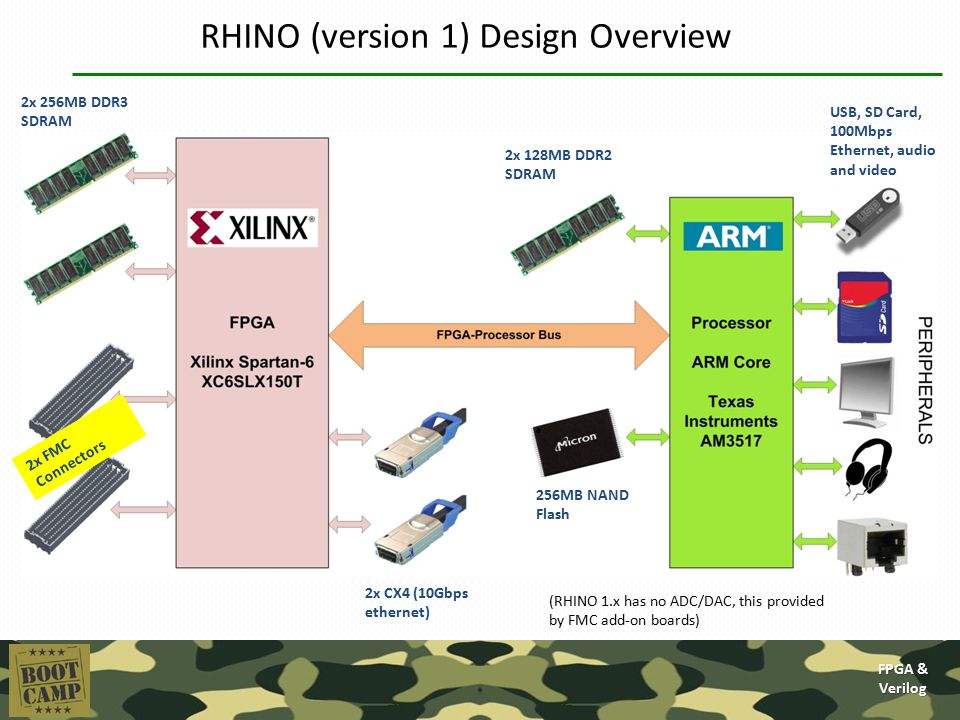

52. FPGA & Verilog 2x 256MB DDR3 SDRAM 2x 128MB DDR2 SDRAM 2x FMC Connectors 2x CX4 (10Gbps ethernet) 256MB NAND Flash USB, SD Card, 100Mbps Ethernet, audio and video (RHINO 1.x has no ADC/DAC, this provided by FMC add-on boards) RHINO (version 1) Design Overview

53. FPGA & Verilog RHINO: The Board 4DSP FMC Sampling Board FMC PIO and interfacing expansion Daughterboard BORPH boot SD card

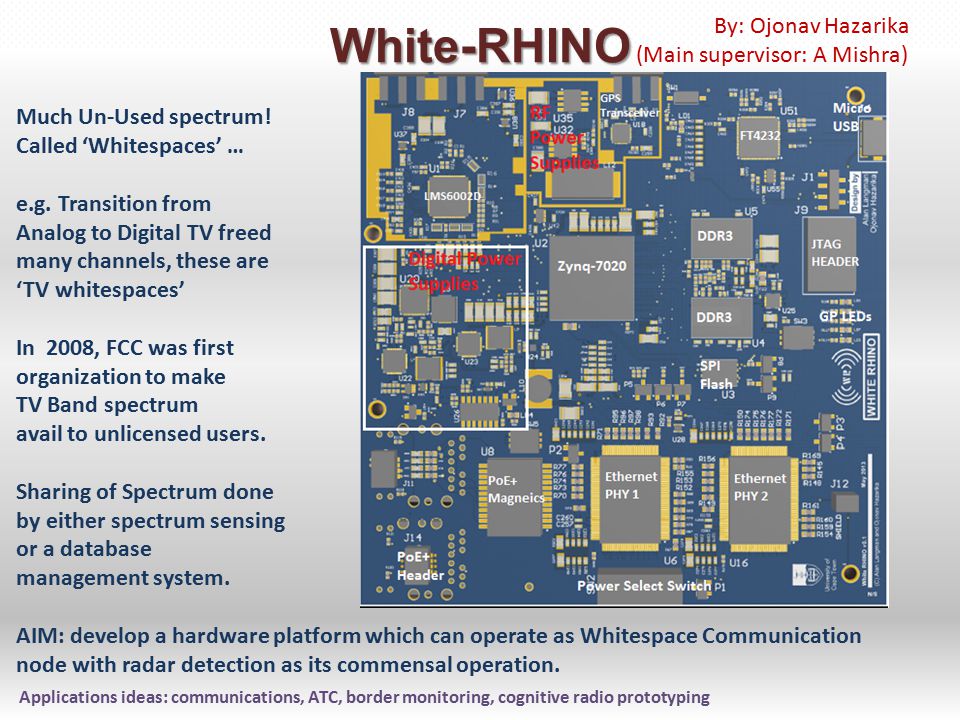

54. FPGA & VerilogWhite-RHINO By: Ojonav Hazarika (Main supervisor: A Mishra) Much Un-Used spectrum! Called ‘Whitespaces’ … e.g. Transition from Analog to Digital TV freed many channels, these are ‘TV whitespaces’ In 2008, FCC was first organization to make TV Band spectrum avail to unlicensed users. Sharing of Spectrum done by either spectrum sensing or a database management system. AIM: develop a hardware platform which can operate as Whitespace Communication node with radar detection as its commensal operation. Applications ideas: communications, ATC, border monitoring, cognitive radio prototyping

55. FPGA & Verilog NextRAD NextRAD is a multiband multistatic radar system being developed in collaboration between UCL in the UK and the RRSG group at UCT in South Africa. The system is under development, and a first version of prototyped radars, transmitters and receivers have been built and testing completed. The aim is towards scaling this system up towards larger applications, such as coastal monitoring and automated detection of poaching activities in protected areas.

56. FPGA & Verilog

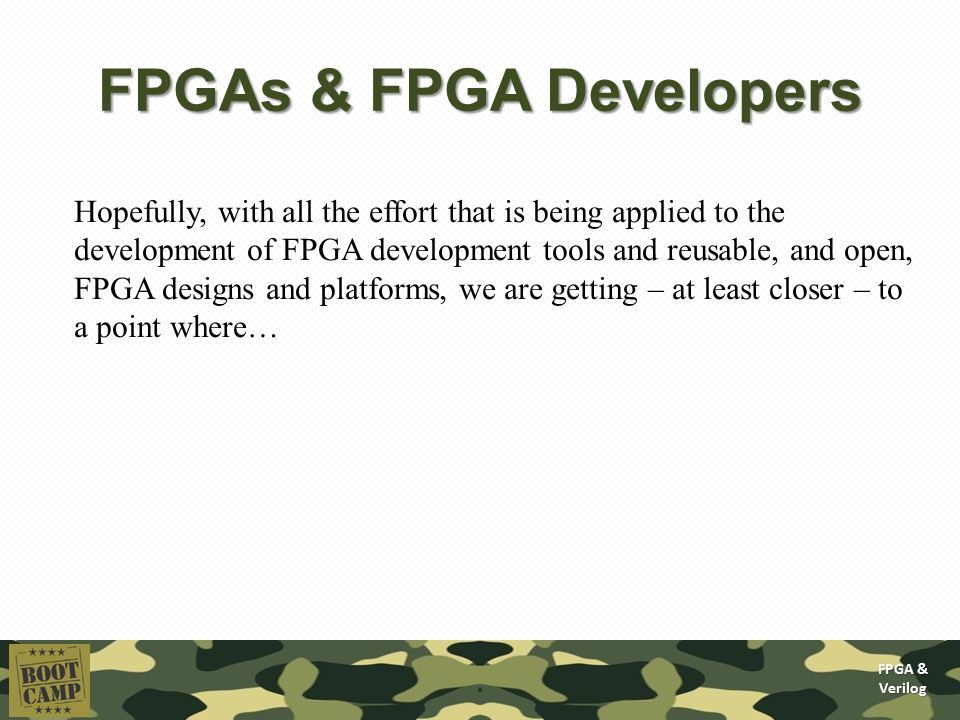

57. Verilog FPGAs & FPGA Developers Hopefully, with all the effort that is being applied to the development of FPGA development tools and reusable, and open, FPGA designs and platforms, we are getting – at least closer – to a point where…

58. FPGA & Verilog FPGAs & Engineers will: Coexist happily!

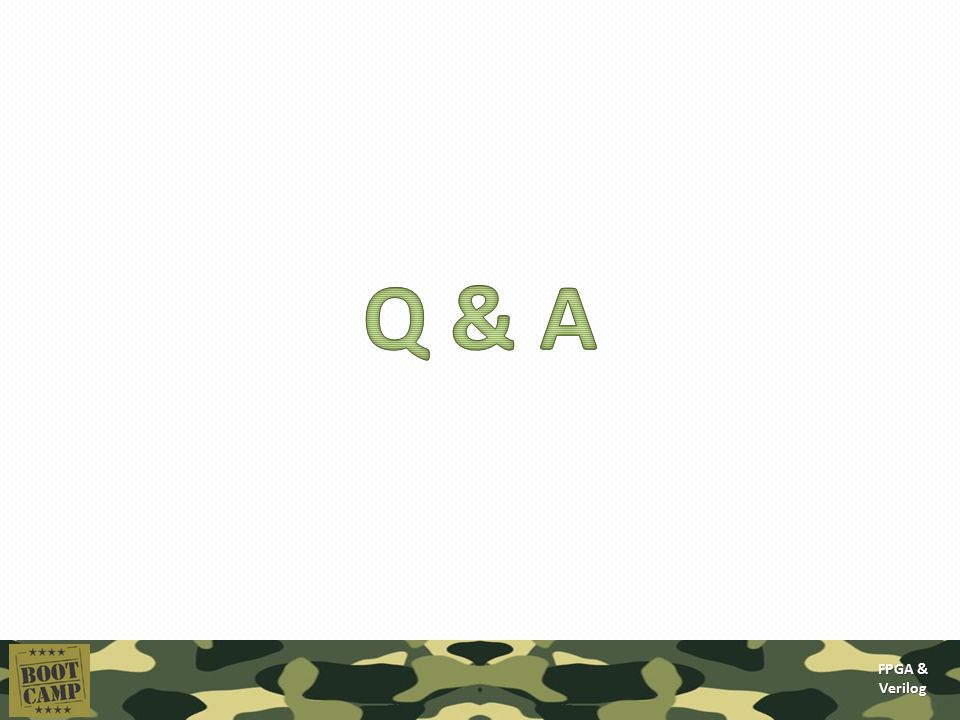

59. FPGA & Verilog

60. Verilog Over to John-PhiliP: VGA Graphics on An FPGA

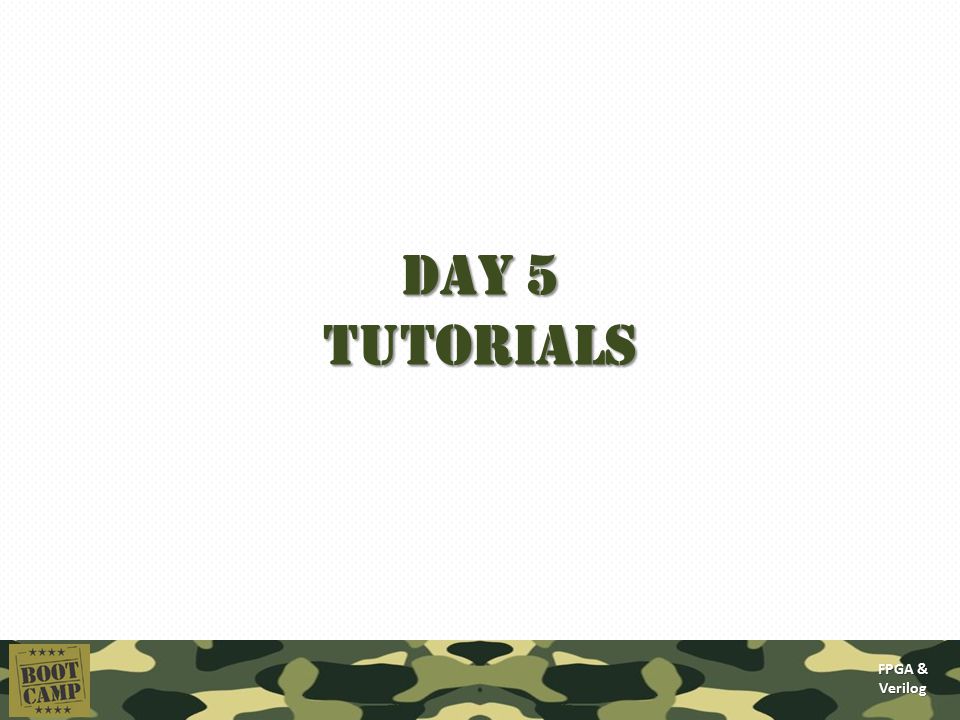

61. FPGA & Verilog Day 5 TutorialS
