1 ENEE 408C Lab Capstone Project: Digital System Design Spring 2006 Class Web Site: http://www.ece.umd.edu/class/enee408c

2 TA’s Information Alessandro Geist ageist@umd.edu Office Hours: TBD

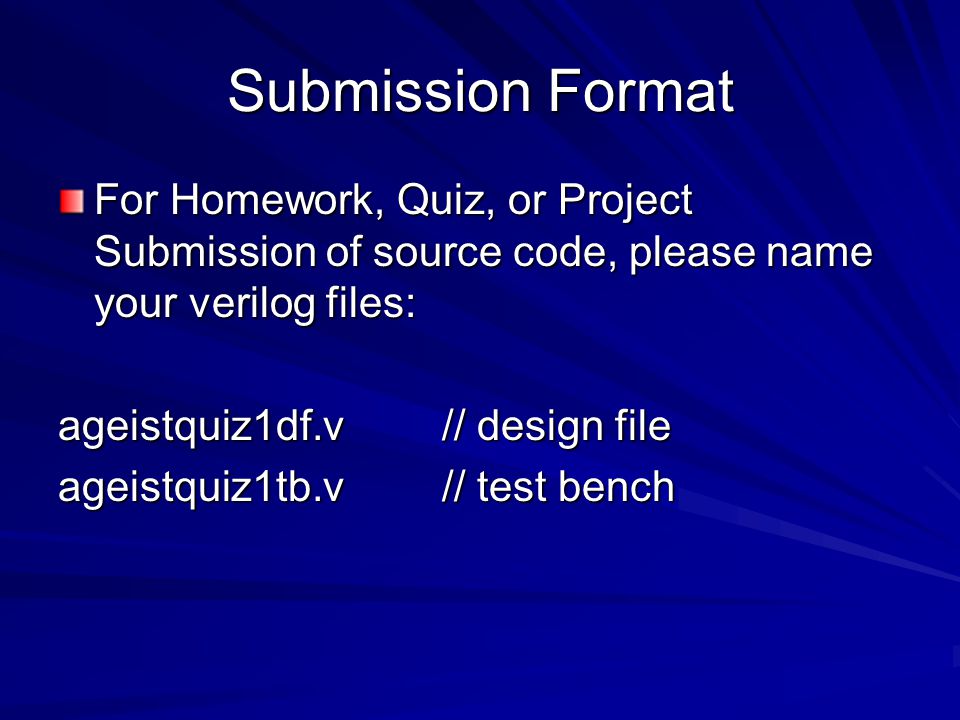

3 Submission Format For Homework, Quiz, or Project Submission of source code, please name your verilog files: ageistquiz1df.v// design file ageistquiz1tb.v// test bench

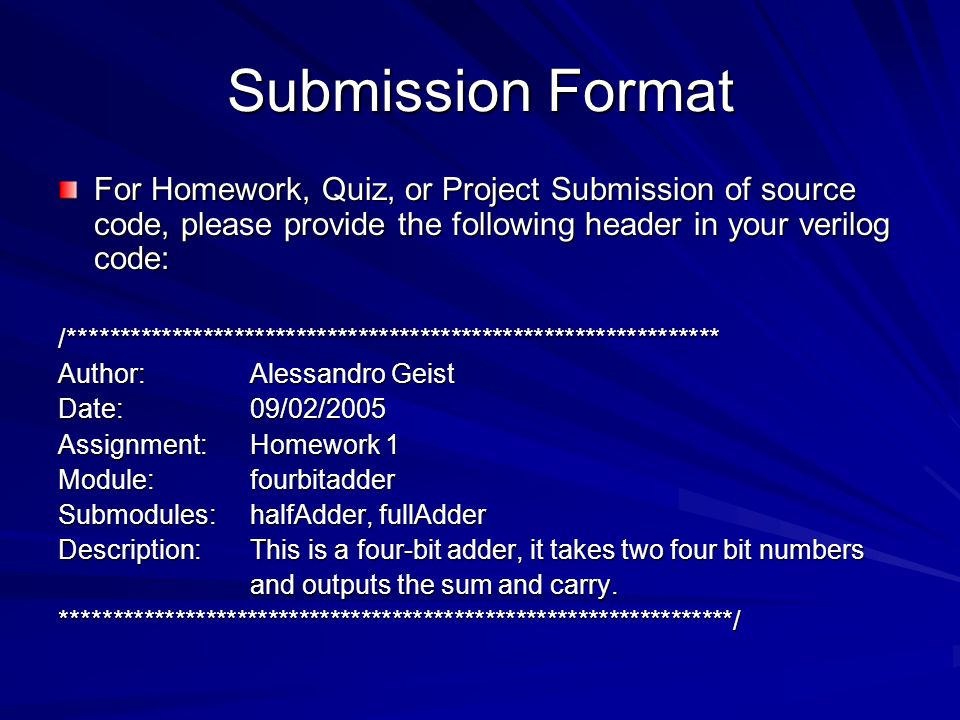

4 Submission Format For Homework, Quiz, or Project Submission of source code, please provide the following header in your verilog code: /*************************************************************** Author:Alessandro Geist Date:09/02/2005 Assignment:Homework 1 Module:fourbitadder Submodules:halfAdder, fullAdder Description:This is a four-bit adder, it takes two four bit numbers and outputs the sum and carry. *****************************************************************/

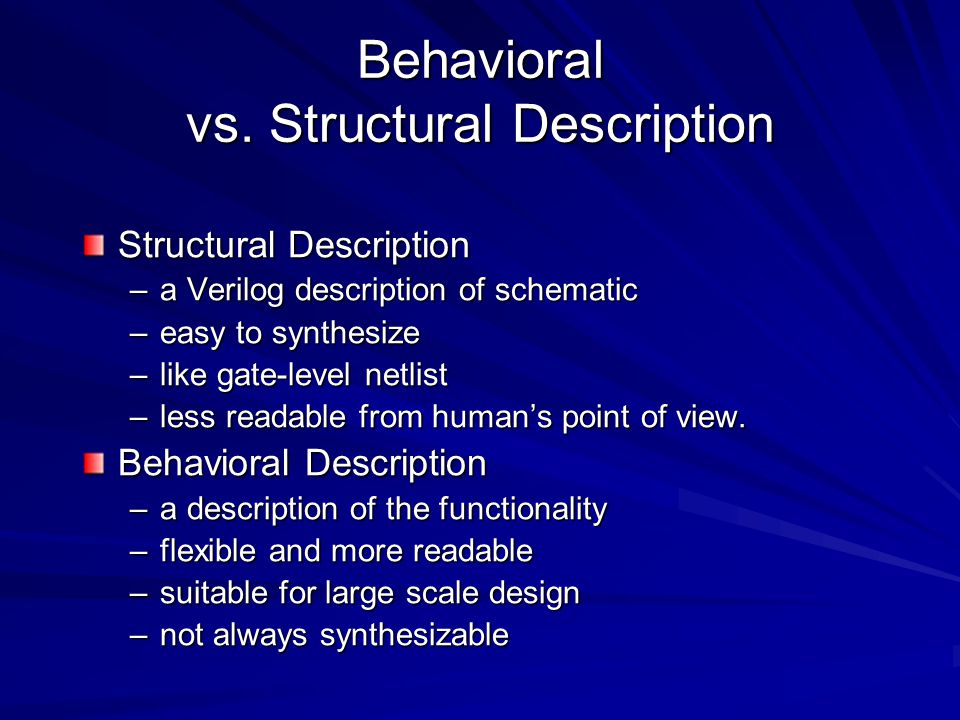

5 Behavioral vs. Structural Description Structural Description –a Verilog description of schematic –easy to synthesize –like gate-level netlist –less readable from human’s point of view. Behavioral Description –a description of the functionality –flexible and more readable –suitable for large scale design –not always synthesizable

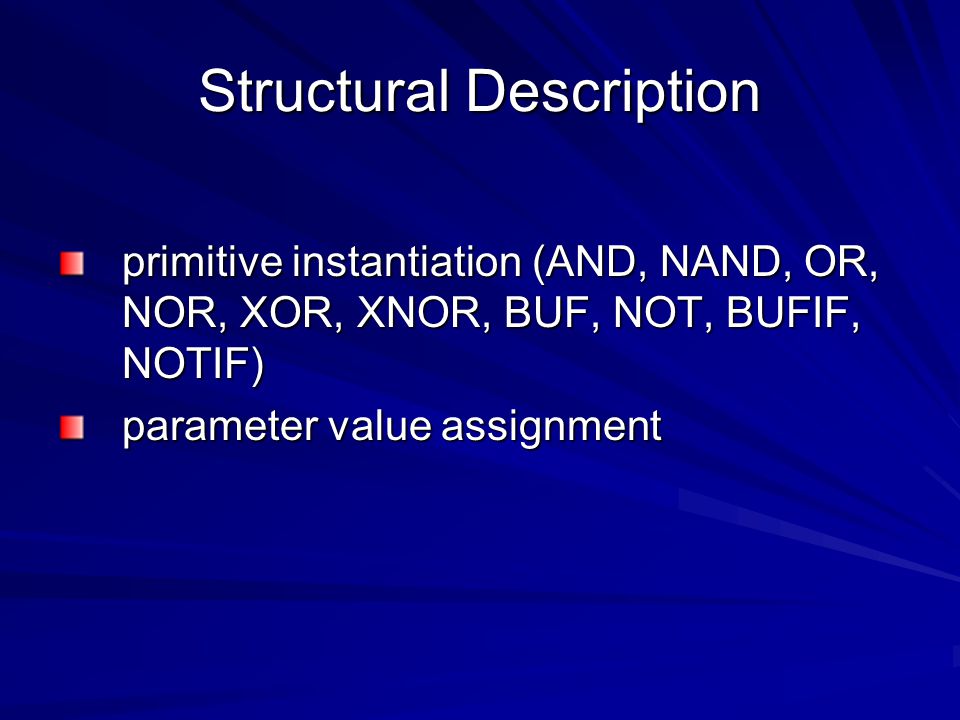

6 Structural Description primitive instantiation (AND, NAND, OR, NOR, XOR, XNOR, BUF, NOT, BUFIF, NOTIF) parameter value assignment

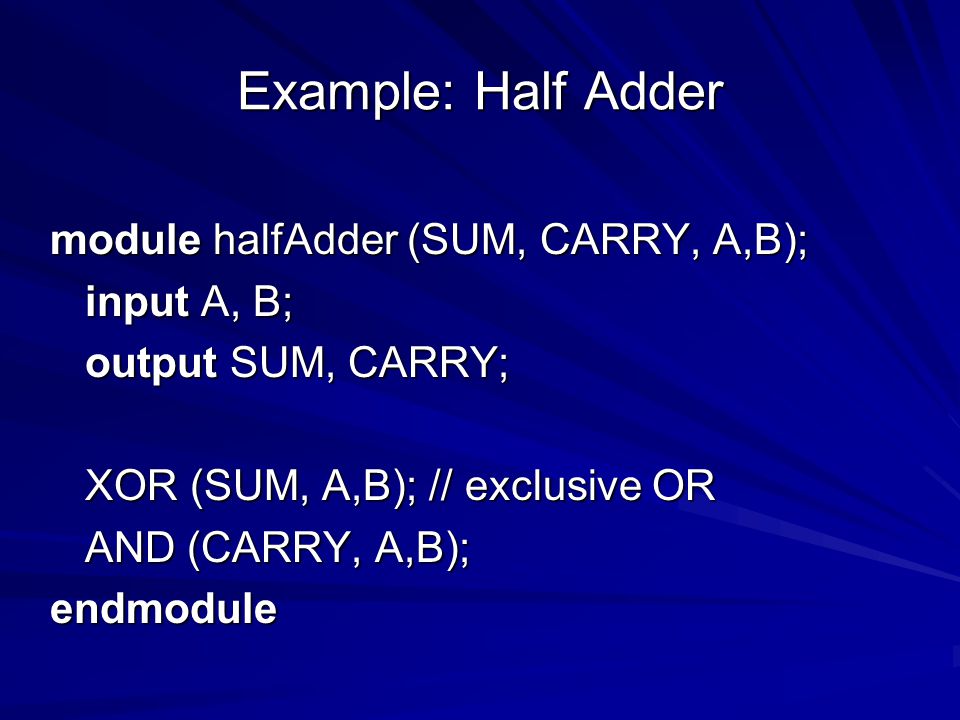

7 Example: Half Adder module halfAdder (SUM, CARRY, A,B); input A, B; input A, B; output SUM, CARRY; output SUM, CARRY; XOR (SUM, A,B); // exclusive OR XOR (SUM, A,B); // exclusive OR AND (CARRY, A,B); AND (CARRY, A,B);endmodule

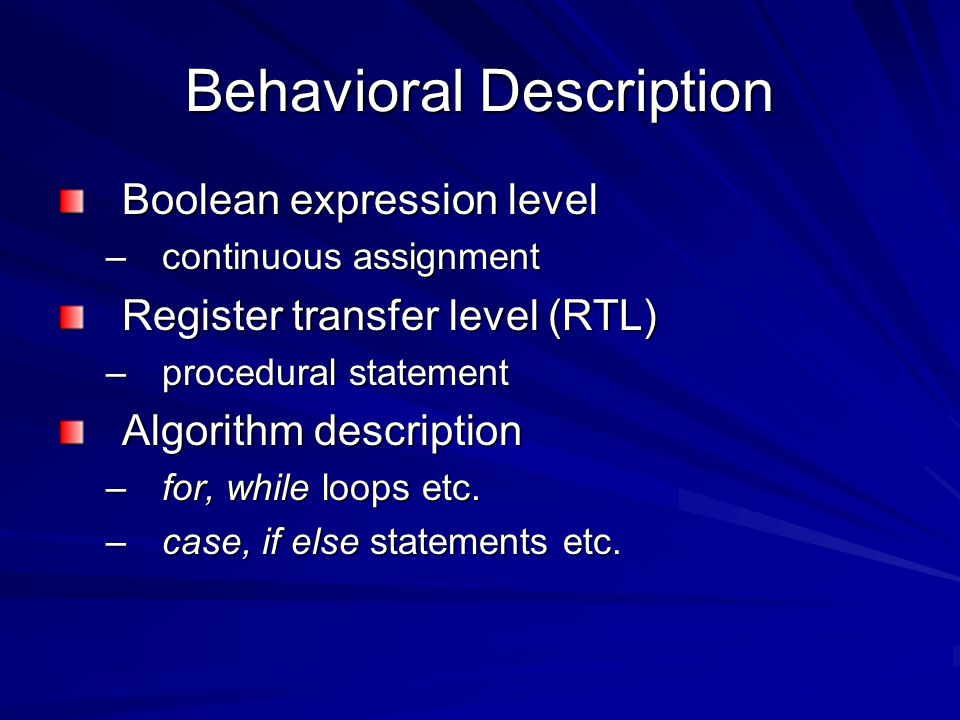

8 Behavioral Description Boolean expression level –continuous assignment Register transfer level (RTL) –procedural statement Algorithm description –for, while loops etc. –case, if else statements etc.

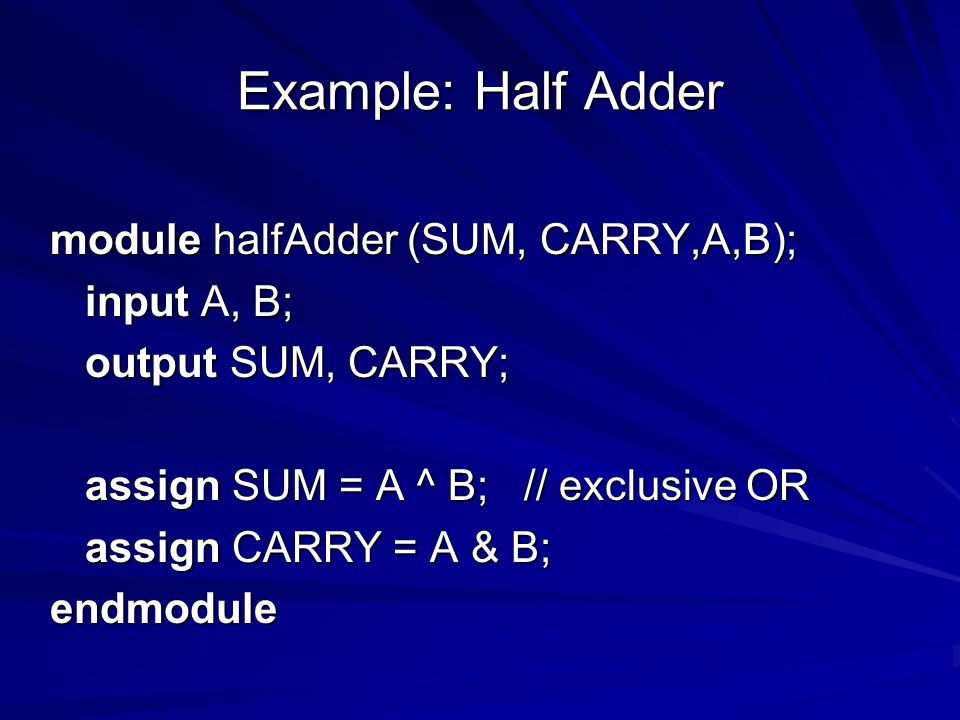

9 Example: Half Adder module halfAdder (SUM, CARRY,A,B); input A, B; input A, B; output SUM, CARRY; output SUM, CARRY; assign SUM = A ^ B; // exclusive OR assign SUM = A ^ B; // exclusive OR assign CARRY = A & B; assign CARRY = A & B;endmodule

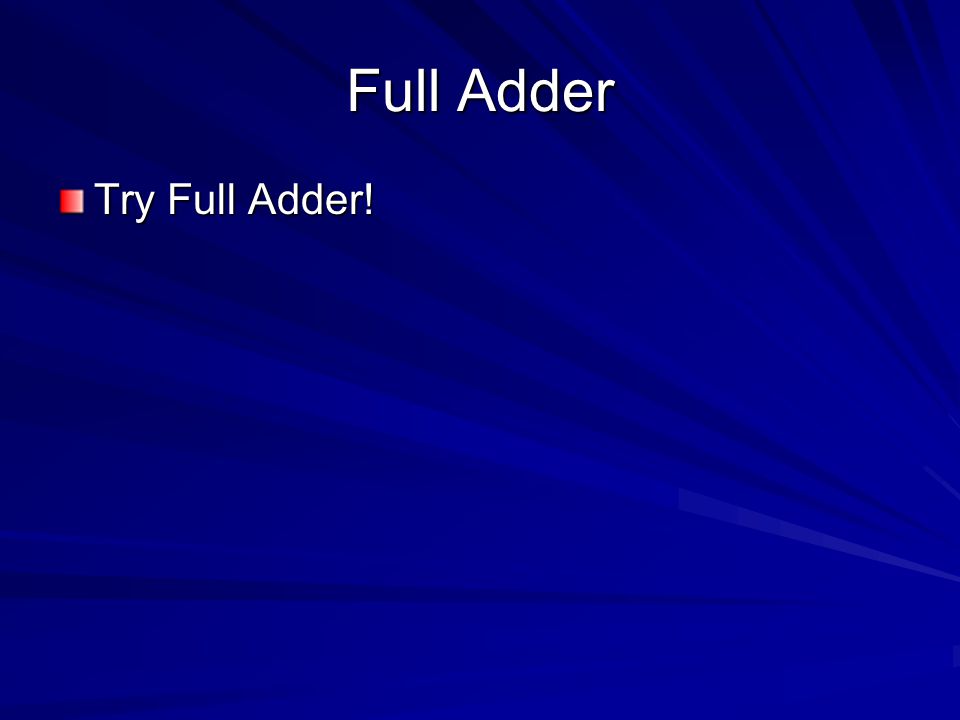

10 Full Adder Try Full Adder!

11 Full Adder, composed of HA’s /*************************** FULL ADDER *********************************/ // fullAdder module definition - contains two instances of module halfAdder needed to create the fullAdder module fullAdder (SUM, CARRY_OUT, A_in, B_in, CARRY_IN); input A_in, B_in, CARRY_IN; input A_in, B_in, CARRY_IN; output SUM, CARRY_OUT; output SUM, CARRY_OUT; wire w1, w2, w3; wire w1, w2, w3; halfAdder H1(w1,w2, A_in, B_in); // instance of halfAdder module called H1 halfAdder H1(w1,w2, A_in, B_in); // instance of halfAdder module called H1 halfAdder H2(SUM, w3, CARRY_IN, w1); // instance of halfAdder called H2 halfAdder H2(SUM, w3, CARRY_IN, w1); // instance of halfAdder called H2 OR o1 (CARRY_OUT, w2, w3); OR o1 (CARRY_OUT, w2, w3);endmodule/******************************************************************************/

12 Using a Testbench Allows you to test the functionality of your design by applying test inputs and observing the outputs. When using Modelsim, must be in a separate.v file Must match the interface of your design Need not to be synthesizable.

13 Full Adder Testbench `timescale 1ns / 1ps module tb_fulladder; wire SUM, CARRY_OUT; reg A_in, B_in, CARRY_IN; fullAdder instance1(SUM, CARRY_OUT, A_in, B_in, CARRY_IN); initialbegin $monitor ($time,,, "A = %b B = %b C = %b SUM = %b, Cout = %b", A_in, B_in, CARRY_IN, SUM, CARRY_OUT); //TEST INPUTS //TEST INPUTS #10 A_in=0; B_in=0; CARRY_IN=0; #10 A_in = 1; #10 CARRY_IN = 1; B_in = 1; endendmodule

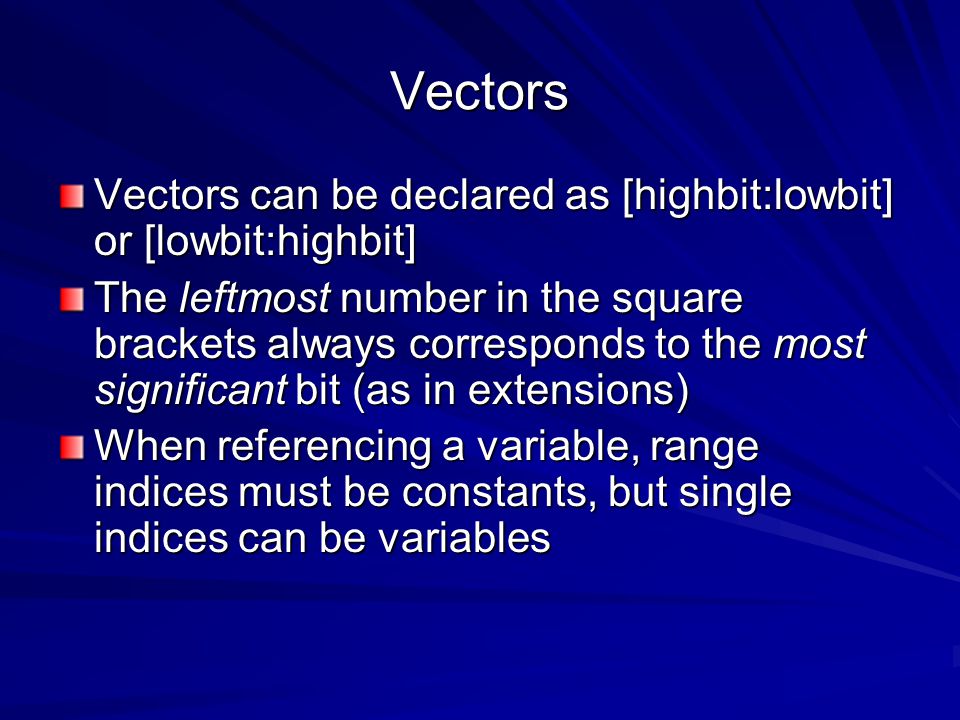

14 Vectors Vectors can be declared as [highbit:lowbit] or [lowbit:highbit] The leftmost number in the square brackets always corresponds to the most significant bit (as in extensions) When referencing a variable, range indices must be constants, but single indices can be variables

15 Vectors in Verilog One dimension: define data with multiple bits. E.g. reg [15:0]sum; wire [15:0]w; assign w[3:0] = sum[15:12]; Two dimension: define a memory storage. E.g. reg [31:0] RegFile[31:0]; always@(posedge clk) RegFile[0] = 32’b0;

16 Vector Examples reg [7:0] bus bus[4:0] wire [4:2] addends addends[3:2] wire [2:4] addends addends[2:3] reg [5:0] value value[var:1] reg [5:0] value value[n] The 5 least significant bits of bus The 2 least significant bits of addends The 2 most significant bits of addends Illegal — indices must be constant The nth bit of value where n is a register or a net

17 Full Adder, composed of HA’s /*************************** FULL ADDER *********************************/ // fullAdder module definition - contains two instances of module halfAdder needed to create the fullAdder module fullAdder (SUM, CARRY_OUT, A_in, B_in, CARRY_IN); input A_in, B_in, CARRY_IN; input A_in, B_in, CARRY_IN; output SUM, CARRY_OUT; output SUM, CARRY_OUT; wire [2:0] w; wire [2:0] w; halfAdder H1(w[0],w[1], A_in, B_in); // instance of halfAdder module called H1 halfAdder H1(w[0],w[1], A_in, B_in); // instance of halfAdder module called H1 halfAdder H2(SUM, w[2], CARRY_IN, w[0]); // instance of halfAdder called H2 halfAdder H2(SUM, w[2], CARRY_IN, w[0]); // instance of halfAdder called H2 OR o1 (CARRY_OUT, w[1], w[2]); OR o1 (CARRY_OUT, w[1], w[2]);endmodule/******************************************************************************/

18 Numbers — Sized ’ ’ – is a decimal number and specifies the number of bits in the number. – is one of [d/D] — Decimal [h/H] — Hex [b/B] — Binary [o/O] — Octal – is a string of characters representing the number.

19 Numbers — Sized : Examples 5’d3 = 00011 8’h0f = 00001111 7’b0 = 0000000

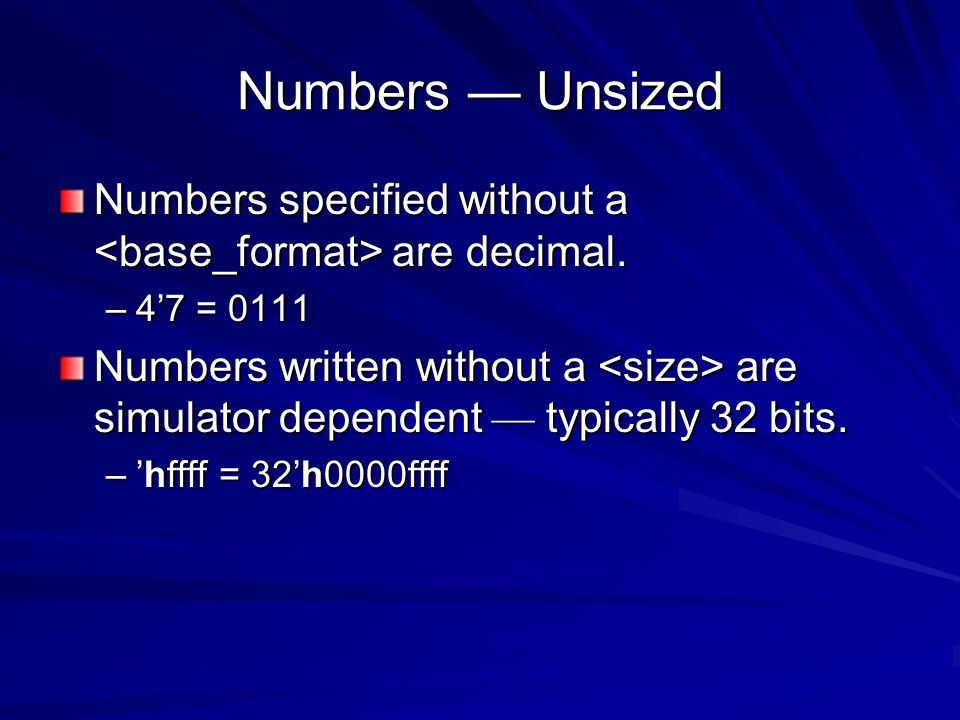

20 Numbers — Unsized Numbers specified without a are decimal. –4’7 = 0111 Numbers written without a are simulator dependent — typically 32 bits. –’hffff = 32’h0000ffff

21 Combinational vs. Sequential Combinational –Combinations of logic where the outputs are only dependent on values of the current input signals –Combinational elements can be modeled using assign and always statements. Sequential –Outputs are dependent on values of the past inputs as well as current circuit inputs. –Sequential elements can be modeled using only always statements.

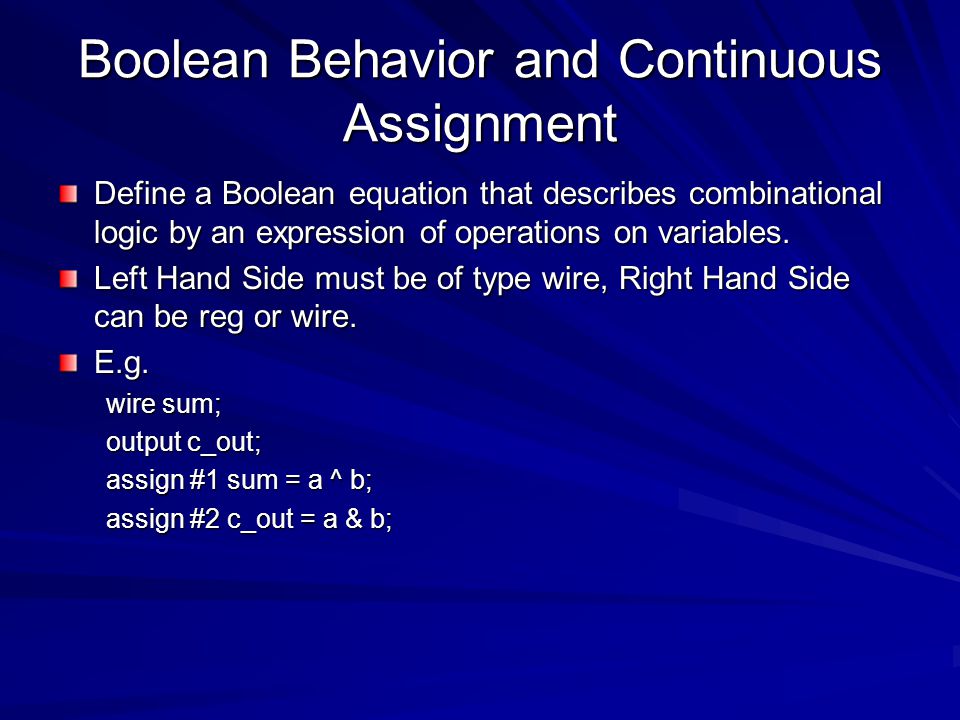

22 Boolean Behavior and Continuous Assignment Define a Boolean equation that describes combinational logic by an expression of operations on variables. Left Hand Side must be of type wire, Right Hand Side can be reg or wire. E.g. wire sum; output c_out; assign #1 sum = a ^ b; assign #2 c_out = a & b;

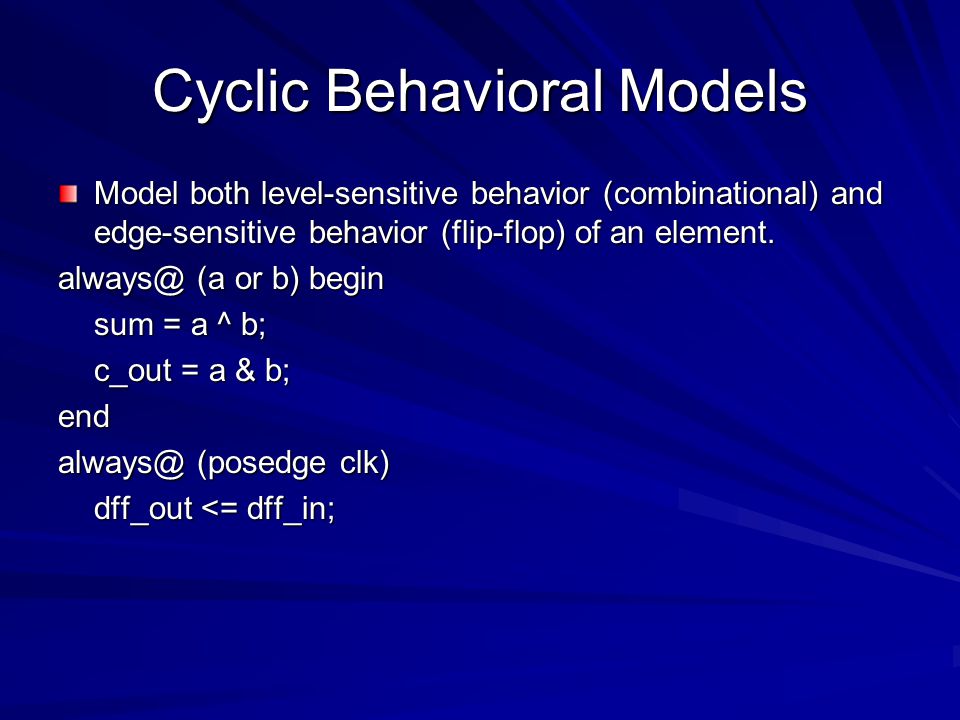

23 Cyclic Behavioral Models Model both level-sensitive behavior (combinational) and edge-sensitive behavior (flip-flop) of an element. always@ (a or b) begin sum = a ^ b; c_out = a & b; end always@ (posedge clk) dff_out <= dff_in;

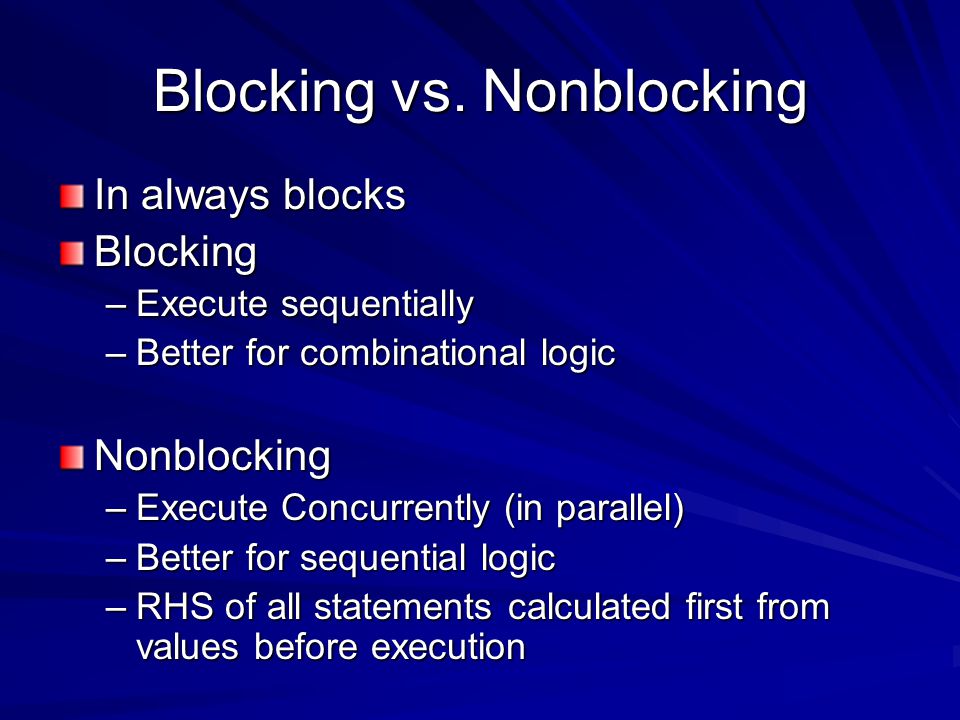

24 Blocking vs. Nonblocking In always blocks Blocking –Execute sequentially –Better for combinational logic Nonblocking –Execute Concurrently (in parallel) –Better for sequential logic –RHS of all statements calculated first from values before execution

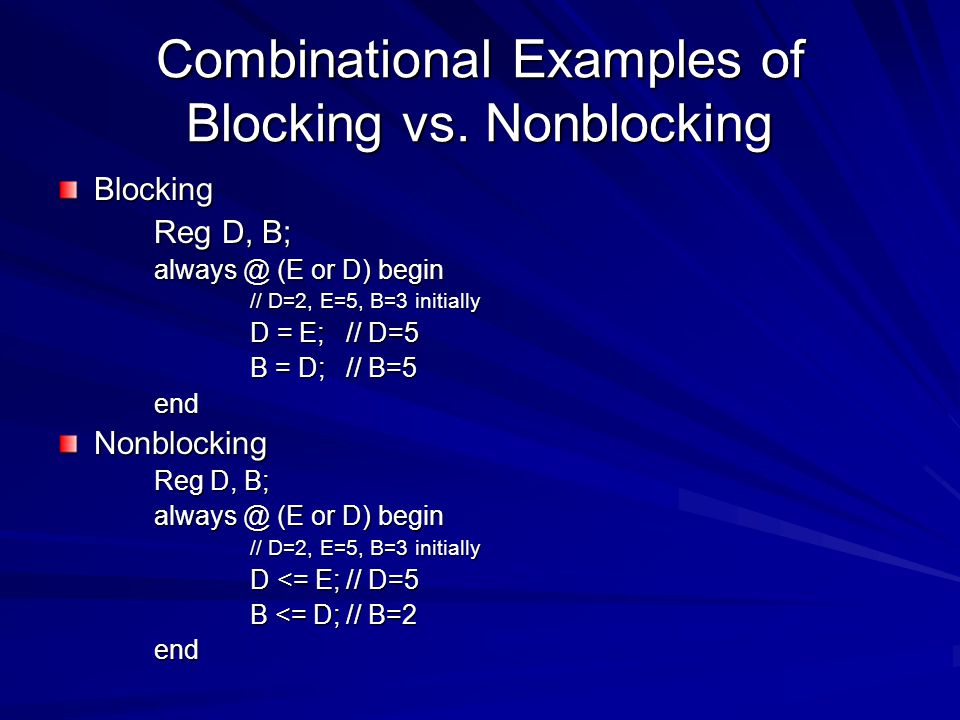

25 Combinational Examples of Blocking vs. Nonblocking Blocking Reg D, B; always @ (E or D) begin // D=2, E=5, B=3 initially D = E;// D=5 B = D;// B=5 endNonblocking Reg D, B; always @ (E or D) begin // D=2, E=5, B=3 initially D <= E;// D=5 B <= D;// B=2 end
