1. 2: Application Layer1 Chapter 2: Application layer r 2.1 Principles of network applications r 2.2 Web and HTTP r 2.3 FTP r 2.4 Electronic Mail  SMTP, POP3, IMAP r 2.5 DNS r Misc  About HW and project 1  A quick demo of Apache  Office hour cancelled (02/12) r 2.7 Socket programming with TCP r 2.8 Socket programming with UDP r 2.6 P2P applications

2. 2: Application Layer2 Apache web server r The most popular web server software  apache.org r Download from httpd.apache.org/download.cgi r You can run your own web server!  Need to change port number in file httpd.conf if installing it on department machines r Write simple html pages  Put images on the web

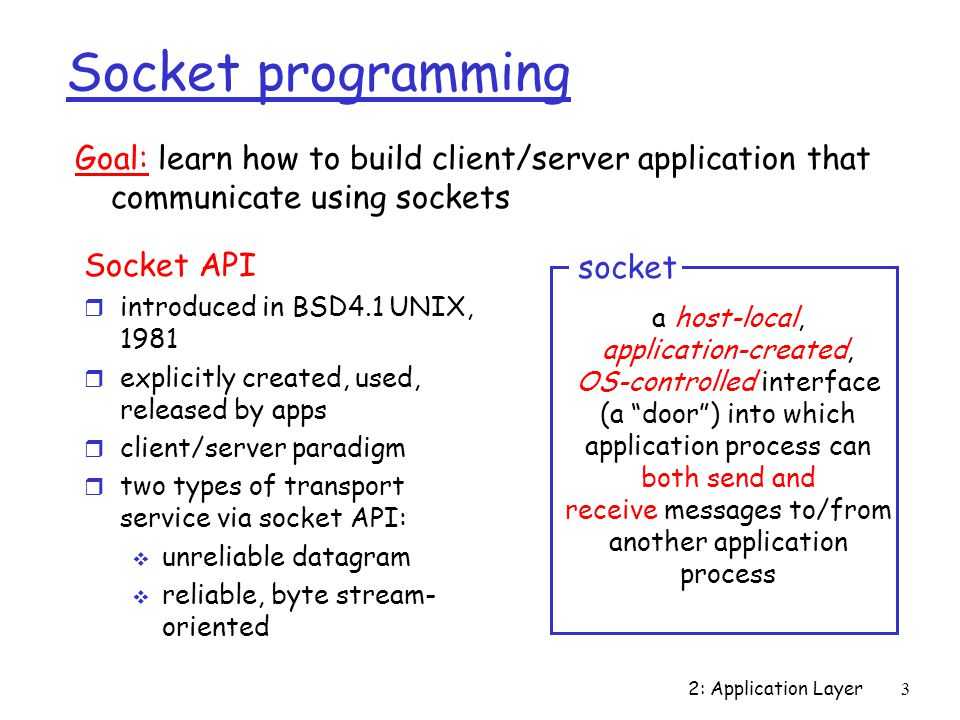

3. 2: Application Layer3 Socket programming Socket API r introduced in BSD4.1 UNIX, 1981 r explicitly created, used, released by apps r client/server paradigm r two types of transport service via socket API:  unreliable datagram  reliable, byte stream- oriented a host-local, application-created, OS-controlled interface (a “door”) into which application process can both send and receive messages to/from another application process socket Goal: learn how to build client/server application that communicate using sockets

4. 2: Application Layer4 Socket-programming using TCP Socket: a door between application process and end- end-transport protocol (UCP or TCP) TCP service: reliable transfer of bytes from one process to another process TCP with buffers, variables socket controlled by application developer controlled by operating system host or server process TCP with buffers, variables socket controlled by application developer controlled by operating system host or server internet

5. 2: Application Layer5 Socket programming with TCP Client must contact server r server process must first be running r server must have created socket (door) that welcomes client’s contact Client contacts server by: r creating client-local TCP socket r specifying IP address, port number of server process r When client creates socket: client TCP establishes connection to server TCP r When contacted by client, server TCP creates new socket for server process to communicate with client  allows server to talk with multiple clients  source port numbers used to distinguish clients (more in Chap 3) TCP provides reliable, in-order transfer of bytes (“pipe”) between client and server application viewpoint

6. 2: Application Layer6 Client/server socket interaction: TCP wait for incoming connection request connectionSocket = welcomeSocket.accept() create socket, port= x, for incoming request: welcomeSocket = ServerSocket() create socket, connect to hostid, port= x clientSocket = Socket() close connectionSocket read reply from clientSocket close clientSocket Server (running on hostid ) Client send request using clientSocket read request from connectionSocket write reply to connectionSocket TCP connection setup

7. 2: Application Layer7 Client process client TCP socket Stream jargon r A stream is a sequence of characters that flow into or out of a process. r An input stream is attached to some input source for the process, e.g., keyboard or socket. r An output stream is attached to an output source, e.g., monitor or socket.

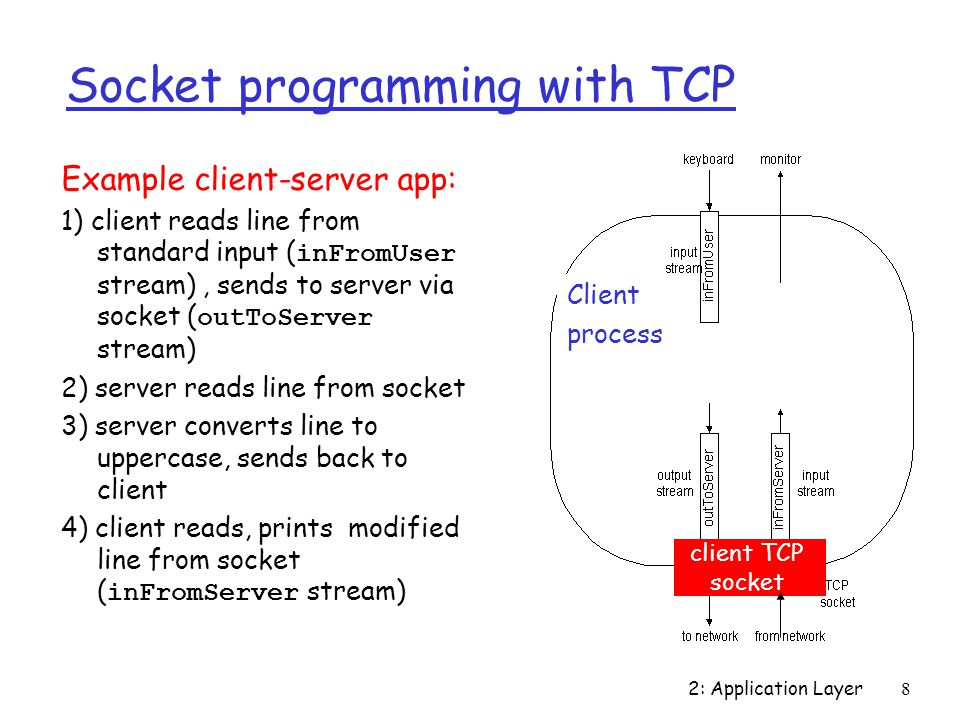

8. 2: Application Layer8 Socket programming with TCP Example client-server app: 1) client reads line from standard input ( inFromUser stream), sends to server via socket ( outToServer stream) 2) server reads line from socket 3) server converts line to uppercase, sends back to client 4) client reads, prints modified line from socket ( inFromServer stream) Client process client TCP socket

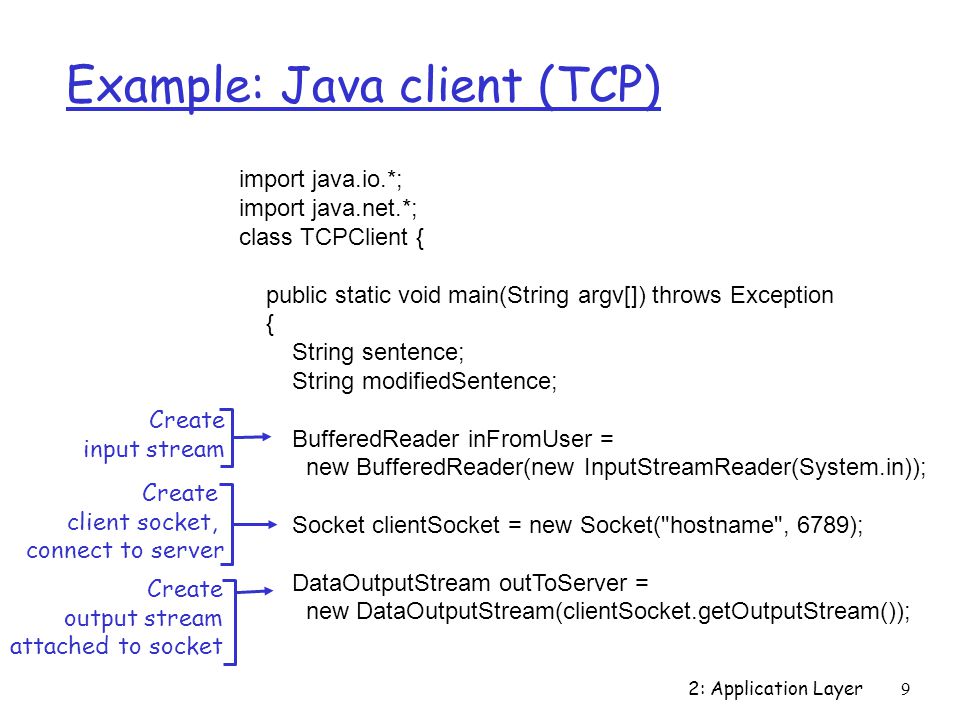

9. 2: Application Layer9 Example: Java client (TCP) import java.io.*; import java.net.*; class TCPClient { public static void main(String argv[]) throws Exception { String sentence; String modifiedSentence; BufferedReader inFromUser = new BufferedReader(new InputStreamReader(System.in)); Socket clientSocket = new Socket("hostname", 6789); DataOutputStream outToServer = new DataOutputStream(clientSocket.getOutputStream()); Create input stream Create client socket, connect to server Create output stream attached to socket

10. 2: Application Layer10 Example: Java client (TCP), cont. BufferedReader inFromServer = new BufferedReader(new InputStreamReader(clientSocket.getInputStream())); sentence = inFromUser.readLine(); outToServer.writeBytes(sentence + '\n'); modifiedSentence = inFromServer.readLine(); System.out.println ("FROM SERVER: " + modifiedSentence ); clientSocket.close(); } Create input stream attached to socket Send line to server Read line from server

11. 2: Application Layer11 Example: Java server (TCP) import java.io.*; import java.net.*; class TCPServer { public static void main(String argv[]) throws Exception { String clientSentence; String capitalizedSentence; ServerSocket welcomeSocket = new ServerSocket(6789); while(true) { Socket connectionSocket = welcomeSocket.accept(); BufferedReader inFromClient = new BufferedReader(new InputStreamReader(connectionSocket.getInputStream())); Create welcoming socket at port 6789 Wait, on welcoming socket for contact by client Create input stream, attached to socket

12. 2: Application Layer12 Example: Java server (TCP), cont DataOutputStream outToClient = new DataOutputStream (connectionSocket.getOutputStream()); clientSentence = inFromClient.readLine(); capitalizedSentence = clientSentence.toUpperCase() + '\n'; outToClient.writeBytes(capitalizedSentence); } Read in line from socket Create output stream, attached to socket Write out line to socket End of while loop, loop back and wait for another client connection

13. 2: Application Layer13 Chapter 2: Application layer r 2.1 Principles of network applications r 2.2 Web and HTTP r 2.3 FTP r 2.4 Electronic Mail  SMTP, POP3, IMAP r 2.5 DNS r 2.7 Socket programming with TCP r 2.8 Socket programming with UDP r Threads r 2.6 P2P applications

14. 2: Application Layer14 Socket programming with UDP UDP: no “connection” between client and server r no handshaking r sender explicitly attaches IP address and port of destination to each packet r server must extract IP address, port of sender from received packet UDP: transmitted data may be received out of order, or lost application viewpoint UDP provides unreliable transfer of groups of bytes (“datagrams”) between client and server

15. 2: Application Layer15 Client/server socket interaction: UDP Server (running on hostid ) close clientSocket read datagram from clientSocket create socket, clientSocket = DatagramSocket() Client Create datagram with server IP and port=x; send datagram via clientSocket create socket, port= x. serverSocket = DatagramSocket() read datagram from serverSocket write reply to serverSocket specifying client address, port number

16. 2: Application Layer16 Example: Java client (UDP) Output: sends packet (recall that TCP sent “byte stream”) Input: receives packet (recall thatTCP received “byte stream”) Client process client UDP socket

17. 2: Application Layer17 Example: Java client (UDP) import java.io.*; import java.net.*; class UDPClient { public static void main(String args[]) throws Exception { BufferedReader inFromUser = new BufferedReader(new InputStreamReader(System.in)); DatagramSocket clientSocket = new DatagramSocket(); InetAddress IPAddress = InetAddress.getByName("hostname"); byte[] sendData = new byte[1024]; byte[] receiveData = new byte[1024]; String sentence = inFromUser.readLine(); sendData = sentence.getBytes(); Create input stream Create client socket Translate hostname to IP address using DNS

18. 2: Application Layer18 Example: Java client (UDP), cont. DatagramPacket sendPacket = new DatagramPacket(sendData, sendData.length, IPAddress, 9876); clientSocket.send(sendPacket); DatagramPacket receivePacket = new DatagramPacket(receiveData, receiveData.length); clientSocket.receive(receivePacket); String modifiedSentence = new String(receivePacket.getData()); System.out.println("FROM SERVER:" + modifiedSentence); clientSocket.close(); } Create datagram with data-to-send, length, IP addr, port Send datagram to server Read datagram from server

19. 2: Application Layer19 Example: Java server (UDP) import java.io.*; import java.net.*; class UDPServer { public static void main(String args[]) throws Exception { DatagramSocket serverSocket = new DatagramSocket(9876); byte[] receiveData = new byte[1024]; byte[] sendData = new byte[1024]; while(true) { DatagramPacket receivePacket = new DatagramPacket(receiveData, receiveData.length); serverSocket.receive(receivePacket); Create datagram socket at port 9876 Create space for received datagram Receive datagram

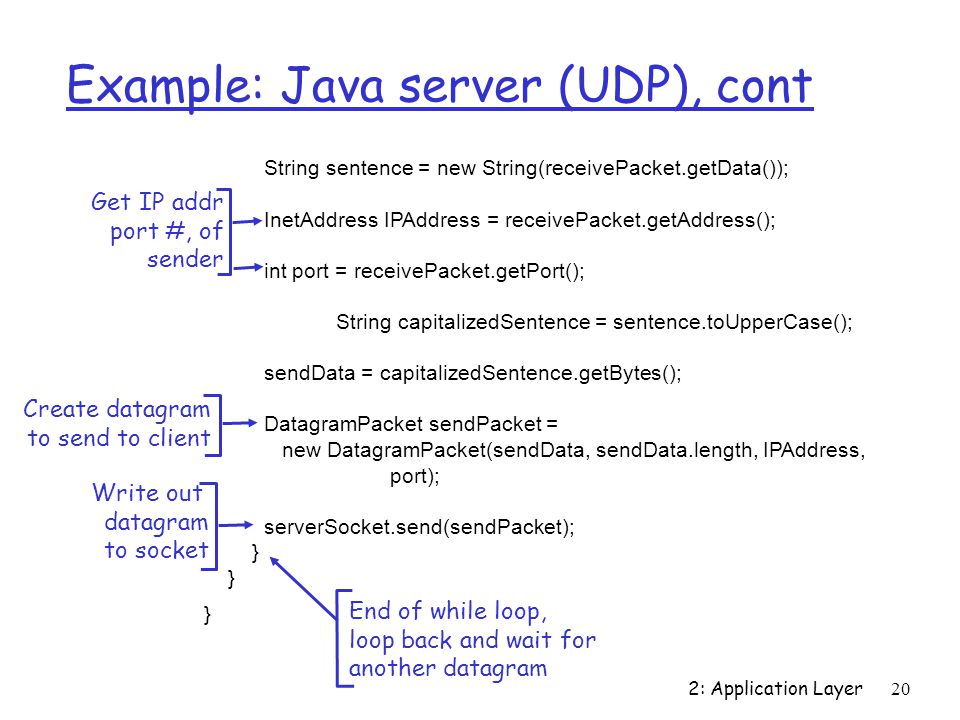

20. 2: Application Layer20 Example: Java server (UDP), cont String sentence = new String(receivePacket.getData()); InetAddress IPAddress = receivePacket.getAddress(); int port = receivePacket.getPort(); String capitalizedSentence = sentence.toUpperCase(); sendData = capitalizedSentence.getBytes(); DatagramPacket sendPacket = new DatagramPacket(sendData, sendData.length, IPAddress, port); serverSocket.send(sendPacket); } Get IP addr port #, of sender Write out datagram to socket End of while loop, loop back and wait for another datagram Create datagram to send to client

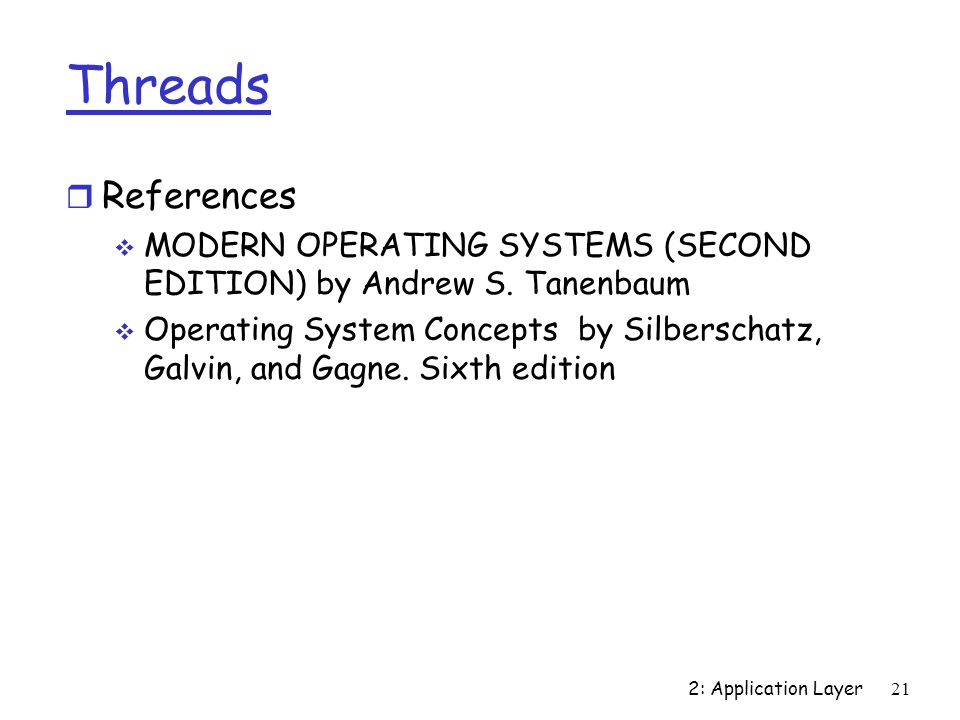

21. 2: Application Layer21 Threads r References  MODERN OPERATING SYSTEMS (SECOND EDITION) by Andrew S. Tanenbaum  Operating System Concepts by Silberschatz, Galvin, and Gagne. Sixth edition

22. 2: Application Layer22 Threads r Thread is used to support concurrent execution r A program may need to support simultaneously  the user interaction  the network communication r Many software packages running on PCs are multithreaded  E.g., in a word processor, a thread for spell checking, a thread for displaying graphics, a thread for reading keystrokes from the user  E.g., web servers need to support many connections at once that allows each client independent service

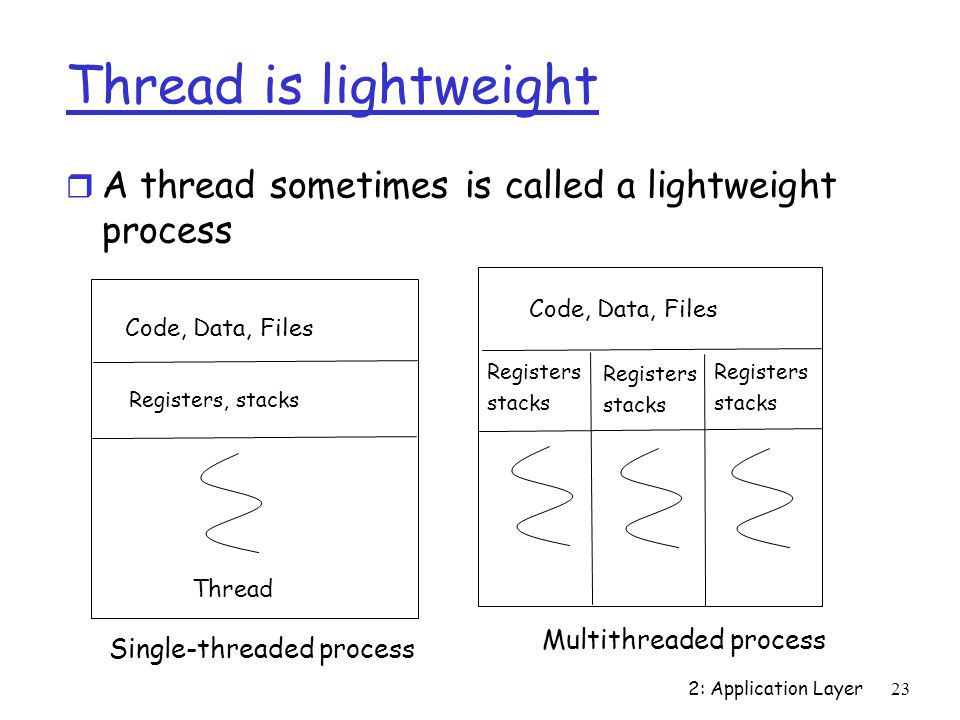

23. 2: Application Layer23 Thread is lightweight r A thread sometimes is called a lightweight process Code, Data, Files Thread Single-threaded process Code, Data, Files Multithreaded process Registers, stacks Registers stacks Registers stacks Registers stacks

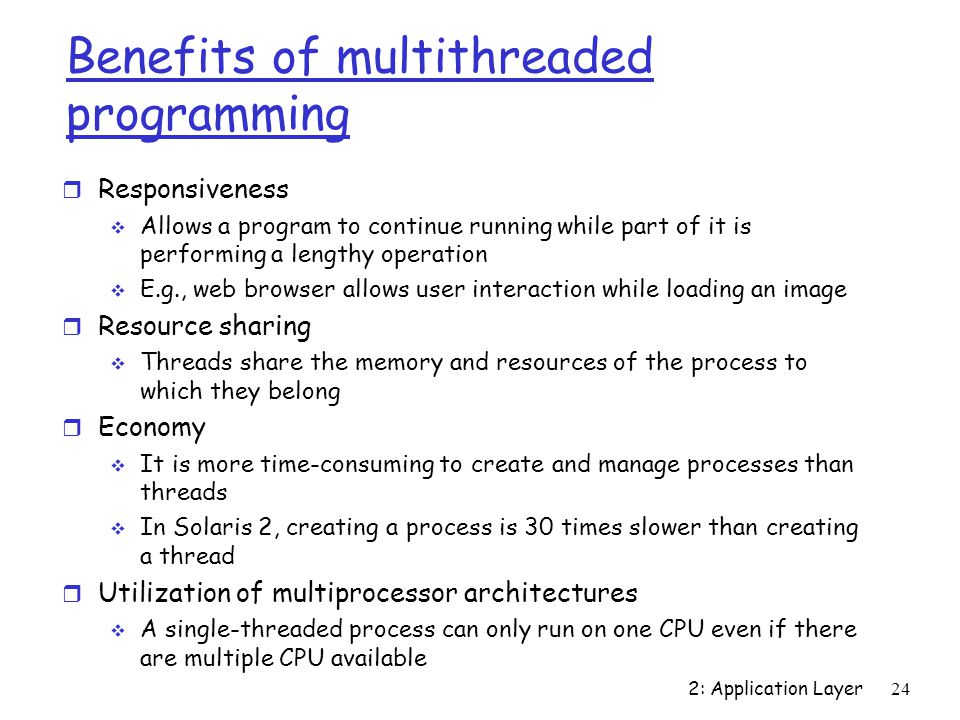

24. 2: Application Layer24 Benefits of multithreaded programming r Responsiveness  Allows a program to continue running while part of it is performing a lengthy operation  E.g., web browser allows user interaction while loading an image r Resource sharing  Threads share the memory and resources of the process to which they belong r Economy  It is more time-consuming to create and manage processes than threads  In Solaris 2, creating a process is 30 times slower than creating a thread r Utilization of multiprocessor architectures  A single-threaded process can only run on one CPU even if there are multiple CPU available

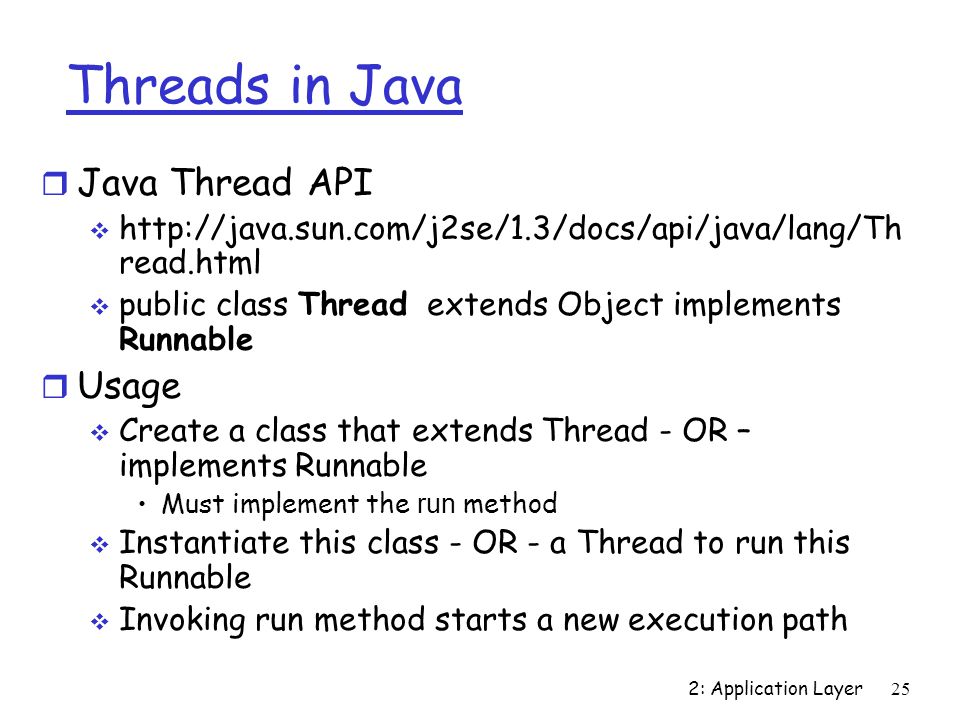

25. 2: Application Layer25 Threads in Java r Java Thread API  http://java.sun.com/j2se/1.3/docs/api/java/lang/Th read.html  public class Thread extends Object implements Runnable r Usage  Create a class that extends Thread - OR – implements Runnable Must implement the run method  Instantiate this class - OR - a Thread to run this Runnable  Invoking run method starts a new execution path

26. 2: Application Layer26 Example: PrimeThread class PrimeThread extends Thread { long minPrime; PrimeThread(long minPrime) { this.minPrime = minPrime; } public void run() { // compute primes larger than minPrime... }

27. 2: Application Layer27 Example: to run the thread PrimeThread p = new PrimeThread(143); p.start();

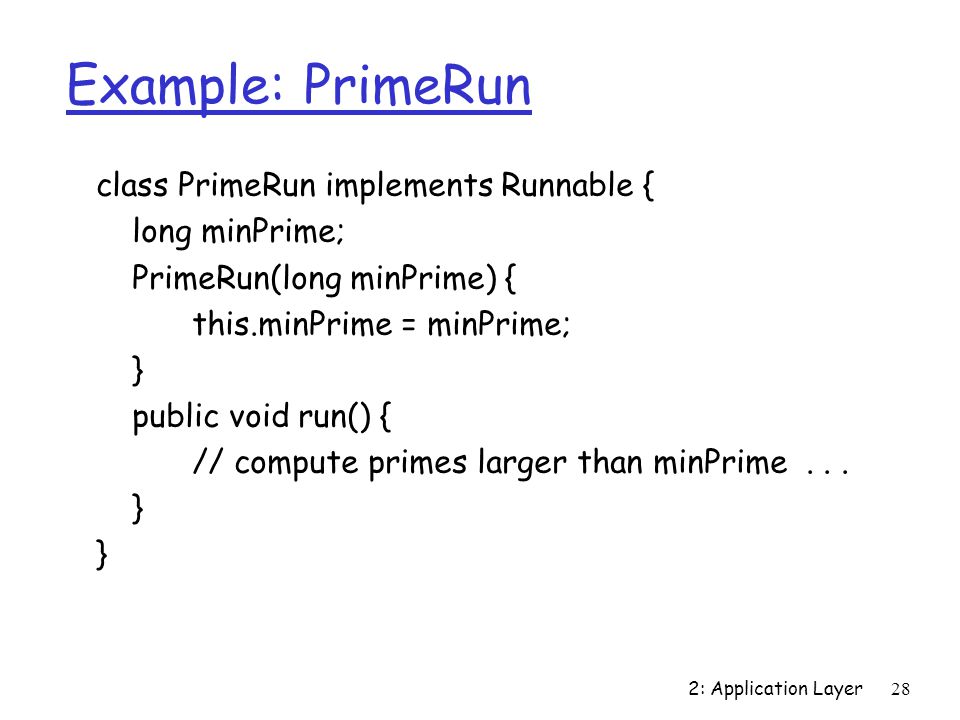

28. 2: Application Layer28 Example: PrimeRun class PrimeRun implements Runnable { long minPrime; PrimeRun(long minPrime) { this.minPrime = minPrime; } public void run() { // compute primes larger than minPrime... }

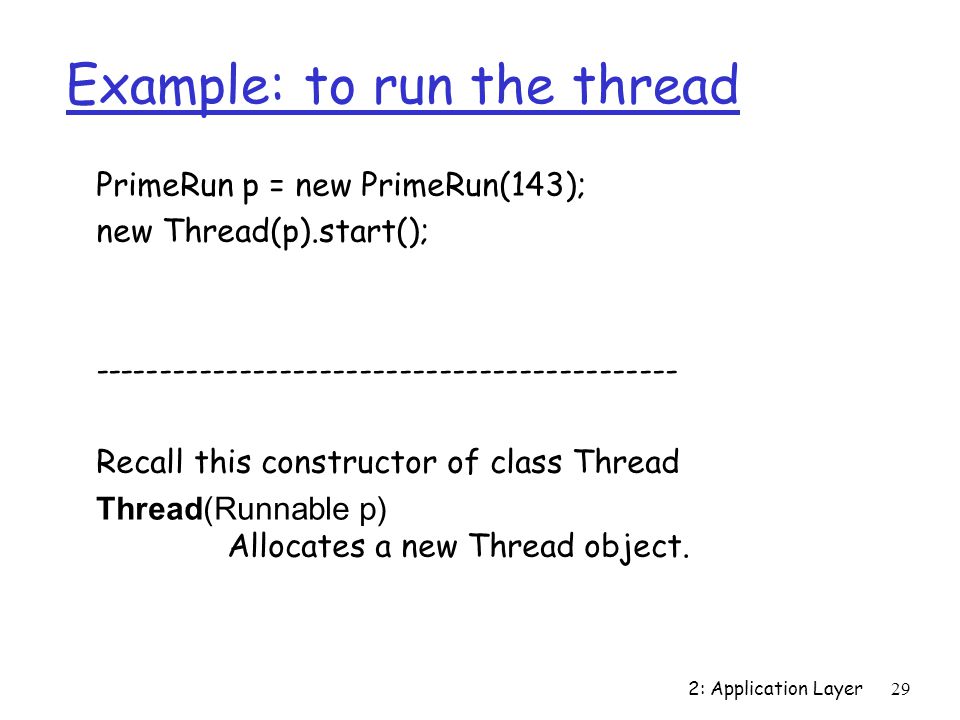

29. 2: Application Layer29 Example: to run the thread PrimeRun p = new PrimeRun(143); new Thread(p).start(); -------------------------------------------- Recall this constructor of class Thread Thread(Runnable p) Allocates a new Thread object.

30. 2: Application Layer30 Threads in Java, yet another example Class Channel extends Thread { Channel(...) { // constructor } public void run() { /* Do work here */ } /* other code to start thread */ Channel C = new Channel(); // constructor C.start(); // start new thread in run method C.join(); // wait for C’s thread to finish.

31. 2: Application Layer31 Threads in Java  After start(), a new thread is created and method run() is executed by the new thread  Calling join() method waits for the run method to terminate

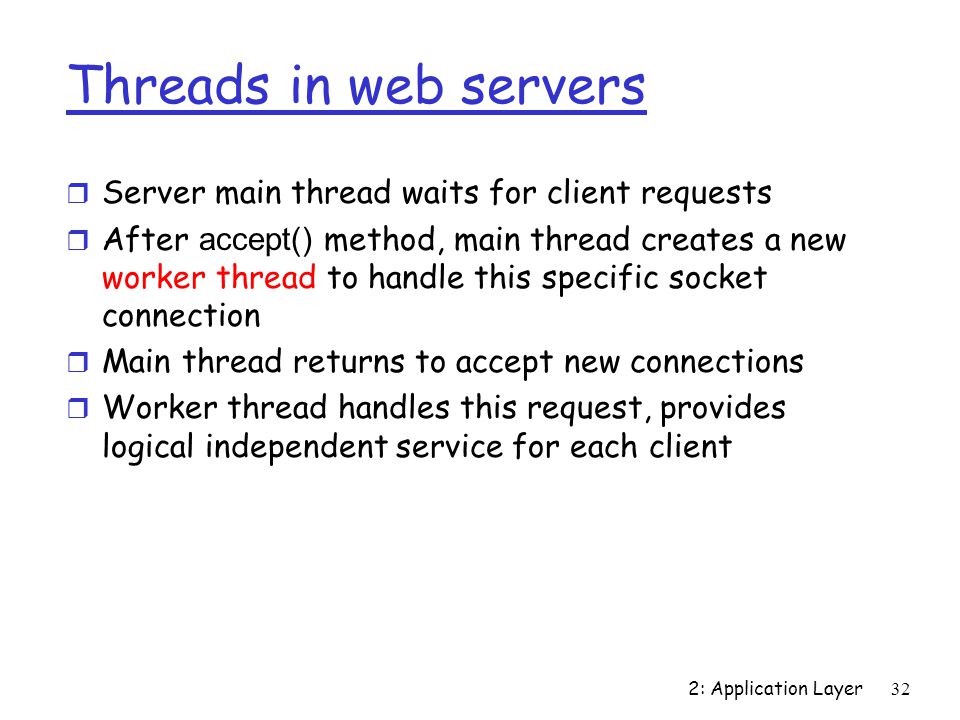

32. 2: Application Layer32 Threads in web servers r Server main thread waits for client requests  After accept() method, main thread creates a new worker thread to handle this specific socket connection r Main thread returns to accept new connections r Worker thread handles this request, provides logical independent service for each client

33. 2: Application Layer33 Synchronized method  Can add keyword synchronized to a method  Result: at most 1 thread can execute the method at a time r Used for altering data structures shared by threads  Be careful! No operations should block in the synchronized method or program can get stuck.

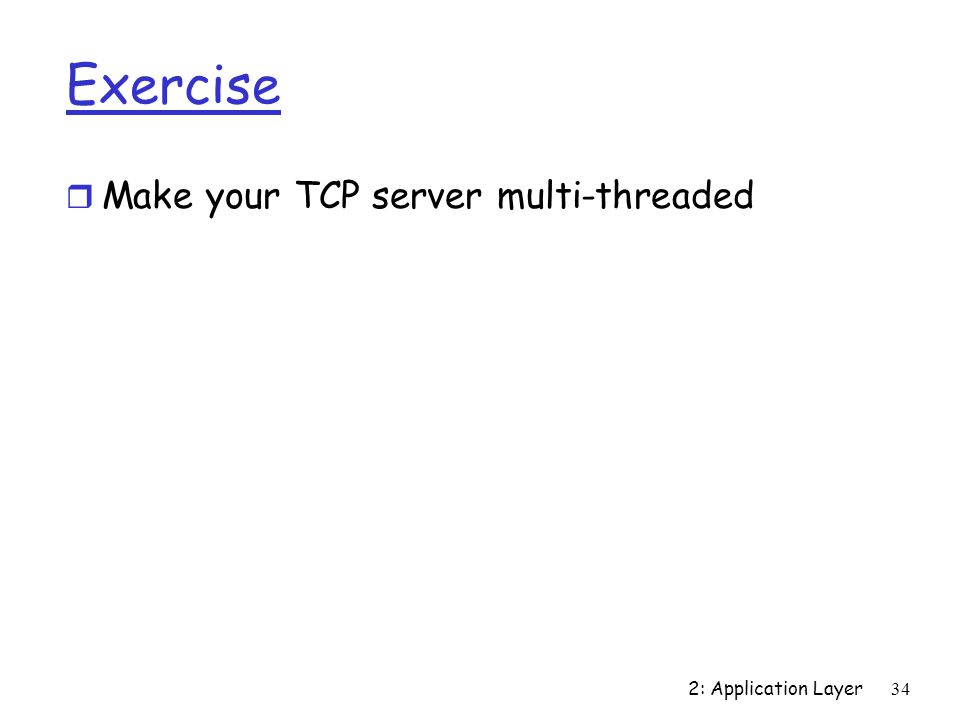

34. 2: Application Layer34 Exercise r Make your TCP server multi-threaded

35. 2: Application Layer35 Slides credits r J.F Kurose and K.W. Ross r Richard Martin
