1 Choice for the rest of the semester New Plan –assembler and machine language –Operating systems Process scheduling Memory management File system Optimization and Pipelining Comparison UNIX Windows … –Software tools: compiler, interpreter, shell … –? Old Plan –Machine language in great detail –Flow charts –Assembly language Memory access Branches Traps Interrupts I/O Stacks Subroutines –Assembly programming –Process management

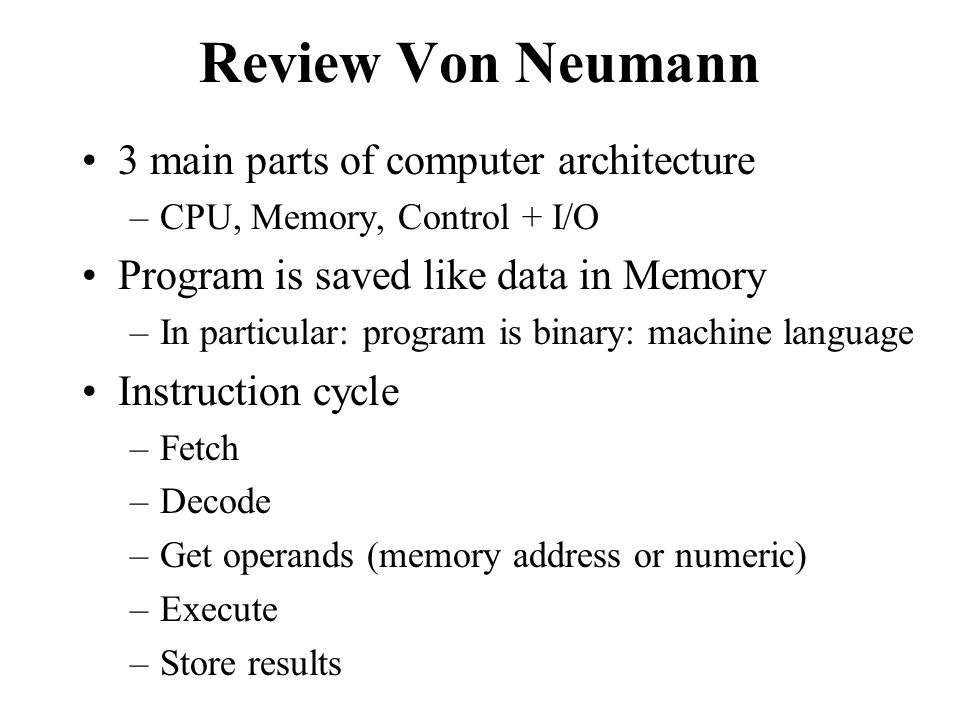

2 Review Von Neumann 3 main parts of computer architecture –CPU, Memory, Control + I/O Program is saved like data in Memory –In particular: program is binary: machine language Instruction cycle –Fetch –Decode –Get operands (memory address or numeric) –Execute –Store results

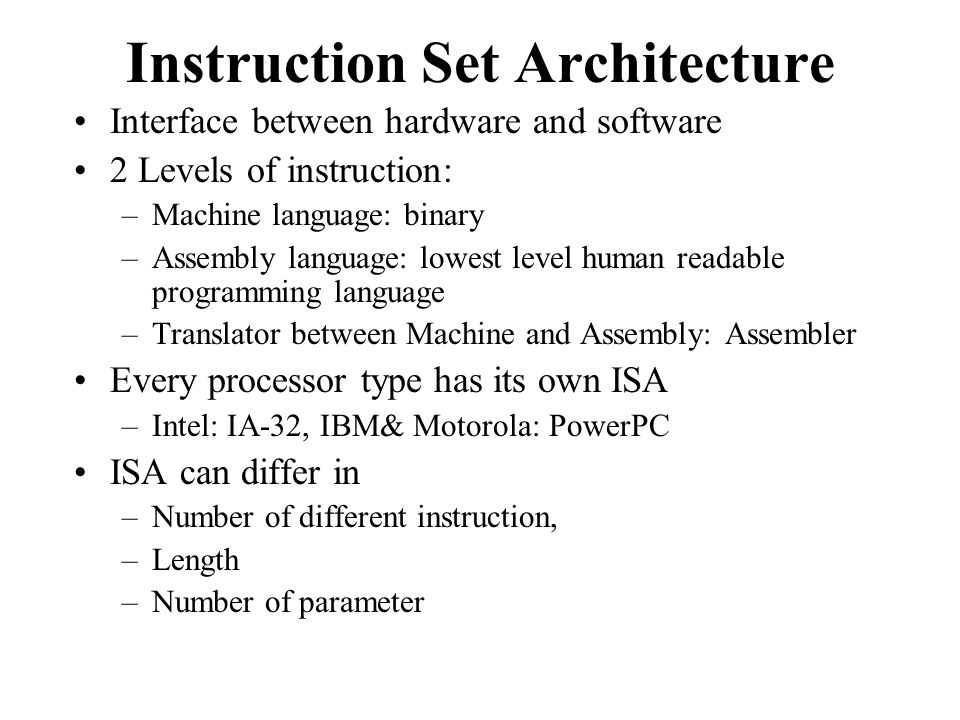

3 Instruction Set Architecture Interface between hardware and software 2 Levels of instruction: –Machine language: binary –Assembly language: lowest level human readable programming language –Translator between Machine and Assembly: Assembler Every processor type has its own ISA –Intel: IA-32, IBM& Motorola: PowerPC ISA can differ in –Number of different instruction, –Length –Number of parameter

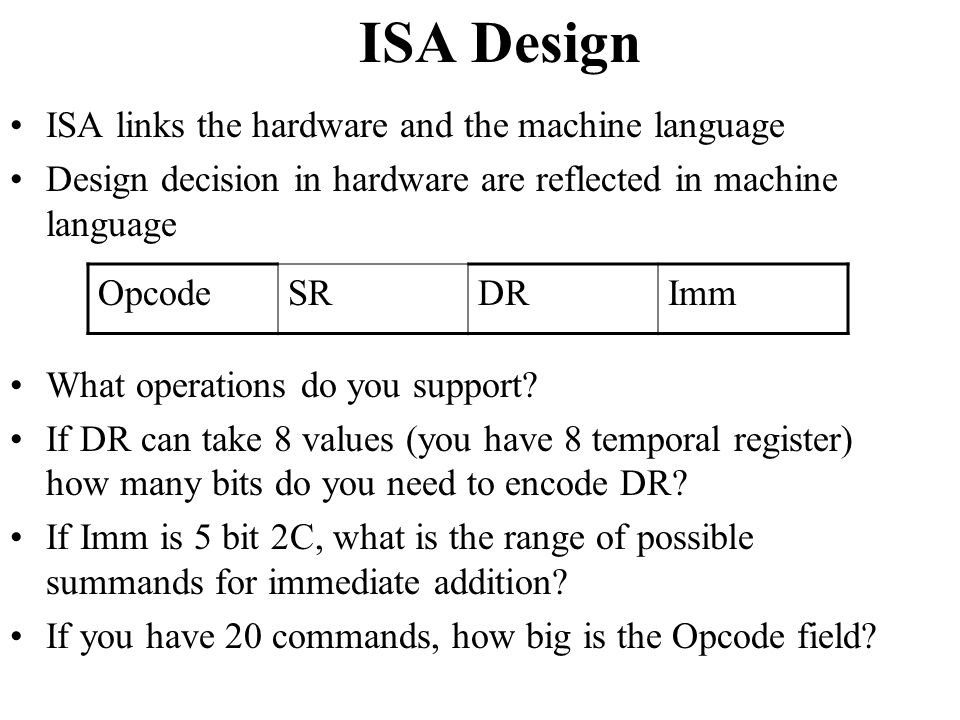

4 ISA Design ISA links the hardware and the machine language Design decision in hardware are reflected in machine language What operations do you support? If DR can take 8 values (you have 8 temporal register) how many bits do you need to encode DR? If Imm is 5 bit 2C, what is the range of possible summands for immediate addition? If you have 20 commands, how big is the Opcode field? OpcodeSRDRImm

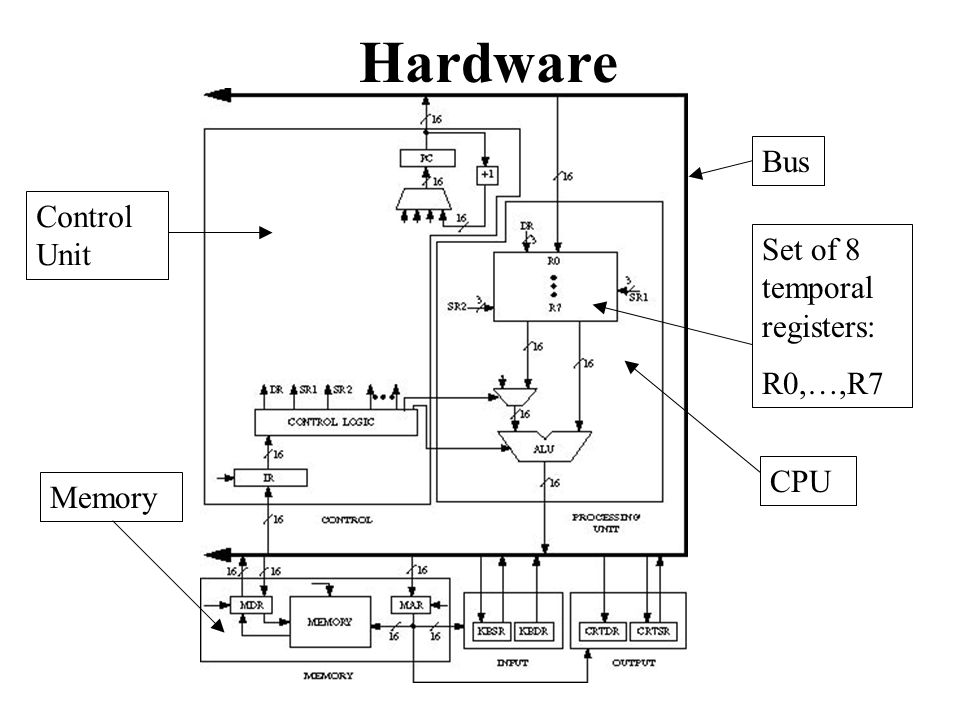

5 Hardware Control Unit CPU Bus Memory Set of 8 temporal registers: R0,…,R7

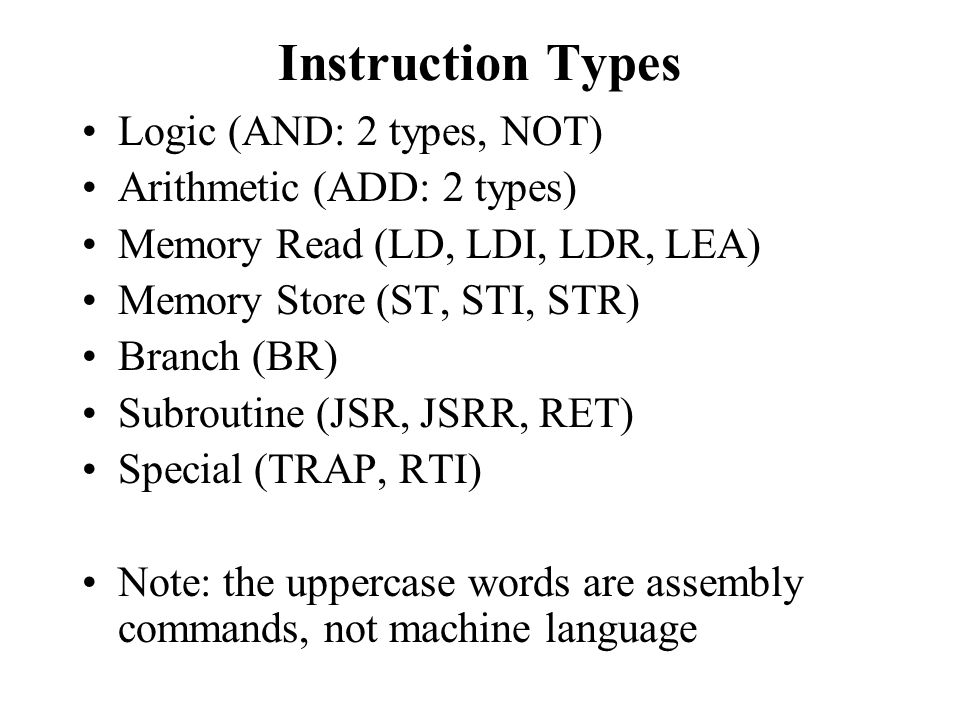

6 Instruction Types Logic (AND: 2 types, NOT) Arithmetic (ADD: 2 types) Memory Read (LD, LDI, LDR, LEA) Memory Store (ST, STI, STR) Branch (BR) Subroutine (JSR, JSRR, RET) Special (TRAP, RTI) Note: the uppercase words are assembly commands, not machine language

7 Machine Language Table 5.1 in Book on page 94

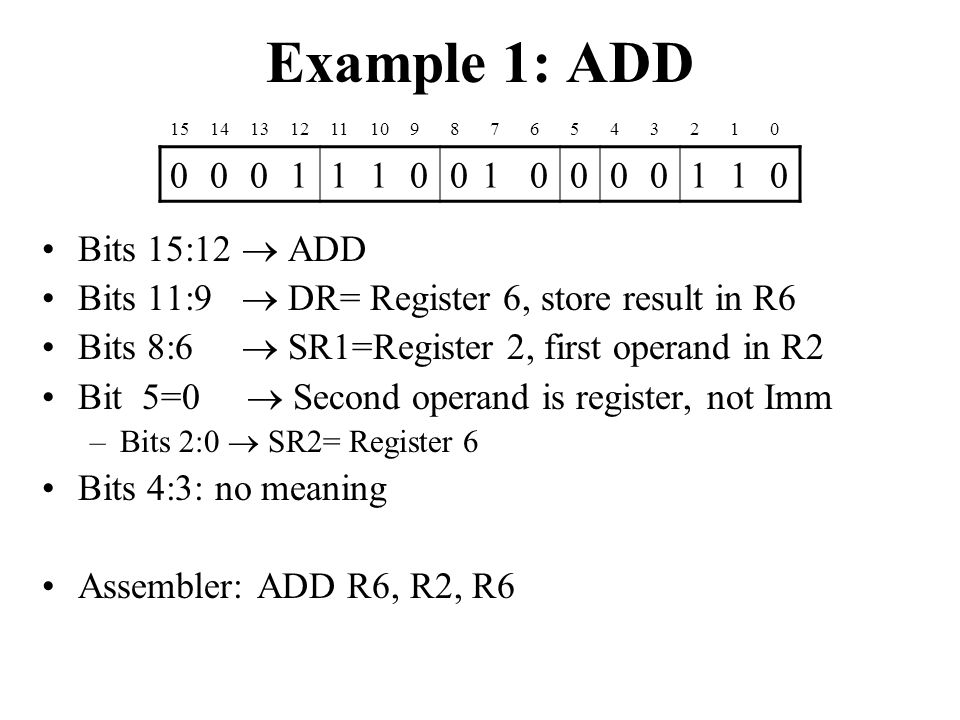

8 Example 1: ADD Bits 15:12  ADD Bits 11:9  DR= Register 6, store result in R6 Bits 8:6  SR1=Register 2, first operand in R2 Bit 5=0  Second operand is register, not Imm –Bits 2:0  SR2= Register 6 Bits 4:3: no meaning Assembler: ADD R6, R2, R6 0001110010000110 1514131211109876543210

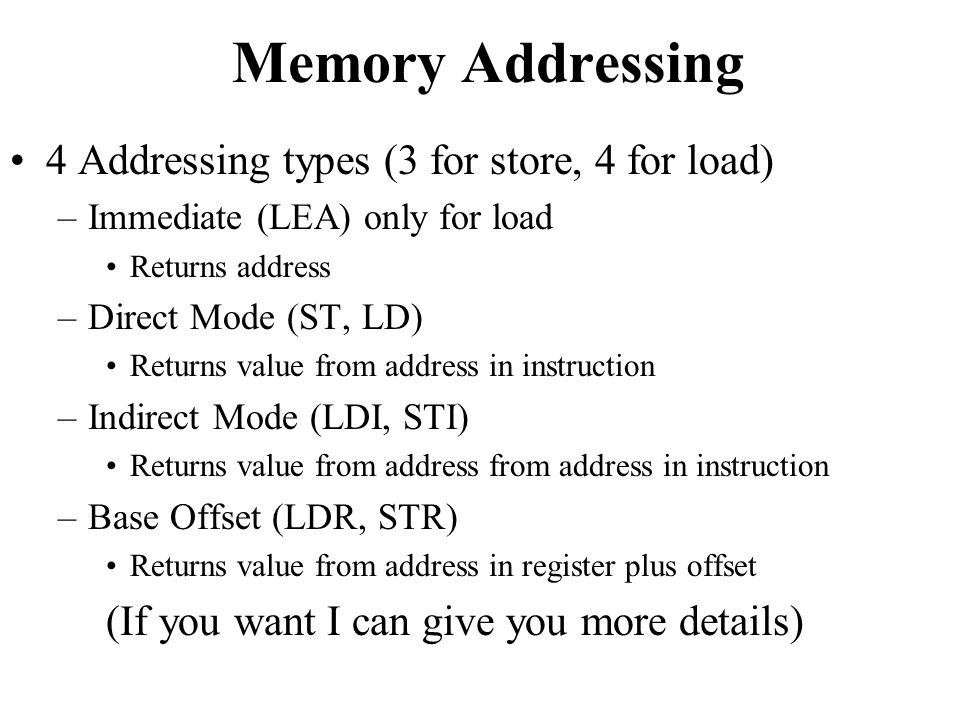

9 Memory Addressing 4 Addressing types (3 for store, 4 for load) –Immediate (LEA) only for load Returns address –Direct Mode (ST, LD) Returns value from address in instruction –Indirect Mode (LDI, STI) Returns value from address from address in instruction –Base Offset (LDR, STR) Returns value from address in register plus offset (If you want I can give you more details)

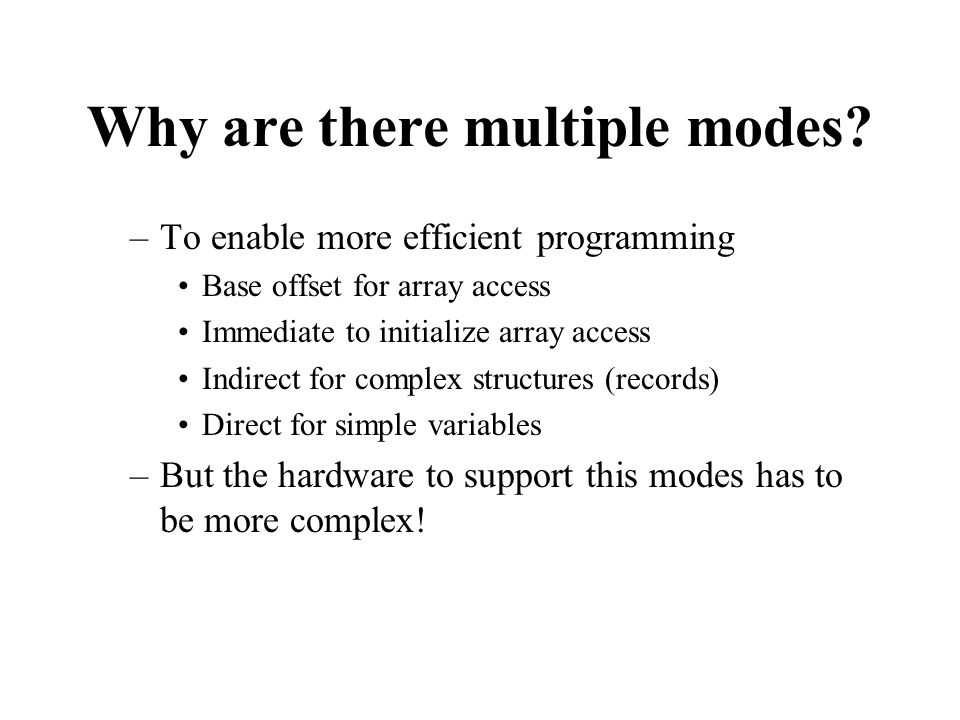

10 Why are there multiple modes? –To enable more efficient programming Base offset for array access Immediate to initialize array access Indirect for complex structures (records) Direct for simple variables –But the hardware to support this modes has to be more complex!

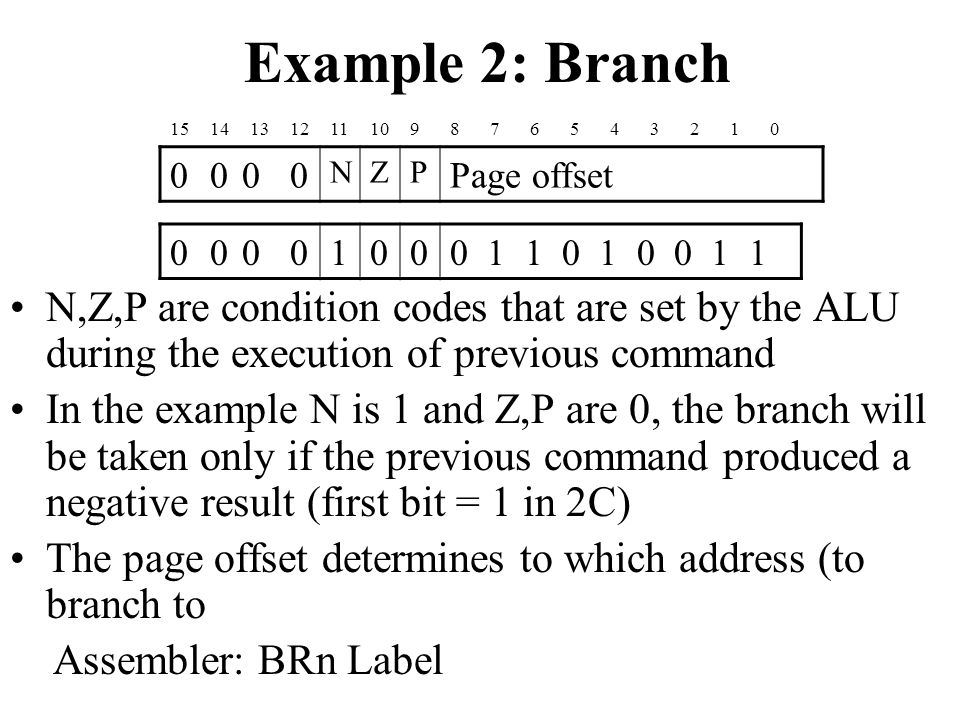

11 Example 2: Branch N,Z,P are condition codes that are set by the ALU during the execution of previous command In the example N is 1 and Z,P are 0, the branch will be taken only if the previous command produced a negative result (first bit = 1 in 2C) The page offset determines to which address (to branch to Assembler: BRn Label 1514131211109876543210 0000 NZP Page offset 00001000 1 1 0 1 0 0 1 1

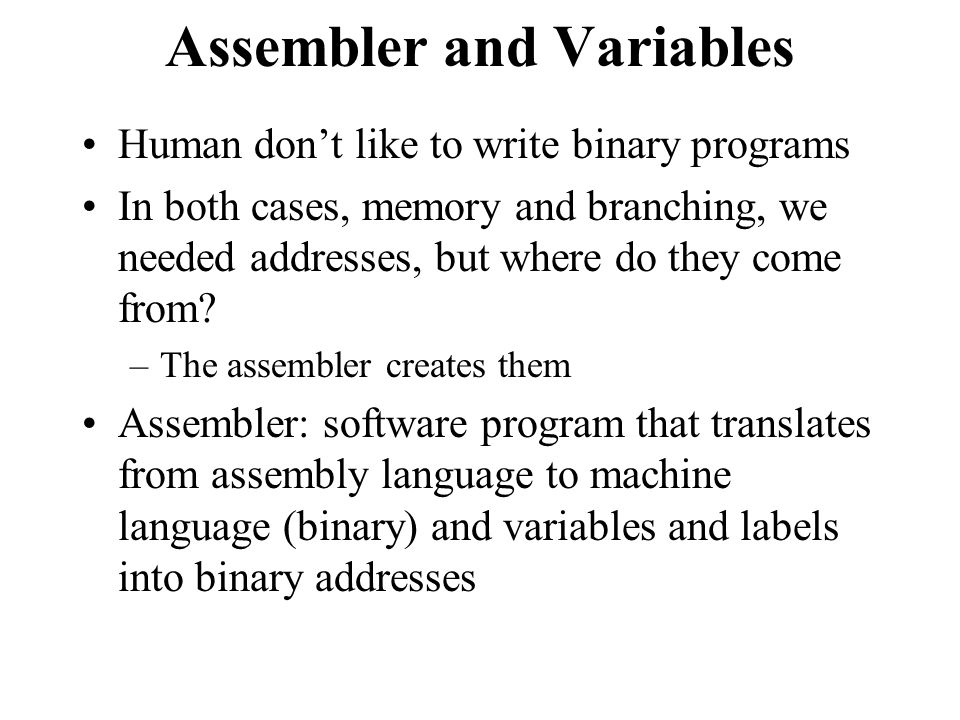

12 Assembler and Variables Human don’t like to write binary programs In both cases, memory and branching, we needed addresses, but where do they come from? –The assembler creates them Assembler: software program that translates from assembly language to machine language (binary) and variables and labels into binary addresses

13 Assembly program ; Comment starts with ; ; Program to multiply a number by the constant 6 ;.ORIG x3050 ; tells the assembler where in memory to start LD R1,SIX ; load the value of variable SIX into register 1 LD R2,NUMBER ; load value of variable NUMBER into register 2 AND R3,R3,#0 ; Clear R3. It will contain the product. AGAIN ADD R3,R3,R2 ; loop, add NUMBER to current result in R3 ADD R1,R1,#-1 ; decrement loop counter BRp AGAIN ; As long as R1 positive go back to AGAIN HALT ; Stop when done NUMBER.FILL x0004 ; reserve memory location for variables SIX.FILL x0006 ; reserve memory location for variables.END

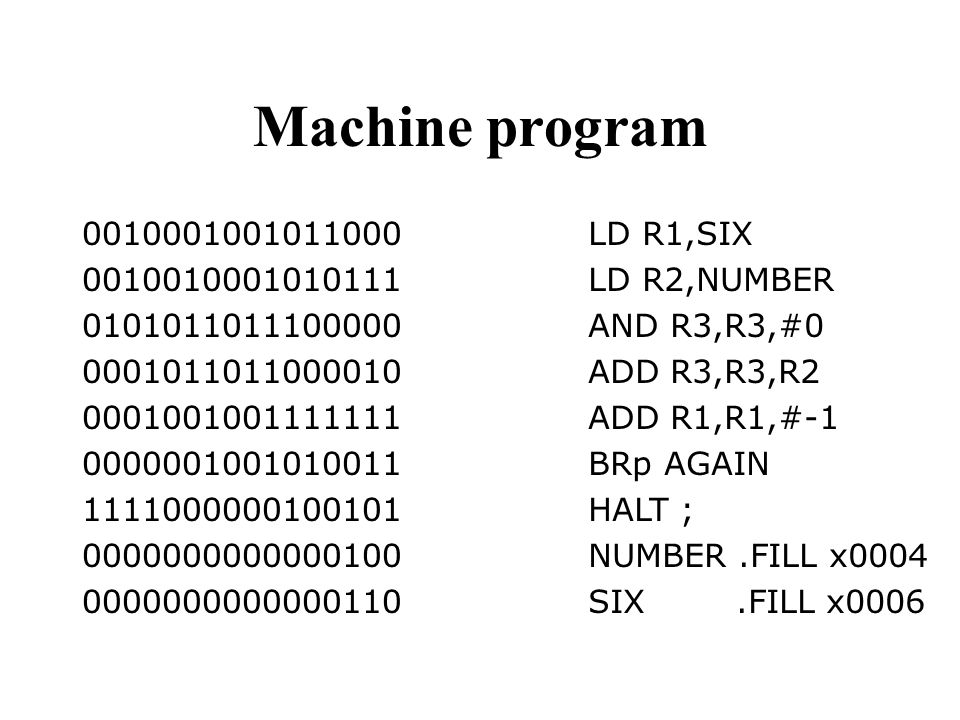

14 Machine program 0010001001011000 0010010001010111 0101011011100000 0001011011000010 0001001001111111 0000001001010011 1111000000100101 0000000000000100 0000000000000110 LD R1,SIX LD R2,NUMBER AND R3,R3,#0 ADD R3,R3,R2 ADD R1,R1,#-1 BRp AGAIN HALT ; NUMBER.FILL x0004 SIX.FILL x0006

15 Simulator Demonstration

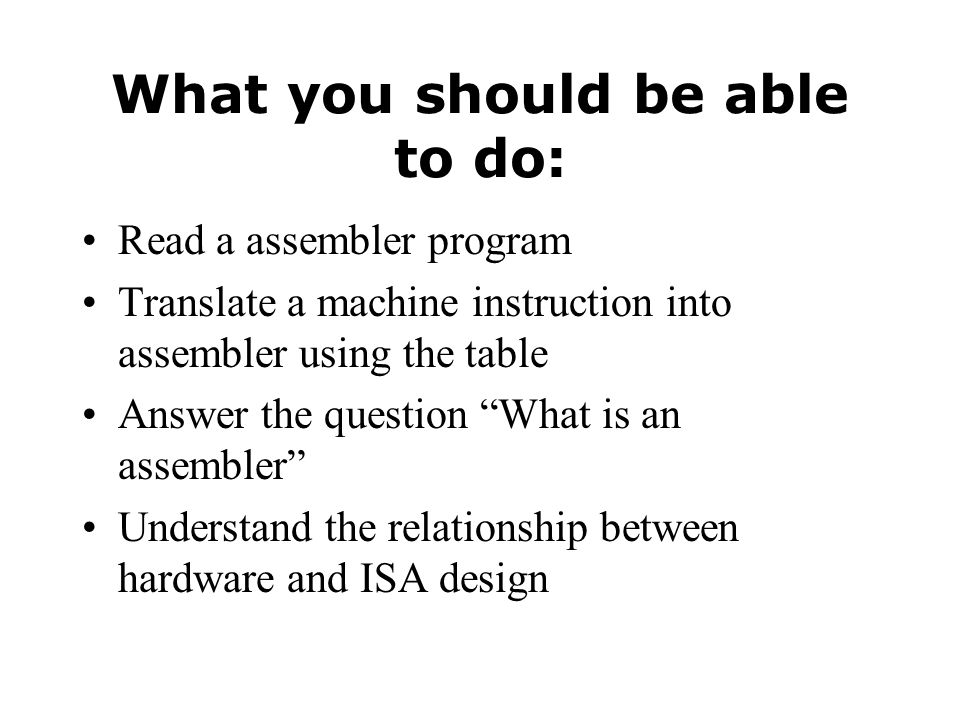

16 What you should be able to do: Read a assembler program Translate a machine instruction into assembler using the table Answer the question “What is an assembler” Understand the relationship between hardware and ISA design
