1. Dean R Walters Undulator Vacuum Systemdrw@aps.anl.gov October 12-13, 2004 Facility Advisory Committee Undulator Vacuum System/Mechanical By Dean R Walters Advanced Photon Source Argonne National Laboratory

2. Dean R Walters Undulator Vacuum Systemdrw@aps.anl.gov October 12-13, 2004 Facility Advisory Committee Talk Outline Undulator Chamber & Bellows Vacuum System Beamline Diagnostics Schedule Highlights Undulator Vacuum System/Mechanical

3. Dean R Walters Undulator Vacuum Systemdrw@aps.anl.gov October 12-13, 2004 Facility Advisory Committee Undulator Chamber & Bellows Chamber Design Bellows Design Status of the Prototype Undulator Vacuum System

4. Dean R Walters Undulator Vacuum Systemdrw@aps.anl.gov October 12-13, 2004 Facility Advisory Committee Undulator Moves In & Out Undulator Vacuum Chamber with Supports Vacuum Chamber & Bellows Design

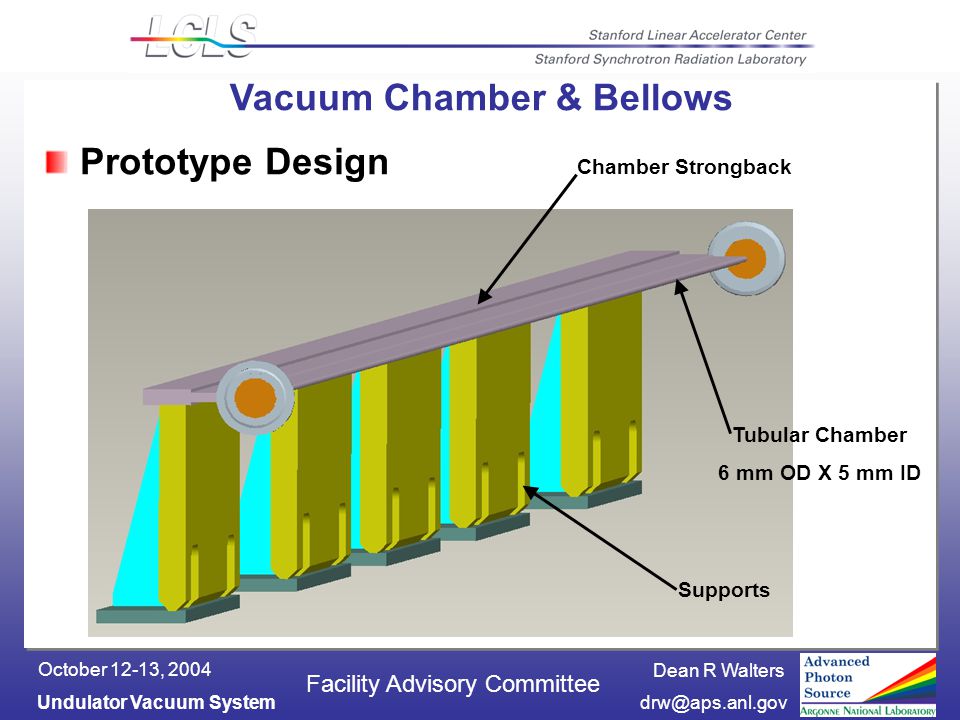

5. Dean R Walters Undulator Vacuum Systemdrw@aps.anl.gov October 12-13, 2004 Facility Advisory Committee Supports Chamber Strongback Tubular Chamber 6 mm OD X 5 mm ID Vacuum Chamber & Bellows Prototype Design

6. Dean R Walters Undulator Vacuum Systemdrw@aps.anl.gov October 12-13, 2004 Facility Advisory Committee Chamber Drawings Vacuum Chamber & Bellows

7. Dean R Walters Undulator Vacuum Systemdrw@aps.anl.gov October 12-13, 2004 Facility Advisory Committee Vacuum Chamber & Bellows Bellows Design Drawn by SH Lee

8. Dean R Walters Undulator Vacuum Systemdrw@aps.anl.gov October 12-13, 2004 Facility Advisory Committee Vacuum Chamber & Bellows Drawn by SH Lee Bellows Design (Expanded View)

9. Dean R Walters Undulator Vacuum Systemdrw@aps.anl.gov October 12-13, 2004 Facility Advisory Committee Status of Prototype Chamber Drawings Complete Outside shops have completed all quotations All orders have been issued ANL shop work orders are in place Fabrication to complete in December 2004 Bellows Assembly and parts design complete Need to draft assembly and part drawings Undulator Vacuum Chamber

10. Dean R Walters Undulator Vacuum Systemdrw@aps.anl.gov October 12-13, 2004 Facility Advisory Committee Vacuum System System Layout Short Break Section Long Break Section Vacuum Pressure within the System Undulator Vacuum System

11. Dean R Walters Undulator Vacuum Systemdrw@aps.anl.gov October 12-13, 2004 Facility Advisory Committee System Layout Vacuum System

12. Dean R Walters Undulator Vacuum Systemdrw@aps.anl.gov October 12-13, 2004 Facility Advisory Committee Vacuum System

13. Dean R Walters Undulator Vacuum Systemdrw@aps.anl.gov October 12-13, 2004 Facility Advisory Committee Short Break Section Schematic Vacuum System

14. Dean R Walters Undulator Vacuum Systemdrw@aps.anl.gov October 12-13, 2004 Facility Advisory Committee Vacuum System Drawn by SH Lee

15. Dean R Walters Undulator Vacuum Systemdrw@aps.anl.gov October 12-13, 2004 Facility Advisory Committee Long Break Section Schematic Vacuum System

16. Dean R Walters Undulator Vacuum Systemdrw@aps.anl.gov October 12-13, 2004 Facility Advisory Committee Vacuum System Drawn by SH Lee

17. Dean R Walters Undulator Vacuum Systemdrw@aps.anl.gov October 12-13, 2004 Facility Advisory Committee Vacuum Pressure within the System Red is at Tube Mid-Point Blue is Average Vacuum System hours Torr (Thermal Desorption only)

18. Dean R Walters Undulator Vacuum Systemdrw@aps.anl.gov October 12-13, 2004 Facility Advisory Committee Vacuum System Vacuum Pressure within the System (includes Thermal Desorption plus Photon Stimulated Desorption) Red is at Tube Mid-Point Blue is Average Torr hours

19. Dean R Walters Undulator Vacuum Systemdrw@aps.anl.gov October 12-13, 2004 Facility Advisory Committee Undulator Vacuum System/Mechanical Beamline Diagnostics RFBPM Different type under consideration Highlights of Schedule Vacuum Testing of Diagnostics Components What drives this issue Status of Testing

20. Dean R Walters Undulator Vacuum Systemdrw@aps.anl.gov October 12-13, 2004 Facility Advisory Committee Beamline Diagnostics C-Band RFBPM now being considered instead of X-Band C-Band has the possibility of using industry supplied electronics According to published literature resolution ~30 nm

21. Dean R Walters Undulator Vacuum Systemdrw@aps.anl.gov October 12-13, 2004 Facility Advisory Committee Highlights of the Schedule Design work to start March 2005 Timing of Design work based of funding during Continuing Resolution Use intervening time to research C-Band RFBPM (ANL) Goal is to have BPM mechanical design by June 2005 Goal is to have (3) test BPMs by September 2005 Currently this schedule is undergoing a review Beamline Diagnostics

22. Dean R Walters Undulator Vacuum Systemdrw@aps.anl.gov October 12-13, 2004 Facility Advisory Committee Beamline Diagnostics Vacuum Testing of Diagnostics Components What drives this issue The Diagnostics Station is considering the use of motion components in the vacuum section where we do not have a lot of experience. Slides and Stages Motors The initial concept was to put the motion components in the vacuum for reasons of positional accuracy. The design is at a point where changes are possible to move things in and out of vacuum The intention is to subject components to residual gas analysis and outgassing measurement to qualify them for use.

23. Dean R Walters Undulator Vacuum Systemdrw@aps.anl.gov October 12-13, 2004 Facility Advisory Committee Beamline Diagnostics

24. Dean R Walters Undulator Vacuum Systemdrw@aps.anl.gov October 12-13, 2004 Facility Advisory Committee Beamline Diagnostics Status of Testing A draft test procedure has been written that covers both residual gas analysis and outgassing measurement. The Test Set-up is assembled The Set-up has completed a troubleshoot/ clean-up process The Set-up is in the process of establishing a base performance profile Suppliers are being contacted for test samples

25. Dean R Walters Undulator Vacuum Systemdrw@aps.anl.gov October 12-13, 2004 Facility Advisory Committee Schedule Diagnostics Vacuum System

26. Dean R Walters Undulator Vacuum Systemdrw@aps.anl.gov October 12-13, 2004 Facility Advisory Committee Conclusions: Prototype Chamber construction progressing The prototype Bellows has been modeled and after issuing drawings it will enter the fabrication phase. The order of the Beamline Components is still undergoing some adjustments but it is firming to allow design of the cradle assembly A new direction for the RFBPM is being considered and work on it is schedule for March 2005 Motion components vacuum testing has just entered the first stage of testing. Questions Undulator Vacuum System / Chamber Design

27. Dean R Walters Undulator Vacuum Systemdrw@aps.anl.gov October 12-13, 2004 Facility Advisory Committee END

28. Dean R Walters Undulator Vacuum Systemdrw@aps.anl.gov October 12-13, 2004 Facility Advisory Committee Resulting of Outgassing Calculations APPENDIX
