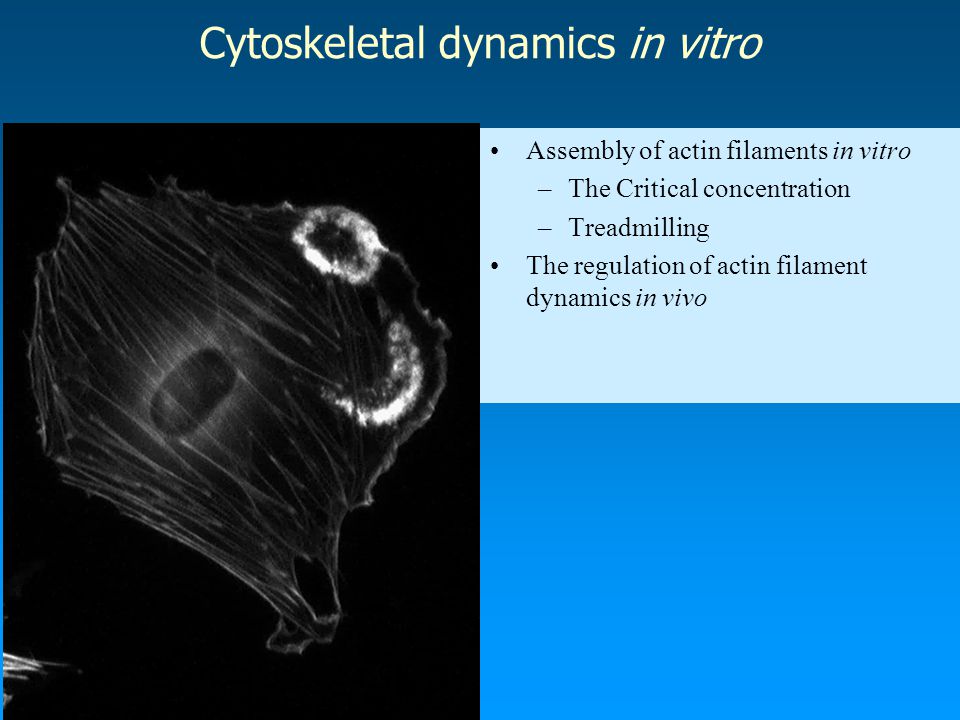

1. Cytoskeletal dynamics in vitro Assembly of actin filaments in vitro –The Critical concentration –Treadmilling The regulation of actin filament dynamics in vivo

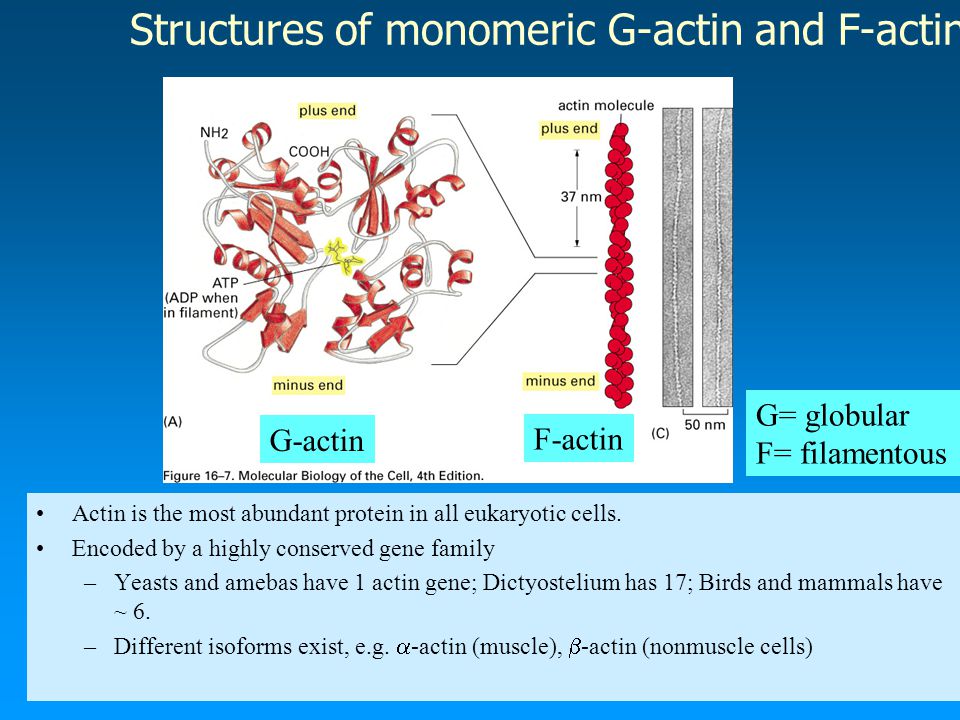

2. Structures of monomeric G-actin and F-actin Actin is the most abundant protein in all eukaryotic cells. Encoded by a highly conserved gene family –Yeasts and amebas have 1 actin gene; Dictyostelium has 17; Birds and mammals have ~ 6. –Different isoforms exist, e.g.  -actin (muscle),  -actin (nonmuscle cells) G-actin F-actin G= globular F= filamentous

3. Assembly of actin filaments Assembled from asymmetric monomers. ATP is required for assembly and is hydrolyzed after subunit addition. K + and Mg 2+ are required. Assembled actin filaments have polarity, a + end and a - end. This can be detected by myosin head “decoration” experiments.

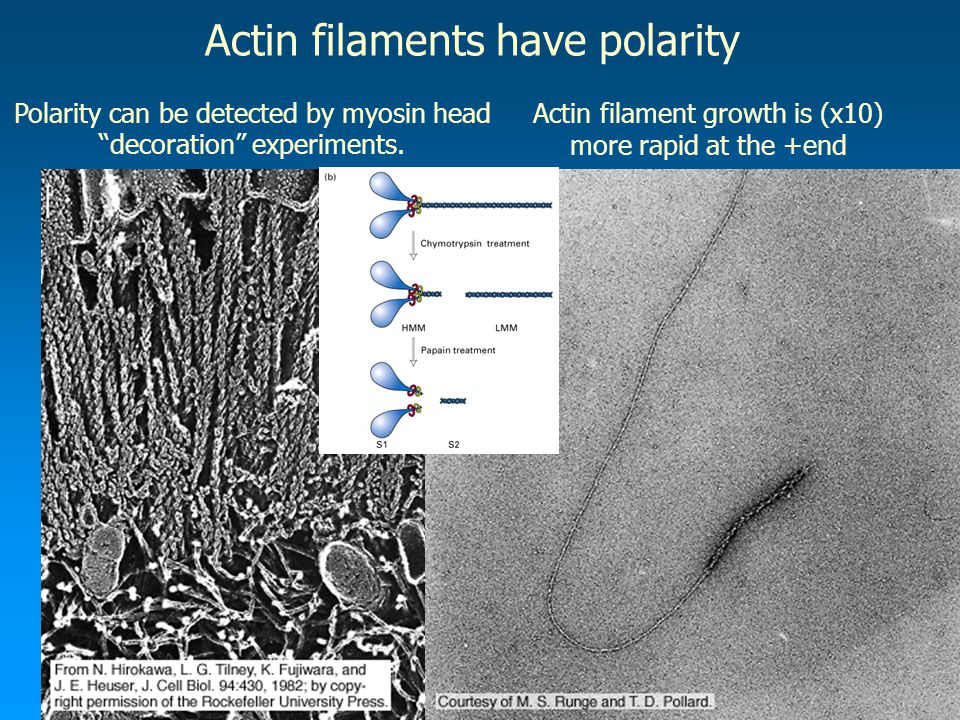

4. Actin filaments have polarity Actin filament growth is (x10) more rapid at the +end Polarity can be detected by myosin head “decoration” experiments.

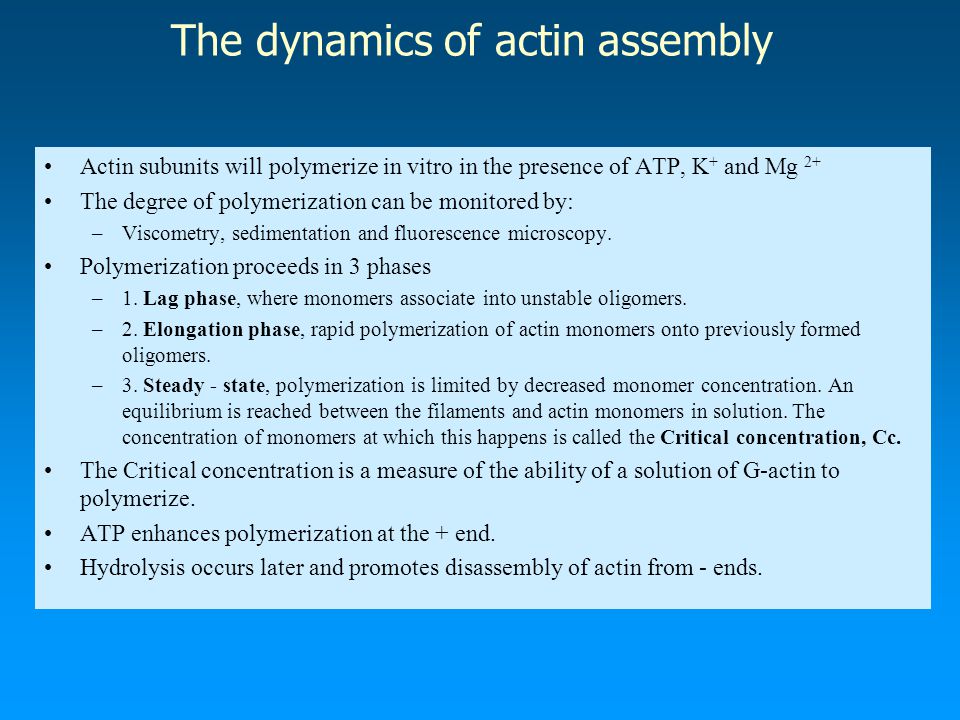

5. The dynamics of actin assembly Actin subunits will polymerize in vitro in the presence of ATP, K + and Mg 2+ The degree of polymerization can be monitored by: –Viscometry, sedimentation and fluorescence microscopy. Polymerization proceeds in 3 phases –1. Lag phase, where monomers associate into unstable oligomers. –2. Elongation phase, rapid polymerization of actin monomers onto previously formed oligomers. –3. Steady - state, polymerization is limited by decreased monomer concentration. An equilibrium is reached between the filaments and actin monomers in solution. The concentration of monomers at which this happens is called the Critical concentration, Cc. The Critical concentration is a measure of the ability of a solution of G-actin to polymerize. ATP enhances polymerization at the + end. Hydrolysis occurs later and promotes disassembly of actin from - ends.

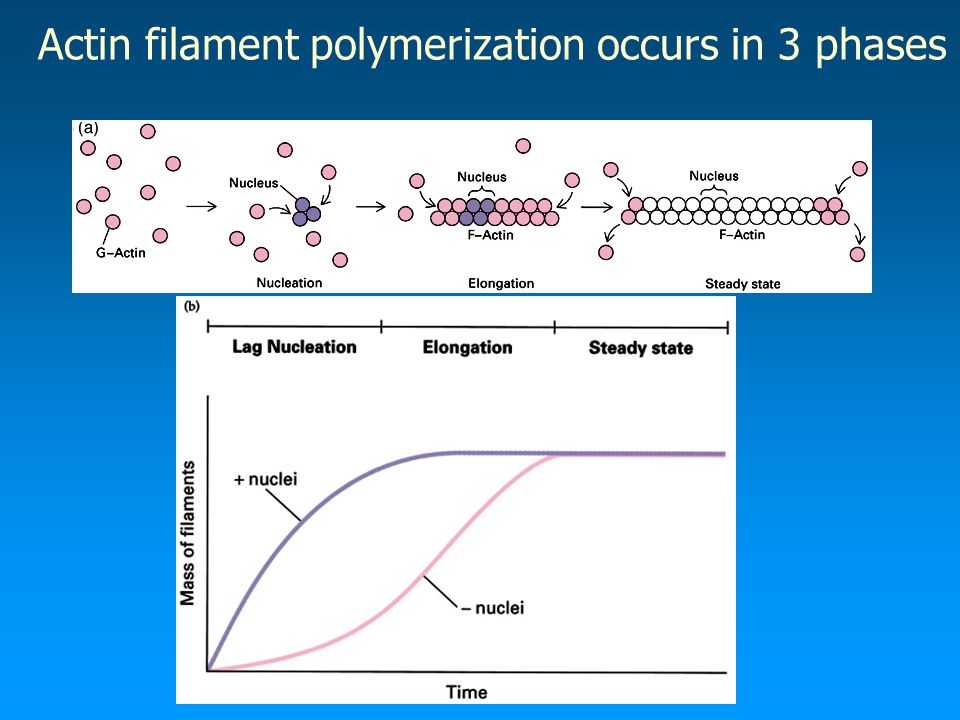

6. Actin filament polymerization occurs in 3 phases

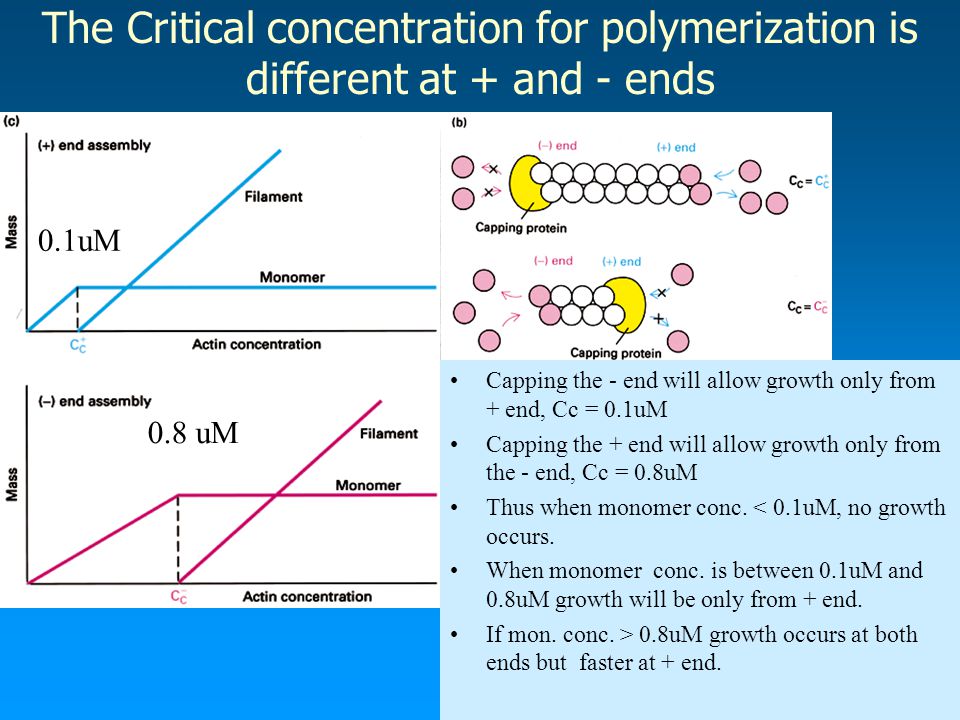

7. 0.1uM 0.8 uM The Critical concentration for polymerization is different at + and - ends Capping the - end will allow growth only from + end, Cc = 0.1uM Capping the + end will allow growth only from the - end, Cc = 0.8uM Thus when monomer conc. < 0.1uM, no growth occurs. When monomer conc. is between 0.1uM and 0.8uM growth will be only from + end. If mon. conc. > 0.8uM growth occurs at both ends but faster at + end.

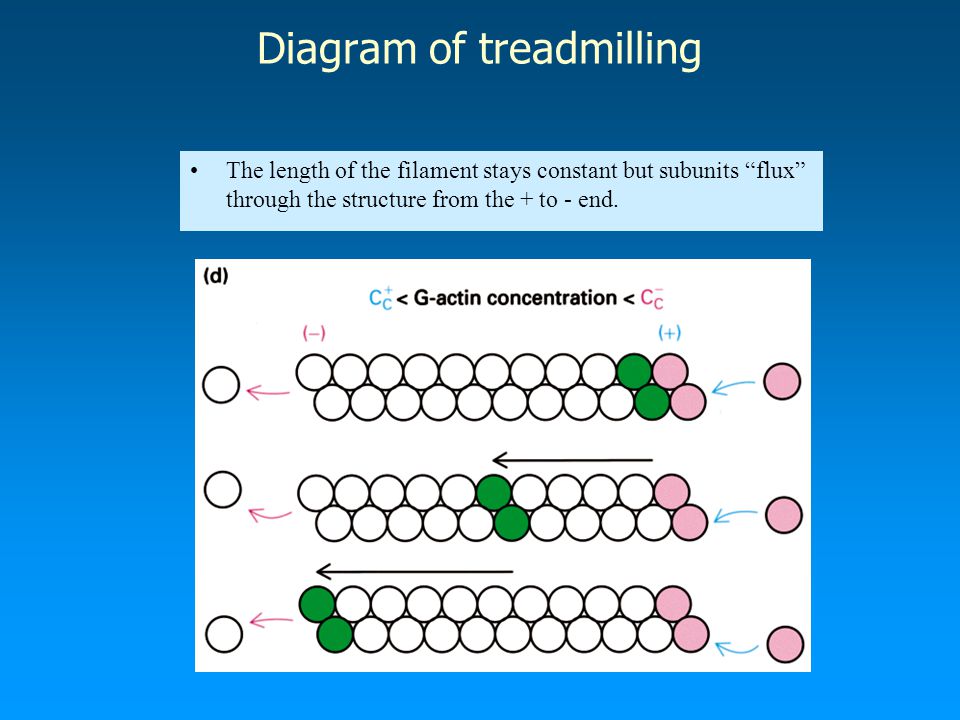

8. The length of the filament stays constant but subunits “flux” through the structure from the + to - end. Diagram of treadmilling

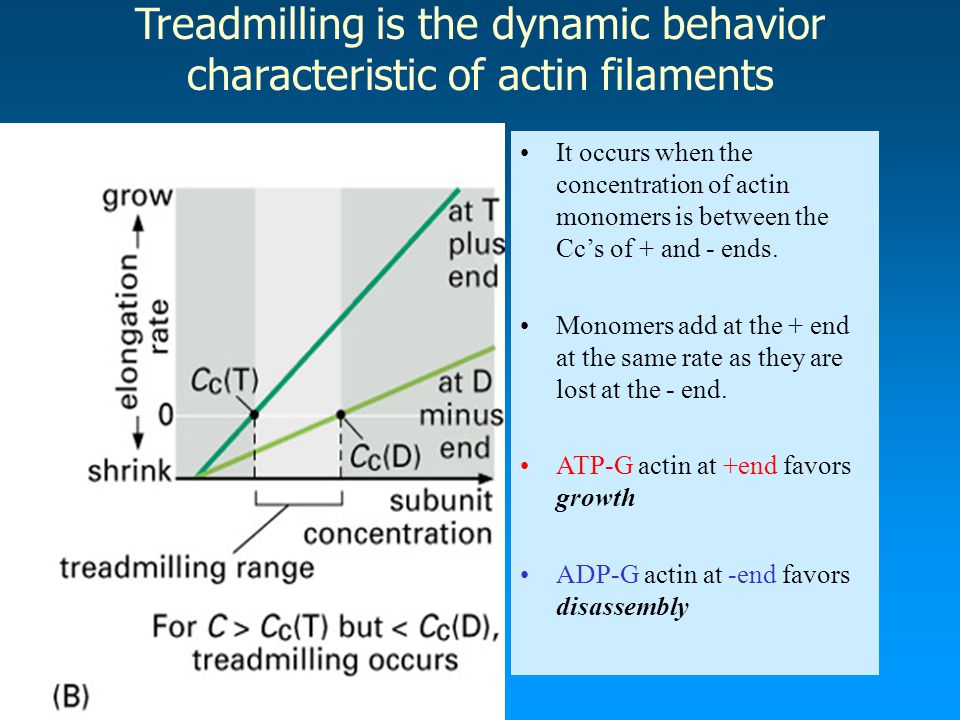

9. Treadmilling is the dynamic behavior characteristic of actin filaments It occurs when the concentration of actin monomers is between the Cc’s of + and - ends. Monomers add at the + end at the same rate as they are lost at the - end. ATP-G actin at +end favors growth ADP-G actin at -end favors disassembly

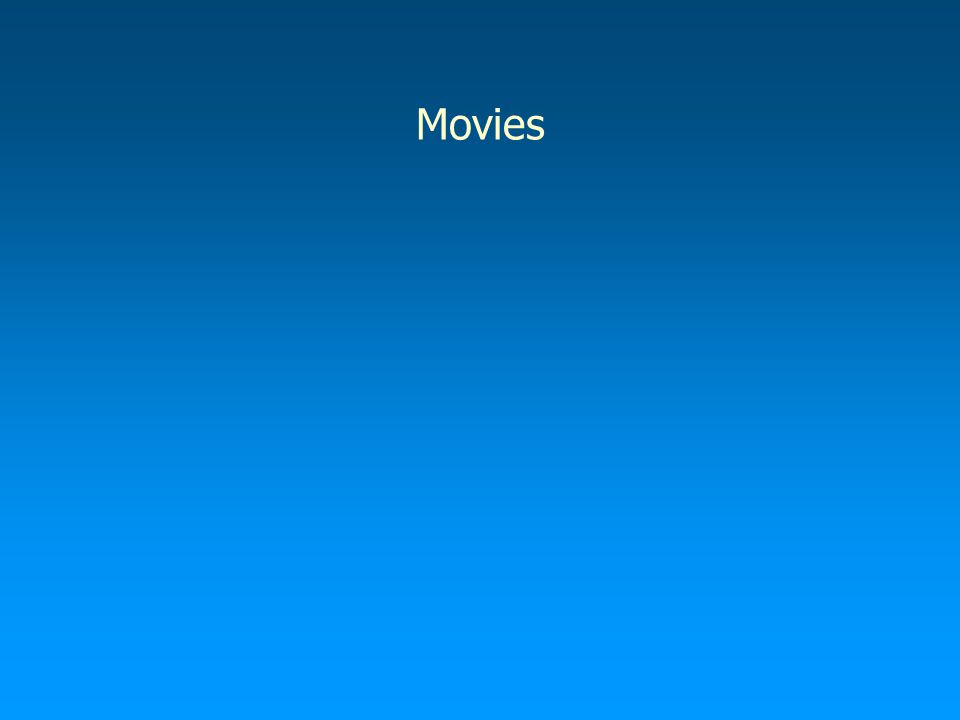

10. Movies

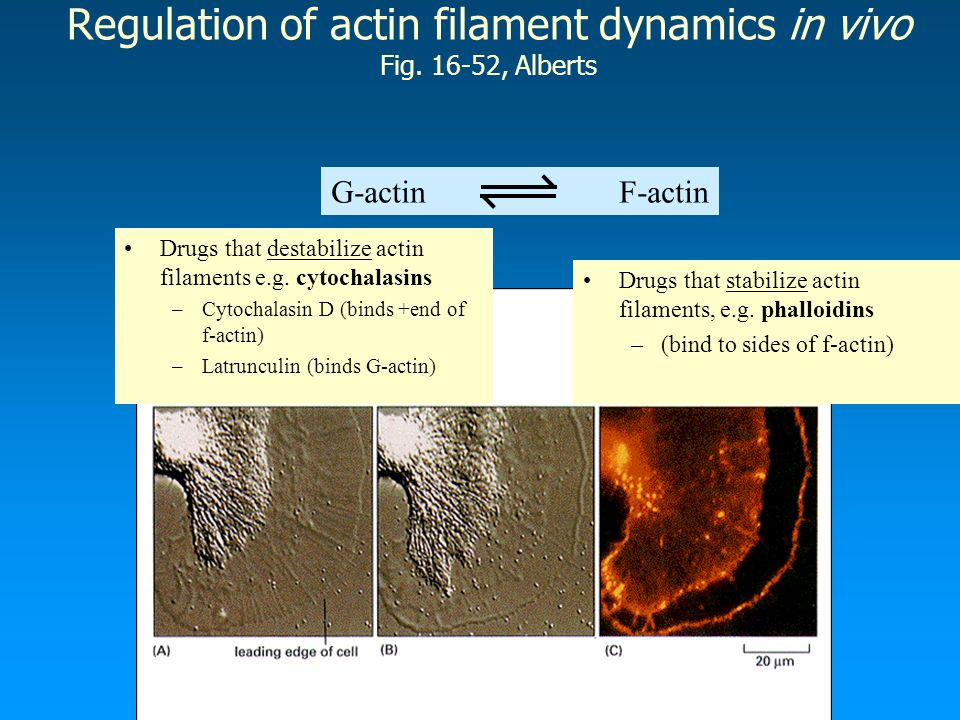

11. Regulation of actin filament dynamics in vivo Fig. 16-52, Alberts G-actin F-actin Drugs that destabilize actin filaments e.g. cytochalasins –Cytochalasin D (binds +end of f-actin) –Latrunculin (binds G-actin) Drugs that stabilize actin filaments, e.g. phalloidins –(bind to sides of f-actin)
