1. Nanotechnology: Spatial Computing Using Molecular Electronics Mihai Budiu joint work with Seth Copen Goldstein Dan Rosewater

2. SSS April 20, 20012 Intersection of Three Areas Reconfigurable computing Nanotechnology Computer architecture

3. SSS April 20, 20013 Prophecies, A Risky Endeavor I think there is a world market for maybe five computers. --- T. J. Watson 640K ought to be enough for everybody. --- Bill Gates There is no reason anyone would want a computer in their home. --- Ken Olson I will propose this semester. --- Anonymous There is not the slightest indication that nuclear energy will ever be obtainable. --- Albert Einstein

4. SSS April 20, 20014 Moore’s Law

5. SSS April 20, 20015 Moore’s Second Law Plant costMask cost generation X 1000$

6. SSS April 20, 20016 Our Proposal Nanotechnology + cheap + high-density + low-power – unreliable Computer architecture + vast body of knowledge – expensive – high-power Reconfigurable Computing + defect tolerant + high performance – low density + + + + + + _ _ _ _

7. SSS April 20, 20017 Paradigm Shift Executable Configuration Complex fixed chip + Program Dense, regular structure + Configuration

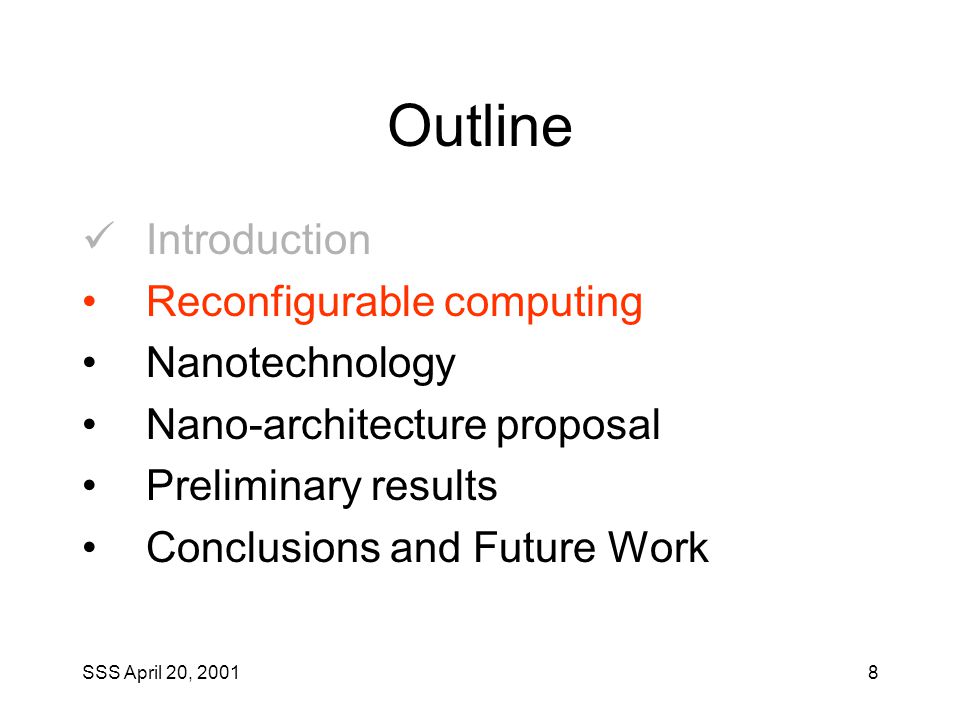

8. SSS April 20, 20018 Outline Introduction Reconfigurable computing Nanotechnology Nano-architecture proposal Preliminary results Conclusions and Future Work

9. SSS April 20, 20019 Reconfigurable Computing Back to ENIAC-style computing Synthesize one machine to solve one problem

10. SSS April 20, 200110 Island-Style RC Architecture Universal gates and/or storage elements Interconnection network Programmable Switches

11. SSS April 20, 200111 Switch controlled by a 1-bit RAM cell 00010001 Universal gate = RAM a0 a1 a0 a1 data a1 & a2 0 data in control Main RC Ingredient: RAM Cell

12. SSS April 20, 200112 Place and Route int reverse(int x) { int k,r=0; for (k=0; k<64; k++) r |= x&1; x = x >> 1; r = r << 1; } int func(int* a,int *b) { int j,sum=0; for (j=0; *a>0; j++) sum+=reverse(*b

13. SSS April 20, 200113 Kernel Speedup Using PipeRench 189.7 15.5 11.3 12.0 63.3 42.4 26.0 57.1 29.0 1 10 100 1000 ATR Cordic DCT DCT-2D FIR IDEA Nqueens Over PopCount Times Over 300Mhz UltraSparc-II

14. SSS April 20, 200114 Defect Tolerance Despite having >70% of the chips defective, Teramac works flawlessly. Compilation has two phases: defect detection through self-testing placement for defect-avoidance

15. SSS April 20, 200115 Outline Introduction Reconfigurable computing Nanotechnology Nano-architecture proposal Preliminary results Conclusions and Future work

16. SSS April 20, 200116 Nanotechnology

17. SSS April 20, 200117 Predicted Features Low Power: 10 10 gates use less than 2 W (compare to 3x10 7 transistors using 100 W in CMOS) Low cost (nanocents/gate) Small size (10 5 factor area gain) Nano-RAM cell In yellow: a CMOS RAM cell.

18. SSS April 20, 200118 Nano-wires carbon nanotubues, Si, metal >2nm diameter, up to mm length excellent electrical properties A carbon nanotube: one molecule

19. SSS April 20, 200119 Nano-switch

20. SSS April 20, 200120 Nano-switch Between Nano-wires

21. SSS April 20, 200121 Self-assembly

22. SSS April 20, 200122 No Complex Irregular Structures

23. SSS April 20, 200123 No Three-Terminal Devices

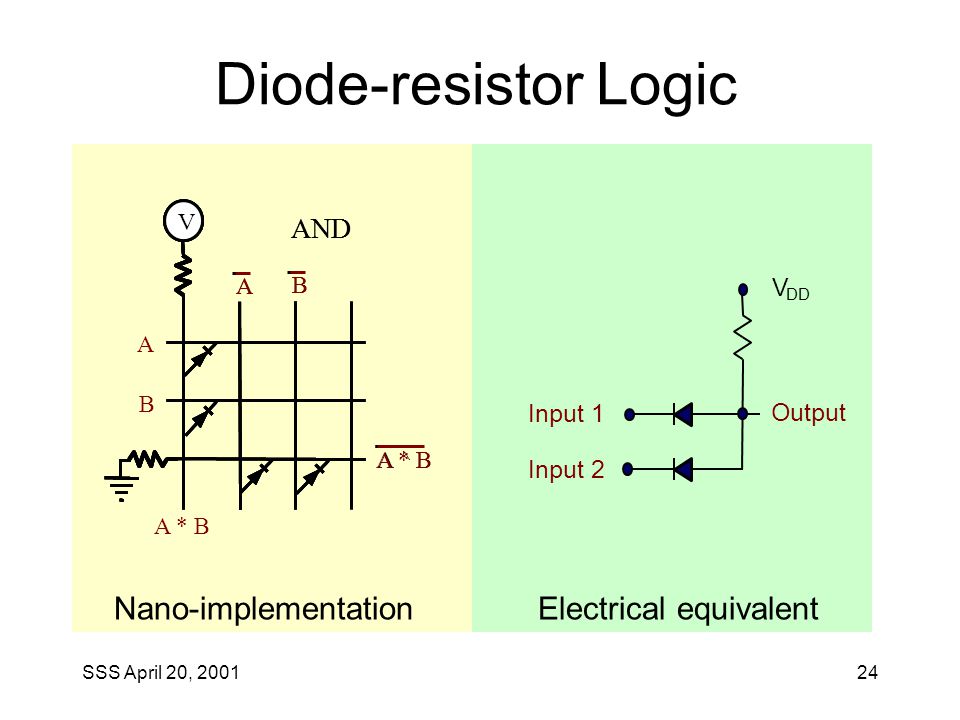

24. SSS April 20, 200124 Diode-resistor Logic V DD Output Input 1 Input 2 A * B V AND B A A ^ B VVV AND A B A B A * B Nano-implementationElectrical equivalent

25. SSS April 20, 200125 Nanoscale Latches D clock dataout Provide: signal restoration (amplification) clocking (synchronization) memory

26. SSS April 20, 200126 High Defect Rate

27. SSS April 20, 200127 Outline Introduction Reconfigurable computing Nanotechnology Nano-architecture proposal Preliminary results Conclusions and future work

28. SSS April 20, 200128 The nanoBlock (3-in to 3-out Logic) +Vdd Gnd clk Inputs Outputs CMOS clk

29. SSS April 20, 200129 Interconnecting nanoBlocks Switch block

30. SSS April 20, 200130 Global View

31. SSS April 20, 200131 Control cluster long-lines Many Clusters = nanoFabric

32. SSS April 20, 200132 Compilation 1.Program 2.Split-phase Abstract Machines 3.Configurations placed independently 4.Placement on chip int reverse(int x) { int k,r=0; for (k=0; k > 1; r = r << 1; } } Computations & local storage Unknown latency ops.

33. SSS April 20, 200133 Outline Introduction Reconfigurable Hardware Nanotechnology Nano-architecture proposal Preliminary results Conclusions and Future work

34. SSS April 20, 200134 A graph of the whole program execution: A Limit Study of Performance Memory word Basic block Memory write Memory read Control-flow transfer

35. SSS April 20, 200135 Area (10 6 units/cm 2 available)

36. SSS April 20, 200136 Typical Program Graph (g721_e) Control flow transfer 100% memory cluster Memory reads 100% code cluster

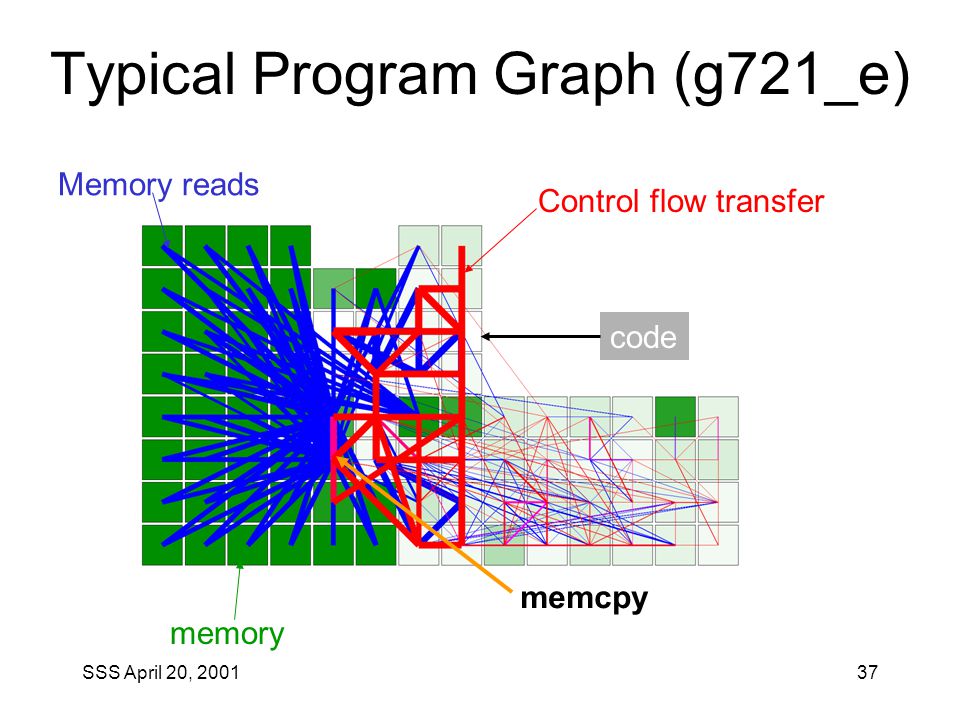

37. SSS April 20, 200137 Typical Program Graph (g721_e) Control flow transfer memory Memory reads code memcpy

38. SSS April 20, 200138 Program Graph After Inlining memcpy memcpy

39. SSS April 20, 200139 Application Slowdown

40. SSS April 20, 200140 How Time Is Spent No caches: reads expensive No speculation

41. SSS April 20, 200141 Future Work Better nano-devices More accurate hardware models in simulations Compilation technology

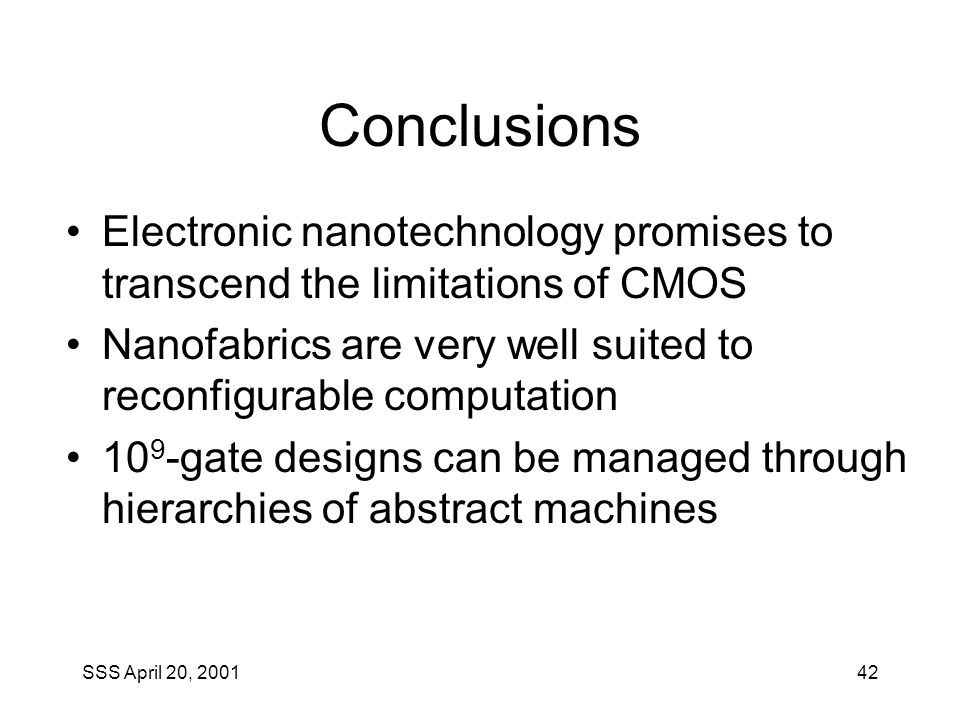

42. SSS April 20, 200142 Conclusions Electronic nanotechnology promises to transcend the limitations of CMOS Nanofabrics are very well suited to reconfigurable computation 10 9 -gate designs can be managed through hierarchies of abstract machines
