1. Richenda Connell UK Climate Impacts Programme Tools for climate risk management: The UKCIP climate adaptation risk framework and the UKCIP adaptation wizard SICCIA, Eibsee Hotel, Grainau, Germany, 30 June 2004

2. Outline Introduction to UKCIP, studies & partnerships UKCIP/Environment Agency climate adaptation risk management framework: How it works & key principles Semi-fictional case study: Application of framework to a water resources decision Prototype UKCIP adaptation wizard

3. UKCIP provides a bridge between decision-makers and climate scientists ‘The UK Climate Impacts Programme helps organisations assess how they might be affected by climate change, so they can prepare for its impacts’ UKCIP: –promotes stakeholder-led, problem-oriented research –provides core tools (CC scenarios etc) –provides guidance/advice for partnerships and studies –encourages integrated approaches Set up in 1997 Funded by UK Government Department for Environment, Food & Rural Affairs (Defra) Based at University of Oxford Note: UKCIP set up for climate change; just beginning to consider ‘climate risks’ more generally

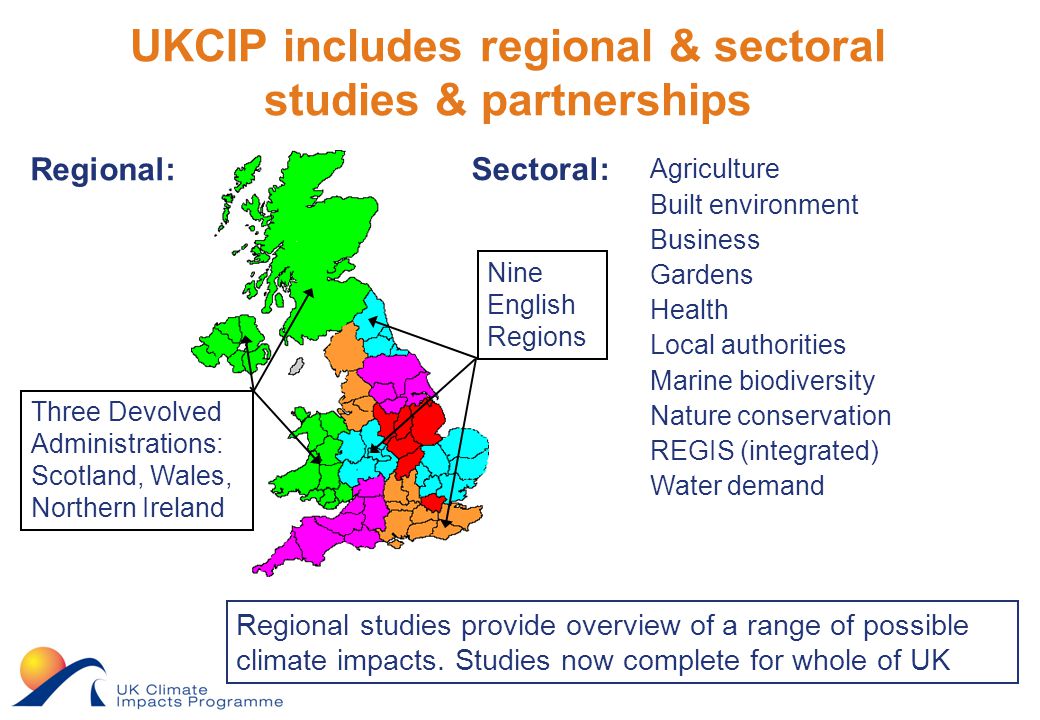

4. UKCIP includes regional & sectoral studies & partnerships Agriculture Built environment Business Gardens Health Local authorities Marine biodiversity Nature conservation REGIS (integrated) Water demand Three Devolved Administrations: Scotland, Wales, Northern Ireland Nine English Regions Regional: Sectoral: Regional studies provide overview of a range of possible climate impacts. Studies now complete for whole of UK

5. Impact study findings are integrated in key regional planning documents… UKCIP02 climate change scenarios ‘London’s warming’ scoping study The London Plan (spatial development strategy for Greater London)

6. Impact study findings are integrated in key regional planning documents… “The Mayor will and boroughs should assess and develop policies for the likely impacts of climate change on London identified in the work of the London Climate Change Partnership. Policies will be developed in conjunction with the Partnership and addressed in the first review of the London Plan.” (London Plan, 2004)

7. ..but most UK decision-makers have not yet made adaptation decisions Is adaptation needed? If adaptation is (perhaps) needed: –How much adaptation? –Choice of adaptation measures? –When to adapt?

8. UKCIP/EA report provides a decision-making framework for managing climate risks Framework describes process for appraisal and management of risks and uncertainties Similar to others used for corporate risk management – recognisable to decision-makers Enables climate risks to be ‘mainstreamed’ within existing processes

9. A framework to support good decision- making in the face of climate risk

10. Background to problem Climate sensitive? –Adaptation, influenced, constraining? Type of decision? Stakeholders? Timescales? Stage 1: Identify problem and objectives

11. Need to take a balanced approach to managing climate and non-climate risks 1

12. Case study: Identify problem and objectives Silver Birches is a large tree growing business in East of England Currently relies on mains water to irrigate pot-grown trees Managing Director is worried about risk of water supply being cut off – even though this has not happened before This is a climate adaptation problem 1

13. Decision-maker’s objectives Success criteria Legislative requirements or guidance Attitudes to risk - optimistic, precautionary (‘risk averse’), etc Resources Stage 2: Establish decision making criteria Receptors and exposure units Risk assessment endpoints Assessment period Project management issues

14. Define what makes the correct decision Need operational criteria for risk assessment and options appraisal Take account of defined thresholds and risk attitude (optimistic, precautionary/risk averse, least regret) 2

15. Objective: “Business to survive and prosper for next 20 years” Criteria: Options will be judged against ability to provide secure water supply for next 20 years – consultant to define criteria Risk attitude: M.D. is very risk averse to water supply loss – trees die in 15 days Other criteria: Cost, practicality, reliability, feasibility, water quality, flexibility, contingency planning, response of employees, implications for neighbours Case study: Establish decision making criteria 2

16. Consultant’s recommended trigger point: 5% above lowest 12 month precipitation on record

17. Identify and characterize: –climate and non-climate risk factors (climate variables) –pathways and receptors Screen and prioritize risks Describe uncertainties –reducible v. irreducible –explicit assumptions Stage 3: Assess risk

18. Give appropriate attention to all risks & uncertainties 3 Climate variables: Which characteristics are important? – magnitude, direction, averaging period, statistical basis. How may these change? Info on low probability / high consequence events may be most uncertain – but risk assessment may show these are highest risk Uncertainty in non-climate risks & impact models may be of greater significance than uncertainties over climate hazards Thresholds-based approach may help focus attention on critical uncertainties

19. Tools for identifying and describing uncertainty should be more widely used (Walker et al. (2003). Defining uncertainty: A conceptual basis for uncertainty management in model-based decision support. Integrated Assessment, 4,(1), 5-17.)

20. Case study: Assess risk Influence diagram

21. Case study: Assess risk SDSM M-H emissions scenario simulated rainfall 2003-2023 Trigger level = 411 mm or 5% above driest year on record (1963 – 2002)

22. Types of option (Do nothing?) Generic adaptation strategies No/low regret options Flexible options ‘adaptive management’ Delay decisions Stage 4: Identify options

23. Generic climate risk management options Use of risk-based policy and project appraisal process and techniques Delay and buy-time Research Monitoring - system performance - climate impact monitoring Information supply, education, awareness raising Contingency planning –- low probability, high consequence events –- strategic planning response Proactive Proactive or Strategic Proactive Reactive Proactive or Reactive Strategic

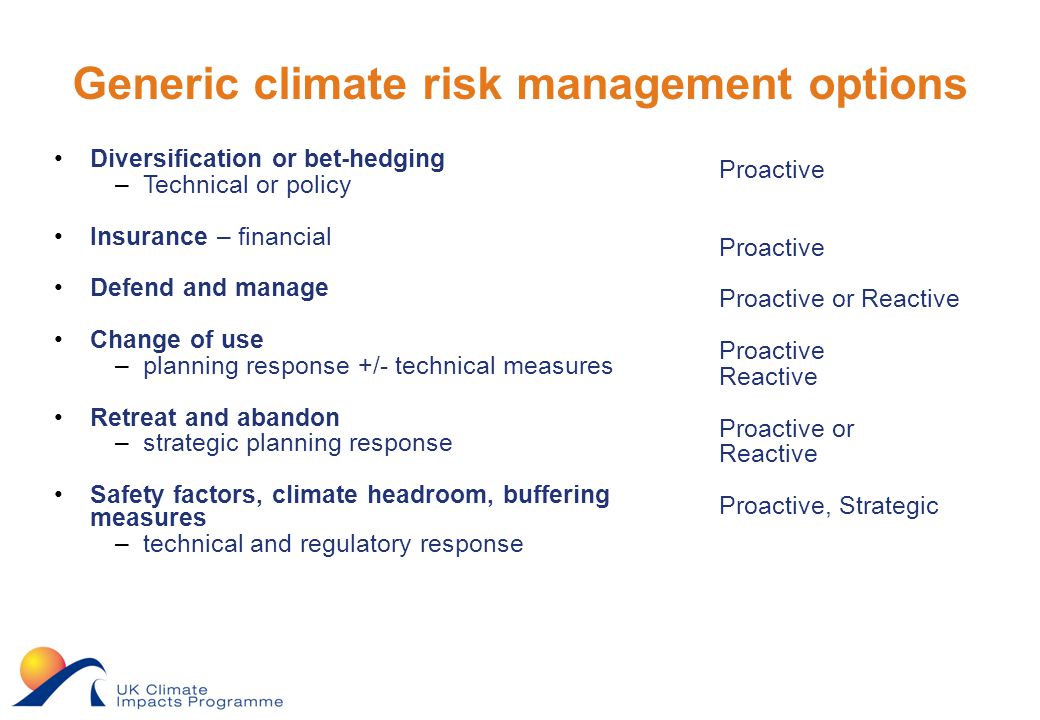

24. Generic climate risk management options Proactive Proactive or Reactive Proactive Reactive Proactive or Reactive Proactive, Strategic Diversification or bet-hedging –Technical or policy Insurance – financial Defend and manage Change of use –planning response +/- technical measures Retreat and abandon –strategic planning response Safety factors, climate headroom, buffering measures –technical and regulatory response

25. Adaptive management is recommended when dealing with uncertainty Useful for decision-makers to keep open / increase options that allow climate adaptation in future, when need for adaptation and performance of different measures is less uncertain Circular, iterative framework promotes adaptive management Avoid implementing adaptation constraining decisions 45

26. Case study: Identify options Do nothing Diversify water supply / investigate other water supply options Try contract with water supply company to guarantee minimum supply Move or change business Change crop type Contract out tree growing Water recycling Joint venture with neighbours to develop alternative supplies Insurance Mains water supply to trees Do nothing: Current management practice

27. Adaptation option 1: Infrastructural strategy Build reservoir & abstract 7,200m 3 per month from drain to reservoir Keep reservoir half full (18,000 m 3 ) in case water supply is cut during drought event Mains water supply to trees Drain to reservoir Reservoir to trees half full (18,000 m 3 )

28. Adaptation option 2: Informational strategy Build reservoir & abstract 7,200m 3 per month from drain to reservoir Use all available reservoir storage - do not reserve any capacity Monitor rainfall against 411mm trigger level When trigger reached, immediately buy enough supply from mains supplier to meet needs for next 2 months Mains water supply to trees Drain to reservoir Reservoir to trees Mains water supply to reservoir

29. Assess performance against decision-making criteria Sensitivity of options to uncertainty Implementation risks Stage 5: Appraise options

30. Stage 5: Appraise Options Performance of infrastructural strategy Assume mains water supply cut 1 September Reservoir storage for use during drought event/ mains supply cut off Runs out of water in May

31. Stage 5: Appraise Options Performance of informational strategy Rainfall trigger reached Assume mains water supply cut 1 September £153,000 cheaper than infrastructural strategy over 20 yrs Runs out of water in June

32. Preferred option? Appropriate problem definition and decision criteria? Decision robust to uncertainty? Confirm attitude to climate risks Stage 6: Make decision

33. Decision risks - Under-adaptation Actual importance of factors Perceived importance of factors None Moderate Large None Moderate Large Significance of non-climate risk factors Significance of climate risk factors Under-adaptation Significance of non-climate risk factors

34. Decision risks - Over-adaptation Perceived importance of factors Actual importance of factors None Moderate Large None Moderate Large Significance of non-climate risk factors Significance of climate risk factors Over-adaptation

35. Both reservoir management options do well, but fail eventually during very prolonged drought But informational strategy has cost benefit Other considerations: –Building reservoir will require abstraction licence –Use of reservoir will have implications for others Other options that could be explored include: –Build a bigger reservoir –Contract with water company Note: Not all uncertainties addressed Case study: Make decision

36. Stage 7/8: Implement decision/ Monitor, evaluate review

37. M.D. should monitor –12-month running total rainfall (informational strategy) –Use of mains water supply –Business growth –Number of trees –New information on climate risks –Water company supply agreements and pricing policy Case study: Implement decision/Monitor, evaluate review

38. Applications of the framework thus far ‘Designing for thermal comfort in a 21 st century climate’ (Ove Arup & Partners, funded by Department of Trade and Industry) ‘The Planning Response to Climate Change: Advice on Better Practice’ (CAG consultants & Oxford Brookes University for Office of the Deputy Prime Minister) ‘Strategic Environmental Assessment and Climate Change: Guidance for Practitioners’ (Levett-Therivel Sustainability Consultants, UKCIP et al) ‘Climate change and tourism in the Northwest’ (Ongoing) (University of Manchester & Tyndall Centre for Northwest Climate Group) Next: Developing framework for application by companies & investors (Institutional Investors Group on Climate Change with UKCIP, Environment Agency)

39. Lessons learned so far from application of risk framework Decision-making including climate risks is complex, even for relatively simple problems! Using a structured framework helps Structuring the problem and choosing decision-making criteria (stages 1 & 2) are essential, often not given enough attention Decision-maker’s attitude to risks is instrumental re. identifying and choosing between options Process of working through framework throws up new ideas – early stages may need revisiting

40. UKCIP adaptation wizard Aims to help decision-makers move through a process from simple understanding of climate risks, to integration of these risks into decision-making, making use of all UKCIP tools and resources Draws heavily on risk framework, but less comprehensive Web-based Prototype version available at www.ukcip.org.uk/wizard Comments welcome!

41. Four levels of entry LevelStart at this step if you … Scoping impacts..are beginning to think about climate risks for the first time and are unsure whether they are important Quantifying risks..have already identified most important climate risks & are beginning to consider them in more detail, to work out whether you need to adapt Decision-making & action planning..have already assessed risks and identified that you need to adapt Adaptation strategy review..already have an adaptation strategy, developed through a risk-based assessment, and want to check if it needs modifying

42. Layout of each level

43. Principles of good climate adaptation

44. Conclusions and recommendations - 1 Emphasis on understanding climate variability Decision-maker’s problem and objectives are central to understanding adaptation problem Hierarchical/tiered/iterative approach is useful Importance of climate risk benchmarks (tolerable risk) Essential to understand attitude to risk (tolerable risk) Resources

45. www.ukcip.org.uk Prototype wizard www.ukcip.org.uk/wizard
