Equivalent Circuits - Resistors Resistor noise is dominated by thermal noise: Noiseless Resistor Noisy Resistor Noise Source

Networks of Resistors Noiseless Resistor Noise Source NB. When adding noise sources, the result is the root of the sum of squares. Noiseless Resistor Noise Source

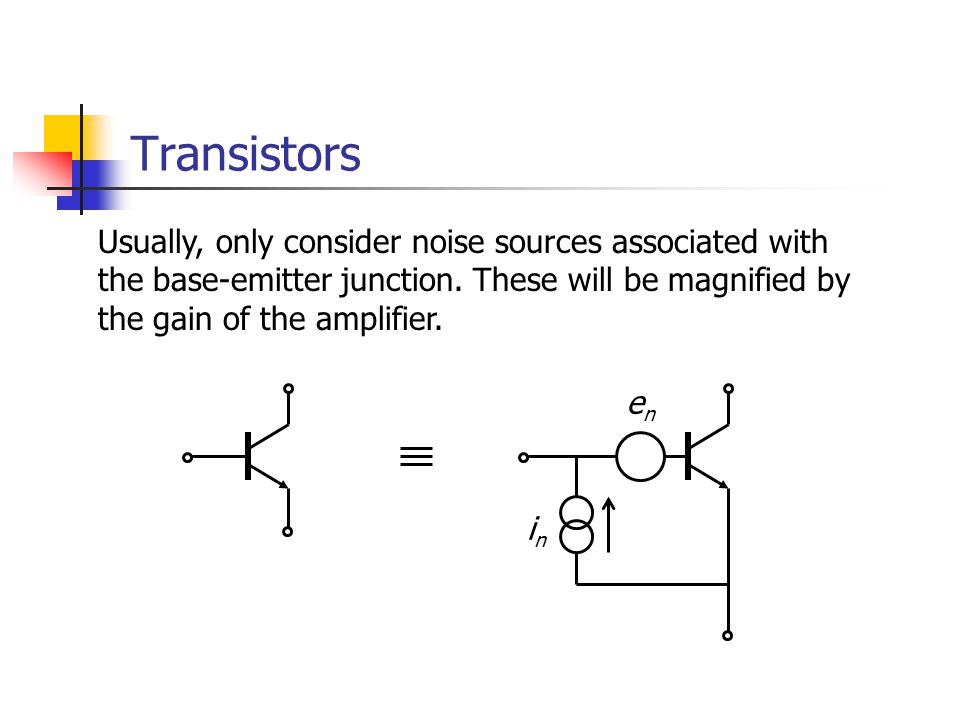

Transistors Usually, only consider noise sources associated with the base-emitter junction. These will be magnified by the gain of the amplifier. inin enen

Base Spreading Resistance, r bb Base spreading resistance, r bb, is the small, real resistance between the base terminal (the wire) and the actual base region of the transistor. Typical values are 100  or less. It is small enough to ignore in most circuit analysis. It is, however, a source of thermal noise.

Noise voltage sources We know that : r e is not a real resistance so it doesn’t generate any thermal noise. i c, however, will be contaminated by shot noise, therefore generating a noise voltage across v be.

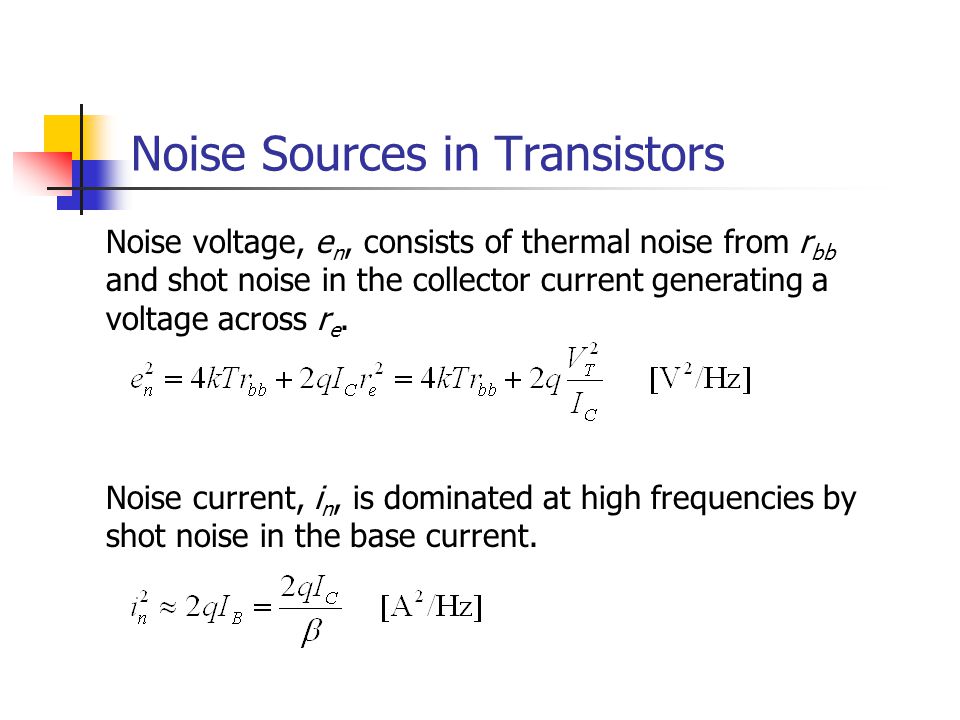

Noise Sources in Transistors Noise voltage, e n, consists of thermal noise from r bb and shot noise in the collector current generating a voltage across r e. Noise current, i n, is dominated at high frequencies by shot noise in the base current.

Noise in Real Transistors Both the voltage and current noise sources will also contain a degree of flicker noise. This may dominate at low frequencies but be insignificant at high frequency. It is device dependent. Usually, plots of e n and i n for varying collector current and frequency are given in data sheets.

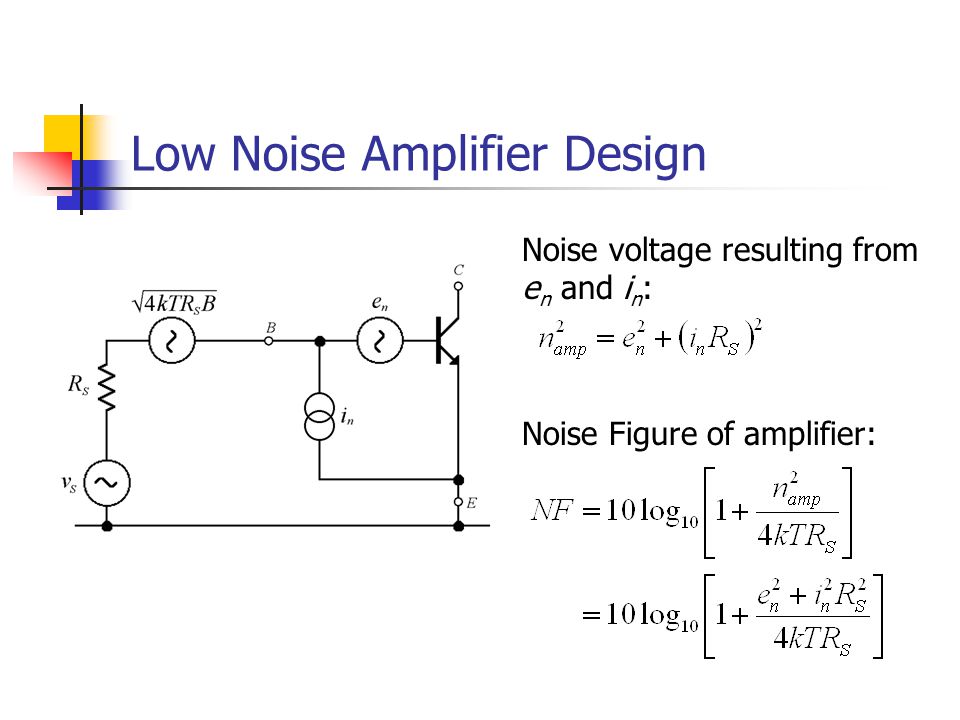

Low Noise Amplifier Design Noise voltage resulting from e n and i n : Noise Figure of amplifier:

Noise Figure vs. Source Resistance 10 1 2 3 4 0 2 4 6 8 12 14 Source Resistance [  ] Noise Figure [dB]

Minimum Noise Figure To minimise noise figure, must minimise the term:

Noise Figure vs. Collector Current Usually, the source resistance is fixed (e.g. transducer output impedance) Noise figure can then only be optimised by either: Scaling the impedance with a transformer Choosing an appropriate collector current

Noise Figure vs. Collector Current Example, r bb = 100 ,  = 250, R S = 600 

Optimising I C To minimise NF, with respect to I C, minimise:

Optimising I C (cont) Minimum when derivative w.r.t. I C = 0

Theoretical Example A low noise common-emitter amplifier is required using a transistor with r bb = 100  and  = 250. The source resistance, R S = 600 .

Practical Low Noise Design Approximate expression for noise current neglects flicker noise It is, therefore, only valid at higher frequencies where flicker noise is low. For lower frequency design, either incorporate flicker noise in the equations or, more commonly, use noise figure plots provided in data sheets

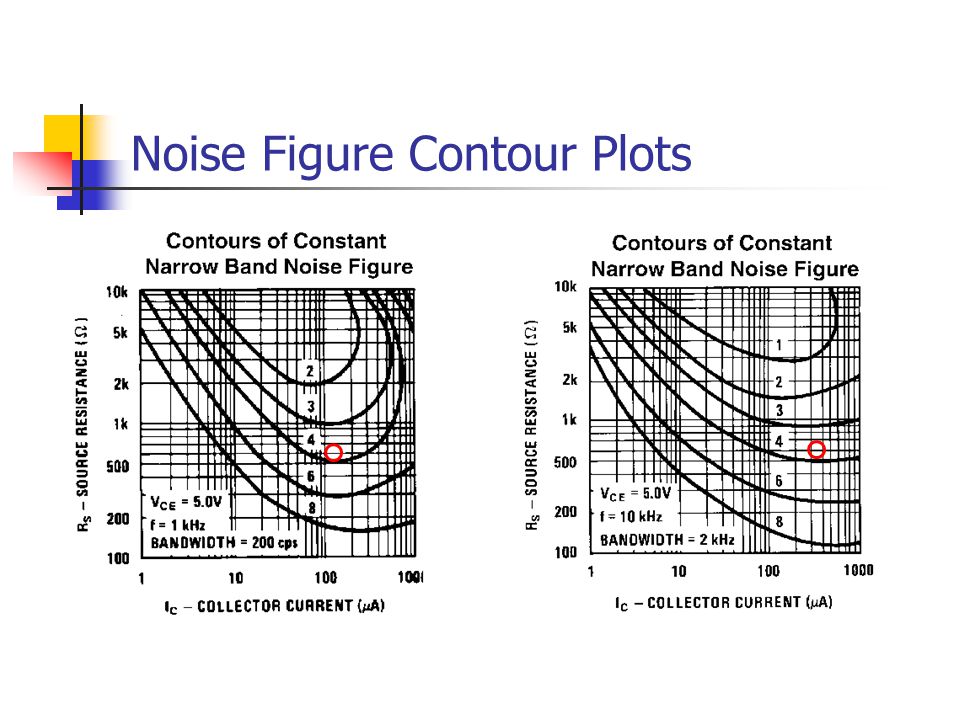

Noise Figure Contour Plots

Summary In most amplifier circuits, the major sources of electrical noise are the source resistance, biasing resistors and the transistor/op-amp used for the input stage. As the source resistance is usually fixed, the optimal output signal-to-noise ratio can be achieved by minimising the Noise Figure. With transistor amplifiers, NF can be minimised by optimising the collector current: Using the approximating equations Using noise figure plots from a data sheet
