1
Counters Mano & Kime Sections 5-4, 5-5
2
Counters Ripple Counter Synchronous Binary Counters –Design with D Flip-Flops –Design with J-K Flip-Flops Counters in VHDL
3
Counters ---
4

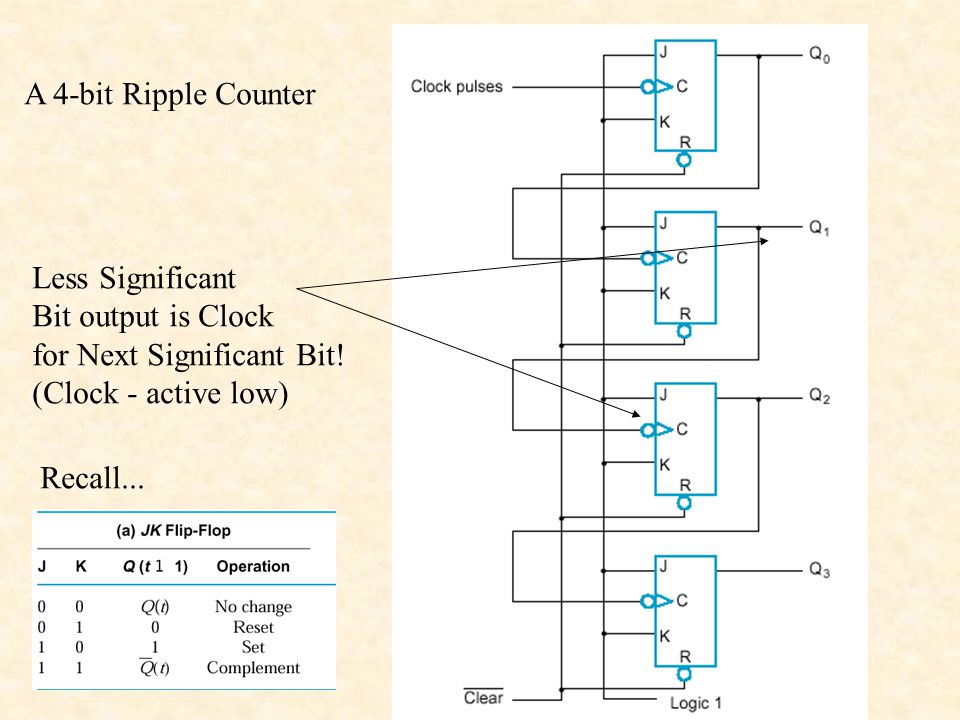

A 4-bit Ripple Counter Recall... Less Significant Bit output is Clock for Next Significant Bit! (Clock - active low)
5

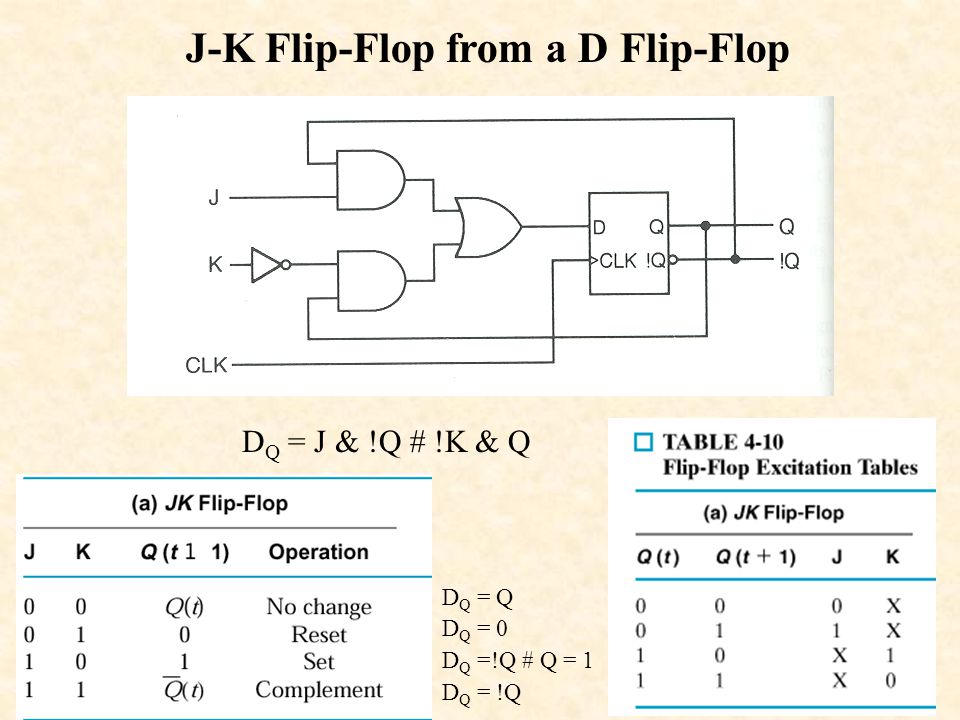

J-K Flip-Flop from a D Flip-Flop D Q = J & !Q # !K & Q D Q = Q D Q = 0 D Q =!Q # Q = 1 D Q = !Q
10
Counters Ripple Counter Synchronous Binary Counters –Design with D Flip-Flops –Design with J-K Flip-Flops Counters in VHDL
11
CLK DQ !Q CLK DQ !Q CLK DQ !Q Q0Q0.D Q1 Q2 Q1.D Q2.D s0 0 0 0 0 0 1 s1 0 0 1 0 1 0 s2 0 1 0 0 1 1 s3 0 1 1 1 0 0 s4 1 0 0 1 0 1 s5 1 0 1 1 1 0 s6 1 1 0 1 1 1 s7 1 1 1 0 0 0 State Q2 Q1 Q0 Q2.D Q1.D Q0.D Divide-by-8 Counter
12

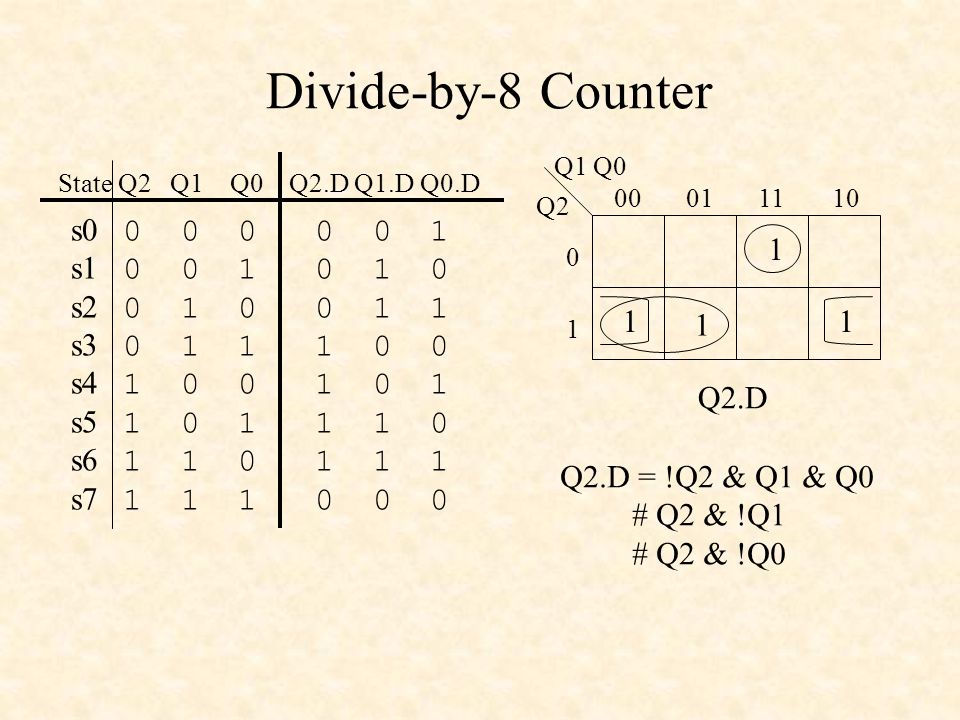

s0 0 0 0 0 0 1 s1 0 0 1 0 1 0 s2 0 1 0 0 1 1 s3 0 1 1 1 0 0 s4 1 0 0 1 0 1 s5 1 0 1 1 1 0 s6 1 1 0 1 1 1 s7 1 1 1 0 0 0 State Q2 Q1 Q0 Q2.D Q1.D Q0.D Divide-by-8 Counter Q2 Q1 Q0 00011110 0 1 11 1 1 Q2.D Q2.D = !Q2 & Q1 & Q0 # Q2 & !Q1 # Q2 & !Q0
13
s0 0 0 0 0 0 1 s1 0 0 1 0 1 0 s2 0 1 0 0 1 1 s3 0 1 1 1 0 0 s4 1 0 0 1 0 1 s5 1 0 1 1 1 0 s6 1 1 0 1 1 1 s7 1 1 1 0 0 0 State Q2 Q1 Q0 Q2.D Q1.D Q0.D Divide-by-8 Counter Q2 Q1 Q0 00011110 0 1 1 1 1 1 Q1.D Q1.D = !Q1 & Q0 # Q1 & !Q0
14

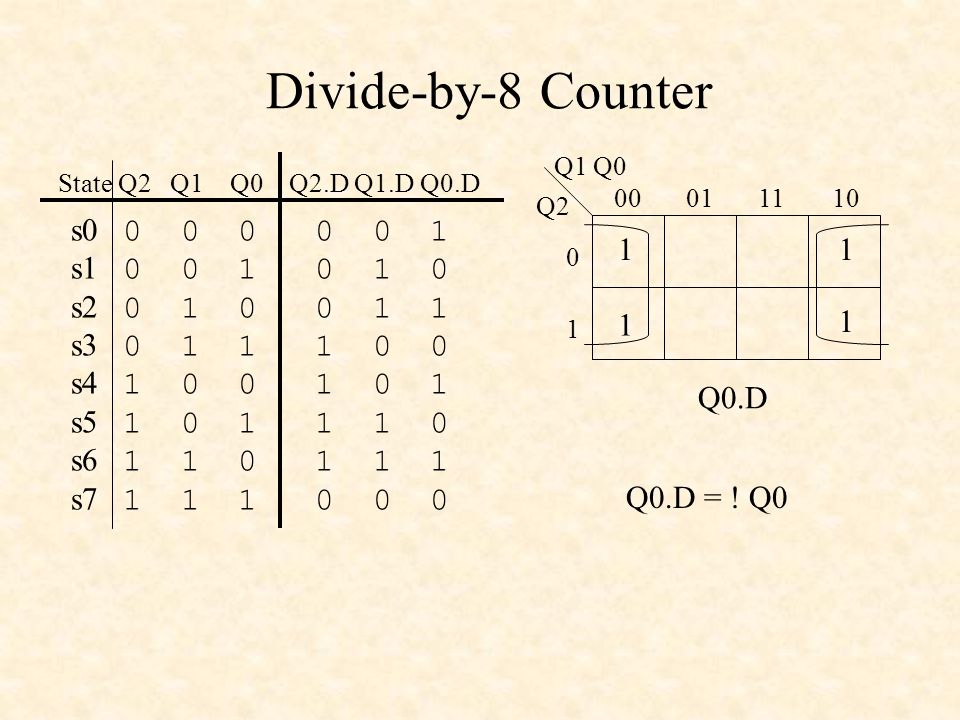

s0 0 0 0 0 0 1 s1 0 0 1 0 1 0 s2 0 1 0 0 1 1 s3 0 1 1 1 0 0 s4 1 0 0 1 0 1 s5 1 0 1 1 1 0 s6 1 1 0 1 1 1 s7 1 1 1 0 0 0 State Q2 Q1 Q0 Q2.D Q1.D Q0.D Divide-by-8 Counter Q2 Q1 Q0 00011110 0 1 1 1 1 1 Q0.D Q0.D = ! Q0
15
CUPL Simulation Output File
16

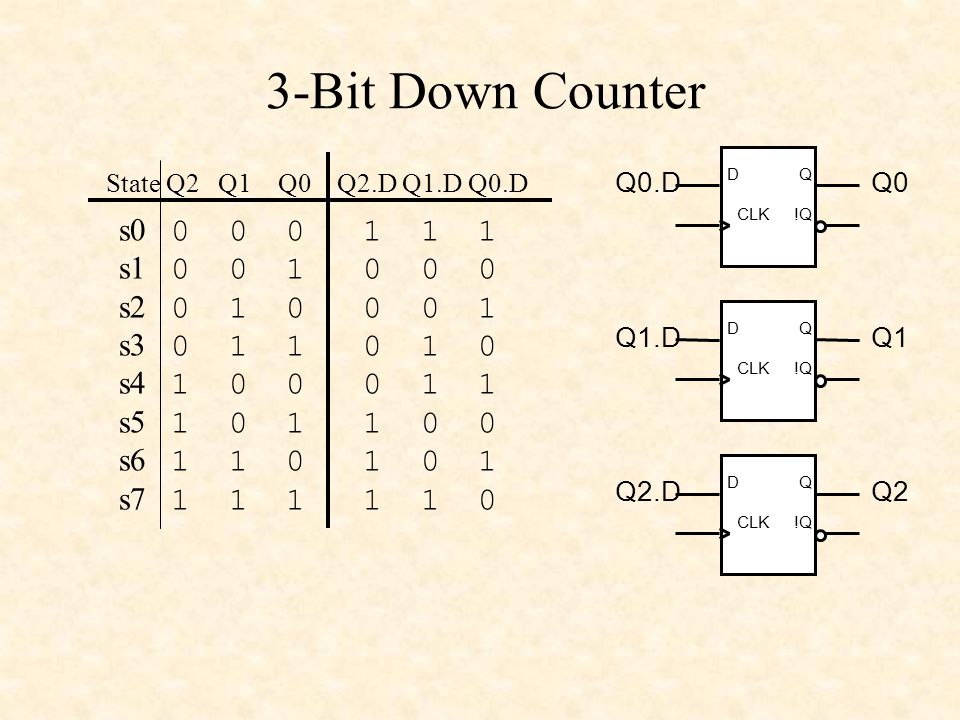

CLK DQ !Q CLK DQ !Q CLK DQ !Q Q0Q0.D Q1 Q2 Q1.D Q2.D s0 0 0 0 1 1 1 s1 0 0 1 0 0 0 s2 0 1 0 0 0 1 s3 0 1 1 0 1 0 s4 1 0 0 0 1 1 s5 1 0 1 1 0 0 s6 1 1 0 1 0 1 s7 1 1 1 1 1 0 State Q2 Q1 Q0 Q2.D Q1.D Q0.D 3-Bit Down Counter
17
Q2 Q1 Q0 00011110 0 1 11 1 1 Q2.D Q2.D = !Q2 & !Q1 & !Q0 # Q2 & Q1 # Q2 & Q0 s0 0 0 0 1 1 1 s1 0 0 1 0 0 0 s2 0 1 0 0 0 1 s3 0 1 1 0 1 0 s4 1 0 0 0 1 1 s5 1 0 1 1 0 0 s6 1 1 0 1 0 1 s7 1 1 1 1 1 0 State Q2 Q1 Q0 Q2.D Q1.D Q0.D
18
3-Bit Down Counter Q2 Q1 Q0 00011110 0 1 1 1 1 1 Q1.D Q1.D = !Q1 & !Q0 # Q1 & Q0 s0 0 0 0 1 1 1 s1 0 0 1 0 0 0 s2 0 1 0 0 0 1 s3 0 1 1 0 1 0 s4 1 0 0 0 1 1 s5 1 0 1 1 0 0 s6 1 1 0 1 0 1 s7 1 1 1 1 1 0 State Q2 Q1 Q0 Q2.D Q1.D Q0.D
19
3-Bit Down Counter Q2 Q1 Q0 00011110 0 1 1 1 1 1 Q0.D Q0.D = ! Q0 s0 0 0 0 1 1 1 s1 0 0 1 0 0 0 s2 0 1 0 0 0 1 s3 0 1 1 0 1 0 s4 1 0 0 0 1 1 s5 1 0 1 1 0 0 s6 1 1 0 1 0 1 s7 1 1 1 1 1 0 State Q2 Q1 Q0 Q2.D Q1.D Q0.D
20
Up-Down Counter Up-Down Counter Q0 Q1 Q2 clock UD UD = 0: count up UD = 1: count down
21

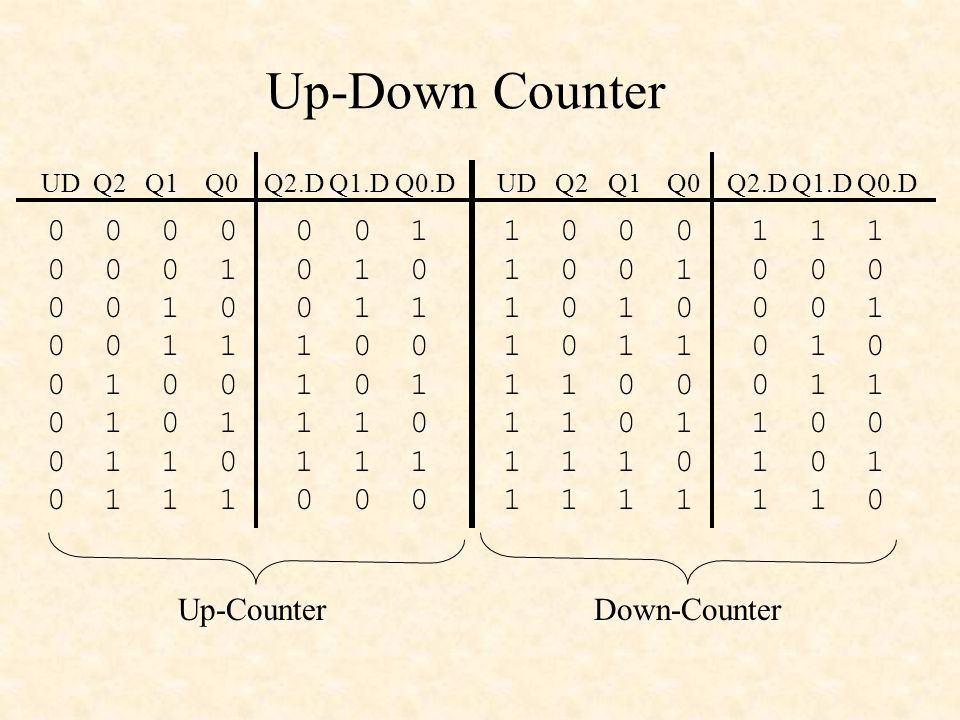

Up-Down Counter 1 0 0 0 1 1 1 1 0 0 1 0 0 0 1 0 1 0 0 0 1 1 0 1 1 0 1 0 1 1 0 0 0 1 1 1 1 0 1 1 0 0 1 1 1 0 1 0 1 1 1 1 1 1 1 0 UD Q2 Q1 Q0 Q2.D Q1.D Q0.D 0 0 0 0 0 0 1 0 0 0 1 0 1 0 0 0 1 0 0 1 1 0 0 1 1 1 0 0 0 1 0 0 1 0 1 0 1 0 1 1 1 0 0 1 1 0 1 1 1 0 1 1 1 0 0 0 UD Q2 Q1 Q0 Q2.D Q1.D Q0.D Up-CounterDown-Counter
22
UD Q2 Q1 Q0 00011110 00 01 11 10 Up-Down Counter Make Karnaugh maps for Q2.D, Q1.D, and Q0.D
23
Counters Ripple Counter Synchronous Binary Counters –Design with D Flip-Flops –Design with J-K Flip-Flops Counters in VHDL
24

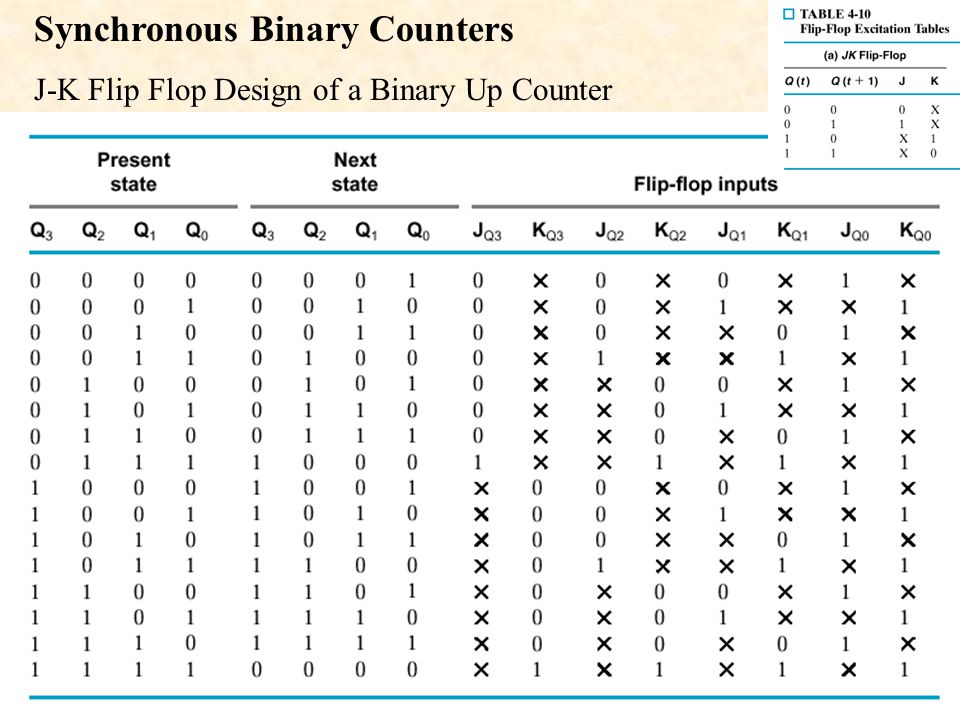

J-K Flip Flop Design of a Binary Up Counter Synchronous Binary Counters
25

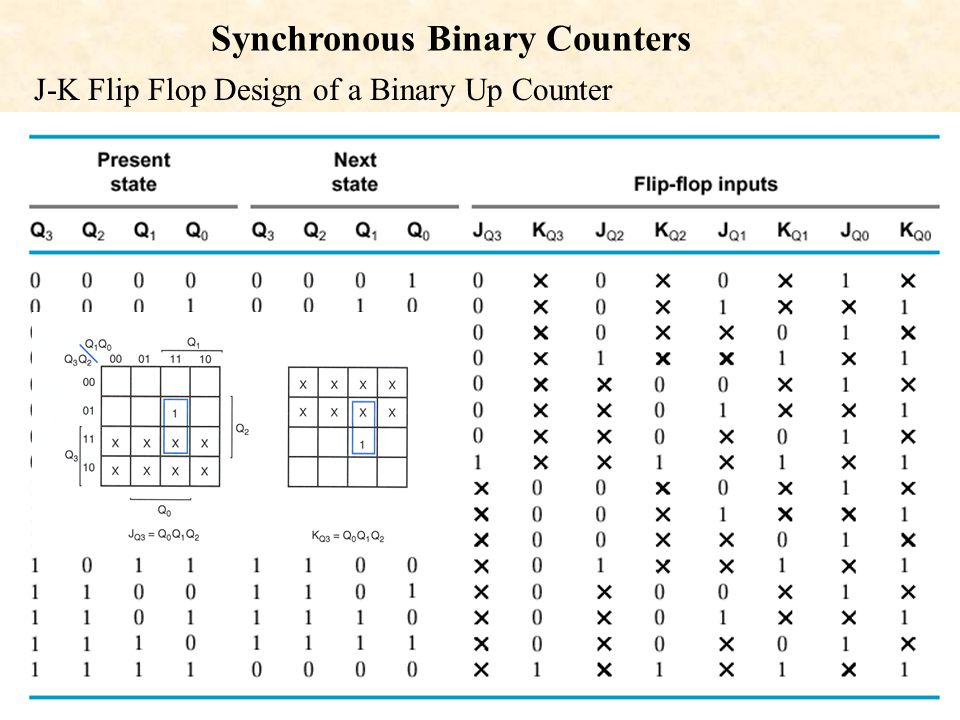

J-K Flip Flop Design of a Binary Up Counter Synchronous Binary Counters
26
J-K Flip Flop Design of a Binary Up Counter Synchronous Binary Counters
27

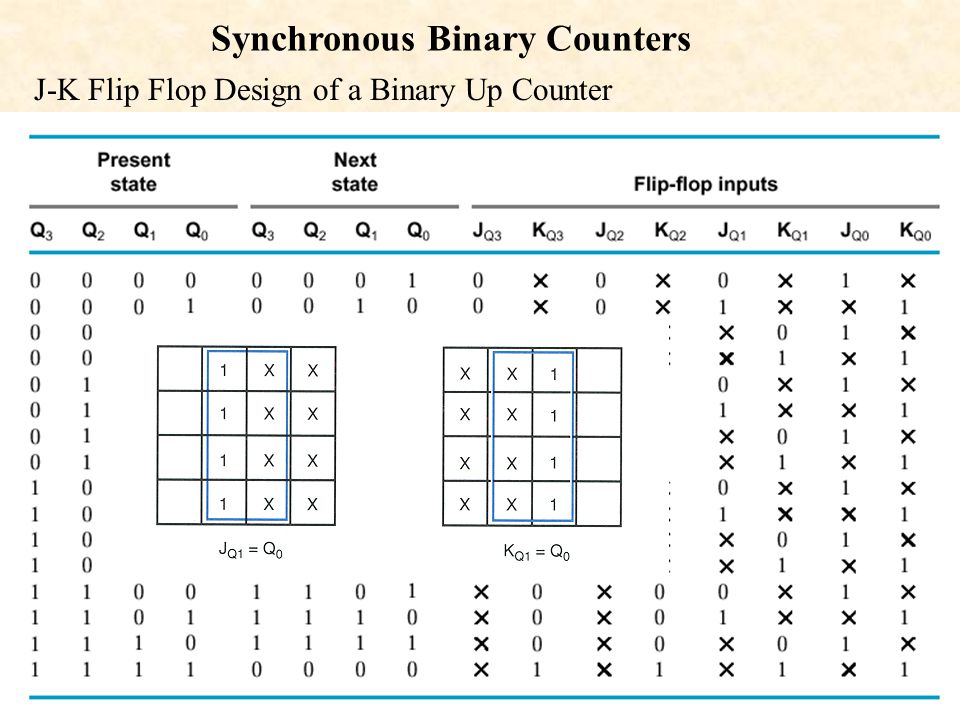

J-K Flip Flop Design of a Binary Up Counter Synchronous Binary Counters
28

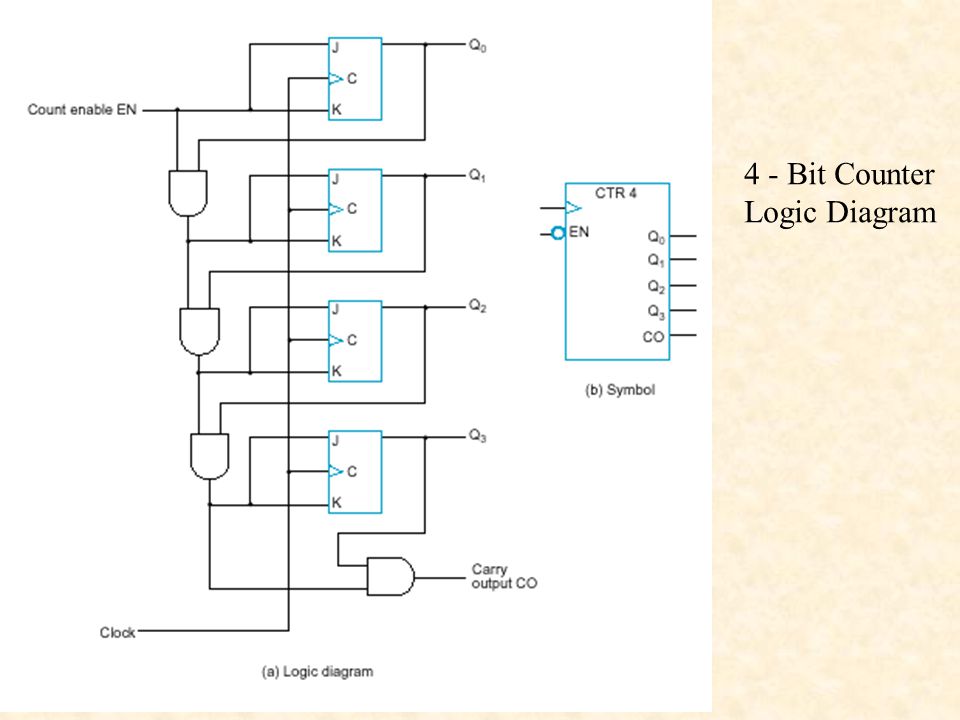

4 - Bit Counter Logic Diagram
29
Counters Ripple Counter Synchronous Binary Counters –Design with D Flip-Flops –Design with J-K Flip-Flops Counters in VHDL
31
4-Bit Binary Counter with Reset
