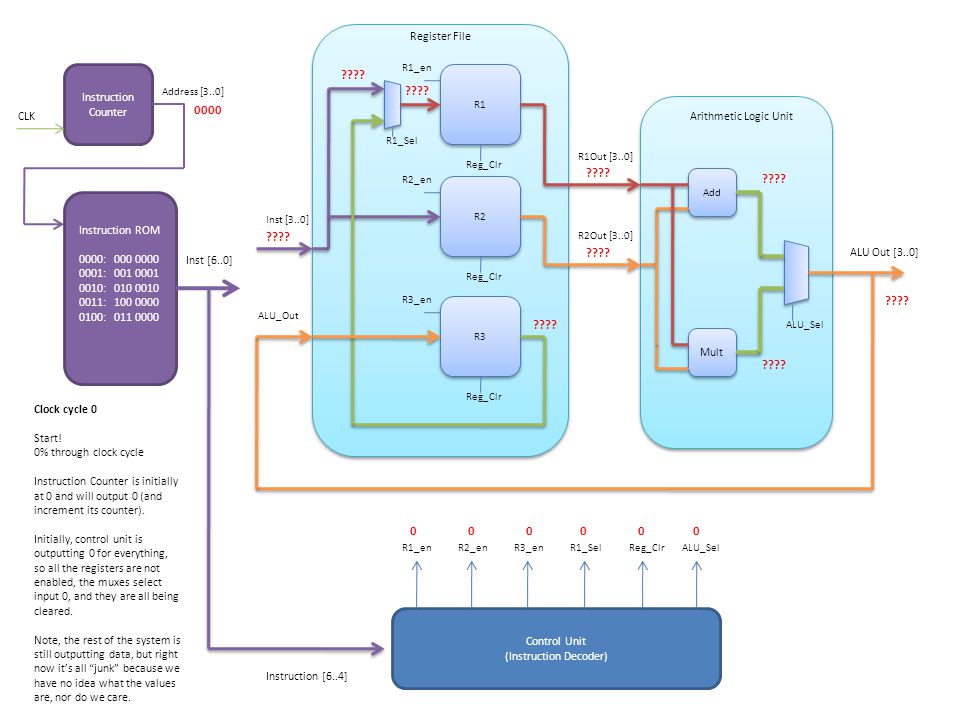

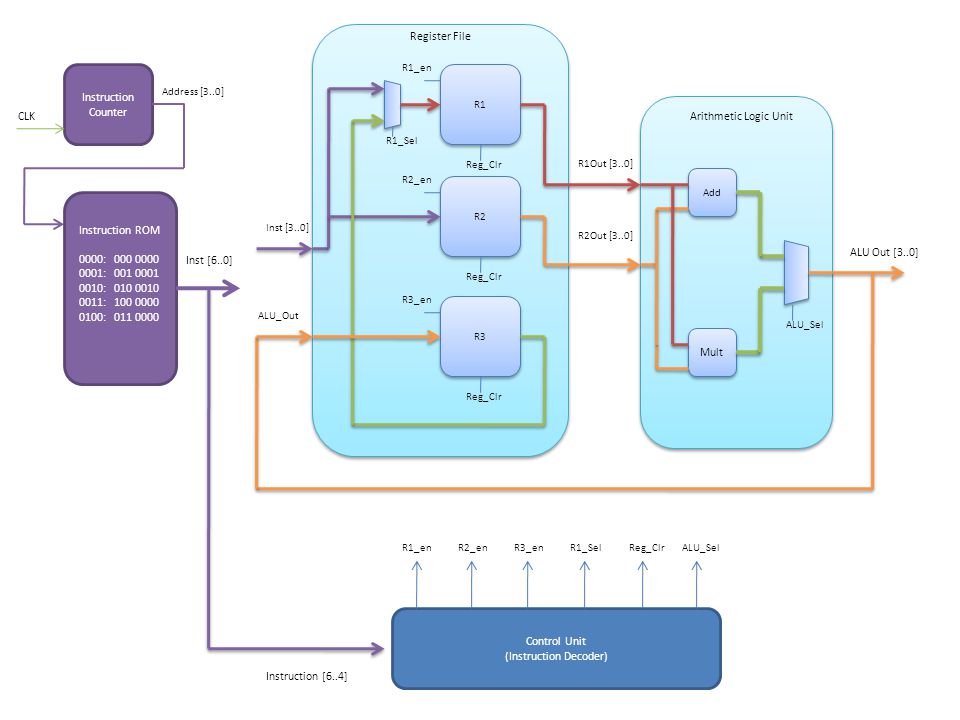

Instruction Counter Address [3..0] CLK Instruction ROM 0000: 000 0000 0001: 001 0001 0010: 010 0010 0011: 100 0000 0100: 011 0000 Inst [6..0] Control Unit (Instruction Decoder) Instruction [6..4] Register File Arithmetic Logic Unit ALU Out [3..0] ALU_Out R1Out [3..0] R2Out [3..0] Add Mult ALU_Sel R1 Inst [3..0] R1_en R2 R2_en R3 R3_en Reg_Clr R1_Sel Reg_Clr R1_enR2_enR3_enR1_SelReg_ClrALU_Sel
![Instruction Counter Address [3..0] CLK Instruction ROM 0000: : : : : Inst [6..0] Control Unit (Instruction Decoder) Instruction [6..4] Register File Arithmetic Logic Unit ALU Out [3..0] ALU_Out R1Out [3..0] R2Out [3..0] Add Mult ALU_Sel R1 Inst [3..0] R1_en R2 R2_en R3 R3_en Reg_Clr R1_Sel Reg_Clr R1_enR2_enR3_enR1_SelReg_ClrALU_Sel](http://images.slideplayer.com/16/4985696/slides/slide_1.jpg "Instruction Counter Address [3..0] CLK Instruction ROM 0000: : : : : Inst [6..0] Control Unit (Instruction Decoder) Instruction [6..4] Register File Arithmetic Logic Unit ALU Out [3..0] ALU_Out R1Out [3..0] R2Out [3..0] Add Mult ALU_Sel R1 Inst [3..0] R1_en R2 R2_en R3 R3_en Reg_Clr R1_Sel Reg_Clr R1_enR2_enR3_enR1_SelReg_ClrALU_Sel")
2
Instruction Counter Address [3..0] CLK Instruction ROM 0000: 000 0000 0001: 001 0001 0010: 010 0010 0011: 100 0000 0100: 011 0000 Inst [6..0] Instruction [6..4] Register File Arithmetic Logic Unit ALU Out [3..0] ALU_Out R1Out [3..0] R2Out [3..0] Add Mult ALU_Sel R1 Inst [3..0] R1_en R2 R2_en R3 R3_en Reg_Clr R1_Sel Reg_Clr Clock cycle 0 Start! 0% through clock cycle Instruction Counter is initially at 0 and will output 0 (and increment its counter). Initially, control unit is outputting 0 for everything, so all the registers are not enabled, the muxes select input 0, and they are all being cleared. Note, the rest of the system is still outputting data, but right now it’s all “junk” because we have no idea what the values are, nor do we care. 0000 Control Unit (Instruction Decoder) R1_enR2_enR3_enR1_SelReg_ClrALU_Sel 0 0 0 ????
![Instruction Counter Address [3..0] CLK Instruction ROM 0000: : : : : Inst [6..0] Instruction [6..4] Register File Arithmetic Logic Unit ALU Out [3..0] ALU_Out R1Out [3..0] R2Out [3..0] Add Mult ALU_Sel R1 Inst [3..0] R1_en R2 R2_en R3 R3_en Reg_Clr R1_Sel Reg_Clr Clock cycle 0 Start.](http://images.slideplayer.com/16/4985696/slides/slide_2.jpg "0% through clock cycle Instruction Counter is initially at 0 and will output 0 (and increment its counter). Initially, control unit is outputting 0 for everything, so all the registers are not enabled, the muxes select input 0, and they are all being cleared. Note, the rest of the system is still outputting data, but right now it’s all junk because we have no idea what the values are, nor do we care Control Unit (Instruction Decoder) R1_enR2_enR3_enR1_SelReg_ClrALU_Sel")
3

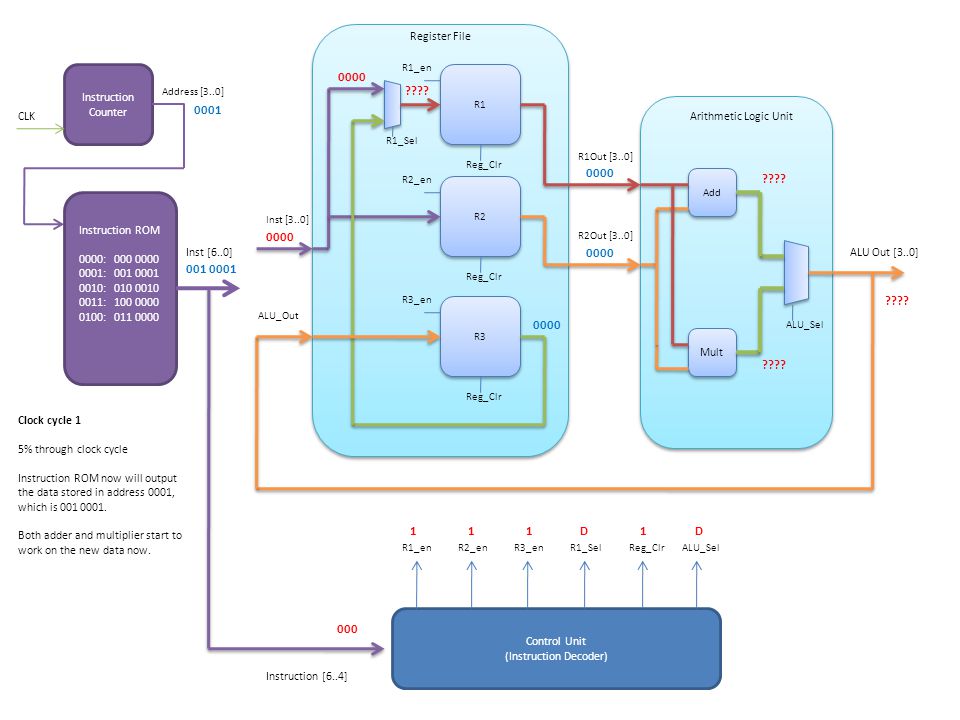

Instruction Counter Address [3..0] CLK Instruction ROM 0000: 000 0000 0001: 001 0001 0010: 010 0010 0011: 100 0000 0100: 011 0000 Inst [6..0] Instruction [6..4] Register File Arithmetic Logic Unit ALU Out [3..0] ALU_Out R1Out [3..0] R2Out [3..0] Add Mult ALU_Sel R1 R1_en R2 R2_en R3 R3_en Reg_Clr R1_Sel Reg_Clr Clock cycle 0 5% through clock cycle Instruction ROM will output the data at the address it is fed. Since it is fed 0000, it will output the first instruction. Control Unit receives the first 3 bits of the instruction to determine what to do. Register file ALSO gets the data, but since control unit was previously outputting 0 for everything, it doesn’t really matter since the register file is effectively turned off. 0000 Control Unit (Instruction Decoder) R1_enR2_enR3_enR1_SelReg_ClrALU_Sel 000 0000 0 0 0 Inst [3..0] ???? 000 0000 ????
![Instruction Counter Address [3..0] CLK Instruction ROM 0000: : : : : Inst [6..0] Instruction [6..4] Register File Arithmetic Logic Unit ALU Out [3..0] ALU_Out R1Out [3..0] R2Out [3..0] Add Mult ALU_Sel R1 R1_en R2 R2_en R3 R3_en Reg_Clr R1_Sel Reg_Clr Clock cycle 0 5% through clock cycle Instruction ROM will output the data at the address it is fed.](http://images.slideplayer.com/16/4985696/slides/slide_3.jpg "Since it is fed 0000, it will output the first instruction. Control Unit receives the first 3 bits of the instruction to determine what to do. Register file ALSO gets the data, but since control unit was previously outputting 0 for everything, it doesn’t really matter since the register file is effectively turned off Control Unit (Instruction Decoder) R1_enR2_enR3_enR1_SelReg_ClrALU_Sel Inst [3..0]")
4
Instruction Counter Address [3..0] CLK Instruction ROM 0000: 000 0000 0001: 001 0001 0010: 010 0010 0011: 100 0000 0100: 011 0000 Inst [6..0] Instruction [6..4] Register File Arithmetic Logic Unit ALU Out [3..0] ALU_Out R1Out [3..0] R2Out [3..0] Add Mult ALU_Sel R1 R1_en R2 R2_en R3 R3_en Reg_Clr R1_Sel Reg_Clr Clock cycle 0 8% through clock cycle Control unit decodes the instruction and determines what to do by setting all the output pins accordingly. This is an init instruction, so the control unit will set Reg_Clr high to clear out our registers. This clears the register, and the registers ignore whatever is being sent into it. Our CPU is now stable, and it will remain this way until the next clock cycle. The registers will update on the next clock cycle, so it still currently outputs ????. 0000 Control Unit (Instruction Decoder) R1_enR2_enR3_enR1_SelReg_ClrALU_Sel 000 0000 0000 000 1 1 1 D 1 D Inst [3..0] ???? 0000 ????
![Instruction Counter Address [3..0] CLK Instruction ROM 0000: : : : : Inst [6..0] Instruction [6..4] Register File Arithmetic Logic Unit ALU Out [3..0] ALU_Out R1Out [3..0] R2Out [3..0] Add Mult ALU_Sel R1 R1_en R2 R2_en R3 R3_en Reg_Clr R1_Sel Reg_Clr Clock cycle 0 8% through clock cycle Control unit decodes the instruction and determines what to do by setting all the output pins accordingly.](http://images.slideplayer.com/16/4985696/slides/slide_4.jpg "This is an init instruction, so the control unit will set Reg_Clr high to clear out our registers. This clears the register, and the registers ignore whatever is being sent into it. Our CPU is now stable, and it will remain this way until the next clock cycle. The registers will update on the next clock cycle, so it still currently outputs Control Unit (Instruction Decoder) R1_enR2_enR3_enR1_SelReg_ClrALU_Sel D 1 D Inst [3..0]")
5
Instruction Counter Address [3..0] CLK Instruction ROM 0000: 000 0000 0001: 001 0001 0010: 010 0010 0011: 100 0000 0100: 011 0000 Inst [6..0] Instruction [6..4] Register File Arithmetic Logic Unit ALU Out [3..0] ALU_Out R1Out [3..0] R2Out [3..0] Add Mult ALU_Sel R1 R1_en R2 R2_en R3 R3_en Reg_Clr R1_Sel Reg_Clr Clock cycle 1 0% through clock cycle Instruction counter now outputs a 0001 because the clock rising edge makes it increment. Registers are now outputting 000 as well, this happens as soon as the next clock cycle begins. 0001 Control Unit (Instruction Decoder) R1_enR2_enR3_enR1_SelReg_ClrALU_Sel 000 0000 0000 000 1 1 1 D 1 D Inst [3..0] 0000 ???? 0000 ???? 0000 ????
![Instruction Counter Address [3..0] CLK Instruction ROM 0000: : : : : Inst [6..0] Instruction [6..4] Register File Arithmetic Logic Unit ALU Out [3..0] ALU_Out R1Out [3..0] R2Out [3..0] Add Mult ALU_Sel R1 R1_en R2 R2_en R3 R3_en Reg_Clr R1_Sel Reg_Clr Clock cycle 1 0% through clock cycle Instruction counter now outputs a 0001 because the clock rising edge makes it increment.](http://images.slideplayer.com/16/4985696/slides/slide_5.jpg "Registers are now outputting 000 as well, this happens as soon as the next clock cycle begins Control Unit (Instruction Decoder) R1_enR2_enR3_enR1_SelReg_ClrALU_Sel D 1 D Inst [3..0]")
6
Instruction Counter Address [3..0] CLK Instruction ROM 0000: 000 0000 0001: 001 0001 0010: 010 0010 0011: 100 0000 0100: 011 0000 Inst [6..0] Instruction [6..4] Register File Arithmetic Logic Unit ALU Out [3..0] ALU_Out R1Out [3..0] R2Out [3..0] Add Mult ALU_Sel R1 R1_en R2 R2_en R3 R3_en Reg_Clr R1_Sel Reg_Clr Clock cycle 1 5% through clock cycle Instruction ROM now will output the data stored in address 0001, which is 001 0001. Both adder and multiplier start to work on the new data now. 0001 Control Unit (Instruction Decoder) R1_enR2_enR3_enR1_SelReg_ClrALU_Sel 001 0001 0000 000 1 1 1 D 1 D Inst [3..0] 0000 ???? 0000 ???? 0000 ????
![Instruction Counter Address [3..0] CLK Instruction ROM 0000: : : : : Inst [6..0] Instruction [6..4] Register File Arithmetic Logic Unit ALU Out [3..0] ALU_Out R1Out [3..0] R2Out [3..0] Add Mult ALU_Sel R1 R1_en R2 R2_en R3 R3_en Reg_Clr R1_Sel Reg_Clr Clock cycle 1 5% through clock cycle Instruction ROM now will output the data stored in address 0001, which is](http://images.slideplayer.com/16/4985696/slides/slide_6.jpg "Both adder and multiplier start to work on the new data now Control Unit (Instruction Decoder) R1_enR2_enR3_enR1_SelReg_ClrALU_Sel D 1 D Inst [3..0]")
7
Instruction Counter Address [3..0] CLK Instruction ROM 0000: 000 0000 0001: 001 0001 0010: 010 0010 0011: 100 0000 0100: 011 0000 Inst [6..0] Instruction [6..4] Register File Arithmetic Logic Unit ALU Out [3..0] ALU_Out R1Out [3..0] R2Out [3..0] Add Mult ALU_Sel R1 R1_en R2 R2_en R3 R3_en Reg_Clr R1_Sel Reg_Clr Clock cycle 1 8% through clock cycle Control unit receives the new instruction and decodes it. Register file also gets the new data 0001. It is a move instruction into register 1, so control unit sets the control lines accordingly. Because of this, R1 will receive 0001 through the mux. R2 also receives 0001 but since R2_en is off, it will ignore that. But nothing happens until the next clock cycle. 0001 Control Unit (Instruction Decoder) R1_enR2_enR3_enR1_SelReg_ClrALU_Sel 001 0001 001 1 0 0 0 0 D Inst [3..0] 0000 ???? 000 0001 ????
![Instruction Counter Address [3..0] CLK Instruction ROM 0000: : : : : Inst [6..0] Instruction [6..4] Register File Arithmetic Logic Unit ALU Out [3..0] ALU_Out R1Out [3..0] R2Out [3..0] Add Mult ALU_Sel R1 R1_en R2 R2_en R3 R3_en Reg_Clr R1_Sel Reg_Clr Clock cycle 1 8% through clock cycle Control unit receives the new instruction and decodes it.](http://images.slideplayer.com/16/4985696/slides/slide_7.jpg "Register file also gets the new data It is a move instruction into register 1, so control unit sets the control lines accordingly. Because of this, R1 will receive 0001 through the mux. R2 also receives 0001 but since R2_en is off, it will ignore that. But nothing happens until the next clock cycle Control Unit (Instruction Decoder) R1_enR2_enR3_enR1_SelReg_ClrALU_Sel D Inst [3..0]")
8

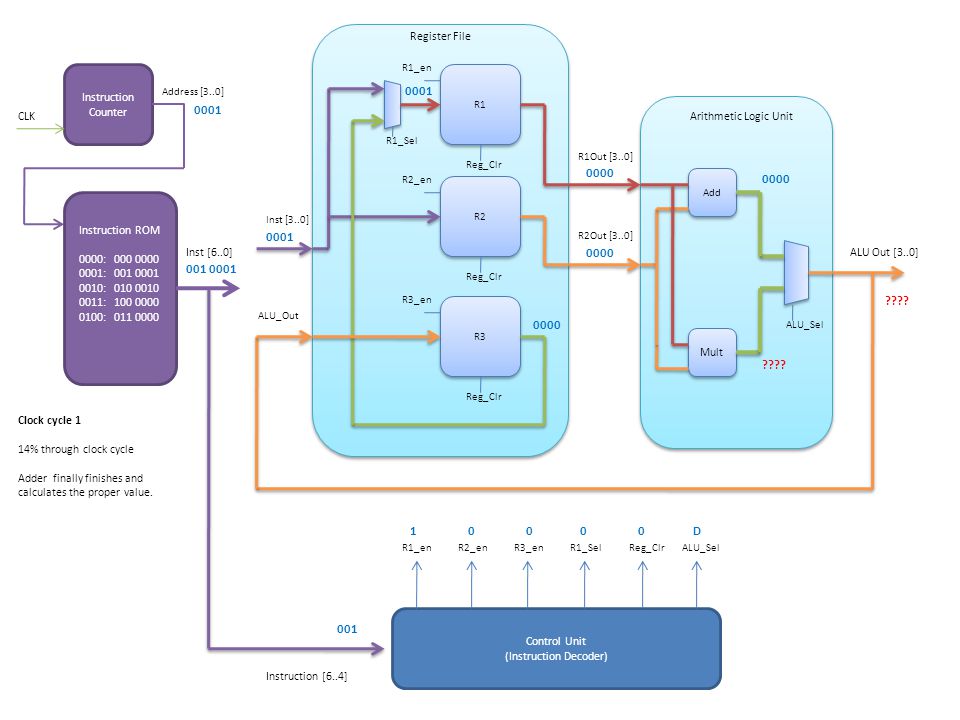

Instruction Counter Address [3..0] CLK Instruction ROM 0000: 000 0000 0001: 001 0001 0010: 010 0010 0011: 100 0000 0100: 011 0000 Inst [6..0] Instruction [6..4] Register File Arithmetic Logic Unit ALU Out [3..0] ALU_Out R1Out [3..0] R2Out [3..0] Add Mult ALU_Sel R1 R1_en R2 R2_en R3 R3_en Reg_Clr R1_Sel Reg_Clr Clock cycle 1 14% through clock cycle Adder finally finishes and calculates the proper value. 0001 Control Unit (Instruction Decoder) R1_enR2_enR3_enR1_SelReg_ClrALU_Sel 001 0001 001 1 0 0 0 0 D Inst [3..0] 0000 ???? 0000 0001 0000 ????
![Instruction Counter Address [3..0] CLK Instruction ROM 0000: : : : : Inst [6..0] Instruction [6..4] Register File Arithmetic Logic Unit ALU Out [3..0] ALU_Out R1Out [3..0] R2Out [3..0] Add Mult ALU_Sel R1 R1_en R2 R2_en R3 R3_en Reg_Clr R1_Sel Reg_Clr Clock cycle 1 14% through clock cycle Adder finally finishes and calculates the proper value.](http://images.slideplayer.com/16/4985696/slides/slide_8.jpg "0001 Control Unit (Instruction Decoder) R1_enR2_enR3_enR1_SelReg_ClrALU_Sel D Inst [3..0]")
9

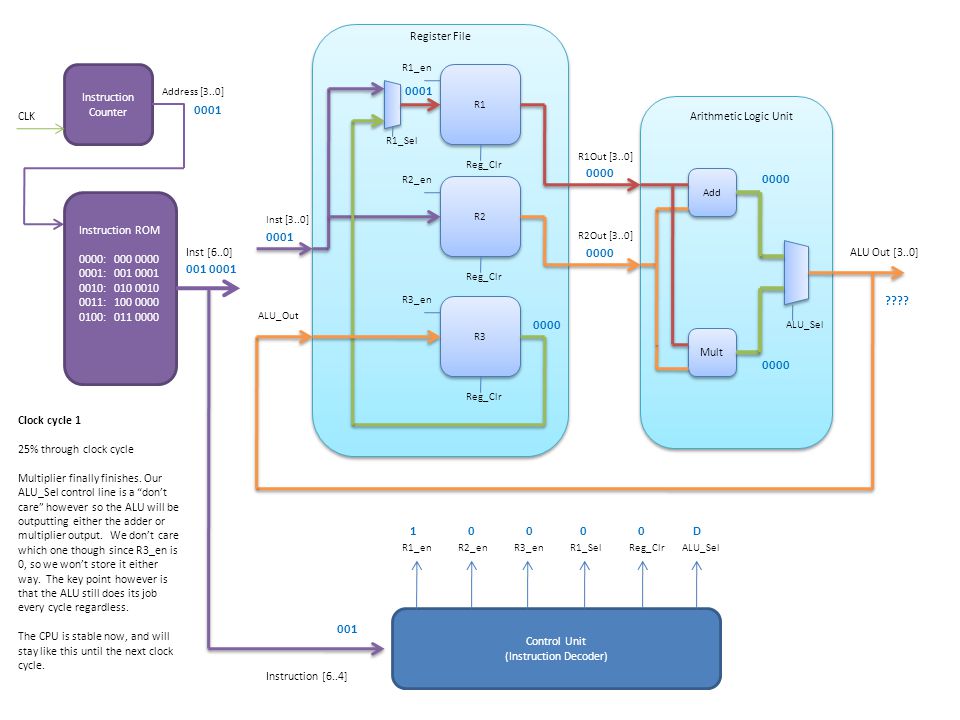

Instruction Counter Address [3..0] CLK Instruction ROM 0000: 000 0000 0001: 001 0001 0010: 010 0010 0011: 100 0000 0100: 011 0000 Inst [6..0] Instruction [6..4] Register File Arithmetic Logic Unit ALU Out [3..0] ALU_Out R1Out [3..0] R2Out [3..0] Add Mult ALU_Sel R1 R1_en R2 R2_en R3 R3_en Reg_Clr R1_Sel Reg_Clr Clock cycle 1 25% through clock cycle Multiplier finally finishes. Our ALU_Sel control line is a “don’t care” however so the ALU will be outputting either the adder or multiplier output. We don’t care which one though since R3_en is 0, so we won’t store it either way. The key point however is that the ALU still does its job every cycle regardless. The CPU is stable now, and will stay like this until the next clock cycle. 0001 Control Unit (Instruction Decoder) R1_enR2_enR3_enR1_SelReg_ClrALU_Sel 001 0001 001 1 0 0 0 0 D Inst [3..0] 0000 ???? 0000 0001 0000
![Instruction Counter Address [3..0] CLK Instruction ROM 0000: : : : : Inst [6..0] Instruction [6..4] Register File Arithmetic Logic Unit ALU Out [3..0] ALU_Out R1Out [3..0] R2Out [3..0] Add Mult ALU_Sel R1 R1_en R2 R2_en R3 R3_en Reg_Clr R1_Sel Reg_Clr Clock cycle 1 25% through clock cycle Multiplier finally finishes.](http://images.slideplayer.com/16/4985696/slides/slide_9.jpg "Our ALU_Sel control line is a don’t care however so the ALU will be outputting either the adder or multiplier output. We don’t care which one though since R3_en is 0, so we won’t store it either way. The key point however is that the ALU still does its job every cycle regardless. The CPU is stable now, and will stay like this until the next clock cycle Control Unit (Instruction Decoder) R1_enR2_enR3_enR1_SelReg_ClrALU_Sel D Inst [3..0]")
10
Instruction Counter Address [3..0] CLK Instruction ROM 0000: 000 0000 0001: 001 0001 0010: 010 0010 0011: 100 0000 0100: 011 0000 Inst [6..0] Instruction [6..4] Register File Arithmetic Logic Unit ALU Out [3..0] ALU_Out R1Out [3..0] R2Out [3..0] Add Mult ALU_Sel R1 R1_en R2 R2_en R3 R3_en Reg_Clr R1_Sel Reg_Clr Clock cycle 2 0% through clock cycle New clock cycle! Counter increments again, is now 2. The registers also will immediately output their new value too. 0010 Control Unit (Instruction Decoder) R1_enR2_enR3_enR1_SelReg_ClrALU_Sel 001 0001 001 1 0 0 0 0 D Inst [3..0] 0001 0000 ???? 0000 0001 0000
![Instruction Counter Address [3..0] CLK Instruction ROM 0000: : : : : Inst [6..0] Instruction [6..4] Register File Arithmetic Logic Unit ALU Out [3..0] ALU_Out R1Out [3..0] R2Out [3..0] Add Mult ALU_Sel R1 R1_en R2 R2_en R3 R3_en Reg_Clr R1_Sel Reg_Clr Clock cycle 2 0% through clock cycle New clock cycle.](http://images.slideplayer.com/16/4985696/slides/slide_10.jpg "Counter increments again, is now 2. The registers also will immediately output their new value too Control Unit (Instruction Decoder) R1_enR2_enR3_enR1_SelReg_ClrALU_Sel D Inst [3..0]")
11
Instruction Counter Address [3..0] CLK Instruction ROM 0000: 000 0000 0001: 001 0001 0010: 010 0010 0011: 100 0000 0100: 011 0000 Inst [6..0] Instruction [6..4] Register File Arithmetic Logic Unit ALU Out [3..0] ALU_Out R1Out [3..0] R2Out [3..0] Add Mult ALU_Sel R1 R1_en R2 R2_en R3 R3_en Reg_Clr R1_Sel Reg_Clr Clock cycle 2 5% through clock cycle Instruction ROM will now output the instruction at address 0010, which is 010 0010. 0010 Control Unit (Instruction Decoder) R1_enR2_enR3_enR1_SelReg_ClrALU_Sel 010 0010 001 1 0 0 0 0 D Inst [3..0] 0001 0000 ???? 0000 0001 0000
![Instruction Counter Address [3..0] CLK Instruction ROM 0000: : : : : Inst [6..0] Instruction [6..4] Register File Arithmetic Logic Unit ALU Out [3..0] ALU_Out R1Out [3..0] R2Out [3..0] Add Mult ALU_Sel R1 R1_en R2 R2_en R3 R3_en Reg_Clr R1_Sel Reg_Clr Clock cycle 2 5% through clock cycle Instruction ROM will now output the instruction at address 0010, which is](http://images.slideplayer.com/16/4985696/slides/slide_11.jpg "0010 Control Unit (Instruction Decoder) R1_enR2_enR3_enR1_SelReg_ClrALU_Sel D Inst [3..0]")
12
Instruction Counter Address [3..0] CLK Instruction ROM 0000: 000 0000 0001: 001 0001 0010: 010 0010 0011: 100 0000 0100: 011 0000 Inst [6..0] Instruction [6..4] Register File Arithmetic Logic Unit ALU Out [3..0] ALU_Out R1Out [3..0] R2Out [3..0] Add Mult ALU_Sel R1 R1_en R2 R2_en R3 R3_en Reg_Clr R1_Sel Reg_Clr Clock cycle 2 7% through clock cycle Control unit decodes the new instruction, which is 010, which is a move into register 2. It will set the control lines. The register file also gets the new value and it will be fed the new value, but it won’t do anything until the next clock cycle. 0010 Control Unit (Instruction Decoder) R1_enR2_enR3_enR1_SelReg_ClrALU_Sel 010 0010 010 0 1 0 D 0 D Inst [3..0] 0001 0000 ???? 0000 0010 0000
![Instruction Counter Address [3..0] CLK Instruction ROM 0000: : : : : Inst [6..0] Instruction [6..4] Register File Arithmetic Logic Unit ALU Out [3..0] ALU_Out R1Out [3..0] R2Out [3..0] Add Mult ALU_Sel R1 R1_en R2 R2_en R3 R3_en Reg_Clr R1_Sel Reg_Clr Clock cycle 2 7% through clock cycle Control unit decodes the new instruction, which is 010, which is a move into register 2.](http://images.slideplayer.com/16/4985696/slides/slide_12.jpg "It will set the control lines. The register file also gets the new value and it will be fed the new value, but it won’t do anything until the next clock cycle Control Unit (Instruction Decoder) R1_enR2_enR3_enR1_SelReg_ClrALU_Sel D 0 D Inst [3..0]")
13
Instruction Counter Address [3..0] CLK Instruction ROM 0000: 000 0000 0001: 001 0001 0010: 010 0010 0011: 100 0000 0100: 011 0000 Inst [6..0] Instruction [6..4] Register File Arithmetic Logic Unit ALU Out [3..0] ALU_Out R1Out [3..0] R2Out [3..0] Add Mult ALU_Sel R1 R1_en R2 R2_en R3 R3_en Reg_Clr R1_Sel Reg_Clr Clock cycle 2 25% through clock cycle Adder and multiplier are finished, but once again the ALU out is a don’t care so we don’t know what is being output. R2_en is 1, so R2 will store 0010 at the rising edge of the clock cycle, and R1 and R2 will just ignore their input and keep their current values. Our system is stable and will wait like this until the next clock cycle. 0010 Control Unit (Instruction Decoder) R1_enR2_enR3_enR1_SelReg_ClrALU_Sel 010 0010 010 0 1 0 D 0 D Inst [3..0] 0001 0000 ???? 0000 ???? 0010 0001 0000 0010
![Instruction Counter Address [3..0] CLK Instruction ROM 0000: : : : : Inst [6..0] Instruction [6..4] Register File Arithmetic Logic Unit ALU Out [3..0] ALU_Out R1Out [3..0] R2Out [3..0] Add Mult ALU_Sel R1 R1_en R2 R2_en R3 R3_en Reg_Clr R1_Sel Reg_Clr Clock cycle 2 25% through clock cycle Adder and multiplier are finished, but once again the ALU out is a don’t care so we don’t know what is being output.](http://images.slideplayer.com/16/4985696/slides/slide_13.jpg "R2_en is 1, so R2 will store 0010 at the rising edge of the clock cycle, and R1 and R2 will just ignore their input and keep their current values. Our system is stable and will wait like this until the next clock cycle Control Unit (Instruction Decoder) R1_enR2_enR3_enR1_SelReg_ClrALU_Sel D 0 D Inst [3..0]")
14
Instruction Counter Address [3..0] CLK Instruction ROM 0000: 000 0000 0001: 001 0001 0010: 010 0010 0011: 100 0000 0100: 011 0000 Inst [6..0] Instruction [6..4] Register File Arithmetic Logic Unit ALU Out [3..0] ALU_Out R1Out [3..0] R2Out [3..0] Add Mult ALU_Sel R1 R1_en R2 R2_en R3 R3_en Reg_Clr R1_Sel Reg_Clr Clock cycle 3 0% through clock cycle New clock cycle. 0011 Control Unit (Instruction Decoder) R1_enR2_enR3_enR1_SelReg_ClrALU_Sel 010 0010 010 0 1 0 D 0 D Inst [3..0] 0001 0010 ???? 0000 ???? 0010 0001 0000
![Instruction Counter Address [3..0] CLK Instruction ROM 0000: : : : : Inst [6..0] Instruction [6..4] Register File Arithmetic Logic Unit ALU Out [3..0] ALU_Out R1Out [3..0] R2Out [3..0] Add Mult ALU_Sel R1 R1_en R2 R2_en R3 R3_en Reg_Clr R1_Sel Reg_Clr Clock cycle 3 0% through clock cycle New clock cycle.](http://images.slideplayer.com/16/4985696/slides/slide_14.jpg "0011 Control Unit (Instruction Decoder) R1_enR2_enR3_enR1_SelReg_ClrALU_Sel D 0 D Inst [3..0]")
15
Instruction Counter Address [3..0] CLK Instruction ROM 0000: 000 0000 0001: 001 0001 0010: 010 0010 0011: 100 0000 0100: 011 0000 Inst [6..0] Instruction [6..4] Register File Arithmetic Logic Unit ALU Out [3..0] ALU_Out R1Out [3..0] R2Out [3..0] Add Mult ALU_Sel R1 R1_en R2 R2_en R3 R3_en Reg_Clr R1_Sel Reg_Clr 0011 Control Unit (Instruction Decoder) R1_enR2_enR3_enR1_SelReg_ClrALU_Sel 100 0000 100 0 0 1 D 0 0 Inst [3..0] 0001 0010 ???? 0000 ???? 0000 Clock cycle 3 15% through clock cycle Control unit decoded the instruction, which is an add of R1 and R2 and store in R3. It sets the proper control lines. 0001
![Instruction Counter Address [3..0] CLK Instruction ROM 0000: : : : : Inst [6..0] Instruction [6..4] Register File Arithmetic Logic Unit ALU Out [3..0] ALU_Out R1Out [3..0] R2Out [3..0] Add Mult ALU_Sel R1 R1_en R2 R2_en R3 R3_en Reg_Clr R1_Sel Reg_Clr 0011 Control Unit (Instruction Decoder) R1_enR2_enR3_enR1_SelReg_ClrALU_Sel D 0 0 Inst [3..0]](http://images.slideplayer.com/16/4985696/slides/slide_15.jpg "Clock cycle 3 15% through clock cycle Control unit decoded the instruction, which is an add of R1 and R2 and store in R3. It sets the proper control lines")
16
Instruction Counter Address [3..0] CLK Instruction ROM 0000: 000 0000 0001: 001 0001 0010: 010 0010 0011: 100 0000 0100: 011 0000 Inst [6..0] Instruction [6..4] Register File Arithmetic Logic Unit ALU Out [3..0] ALU_Out R1Out [3..0] R2Out [3..0] Add Mult ALU_Sel R1 R1_en R2 R2_en R3 R3_en Reg_Clr R1_Sel Reg_Clr 0011 Control Unit (Instruction Decoder) R1_enR2_enR3_enR1_SelReg_ClrALU_Sel 100 0000 100 0 0 1 D 0 0 Inst [3..0] 0001 0010 0011 0000 ???? 0000 0011 0010 0011 Clock cycle 3 25% through clock cycle Adder and multiplier are done. But ALU_Sel is set to 0 because we want the adder output, so that is what gets sent to R3. Our CPU is now stable and will wait until the next clock cycle. At the rising edge, R3 will store the ALU_Out value, which is 0011.
![Instruction Counter Address [3..0] CLK Instruction ROM 0000: : : : : Inst [6..0] Instruction [6..4] Register File Arithmetic Logic Unit ALU Out [3..0] ALU_Out R1Out [3..0] R2Out [3..0] Add Mult ALU_Sel R1 R1_en R2 R2_en R3 R3_en Reg_Clr R1_Sel Reg_Clr 0011 Control Unit (Instruction Decoder) R1_enR2_enR3_enR1_SelReg_ClrALU_Sel D 0 0 Inst [3..0]](http://images.slideplayer.com/16/4985696/slides/slide_16.jpg "Clock cycle 3 25% through clock cycle Adder and multiplier are done. But ALU_Sel is set to 0 because we want the adder output, so that is what gets sent to R3. Our CPU is now stable and will wait until the next clock cycle. At the rising edge, R3 will store the ALU_Out value, which is")
17
Instruction Counter Address [3..0] CLK Instruction ROM 0000: 000 0000 0001: 001 0001 0010: 010 0010 0011: 100 0000 0100: 011 0000 Inst [6..0] Instruction [6..4] Register File Arithmetic Logic Unit ALU Out [3..0] ALU_Out R1Out [3..0] R2Out [3..0] Add Mult ALU_Sel R1 R1_en R2 R2_en R3 R3_en Reg_Clr R1_Sel Reg_Clr 0100 Control Unit (Instruction Decoder) R1_enR2_enR3_enR1_SelReg_ClrALU_Sel 100 0000 100 0 0 1 D 0 0 Inst [3..0] 0001 0010 0011 ???? 0000 0011 0010 0011 Clock cycle 4 0% through clock cycle Another new clock cycle!
![Instruction Counter Address [3..0] CLK Instruction ROM 0000: : : : : Inst [6..0] Instruction [6..4] Register File Arithmetic Logic Unit ALU Out [3..0] ALU_Out R1Out [3..0] R2Out [3..0] Add Mult ALU_Sel R1 R1_en R2 R2_en R3 R3_en Reg_Clr R1_Sel Reg_Clr 0100 Control Unit (Instruction Decoder) R1_enR2_enR3_enR1_SelReg_ClrALU_Sel D 0 0 Inst [3..0]](http://images.slideplayer.com/16/4985696/slides/slide_17.jpg "Clock cycle 4 0% through clock cycle Another new clock cycle!.")
18

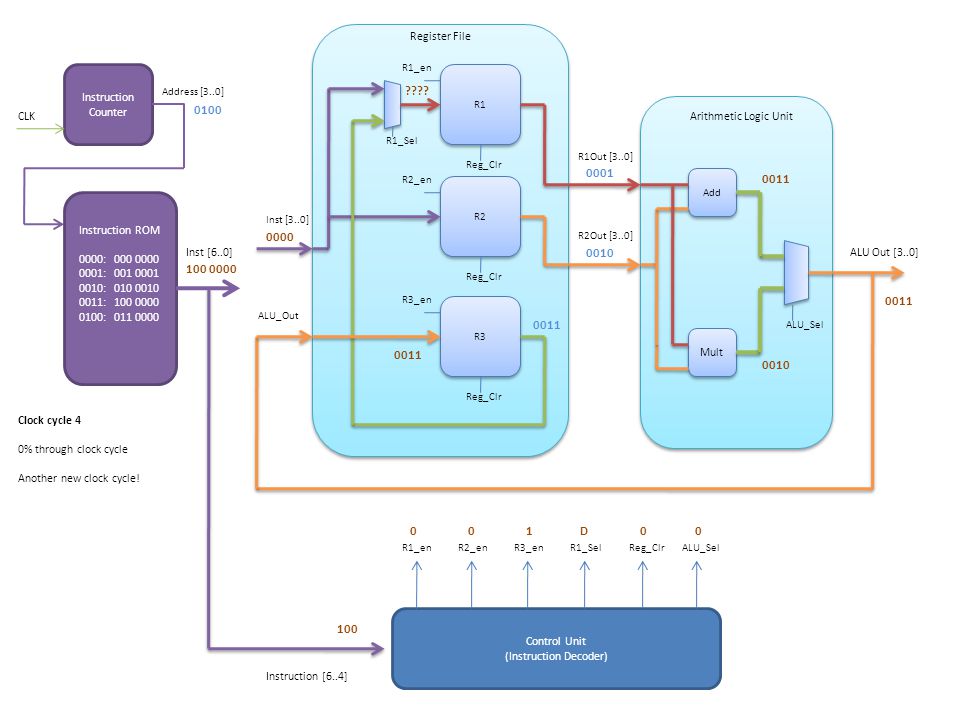

Instruction Counter Address [3..0] CLK Instruction ROM 0000: 000 0000 0001: 001 0001 0010: 010 0010 0011: 100 0000 0100: 011 0000 Inst [6..0] Instruction [6..4] Register File Arithmetic Logic Unit ALU Out [3..0] ALU_Out R1Out [3..0] R2Out [3..0] Add Mult ALU_Sel R1 R1_en R2 R2_en R3 R3_en Reg_Clr R1_Sel Reg_Clr 0100 Control Unit (Instruction Decoder) R1_enR2_enR3_enR1_SelReg_ClrALU_Sel 011 0000 011 1 0 0 1 0 D Inst [3..0] 0001 0010 0011 0000 0011 0010 0011 Clock cycle 4 15% through clock cycle Instruction decoded, it is a move R3 into R1. So we set our control lines to enable R1, and to set R1_Sel to 1, which will select the R3 output.
![Instruction Counter Address [3..0] CLK Instruction ROM 0000: : : : : Inst [6..0] Instruction [6..4] Register File Arithmetic Logic Unit ALU Out [3..0] ALU_Out R1Out [3..0] R2Out [3..0] Add Mult ALU_Sel R1 R1_en R2 R2_en R3 R3_en Reg_Clr R1_Sel Reg_Clr 0100 Control Unit (Instruction Decoder) R1_enR2_enR3_enR1_SelReg_ClrALU_Sel D Inst [3..0] Clock cycle 4 15% through clock cycle Instruction decoded, it is a move R3 into R1.](http://images.slideplayer.com/16/4985696/slides/slide_18.jpg "So we set our control lines to enable R1, and to set R1_Sel to 1, which will select the R3 output..")
19
Instruction Counter Address [3..0] CLK Instruction ROM 0000: 000 0000 0001: 001 0001 0010: 010 0010 0011: 100 0000 0100: 011 0000 Inst [6..0] Instruction [6..4] Register File Arithmetic Logic Unit ALU Out [3..0] ALU_Out R1Out [3..0] R2Out [3..0] Add Mult ALU_Sel R1 R1_en R2 R2_en R3 R3_en Reg_Clr R1_Sel Reg_Clr 0100 Control Unit (Instruction Decoder) R1_enR2_enR3_enR1_SelReg_ClrALU_Sel 011 0000 011 1 0 0 1 0 D Inst [3..0] 0001 0010 ???? 0011 0000 0011 0010 Clock cycle 4 25% through clock cycle Our adder and multiplier is done, but we don’t care what the outputs are. Our system is stable and will wait until the next clock cycle. At the rising edge, R1 will store 0011. The other registers will stay the same.
![Instruction Counter Address [3..0] CLK Instruction ROM 0000: : : : : Inst [6..0] Instruction [6..4] Register File Arithmetic Logic Unit ALU Out [3..0] ALU_Out R1Out [3..0] R2Out [3..0] Add Mult ALU_Sel R1 R1_en R2 R2_en R3 R3_en Reg_Clr R1_Sel Reg_Clr 0100 Control Unit (Instruction Decoder) R1_enR2_enR3_enR1_SelReg_ClrALU_Sel D Inst [3..0]](http://images.slideplayer.com/16/4985696/slides/slide_19.jpg "Clock cycle 4 25% through clock cycle Our adder and multiplier is done, but we don’t care what the outputs are. Our system is stable and will wait until the next clock cycle. At the rising edge, R1 will store The other registers will stay the same..")
