1. NXT LEGO® MINDSTORMS® Education NXT Product Specifications The NXT-RCX The motors The sensors

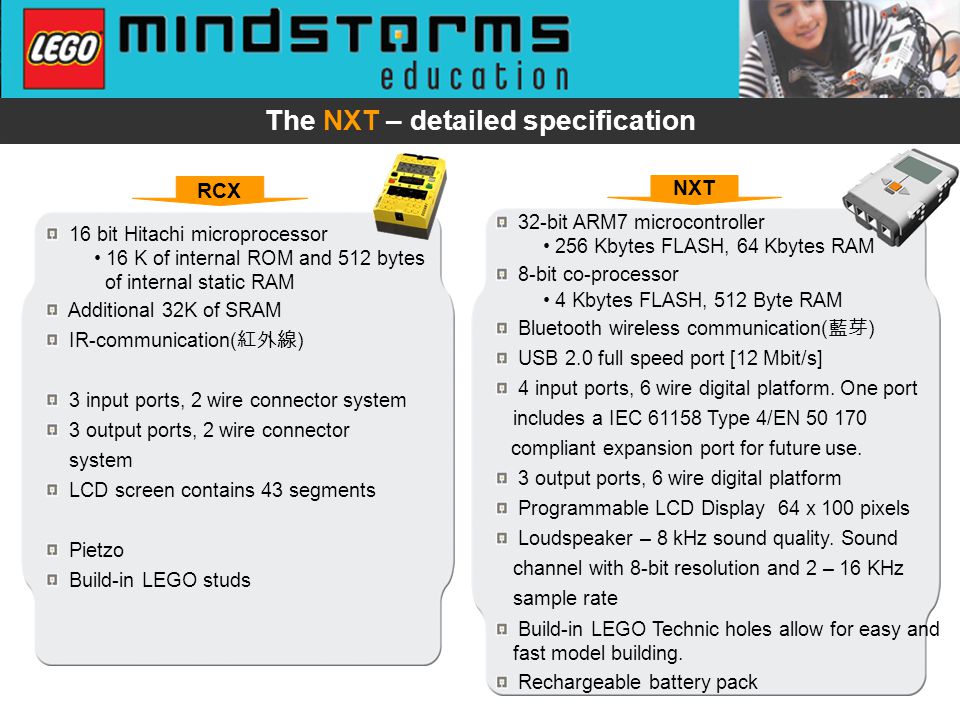

2. 32-bit ARM7 microcontroller 256 Kbytes FLASH, 64 Kbytes RAM 8-bit co-processor 4 Kbytes FLASH, 512 Byte RAM Bluetooth wireless communication( 藍芽 ) USB 2.0 full speed port [12 Mbit/s] 4 input ports, 6 wire digital platform. One port includes a IEC 61158 Type 4/EN 50 170 compliant expansion port for future use. 3 output ports, 6 wire digital platform Programmable LCD Display 64 x 100 pixels Loudspeaker – 8 kHz sound quality. Sound channel with 8-bit resolution and 2 – 16 KHz sample rate Build-in LEGO Technic holes allow for easy and fast model building. Rechargeable battery pack 16 bit Hitachi microprocessor 16 K of internal ROM and 512 bytes of internal static RAM Additional 32K of SRAM IR-communication( 紅外線 ) 3 input ports, 2 wire connector system 3 output ports, 2 wire connector system LCD screen contains 43 segments Pietzo Build-in LEGO studs The NXT – detailed specification RCX NXT

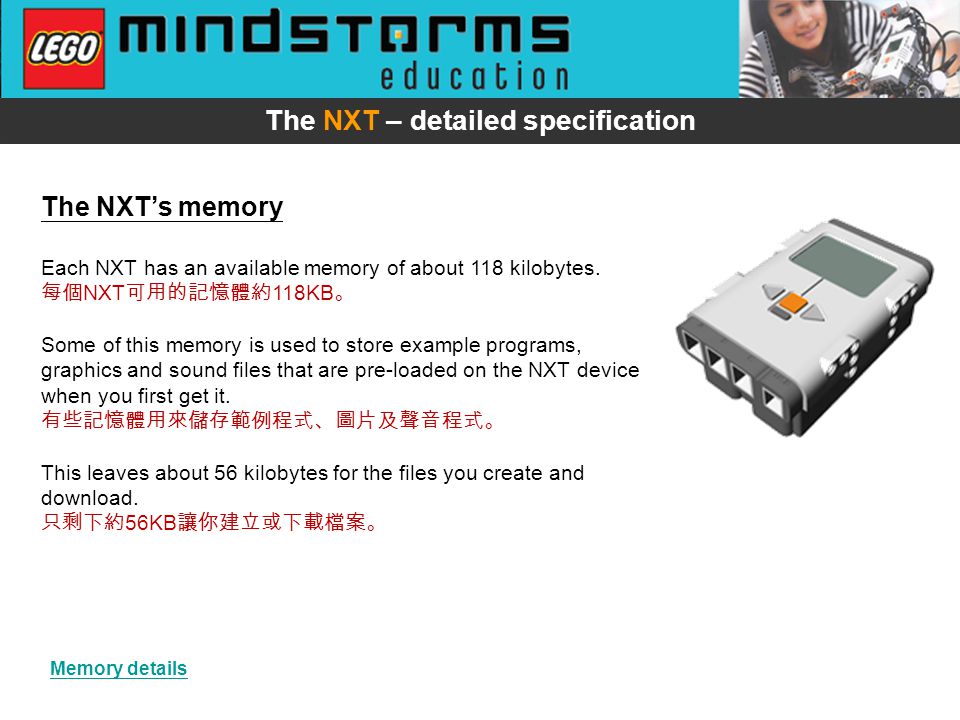

3. The NXT’s memory Each NXT has an available memory of about 118 kilobytes. 每個 NXT 可用的記憶體約 118KB 。 Some of this memory is used to store example programs, graphics and sound files that are pre-loaded on the NXT device when you first get it. 有些記憶體用來儲存範例程式、圖片及聲音程式。 This leaves about 56 kilobytes for the files you create and download. 只剩下約 56KB 讓你建立或下載檔案。 The NXT – detailed specification Memory details

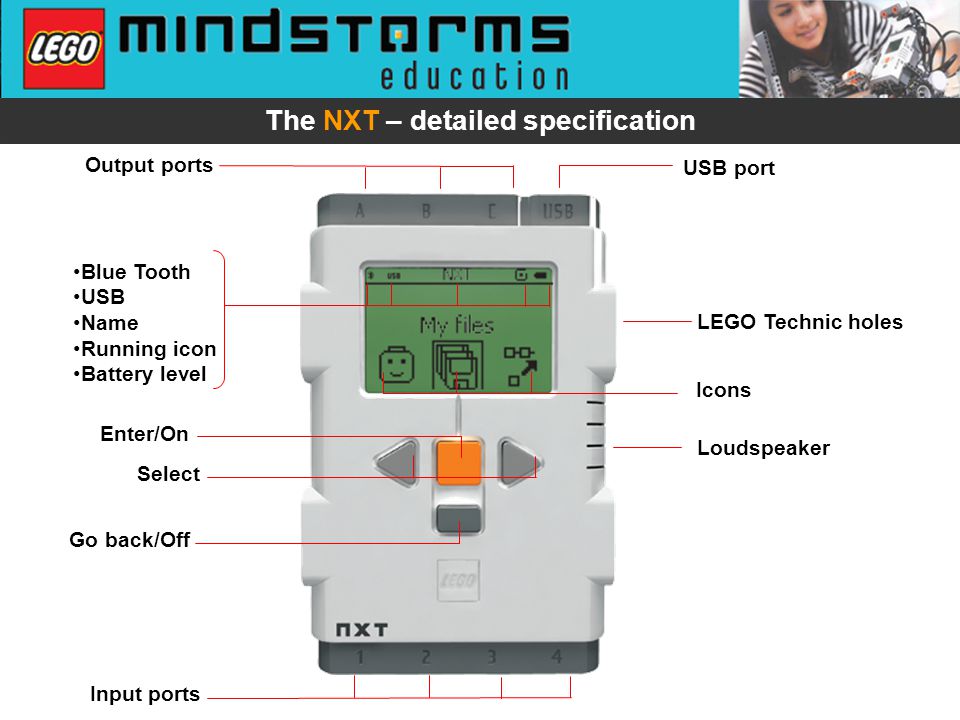

4. Enter/On Select Go back/Off Output ports Blue Tooth USB Name Running icon Battery level Input ports Icons Loudspeaker USB port LEGO Technic holes The NXT – detailed specification

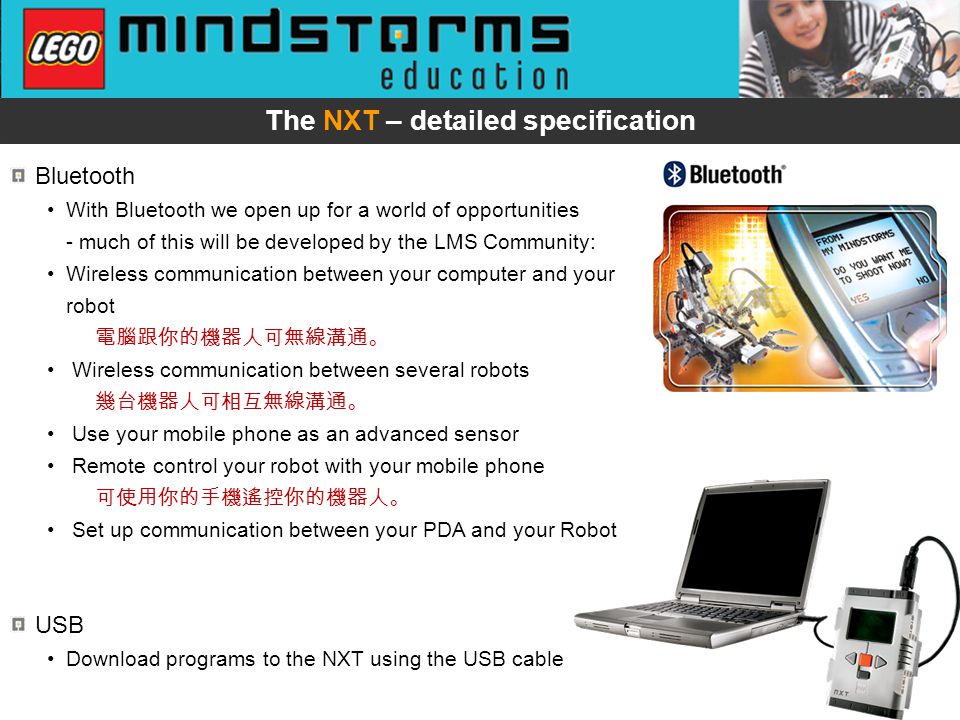

5. Bluetooth With Bluetooth we open up for a world of opportunities - much of this will be developed by the LMS Community: Wireless communication between your computer and your robot 電腦跟你的機器人可無線溝通。 Wireless communication between several robots 幾台機器人可相互無線溝通。 Use your mobile phone as an advanced sensor Remote control your robot with your mobile phone 可使用你的手機遙控你的機器人。 Set up communication between your PDA and your Robot The NXT – detailed specification USB Download programs to the NXT using the USB cable

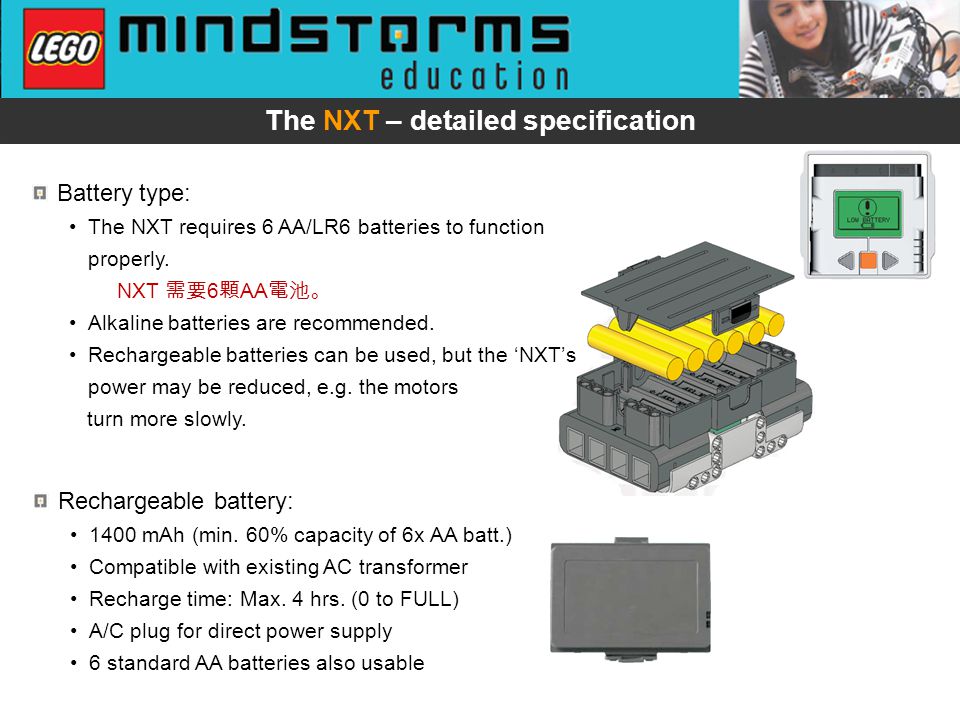

6. Rechargeable battery: 1400 mAh (min. 60% capacity of 6x AA batt.) Compatible with existing AC transformer Recharge time: Max. 4 hrs. (0 to FULL) A/C plug for direct power supply 6 standard AA batteries also usable The NXT – detailed specification Battery type: The NXT requires 6 AA/LR6 batteries to function properly. NXT 需要 6 顆 AA 電池。 Alkaline batteries are recommended. Rechargeable batteries can be used, but the ‘NXT’s power may be reduced, e.g. the motors turn more slowly.

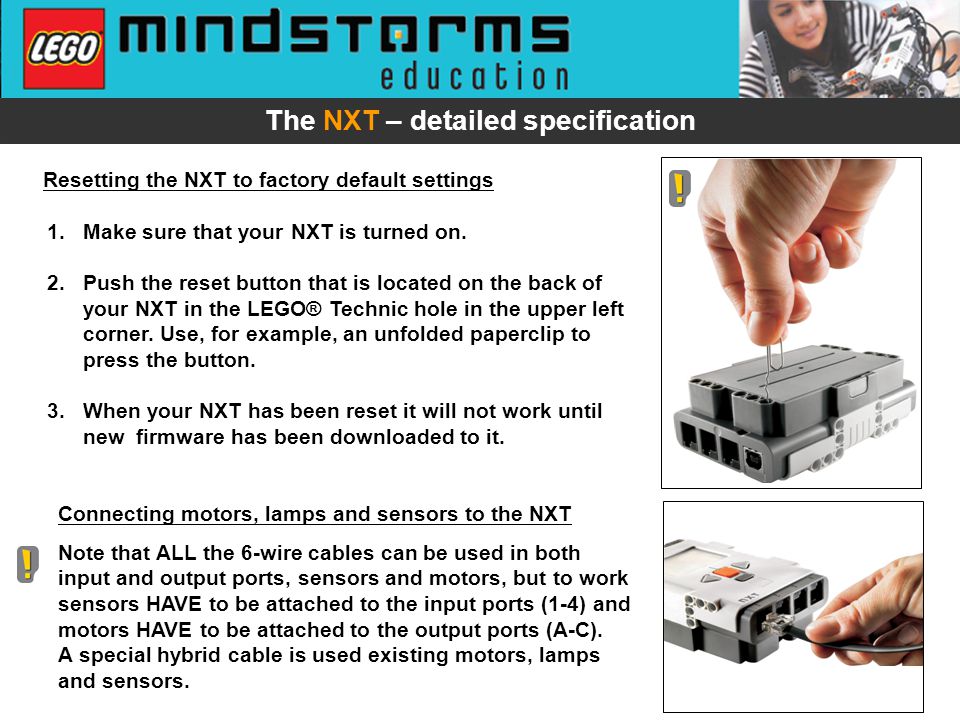

7. Note that ALL the 6-wire cables can be used in both input and output ports, sensors and motors, but to work sensors HAVE to be attached to the input ports (1-4) and motors HAVE to be attached to the output ports (A-C). A special hybrid cable is used existing motors, lamps and sensors. Connecting motors, lamps and sensors to the NXT The NXT – detailed specification 1.Make sure that your NXT is turned on. 2.Push the reset button that is located on the back of your NXT in the LEGO® Technic hole in the upper left corner. Use, for example, an unfolded paperclip to press the button. 3.When your NXT has been reset it will not work until new firmware has been downloaded to it. Resetting the NXT to factory default settings

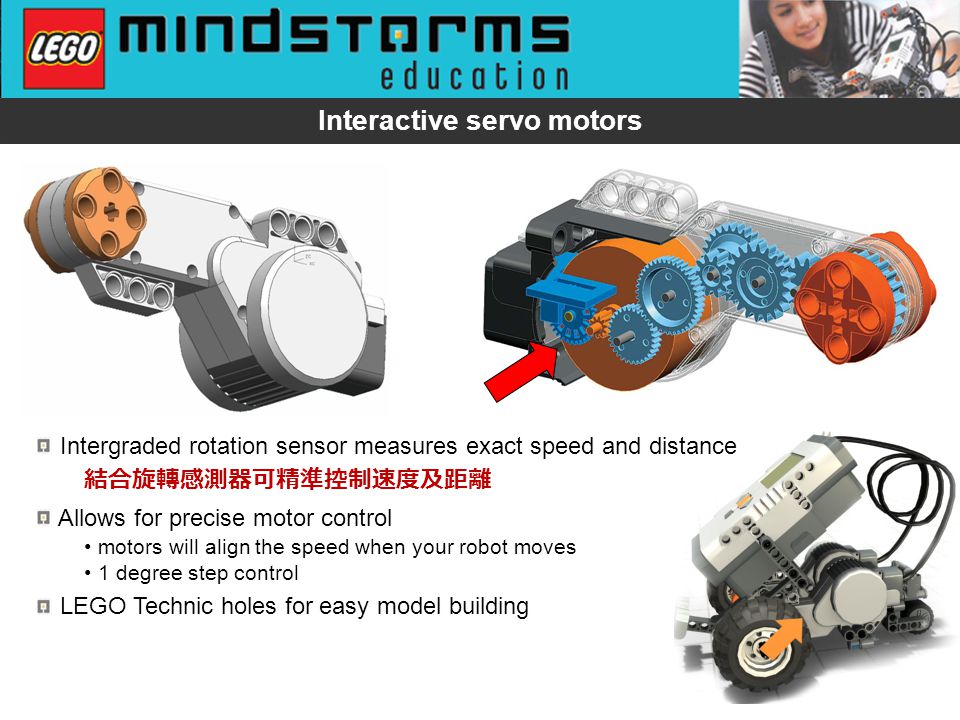

8. Intergraded rotation sensor measures exact speed and distance 結合旋轉感測器可精準控制速度及距離 Allows for precise motor control motors will align the speed when your robot moves 1 degree step control LEGO Technic holes for easy model building Interactive servo motors

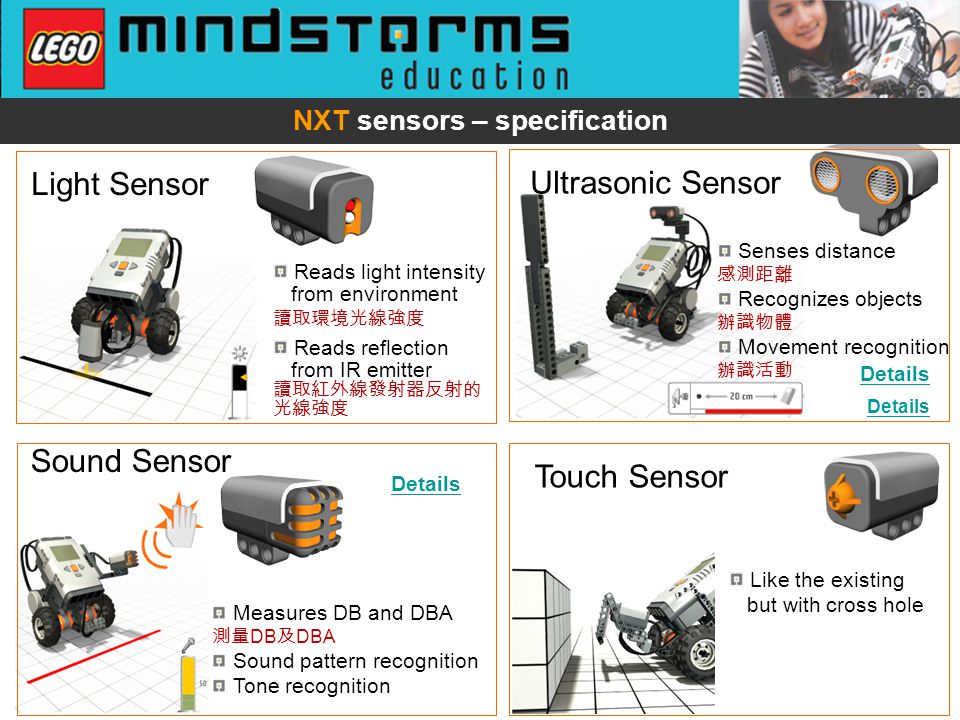

9. Light Sensor Reads light intensity from environment 讀取環境光線強度 Reads reflection from IR emitter 讀取紅外線發射器反射的 光線強度 Touch Sensor Sound Sensor Measures DB and DBA 測量 DB 及 DBA Sound pattern recognition Tone recognition Ultrasonic Sensor Senses distance 感測距離 Recognizes objects 辦識物體 Movement recognition 辦識活動 Like the existing but with cross hole NXT sensors – specification Details

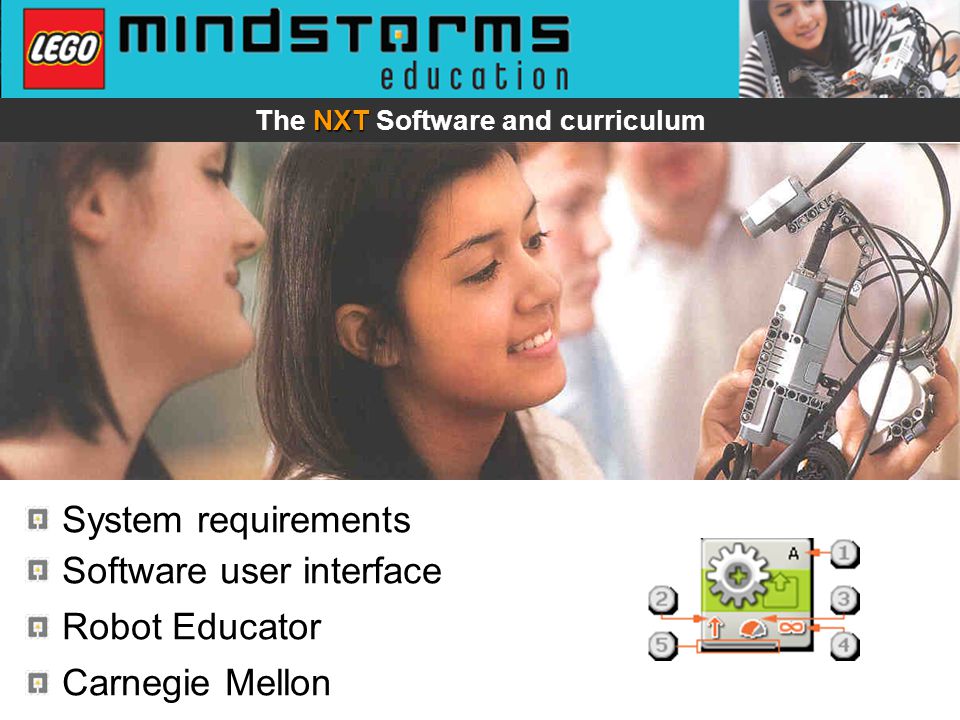

10. NXT The NXT Software and curriculum System requirements Software user interface Robot Educator Carnegie Mellon

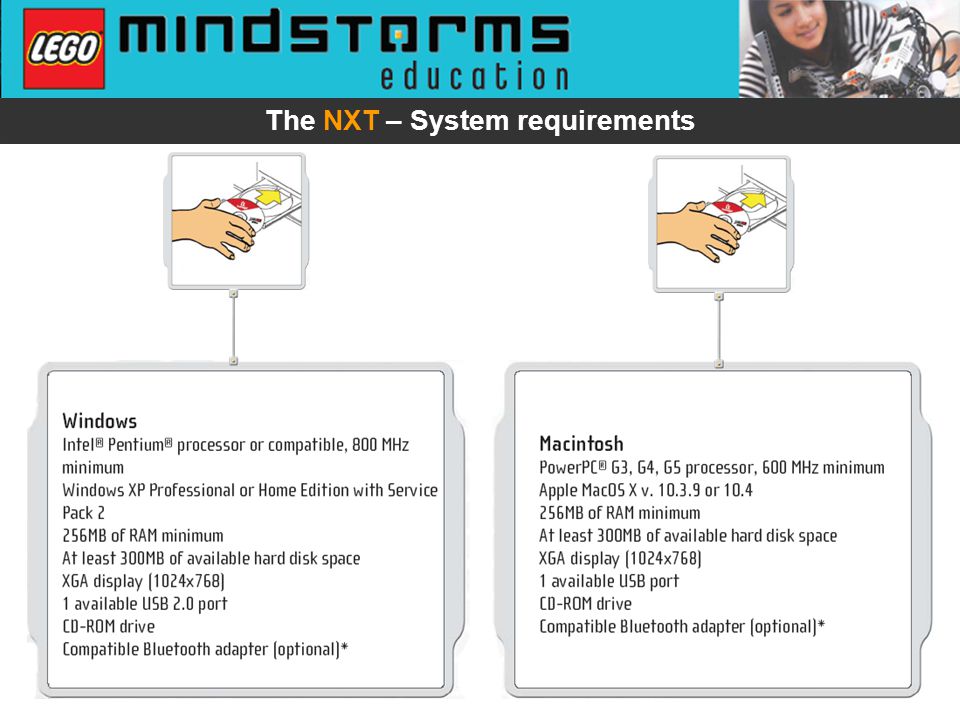

11. The NXT – System requirements

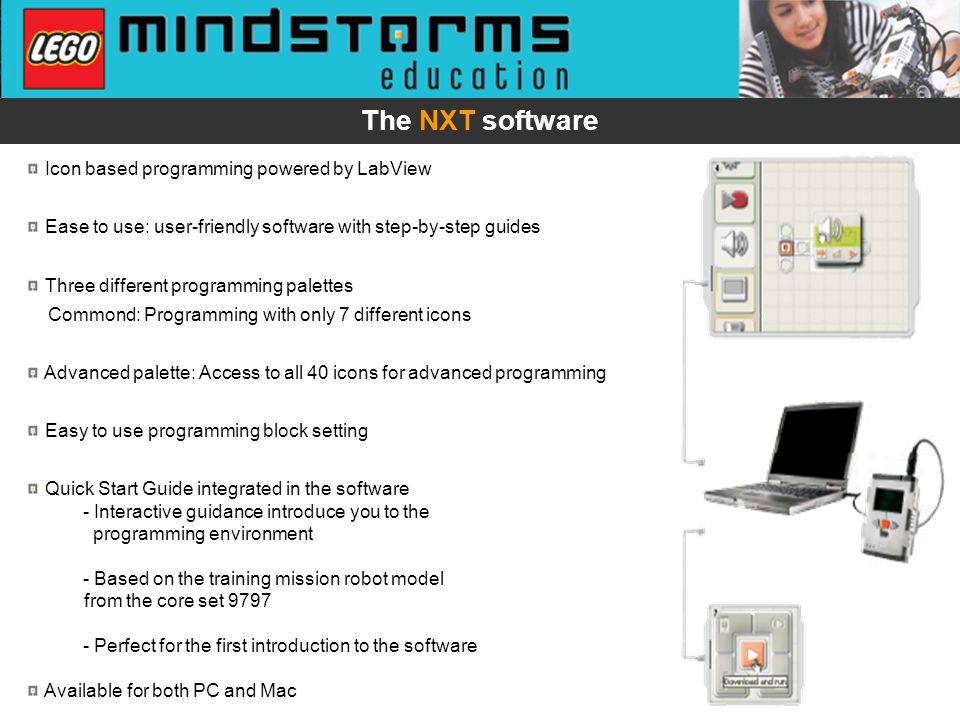

12. Icon based programming powered by LabView Ease to use: user-friendly software with step-by-step guides Three different programming palettes Commond: Programming with only 7 different icons Advanced palette: Access to all 40 icons for advanced programming Easy to use programming block setting Quick Start Guide integrated in the software - Interactive guidance introduce you to the programming environment - Based on the training mission robot model from the core set 9797 - Perfect for the first introduction to the software Available for both PC and Mac The NXT software

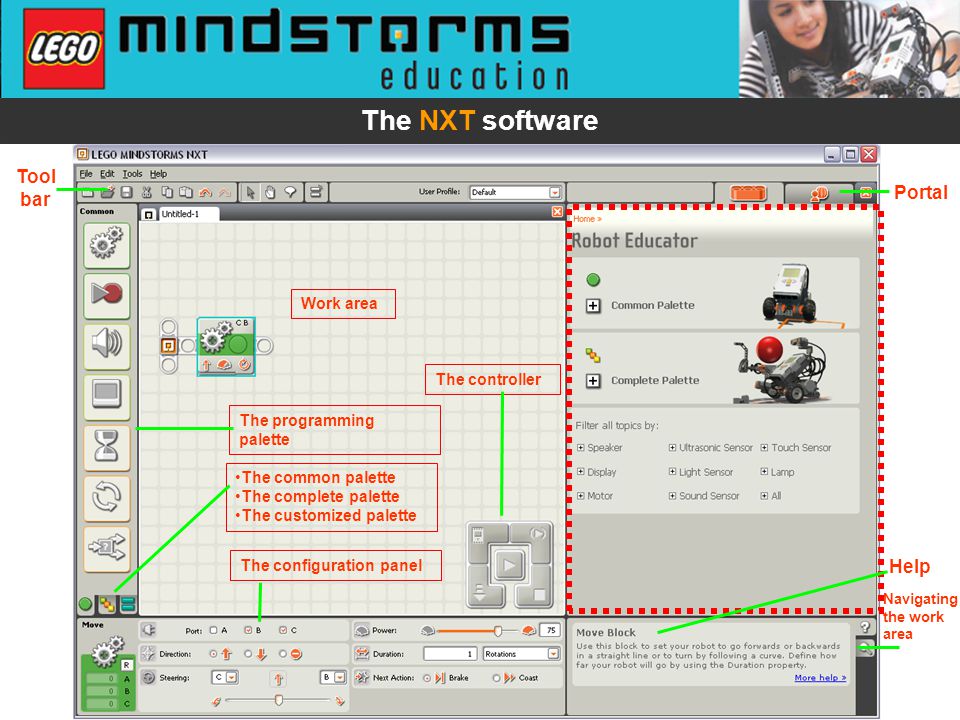

13. Portal Tool bar Help Navigating the work area Work area The programming palette The common palette The complete palette The customized palette The configuration panel The controller

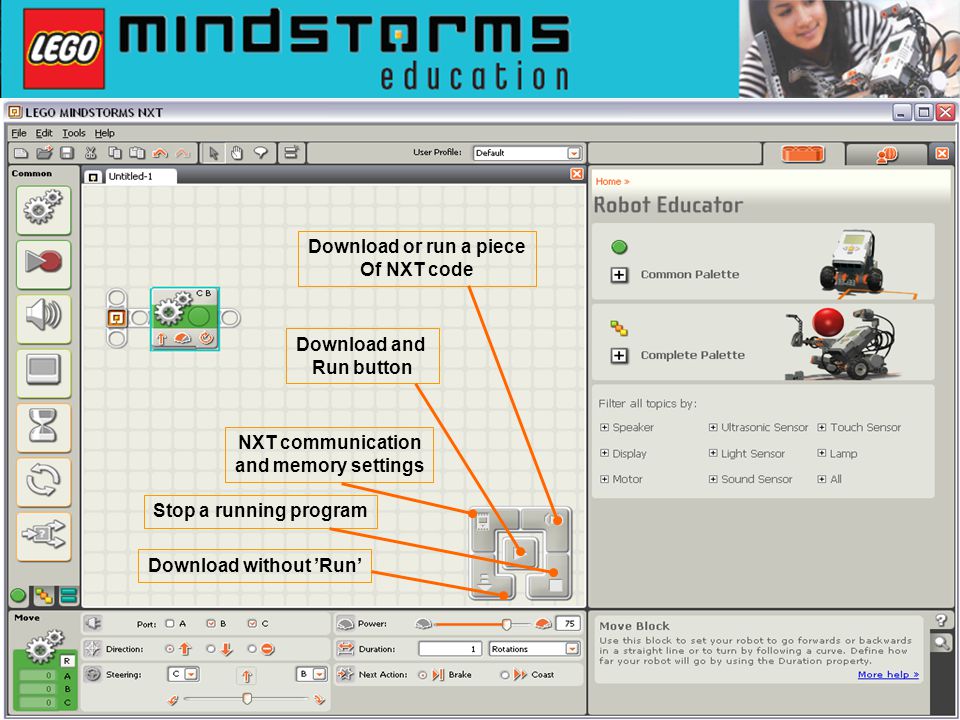

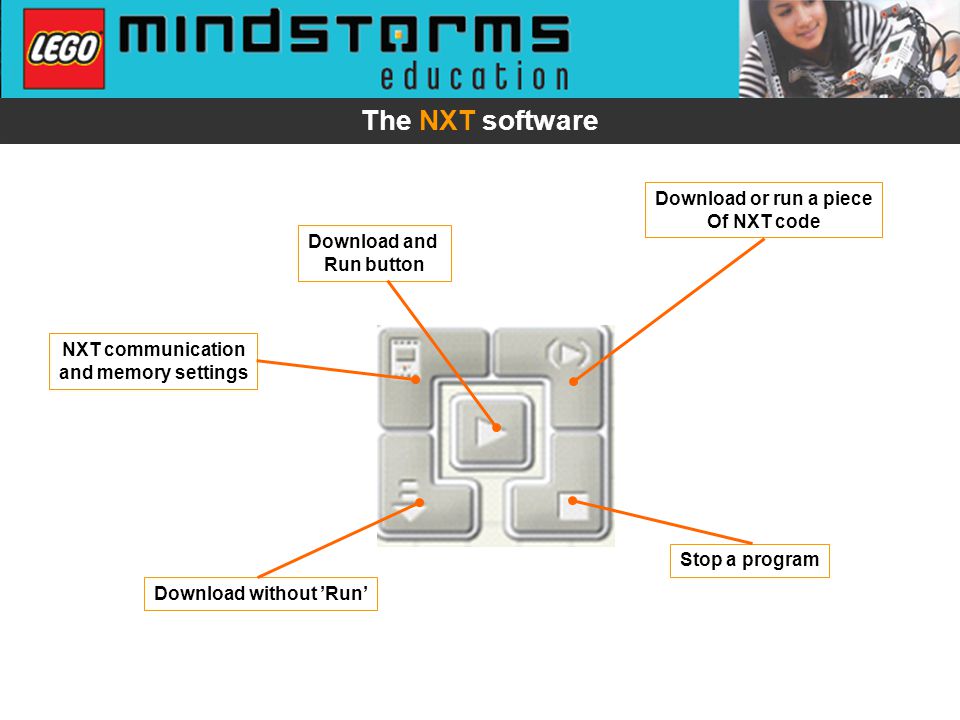

14. NXT communication and memory settings Download and Run button Download or run a piece Of NXT code Stop a running program Download without ’Run’

15. NXT communication and memory settings Download and Run button Download or run a piece Of NXT code Stop a program Download without ’Run’ The NXT software

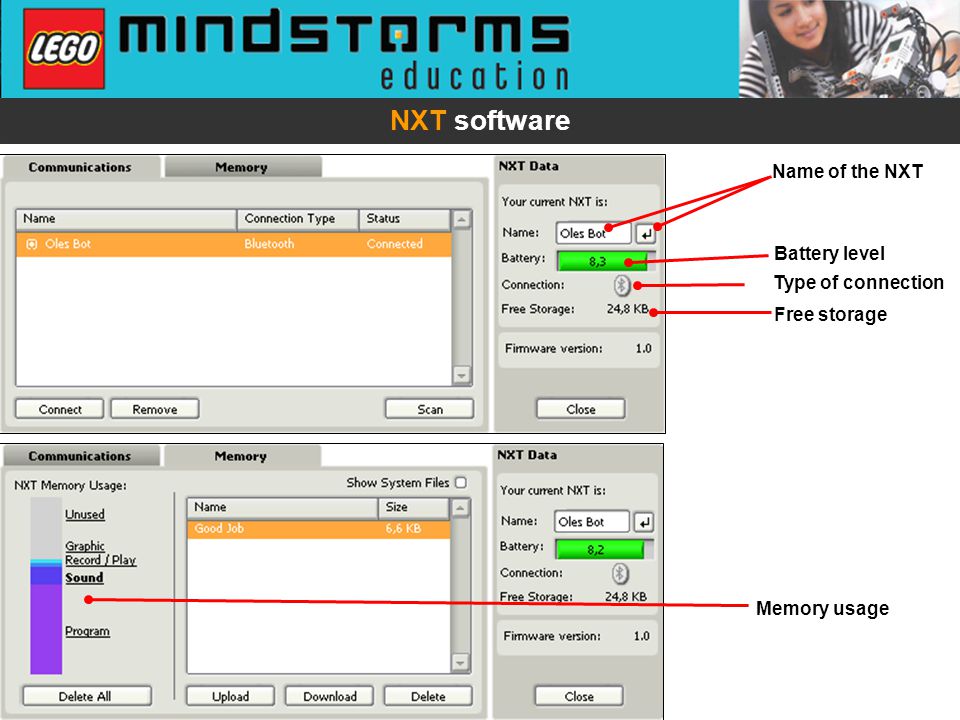

16. NXT software Name of the NXT Battery level Memory usage Type of connection Free storage

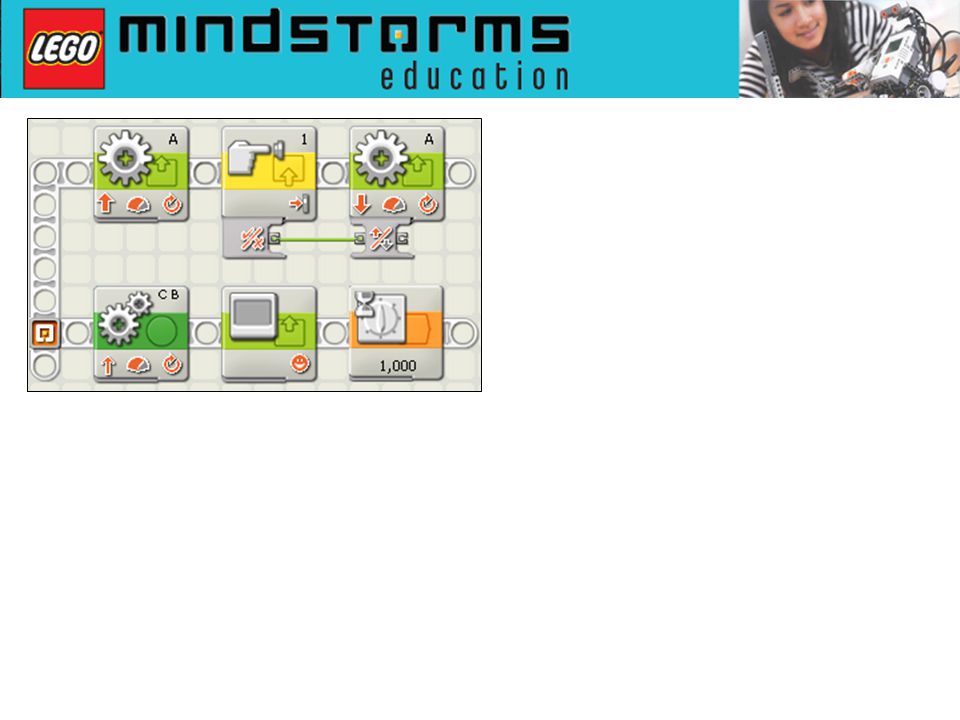

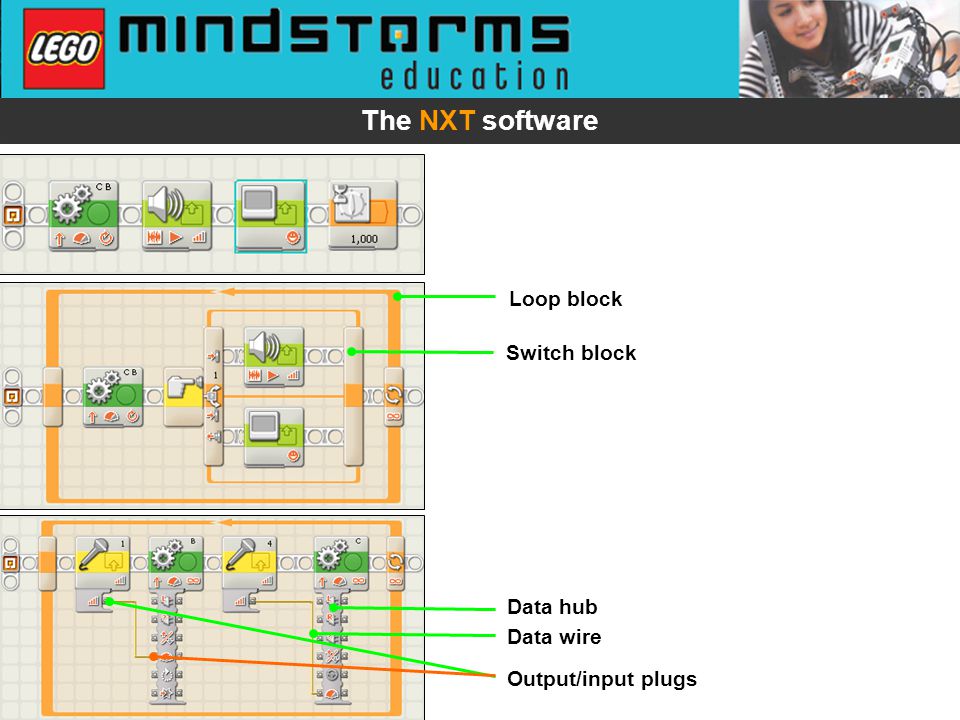

17. Switch block Loop block Data hub Data wire Output/input plugs The NXT software

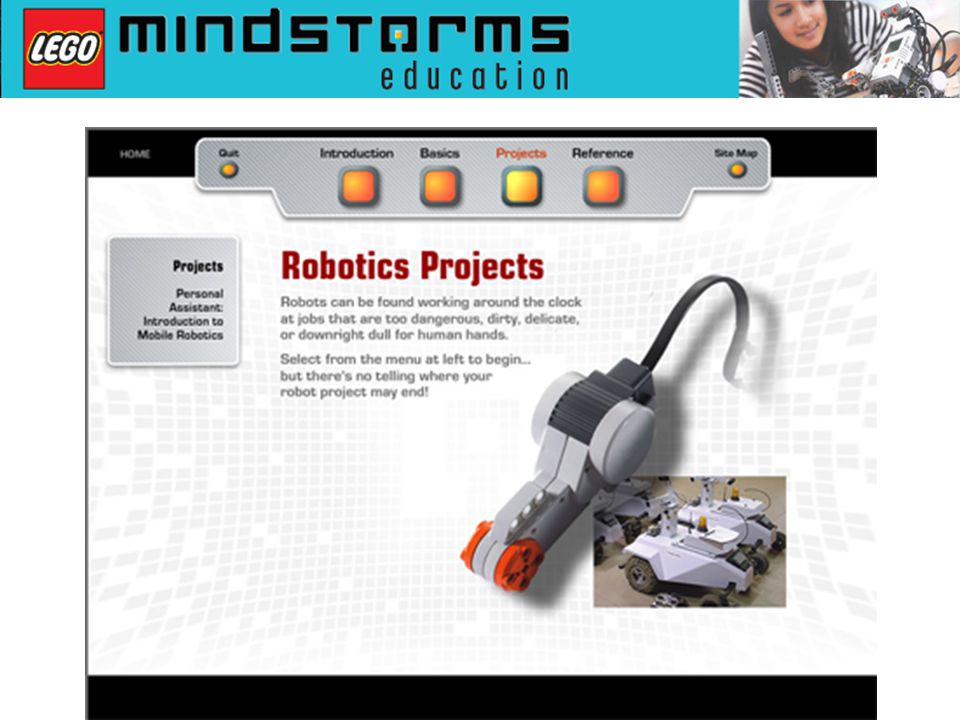

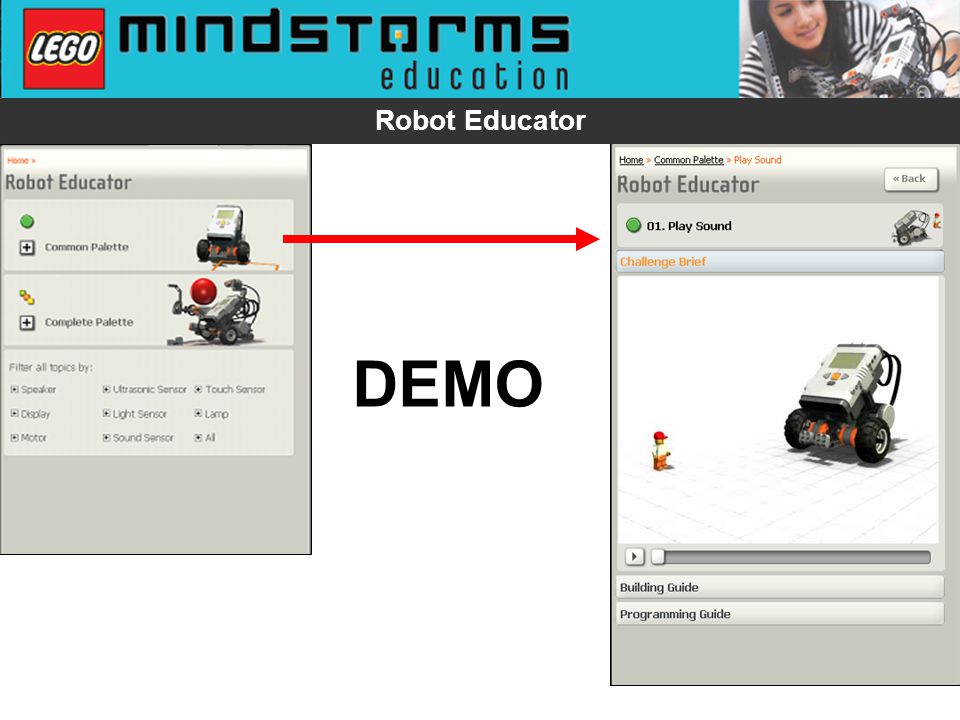

19. Robot Educator DEMO

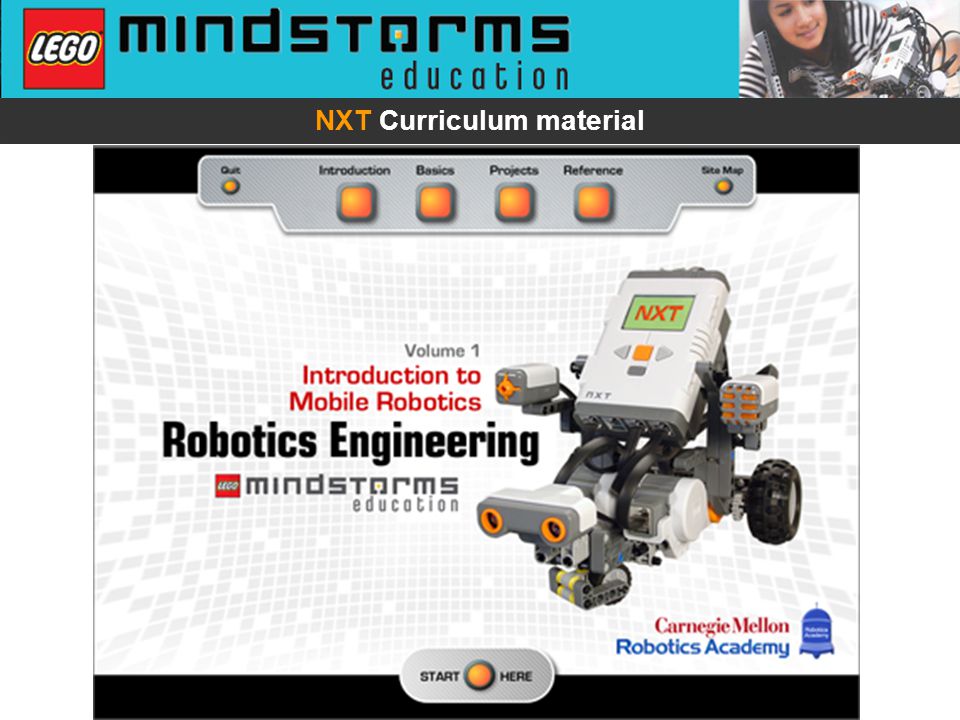

20. NXT Curriculum material

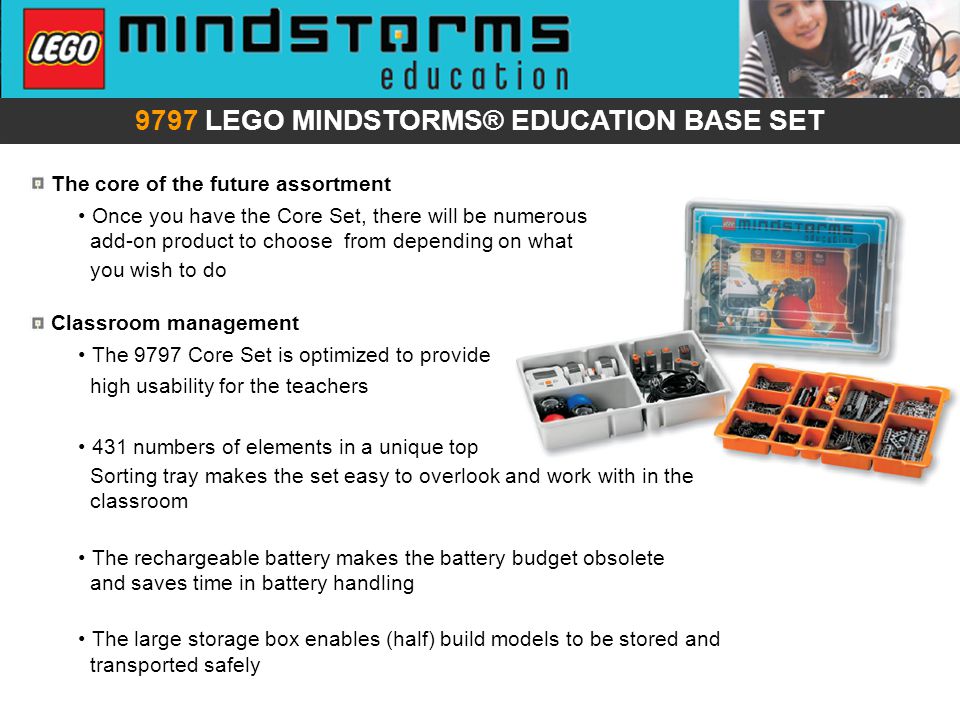

21. The core of the future assortment Once you have the Core Set, there will be numerous add-on product to choose from depending on what you wish to do Classroom management The 9797 Core Set is optimized to provide high usability for the teachers 431 numbers of elements in a unique top Sorting tray makes the set easy to overlook and work with in the classroom The rechargeable battery makes the battery budget obsolete and saves time in battery handling The large storage box enables (half) build models to be stored and transported safely 9797 LEGO MINDSTORMS® EDUCATION BASE SET

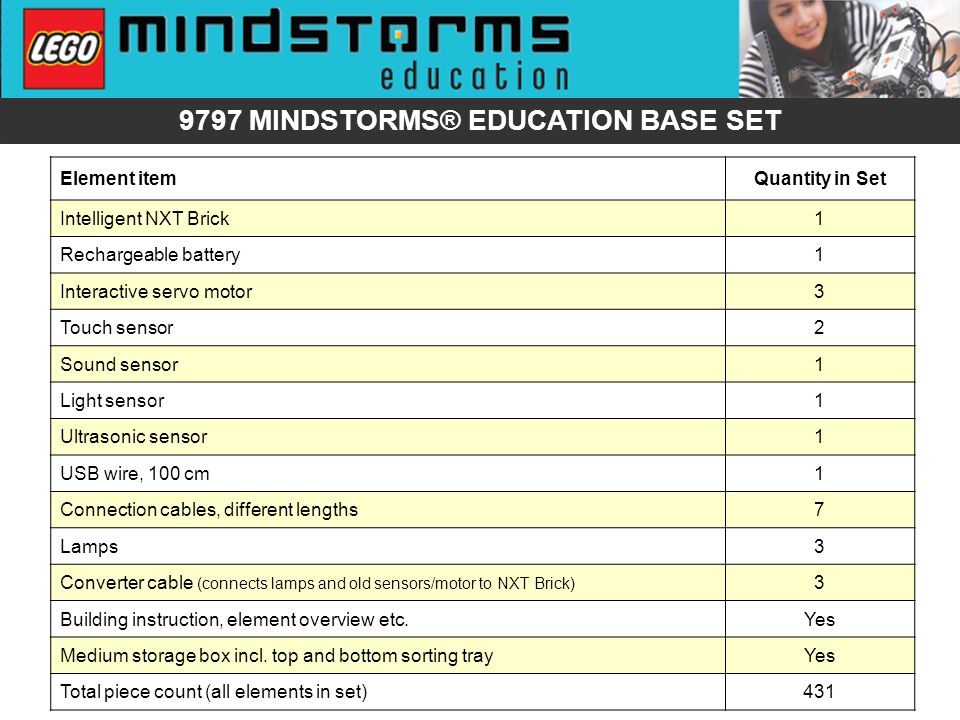

22. Element itemQuantity in Set Intelligent NXT Brick1 Rechargeable battery1 Interactive servo motor3 Touch sensor2 Sound sensor1 Light sensor1 Ultrasonic sensor1 USB wire, 100 cm1 Connection cables, different lengths7 Lamps3 Converter cable (connects lamps and old sensors/motor to NXT Brick) 3 Building instruction, element overview etc.Yes Medium storage box incl. top and bottom sorting trayYes Total piece count (all elements in set)431 9797 MINDSTORMS® EDUCATION BASE SET

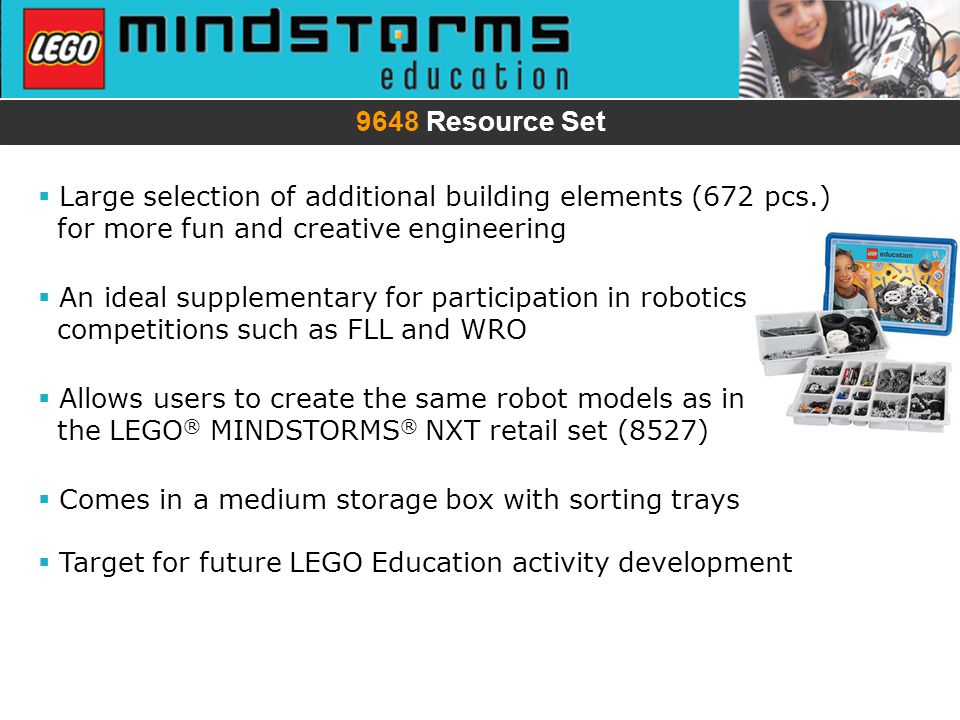

23.  Large selection of additional building elements (672 pcs.) for more fun and creative engineering  An ideal supplementary for participation in robotics competitions such as FLL and WRO  Allows users to create the same robot models as in the LEGO ® MINDSTORMS ® NXT retail set (8527)  Comes in a medium storage box with sorting trays  Target for future LEGO Education activity development 9648 Resource Set

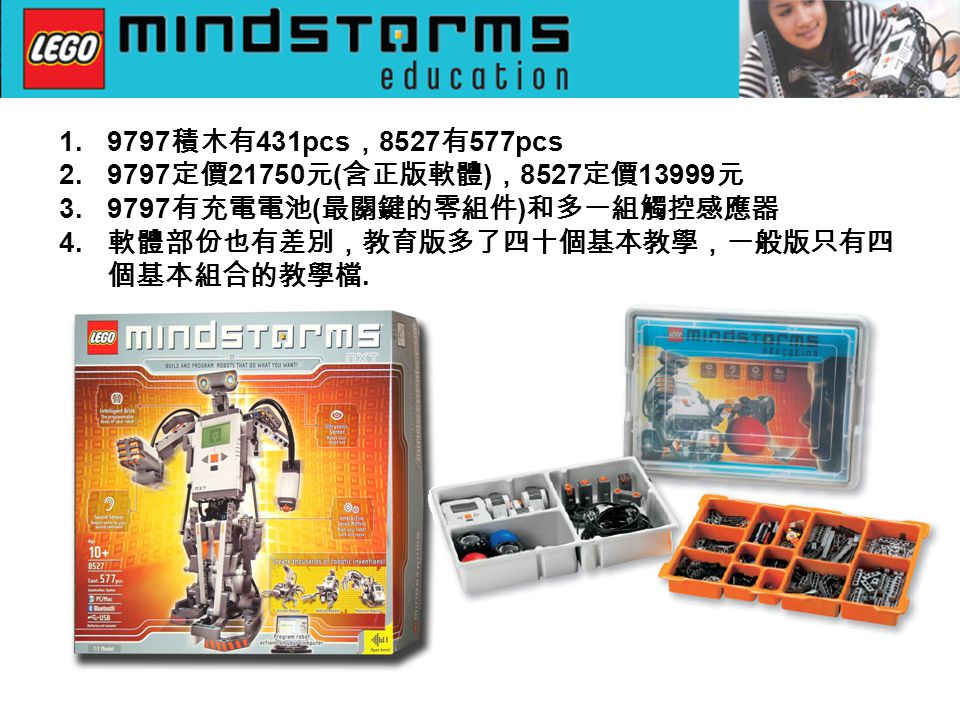

24. 1.9797 積木有 431pcs ， 8527 有 577pcs 2.9797 定價 21750 元 ( 含正版軟體 ) ， 8527 定價 13999 元 3.9797 有充電電池 ( 最關鍵的零組件 ) 和多一組觸控感應器 4. 軟體部份也有差別，教育版多了四十個基本教學，一般版只有四 個基本組合的教學檔.

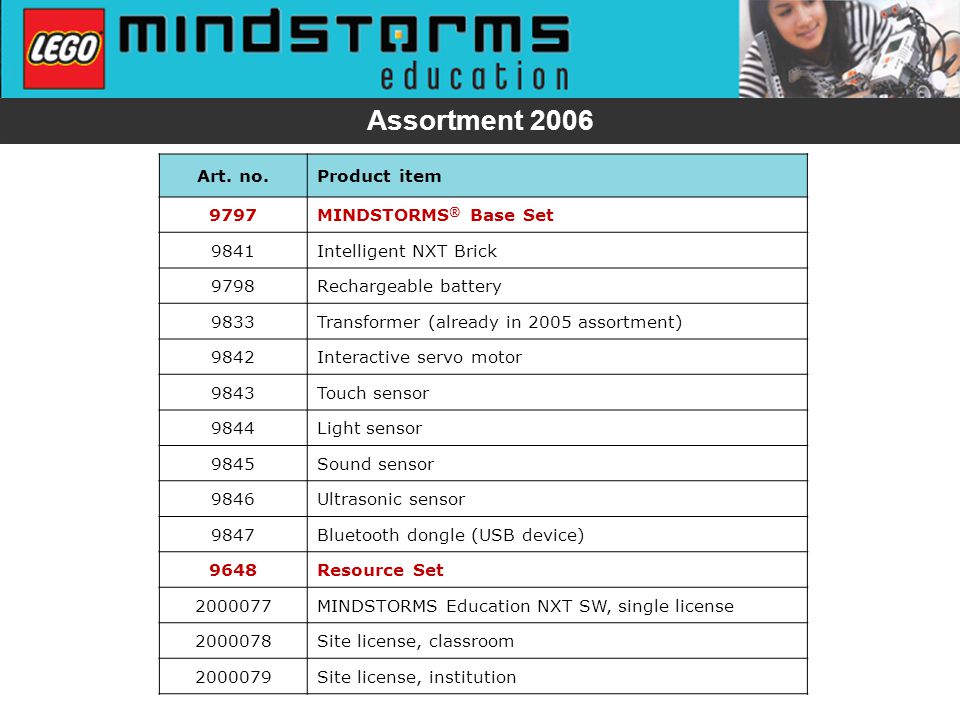

25. Art. no.Product item 9797MINDSTORMS ® Base Set 9841Intelligent NXT Brick 9798Rechargeable battery 9833Transformer (already in 2005 assortment) 9842Interactive servo motor 9843Touch sensor 9844Light sensor 9845Sound sensor 9846Ultrasonic sensor 9847Bluetooth dongle (USB device) 9648Resource Set 2000077MINDSTORMS Education NXT SW, single license 2000078Site license, classroom 2000079Site license, institution Assortment 2006

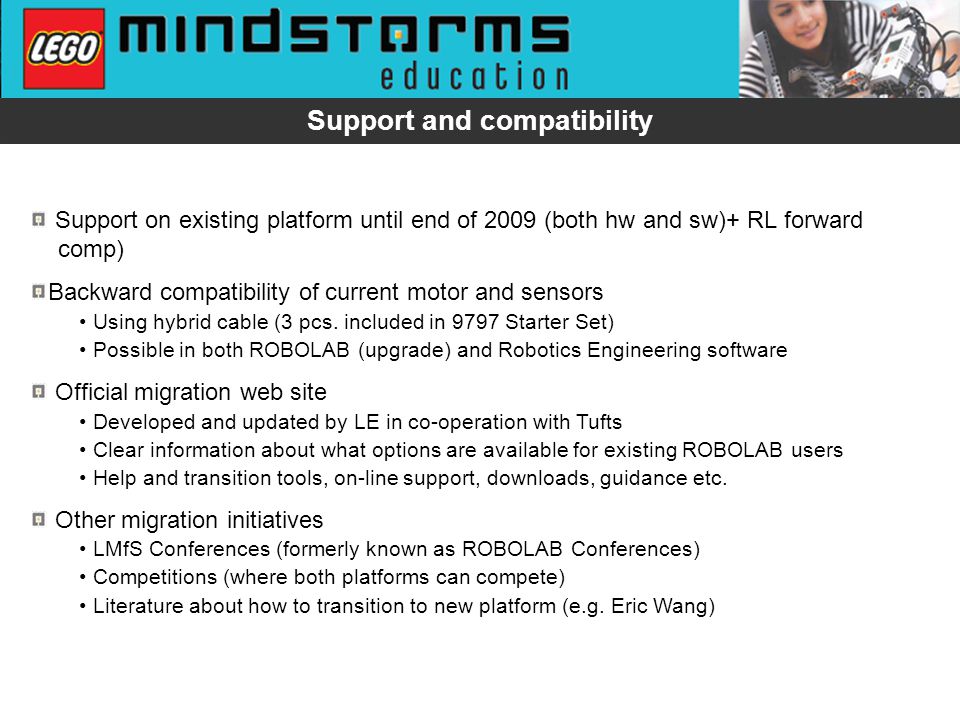

26. Support on existing platform until end of 2009 (both hw and sw)+ RL forward comp) Backward compatibility of current motor and sensors Using hybrid cable (3 pcs. included in 9797 Starter Set) Possible in both ROBOLAB (upgrade) and Robotics Engineering software Official migration web site Developed and updated by LE in co-operation with Tufts Clear information about what options are available for existing ROBOLAB users Help and transition tools, on-line support, downloads, guidance etc. Other migration initiatives LMfS Conferences (formerly known as ROBOLAB Conferences) Competitions (where both platforms can compete) Literature about how to transition to new platform (e.g. Eric Wang) Support and compatibility

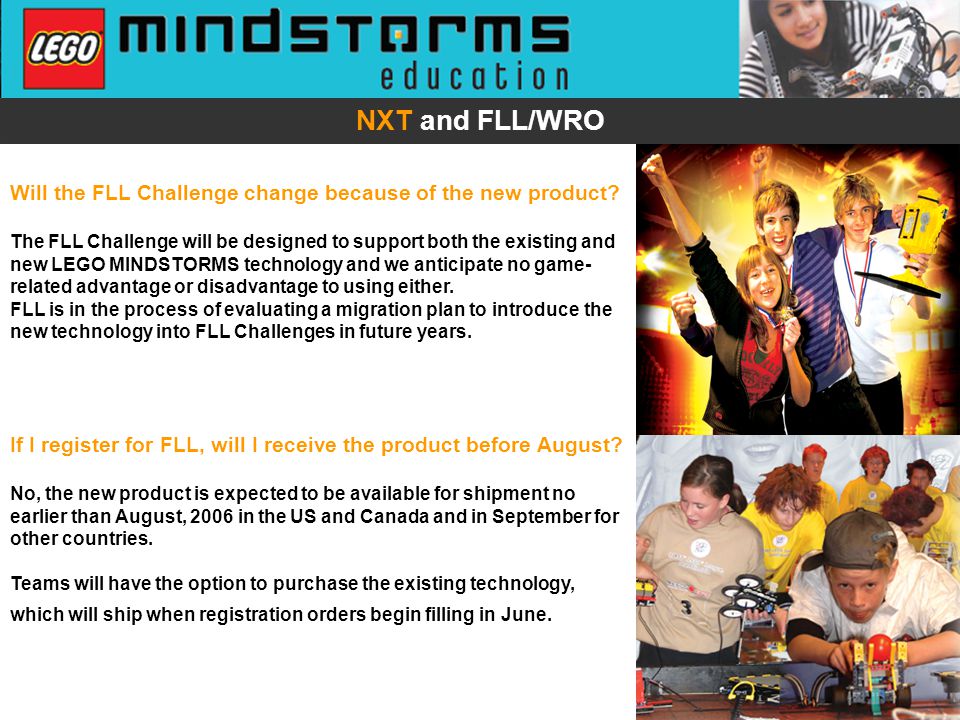

27. NXT and FLL/WRO Will the FLL Challenge change because of the new product? The FLL Challenge will be designed to support both the existing and new LEGO MINDSTORMS technology and we anticipate no game- related advantage or disadvantage to using either. FLL is in the process of evaluating a migration plan to introduce the new technology into FLL Challenges in future years. If I register for FLL, will I receive the product before August? No, the new product is expected to be available for shipment no earlier than August, 2006 in the US and Canada and in September for other countries. Teams will have the option to purchase the existing technology, which will ship when registration orders begin filling in June.

28. Hands-On NXT Hands-On

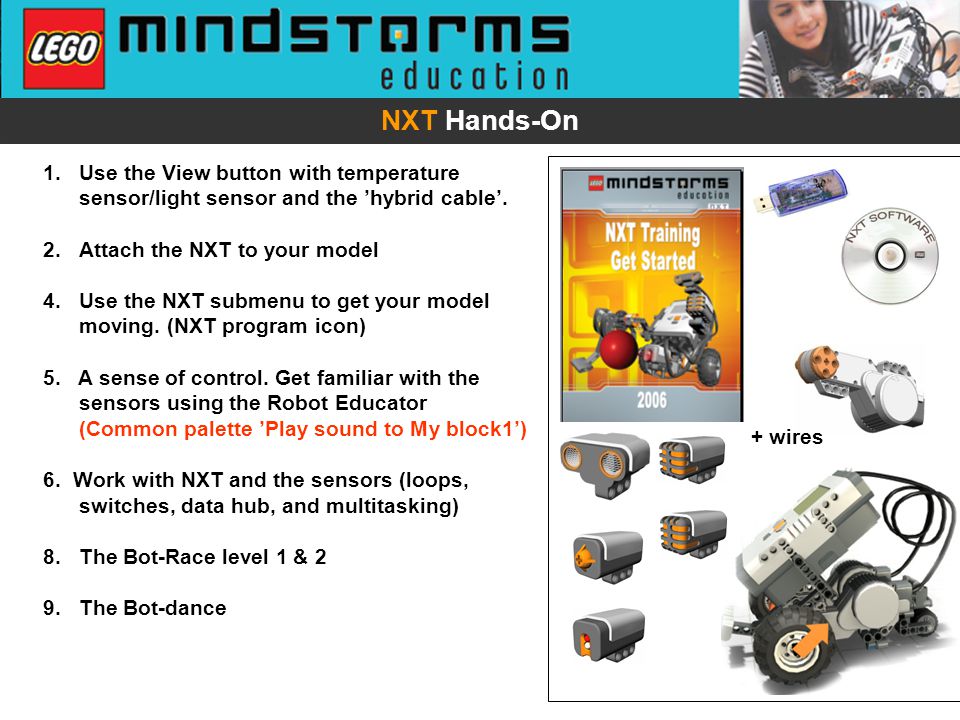

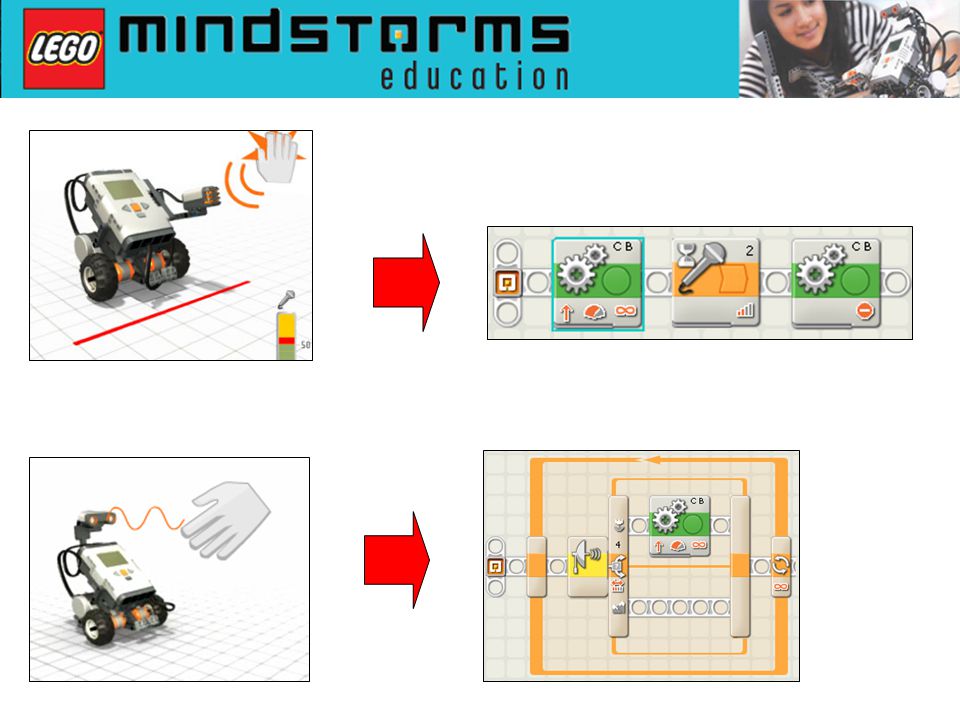

29. + wires 1.Use the View button with temperature sensor/light sensor and the ’hybrid cable’. 2.Attach the NXT to your model 4.Use the NXT submenu to get your model moving. (NXT program icon) 5. A sense of control. Get familiar with the sensors using the Robot Educator (Common palette ’Play sound to My block1’) 6. Work with NXT and the sensors (loops, switches, data hub, and multitasking) 8. The Bot-Race level 1 & 2 9. The Bot-dance NXT Hands-On

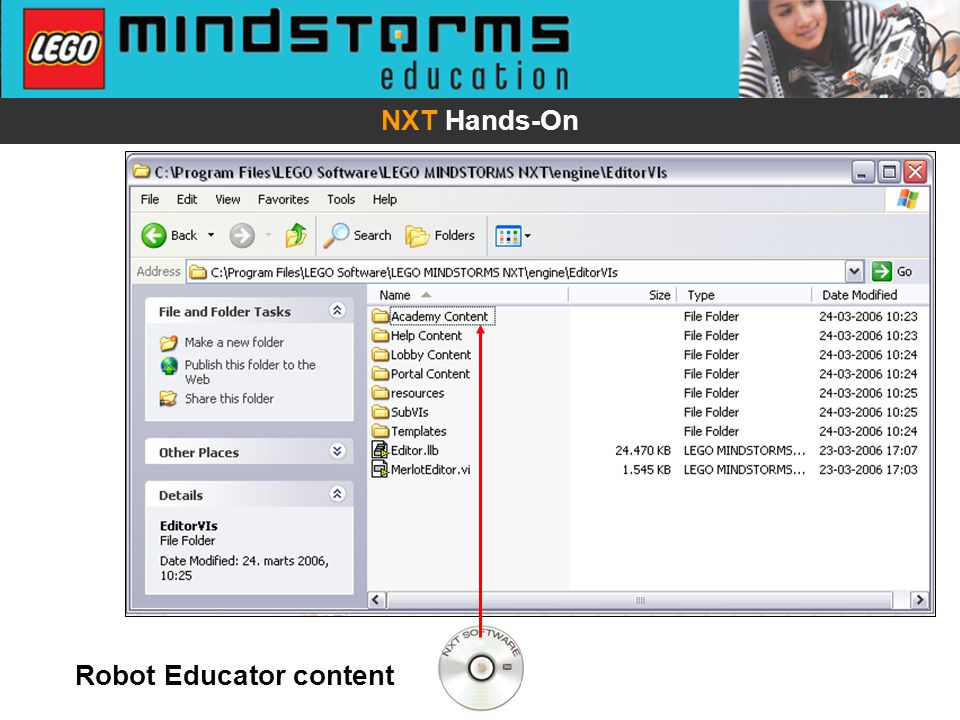

30. Robot Educator content NXT Hands-On

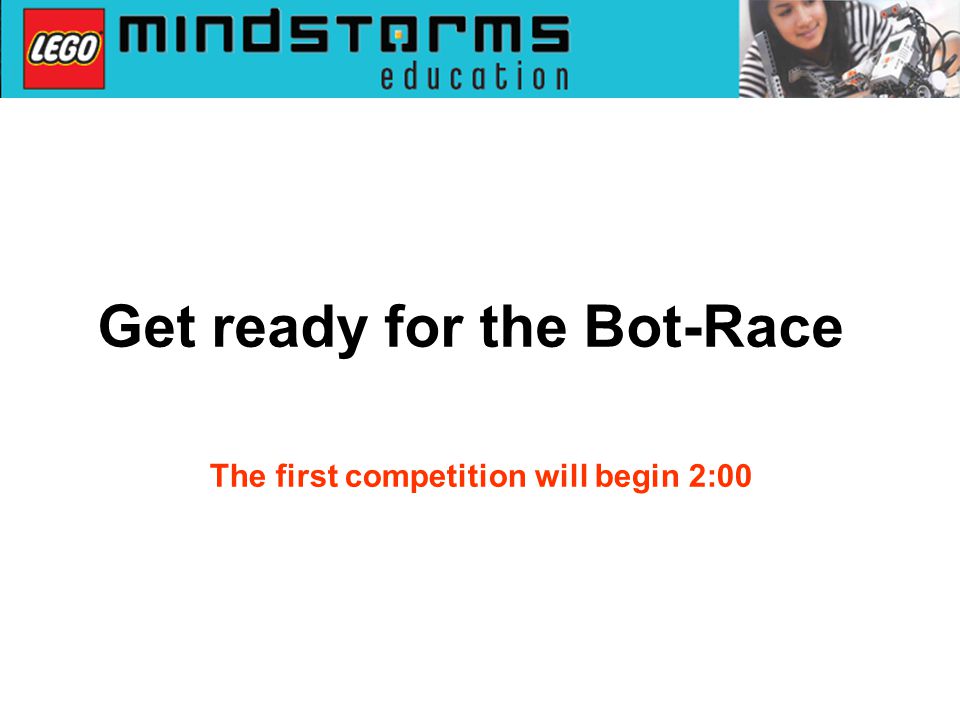

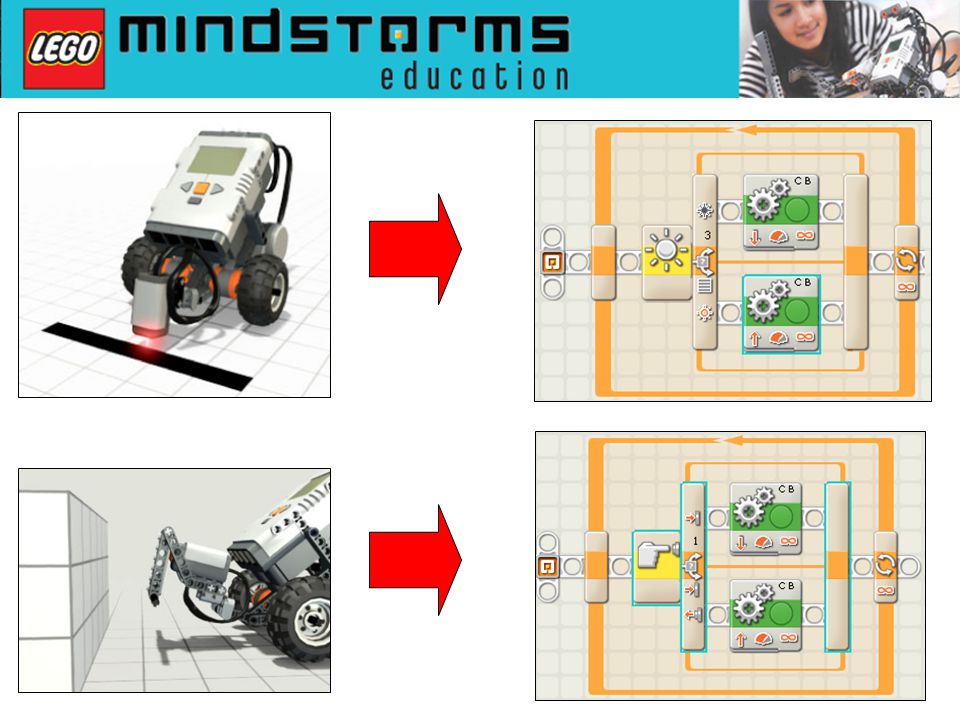

33. Get ready for the Bot-Race The first competition will begin 2:00

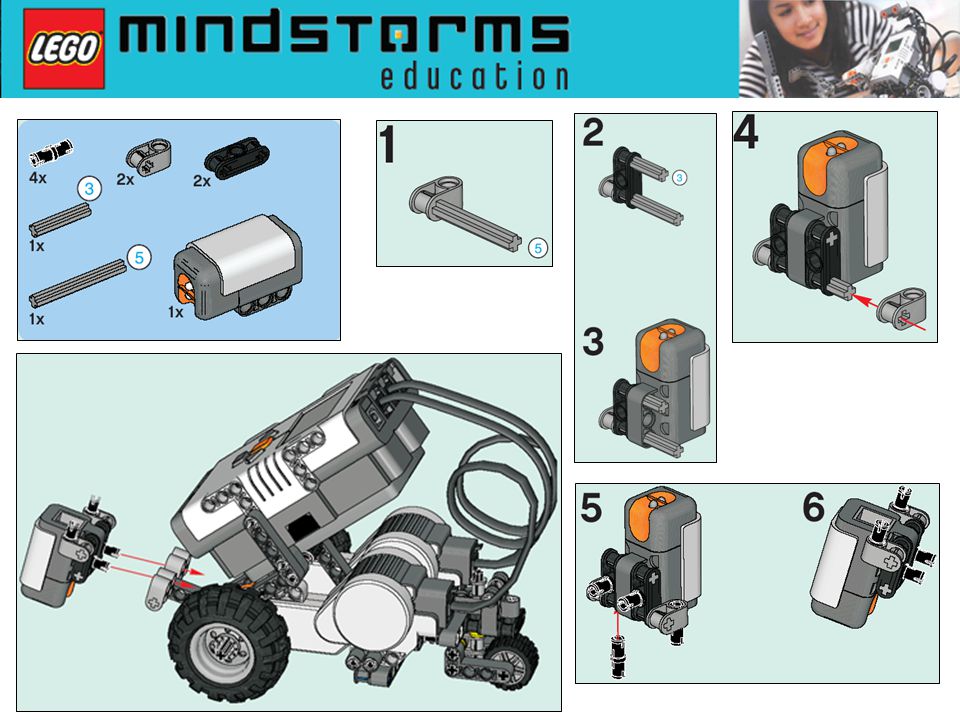

34. NXT Hands-On, the Bot-Race Two sound sensors and two long wires

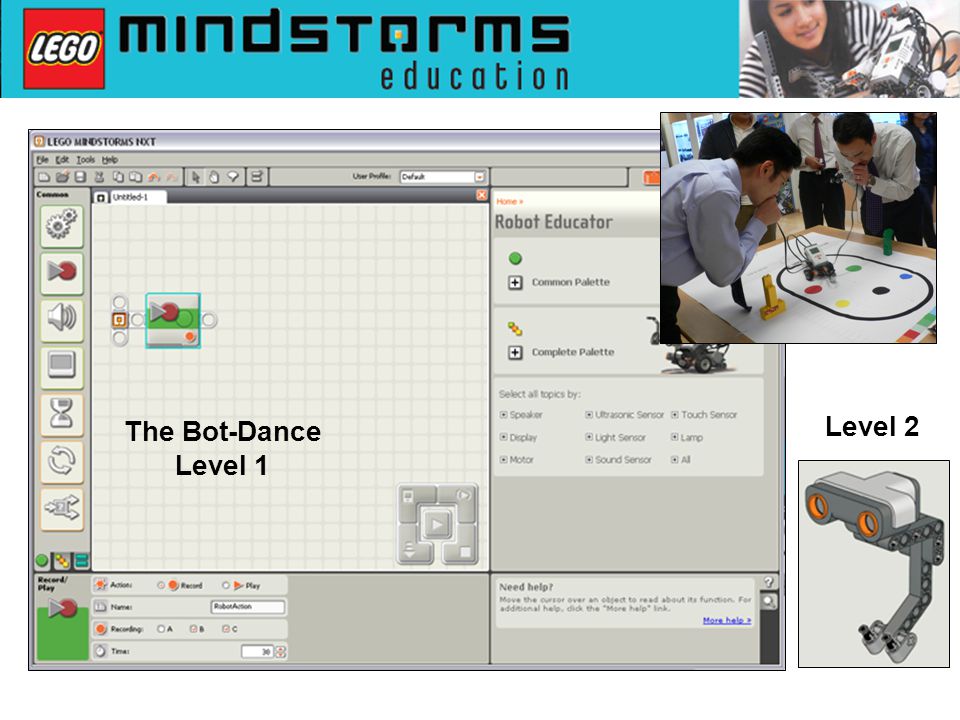

36. The Bot-Dance Level 1 Level 2

38. Slides after this slide is used for Hyperlinks

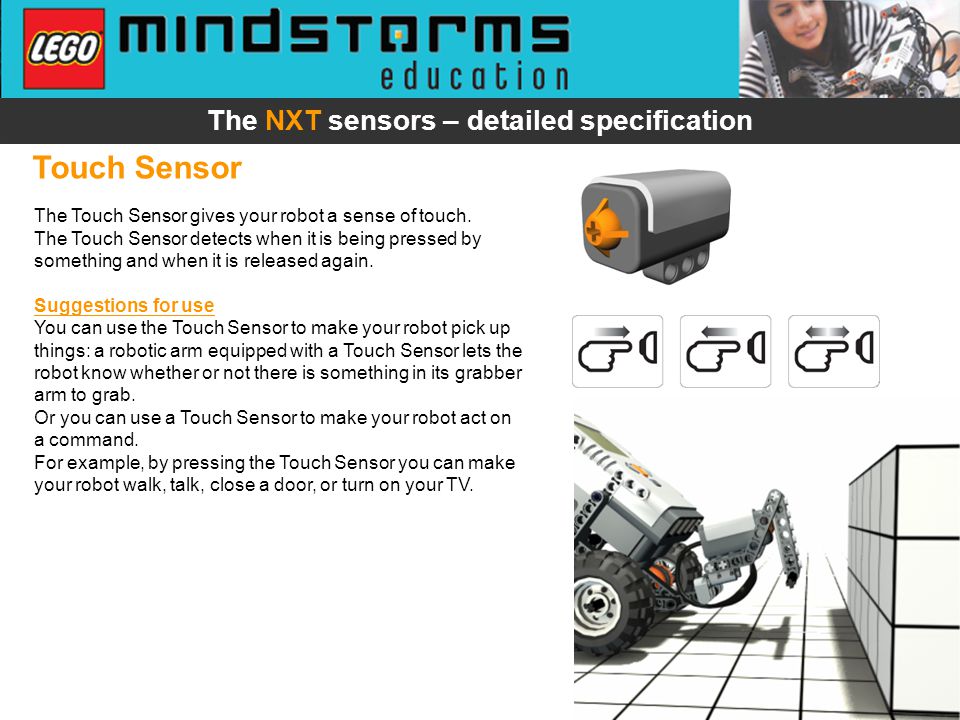

39. The Touch Sensor gives your robot a sense of touch. The Touch Sensor detects when it is being pressed by something and when it is released again. Suggestions for use You can use the Touch Sensor to make your robot pick up things: a robotic arm equipped with a Touch Sensor lets the robot know whether or not there is something in its grabber arm to grab. Or you can use a Touch Sensor to make your robot act on a command. For example, by pressing the Touch Sensor you can make your robot walk, talk, close a door, or turn on your TV. Touch Sensor The NXT sensors – detailed specification

40. 碰觸感測器能夠感受到物體的擠壓、施放 和撞擊。 使用建議 機器人可以使用碰觸感測器來抓取物體。 安裝了碰觸感測器的機器手能夠知道是否 有物體需要抓取。你也可以使用碰觸感測 器來讓機器人行走、說話、關門、甚至打 開電視。

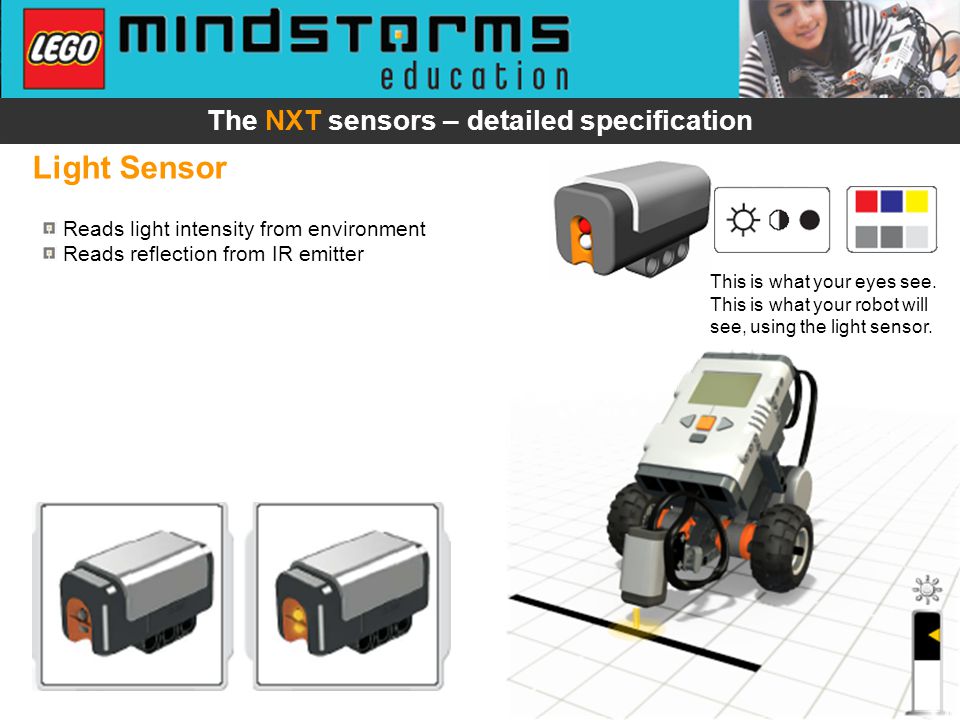

41. Light Sensor This is what your eyes see. This is what your robot will see, using the light sensor. The NXT sensors – detailed specification Reads light intensity from environment Reads reflection from IR emitter

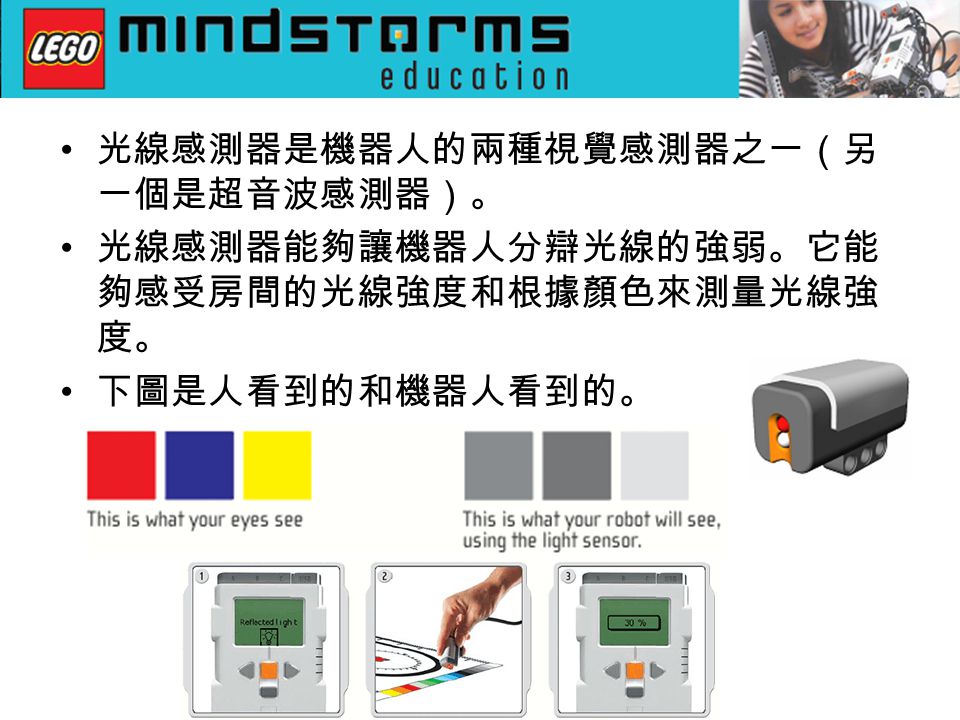

42. 光線感測器是機器人的兩種視覺感測器之一（另 一個是超音波感測器）。 光線感測器能夠讓機器人分辯光線的強弱。它能 夠感受房間的光線強度和根據顏色來測量光線強 度。 下圖是人看到的和機器人看到的。

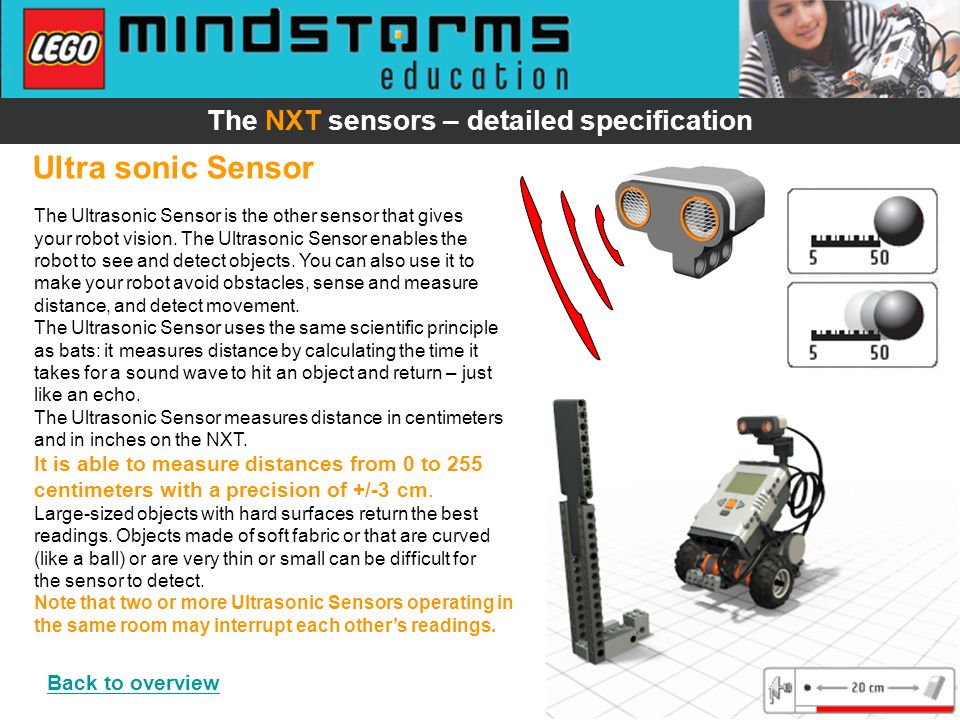

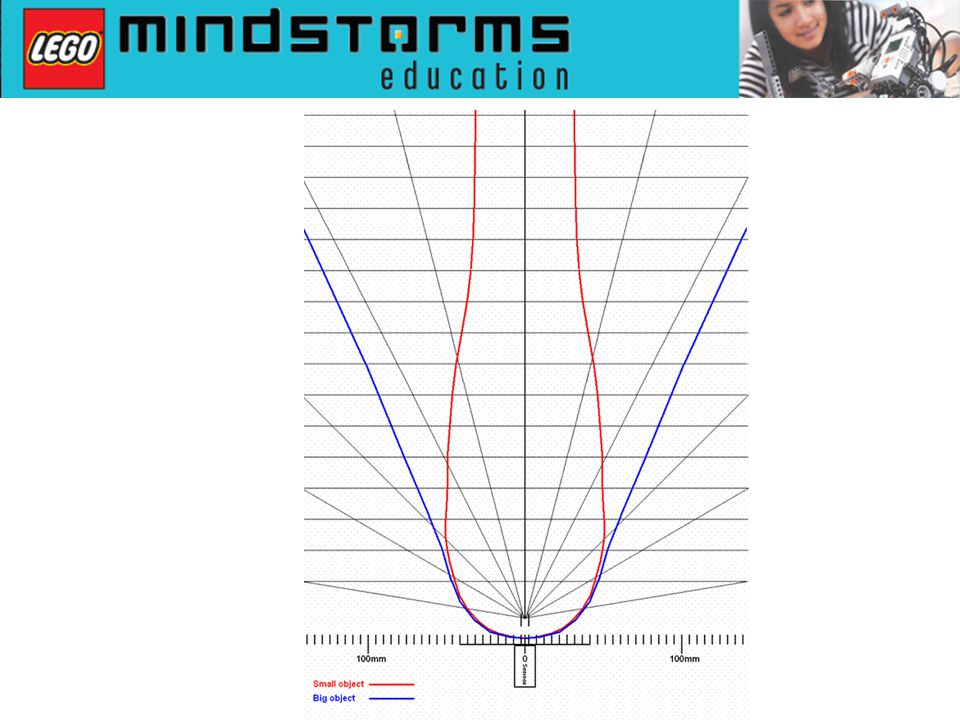

43. The Ultrasonic Sensor is the other sensor that gives your robot vision. The Ultrasonic Sensor enables the robot to see and detect objects. You can also use it to make your robot avoid obstacles, sense and measure distance, and detect movement. The Ultrasonic Sensor uses the same scientific principle as bats: it measures distance by calculating the time it takes for a sound wave to hit an object and return – just like an echo. The Ultrasonic Sensor measures distance in centimeters and in inches on the NXT. It is able to measure distances from 0 to 255 centimeters with a precision of +/-3 cm. Large-sized objects with hard surfaces return the best readings. Objects made of soft fabric or that are curved (like a ball) or are very thin or small can be difficult for the sensor to detect. Note that two or more Ultrasonic Sensors operating in the same room may interrupt each other’s readings. Ultra sonic Sensor The NXT sensors – detailed specification Back to overview

44. 超音波感測器是機器人的兩個視覺傳感器之 一（另一個是光線感測器）。超音波感測器 能夠讓機器人看見和檢測到物體。你可以使 用它來防止機器人碰到障礙物，測量距離， 檢測移動。 超音波感測器檢測距離的單位可以是厘米或 者英吋。它可以檢測的距離從 0 到 255 里米 ，精度是正負 3 厘米。

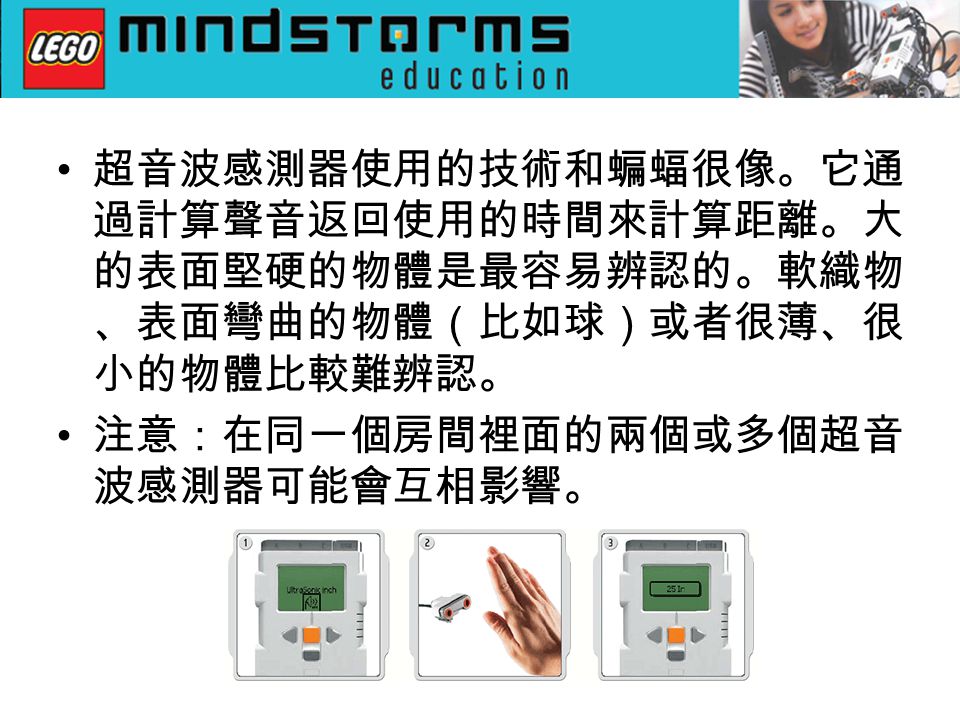

45. 超音波感測器使用的技術和蝙蝠很像。它通 過計算聲音返回使用的時間來計算距離。大 的表面堅硬的物體是最容易辨認的。軟織物 、表面彎曲的物體（比如球）或者很薄、很 小的物體比較難辨認。 注意：在同一個房間裡面的兩個或多個超音 波感測器可能會互相影響。

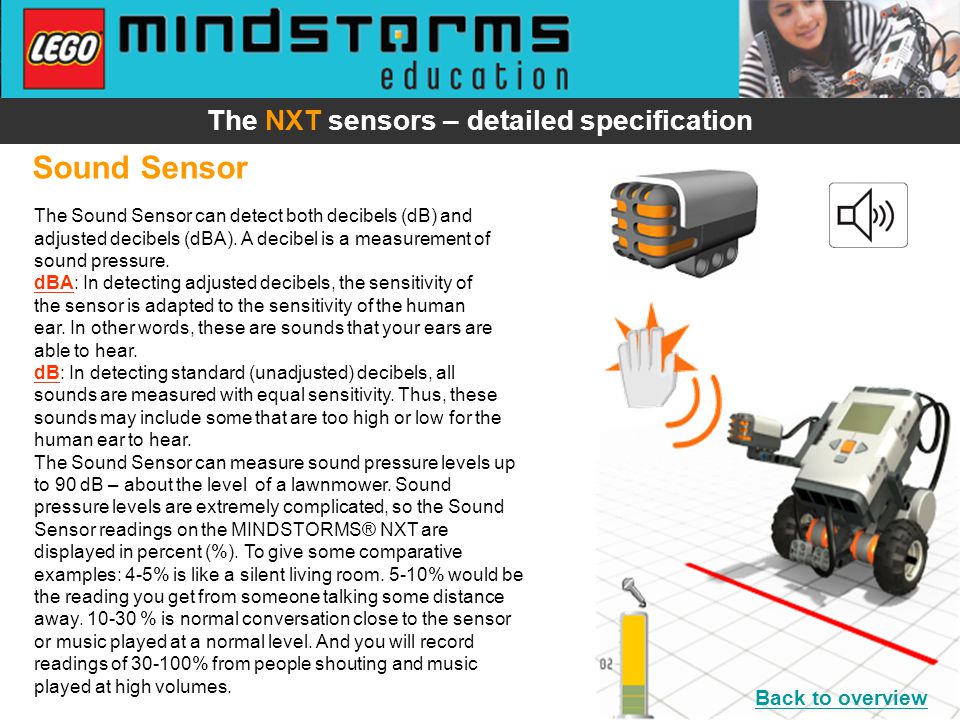

46. The Sound Sensor can detect both decibels (dB) and adjusted decibels (dBA). A decibel is a measurement of sound pressure. dBA: In detecting adjusted decibels, the sensitivity of the sensor is adapted to the sensitivity of the human ear. In other words, these are sounds that your ears are able to hear. dB: In detecting standard (unadjusted) decibels, all sounds are measured with equal sensitivity. Thus, these sounds may include some that are too high or low for the human ear to hear. The Sound Sensor can measure sound pressure levels up to 90 dB – about the level of a lawnmower. Sound pressure levels are extremely complicated, so the Sound Sensor readings on the MINDSTORMS® NXT are displayed in percent (%). To give some comparative examples: 4-5% is like a silent living room. 5-10% would be the reading you get from someone talking some distance away. 10-30 % is normal conversation close to the sensor or music played at a normal level. And you will record readings of 30-100% from people shouting and music played at high volumes. Sound Sensor The NXT sensors – detailed specification Back to overview

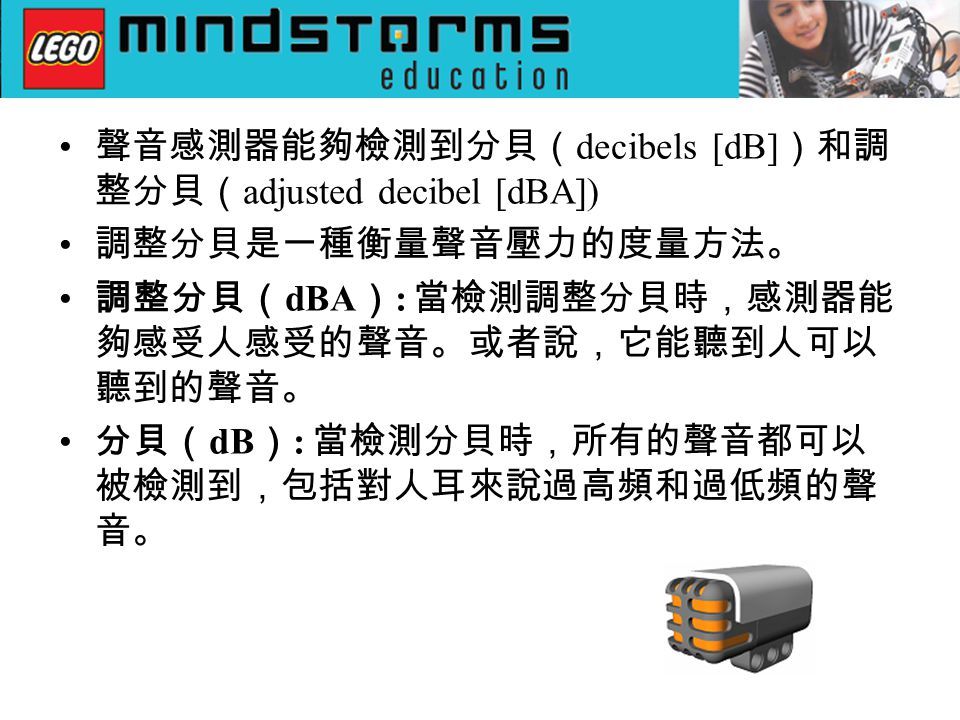

47. 聲音感測器能夠檢測到分貝（ decibels [dB] ）和調 整分貝（ adjusted decibel [dBA]) 調整分貝是一種衡量聲音壓力的度量方法。 調整分貝（ dBA ） : 當檢測調整分貝時，感測器能 夠感受人感受的聲音。或者說，它能聽到人可以 聽到的聲音。 分貝（ dB ） : 當檢測分貝時，所有的聲音都可以 被檢測到，包括對人耳來說過高頻和過低頻的聲 音。

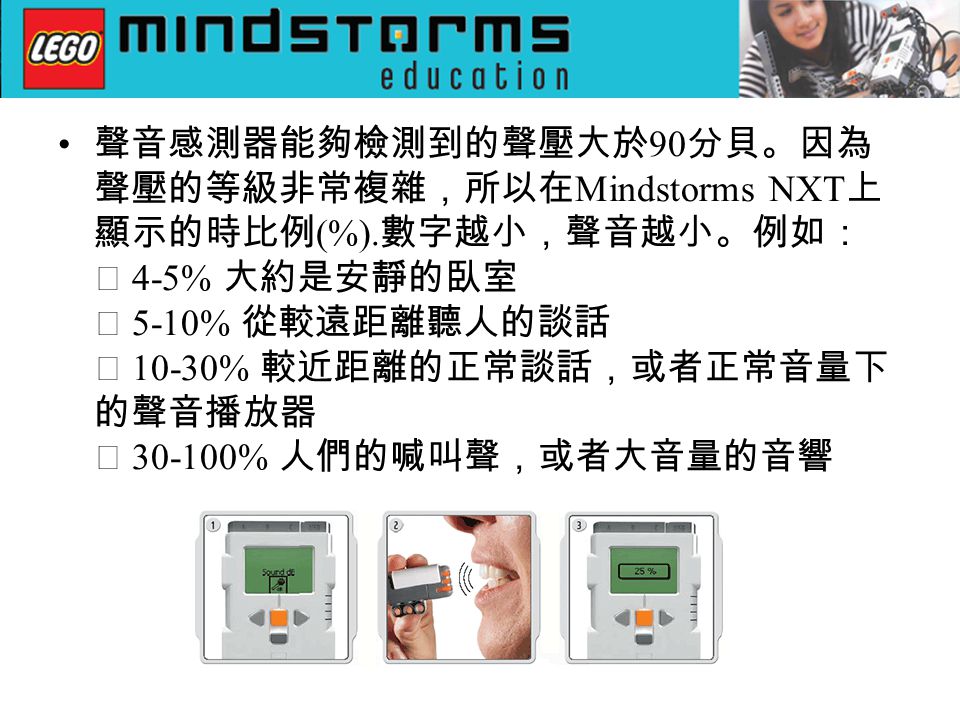

48. 聲音感測器能夠檢測到的聲壓大於 90 分貝。因為 聲壓的等級非常複雜，所以在 Mindstorms NXT 上 顯示的時比例 (%). 數字越小，聲音越小。例如： ‧ 4-5% 大約是安靜的臥室 ‧ 5-10% 從較遠距離聽人的談話 ‧ 10-30% 較近距離的正常談話，或者正常音量下 的聲音播放器 ‧ 30-100% 人們的喊叫聲，或者大音量的音響

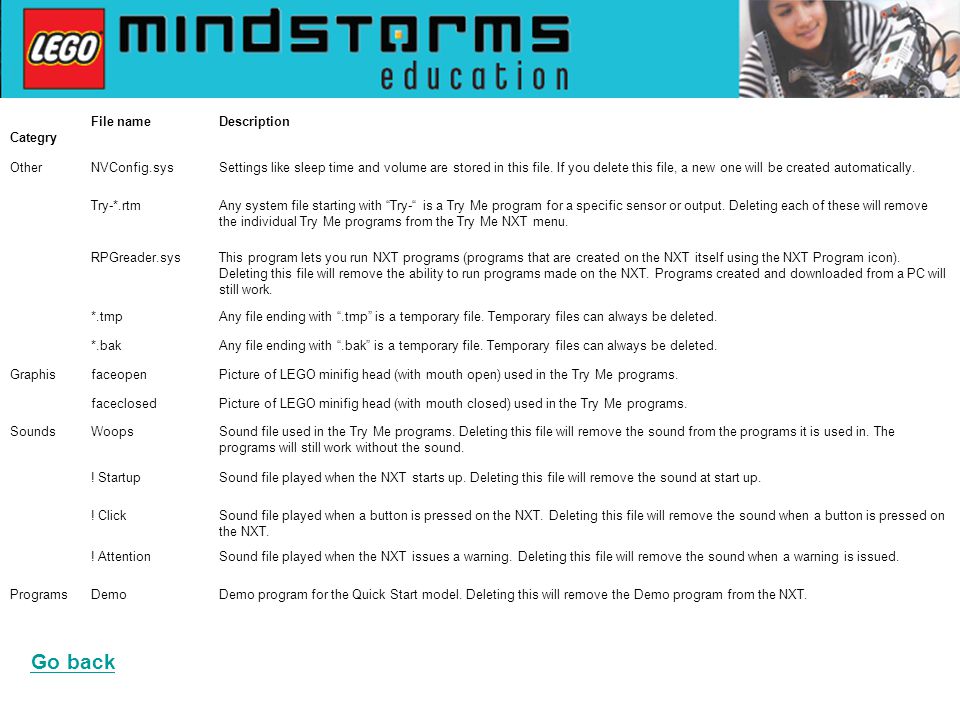

54. Here is a list of the system files and the features they enable: Categry File nameDescription OtherNVConfig.sysSettings like sleep time and volume are stored in this file. If you delete this file, a new one will be created automatically. Try-*.rtmAny system file starting with “Try-“ is a Try Me program for a specific sensor or output. Deleting each of these will remove the individual Try Me programs from the Try Me NXT menu. RPGreader.sysThis program lets you run NXT programs (programs that are created on the NXT itself using the NXT Program icon). Deleting this file will remove the ability to run programs made on the NXT. Programs created and downloaded from a PC will still work. *.tmpAny file ending with “.tmp” is a temporary file. Temporary files can always be deleted. *.bakAny file ending with “.bak” is a temporary file. Temporary files can always be deleted. GraphisfaceopenPicture of LEGO minifig head (with mouth open) used in the Try Me programs. faceclosedPicture of LEGO minifig head (with mouth closed) used in the Try Me programs. SoundsWoopsSound file used in the Try Me programs. Deleting this file will remove the sound from the programs it is used in. The programs will still work without the sound. ! StartupSound file played when the NXT starts up. Deleting this file will remove the sound at start up. ! ClickSound file played when a button is pressed on the NXT. Deleting this file will remove the sound when a button is pressed on the NXT. ! AttentionSound file played when the NXT issues a warning. Deleting this file will remove the sound when a warning is issued. ProgramsDemoDemo program for the Quick Start model. Deleting this will remove the Demo program from the NXT. Restoring an NXT’s memory back to factory default condition Go back
