1. Graduate Computer Architecture I Lecture 15: Intro to Reconfigurable Devices

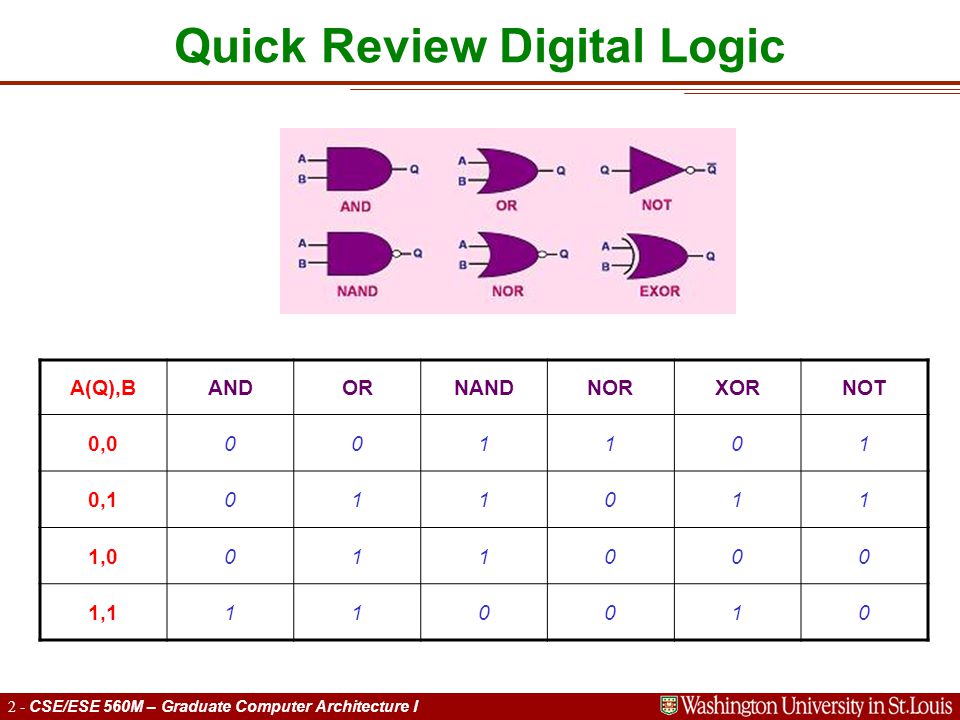

2. 2 - CSE/ESE 560M – Graduate Computer Architecture I Quick Review Digital Logic A(Q),BANDORNANDNORXORNOT 0,0001101 0,1011011 1,0011000 1,1110010

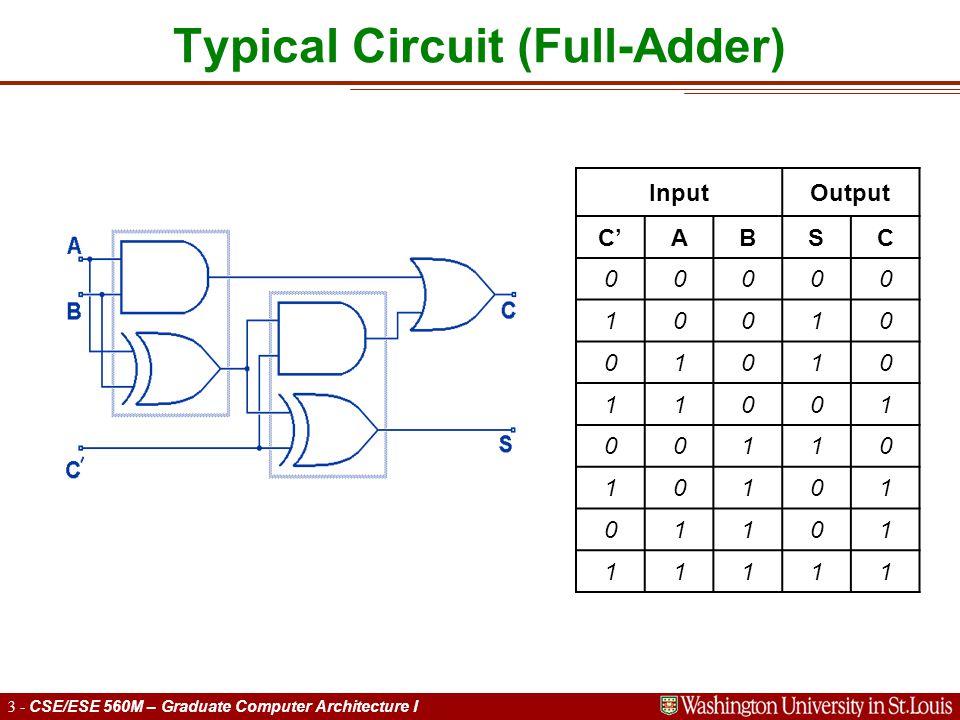

3. 3 - CSE/ESE 560M – Graduate Computer Architecture I Typical Circuit (Full-Adder) InputOutput C’ABSC 00000 10010 01010 11001 00110 10101 01101 11111

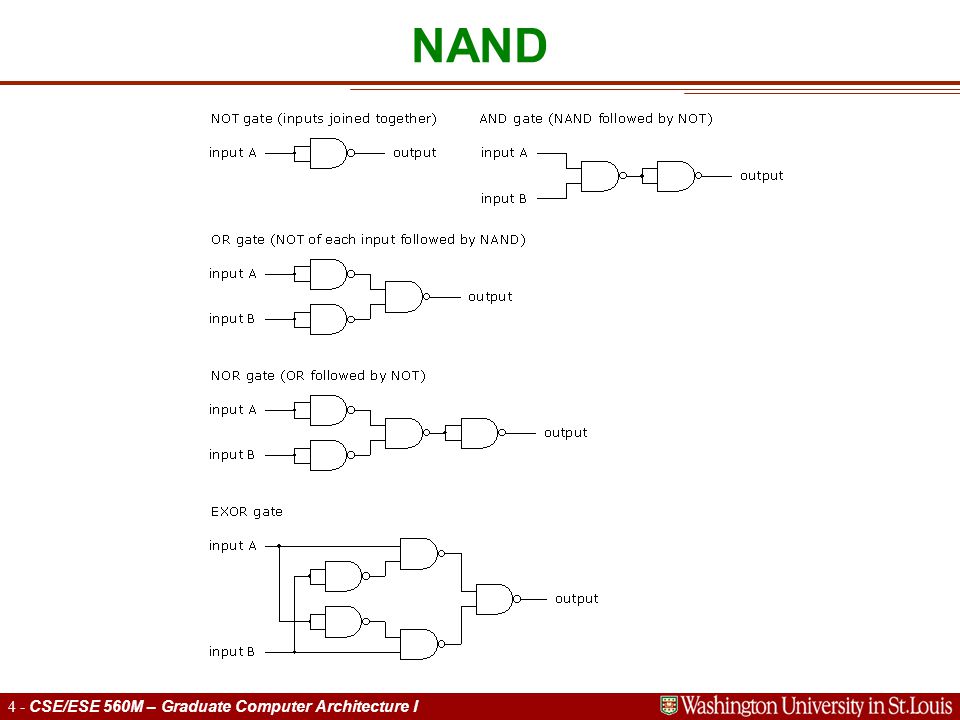

4. 4 - CSE/ESE 560M – Graduate Computer Architecture I NAND

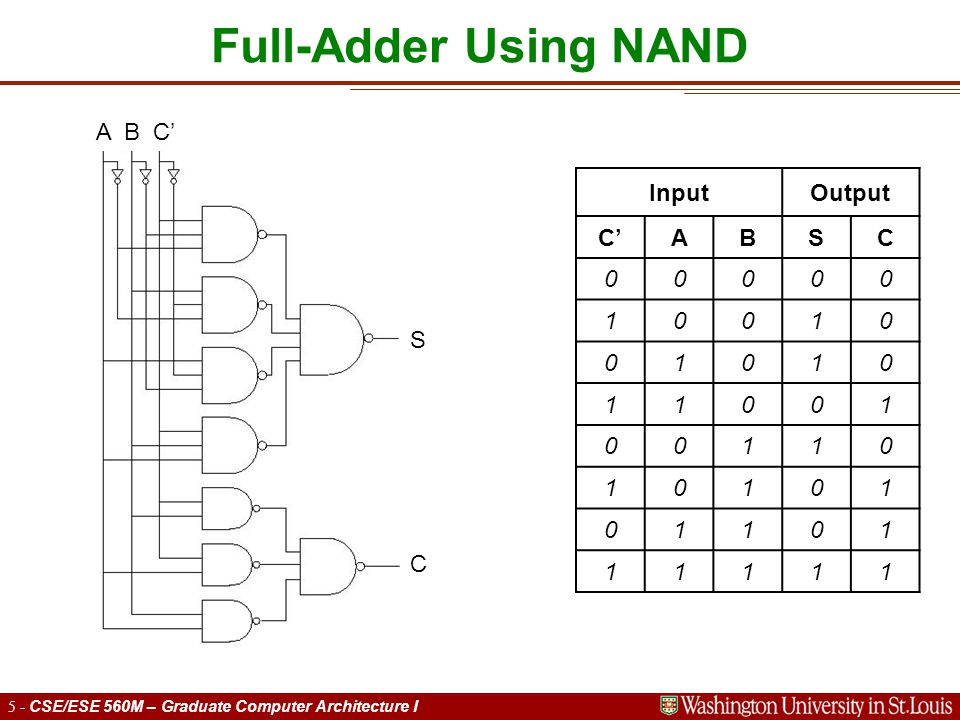

5. 5 - CSE/ESE 560M – Graduate Computer Architecture I Full-Adder Using NAND InputOutput C’ABSC 00000 10010 01010 11001 00110 10101 01101 11111 A B C’ S C

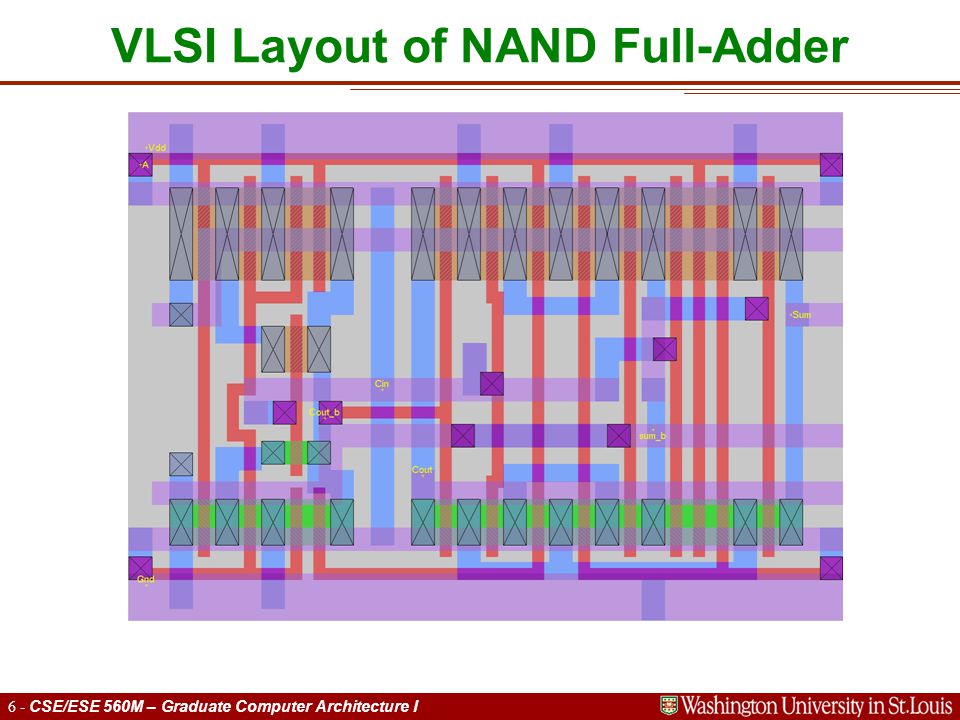

6. 6 - CSE/ESE 560M – Graduate Computer Architecture I VLSI Layout of NAND Full-Adder

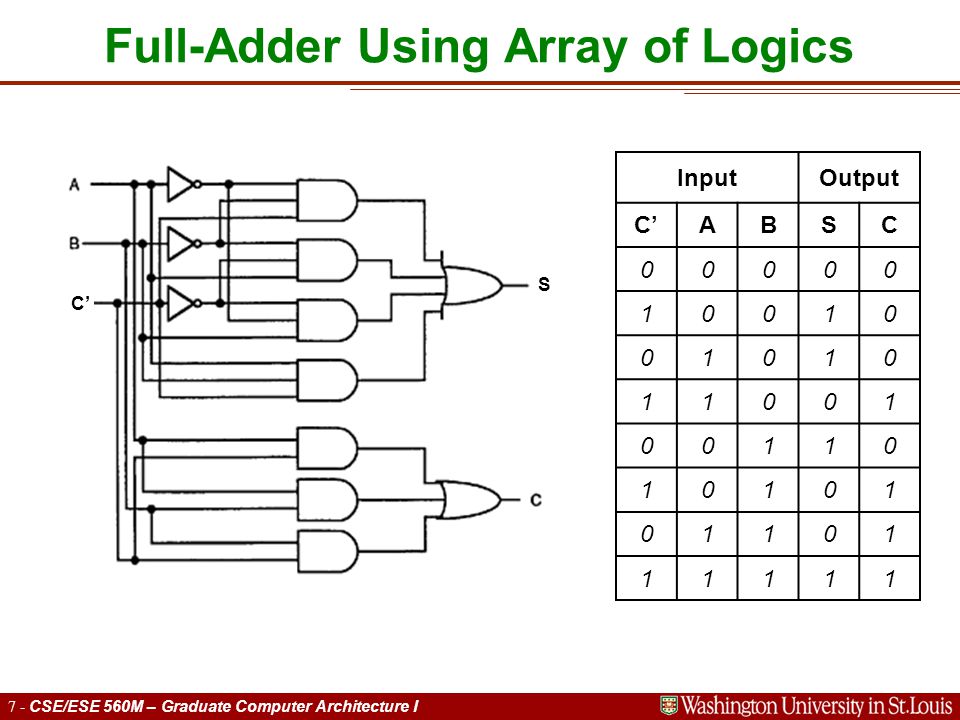

7. 7 - CSE/ESE 560M – Graduate Computer Architecture I Full-Adder Using Array of Logics InputOutput C’ABSC 00000 10010 01010 11001 00110 10101 01101 11111 S

8. 8 - CSE/ESE 560M – Graduate Computer Architecture I Programmable Logic (PLA/PAL/PLD)

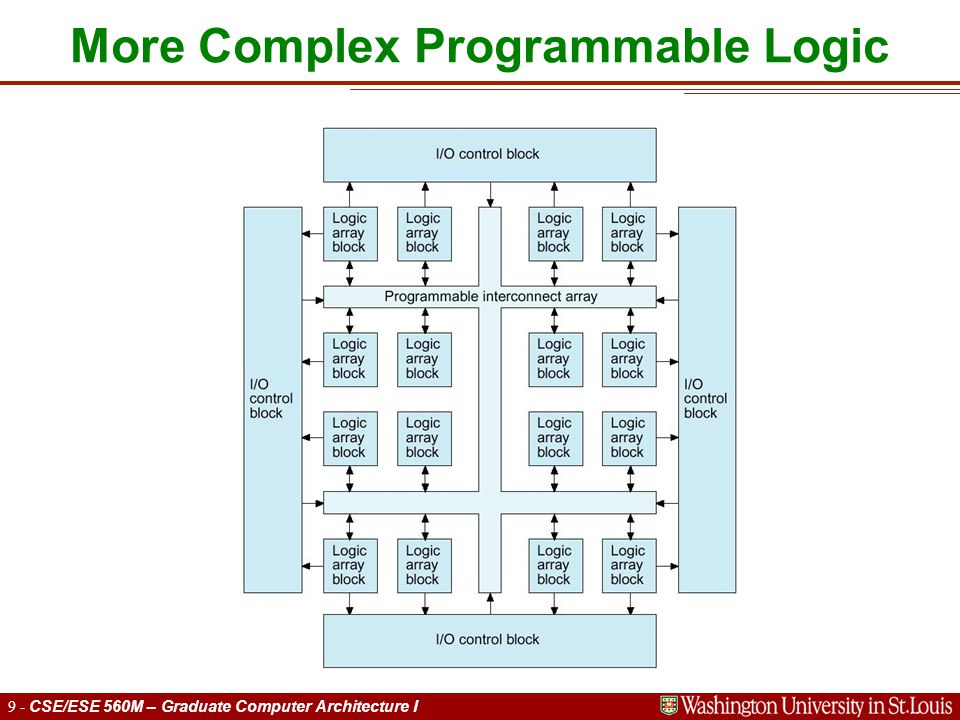

9. 9 - CSE/ESE 560M – Graduate Computer Architecture I More Complex Programmable Logic

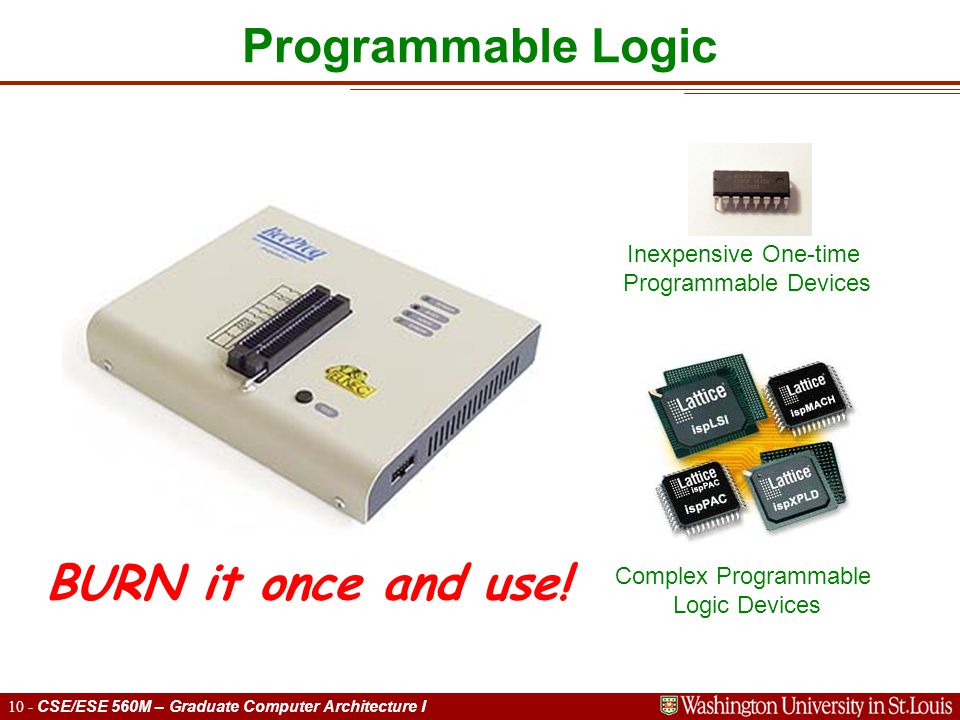

10. 10 - CSE/ESE 560M – Graduate Computer Architecture I Programmable Logic Inexpensive One-time Programmable Devices Complex Programmable Logic Devices BURN it once and use!

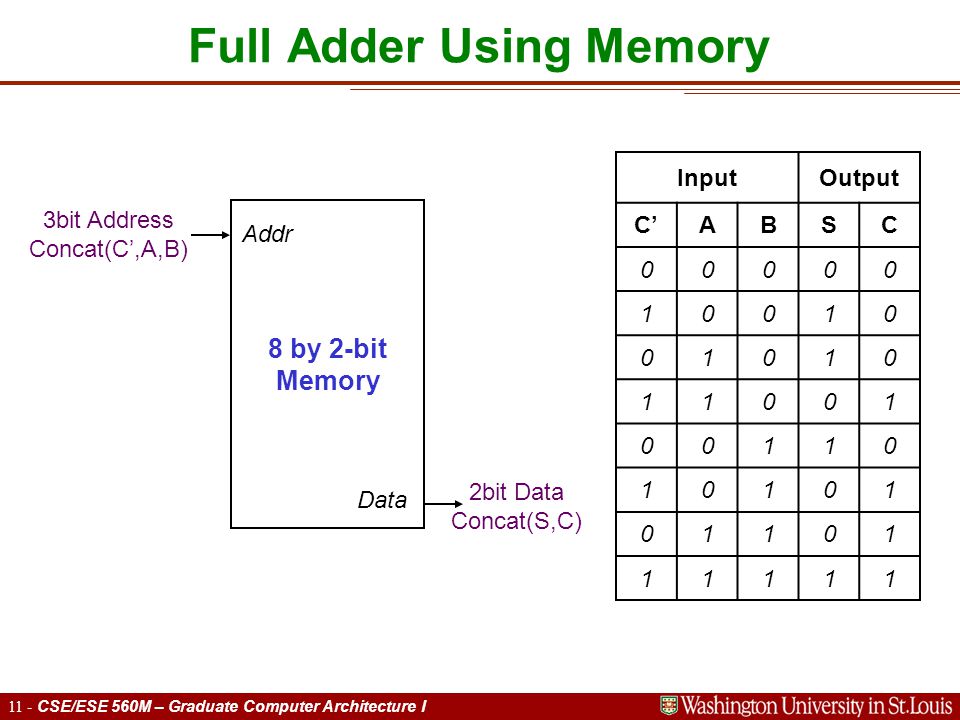

11. 11 - CSE/ESE 560M – Graduate Computer Architecture I Full Adder Using Memory InputOutput C’ABSC 00000 10010 01010 11001 00110 10101 01101 11111 8 by 2-bit Memory Addr Data 3bit Address Concat(C’,A,B) 2bit Data Concat(S,C)

12. 12 - CSE/ESE 560M – Graduate Computer Architecture I Simple Wire Switch (4x4 Crossbar) Input Ports Output Ports

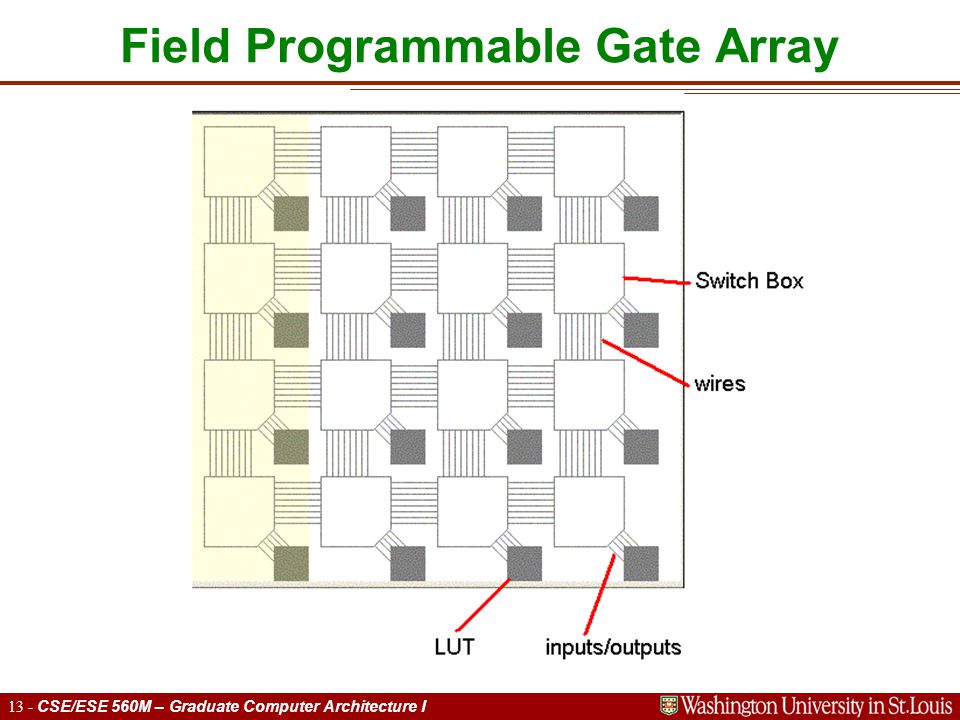

13. 13 - CSE/ESE 560M – Graduate Computer Architecture I Field Programmable Gate Array

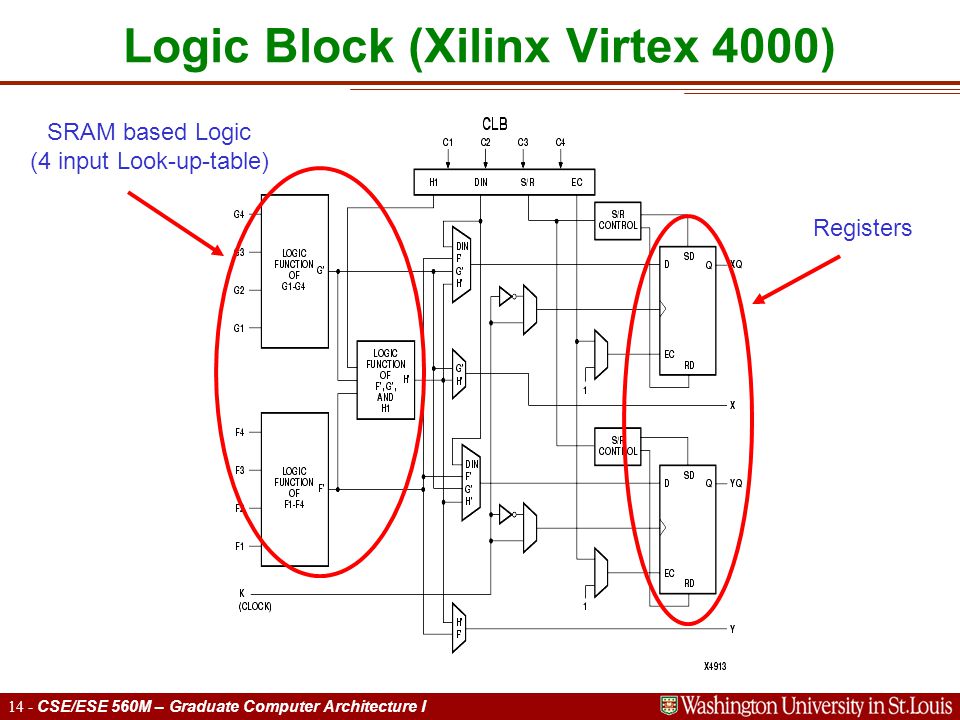

14. 14 - CSE/ESE 560M – Graduate Computer Architecture I Logic Block (Xilinx Virtex 4000) Registers SRAM based Logic (4 input Look-up-table)

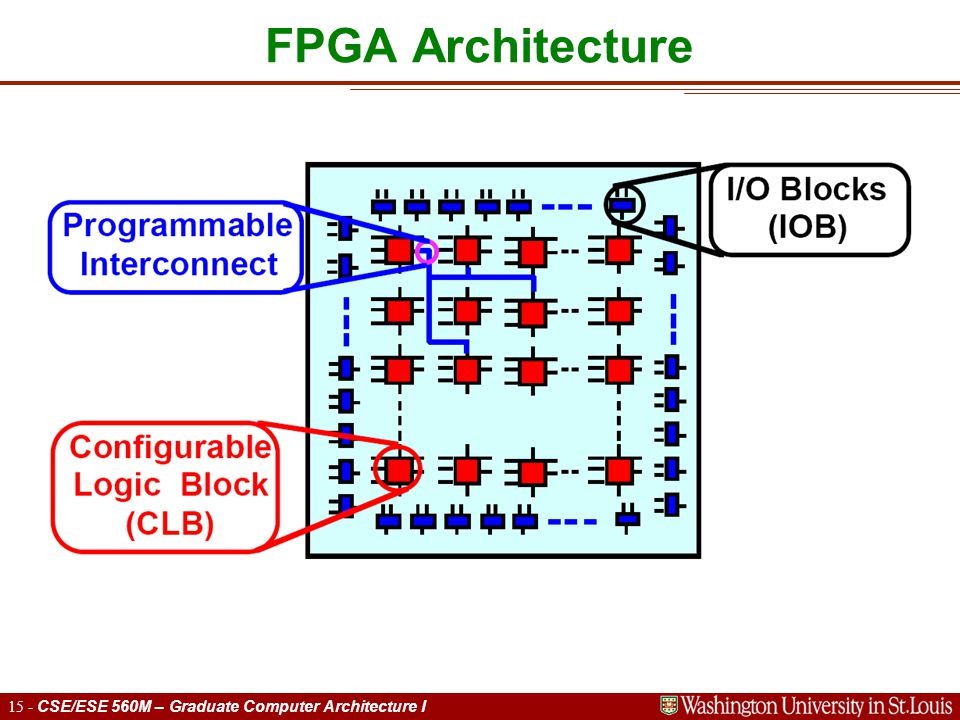

15. 15 - CSE/ESE 560M – Graduate Computer Architecture I FPGA Architecture

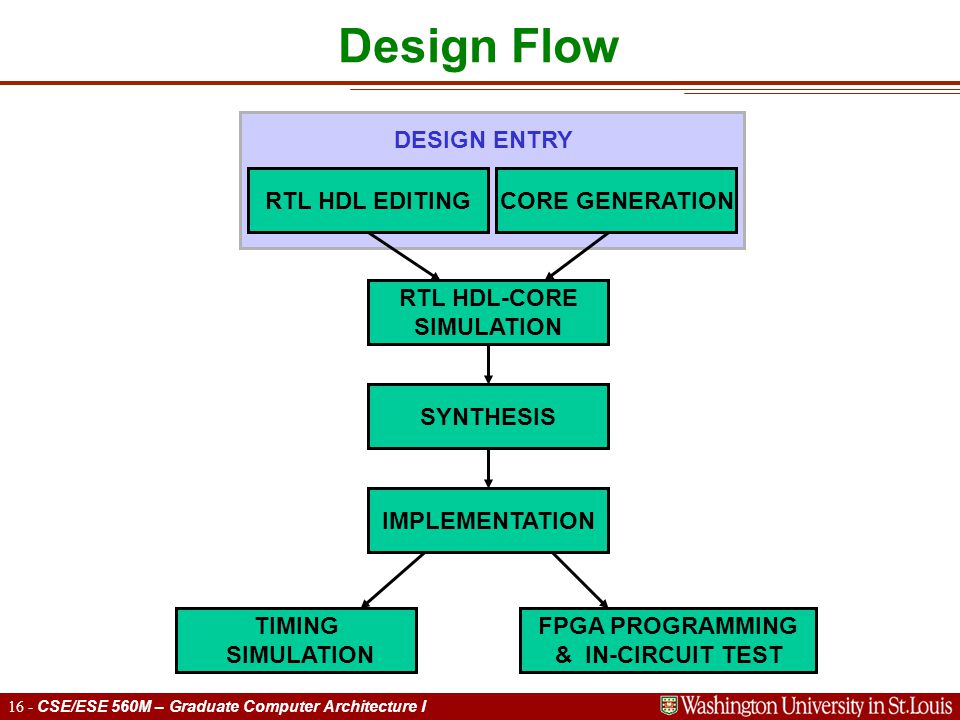

16. 16 - CSE/ESE 560M – Graduate Computer Architecture I DESIGN ENTRY CORE GENERATIONRTL HDL EDITING RTL HDL-CORE SIMULATION SYNTHESIS IMPLEMENTATION TIMING SIMULATION FPGA PROGRAMMING & IN-CIRCUIT TEST Design Flow

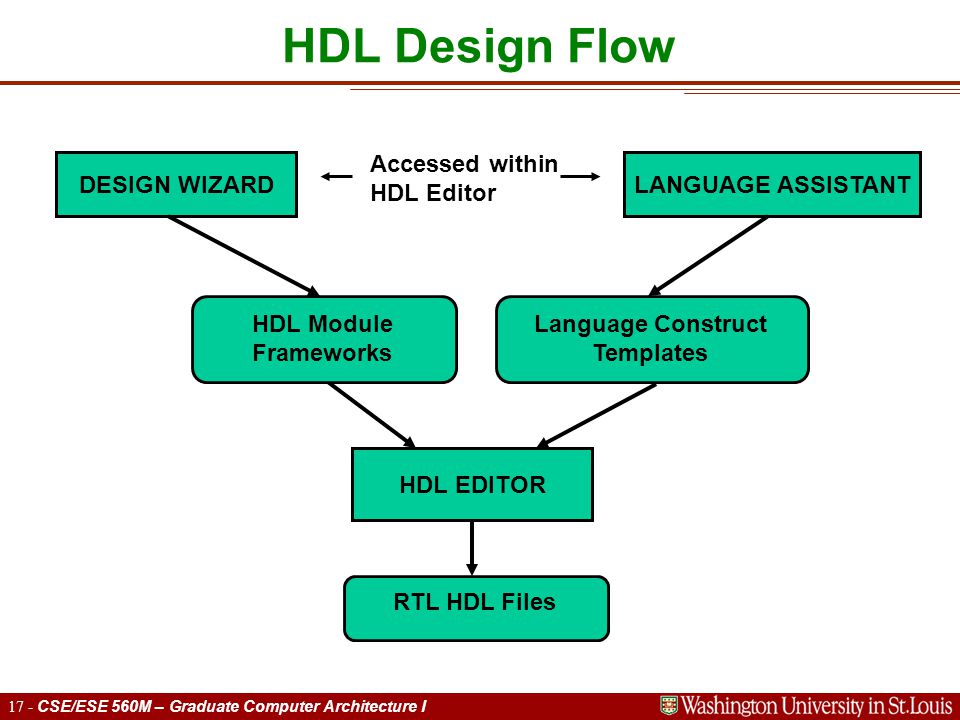

17. 17 - CSE/ESE 560M – Graduate Computer Architecture I Language Construct Templates HDL EDITOR DESIGN WIZARDLANGUAGE ASSISTANT Accessed within HDL Editor RTL HDL Files HDL Module Frameworks HDL Design Flow

18. 18 - CSE/ESE 560M – Graduate Computer Architecture I CORE GENERATOR Select core and specify input parameters HDL instantiation module for core_name EDIF netlist for core_name Other core_name files IP Core Generation

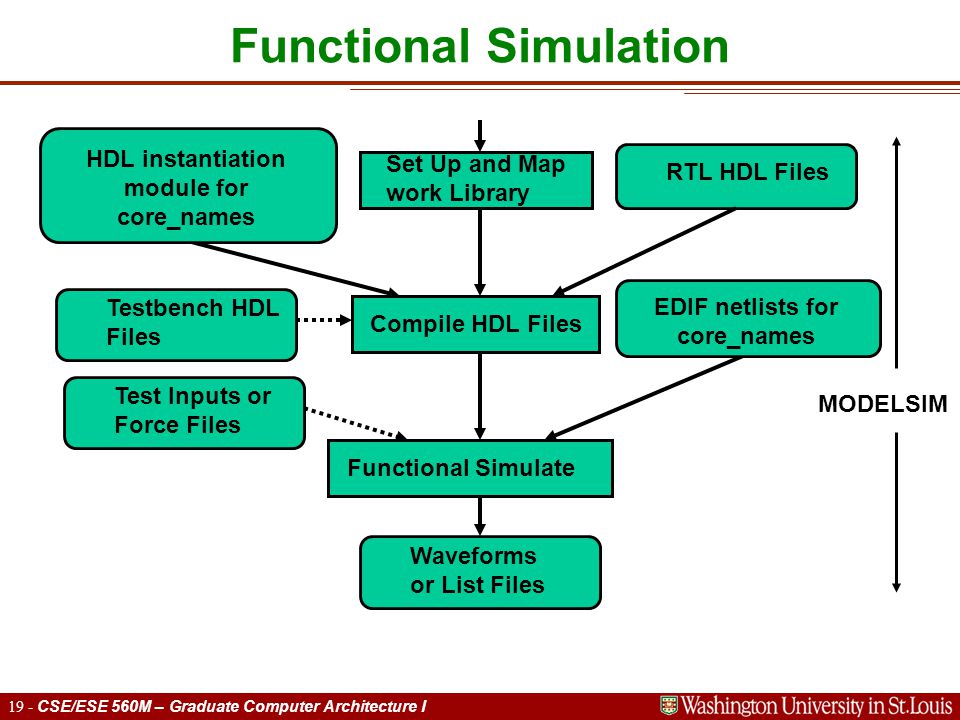

19. 19 - CSE/ESE 560M – Graduate Computer Architecture I Compile HDL Files Waveforms or List Files Set Up and Map work Library RTL HDL Files Test Inputs or Force Files HDL instantiation module for core_names EDIF netlists for core_names Functional Simulate Testbench HDL Files MODELSIM Functional Simulation

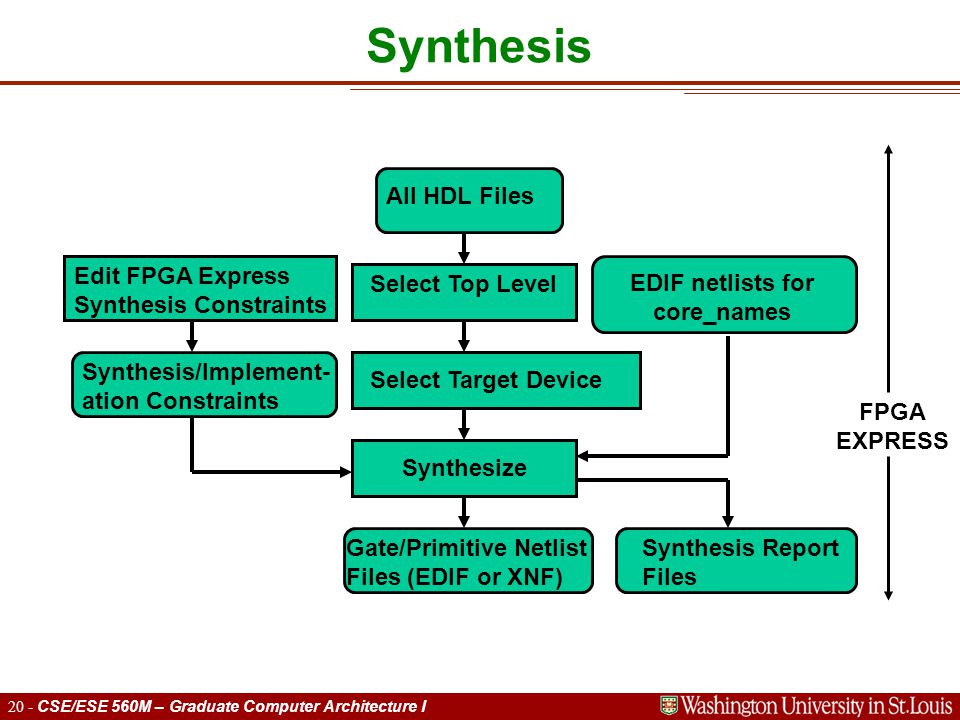

20. 20 - CSE/ESE 560M – Graduate Computer Architecture I All HDL Files Gate/Primitive Netlist Files (EDIF or XNF) Select Top Level Select Target Device Edit FPGA Express Synthesis Constraints Synthesize Synthesis/Implement- ation Constraints Synthesis Report Files EDIF netlists for core_names FPGA EXPRESS Synthesis

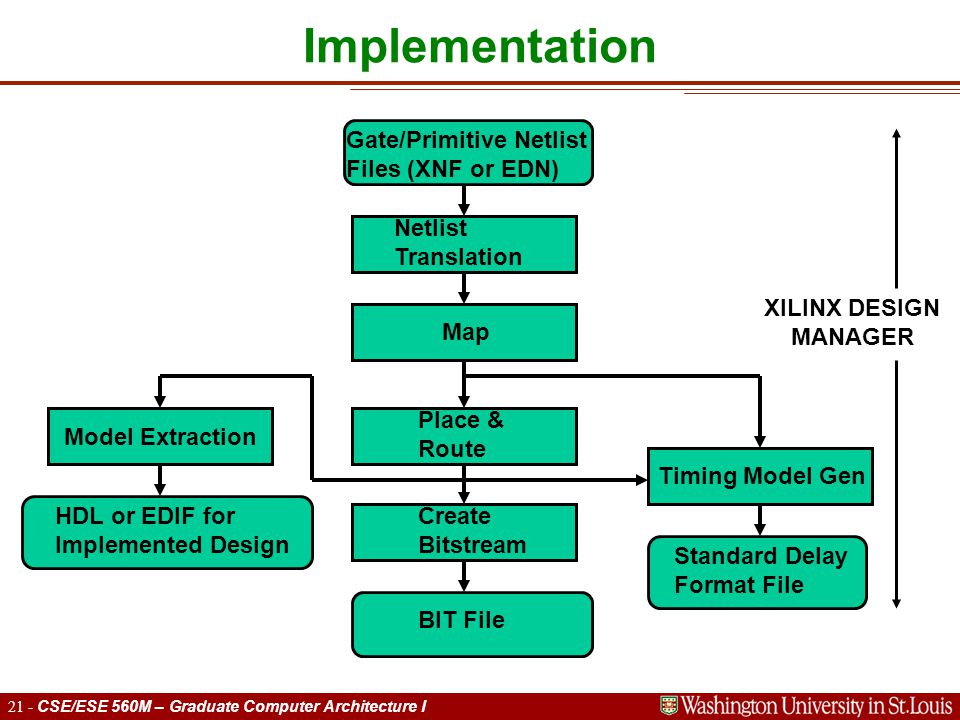

21. 21 - CSE/ESE 560M – Graduate Computer Architecture I Model Extraction Netlist Translation Map Place & Route BIT File Create Bitstream Timing Model Gen Gate/Primitive Netlist Files (XNF or EDN) Standard Delay Format File HDL or EDIF for Implemented Design XILINX DESIGN MANAGER Implementation

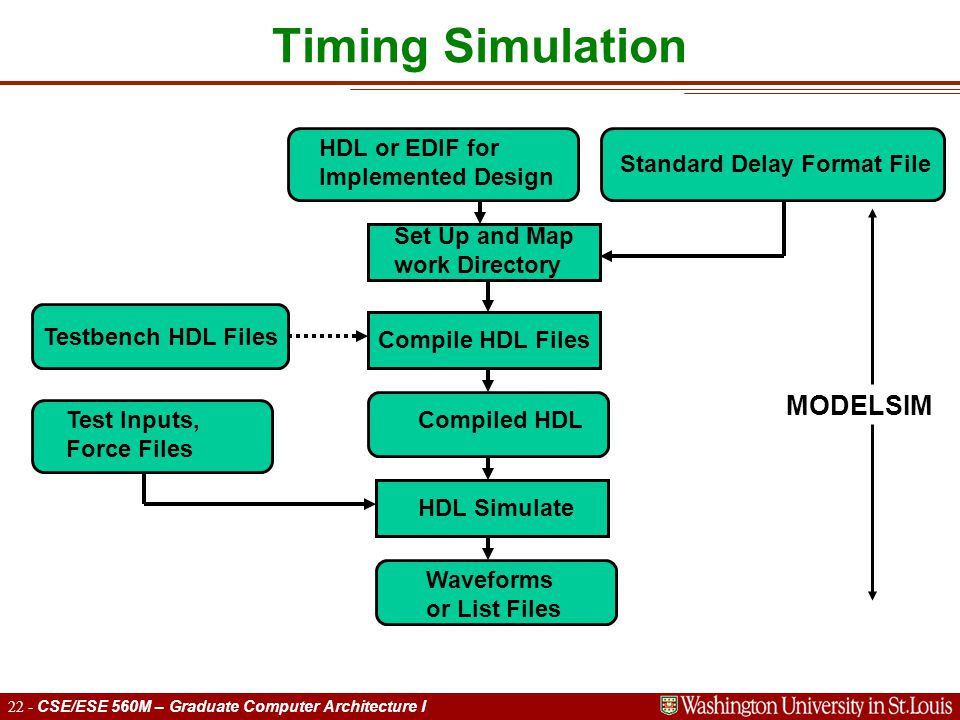

22. 22 - CSE/ESE 560M – Graduate Computer Architecture I Test Inputs, Force Files MODELSIM Compile HDL Files Waveforms or List Files Set Up and Map work Directory Compiled HDL HDL Simulate Standard Delay Format File HDL or EDIF for Implemented Design Testbench HDL Files Timing Simulation

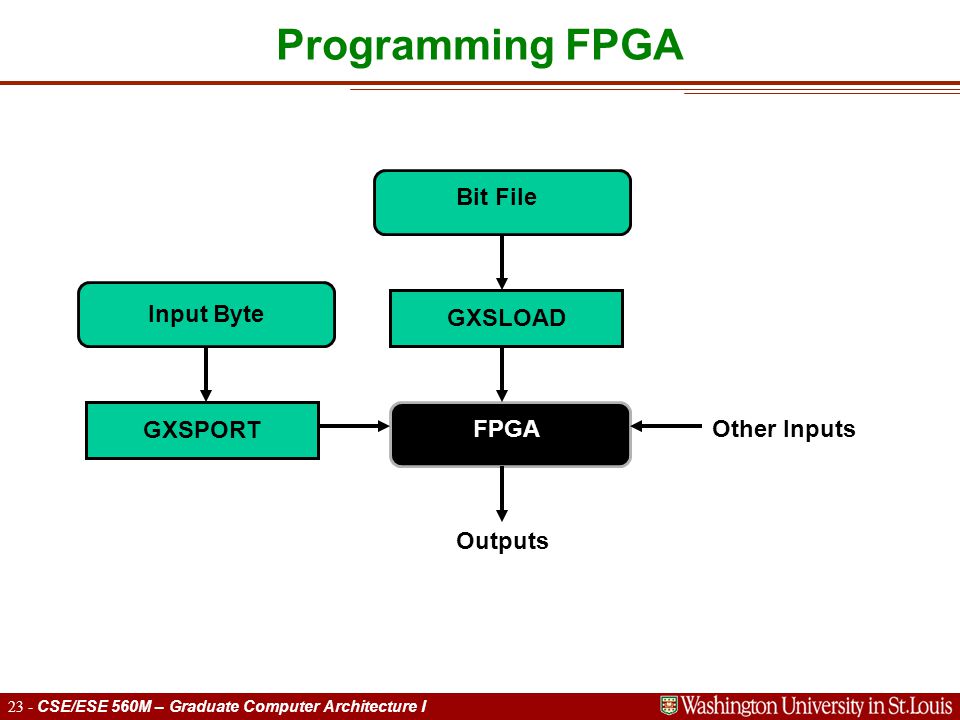

23. 23 - CSE/ESE 560M – Graduate Computer Architecture I Bit File FPGA GXSLOAD GXSPORT Input Byte Other Inputs Outputs Programming FPGA

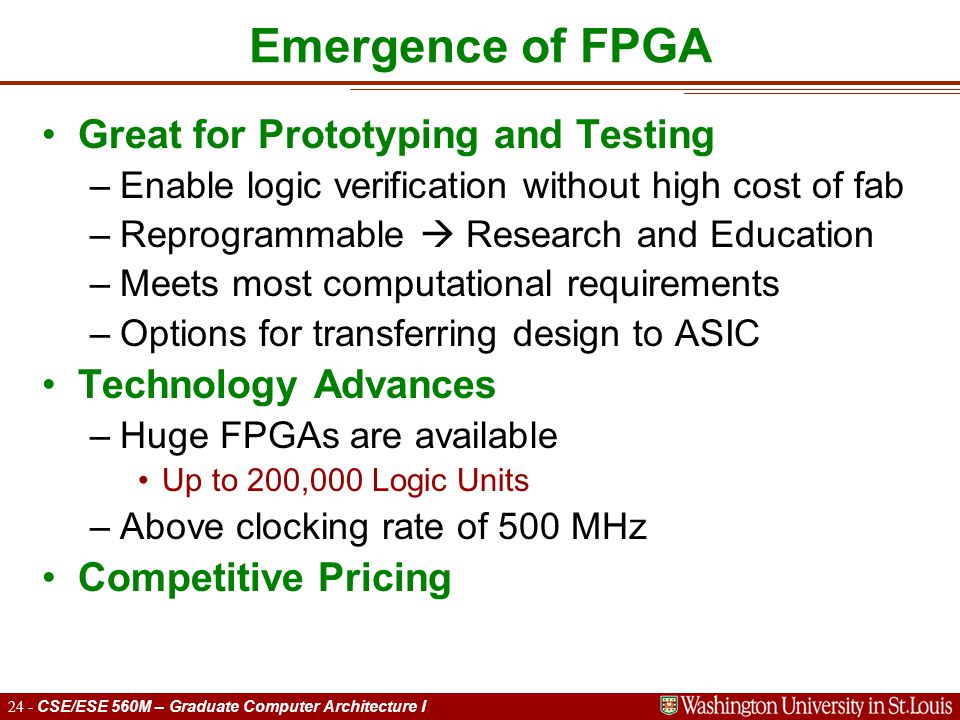

24. 24 - CSE/ESE 560M – Graduate Computer Architecture I Emergence of FPGA Great for Prototyping and Testing –Enable logic verification without high cost of fab –Reprogrammable  Research and Education –Meets most computational requirements –Options for transferring design to ASIC Technology Advances –Huge FPGAs are available Up to 200,000 Logic Units –Above clocking rate of 500 MHz Competitive Pricing

25. 25 - CSE/ESE 560M – Graduate Computer Architecture I System on Chip (SoC) Large Embedded Memories –Up 10 Megabits of on-chip memories (Virtex 4) –High bandwidth and reconfigurable Processor IP Cores –Tons of Soft Processor Cores (some open source) –Embedded Processor Cores PowerPC, Nios RISC, and etc. – 450+ MHz –Simple Digital Signal Processing Cores Up to 512 DSPs on Virtex 4 Interconnects –High speed network I/O (10Gbps) –Built-in Ethernet MACs (Soft/Hard Core) Security –Embedded 256-bit AES Encryption

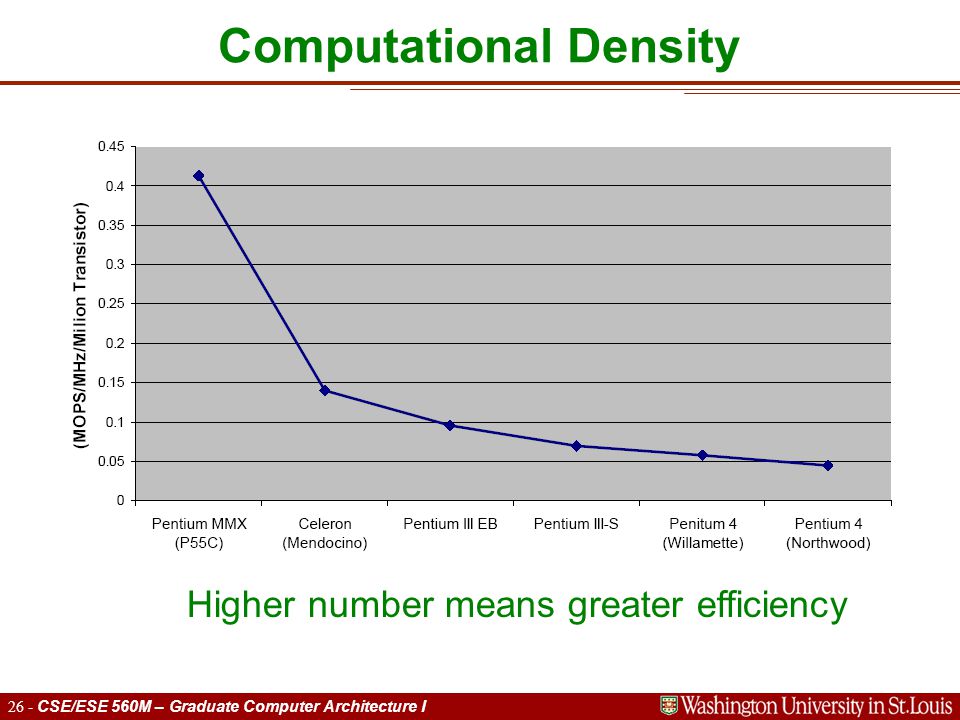

26. 26 - CSE/ESE 560M – Graduate Computer Architecture I Computational Density Higher number means greater efficiency

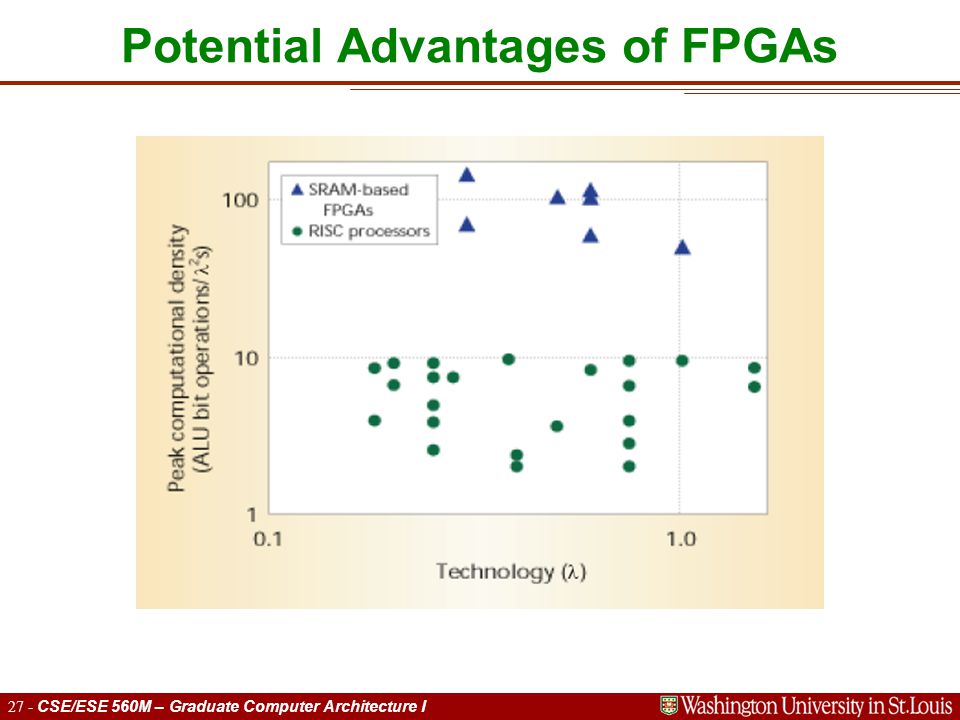

27. 27 - CSE/ESE 560M – Graduate Computer Architecture I Potential Advantages of FPGAs

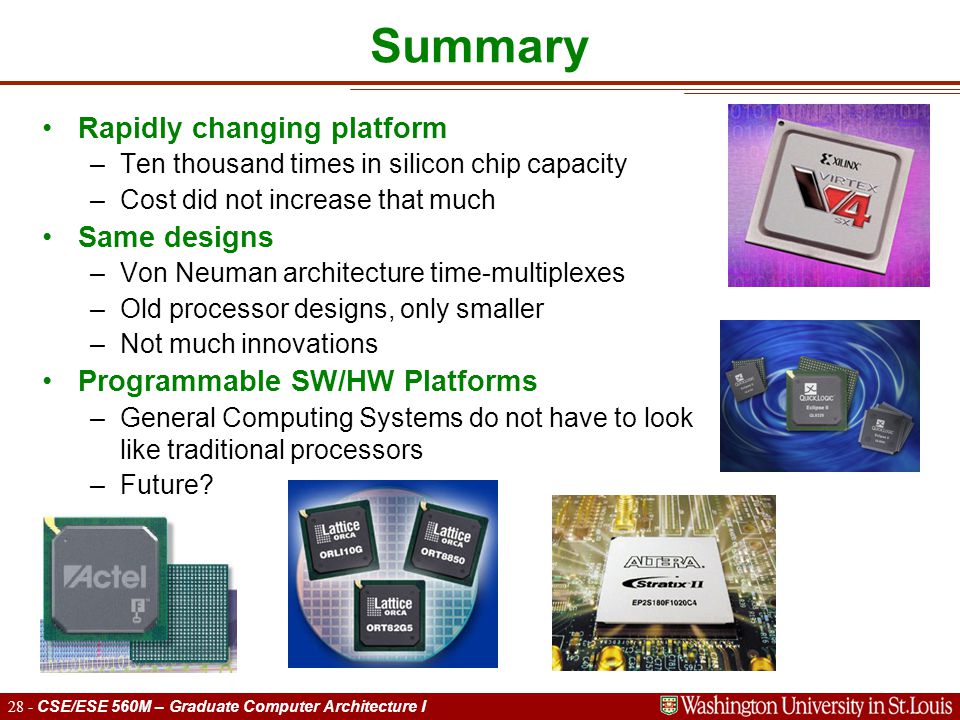

28. 28 - CSE/ESE 560M – Graduate Computer Architecture I Summary Rapidly changing platform –Ten thousand times in silicon chip capacity –Cost did not increase that much Same designs –Von Neuman architecture time-multiplexes –Old processor designs, only smaller –Not much innovations Programmable SW/HW Platforms –General Computing Systems do not have to look like traditional processors –Future?
