1. Offering the freedom to design solutions Sundance PXIe Solution

2. PXIe Background: Created in 2006 by National Instrument: Created in 2006 by National Instrument: –Migration from PXI (66MHz/32-bit 3U cPCI) generation to PCI Express (8 lanes) –Increase the life-time of peripherals, Host controllers, I/O cards, racks/chassis, etc Host controllersracks/chassisHost controllersracks/chassis –Hybrid solution or PXIe Switch-Matrix backplanes –PXI Express Specification Tutorial Tutorial –PXIe FAQ PXIe FAQPXIe FAQ

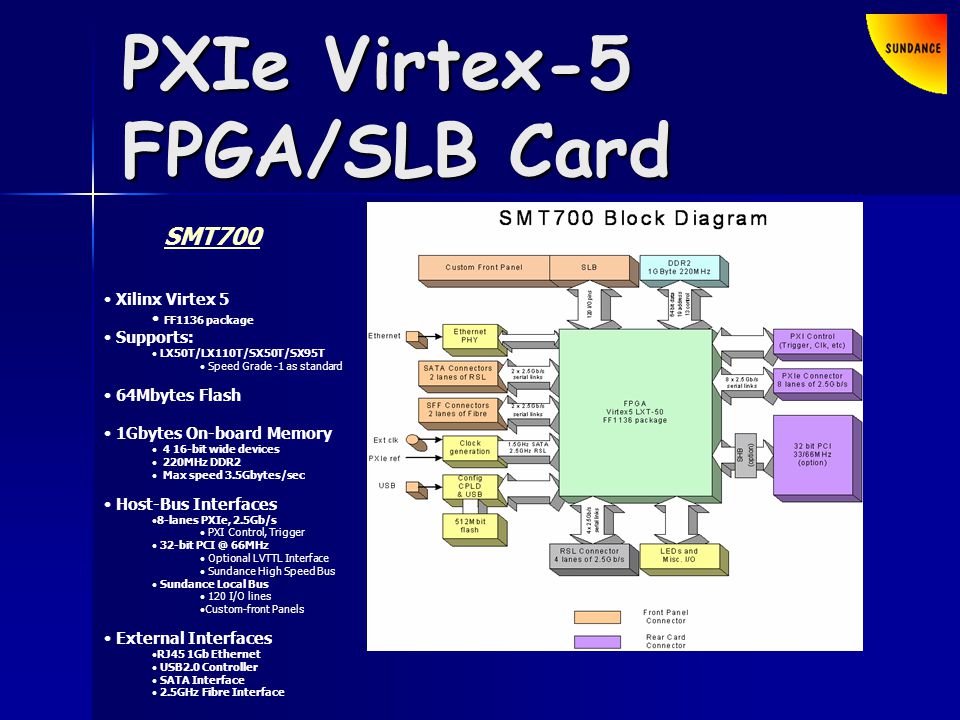

3. PXIe Virtex-5 FPGA/SLB Card SMT700 Xilinx Virtex 5 FF1136 package Supports: LX50T/LX110T/SX50T/SX95T Speed Grade -1 as standard 64Mbytes Flash 1Gbytes On-board Memory 4 16-bit wide devices 220MHz DDR2 Max speed 3.5Gbytes/sec Host-Bus Interfaces 8-lanes PXIe, 2.5Gb/s PXI Control, Trigger 32-bit PCI @ 66MHz Optional LVTTL Interface Sundance High Speed Bus Sundance Local Bus 120 I/O lines Custom-front Panels External Interfaces RJ45 1Gb Ethernet USB2.0 Controller SATA Interface 2.5GHz Fibre Interface

4. PXIe Accelerate FPGA Card SMT701 Xilinx Virtex 5 FF1136 package Supports: LX50T/LX110T/SX50T/SX95T Speed Grade -1 as standard 64Mbytes Flash 2Gbytes On-board Memory 4 16-bit wide devices 220MHz DDR2 Max speed 3.5Gbytes/sec Host-Bus Interfaces 8-lanes PXIe, 2.5Gb/s PXI Control, Trigger 32-bit PCI @ 66MHz Optional LVTTL Interface Sundance High Speed Bus External Interfaces Aeroflex 64-pins LVDS USB2.0 Controller SATA Interface

5. PXIe TIM Carrier Card SMT710 Xilinx Virtex 5 FF1136 package Supports: LX50T/LX110T/SX50T/SX95T Speed Grade -1 as standard 64Mbytes Flash 1Gbytes On-board Memory 4 16-bit wide devices 220MHz DDR2 Max speed 3.5Gbytes/sec Host-Bus Interfaces 8-lanes PXIe, 2.5Gb/s PXI Control, Trigger 32-bit PCI @ 66MHz Optional LVTTL Interface Sundance High Speed Bus Sundance TIM Module slot 120 I/O lines Custom-front Panels External Interfaces RJ45 1Gb Ethernet USB2.0 Controller SATA Interface 2.5GHz Fibre Interface

6. PXIe Dual 3GHz ADC Card SMT702 Xilinx Virtex 5 FF1136 package Supports: LX110T-3 Optional, SX95-2 64Mbytes Flash 1Gbytes On-board Memory 4 16-bit wide devices 2 Banks of ADC Storage 250MHz DDR2 Max speed 3.5Gbytes/sec Host-Bus Interfaces 8-lanes PXIe, 2.5Gb/s PXI Control, Trigger 32-bit PCI @ 66MHz Optional LVTTL Interface Sundance High Speed Bus Sundance High-Speed Bus 60 I/O lines Custom-front Panels External Interfaces Dual ADC, 3 GHz, 8-bit Clock Distribution SATA Interfaces

7. PXIe Dual DAC 2.3GHz Card SMT712 Xilinx Virtex 5 FF1136 package Supports: LX110T-3 Optional, SX95-2 64Mbytes Flash 1Gbytes On-board Memory 4 16-bit wide devices 2 Banks of ADC Storage 300MHz DDR2 Max speed 3.5Gbytes/sec Host-Bus Interfaces 8-lanes PXIe, 2.5Gb/s PXI Control, Trigger 32-bit PCI @ 66MHz Optional LVTTL Interface Sundance High Speed Bus Sundance High-Speed Bus 60 I/O lines Custom-front Panels External Interfaces Dual DAC, 2.3 GHz, 12-bit Clock Distribution SATA Interfaces

8. PXIe Dual DAC Board SMT712 Sundance Local Bus LVDS Expansion Power connector Custom front-panels Takes Second Slot 2 lanes of Fibre Modules 2.5 Gigabit 2 lanes of SATA Interface 1.5 Gigabits Harddisk Interface 2.5 Gigabits Inter-board Interface 1Gigabit Ethernet Interface 1Gbytes On-board Memory 4 16-bit wide devices 220MHz DDR2 Max speed 3.5Gbytes/sec USB 2.0 Interface 4 lanes Rocket Serial Link 2.5 Gigabits 32-bit PCI @ 66MHz
