1. Slide 1 Freescale Semiconductor. Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004 8K-60K Words Program FLASH, 512 -2K Words Program RAM 2K-8K Words Data FLASH, 1K-4K Words Data RAM 2K Words BootFLASH™ External Memory Interface Voltage regulator System Clock Gen (some w/ on-chip Relaxation OSC) Power Supervisor COP Timer CAN Module - 2.0A/B Compliant Up to two 6-Output PWM Modules Up to two Quadrature Decoders Up to four 4-Input 12-bit ADCs Up to four 16-Bit Quad Timers Event Synchronizer Multiple Serial Ports (SCI, SPI) Up to 64 General Purpose I/O Pins Vectored Interrupt Controller JTAG/OnCE™ Debug Port 32 – 160 LQFP, 160 MBGA Packages 56F800 Features 32 – 160 pins 6-output PWM B PWM B56800Core 30-40 MIPS 60-80 MHz ProgramFlashProgramRAMBootFlash 6-output PWM A PWM A Data RAM Quad Timer Quad Timer Module A,B,C,D Module A,B,C,D Quadrature Decoder 0 Decoder 0 2x4 input 2x4 input ADC Module B Module B 2x4 input 2x4 input ADC Module A Module A GPIOs MSCAN SPI SCI1 SCI0 Voltage Regulators COP System Clock System Clock Generator (OSC & PLL) (OSC & PLL) JTAG/OnCE Interrupt Controller Power Supervisor Quadrature Decoder 1 Decoder 1 Data Flash External Memory Interface Relax. OSC Relax. OSC

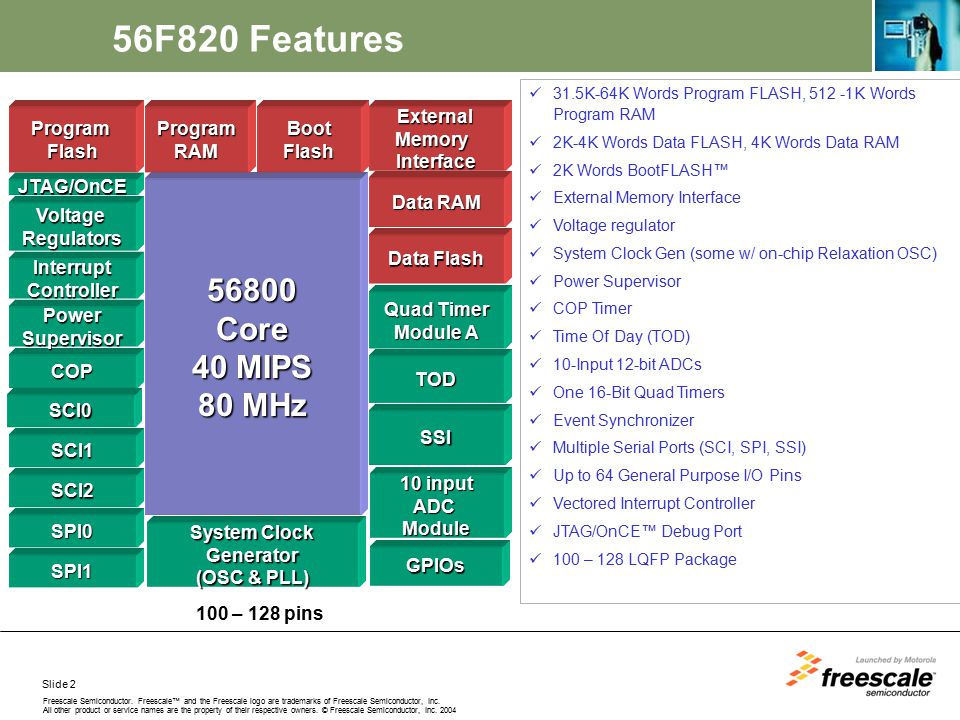

2. Slide 2 Freescale Semiconductor. Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004 31.5K-64K Words Program FLASH, 512 -1K Words Program RAM 2K-4K Words Data FLASH, 4K Words Data RAM 2K Words BootFLASH™ External Memory Interface Voltage regulator System Clock Gen (some w/ on-chip Relaxation OSC) Power Supervisor COP Timer Time Of Day (TOD) 10-Input 12-bit ADCs One 16-Bit Quad Timers Event Synchronizer Multiple Serial Ports (SCI, SPI, SSI) Up to 64 General Purpose I/O Pins Vectored Interrupt Controller JTAG/OnCE™ Debug Port 100 – 128 LQFP Package 56F820 Features 100 – 128 pins 56800Core 40 MIPS 80 MHz ProgramFlashProgramRAMBootFlash Data RAM Quad Timer Quad Timer Module A Module A 10 input 10 input ADC Module GPIOs Voltage Regulators COP System Clock System Clock Generator (OSC & PLL) (OSC & PLL) JTAG/OnCE Interrupt Controller Power Supervisor Data Flash External Memory Interface SSI TOD SPI1 SCI2 SPI0 SCI1 SCI0

3. Slide 3 Freescale Semiconductor. Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004 56850 Features 81 – 144 Pins 120 MIPS at 120 MHz 12K-80K Bytes Program RAM 8K-48K Bytes Data RAM 2K Words Boot ROM 21 External Memory Address lines, 16 data lines and four programmable chip selects Software Programmable Phase Lock Loop Six independent channels of DMA Improved Synchronous Serial Interface (ISSI) Enhanced Synchronous Serial Interface (ESSI) Serial Port Interface (SPI) Serial Communication Interfaces (SCI) 8-bit Parallel Host Interface Four General Purpose 16-bit Timers JTAG/Enhanced On-Chip Emulation (EOnCE TM ) for unobtrusive, real-time debugging Computer Operating Properly (COP/Watchdog) Time of Day Up to 48 GPIO 120 MIPS at 120 MHz 12K-80K Bytes Program RAM 8K-48K Bytes Data RAM 2K Words Boot ROM 21 External Memory Address lines, 16 data lines and four programmable chip selects Software Programmable Phase Lock Loop Six independent channels of DMA Improved Synchronous Serial Interface (ISSI) Enhanced Synchronous Serial Interface (ESSI) Serial Port Interface (SPI) Serial Communication Interfaces (SCI) 8-bit Parallel Host Interface Four General Purpose 16-bit Timers JTAG/Enhanced On-Chip Emulation (EOnCE TM ) for unobtrusive, real-time debugging Computer Operating Properly (COP/Watchdog) Time of Day Up to 48 GPIO 56800E Core 120 MIPS 120 MHz Program RAM RAM Data RAM BootROM JTAG/EOnCE GPIO TOD COP 4 Timers 4 Timers 8-bit Host I/F 8-bit Host I/F SPI SCI ISSI / ESSI ISSI / ESSI 6 Ch. DMA 6 Ch. DMA External Memory I/F Memory I/F

4. Slide 4 Freescale Semiconductor. Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004 56F8300 Features 48 - 160 Pins 60MIPS Harvard Architecture Core 32K-512K Bytes Program Flash, 4K Bytes Program RAM 8K-32K Bytes Data Flash, 8K-32K Bytes Data RAM 8K-16K Bytes BootFLASH TM Code Security Interlock feature for Flash Memory External Memory Interface with 24 Address lines, 16 data lines and 8 chip selects On chip Voltage regulator and ADC reference System Clock Generator - Dynamically Program System Clock Frequency Power Supervisor – Power on Reset and Low Voltage detection. Computer Operating Properly Timer Up to two FlexCAN Modules – CAN 2.0 A/B Compliant Up to two 6-Output PWM Modules Up to four 4-Input 12-bit ADC Up to two Quadrature Decoders Up to four 16-Bit Quad Timer modules – four 16-Bit timers per module Multiple Serial Ports – SCIs, SPIs Up to 76 GPIO Interrupt Controller – Manages various interrupt request and two fast interrupts JTAG/EOnCE™ Debug Port 6-output PWM B PWM B 56800ECore 60 MIPS 60 MHz ProgramFlashProgramRAM Boot BootFlash 6-output PWM A PWM A Data RAM Data RAM Quad Timer Quad Timer Module A,B,C,D Module A,B,C,D Quadrature Decoder 0 Decoder 0 2x4 input 2x4 input ADC Module B Module B 2x4 input 2x4 input ADC Module A Module A 76 GPIOs 76 GPIOs FlexCAN (2) FlexCAN (2) SPI0 SCI0,1 Temp Sensor Temp Sensor Voltage Regulators COP System Clock System Clock Generator (OSC & PLL) (OSC & PLL) JTAG/EOnCE Interrupt Controller Power Supervisor Quadrature Decoder 1 Decoder 1 Data Flash External Memory Interface
