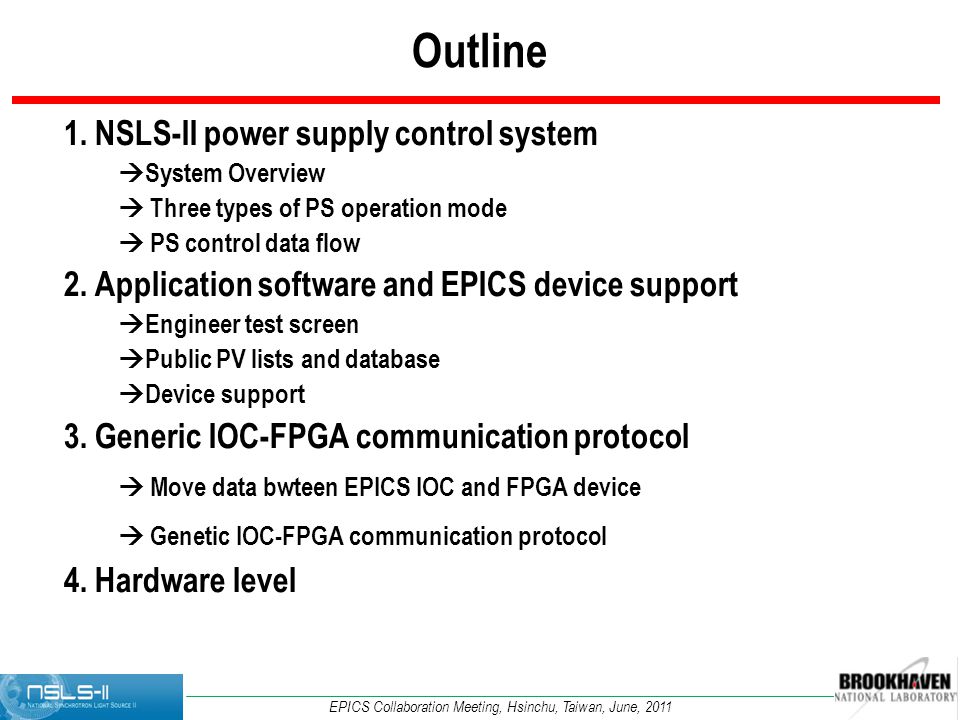

2. EPICS Collaboration Meeting, Hsinchu, Taiwan, June, 2011 Outline 1. NSLS-II power supply control system  System Overview  Three types of PS operation mode  PS control data flow 2. Application software and EPICS device support  Engineer test screen  Public PV lists and database  Device support 3. Generic IOC-FPGA communication protocol  Move data bwteen EPICS IOC and FPGA device  Genetic IOC-FPGA communication protocol 4. Hardware level

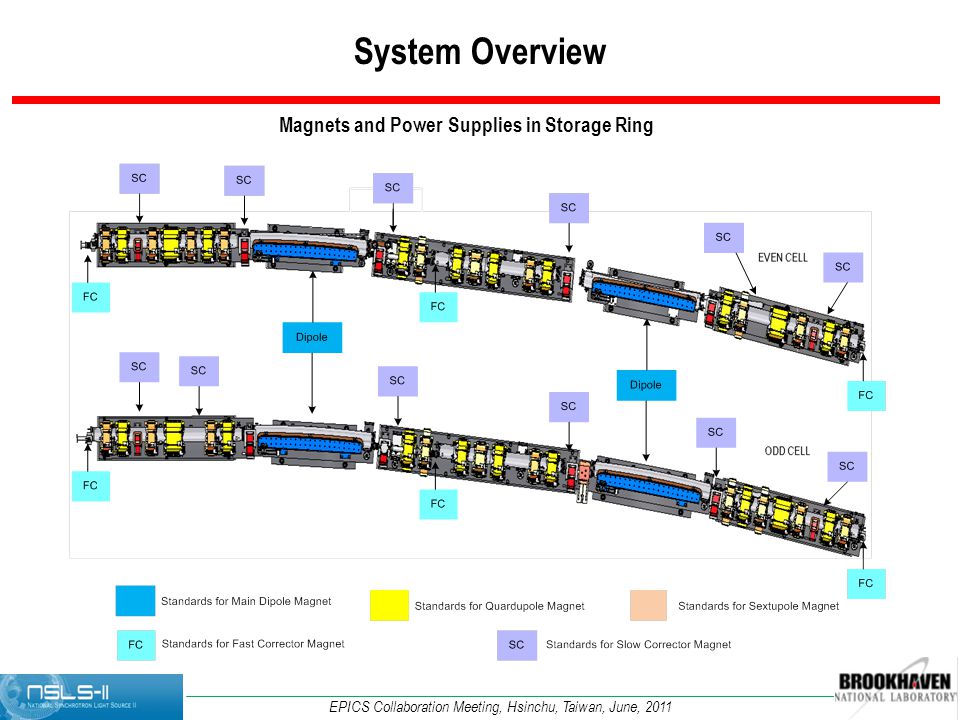

3. EPICS Collaboration Meeting, Hsinchu, Taiwan, June, 2011 Magnets and Power Supplies in Storage Ring System Overview

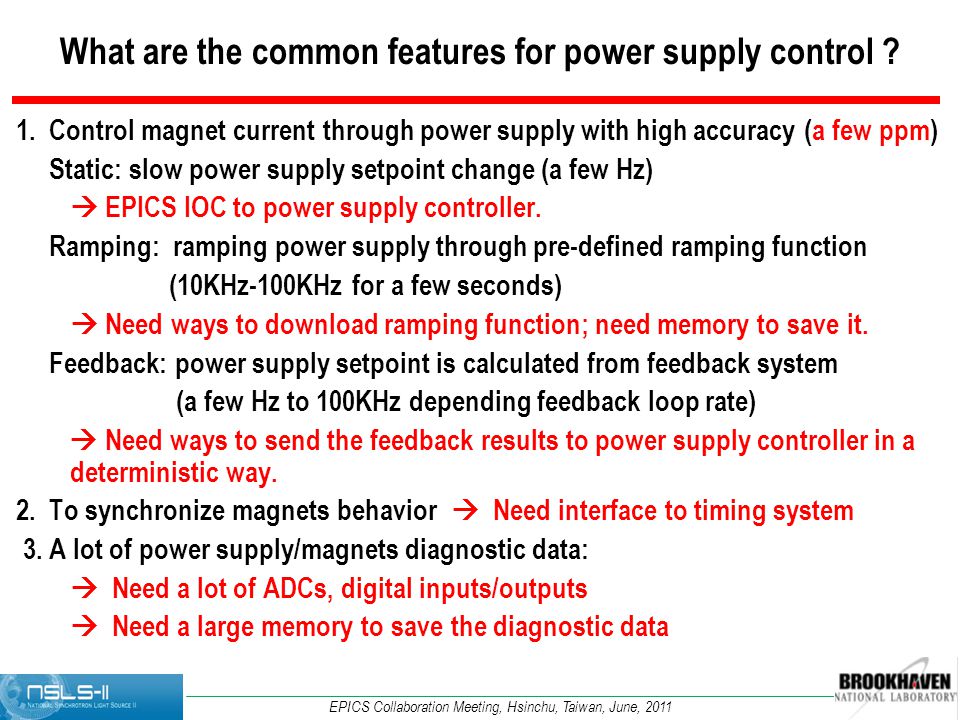

4. EPICS Collaboration Meeting, Hsinchu, Taiwan, June, 2011 What are the common features for power supply control ? 1. Control magnet current through power supply with high accuracy (a few ppm) Static: slow power supply setpoint change (a few Hz)  EPICS IOC to power supply controller. Ramping: ramping power supply through pre-defined ramping function (10KHz-100KHz for a few seconds)  Need ways to download ramping function; need memory to save it. Feedback: power supply setpoint is calculated from feedback system (a few Hz to 100KHz depending feedback loop rate)  Need ways to send the feedback results to power supply controller in a deterministic way. 2. To synchronize magnets behavior  Need interface to timing system 3. A lot of power supply/magnets diagnostic data:  Need a lot of ADCs, digital inputs/outputs  Need a large memory to save the diagnostic data

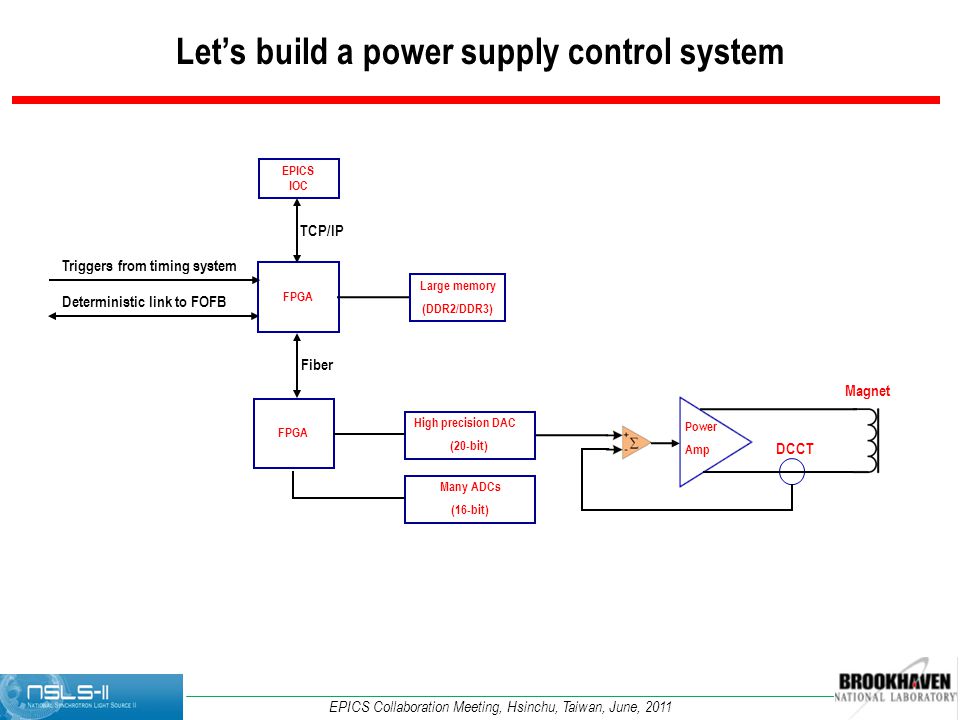

5. EPICS Collaboration Meeting, Hsinchu, Taiwan, June, 2011 Let’s build a power supply control system Power Amp Magnet DCCT High precision DAC (20-bit) FPGA FPGA EPICS IOC TCP/IP Fiber Many ADCs (16-bit) Large memory (DDR2/DDR3) Triggers from timing system Deterministic link to FOFB

6. EPICS Collaboration Meeting, Hsinchu, Taiwan, June, 2011 Let’s build a digital power supply control system Power Amp Magnet DCCT Digital regulator FPGA FPGA EPICS IOC TCP/IP Fiber Many ADCs (16-bit) Large memory (DDR2/DDR3) Triggers from timing system Deterministic link to FOFB High precision ADC

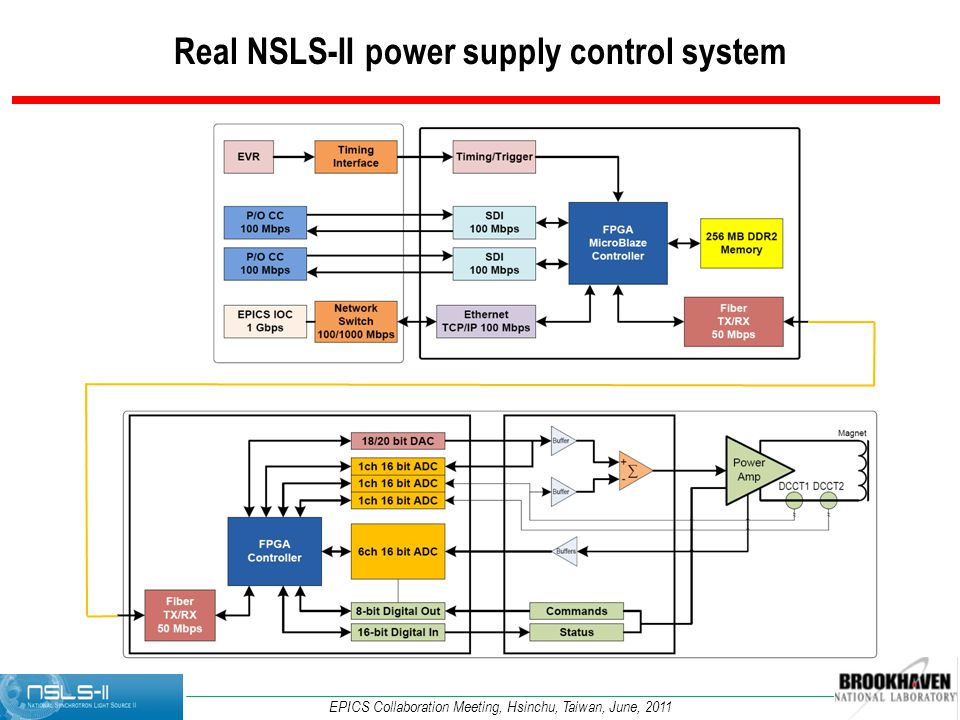

7. EPICS Collaboration Meeting, Hsinchu, Taiwan, June, 2011 Real NSLS-II power supply control system

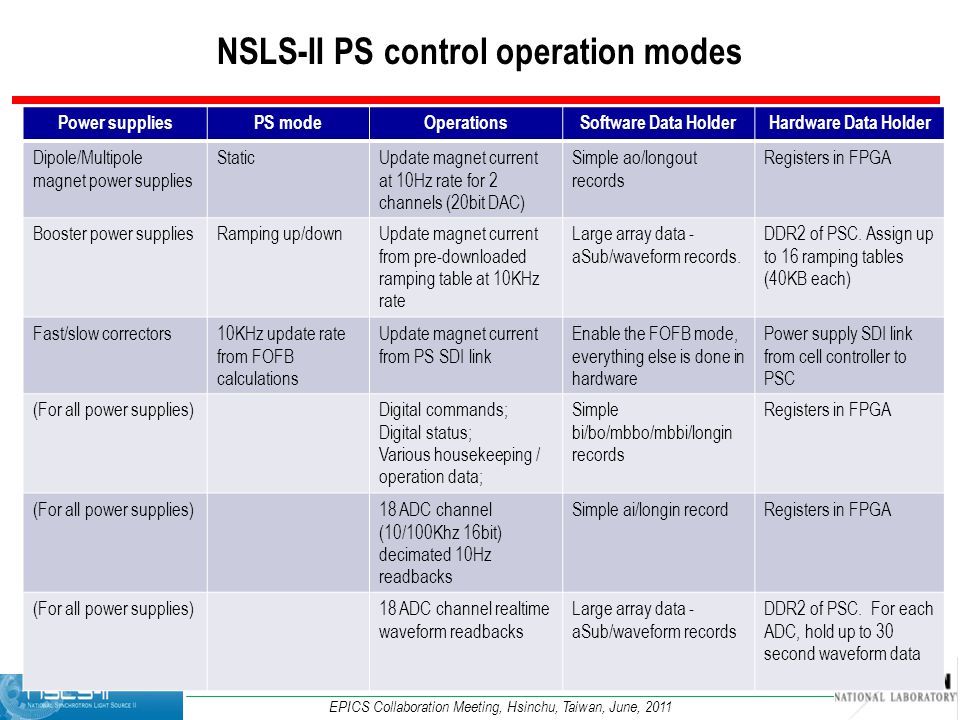

8. EPICS Collaboration Meeting, Hsinchu, Taiwan, June, 2011 NSLS-II PS control operation modes Power suppliesPS modeOperationsSoftware Data HolderHardware Data Holder Dipole/Multipole magnet power supplies StaticUpdate magnet current at 10Hz rate for 2 channels (20bit DAC) Simple ao/longout records Registers in FPGA Booster power suppliesRamping up/downUpdate magnet current from pre-downloaded ramping table at 10KHz rate Large array data - aSub/waveform records. DDR2 of PSC. Assign up to 16 ramping tables (40KB each) Fast/slow correctors10KHz update rate from FOFB calculations Update magnet current from PS SDI link Enable the FOFB mode, everything else is done in hardware Power supply SDI link from cell controller to PSC (For all power supplies)Digital commands; Digital status; Various housekeeping / operation data; Simple bi/bo/mbbo/mbbi/longin records Registers in FPGA (For all power supplies)18 ADC channel (10/100Khz 16bit) decimated 10Hz readbacks Simple ai/longin recordRegisters in FPGA (For all power supplies)18 ADC channel realtime waveform readbacks Large array data - aSub/waveform records DDR2 of PSC. For each ADC, hold up to 30 second waveform data

9. EPICS Collaboration Meeting, Hsinchu, Taiwan, June, 2011 PS Control Data Flow High Level Applications EPICS IOC FPGA embedded microBlaze DDR2 Memory Registers PSC Fiber TX/RX Controller 2 DACs (20bit/100KHz) 18 ADCs (16bit, 100KHz) 16 Digital Inputs (10ns sequence detector) 8 Digital Outputs (static/pulse) CA EPICS-FPGA Protocol PLB PS SDI Link PLB PSI Fiber TX/RX Controller Fiber link (50Mbps) logic(verilog)

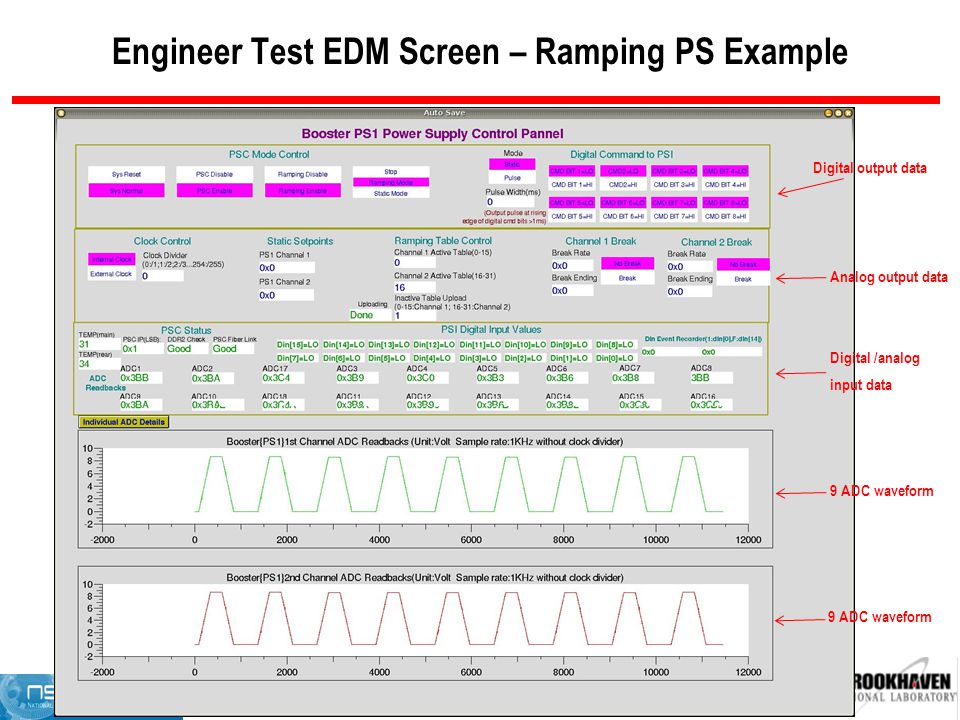

10. EPICS Collaboration Meeting, Hsinchu, Taiwan, June, 2011 Engineer Test EDM Screen – Ramping PS Example Digital output data Analog output data Digital /analog input data 9 ADC waveform

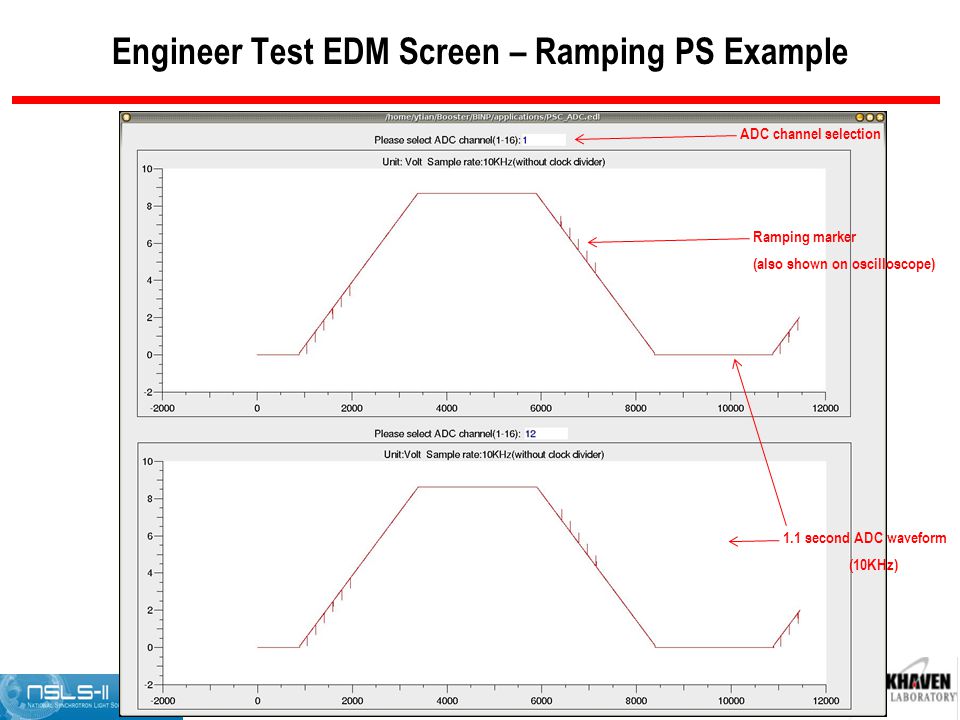

11. EPICS Collaboration Meeting, Hsinchu, Taiwan, June, 2011 Engineer Test EDM Screen – Ramping PS Example 1.1 second ADC waveform (10KHz) ADC channel selection Ramping marker (also shown on oscilloscope)

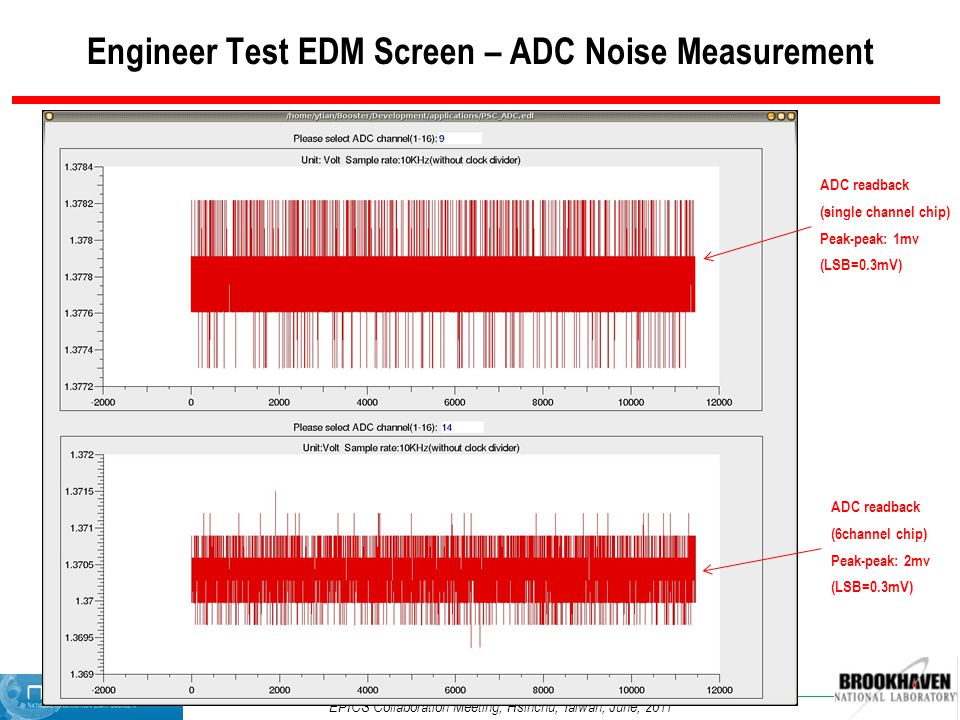

12. EPICS Collaboration Meeting, Hsinchu, Taiwan, June, 2011 Engineer Test EDM Screen – ADC Noise Measurement ADC readback (single channel chip) Peak-peak: 1mv (LSB=0.3mV) ADC readback (6channel chip) Peak-peak: 2mv (LSB=0.3mV)

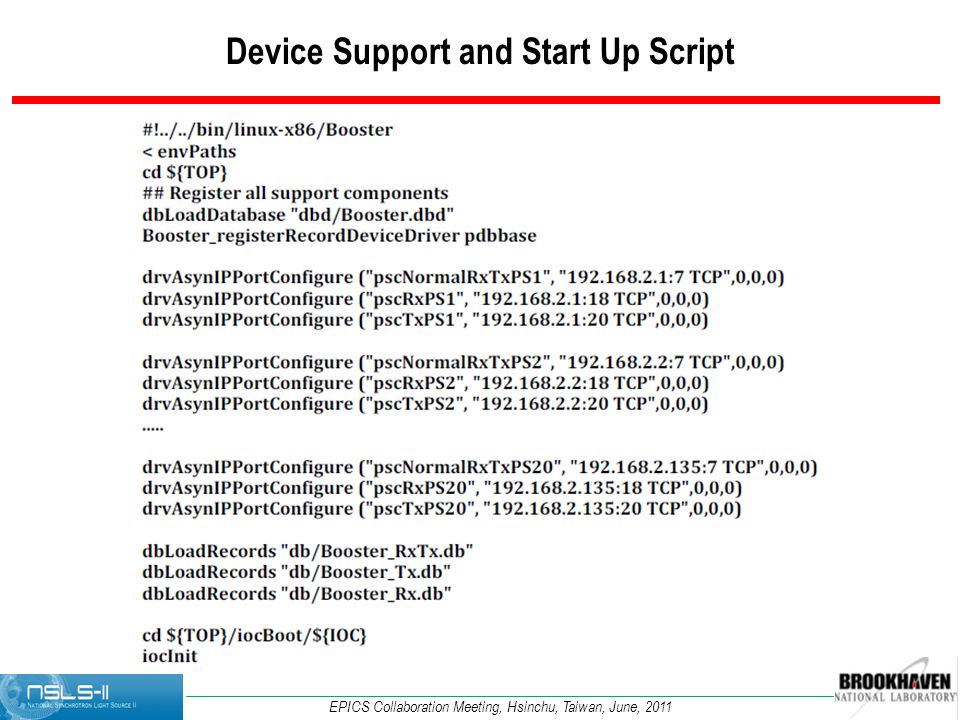

13. EPICS Collaboration Meeting, Hsinchu, Taiwan, June, 2011 Device Support and Start Up Script

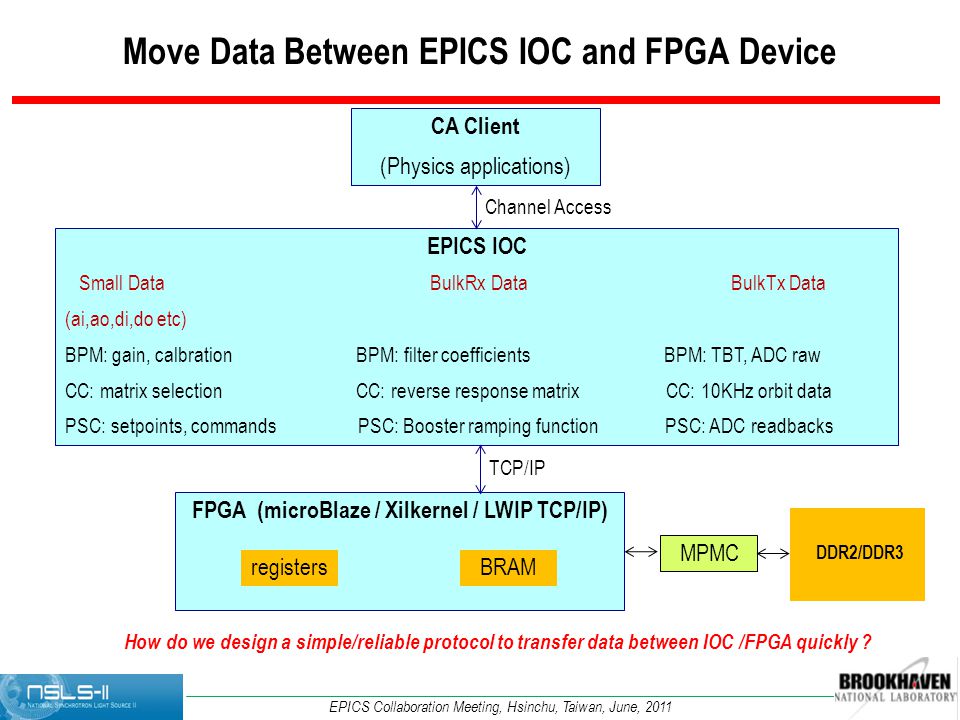

14. EPICS Collaboration Meeting, Hsinchu, Taiwan, June, 2011 Move Data Between EPICS IOC and FPGA Device EPICS IOC Small Data BulkRx Data BulkTx Data (ai,ao,di,do etc) BPM: gain, calbration BPM: filter coefficients BPM: TBT, ADC raw CC: matrix selection CC: reverse response matrix CC: 10KHz orbit data PSC: setpoints, commands PSC: Booster ramping function PSC: ADC readbacks CA Client (Physics applications) Channel Access FPGA (microBlaze / Xilkernel / LWIP TCP/IP) TCP/IP registers BRAM MPMC DDR2/DDR3 How do we design a simple/reliable protocol to transfer data between IOC /FPGA quickly ?

15. EPICS Collaboration Meeting, Hsinchu, Taiwan, June, 2011 General IOC-FPGA Communication Protocol EPICS IOC Small Data BulkRx Data BulkTx Data (ai,ao,di,do etc) Out: Combined small data into one MTU by using aSub. In: parse one MTU into small data. Asyn Record Asyn Record Large amount data ID frame 1MTU (10Hz) 1MTU (10Hz) ID frame (optional) Large amount data asyn port 1: drvAsynIPPortConfigure (“NormalRxTx", "192.168.1.10:7 TCP",0,0,0) asyn port 2: drvAsynIPPortConfigure (“BulkRx", "192.168.1.10:18 TCP",0,0,0) asyn port 3: drvAsynIPPortConfigure (“BulkTx", "192.168.1.10:20 TCP",0,0,0)

16. EPICS Collaboration Meeting, Hsinchu, Taiwan, June, 2011 Hardware Level – PSC

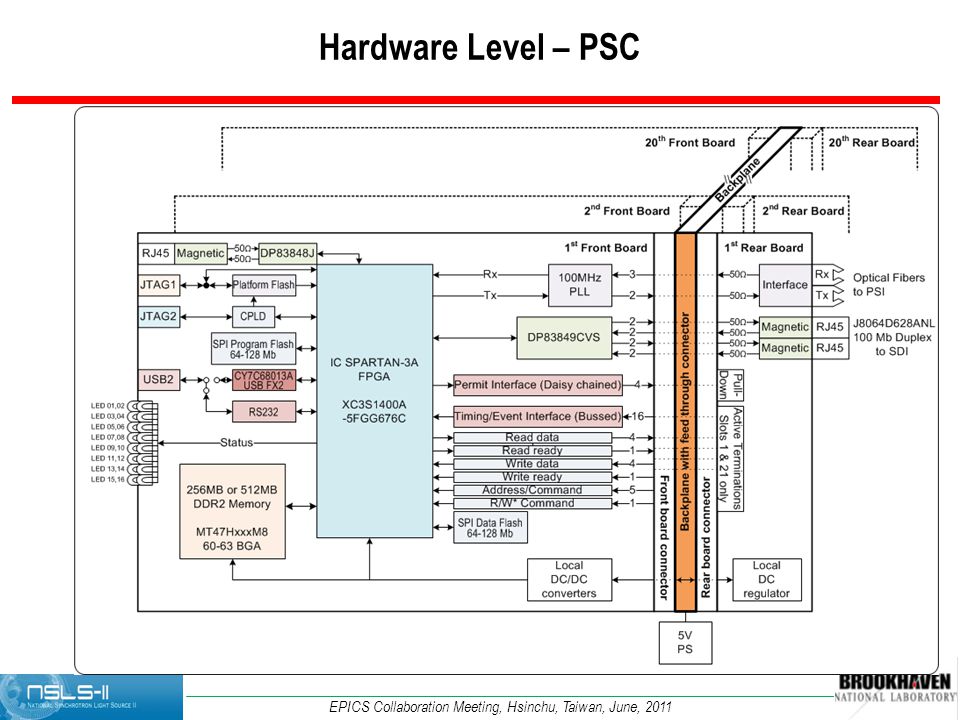

17. EPICS Collaboration Meeting, Hsinchu, Taiwan, June, 2011 1 = JTAG connectors – Programming to FPGA and CPLD. 2 = RS232 port – Communication to PC for diagnostic and software development. 3 = DDR2 memory modules – PS diagnostic data, CPU memory. 4 = SDI connectors – Communication between PSC master (or cell controller) and PSC slaves. 5 = Fiber transceiver – Communication with PSI. 6 = Ethernet connector – Communication to EPICS IOC for PSC master. 7 = FPGA (Spartan3A) 8 = CPLD(8a) & SPI memory(8b) – Dual boot and remote programming functions. 7a 1 2 3 4 5 6 8a 8b 7 Hardware Level – PSC

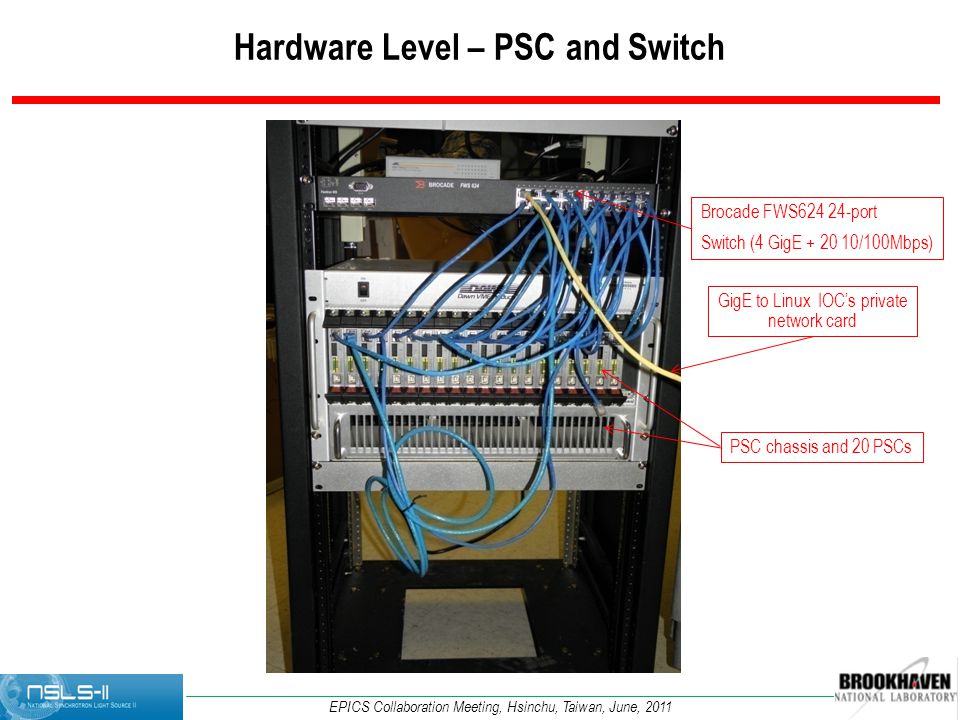

18. EPICS Collaboration Meeting, Hsinchu, Taiwan, June, 2011 Brocade FWS624 24-port Switch (4 GigE + 20 10/100Mbps) PSC chassis and 20 PSCs GigE to Linux IOC’s private network card Hardware Level – PSC and Switch

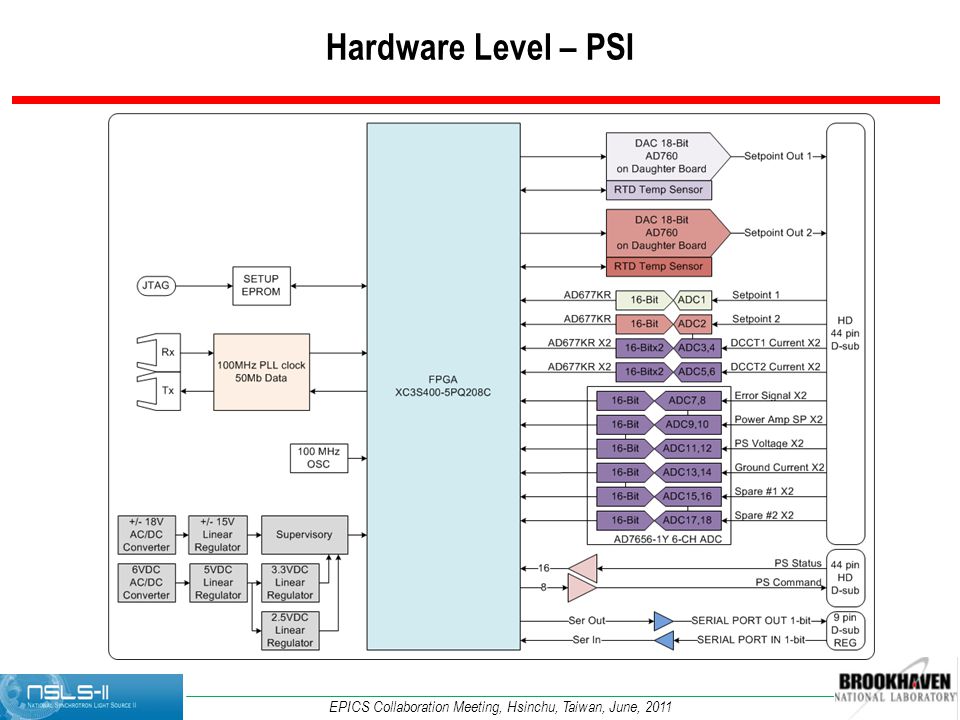

19. EPICS Collaboration Meeting, Hsinchu, Taiwan, June, 2011 Hardware Level – PSI

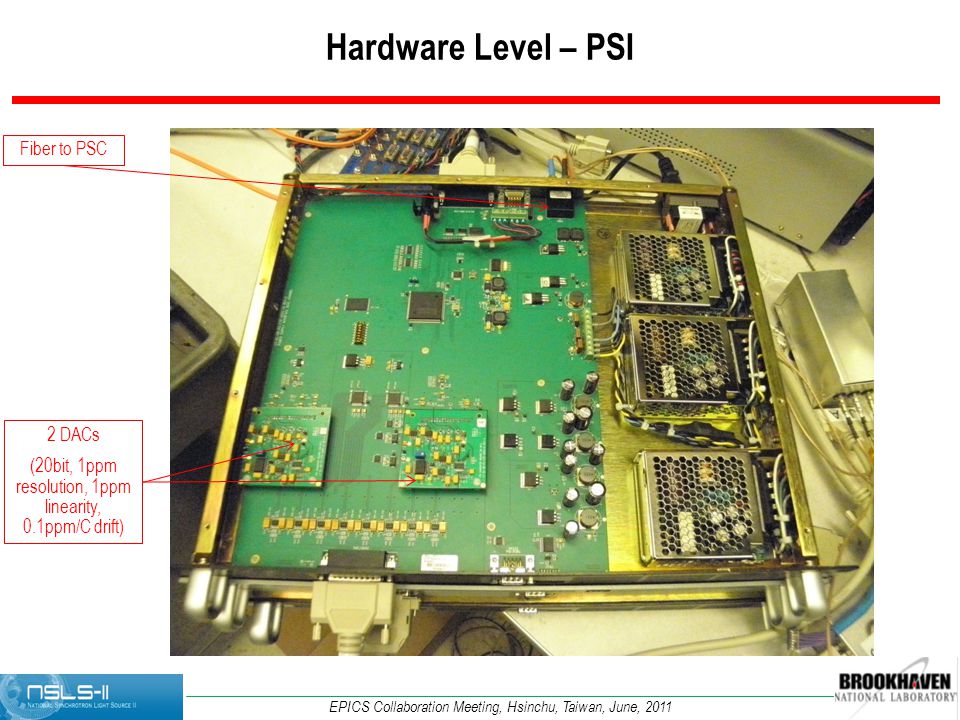

20. EPICS Collaboration Meeting, Hsinchu, Taiwan, June, 2011 Hardware Level – PSI Fiber to PSC 2 DACs (20bit, 1ppm resolution, 1ppm linearity, 0.1ppm/C drift)

21. EPICS Collaboration Meeting, Hsinchu, Taiwan, June, 2011 NSLS-II power supply control system Want it ? You got it. NSLS-II power supply control system is a open source hardware.

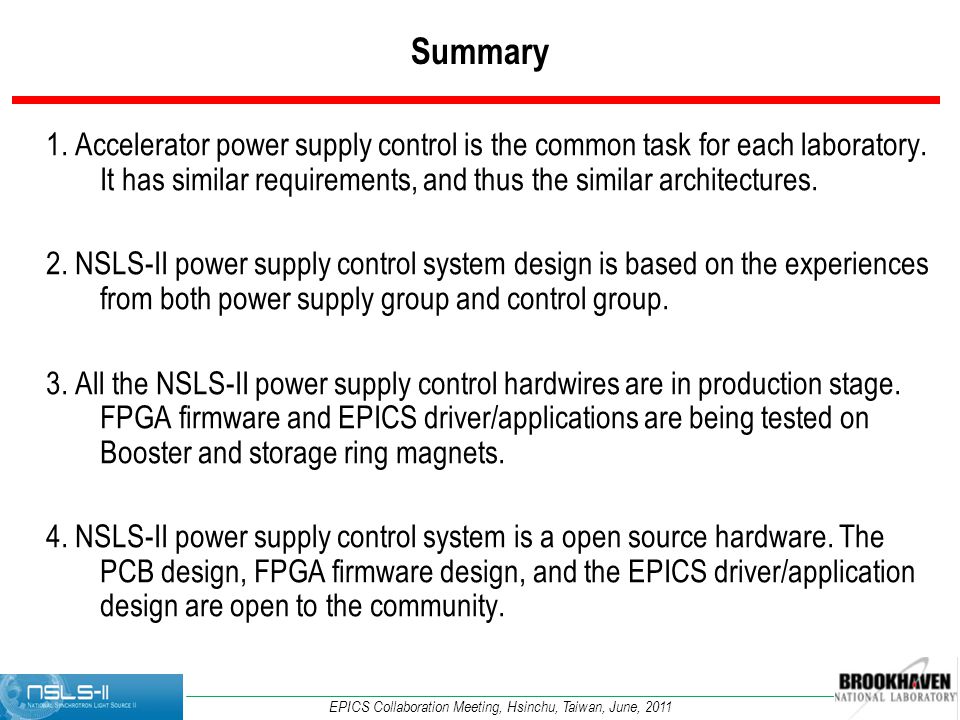

22. EPICS Collaboration Meeting, Hsinchu, Taiwan, June, 2011 Summary 1. Accelerator power supply control is the common task for each laboratory. It has similar requirements, and thus the similar architectures. 2. NSLS-II power supply control system design is based on the experiences from both power supply group and control group. 3. All the NSLS-II power supply control hardwires are in production stage. FPGA firmware and EPICS driver/applications are being tested on Booster and storage ring magnets. 4. NSLS-II power supply control system is a open source hardware. The PCB design, FPGA firmware design, and the EPICS driver/application design are open to the community.
