1. Powerline Networking Montelle Kline

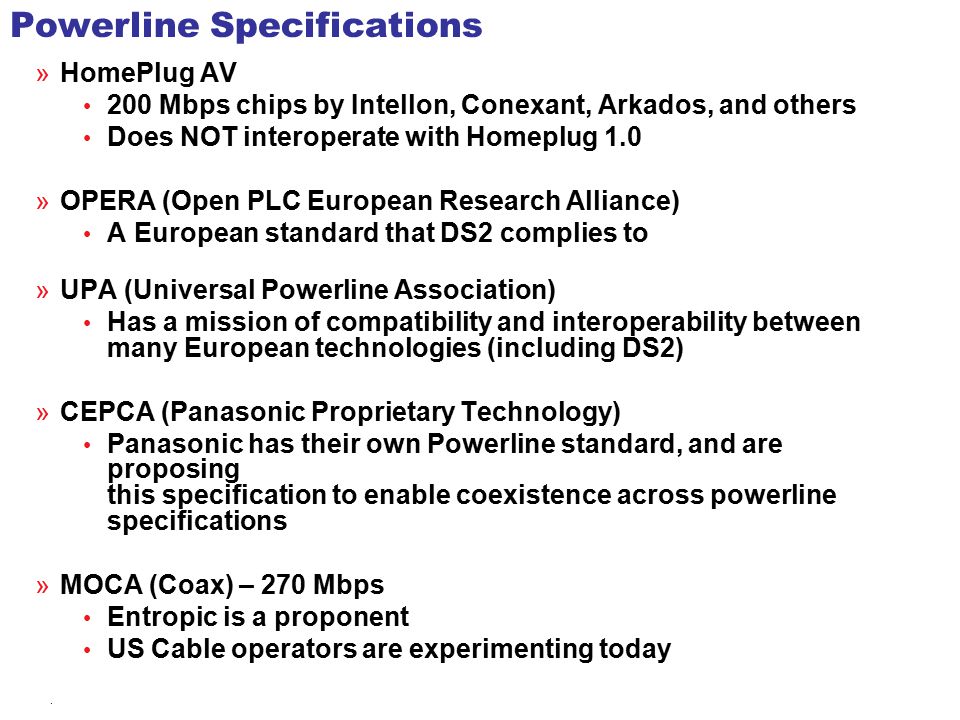

2. . Powerline Specifications »HomePlug AV 200 Mbps chips by Intellon, Conexant, Arkados, and others Does NOT interoperate with Homeplug 1.0 »OPERA (Open PLC European Research Alliance) A European standard that DS2 complies to »UPA (Universal Powerline Association) Has a mission of compatibility and interoperability between many European technologies (including DS2) »CEPCA (Panasonic Proprietary Technology) Panasonic has their own Powerline standard, and are proposing this specification to enable coexistence across powerline specifications »MOCA (Coax) – 270 Mbps Entropic is a proponent US Cable operators are experimenting today

3. Powerline Networking The easiest solution to connect your whole home! Works over existing power lines inside the home Plug and Play Expand a high-speed network from any wall outlet Eliminates wireless “dead spots”

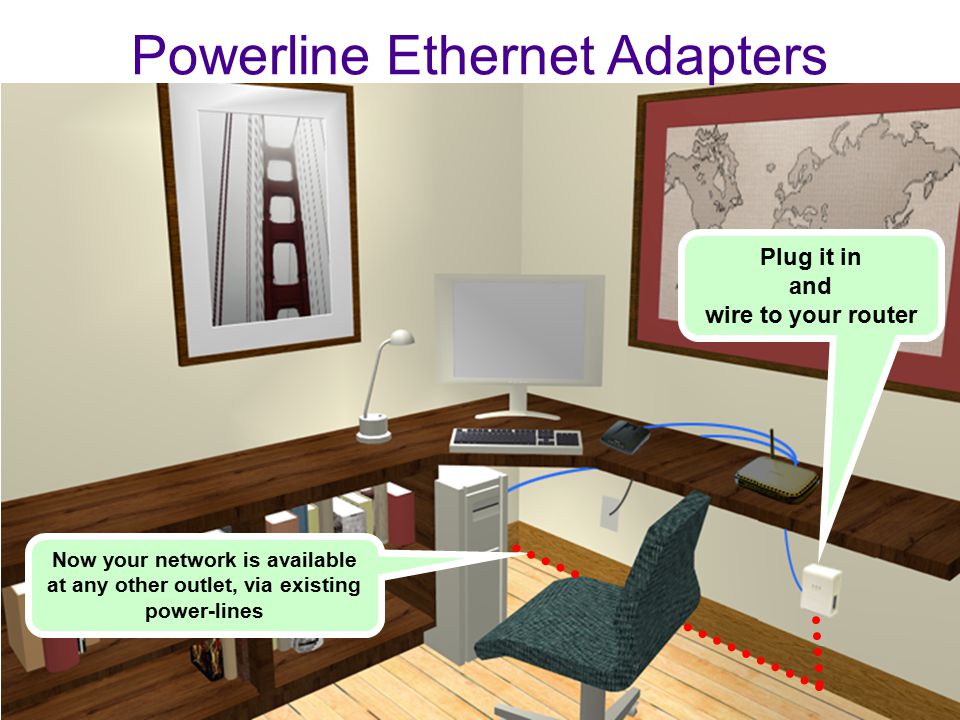

4. Powerline Ethernet Adapters Plug it in and wire to your router Now your network is available at any other outlet, via existing power-lines

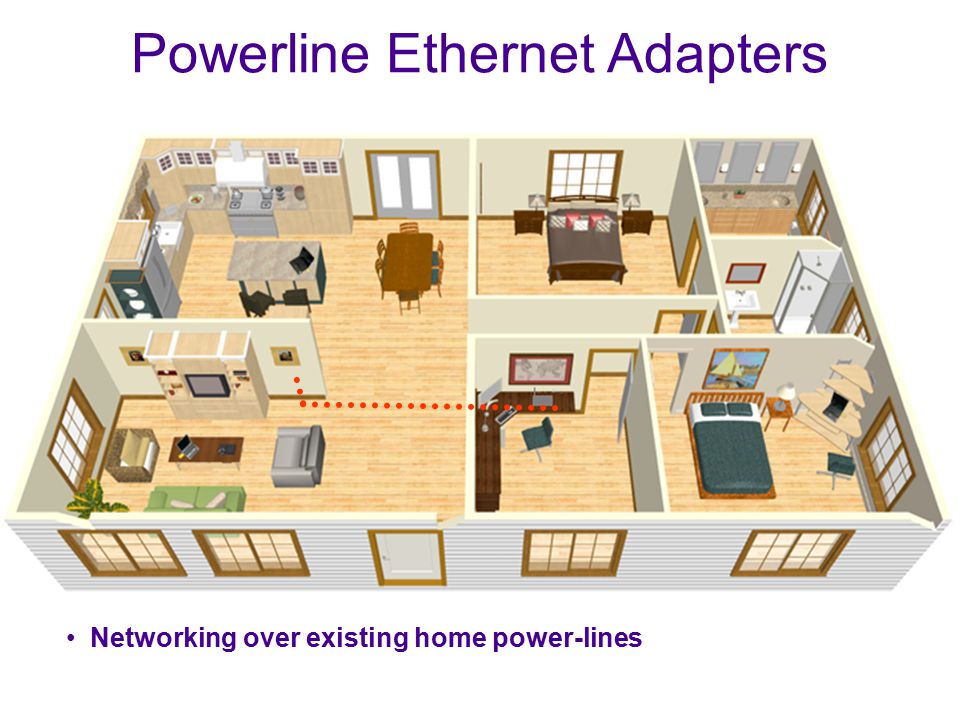

5. Powerline Ethernet Adapters Networking over existing home power-lines

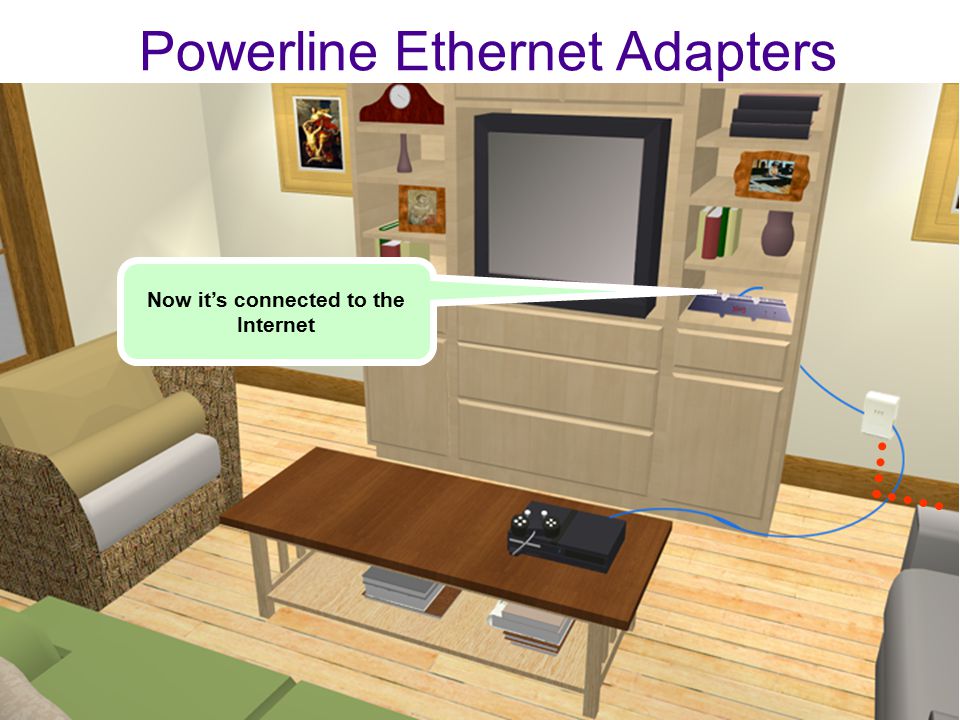

6. Powerline Ethernet Adapters Now it’s connected to the Internet

7. 14 Mbps 200 Mbps 85 Mbps XE102 Ethernet Adapter (incl XE102G pair) WGXB102 Wireless Range Extender Kit XE104 Ethernet 4-port Switch HDXB101 Powerline HD Ethernet Adapter Kit NETGEAR Powerline Products speed XE103 Ethernet Adapter single port Video QoS

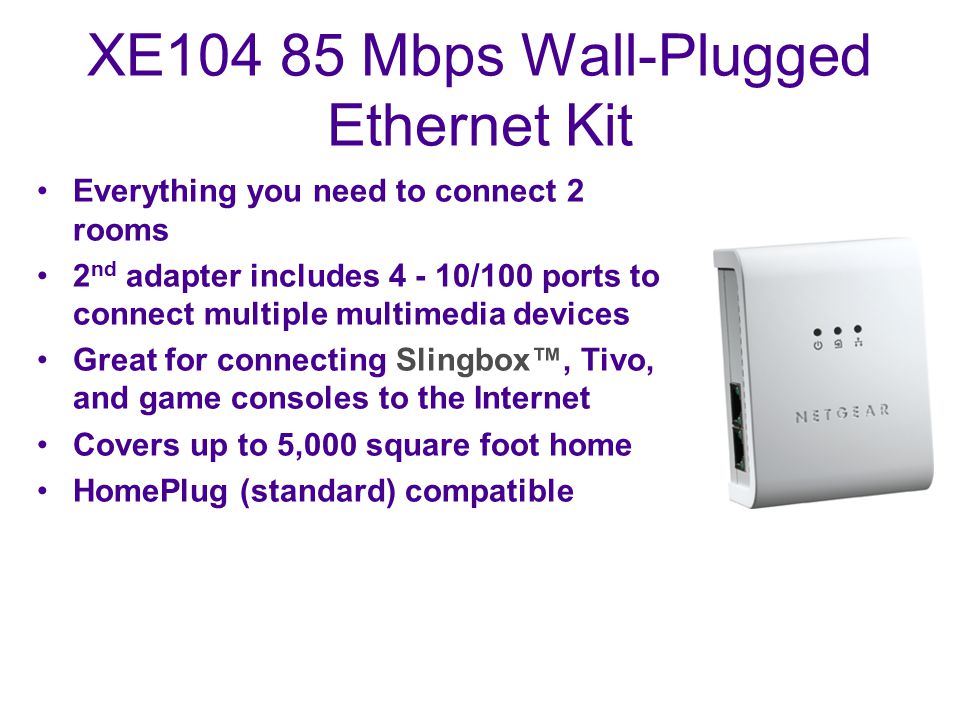

8. XE104 85 Mbps Wall-Plugged Ethernet Kit Everything you need to connect 2 rooms 2 nd adapter includes 4 - 10/100 ports to connect multiple multimedia devices Great for connecting Slingbox™, Tivo, and game consoles to the Internet Covers up to 5,000 square foot home HomePlug (standard) compatible

9. Powerline Ethernet Solutions Internet Viiv Certified RangeMax™ N EXT Wireless-N Gigabit Edition Router Powerline XE104 85Mbps Powerline XE104 85Mbps

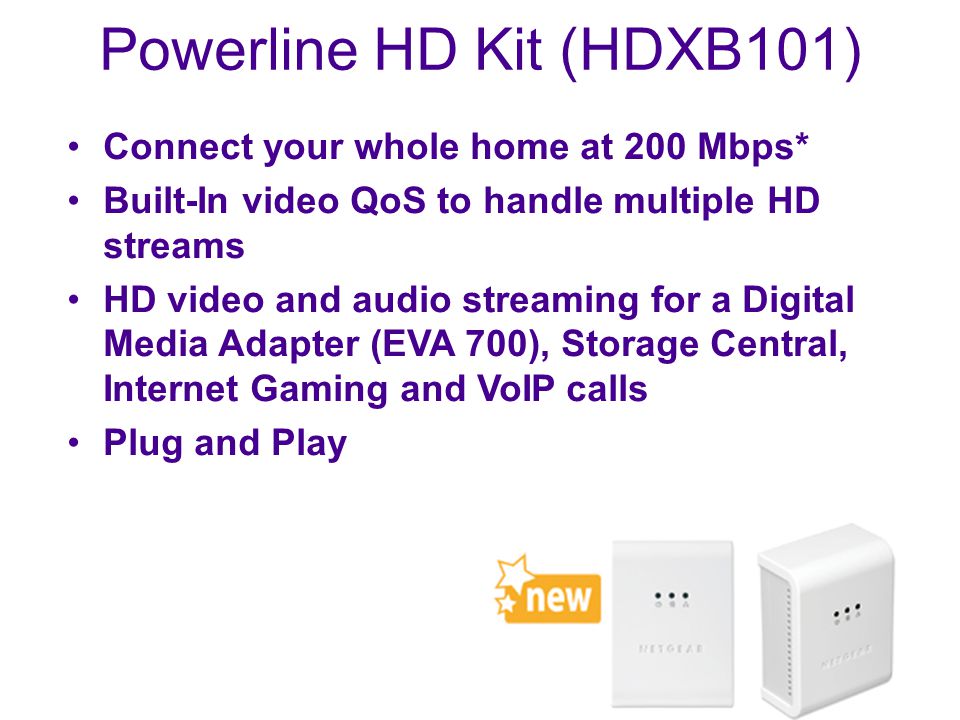

10. Powerline HD Kit (HDXB101) Connect your whole home at 200 Mbps* Built-In video QoS to handle multiple HD streams HD video and audio streaming for a Digital Media Adapter (EVA 700), Storage Central, Internet Gaming and VoIP calls Plug and Play

11. Powerline Ethernet Solutions Internet Viiv Certified RangeMax™ N EXT Wireless-N Gigabit Edition Router Powerline HDX101 200 Mbps QoS Powerline HDX101 200Mbps QoS

12. FAQ – PowerlineHD Ethernet Adpaters Why isn’t it grounded (3 plugs)? The lack of a ground allows the user to plug it in up-side down in the top outlet, if they have to put a power brick in the bottom outlet and need the bottom outlet to be uncovered. The product works without a ground. How many total Powerline adapters can be installed in a home? Up to 10, but more than 4 are very rare. Is there surge protection in the device? Yes. A power surge will not fry the device. Can it coexist with Linksys and other powerline products on the market? Yes, but Linksys powerline is not selling in many places, and NETGEAR is over 95% of the home installed base in the US. Can it work off the sub-box / node? Yes Can you use this outdoors? Can it be made secure from outsider plugging into my network? Yes, but is not recommended, as water might get into the little vent holes of the unit. Yes, it can be made password protected. It is much harder to hack than wireless, for which a person can be parked in their car two houses down... How do you assign addresses / security so your apartment neighbors don’t connect to your PL? Through the security utility in the CD. The password is on the unit itself, or you could set your own.
