1. Techniques and Technology for Water Leakage Management
Mike Tennant BA (Hons), DipM
Director of Sales and Business Development

2. Content Brief Introduction to Halma Water Management1
Brief Introduction to Halma Water Management 2
Strategy for Leakage Control 3
Assess – DMA, Flow Measurement, Network Model, Data Logging 4
Localize – Noise Logging ‘Permalog’, Fixed Networks ‘PermaNet’ 5
Locate – Leak Noise Correlation, Acoustic Confirmation 6
Control – Intelligent Pressure Management

3. Halma Water Management
The world’s leading water management company
Proven reputation for innovation, quality and design
Global sales and distribution network
Huge range of best selling products
Equipment used throughout the world
Highly experienced, tailored solutions and support
Uniquely placed to deliver an integrated solution to major projects
Partnerships based on Understanding and delivery
Local presence to support projects
Saving Money
Saving Time
Saving Water

4. Four water conservation experts now working together
Halma Water Management
Four water conservation experts now working together
as one, with one name, one sales force, one global distribution network and one board of directors.
HWM successfully combines the reputation, experience, innovation, knowledge, products and customer service of these four well respected companies into one global solution for the industry.

5. Halma Water Management
Palmer Environmental
The worlds largest supplier of leak detection and pressure control equipment to manage leakage in water networks. Designed the first correlator in 1979 and have pioneered acoustic noise logging and fixed network systems.
Radcom Technologies
Market leader in the design and manufacture of rugged, innovative data logging and telemetry equipment for water and environmental industries. Now introducing innovative Wastewater solutions.
Hydreka
Specialised flow measurement systems for all parts of the water cycle, including open channel systems and environmental monitoring.
Fluid Conservation Systems
Market specialist in the USA for Palmer, Radcom & Hydreka products.

6. Halma Water Management – Sales Structure
Managers
UK x2
Sales Manager
China
Sales Manager
Canada
Sales Manager
Europe
Sales
Managers x6
Hydreka Export
Territories
Sales Manager
Asia
HWM
Middle East
Sales Manager ROW
HWM is an export driven company with a team of dedicated Sales Managers negotiating framework agreements with customers and distributors throughout the world.

7. Halma Water Management – Distributors
Algeria
Argentina
Australia
Bulgaria
Belgium
Bolivia
Bosnia
Brazil
Canada
Chile
China
Colombia
Croatia
Cz Rep
Denmark
Ecuador
Egypt
Finland
France
Gabon
Germany
Greece
Hong Kong
Hungary
India
Indonesia
Iran
Ireland
Italy
Ivory Coast
Japan
Jordan
Kenya
Korea
Kosovo
Latvia
Malaysia
Mexico
Moldova
Morocco
New Zealand
Norway
Pakistan
Peru
Philippines
Poland
Puerto Rico
Romania
Russia
Saudi Arabia
Serbia
Slovenia
South Africa
Spain
Sweden
Thailand
Tunisia
Turkey
Ukraine
Uruguay
Venezuela
Halma Water Management – Distributors
Over 50
Distributor
Countries
We have a worldwide network of distributors covering almost all geographic regions and experience in supplying direct to aid/government funded projects

8. Why Detect Leaks?
“Throughout the world, water resources continue to be spoiled, wasted and degraded. The consequences for humanity are grave”
Ban Ki Moon United Nations Secretary-General December 2007
Cartoon courtesy of the World Bank (Water & Sanitation Sector)

9. Strategy for Water Leakage Management
The process of measuring flows of water in the network to establish how much is being lost and in which areas, includes establishing DMA’s, Flow Measurement and Data Logging
Localisation - identifying potential leak areas within the water network
Correlation – pinpointing a leak location to within a few centimetres
Confirmation - using acoustic microphones to verify the leak position
Customer Side – identifying leaks on the customer’s side of the meter
Reducing pressure to save water, minimise leakage,
extend asset life and reduce burst frequency
Assess
Localize
Locate
(Pinpoint)
Pressure Control

10. Assess
Data Logging
& Telemetry Solutions
Flow Measurement
Solutions

11. Establishment of DMA’s
Traditional DMA Model -Create district metered areas, install flow measurement devices and data loggers
Consider the implications, and best practice (DMA size v localisation) balance for you – What is the best Solution for your Network

12. DMA concept Reservoir DMA WPZ Pump District Meter & Pressure Sensor
Zonal Meter DV
DMV
DMA
WPZ 12

13. Flow Measurement Solutions for the Water Network

14. Flow Measurement Solutions - HydrINS
HydrINS Electromagnetic
Insertion Flow-Meter
Easy installation with hot-tap capability no need to stop flow or cut pipe
Flow and pressure measurement. Measures water velocity in full pipes.
Advanced processing techniques provide high accuracy even at low flow rates.
Choice of stem lengths.
Submersible transmitter.
Sturdy construction (3mm thickness on 700mm and 1000mm stem lengths)
Probe head with flow
direction arrow and
alignment bars
Communication Port
& Pulse output
Safety chain
Plastic stopper C
Brass clamping nut
Pressure monitoring
port
Sensor

15. Flow Measurement Solutions - HydrINS
HydrINS Electromagnetic
Insertion Flow-Meter
Flow and pressure measurement. Measures water velocity in full pipes.
Advanced processing techniques provide high accuracy even at low flow rates.
Easy installation with hot-tap capability.
Choice of stem lengths.
Submersible transmitter.
Sturdy construction (3mm thickness on 700mm and 1000mm stem lengths)
HydrINS is one of the most accurate flow measuring devices available on the market, particularly at low flows
Probes can be supplied in 4 different insertion lengths depending on the pipe size:
300mm (12”)
500mm (20”)
700mm (27”)
1000mm (39”)
They can be used on any pipe between 100mm (4”) to 8000mm (360”)

16. Flow Measurement Solutions - ChronoFLO
ChronoFLO Clamp On Transit
Time Flow-Meter
Non invasive flow measurement
No loss of pressure or risk of leakage
Stable flow measurement in difficult conditions on most pipe material Advanced digital technology
Highly accurate even at low flows
Portable or fixed using battery or mains Rugged for field use and easy to deploy
LCD displays flow rate in both directions
Optional gauge measures pipe thickness
· Measure Flow – Measure Flow now
· Site Setup – Enter site parameters
· System Setup – Your meter preferences
· Data Management – File and Logging options
· Diagnostics – Advanced functions
· Charge Battery – Charge battery
· Setup Summary – View important settings

17. Flow monitoring
Halma Water Management flow monitoring equipment

18. Providing flow information – where is the water going?

19. Analyse trend information

20. Radwin automated leakage statistics

21. Traffic light system

22. Case Study - DMA Set-Up in Veolia 3-Valleys Water
Ian DeCiantis
Leakage & Network Support
Team Leader Eastern/Western Regions
Three Valleys Water
Nov Mihajlovic
IT Applications Developer

23. Veolia Water Supply Area

24. TVW Reporting Structure
6 Resource zones
33 Hydraulic zones
780 District zones

25. DMA concept Reservoir DMA WPZ Pump District Meter & Pressure Sensor
Zonal Meter DV
DMV
DMA
WPZ

26. Data-Handling
Typical Location

27. Server picks up the daily messages from GSM or SMS loggers
Modem to Modem communications
DAILY MESSAGES
GSM Network
Daily messages
GSM modem
Daily Messages
Server picks up the daily messages from GSM or SMS loggers

28. Typical DMA flow profile
From one of our 750+ District meter areas

29. Company Reports

30. Data Logging Solutions
& Telemetry Solutions

31. Why use Data Loggers? To gather data on network performance
To plan network expansion, pressure zones, DMA’s
To create network models
To ensure regulatory compliance
To measure leakage
To verify performance of Pressure Reducing Valves (PRV)

32. Why use Data Loggers?
Data collected from the logger shows that when the flow of water is low during the night, the water pressure increases. This feeds leaks and increases water lost through leakage.
In this example, HWM provided the equipment needed to regulate the pressure automatically, thereby making instant savings in water consumption.
High
Pressure
LowFlow
Data received from a two channel logger
recording flow and pressure from the same site.

33. Data Logging – Portable Solutions
LoLog Single Input Channel Can be attached to any pulse output meter. Can be used to help planners assess demand in residential areas. Waterproof and portable IP68 submersible 5 year battery life Infra Red Rugged Design
Pressure Transient Specialised logger Ideal for monitoring rapid pressure changes in water pipes generated by pumps, Pressure Reducing Valves (PRV) and other valves. Supplied with one input for an external pressure transducer.
LoLogLL / Vista Two Input Channels All LoLog features with one or two input channels Memory 16,000 readings LCD display (Vista only) Vista can be used as a solid state pressure gauge, or local indicator for other electrical signals (e.g. digital flow meters)

34. Data Logging with Telemetry Options
MultiLog LX Mid Range Data Logger One or two digital flow input capabilities. Internal pressure sensor Advanced SMS data compression Ideal for monitoring flow and/or pressure to assess demand, leakage and conformance. 5 year battery life.
MultiLog GPRS Cellular Telemetry Logger Downloads data to PC by sending an directly from the logger. Can send hourly data if required for near real time monitoring – making it ideal for dynamic flow and pressure analysis of network models.
MultiLog SMS/GSM Advanced Data Logger PSTN, SMS & GSM Up to 4 inputs. Monitors any combination of digital or analogue signals. No maintenance for 5 years. Can perform dynamic flow and pressure analysis of network models. Can conduct “fast sampling”. 5 year battery life.

35. Flow Zones provide valuable data to assess leakage
From one of our 750+ District meter areas

36. Question: How Big should your DMA be
Question: How Big should your DMA be? Do you need a DMA or larger flow measurement?
DMA concept
Creating DMA’s is expensive and time consuming – but gives valuable data
Insertion flow meters and modern data loggers make it much easier
Modern leak localisation can be used within or independent of DMA’s
The choice is yours to find the best ‘fit’ to your network
Reservoir
Pump
District Meter &
Pressure Sensor
Zonal Meter DV
DMV
DMA
WPZ 36

37. Localise
Leak Detection
Solutions

38. Leak Localisation – Step Testing
Step Testing is an alternative approach to Noise Logging and works at low pressure and on plastic pipes
It works by continually measuring the flow of water into a DMA as valves are shut off in sequence.
Testing usually takes place during the night when water consumption is at its lowest so that shutting off the supply causes minimum disruption.
The areas of the pipeline showing unexpected water losses can then be identified and investigated.

39. Leak Localisation – Step Testing
MAST (Mobile Advanced Step Tester) is a radio based system which gives the operator immediate notification of flow change at the receiver as a valve is operated.
This allows potential leak areas to be quickly identified and quantified, avoiding the need to complete a full step test for later comparison with logged data.
The MAST system comprises two instruments:
Data logger with high power radio transmitter
Portable flow indicator/recorder with integral radio receiver
The Original MAST
MAST has recently been extensively redesigned to be more portable and user friendly. The new system (MAST II) also features improved radio telemetry.
The New MAST II

40. Leak Localisation – Noise Logging used in a DMA set-up or independently
Loggers detect noise created by leaks.
They are easily deployed on valves using
magnets and can be placed permanently
or moved from site to site. Using them
causes no interruption to water supply.

41. Leak Localisation – Noise Logging
Permalog+ is an intelligent noise logger designed for permanent deployment or tactical deployment to survey large areas of network quickly and effectively
Fully automatic intelligent logger
Adaptable to all network situations
Innovative design for rapid deployment
Compact size
Low unit cost
Long battery life (5-7 years)
Patent protected
Aqualog extended logging mode
Flexible Data Collection:
“Lift and Shift”
“Drive By Mode”
“PermaNet via Radio Network”
“PermaNet via SMS Repeater”
Upgradeable to fixed network solution
Permalog+®

42. Leak Localisation – Noise Logging
Since the Permalog+ was launched in 2007, over 40,000 units have been deployed successfully throughout the world. When these figures are combined with sales for older models, there are now over 200,000 Permalogs in circulation worldwide.
Made in Wales

43. Leak Localisation – Noise Logging
Patroller II
Drive-by Data Capture
PDA based
Faster drive-by for reduced patrol times
Distance of transmission up to 150m from logger
Areas using Permalog with drive-by data capture include:
Las Vegas, El Paso, Hong Kong, 3-Valleys Water, Thames,
Birmingham, Beijing, Murcia, Almeria & Metz

44. Patrol Mode Standard Patrol Screen Can be used with ALL
Versions of Permalog
Logger signal every 2 secs
Proven Leakage detection algorithm

45. Lift & Shift Reload database Signal received Removes from list
Logger only sends signal
when swiped, then
automatically turns off

46. Aqualog Mode User defined start / stop time 3D AQ graphics
Used for in depth noise logging projects, leakage and detecting UFW users
PC downloadable

47. 28 Day History
The logger always has the last 28 day history can be displayed graphically or tabular

48. GPS Mapping
Loggers scanned on deployment can be given GPS position by PDA, later downloaded to Permalog software. Can plotted on mapping software or exported into your GIS system

49. Beijing Olympics 2008 Permalog used as a Burst Monitor

50. Beijing Olympics 2008
Three Permalog patrollers and 3,500 Permalogs were recently installed in Beijing’s municipal water distribution system to safeguard its water supply during the Olympics and beyond.
The Beijing Water Group originally purchased a set of 60 Palmer’s Permalogs in With the increasing demand of water supply and the approaching of Beijing Olympics 2008, the Group decided to improve its urban water network leakage detection system by purchasing more Permalogs.

51. 管网漏水监测和预警系统案例分享
在2006年的“中非论坛北京峰会”期间，在中心区累计发现并修复暗漏点25 处，有效地预防了爆管事故的发生，确保中非论坛期间无一例爆管事故的发 生，此举受到北京市政府的表彰
在2007年的春节及两会期间，中心区共发现暗漏点263处，无一例爆管事故发生，有效的保障了春节和两会期间的供水安全
汶川大地震，国家有关部委和专家组又指定Permalog漏水检测系统为灾后重建恢复管网运行的指定产品
2008奥运会场馆及奥运村周边地区以及北京市二环以内（含天安门、中南海、王府井等重点区域）进行漏水监测及报警， 并取得了很好的效果，受到国家嘉奖

52. Beijing Olympics 2008
Mr. Wang Yaowen, Chief Engineer of the Beijing Water Group said,
"The Permalog water network leakage detection system is one of the leading systems in the world. It has been used successfully in many major American and British cities for many years. This project means Beijing’s water networking leakage detection system is as advanced as the other developed cities in the world

53. Stokewood Permalog Project carried out by Thames Water

54. Stokewood Zone area

55. Stokewood WPZ - background
Slough, Windsor, Datchet, Colnbrook and Poyle
28 DMAs
Approx. 30 sq. miles
Approx. 120,000 population
High leakage, high recurrence
Continuous 4-5 leakage staff

56. Leak types found Mains SP VP Hydrants CSL OSV Other 12% 19% 22% 26% 9%
10% 2%

57. Progress towards target
Leakage level
Actual
Target
21/01/01
28/01/01
04/02/01
11/02/01
18/02/01
25/02/01
04/03/01
11/03/01
18/03/01
25/03/01
01/04/01
08/04/01
15/04/01
22/04/01
29/04/01
06/05/01
13/05/01
20/05/01
27/05/01
03/06/01
2.81Ml/d
1 Ml/d

58. Conclusions from project
Very reliable leak finding capability
Productivity increased by x2
Previously unseen amount of leaks identified in a short space of time
15% reduction in MNF within 4 months
Target level met - never previously achieved
Positive response from Area Leakage Engineers (labour-saving)
Significant cost reduction per Ml/d saved
Increasingly cost-efficient with time

59. Permalog strategy
Can be adapted to any situation, independent of scale
Well suited to areas of high recurrence and/or high leakage
Manpower savings combined with increased productivity
Long-term, sustainable approach
Becoming increasingly cost-efficient over time

60. 管网漏水监测和预警系统案例分享——节水，防爆管
水署新法測漏水管 年省逾億
2007年4月10日
【明報專訊】本港每年耗水約9億多立方米，由於水管老化，當中約四分一是在輸水過程中，在地底悄悄
溜走，水務署自2001年採用先進的探測儀器，及早發現地底水管滲漏位置，進行補救，有別過去依靠人手檢查。單是過去5年，估計累積「慳水」2.6億立方米，相當於8.5億元的食水。
新技術可及早發現喉管問題，令爆水管情　減少。
水務署資料顯示，2001/02年本港爆水管個案共有
1884宗，2005/06年只有1526
宗，下降幅度為19％。爆水管數字下降，主要由
於該署近年採用先進的測漏技術。
新技術減少爆水管情　
該署提升水管測漏的效率後，每年發現的滲漏個案，由01/02年的5054宗，下降25％至05/06年的3758宗，即平均每日約10宗，單是去年度節省的食水量已高達3945萬立方米，佔全年供水量的4％。
水务署高級工程師林正文应用Permalog

61. PermaNet Fixed Network – Noise Logging
Benefits of the PermaNet fixed leak detection network
Automatic leak alarm
Immediate response – more water saved
Leak targeted when combined with flow data
Critical areas under control
Areas with a PermaNet fixed leak detection network currently include Hong Kong, Birmingham, Inverness, Barnsley, Tonsberg, Cambridge University & Metz

62. Leak Localisation – Noise Logging - PermaNet
SMS/ GPRS / WIFI Gateway
Global Net
SMS/GPRS
Radio Data
Logger
SMS
Repeater
Booster receiving on 868MHz, transmitting on 153MHz
As an alternative to drive by data capture, permanently deployed Permalogs can be combined with Network Radio or SMS Repeater to send leak data directly to an office PC or mobile phone via dedicated web hosted or local software packages.
Permalog using 868 MHz

63. PermaNet - Permanent Leak Detection System
Benefits -
DMA’s under control - HRR/ ‘problem DMA’s’
Efficient Intervention - minimise disruption
Leak sizing with real time flow and leak data
Improves reaction time to respond

64. Permanent Leak Detection via PermaNet Options…..
SMS/GPRS
Radio Data
Logger
SMS/ GPRS Gateway
Global Net
Booster receiving on 868MHz, transmitting on 153MHz
Permalog with Permacom
Flow & Pressure
Acoustic
Leakage
SMS repeater
SMART Log
AMR 64

65. Pushing the boundaries…..
10km Submaster
Hoylandswaine
5km Submaster
Worsbrough
Central Concentrator
Monk Bretton Res

66. External aerial position, on pump house roof
Central SMS/GPRS Data Concentrator (The higher the aerial elevation, the increased radio network coverage)
External aerial position, on pump house roof

67. Central SMS/GPRS Data Concentrator (The higher the aerial elevation, the increased radio network coverage)

68. Range up to 2000m depending on site conditions
Above ground mounted repeater
Range up to 2000m depending on site conditions

69. Viewing and analysing the data via GlobalNet web database
Radio-Tech have been designing and manufacturing Radio-Telemetry for over a decade.

70. GlobalNet Front Screen Login HWM PermaNet User Login
GlobalNet Web Viewer - Login
GlobalNet Front Screen Login
HWM PermaNet User Login

71. GlobalNet Web Viewer – Summary Screen

72. GlobalNet Web Viewer – Registered Permalogs

73. Nightline increase on 26/12/07 by 1.2 L/S
Real time Monitoring DMA A233 Monk Bretton
Nightline increase on 26/12/07 by 1.2 L/S
Nightline 4.5 L/S

74. Real time Monitoring DMA A233 Monk Bretton
Logger 114 in No Leak mode until 26/12/07, changes to Leak mode to correspond with DMA flow increase

75. Real time Monitoring DMA A233 Monk Bretton
Logger 114
Logger 115
4” MB

76. DMA A233 – Monk Bretton Barnsley
DMA Facts
3900 total properties
45 Km mains (mixed materials)
On average takes 85 hours to sweep DMA by traditional methods
196 Permalogs deployed using PermaNet
7.5 L/S project start nightline

77. Historical Nightline DMA A233 Monk Bretton
NEW RECORD LOW
5 YEAR
NIGHTLINE
Start of PermaNet Nightline 7.5 L/S
3 months of PermaNet Nightline 4.5 L/S

78. Repair History Monk Bretton DMA, Barnsley
Sweep Date Leaks Found
1 05/09/ Comm Pipe leaks / 2 leaks stopped onsite
2 17/09/ Comm Pipe leaks / 2 stop tap leaks
3 24/09/ Supply pipe leak
4 05/10/ Comm pipe leak
5 18/10/ Comm pipe leak
6 26/10/ Comm pipe leaks / 1 Mains leak / 1 valve leak
7 20/11/ Valve leak
8 04/12/2007 NO LEAKS PROMOTED
9 07/01/ Comm pipe / 1 Mains leak / 1 valve leak
Average time taken 26hours per sweep
(Last 3 sweeps 10hours each)
(compared to 85hours before)

79. Locate
Leak Detection
Solutions

80. Leak Detection - Correlation
MicroCorr 7
PDA/PC based Leak Noise Correlator
Analogue sensors
PDA/PC interface
Highly portable
Bluetooth technology
MicroCorr DX
Digital Leak Noise Correlator
Digital sensors, transmission and
processing
Compact design
MicroCALL + Digital Leak Noise Correlator Automatic 3 outstation correlation Colour graphics Advanced software
SoundSens “i” Correlating Noise Loggers Infra Red download Fast deployment Custom recording Cases can be linked

81. Leak Detection - Correlation
The correlation formula
L = D - (V x Td) 2
Leak position
V x Td L L D

82. Leak detection
Palmer Environmental leak detection equipment

83. Leak detection SoundSens-i Multipoint Correlator
SoundSens “i” Correlating Noise Loggers Infra Red download Fast deployment Custom recording Cases can be linked
SoundSens-i Multipoint Correlator

84. Leak Detection – Confirmation
Lmic
Electronic listening stick
Portable
Lightweight unit
Easy “trigger” operation
Volume/sensitivity rotary control
Excellent performance
Xmic
Digital Ground
Microphone
Increased functionality, display, filters
Minimum (noise) level profiling (MLP)
Wind / airborne noise protected foot
Xmic Lite
Ground Microphone System
High quality sound
Auto and manual filtering
Multi function display
Minimum (noise) level profiling (MLP)
Hand probe attachment

85. Customer Side Leakage
Pinpoints leak locations on acoustically challenging pipelines (e.g. plastic pipes)
In built tracing wire in the 50m reel.
High accuracy of leak detection reduces excavation costs and
improves repair time.
User friendly design
Low cost unit

86. Customer Side Leakage - Leakfrog
Easy to deploy and collect.
Easy to interpret results.
Indicates leakage, wastage and flow.
Custom LCD display indicates
Interval between pulses, leak size, unit activity and other data.

87. Automatic Meter Reading - SMART System
Low cost alternative to fixed network AMR
Rapid drive-by download speeds
Can be used to:
provide accurate customer billing
monitor customer side leakage,
enforce drought restrictions
apply rising block and/or seasonal tariffs
detect meter fraud.

88. Repair all leakage identified from active leakage detection survey
Timely repairs
Repair all leakage identified from active leakage detection survey

89. Control
Pressure Control
Solutions

90. Pressure Management: Why Manage Pressure?
Simple and immediate method of reducing leakage
Reduced volumetric flow
into a zone
Lower pressure-related
consumption
Fewer burst pipes
More consistent service
to the consumer

91. Typical pilot adjusting screw
How Does A PRV Work?
Why Control ?
When adjusting the pilot, screw in and the PRV increases pressure on the outlet, by venting water from the PRV top chamber
When adjusting the pilot, screw out and the PRV decreases pressure on the outlet, by filling the PRV top chamber with water
Water in the top chamber then pushes
the PRV seat down and releases the
seat upwards when water is vented
Typical pilot adjusting screw

92. Typical FM Site Installation

93. FM Installation Plan FM - Controller Box (end view) Solenoid Box
Actuator
PRV & Meter
Using Upstream
Pressure To Control
Manual Safety
Override

94. Without PRV Controller
Fluctuating demand
Constant pressure
Total week’s flow 13.6Ml
Maximum demand
Nightline
Lowest Demand.
Pressure Much Too High!

95. With PRV Controller Immediate Water Saving of 6% Fluctuating demand
Pressure adjusted accordingly
12.8Ml in the week
New nightline
Immediate Water
Saving of 6%

96. HWM Pressure Management Solutions
Hydraulic Actuator
Accurate PRV Control
Long life brass build
Acts as the interface between hydraulic PRV and electronic controller
Fitted in place of the adjusting screw on the standard pilot on PRV
Easy to install
ControlMate 2
Pressure
Management System
Enables pressure into a zone to be switched between two pre-set values (low and high)
Easy to use.
Self contained.
5 year battery life.
ControlMate FM Pressure Management System Enables pressure into a zone to be continually adjusted according to actual demand (flow modulation) or a pre-programmed time. Maximum potential water savings.
ControllerCom High Visibility Comms Can be fitted to any HWM controller Logs data Two way SMS reporting GSM communication Alarm option Fully adaptable Versatile set up options.

97. UK Pressure Management
The Thames Valley Experience

98. Pressure Management The Thames Valley Experience
Thames Valley Area and Leakage Position
Types of Pressure Control
Recognising the full Benefits
Tall Buildings and LIDAR Data
The Future

99. Our region Over 31,000km of water mains and 8 million customers
Thames Valley area 860,000 properties
7 WRZ
165 FMZ’s
550 DMA’s
Over 31,000km of water mains and 8 million customers
Nearly 68,000km of sewers and 13.8 million customers

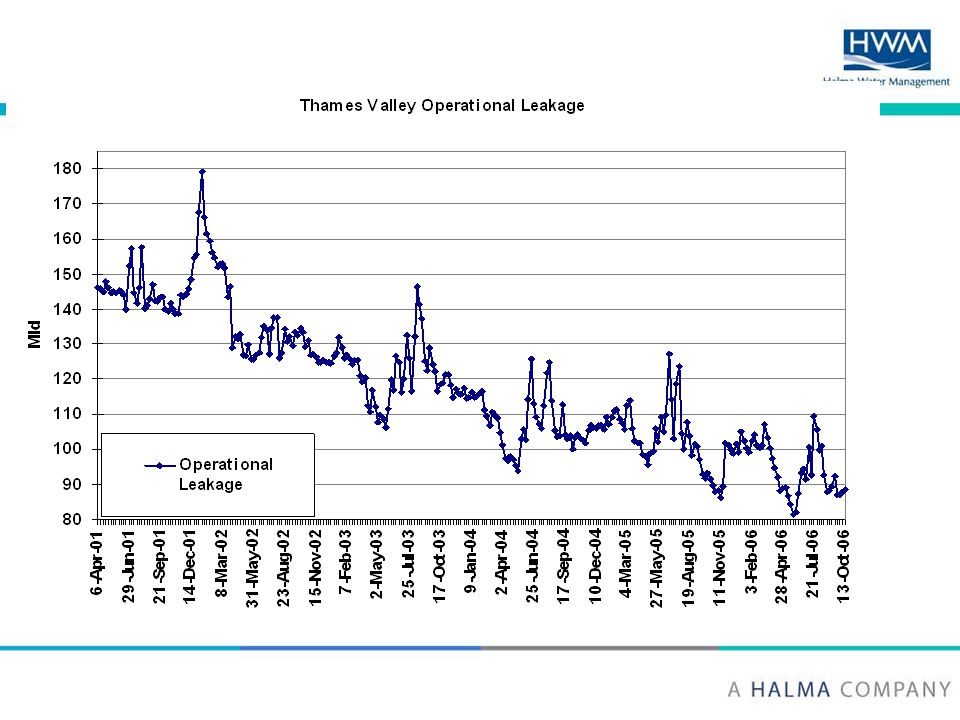

100. Leakage position
Leakage in the Thames Valley at its lowest for ten years and is comparable to other water companies in England and Wales.
Our challenge is greatest in London, where over a third of our mains are over 150 years old
We began in 2002 a long term programme of mains replacement in London – the only truly sustainable way to bring down leakage.
Replacing mains is expensive and disruptive. The complexity and scale of the work is unmatched by any other water company.
This is a part of our wider water resources plan for the future when demand is expected to increase and our supply resources will change

102. Time Switched Controller.
PRV Photos
Fixed Outlet PRV
Time Switched Controller.
Closed Loop System
Flow Modulation

103. Wide Open to Fixed Outlet

104. Timed Profile

105. Flow Modulated

106. Advantages of Flow Modulation.
Fully flow modulated manages & stabilises Network pressure 24hours a day, not only night time pressures.
Complies with the Fire Brigades requirements.
Controllers are easily by-passed should they become suspect.
Set to fail at max outlet pressure of the PRV.
Can Reduce Headloss.
Reduces Daily Demand over a 24 hr period
Wessex Controllers instantly react to changes in flow
Reduction in Active Leakage Detection in area completed

107. Typical flow modulated Wessex controller installation

108. Recognising the Benefits
Instant Leakage and Distribution Input Saving
Transmission Benefits
Stable Pressure means reduced:
bursts
Leakage Recurrence
Detect and Repair Activity
Cost to maintain stable leakage level
A calm network for Operations and the Customer

109. HWM Pressure Management Solutions
Hydraulic Actuator
Accurate PRV Control
Long life brass build
Acts as the interface between hydraulic PRV and electronic controller
Fitted in place of the adjusting screw on the standard pilot on PRV
Easy to install
ControlMate 2
Pressure
Management System
Enables pressure into a zone to be switched between two pre-set values (low and high)
Easy to use.
Self contained.
5 year battery life.
ControlMate FM Pressure Management System Enables pressure into a zone to be continually adjusted according to actual demand (flow modulation) or a pre-programmed time. Maximum potential water savings.
ControllerCom High Visibility Comms Can be fitted to any HWM controller Logs data Two way SMS reporting GSM communication Alarm option Fully adaptable Versatile set up options.

110. Controller Performs Well when a Shopping Centre Catches Fire at 4am

111. HWM Customers

112. Key Customer References
Strategic Framework Partner to Water Companies throughout the world, including:
Thames Water, Veolia Water, Suez, Sino-French, WSD Hong Kong, Beijing Water, Scottish Water, Yorkshire Water, United Utilities, South Staffordshire Water, Southern Water, Wessex Water, Essex and Suffolk / Northumbrian Water, 3-Valleys Water
Worldwide Customer base including Middle East, Asia, Americas and Europe
Expertise and experience in large contract supply and support
All Major UK Water Companies supplied

113. HWM Training Support

114. Leak Detection Introduction Pressure Management Leak Correlation
HWM Training Support
There is no use HWM supplying the best equipment if our customers don’t know how to use it properly! Our training is designed to improve confidence, performance and results.
Leak Detection Introduction
Pressure Management
Leak Correlation
Acoustic Leak Sounding
Step Testing
Localising with Noise Loggers
Surveying with Aqualog
Flowmeters
Leakage Detection & Management
Book (125 pages)
Examples of HWM 1,2 and 3 Day Training Courses
On Site Support
& Servicing

115. HWM Training Support
The First Water Management Training Facility Built in Wales
Every Water Company in the United Kingdom has trained at this site
Many international visitors have trained here too

116. Halma Water Management
The world’s leading water management company
Proven reputation for innovation, quality and design
Global sales and distribution network
Huge range of best selling products
Equipment used throughout the world
Purpose built UK based training facility
Highly experienced, tailored support
A clear vision for the future of water management
Saving Money
Saving Time
Saving Water

117. Any Questions?
