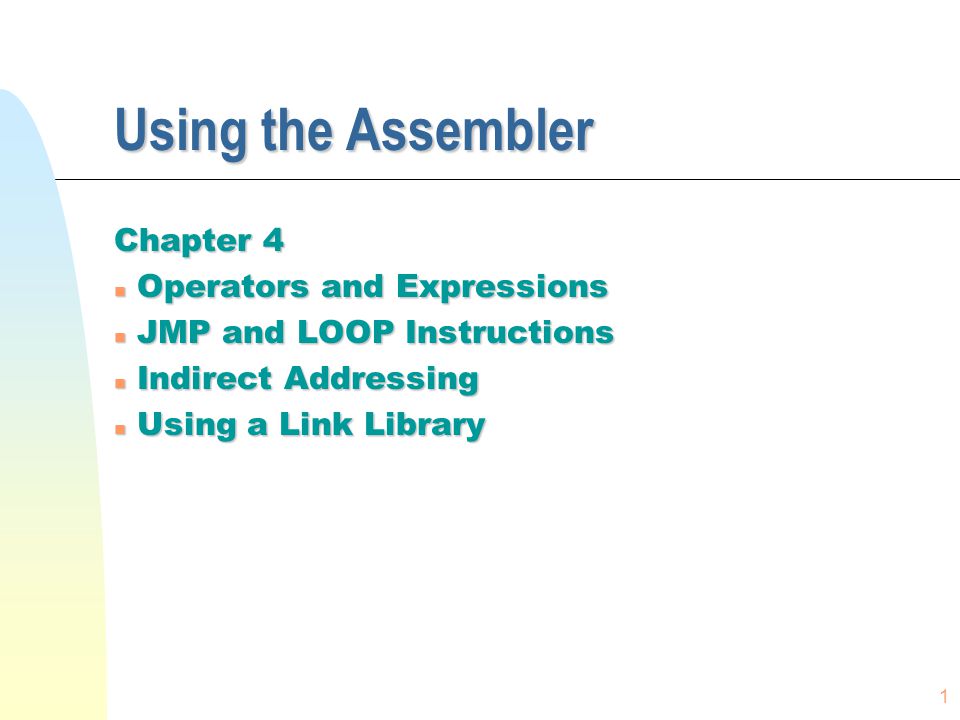

1. 1 Using the Assembler Chapter 4 n Operators and Expressions n JMP and LOOP Instructions n Indirect Addressing n Using a Link Library

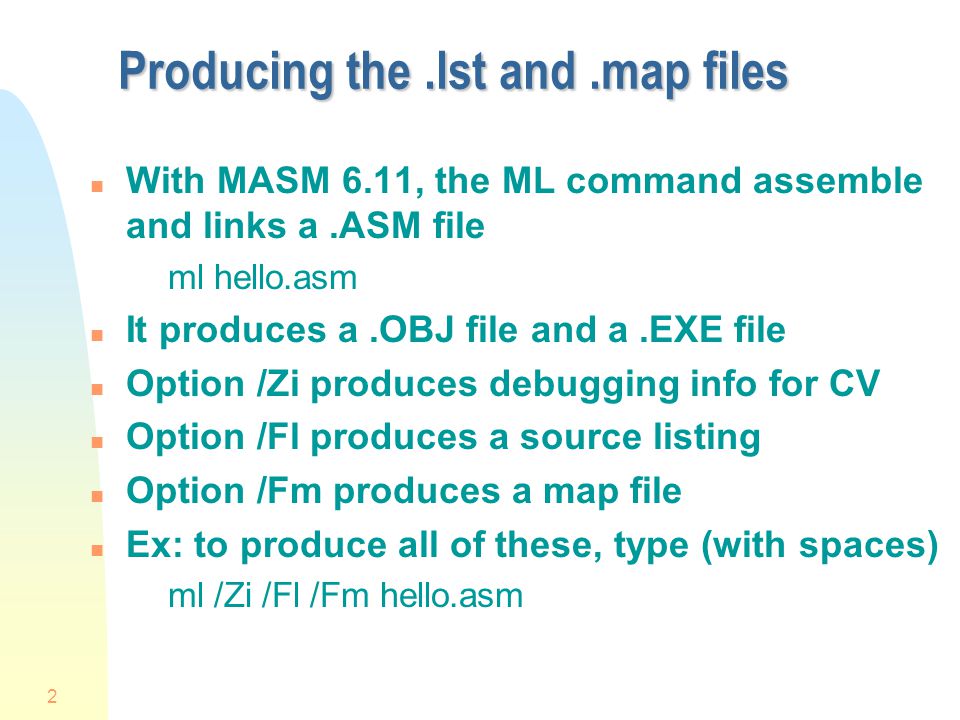

2. 2 Producing the.lst and.map files n With MASM 6.11, the ML command assemble and links a.ASM file ml hello.asm n It produces a.OBJ file and a.EXE file n Option /Zi produces debugging info for CV n Option /Fl produces a source listing n Option /Fm produces a map file n Ex: to produce all of these, type (with spaces) ml /Zi /Fl /Fm hello.asm

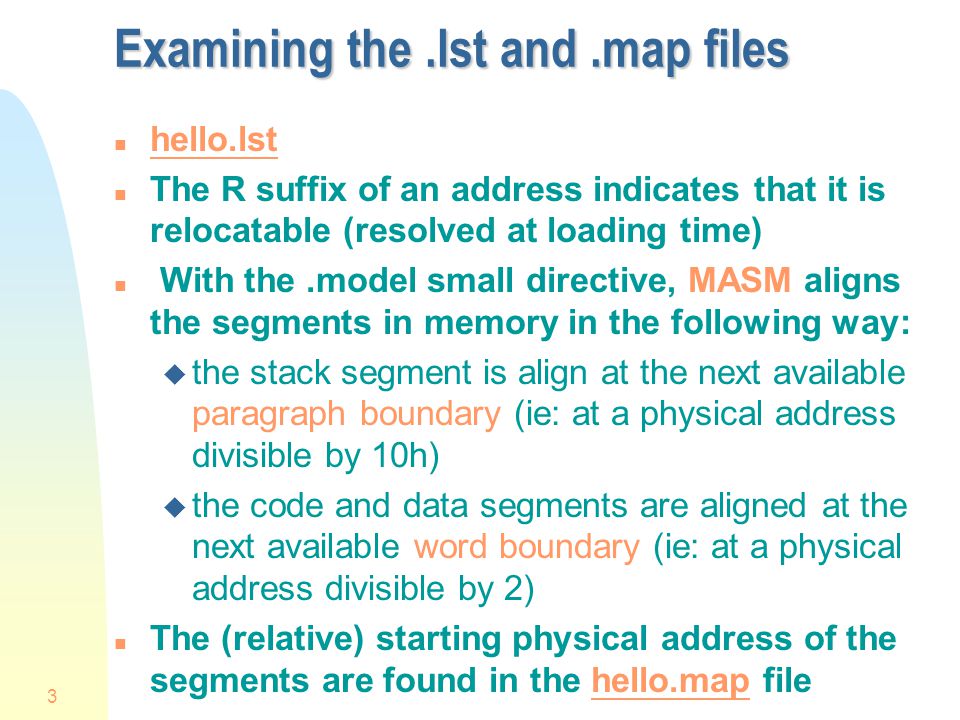

3. 3 Examining the.lst and.map files n hello.lst hello.lst n The R suffix of an address indicates that it is relocatable (resolved at loading time) n With the.model small directive, MASM aligns the segments in memory in the following way: u the stack segment is align at the next available paragraph boundary (ie: at a physical address divisible by 10h) u the code and data segments are aligned at the next available word boundary (ie: at a physical address divisible by 2) n The (relative) starting physical address of the segments are found in the hello.map filehello.map

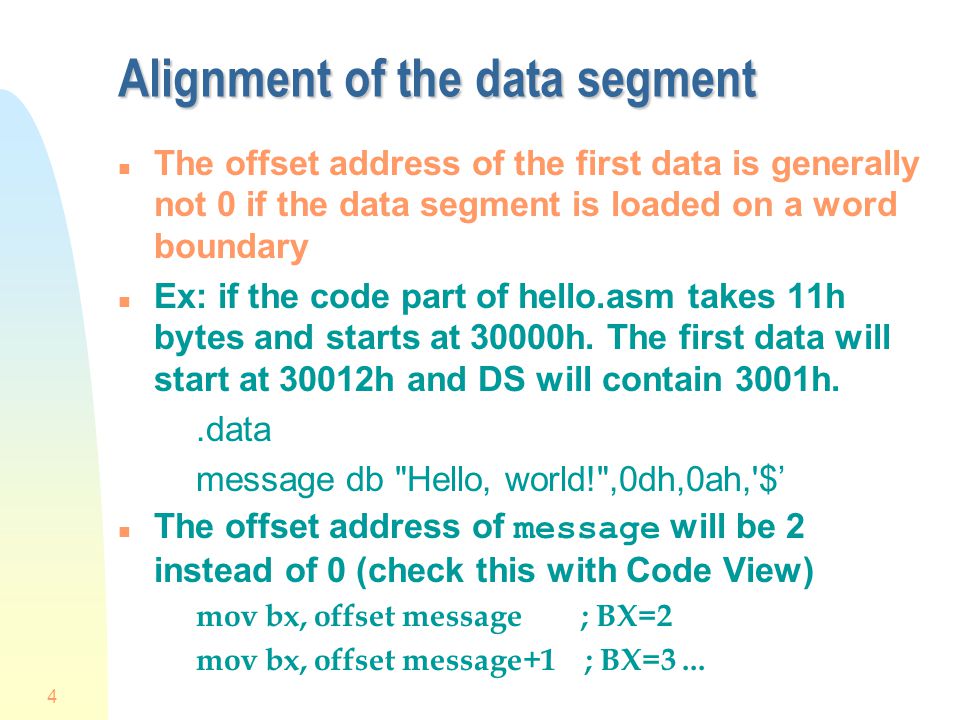

4. 4 Alignment of the data segment n The offset address of the first data is generally not 0 if the data segment is loaded on a word boundary n Ex: if the code part of hello.asm takes 11h bytes and starts at 30000h. The first data will start at 30012h and DS will contain 3001h..data message db "Hello, world!",0dh,0ah,'$’ The offset address of message will be 2 instead of 0 (check this with Code View) mov bx, offset message ; BX=2 mov bx, offset message+1 ; BX=3...

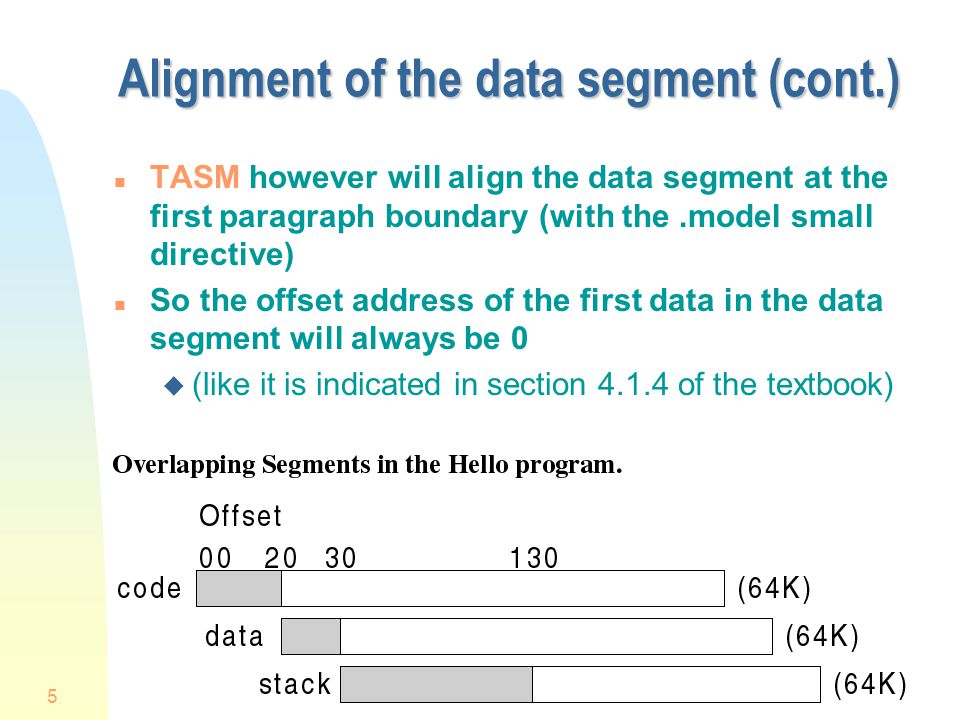

5. 5 Alignment of the data segment (cont.) n TASM however will align the data segment at the first paragraph boundary (with the.model small directive) n So the offset address of the first data in the data segment will always be 0 u (like it is indicated in section 4.1.4 of the textbook)

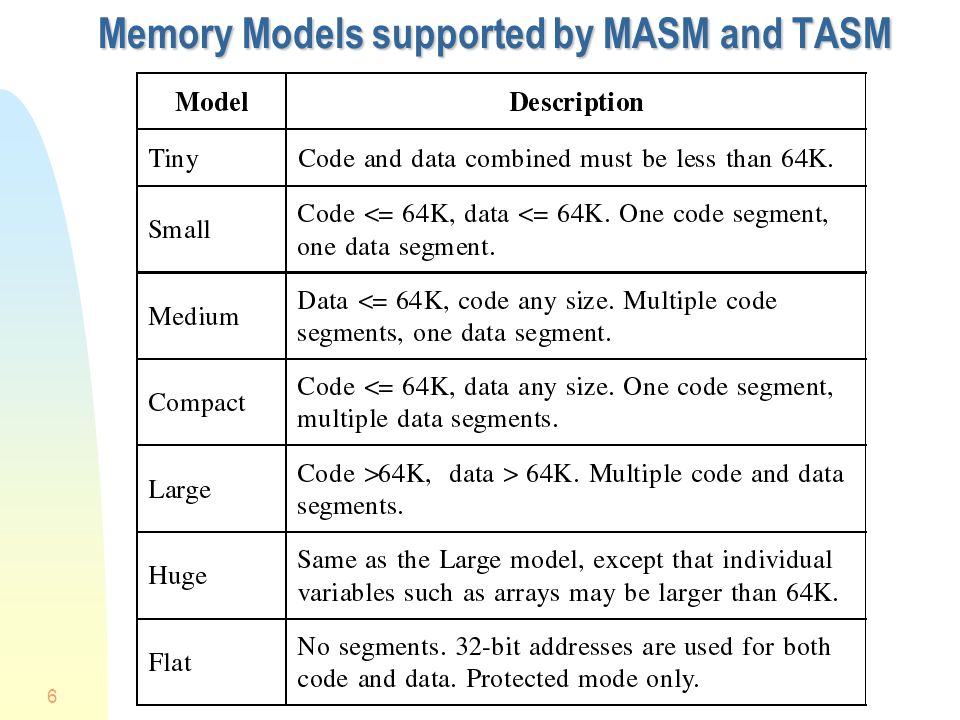

6. 6 Memory Models supported by MASM and TASM

7. 7 Processor Directives n By default MASM and TASM only enable the assembly of the 8086 instructions n The.386 directive enables the assembly of 386 instructions u instructions can then use 32-bit operands, including 32-bit registers n Place this directive just after.model n Same principle for all the x86 family u Ex: use the.586 directive to enable the assembly of Pentium instructions

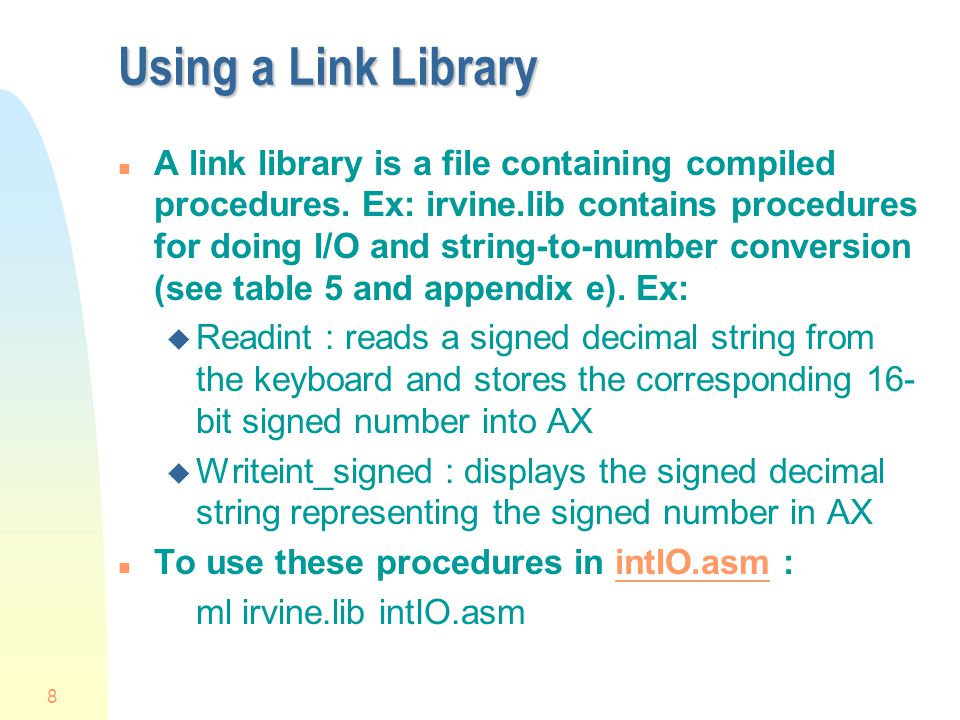

8. 8 Using a Link Library n A link library is a file containing compiled procedures. Ex: irvine.lib contains procedures for doing I/O and string-to-number conversion (see table 5 and appendix e). Ex: u Readint : reads a signed decimal string from the keyboard and stores the corresponding 16- bit signed number into AX u Writeint_signed : displays the signed decimal string representing the signed number in AX n To use these procedures in intIO.asm :intIO.asm ml irvine.lib intIO.asm

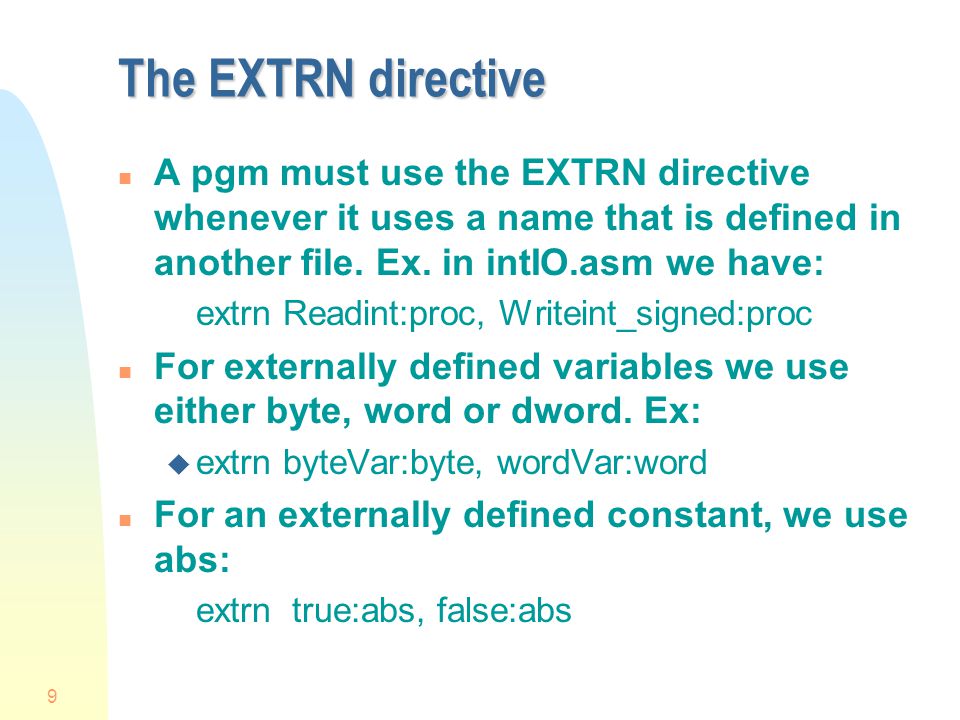

9. 9 The EXTRN directive n A pgm must use the EXTRN directive whenever it uses a name that is defined in another file. Ex. in intIO.asm we have: extrn Readint:proc, Writeint_signed:proc n For externally defined variables we use either byte, word or dword. Ex: u extrn byteVar:byte, wordVar:word n For an externally defined constant, we use abs: extrn true:abs, false:abs

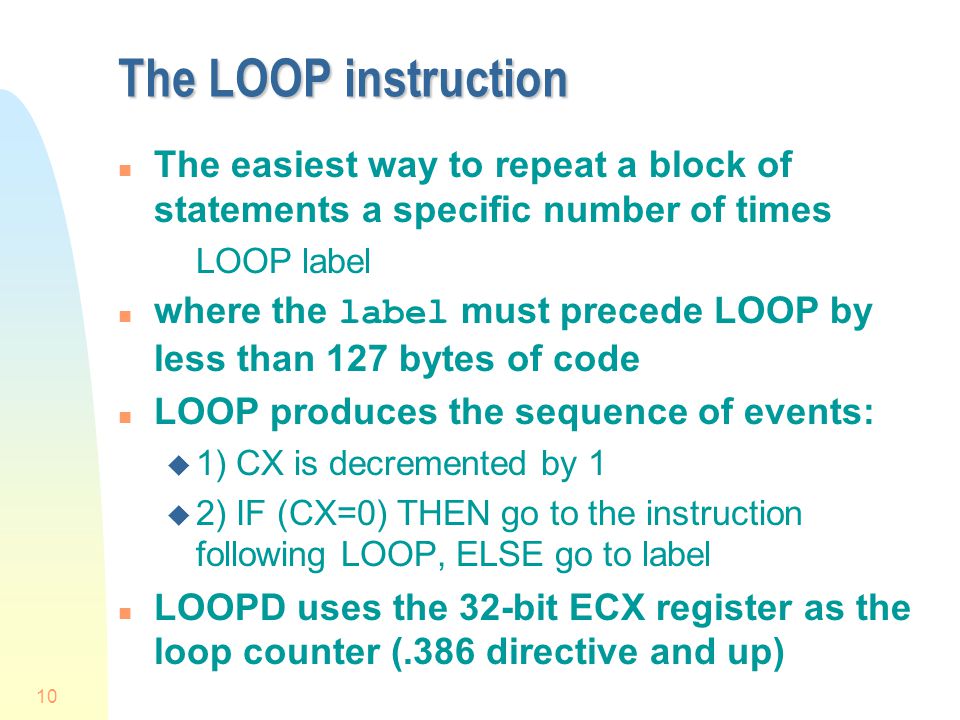

10. 10 The LOOP instruction n The easiest way to repeat a block of statements a specific number of times LOOP label where the label must precede LOOP by less than 127 bytes of code n LOOP produces the sequence of events: u 1) CX is decremented by 1 u 2) IF (CX=0) THEN go to the instruction following LOOP, ELSE go to label n LOOPD uses the 32-bit ECX register as the loop counter (.386 directive and up)

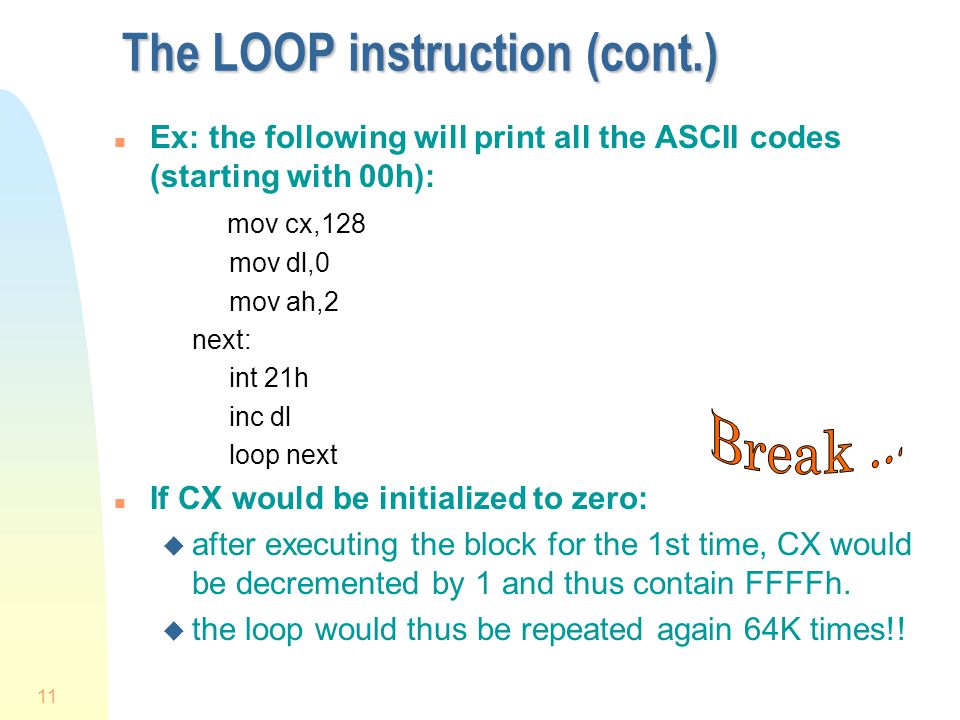

11. 11 The LOOP instruction (cont.) n Ex: the following will print all the ASCII codes (starting with 00h): mov cx,128 mov dl,0 mov ah,2 next: int 21h inc dl loop next n If CX would be initialized to zero: u after executing the block for the 1st time, CX would be decremented by 1 and thus contain FFFFh. u the loop would thus be repeated again 64K times!!

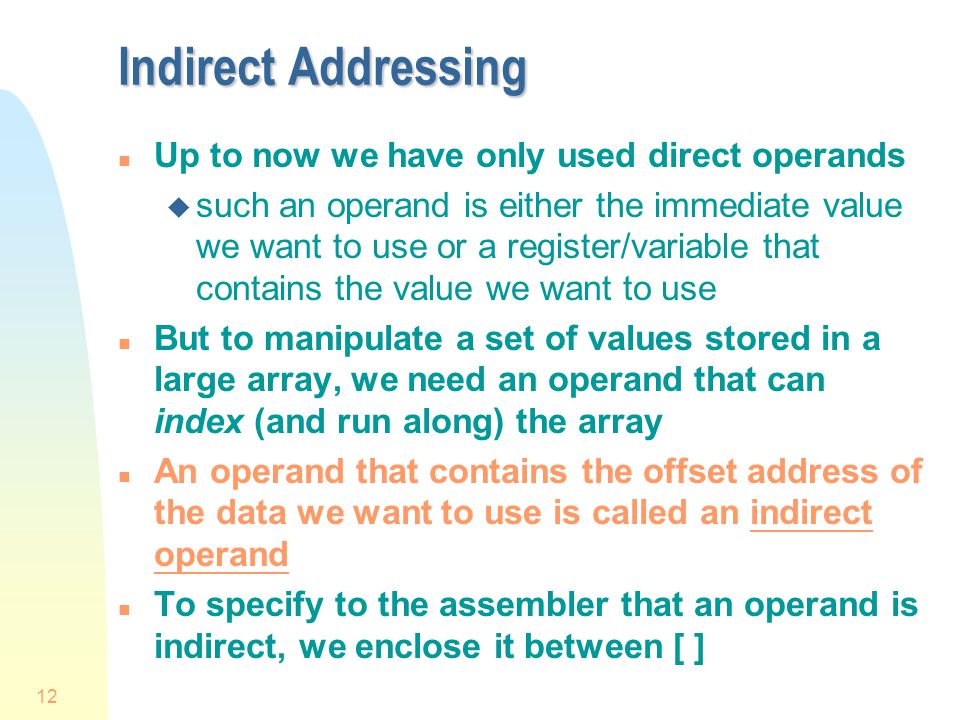

12. 12 Indirect Addressing n Up to now we have only used direct operands u such an operand is either the immediate value we want to use or a register/variable that contains the value we want to use n But to manipulate a set of values stored in a large array, we need an operand that can index (and run along) the array n An operand that contains the offset address of the data we want to use is called an indirect operand n To specify to the assembler that an operand is indirect, we enclose it between [ ]

13. 13 Indirect Addressing (cont.) n Ex: if the word located at offset 100h contains the value 1234h, the following will load AX with 1234h and SI=100h: mov ax,[si] ;AX=1234h if SI=100h n In contrast, the following loads AX with 100h: mov ax,si ;AX=100h if SI=100h n In conclusion: mov ax,si ;loads AX with the content of SI mov ax,[si] ; loads AX with the word pointed by SI

14. 14 Ex: summing the elements of an array.data Arr dw 12,26,43,13,97,16,73,41 count = ($ - Arr)/2 ;number of elements.code mov ax,0 ;AX holds the sum mov si,offset Arr mov cx,count L1: add ax,[si] add si,2 ;go to the next word loop L1

15. 15 Indirect Addressing (cont.) n For 16-bit registers: u only BX, BP, SI, DI can be used as indirect operands n For 32-bit registers: u EAX, EBX, ECX, EDX, EBP, ESP, ESI, EDI can be used as indirect operands n Caution when using 32-bit registers in real mode (only the 1st MB is addressable): mov ebx, 1000000h mov ax, [ebx] ;outside real-mode address space

16. 16 Indirect Addressing (cont.) n The default segment used for the offset: u it is SS whenever BP, EBP or ESP is used u it is DS whenever the other registers are used n This can be overridden by the “:” operator: mov ax, [si] ;offset from DS mov ax, es:[si] ;offset from ES mov ax, [bp] ;offset from SS mov ax, cs:[bp] ;offset from CS n With indirect addressing, the type is adjust according to the destination operand: u mov ax,[edi] ;16-bit operand u mov ch,[ebx] ;8-bit operand u mov eax,[si] ;32-bit operand

17. 17 Base and Index Addressing n Base registers (BX and BP), index registers (SI and DI) and 32-bit registers can be use with displacements (ie: constant and/or variable) n If A is a variable, the following forms are permitted: mov ax, [bp+4] mov ax, 4[bp] ;same as above mov ax, [si+A] mov ax, A[si] ;same as above mov ax, A[edx+4]

18. 18 Base and Index Addressing (cont.) n Example of using displacements:.data A db 2,4,6,8,10.code mov si,3 mov dl, A[si+1] ;DL = 10

19. 19 Base-Index Addressing n Base-index addressing is used when both a base and an index register is used as an indirect operand. n When two 16-bit registers are used as indirect operands: the first one must be a base and the second one must be an index: mov ah, [bp+bx] ;invalid, both are base mov ah, [si+di] ;invalid, both are index mov ah, [bp+si] ;valid, segment is in SS mov ah, [bx+si] ;valid, segment is in DS

20. 20 Base-Index Addressing (cont.) n A two dimensional array example:.data rowsize = 3 arr db 10h, 20h, 30h db 0Ah, 0Bh, 0Ch.code mov bx, rowsize ;choose 2nd row mov si, 2 ;choose 3rd column mov al, arr[bx+si] ;AL = 0Ch mov al, arr[bx][si]

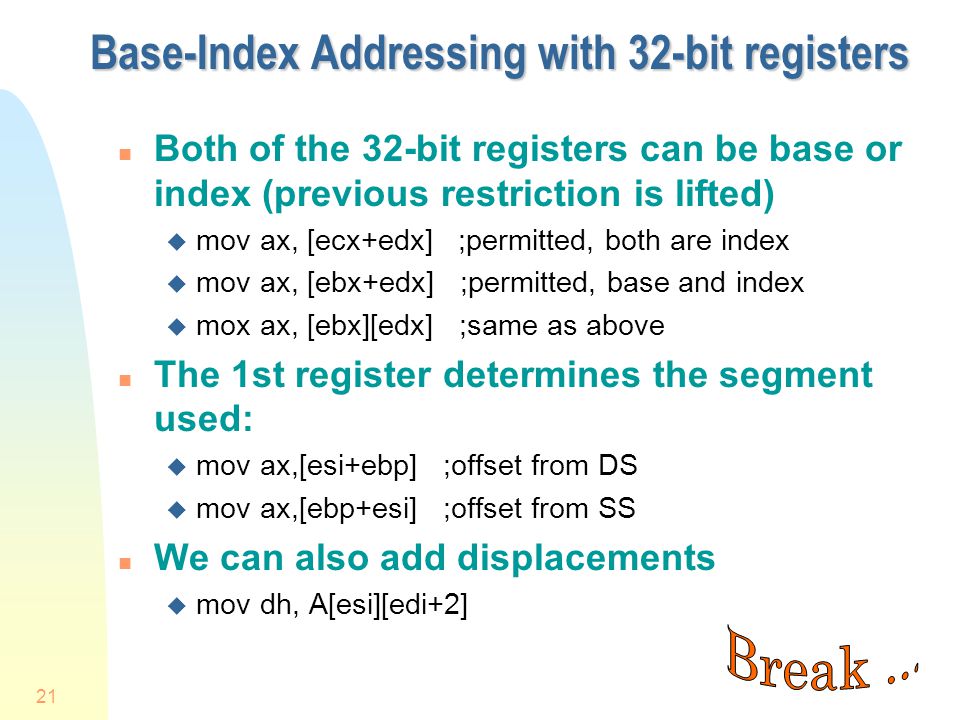

21. 21 Base-Index Addressing with 32-bit registers n Both of the 32-bit registers can be base or index (previous restriction is lifted) u mov ax, [ecx+edx] ;permitted, both are index u mov ax, [ebx+edx] ;permitted, base and index u mox ax, [ebx][edx] ;same as above n The 1st register determines the segment used: u mov ax,[esi+ebp] ;offset from DS u mov ax,[ebp+esi] ;offset from SS n We can also add displacements u mov dh, A[esi][edi+2]

22. 22 The OFFSET Operator n The OFFSET returns the distance of a label or variable from the beginning of its segment. Example:.data bList db 10h, 20h, 30h, 40h wList dw 1000h, 2000h, 3000h.code mov al, bList; al = 10h mov di, offset bList; di = 0000 mov bx, offset bList+1; bx = 0001

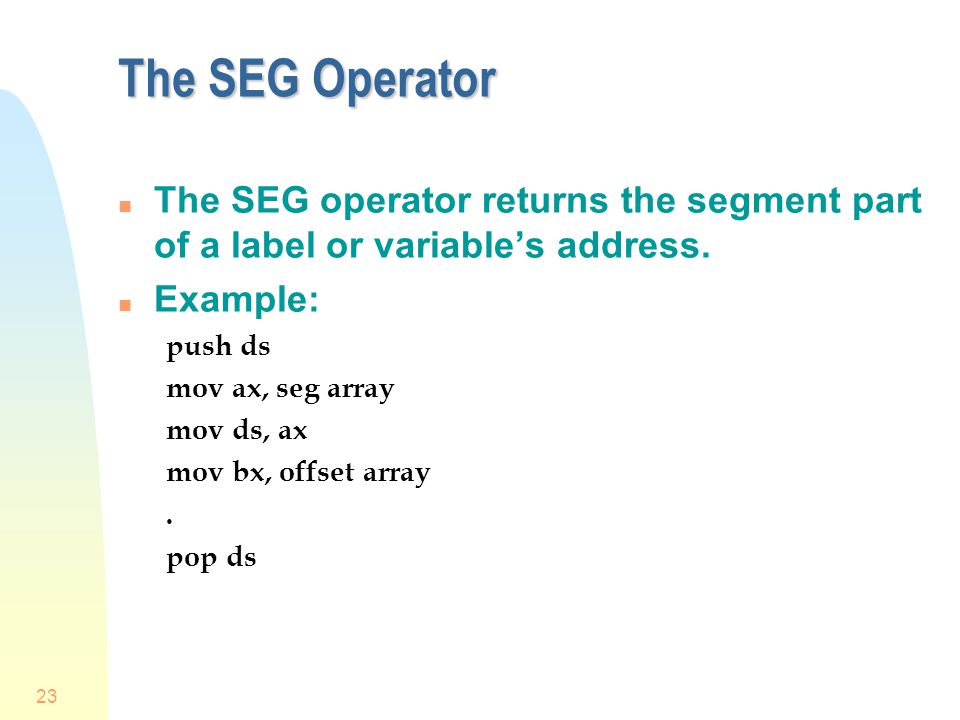

23. 23 The SEG Operator n The SEG operator returns the segment part of a label or variable’s address. n Example: push ds mov ax, seg array mov ds, ax mov bx, offset array. pop ds

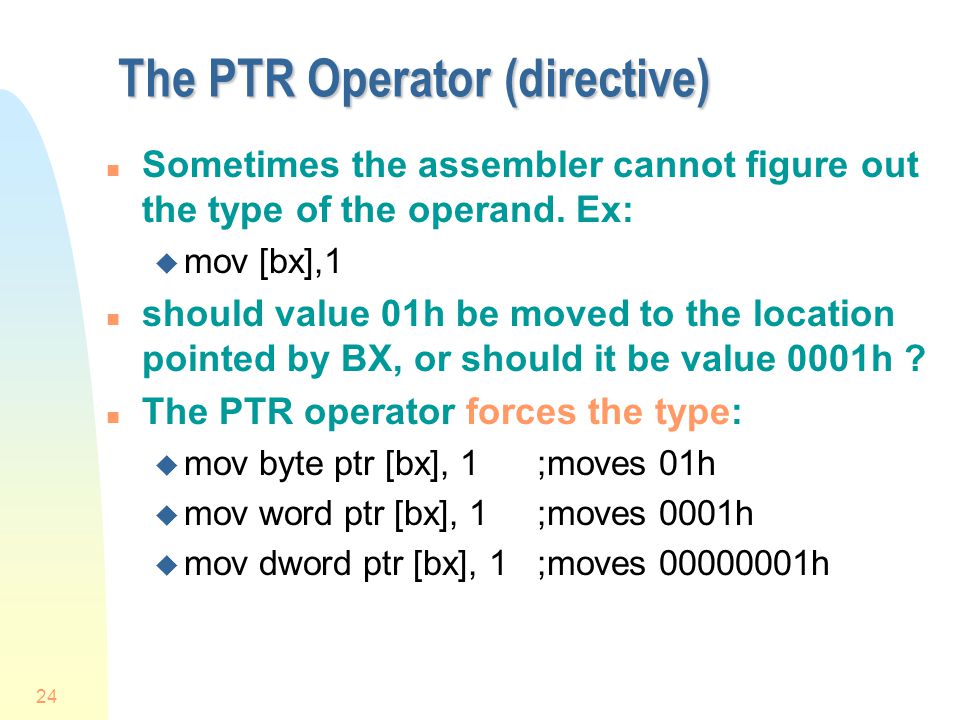

24. 24 The PTR Operator (directive) n Sometimes the assembler cannot figure out the type of the operand. Ex: u mov [bx],1 n should value 01h be moved to the location pointed by BX, or should it be value 0001h ? n The PTR operator forces the type: u mov byte ptr [bx], 1 ;moves 01h u mov word ptr [bx], 1 ;moves 0001h u mov dword ptr [bx], 1 ;moves 00000001h

25. 25 The LABEL directive n It gives a name and a size to an existing storage location. It does not allocate storage. n It must be used in conjunction with byte, word, dword, qword....data val16 label word val32 dd 12345678h.code mov eax,val32 ;EAX = 12345678h mov ax,val32 ;error mov ax,val16 ;AX = 5678h n val16 is just an alias for the first two bytes of the storage location val32

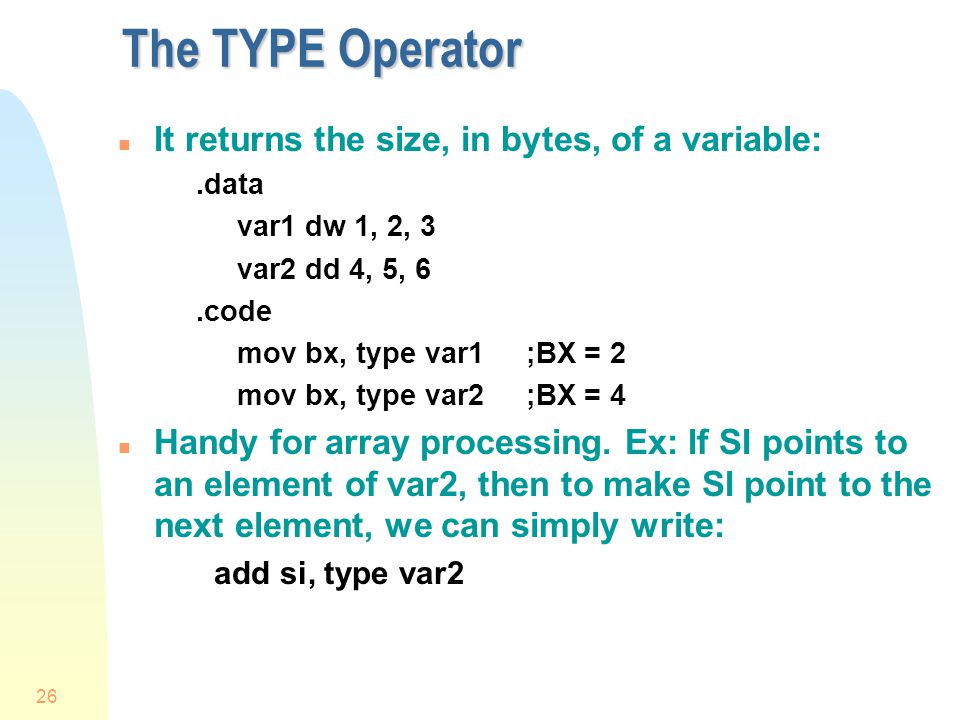

26. 26 The TYPE Operator n It returns the size, in bytes, of a variable:.data var1 dw 1, 2, 3 var2 dd 4, 5, 6.code mov bx, type var1 ;BX = 2 mov bx, type var2 ;BX = 4 n Handy for array processing. Ex: If SI points to an element of var2, then to make SI point to the next element, we can simply write: add si, type var2

27. 27 The LENGTH, SIZE Operators n The LENGTH operator counts the number of individual elements in a variable that has been defined using DUP..data var1 dw 1000 var2 db 10, 20, 30 array dw 32 dup(0).code mov ax, length var1; ax=1 mov ax, length var2; ax=1 mov ax, length array; ax=32 n The SIZE operator is equivalent to LENGTH*TYPE

28. 28 Sign and Zero Extend Instructions n MOVZX (move with zero-extend) n MOVSX (move with sign-extend) n Both move the source into a destination of larger size (valid only for 386 and later processors) n imm operands are not allowed mov bl, 07h mov bh, 80h movzx ax,bh ;AX = 0080h movsx dx,bh ;DX = FF80h movsx ax, bl ;AX = 0007h movzx ecx,dx ;ECX = 0000FF80h movsx ecx,dx ;ECX = FFFFFF80h movsx ecx,ax ;ECX = 00000007h
