1. SPA_242 New Mainframe B1500A/B1505A and Upgrade Kit Agilent Restricted Oct 2013 Page 1 HSTD Green Energy Business HSTD Semiconductor Evaluation Business SPA_242 Oct-2013 FTD ETD/HSTD Marketing New Mainframe B1500A/B1505A and Upgrade Kit B1500A B1505A

2. SPA_242 New Mainframe B1500A/B1505A and Upgrade Kit Agilent Restricted Oct 2013 Page 2 Agenda for Today New B1500A/B1505A mainframe Upgrade kit for current B1500A/B1505A customers Upgrade process by regional SSU Schedule of release/shipment Summary Appendix

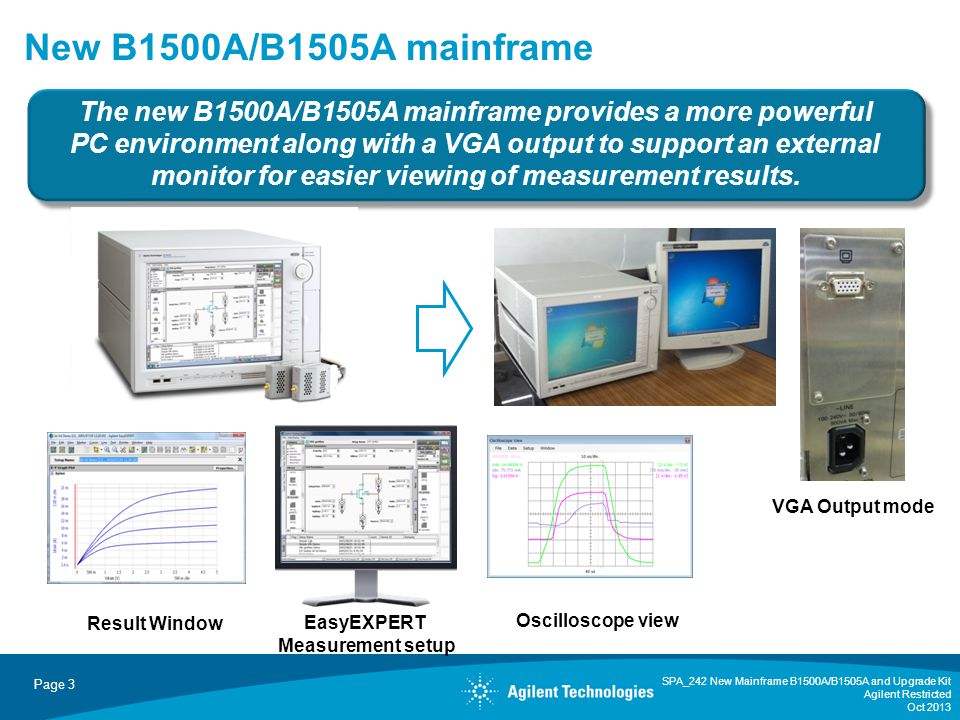

3. SPA_242 New Mainframe B1500A/B1505A and Upgrade Kit Agilent Restricted Oct 2013 Page 3 New B1500A/B1505A mainframe The new B1500A/B1505A mainframe provides a more powerful PC environment along with a VGA output to support an external monitor for easier viewing of measurement results. VGA Output mode EasyEXPERT Measurement setup Result Window Oscilloscope view

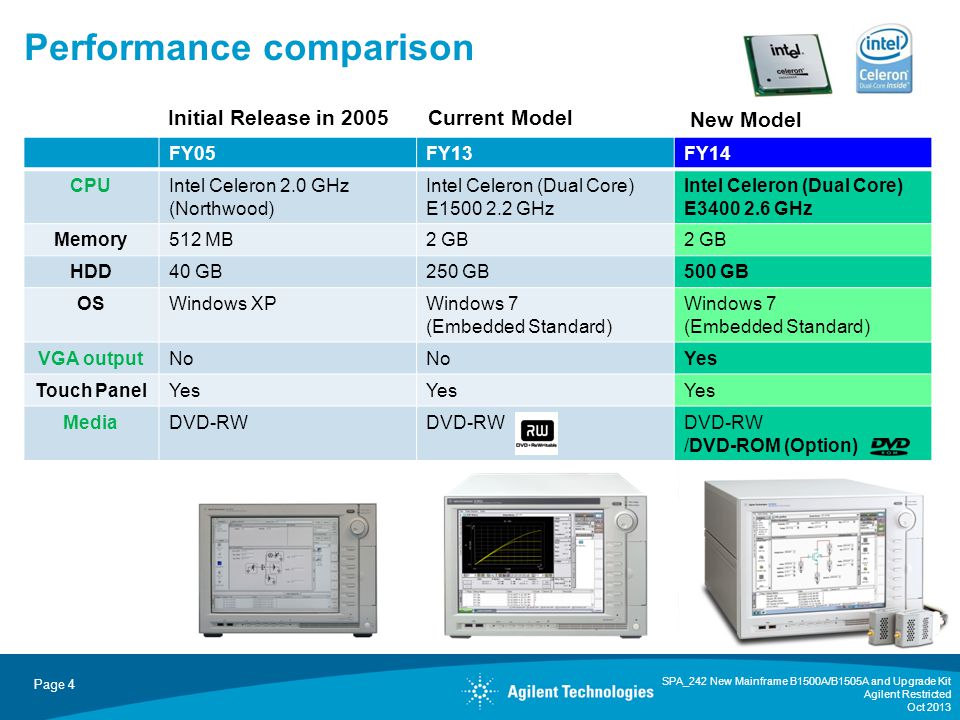

4. SPA_242 New Mainframe B1500A/B1505A and Upgrade Kit Agilent Restricted Oct 2013 Page 4 Performance comparison Current Model New Model FY05FY13FY14 CPUIntel Celeron 2.0 GHz (Northwood) Intel Celeron (Dual Core) E1500 2.2 GHz Intel Celeron (Dual Core) E3400 2.6 GHz Memory512 MB2 GB HDD40 GB250 GB500 GB OSWindows XPWindows 7 (Embedded Standard) VGA outputNo Yes Touch PanelYes MediaDVD-RW /DVD-ROM (Option) Initial Release in 2005

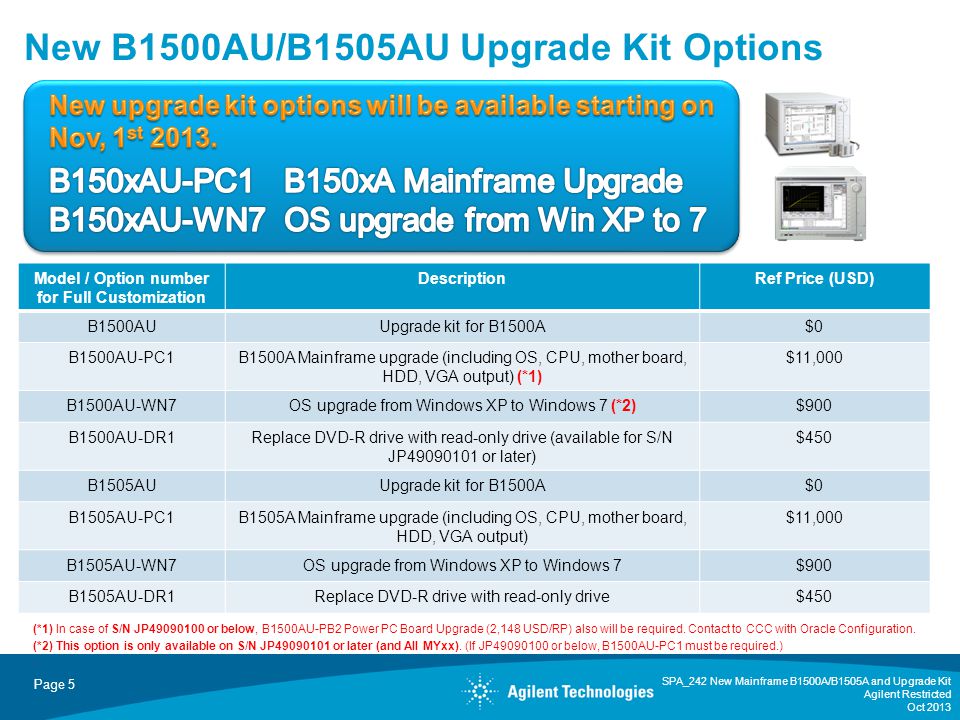

5. SPA_242 New Mainframe B1500A/B1505A and Upgrade Kit Agilent Restricted Oct 2013 Page 5 New B1500AU/B1505AU Upgrade Kit Options Model / Option number for Full Customization DescriptionRef Price (USD) B1500AUUpgrade kit for B1500A$0 B1500AU-PC1B1500A Mainframe upgrade (including OS, CPU, mother board, HDD, VGA output) (*1) $11,000 B1500AU-WN7OS upgrade from Windows XP to Windows 7 (*2)$900 B1500AU-DR1Replace DVD-R drive with read-only drive (available for S/N JP49090101 or later) $450 B1505AUUpgrade kit for B1500A$0 B1505AU-PC1B1505A Mainframe upgrade (including OS, CPU, mother board, HDD, VGA output) $11,000 B1505AU-WN7OS upgrade from Windows XP to Windows 7$900 B1505AU-DR1Replace DVD-R drive with read-only drive$450 (*1) In case of S/N JP49090100 or below, B1500AU-PB2 Power PC Board Upgrade (2,148 USD/RP) also will be required. Contact to CCC with Oracle Configuration. (*2) This option is only available on S/N JP49090101 or later (and All MYxx). (If JP49090100 or below, B1500AU-PC1 must be required.).

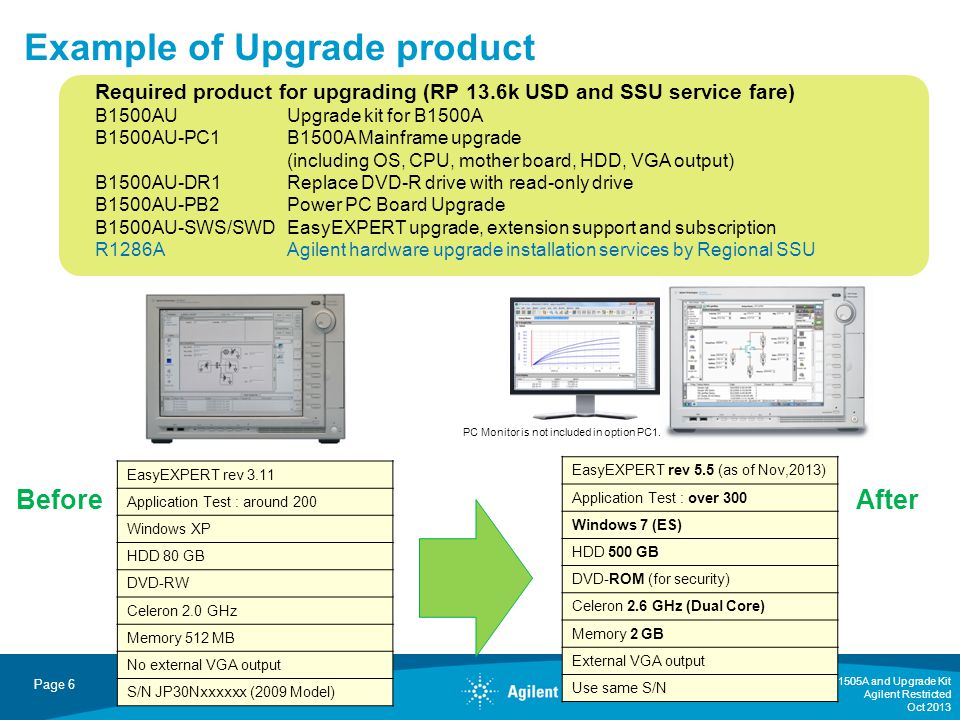

6. SPA_242 New Mainframe B1500A/B1505A and Upgrade Kit Agilent Restricted Oct 2013 Page 6 Example of Upgrade product Before After EasyEXPERT rev 3.11 Application Test : around 200 Windows XP HDD 80 GB DVD-RW Celeron 2.0 GHz Memory 512 MB No external VGA output S/N JP30Nxxxxxx (2009 Model) PC Monitor is not included in option PC1. EasyEXPERT rev 5.5 (as of Nov,2013) Application Test : over 300 Windows 7 (ES) HDD 500 GB DVD-ROM (for security) Celeron 2.6 GHz (Dual Core) Memory 2 GB External VGA output Use same S/N Required product for upgrading (RP 13.6k USD and SSU service fare) B1500AU Upgrade kit for B1500A B1500AU-PC1B1500A Mainframe upgrade (including OS, CPU, mother board, HDD, VGA output) B1500AU-DR1Replace DVD-R drive with read-only drive B1500AU-PB2Power PC Board Upgrade B1500AU-SWS/SWDEasyEXPERT upgrade, extension support and subscription R1286AAgilent hardware upgrade installation services by Regional SSU

7. SPA_242 New Mainframe B1500A/B1505A and Upgrade Kit Agilent Restricted Oct 2013 Page 7 Upgrade process Confirm requirement. Check S/N of frame, inside module & revision of software. Ask data backup in inside HDD to customer. Ask CCC to create quotation by Oracle. (Oracle system will include service related fare automatically.) Information of S/N and installed module are required. Offer price information by sending quotation. Check availability of regional SSU service. Schedule arrangement. After receiving PO Send current equipment to regional SSU by customer or Agilent pick-up service. Send new equipment to regional SSU or designated place from MFG by CCC/CSR. Install upgrade kit at supported SSU. Install the new software and OS. Check functionalities at SSU. (Optional) Calibration. Send upgraded B1500A to customers from SSU. Import saved data or setups into HDD. Important!

8. SPA_242 New Mainframe B1500A/B1505A and Upgrade Kit Agilent Restricted Oct 2013 Page 8 Schedule for Introduction/Shipment Sales tools Updated B1500A Datasheet (Nov, 2013) : http://cp.literature.agilent.com/litweb/pdf/5989-2785EN.pdfhttp://cp.literature.agilent.com/litweb/pdf/5989-2785EN.pdf Updated B1505A Datasheet (Nov-Dec, 2013) : http://cp.literature.agilent.com/litweb/pdf/5990-3853EN.pdfhttp://cp.literature.agilent.com/litweb/pdf/5990-3853EN.pdf Updated Configuration Guide (Nov, 2013) : http://cp.literature.agilent.com/litweb/pdf/B1500-90090.pdfhttp://cp.literature.agilent.com/litweb/pdf/B1500-90090.pdf Technical Flyer for upgrade (Nov, 2013) : http://cp.literature.agilent.com/litweb/pdf/5991-3327EN.pdfhttp://cp.literature.agilent.com/litweb/pdf/5991-3327EN.pdf

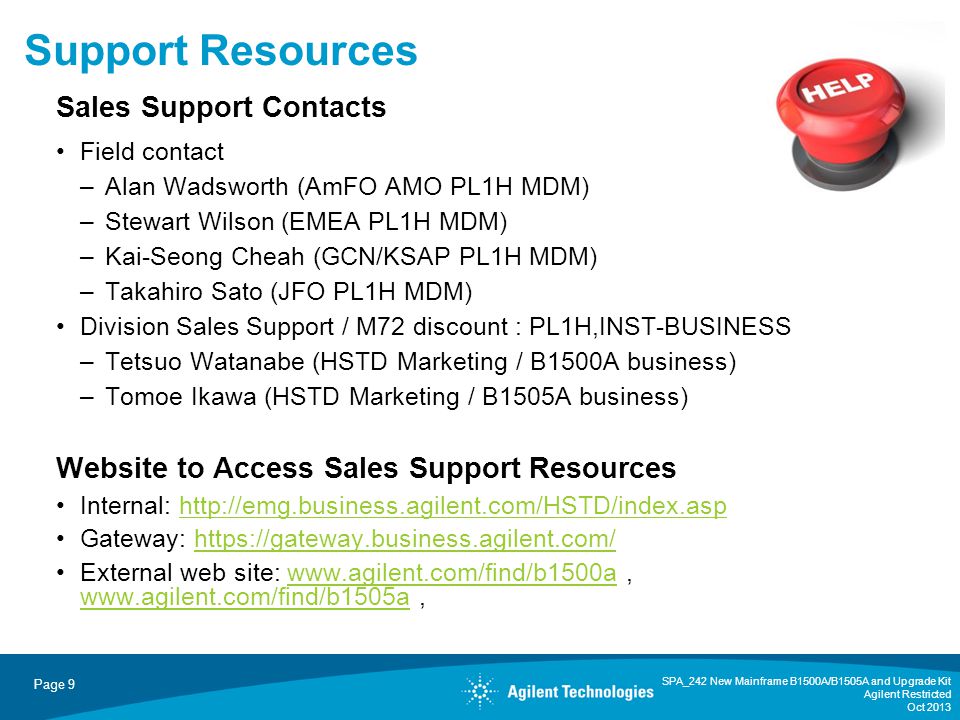

9. SPA_242 New Mainframe B1500A/B1505A and Upgrade Kit Agilent Restricted Oct 2013 Page 9 Support Resources Sales Support Contacts Field contact –Alan Wadsworth (AmFO AMO PL1H MDM) –Stewart Wilson (EMEA PL1H MDM) –Kai-Seong Cheah (GCN/KSAP PL1H MDM) –Takahiro Sato (JFO PL1H MDM) Division Sales Support / M72 discount : PL1H,INST-BUSINESS –Tetsuo Watanabe (HSTD Marketing / B1500A business) –Tomoe Ikawa (HSTD Marketing / B1505A business) Website to Access Sales Support Resources Internal: http://emg.business.agilent.com/HSTD/index.asphttp://emg.business.agilent.com/HSTD/index.asp Gateway: https://gateway.business.agilent.com/https://gateway.business.agilent.com/ External web site: www.agilent.com/find/b1500a, www.agilent.com/find/b1505a,www.agilent.com/find/b1500a www.agilent.com/find/b1505a

10. SPA_242 New Mainframe B1500A/B1505A and Upgrade Kit Agilent Restricted Oct 2013 Page 10 Frequent Questions (FAQ) Q: Can customers use WN7 option to upgrade Win 7 by themselves? A: No, the regional SSU needs to perform all installation steps. ??? Q: My customer has a B150xA running Windows 7 and is experiencing perfor- mance issues. Is there any reason for them to upgrade their hardware (PC1)? A: If your customer is experiencing slow PC performance then it might help. However, in many cases the customer’s HDD contains so many test results, test setups and workspaces that the PC and HDD are overloaded. Therefore, before ordering the PC1 option we recommend to have them first try cleaning up their HDD. We also recommend using a remote data server or controlling the instrument remotely to avoid filling up the instrument’s HDD. Q: Is a calibration required after the SSU installs Windows 7 using either option WN7 or Option PC1? A: No, since the calibration data is stored in the measurement modules and not on the HDD. All that the regional SSU needs to do is install the software onto the HDD.

11. SPA_242 New Mainframe B1500A/B1505A and Upgrade Kit Agilent Restricted Oct 2013 Page 11 Q and A

12. SPA_242 New Mainframe B1500A/B1505A and Upgrade Kit Agilent Restricted Oct 2013 Page 12 Call to Action Talk to your customers about these updates. Windows XP support ends in mid FY14. Determine the S/N of your customer’s B150xA and discuss their upgrade options. Contact to CCC and SSU to provide a quote before sending pricing information to your customers.

13. SPA_242 New Mainframe B1500A/B1505A and Upgrade Kit Agilent Restricted Oct 2013 Page 13 For your reference

14. Table of Serial Number (B1500A/B1505A) Agilent Restricted 14 Initial ship year ProductS/NWindows OSCPU/MemoryEasyEXPERT revision (Initial) 2005 (Ver 1) B1500AJP00x00000 – JP30N00477Windows XPCeleron 2.0 GHz / 512 MB Rev 1.10 2007 (Ver 2) B1500AJP30N00478 – JP30N00524Rev 3.00 2007 (Ver 3) B1500AJP30N00525 – JP39N99999 JP40N00000 – JP49090100 Rev 3.10 2009 (Ver 4) B1500A B1505A JP49090101 -Celeron D352 3.2 GHz / 2 GB Rev 4.00 2011 (Ver 5) B1500A B1505A JP51000000 – JP5129999 MY51330101 – MY52319999 Windows 7 (Embedded Standard) Rev 4.20 2013 (Ver 6) B1500A B1505A MY53010101 – MY53289999Celeron E1500 2.2 GHz (Dual core) / 2 GB Rev 5.02 2014 (Ver 7) B1500A B1505A MY53440101 -Celeron E3400 2.6 GHz (Dual core) / 2 GB Rev 5.50 As of Nov, 2013 AGILENT CONFIDENTIAL AGILENT CONFIDENTIAL AGILENT CONFIDENTIAL AGILENT CONFIDENTIAL

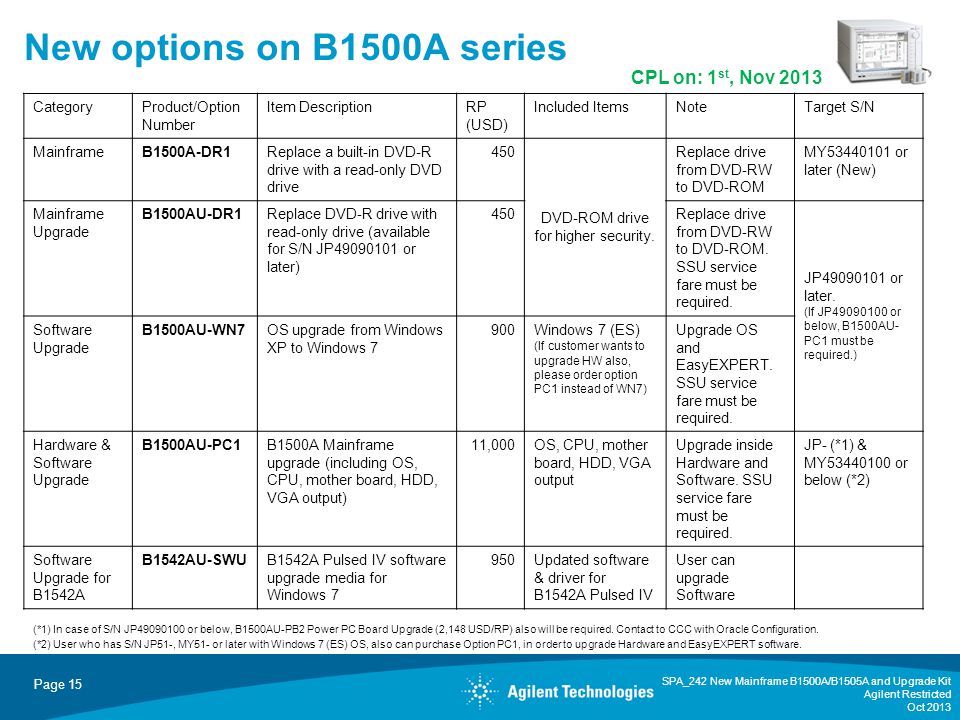

15. SPA_242 New Mainframe B1500A/B1505A and Upgrade Kit Agilent Restricted Oct 2013 Page 15 New options on B1500A series CategoryProduct/Option Number Item DescriptionRP (USD) Included ItemsNoteTarget S/N MainframeB1500A-DR1Replace a built-in DVD-R drive with a read-only DVD drive 450 DVD-ROM drive for higher security. Replace drive from DVD-RW to DVD-ROM MY53440101 or later (New) Mainframe Upgrade B1500AU-DR1Replace DVD-R drive with read-only drive (available for S/N JP49090101 or later) 450Replace drive from DVD-RW to DVD-ROM. SSU service fare must be required. JP49090101 or later. (If JP49090100 or below, B1500AU- PC1 must be required.) Software Upgrade B1500AU-WN7OS upgrade from Windows XP to Windows 7 900Windows 7 (ES) (If customer wants to upgrade HW also, please order option PC1 instead of WN7) Upgrade OS and EasyEXPERT. SSU service fare must be required. Hardware & Software Upgrade B1500AU-PC1B1500A Mainframe upgrade (including OS, CPU, mother board, HDD, VGA output) 11,000OS, CPU, mother board, HDD, VGA output Upgrade inside Hardware and Software. SSU service fare must be required. JP- (*1) & MY53440100 or below (*2) Software Upgrade for B1542A B1542AU-SWUB1542A Pulsed IV software upgrade media for Windows 7 950Updated software & driver for B1542A Pulsed IV User can upgrade Software (*1) In case of S/N JP49090100 or below, B1500AU-PB2 Power PC Board Upgrade (2,148 USD/RP) also will be required. Contact to CCC with Oracle Configuration. (*2) User who has S/N JP51-, MY51- or later with Windows 7 (ES) OS, also can purchase Option PC1, in order to upgrade Hardware and EasyEXPERT software. CPL on: 1 st, Nov 2013

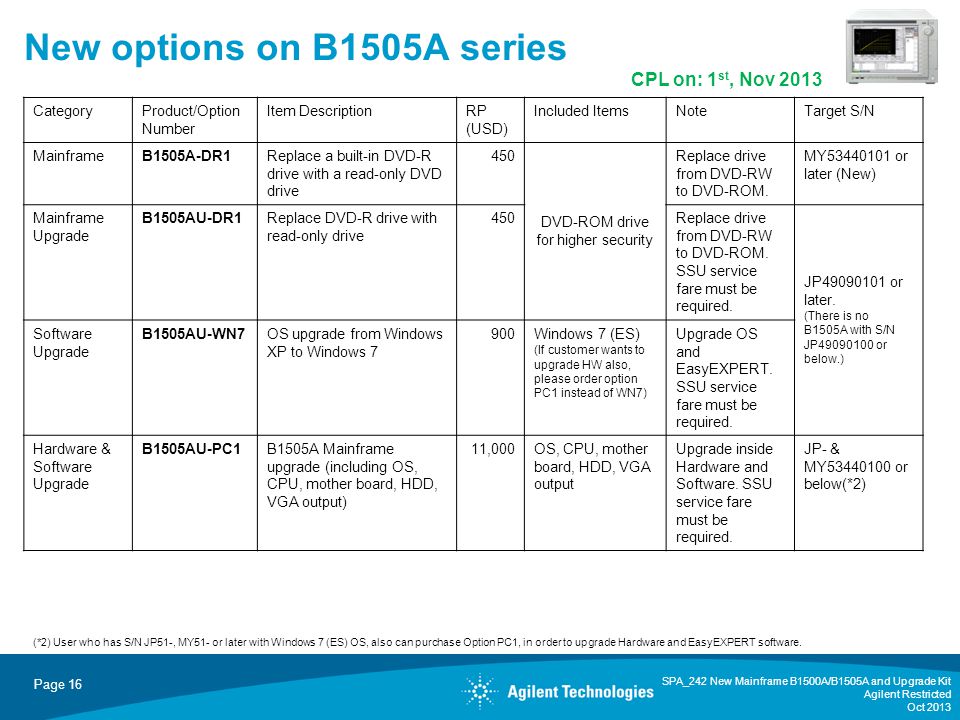

16. SPA_242 New Mainframe B1500A/B1505A and Upgrade Kit Agilent Restricted Oct 2013 Page 16 New options on B1505A series CategoryProduct/Option Number Item DescriptionRP (USD) Included ItemsNoteTarget S/N MainframeB1505A-DR1Replace a built-in DVD-R drive with a read-only DVD drive 450 DVD-ROM drive for higher security Replace drive from DVD-RW to DVD-ROM. MY53440101 or later (New) Mainframe Upgrade B1505AU-DR1Replace DVD-R drive with read-only drive 450Replace drive from DVD-RW to DVD-ROM. SSU service fare must be required. JP49090101 or later. (There is no B1505A with S/N JP49090100 or below.) Software Upgrade B1505AU-WN7OS upgrade from Windows XP to Windows 7 900Windows 7 (ES) (If customer wants to upgrade HW also, please order option PC1 instead of WN7) Upgrade OS and EasyEXPERT. SSU service fare must be required. Hardware & Software Upgrade B1505AU-PC1B1505A Mainframe upgrade (including OS, CPU, mother board, HDD, VGA output) 11,000OS, CPU, mother board, HDD, VGA output Upgrade inside Hardware and Software. SSU service fare must be required. JP- & MY53440100 or below(*2) (*2) User who has S/N JP51-, MY51- or later with Windows 7 (ES) OS, also can purchase Option PC1, in order to upgrade Hardware and EasyEXPERT software. CPL on: 1 st, Nov 2013
