1. District Surface Water Model (DSWM) Project Training Webinar SWFWMD December 19, 2013

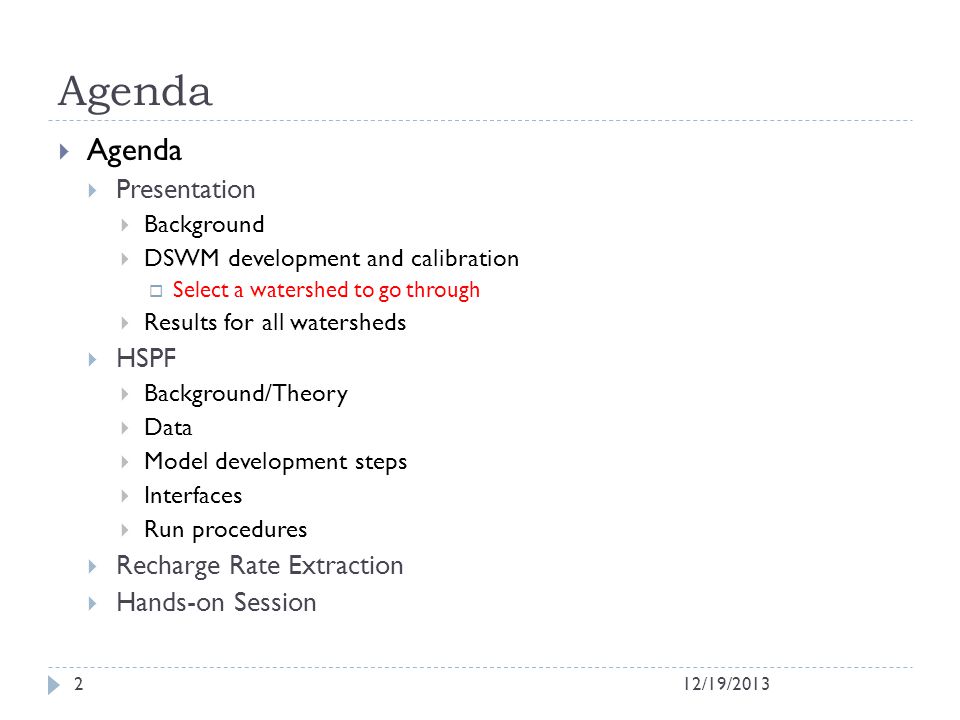

2. Agenda  Agenda  Presentation  Background  DSWM development and calibration  Select a watershed to go through  Results for all watersheds  HSPF  Background/Theory  Data  Model development steps  Interfaces  Run procedures  Recharge Rate Extraction  Hands-on Session 212/19/2013

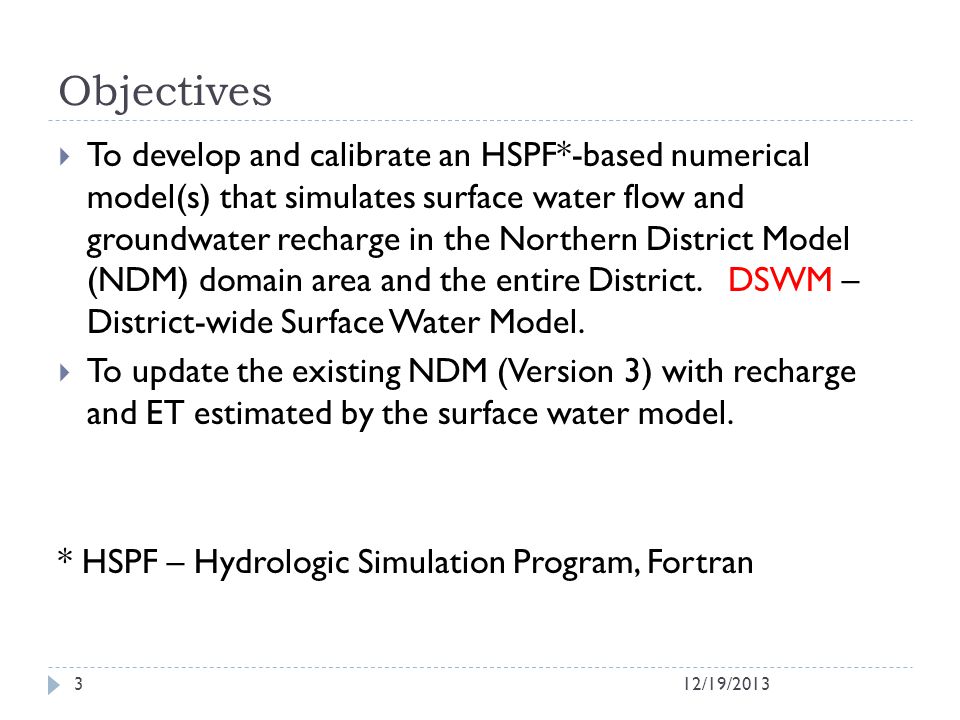

3. Objectives  To develop and calibrate an HSPF*-based numerical model(s) that simulates surface water flow and groundwater recharge in the Northern District Model (NDM) domain area and the entire District. DSWM – District-wide Surface Water Model.  To update the existing NDM (Version 3) with recharge and ET estimated by the surface water model. * HSPF – Hydrologic Simulation Program, Fortran 312/19/2013

4. DSWM Development and Calibration

5. Model Development 12/19/20135  Segmentation and Land Use  Meteorological Data  Other Input Data (springs, irrigation, etc.)  Characterize Land and Stream Segments  Observed Streamflow Data/Calibration Locations  Calibration

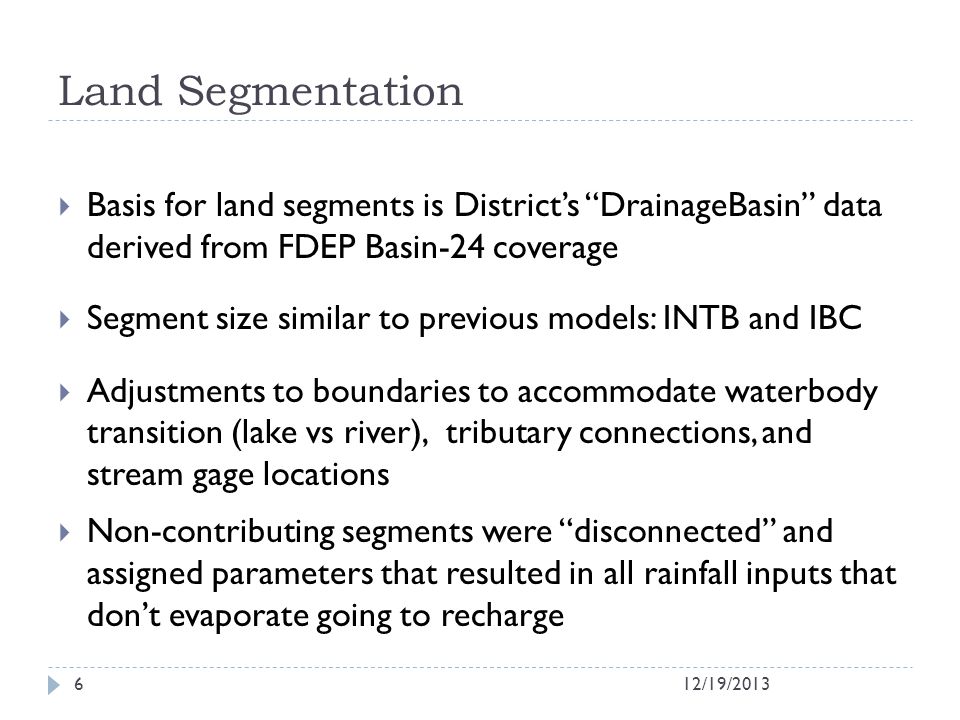

6. Land Segmentation 12/19/20136  Basis for land segments is District’s “DrainageBasin” data derived from FDEP Basin-24 coverage  Segment size similar to previous models: INTB and IBC  Adjustments to boundaries to accommodate waterbody transition (lake vs river), tributary connections, and stream gage locations  Non-contributing segments were “disconnected” and assigned parameters that resulted in all rainfall inputs that don’t evaporate going to recharge

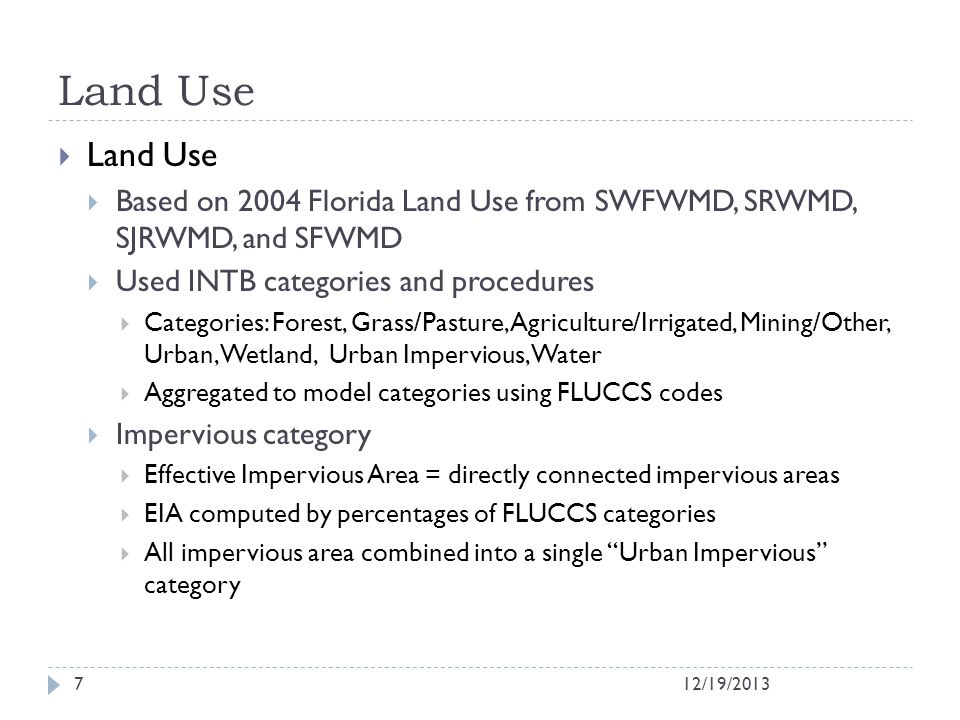

7. Land Use 12/19/20137  Land Use  Based on 2004 Florida Land Use from SWFWMD, SRWMD, SJRWMD, and SFWMD  Used INTB categories and procedures  Categories: Forest, Grass/Pasture, Agriculture/Irrigated, Mining/Other, Urban, Wetland, Urban Impervious, Water  Aggregated to model categories using FLUCCS codes  Impervious category  Effective Impervious Area = directly connected impervious areas  EIA computed by percentages of FLUCCS categories  All impervious area combined into a single “Urban Impervious” category

8. Meteorological Data – Rainfall 12/19/20138  Rainfall data is NEXRAD (i.e., radar-derived) data at a 2x2 km grid resolution and 15 minute interval  NEXRAD data provided by District  Rainfall inputs for PERLNDs and IMPLNDs in each model segment are area-weighted averages of the rainfall values of the pixels overlying the segment  Data are stored in WDM file  A pilot study on one watershed determined that the NEXRAD data were sufficiently similar to the gage-derived rainfall database used in the INTB model to support a calibrated model  Differences between NEXRAD and gage rainfall were observed

9. Meteorological Data – Potential Evapotranspiration (PET) 12/19/20139  PET data are computed (Priestly-Taylor method) at the same 2x2 km grid as used by NEXRAD  PET data are 1-day totals; data are available for June1995 - December 2010  PET data developed by USGS and obtained from USGS  PET inputs for PERLNDs and IMPLNDs in each model segment are area-weighted averages of the PET values of the pixels overlying the segment  Daily PET data were disaggregated to 1 hour time step using a seasonally varying distribution function based on the pattern of daylight at the latitude of the watershed; data stored in WDM file  The pilot study determined that the USGS GOES PET data were very similar to the gage-derived PET database used in the INTB model; differences had minimal impact on model results

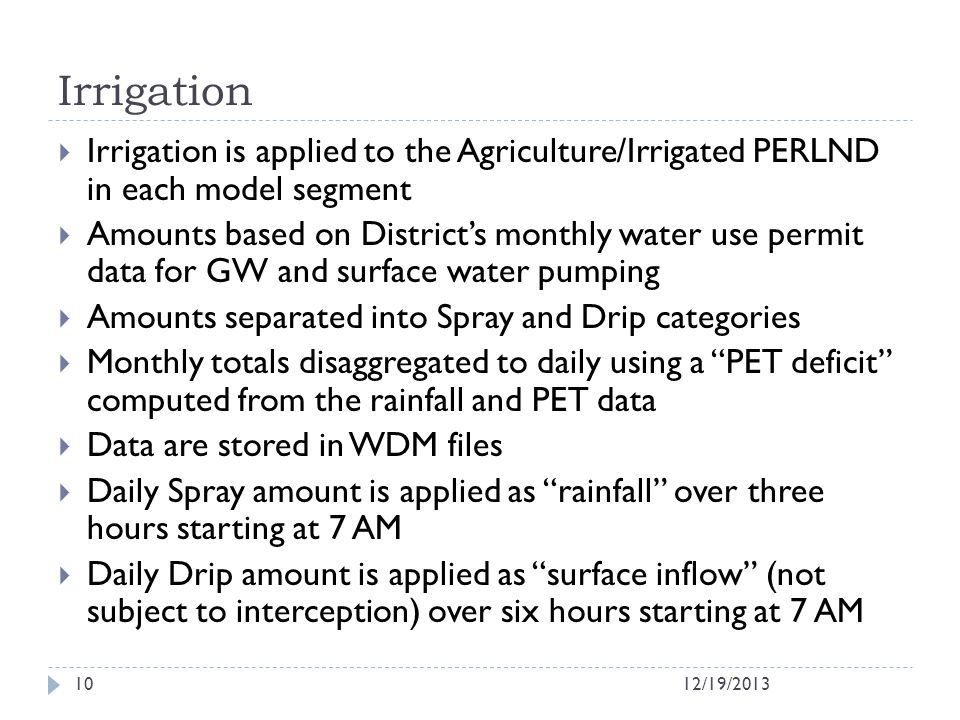

10. Irrigation 12/19/201310  Irrigation is applied to the Agriculture/Irrigated PERLND in each model segment  Amounts based on District’s monthly water use permit data for GW and surface water pumping  Amounts separated into Spray and Drip categories  Monthly totals disaggregated to daily using a “PET deficit” computed from the rainfall and PET data  Data are stored in WDM files  Daily Spray amount is applied as “rainfall” over three hours starting at 7 AM  Daily Drip amount is applied as “surface inflow” (not subject to interception) over six hours starting at 7 AM

11. Surface Water Pumping 12/19/201311  Surface water pumping (diversions) computed from District’s monthly water use permit database  Monthly surface water pumping totals for all permits in a subwatershed are summed, disaggregated to a constant daily rate, and stored in a WDM file  Water is removed from the model reach in the subwatershed where pumping occurs

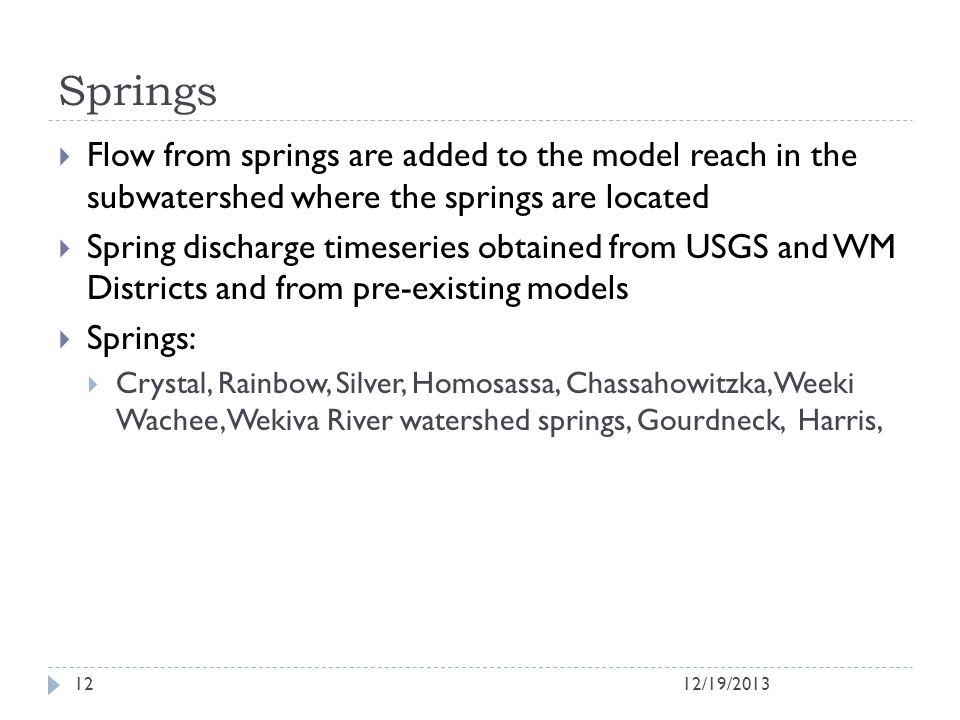

12. Springs 12/19/201312  Flow from springs are added to the model reach in the subwatershed where the springs are located  Spring discharge timeseries obtained from USGS and WM Districts and from pre-existing models  Springs:  Crystal, Rainbow, Silver, Homosassa, Chassahowitzka, Weeki Wachee, Wekiva River watershed springs, Gourdneck, Harris,

13. Observed Streamflow Data 12/19/201313  Observed daily streamflow is used to compare with simulated flow during calibration  Calibration/comparison performed at 73 gage locations  Data obtained from District database, USGS, and SJRWMD  Data stored in WDM files

14. Data Used to Characterize Land Areas and Stream/Lake Reaches 12/19/201314  DEM – land area slope, stream slope, stream channel  Soils – infiltration  Land use – segment watershed by landuse/cover  NHD – stream and lake locations, sizes, connectivity  Existing models – conveyance system connectivity, lake and stream configuration, stream cross sections, HSPF FTABLEs  USGS - stream cross sections and rating curves  Lake surveys – lake FTABLEs  Depth to Groundwater – infiltration, target ET

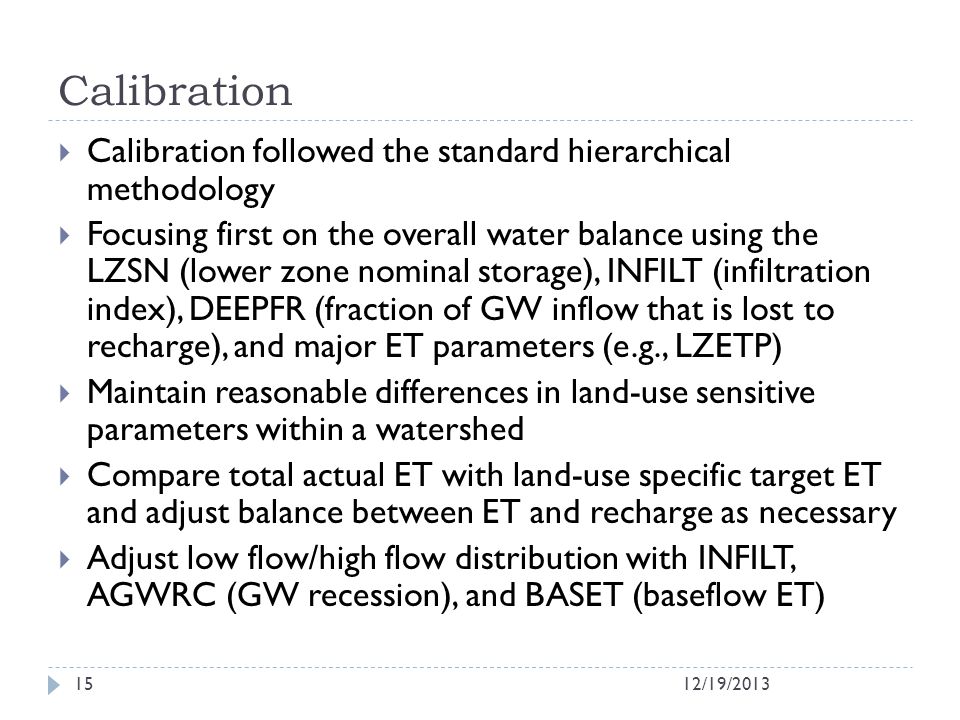

15. Calibration 12/19/201315  Calibration followed the standard hierarchical methodology  Focusing first on the overall water balance using the LZSN (lower zone nominal storage), INFILT (infiltration index), DEEPFR (fraction of GW inflow that is lost to recharge), and major ET parameters (e.g., LZETP)  Maintain reasonable differences in land-use sensitive parameters within a watershed  Compare total actual ET with land-use specific target ET and adjust balance between ET and recharge as necessary  Adjust low flow/high flow distribution with INFILT, AGWRC (GW recession), and BASET (baseflow ET)

16. Calibration (continued) 12/19/201316  Adjust storm shape using INFILT, UZSN (upper zone nominal storage), INTFW (interflow), and IRC (interflow recession)  Comparisons between observed and simulated used in calibration  Hydrographs  Cumulative flow graphs  Flow duration graphs  Annual runoff totals  Statistics (errors at various flow regimes, correlation coefficient, NS model fit efficiency)

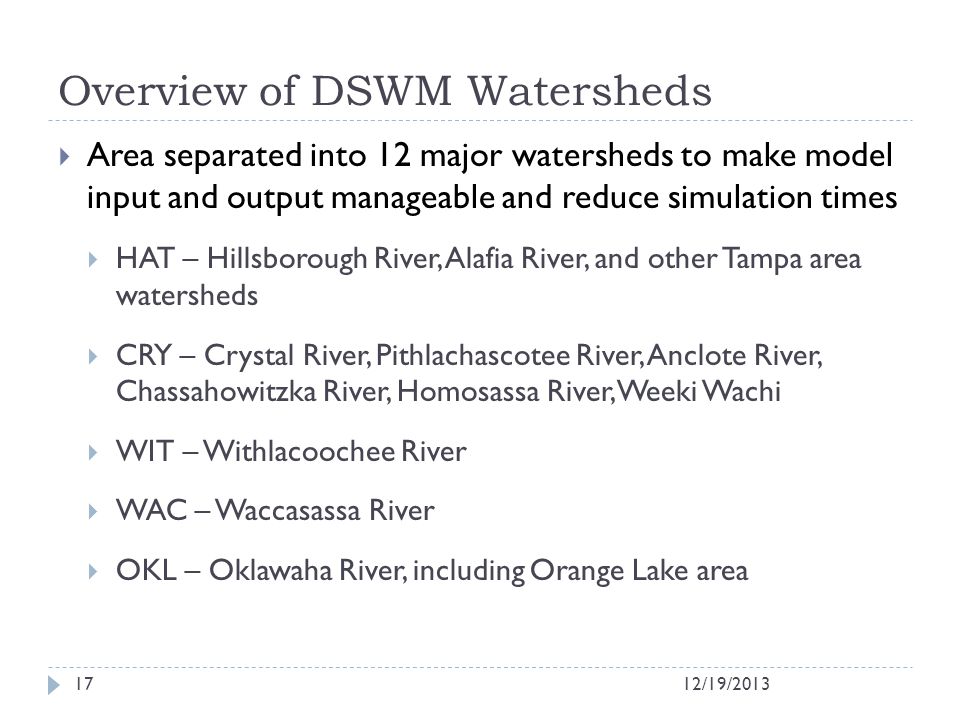

17. Overview of DSWM Watersheds 12/19/201317  Area separated into 12 major watersheds to make model input and output manageable and reduce simulation times  HAT – Hillsborough River, Alafia River, and other Tampa area watersheds  CRY – Crystal River, Pithlachascotee River, Anclote River, Chassahowitzka River, Homosassa River, Weeki Wachi  WIT – Withlacoochee River  WAC – Waccasassa River  OKL – Oklawaha River, including Orange Lake area

18. Watersheds (continued) 12/19/201318  KIS – Kissimmee River  MAN - Manatee/Little Manatee  MSR - Myakka and Sarasota Bay area  PCH – Peace River and Charlotte Harbor area  WOK - Western Okeechobee  CAL - Caloosahatchee River  EXT – Extended area - Etonia/Rice Creeks, Lake George area, Wekiva River

19. Summary of DSWM Development 12/19/201319 Principal Inputs: NEXRAD 15-minute rainfall and daily computed PET dataset, 2004 Florida Land Use (seven categories – same method as INTB); Segmentation: average size = 44 sq miles Irrigation Input: based on groundwater and surface water pumping data; same method as INTB Calibration: ~75 calibration locations ET Comparisons: within error bounds of target ET (+/- 10%) for much of the area Model Performance: overall "fair" calibration to daily streamflow, monthly average flows show best results

20. Watersheds and HSPF Models 12/19/201320

21. North Domain Model Expanded into St Johns River watershed 12/19/201321

22. Final Model Segmentation 12/19/201322

23. Watersheds in Northern Region

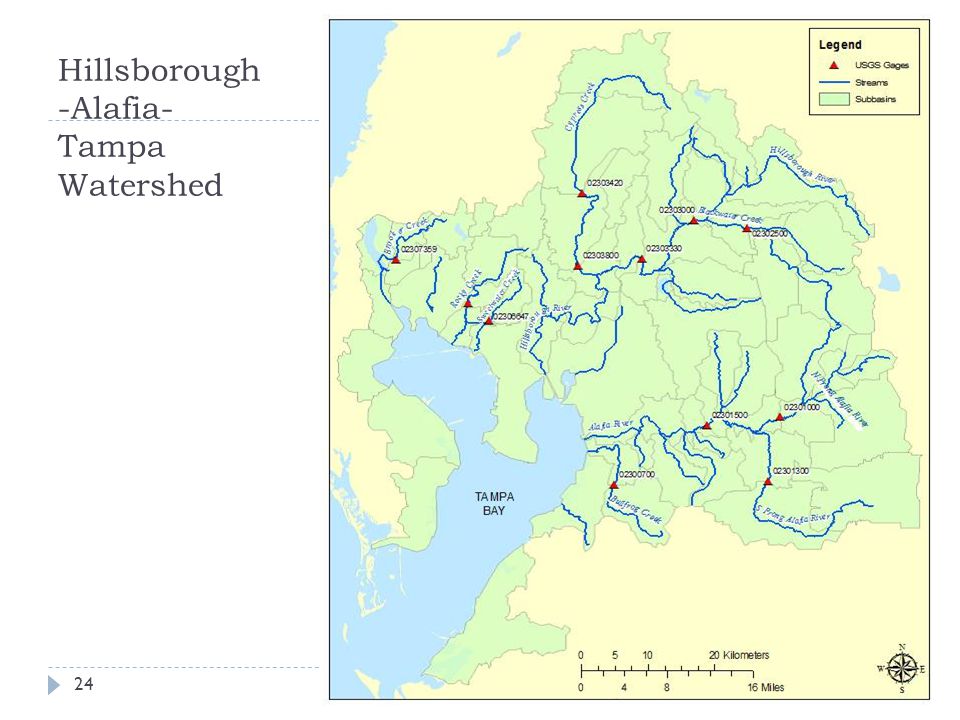

24. Hillsborough -Alafia- Tampa Watershed 12/19/201324

25. Crystal- Pithlachascotee and Withlacoochee Watersheds 12/19/201325

26. Oklawaha Watershed 12/19/201326

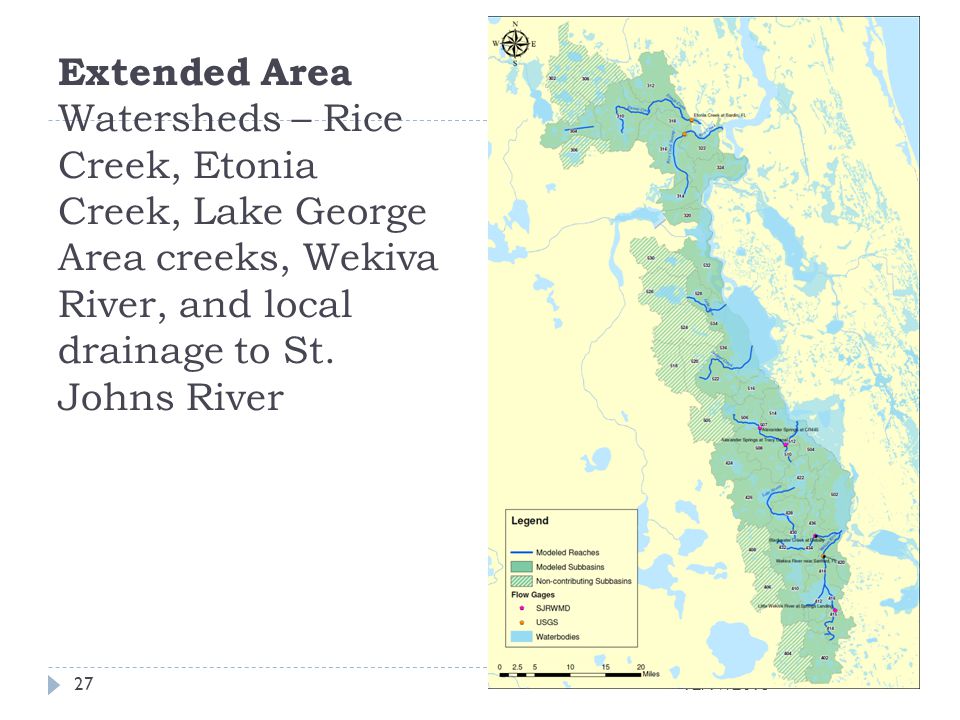

27. Extended Area Watersheds – Rice Creek, Etonia Creek, Lake George Area creeks, Wekiva River, and local drainage to St. Johns River 12/19/201327

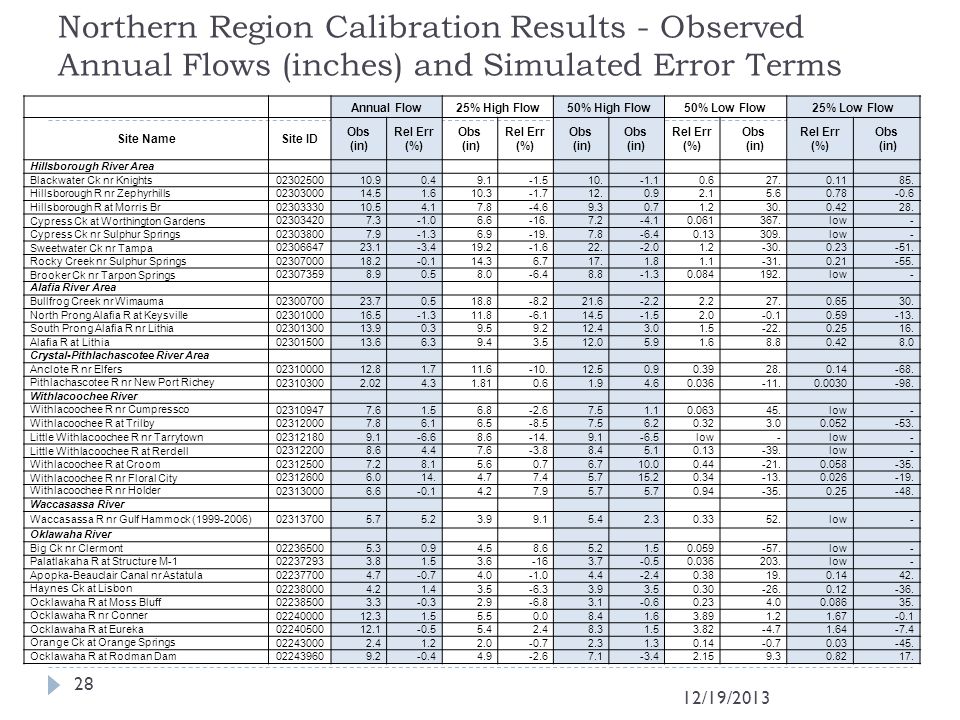

28. Northern Region Calibration Results - Observed Annual Flows (inches) and Simulated Error Terms 12/19/2013 28 Annual Flow25% High Flow50% High Flow50% Low Flow25% Low Flow Site NameSite ID Obs (in) Rel Err (%) Obs (in) Rel Err (%) Obs (in) Obs (in) Rel Err (%) Obs (in) Rel Err (%) Obs (in) Hillsborough River Area Blackwater Ck nr Knights 0230250010.90.49.1-1.510.-1.10.627.0.1185. Hillsborough R nr Zephyrhills 0230300014.51.610.3-1.712.0.92.15.60.78-0.6 Hillsborough R at Morris Br 0230333010.54.17.8-4.69.30.71.230.0.4228. Cypress Ck at Worthington Gardens 023034207.36.6-16.7.2-4.10.061367.low- Cypress Ck nr Sulphur Springs 023038007.9-1.36.9-19.7.8-6.40.13309.low- Sweetwater Ck nr Tampa 0230664723.1-3.419.2-1.622.-2.01.2-30.0.23-51. Rocky Creek nr Sulphur Springs 0230700018.2-0.114.36.717.1.81.1-31.0.21-55. Brooker Ck nr Tarpon Springs 023073598.90.58.0-6.48.8-1.30.084192.low- Alafia River Area Bullfrog Creek nr Wimauma 0230070023.70.518.8-8.221.6-2.22.227.0.6530. North Prong Alafia R at Keysville 0230100016.5-1.311.8-6.114.5-1.52.0-0.10.59-13. South Prong Alafia R nr Lithia 0230130013.90.39.59.212.43.01.5-22.0.2516. Alafia R at Lithia 0230150013.66.39.43.512.05.91.68.80.428.0 Crystal-Pithlachascotee River Area Anclote R nr Elfers 0231000012.81.711.6-10.12.50.90.3928.0.14-68. Pithlachascotee R nr New Port Richey 023103002.024.31.810.61.94.60.036-11.0.0030-98. Withlacoochee River Withlacoochee R nr Cumpressco 023109477.61.56.8-2.67.51.10.06345.low- Withlacoochee R at Trilby 023120007.86.16.5-8.57.56.20.323.00.052-53. Little Withlacoochee R nr Tarrytown 023121809.1-6.68.6-14.9.1-6.5low- - Little Withlacoochee R at Rerdell 023122008.64.47.6-3.88.45.10.13-39.low- Withlacoochee R at Croom 023125007.28.15.60.76.710.00.44-21.0.058-35. Withlacoochee R nr Floral City 023126006.014.4.77.45.715.20.34-13.0.026-19. Withlacoochee R nr Holder 023130006.6-0.14.27.95.7 0.94-35.0.25-48. Waccasassa River Waccasassa R nr Gulf Hammock (1999-2006)023137005.75.23.99.15.42.30.3352.low- Oklawaha River Big Ck nr Clermont 022365005.30.94.58.65.21.50.059-57.low- Palatlakaha R at Structure M-1 022372933.81.53.6-163.7-0.50.036203.low- Apopka-Beauclair Canal nr Astatula 022377004.7-0.74.04.4-2.40.3819.0.1442. Haynes Ck at Lisbon 022380004.21.43.5-6.33.93.50.30-26.0.12-36. Ocklawaha R at Moss Bluff 022385003.3-0.32.9-6.83.1-0.60.234.00.08635. Ocklawaha R nr Conner 0224000012.31.55.50.08.41.63.891.21.67-0.1 Ocklawaha R at Eureka 0224050012.1-0.55.42.48.31.53.82-4.71.64-7.4 Orange Ck at Orange Springs 022430002.41.22.0-0.72.31.30.14-0.70.03-45. Ocklawaha R at Rodman Dam 022439609.2-0.44.9-2.67.1-3.42.159.30.8217.

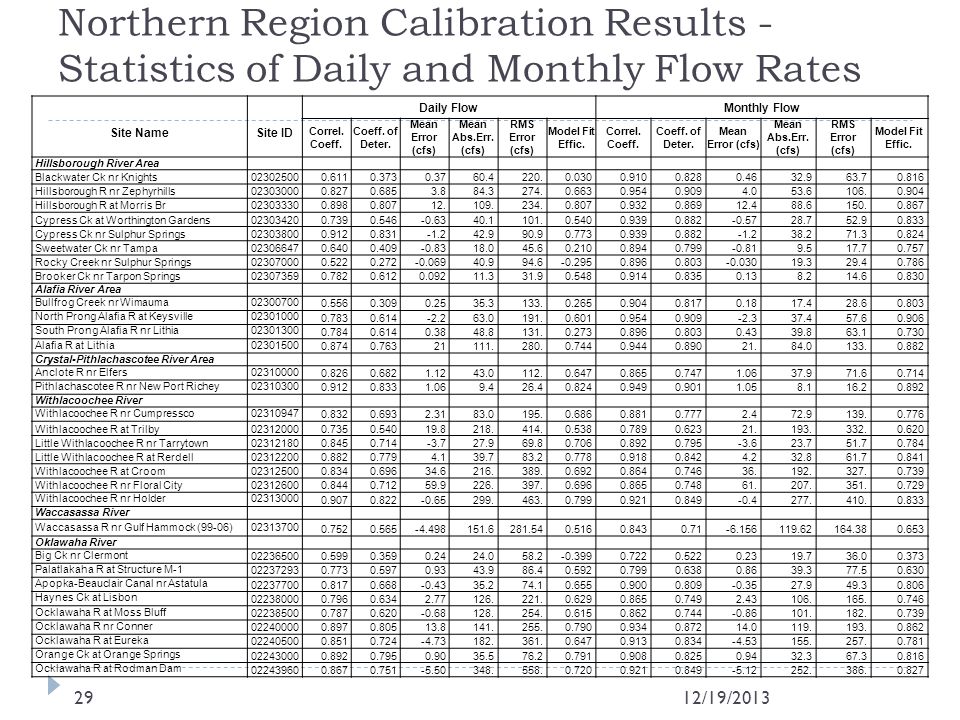

29. Northern Region Calibration Results - Statistics of Daily and Monthly Flow Rates 12/19/201329 Site NameSite ID Daily FlowMonthly Flow Correl. Coeff. Coeff. of Deter. Mean Error (cfs) Mean Abs.Err. (cfs) RMS Error (cfs) Model Fit Effic. Correl. Coeff. Coeff. of Deter. Mean Error (cfs) Mean Abs.Err. (cfs) RMS Error (cfs) Model Fit Effic. Hillsborough River Area Blackwater Ck nr Knights023025000.6110.3730.3760.4220.0.0300.9100.8280.4632.963.70.816 Hillsborough R nr Zephyrhills023030000.8270.6853.884.3274.0.6630.9540.9094.053.6106.0.904 Hillsborough R at Morris Br023033300.8980.80712.109.234.0.8070.9320.86912.488.6150.0.867 Cypress Ck at Worthington Gardens023034200.7390.546-0.6340.1101.0.5400.9390.882-0.5728.752.90.833 Cypress Ck nr Sulphur Springs023038000.9120.831-1.242.990.90.7730.9390.882-1.238.271.30.824 Sweetwater Ck nr Tampa023066470.6400.409-0.8318.045.60.2100.8940.799-0.819.517.70.757 Rocky Creek nr Sulphur Springs023070000.5220.272-0.06940.994.6-0.2950.8960.803-0.03019.329.40.786 Brooker Ck nr Tarpon Springs023073590.7820.6120.09211.331.90.5480.9140.8350.138.214.60.830 Alafia River Area Bullfrog Creek nr Wimauma02300700 0.5560.3090.2535.3133.0.2650.9040.8170.1817.428.60.803 North Prong Alafia R at Keysville02301000 0.7830.614-2.263.0191.0.6010.9540.909-2.337.457.60.906 South Prong Alafia R nr Lithia02301300 0.7840.6140.3848.8131.0.2730.8960.8030.4339.863.10.730 Alafia R at Lithia02301500 0.8740.76321111.280.0.7440.9440.89021.84.0133.0.882 Crystal-Pithlachascotee River Area Anclote R nr Elfers02310000 0.8260.6821.1243.0112.0.6470.8650.7471.0637.971.60.714 Pithlachascotee R nr New Port Richey02310300 0.9120.8331.069.426.40.8240.9490.9011.058.116.20.892 Withlacoochee River Withlacoochee R nr Cumpressco02310947 0.8320.6932.3183.0195.0.6860.8810.7772.472.9139.0.776 Withlacoochee R at Trilby023120000.7350.54019.8218.414.0.5380.7890.62321.193.332.0.620 Little Withlacoochee R nr Tarrytown023121800.8450.714-3.727.969.80.7060.8920.795-3.623.751.70.784 Little Withlacoochee R at Rerdell023122000.8820.7794.139.783.20.7780.9180.8424.232.861.70.841 Withlacoochee R at Croom023125000.8340.69634.6216.389.0.6920.8640.74636.192.327.0.739 Withlacoochee R nr Floral City023126000.8440.71259.9226.397.0.6960.8650.74861.207.351.0.729 Withlacoochee R nr Holder02313000 0.9070.822-0.65299.463.0.7990.9210.849-0.4277.410.0.833 Waccasassa River Waccasassa R nr Gulf Hammock (99-06)02313700 0.7520.565-4.498151.6281.540.5160.8430.71-6.156119.62164.380.653 Oklawaha River Big Ck nr Clermont 022365000.5990.3590.2424.058.2-0.3990.7220.5220.2319.736.00.373 Palatlakaha R at Structure M-1 022372930.7730.5970.9343.986.40.5920.7990.6380.8639.377.50.630 Apopka-Beauclair Canal nr Astatula 022377000.8170.668-0.4335.274.10.6550.9000.809-0.3527.949.30.806 Haynes Ck at Lisbon 022380000.7960.6342.77126.221.0.6290.8650.7492.43106.165.0.746 Ocklawaha R at Moss Bluff 022385000.7870.620-0.68128.254.0.6150.8620.744-0.86101.182.0.739 Ocklawaha R nr Conner 022400000.8970.80513.8141.255.0.7900.9340.87214.0119.193.0.862 Ocklawaha R at Eureka 022405000.8510.724-4.73182.361.0.6470.9130.834-4.53155.257.0.781 Orange Ck at Orange Springs 022430000.8920.7950.9035.576.20.7910.9080.8250.9432.367.30.816 Ocklawaha R at Rodman Dam 022439600.8670.751-5.50348.558.0.7200.9210.849-5.12252.386.0.827

30. Examples Northern Watersheds

31. Withlacoochee River near Holder 12/19/201331  Add

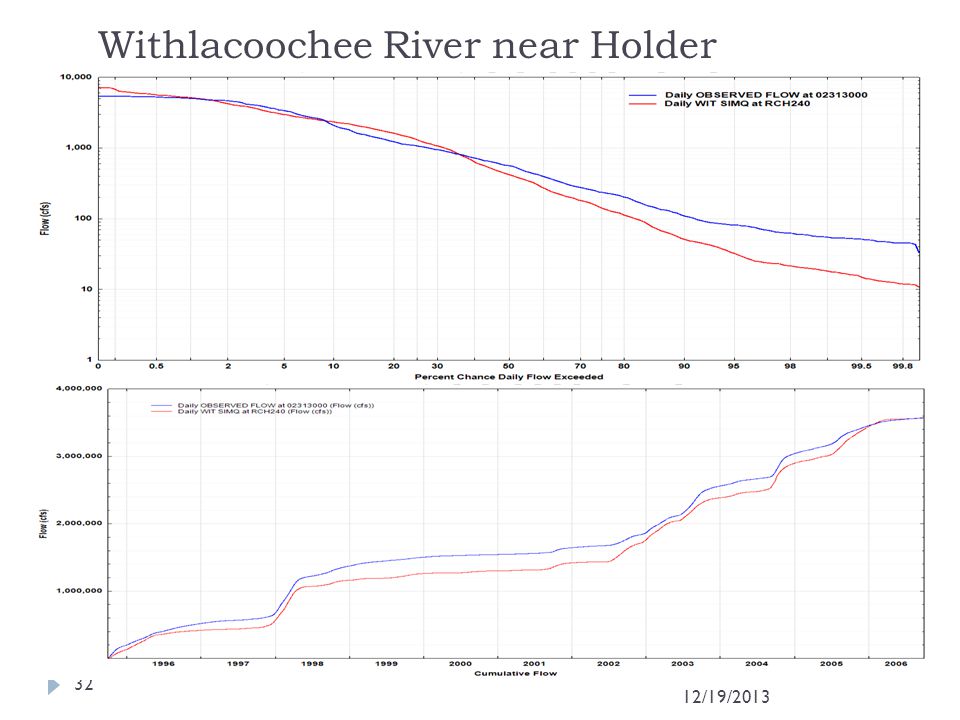

32. Withlacoochee River near Holder 12/19/2013 32

33. Hillsborough River at Morris Bridge 12/19/2013 33

34. Hillsborough River at Morris Bridge 12/19/2013 34

35. Summary of Examples 12/19/201335  Both examples are good statistically except for low flows, which are too high in Hillsborough and too low in Withlacoochee  Withlacoochee Basin was difficult to calibrate due to large surface storage and groundwater contributions  Dry years are over-simulated and wet years are under-simulated, generally  NEXRAD rainfall appears to be low in early years and higher than gage rainfall in later years Simulated Steamflow Volume Errors Withlacoochee River - HolderHillsborough River - Morris Br. Obs. Flow (in)Error (%)Obs. Flow (in)Error (%) Total Annual Flow6.6-0.110.54.1 25% High Flow4.27.97.8-4.6 50% High Flow5.7 9.30.7 50% Low Flow0.94-351.230 25% Low Flow0.25-48.0.4228 Statistical Measures Withlacoochee River - HolderHillsborough River - Morris Br. DailyMonthlyDailyMonthly Correlation Coefficient0.9070.9210.8980.932 Coefficient of Determination0.8220.8490.8070.869 Mean Error (cfs)-0.650.412.12.4 Mean Abs. Error (cfs)299.277.109.88.6 RMS Error (cfs)463.410.234.150. Model Fit Efficiency (NS)0.7990.8330.8070.867

36. Watersheds in Southern Region

37. Manatee and Myakka-Sarasota Watersheds 12/19/201337

38. Peace-Charlotte Harbor Watershed 12/19/201338

39. Kissimmee Watershed 12/19/201339

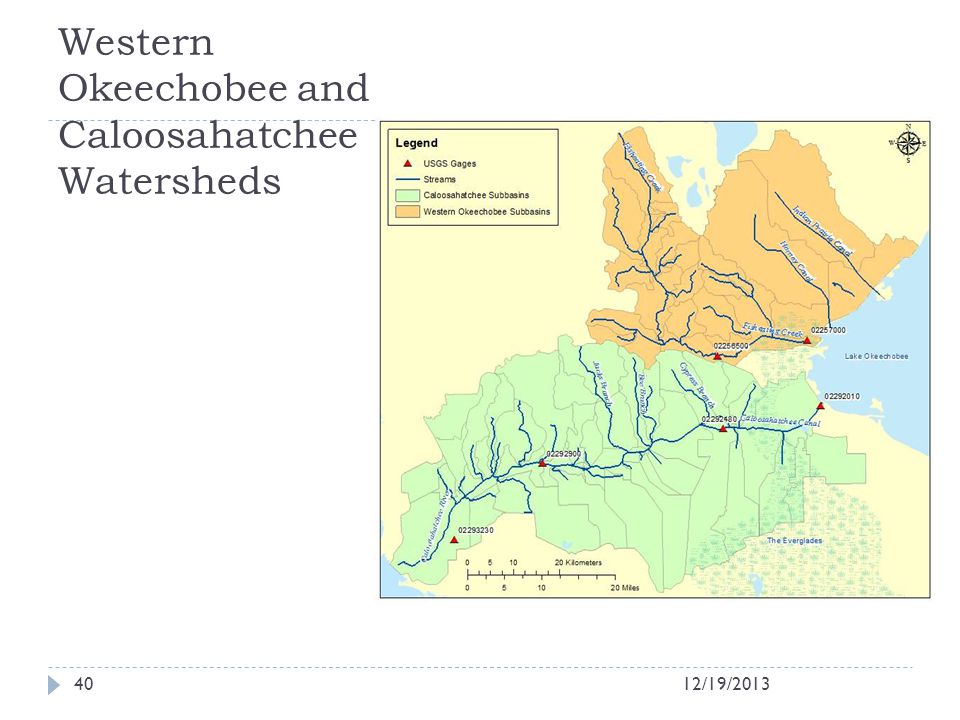

40. Western Okeechobee and Caloosahatchee Watersheds 12/19/201340

41. Peace-Charlotte Harbor Watershed 12/19/201341

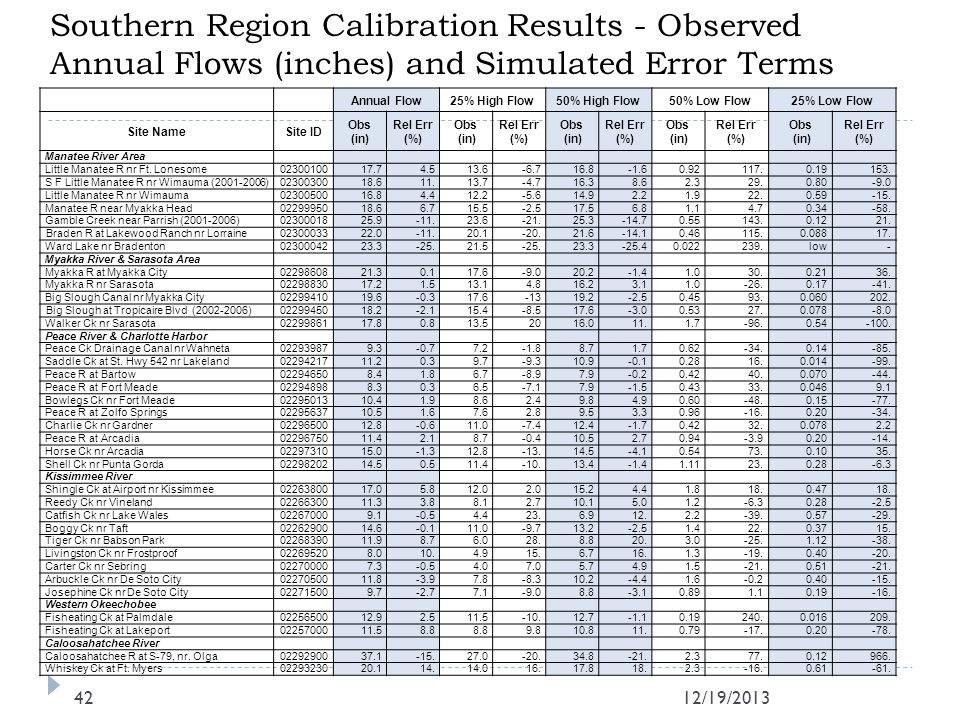

42. 12/19/201342 Annual Flow25% High Flow50% High Flow50% Low Flow25% Low Flow Site NameSite ID Obs (in) Rel Err (%) Obs (in) Rel Err (%) Obs (in) Rel Err (%) Obs (in) Rel Err (%) Obs (in) Rel Err (%) Manatee River Area Little Manatee R nr Ft. Lonesome0230010017.74.513.6-6.716.8-1.60.92117.0.19153. S F Little Manatee R nr Wimauma (2001-2006) 0230030018.611.13.7-4.716.38.62.329.0.80-9.0 Little Manatee R nr Wimauma0230050016.84.412.2-5.614.92.21.922.0.59-15. Manatee R near Myakka Head0229995018.66.715.5-2.517.56.81.14.70.34-58. Gamble Creek near Parrish (2001-2006)0230001825.9-11.23.6-21.25.3-14.70.55143.0.1221. Braden R at Lakewood Ranch nr Lorraine0230003322.0-11.20.1-20.21.6-14.10.46115. 0.08817. Ward Lake nr Bradenton0230004223.3-25.21.5-25.23.3-25.40.022239. low- Myakka River & Sarasota Area Myakka R at Myakka City0229860821.30.117.6-9.020.2-1.41.030.0.2136. Myakka R nr Sarasota0229883017.21.513.14.816.23.11.0-26.0.17-41. Big Slough Canal nr Myakka City0229941019.6-0.317.6-1319.2-2.50.4593.0.060202. Big Slough at Tropicaire Blvd (2002-2006) 0229945018.2-2.115.4-8.517.6-3.00.5327.0.078-8.0 Walker Ck nr Sarasota0229986117.80.813.52016.011.1.7-96.0.54-100. Peace River & Charlotte Harbor Peace Ck Drainage Canal nr Wahneta022939879.3-0.77.2-1.88.71.70.62-34.0.14-85. Saddle Ck at St. Hwy 542 nr Lakeland0229421711.20.39.7-9.310.9-0.10.2816.0.014-99. Peace R at Bartow022946508.41.86.7-8.97.9-0.20.4240.0.070-44. Peace R at Fort Meade022948988.30.36.5-7.17.9-1.50.4333.0.0469.1 Bowlegs Ck nr Fort Meade0229501310.41.98.62.49.84.90.60-48.0.15-77. Peace R at Zolfo Springs0229563710.51.67.62.89.53.30.96-16.0.20-34. Charlie Ck nr Gardner0229650012.8-0.611.0-7.412.4-1.70.4232.0.0782.2 Peace R at Arcadia0229675011.42.18.7-0.410.52.70.94-3.90.20-14. Horse Ck nr Arcadia0229731015.0-1.312.8-13.14.5-4.10.5473.0.1035. Shell Ck nr Punta Gorda0229820214.50.511.4-10.13.4-1.41.1123.0.28-6.3 Kissimmee River Shingle Ck at Airport nr Kissimmee0226380017.05.812.02.015.24.41.818.0.4718. Reedy Ck nr Vineland0226630011.33.88.12.710.15.01.2-6.30.28-2.5 Catfish Ck nr Lake Wales022670009.1-0.54.423.6.912.2.2-39.0.57-29. Boggy Ck nr Taft0226290014.6-0.111.0-9.713.2-2.51.422.0.3715. Tiger Ck nr Babson Park0226839011.98.76.028.8.820.3.0-25.1.12-38. Livingston Ck nr Frostproof022695208.010.4.915.6.716.1.3-19.0.40-20. Carter Ck nr Sebring022700007.3-0.54.07.05.74.91.5-21.0.51-21. Arbuckle Ck nr De Soto City0227050011.8-3.97.8-8.310.2-4.41.6-0.20.40-15. Josephine Ck nr De Soto City022715009.7-2.77.1-9.08.8-3.10.891.10.19-16. Western Okeechobee Fisheating Ck at Palmdale0225650012.92.511.5-10.12.7-1.10.19240.0.016209. Fisheating Ck at Lakeport0225700011.58.8 9.810.811.0.79-17.0.20-78. Caloosahatchee River Caloosahatchee R at S-79, nr. Olga0229290037.1-15.27.0-20.34.8-21.2.377.0.12966. Whiskey Ck at Ft. Myers0229323020.114.14.016.17.818.2.3-16.0.61-61. Southern Region Calibration Results - Observed Annual Flows (inches) and Simulated Error Terms

43. Southern Region Calibration Results - Statistics of Daily and Monthly Flow Rates 12/19/201343 Site NameSite ID Daily FlowMonthly Flow Correl. Coeff. Coeff. of Deter. Mean Error (cfs) Mean Abs.Err. (cfs) RMS Error (cfs) Model Fit Effic. Correl. Coeff. Coeff. of Deter. Mean Error (cfs) Mean Abs.Err. (cfs) RMS Error (cfs) Model Fit Effic. Manatee River Area Little Manatee R nr Ft. Lonesome02300100 0.7850.6161.823.946.80.6140.9160.8391.815.120.00.837 S F Little Manatee R nr Wimauma 02300300 0.7950.6336.035.163.40.6280.8590.7385.822.732.00.721 Little Manatee R nr Wimauma023005000.8030.6448.3108.253.0.6240.9060.8217.963.994.60.820 Manatee R near Myakka Head022999500.8160.6666.152.1154.0.6580.9160.8396.031.449.00.836 Gamble Creek near Parrish (2001-2006)023000180.5770.333-11.170.12080.271 0.9190.845-11.137.762.60.762 Braden R at Lakewood Ranch nr Lorraine 023000330.5750.330-4.734.6116.0.2850.8730.762-4.619.634.50.700 Ward Lake nr Bradenton023000420.5740.329-25.382.2249.0.1890.8910.795-25.144.985.20.694 Myakka River & Sarasota Area Myakka R at Myakka City022986080.8920.7960.2684.8226.0.7620.9390.8820.2066.7104.0.849 Myakka R nr Sarasota022988300.7860.6174.48177.366.0.5900.9130.8344.7114.160.0.833 Big Slough Canal nr Myakka City022994100.7300.533-0.1532.7122.0.5090.8770.769-0.1024.150.50.707 Big Slough at Tropicaire Blvd022994500.6590.435-2.2062.31920.3930.8900.792-1.843.674.20.768 Walker Ck nr Sarasota022998610.8370.7010.054.09.40.6520.9060.8210.0512.13.20.818 Peace River & Charlotte Harbor Peace Ck Drainage Canal nr Wahneta022939870.8880.789-0.7547.378.30.7720.9090.827-0.7240.963.80.818 Saddle Ck at St. Hwy 542 nr Lakeland022942170.7540.5680.1523.960.40.5100.9150.8360.2217.831.10.830 Peace R at Bartow022946500.8640.7464.49117.221.0.7400.9210.8484.7495.1159.0.832 Peace R at Fort Meade022948980.8580.7360.88127.233.0.7280.9160.841.2699.5162.0.840 Bowlegs Ck nr Fort Meade022950130.5670.3220.6622.984.2-0.1010.9060.820.7413.526.00.815 Peace R at Zolfo Springs022956370.8050.64910.1256.640.0.5560.9520.90610.9160.250.0.905 Charlie Ck nr Gardner022965000.7850.616-1.91152.413.0.5970.9480.899-1.95102.173.0.882 Peace R at Arcadia022967500.7560.57224.5484.1327.0.4850.9570.91525.2275.439.0.915 Horse Ck nr Arcadia022973100.7960.633-3.22128.354.0.6200.9190.845-3.2293.4171.0.806 Shell Ck nr Punta Gorda022982020.8890.7902.03158.309.0.7870.9370.8781.91118.194.0.862 Kissimmee River Shingle Ck at Airport nr Kissimmee022638000.7770.6046.4457.0108.0.5640.8770.7706.5339.559.40.767 Reedy Ck nr Vineland022663000.8850.7832.6827.651.60.7800.9260.8582.6521.833.00.854 Catfish Ck nr Lake Wales022670000.7700.593-0.2216.722.70.2760.7800.609-0.1916.121.80.280 Boggy Ck nr Taft022629000.8250.680-0.0943.588.40.6780.8410.7070.0637.363.40.707 Tiger Ck nr Babson Park022683900.8860.7854.0217.329.80.3580.9170.8424.0216.324.70.418 Livingston Ck nr Frostproof022695200.8620.7427.0226.543.40.6400.8870.7887.0424.338.40.663 Carter Ck nr Sebring022700000.7500.563-0.108.514.40.4100.7700.592-0.087.5611.20.459 Arbuckle Ck nr De Soto City022705000.8330.694-12.81182210.6830.8800.774-13.1104.161.0.769 Josephine Ck nr De Soto City022715000.8010.642-2.1335.571.40.6390.8840.781-2.1428.044.80.780 Western Okeechobee Fisheating Ck at Palmdale022565000.7820.6117.3188.379.0.6070.8920.7967.3133.207.0.789 Fisheating Ck at Lakeport022570000.6110.373-22.0317.620.0.2390.8200.672-22.3222.338.0.650 Caloosahatchee River Caloosahatchee R at S-79, nr. Olga022929000.8880.788-360.916.1516.0.7640.9340.873-35866710350.846 Whiskey Ck at Ft. Myers022932300.6660.4441.67.616.30.2710.8290.6881.64.97.30.611

44. Examples Southern Watersheds

45. Peace River at Arcadia 12/19/201345

46. Peace River at Arcadia 12/19/2013 46

47. Braden River near Lorraine (Manatee) 12/19/201347

48. Braden River near Lorraine (Manatee) 12/19/201348

49. Summary of examples 12/19/201349  Peace River is good statistically except for low flows, especially in two dry years (2000 and 2006)  Braden River (Manatee tributary) was difficult to calibrate; possibly because watershed/reach storage is under estimated, since peaks are early  Braden River low flows are over-simulated Simulated Steamflow Volume Errors Peace River - ArcadiaBraden River - Lorraine Obs. Flow (in)ErrorObs. Flow (in)Error Total Annual Flow11.42.1%22.0-11% 25% High Flow8.7-0.4%20.1-20% 50% High Flow10.52.7%21.6-14% 50% Low Flow0.94-3.9%0.46115% 25% Low Flow0.20-14.%0.08817% Statistical Measures Peace River - ArcadiaBraden River - Lorraine DailyMonthlyDailyMonthly Correlation Coefficient0.7650.9570.5750.873 Coefficient of Determination0.5720.9150.3300.762 Mean Error (cfs)24.525.2-4.7-4.6 Mean Absolute Error (cfs)484.275.34.619.6 RMS Error (cfs)1327.439.116.34.5 Model Fit Efficiency (NS)0.4850.9150.2850.700

50. Sample – Little Manatee River near Wimauma 12/19/201350

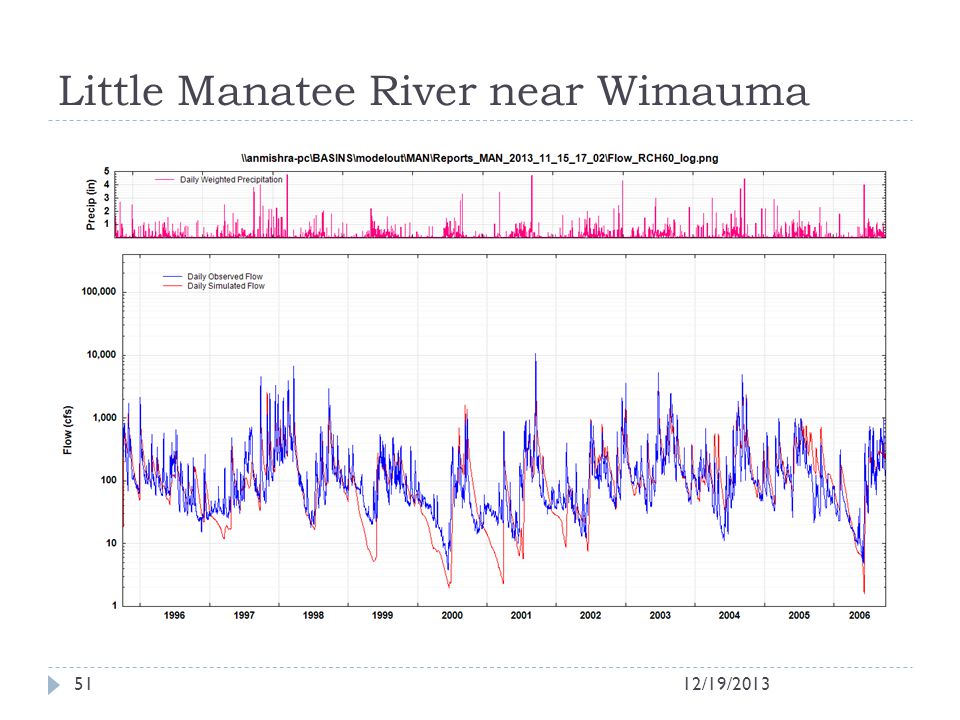

51. Little Manatee River near Wimauma 12/19/201351

52. Little Manatee River near Wimauma 12/19/201352

53. Little Manatee River near Wimauma 12/19/201353

54. Little Manatee River near Wimauma 12/19/201354

55. Little Manatee River near Wimauma 12/19/201355

56. Little Manatee River near Wimauma 12/19/201356

57. Little Manatee River near Wimauma 12/19/201357

58. Little Manatee River near Wimauma 12/19/201358

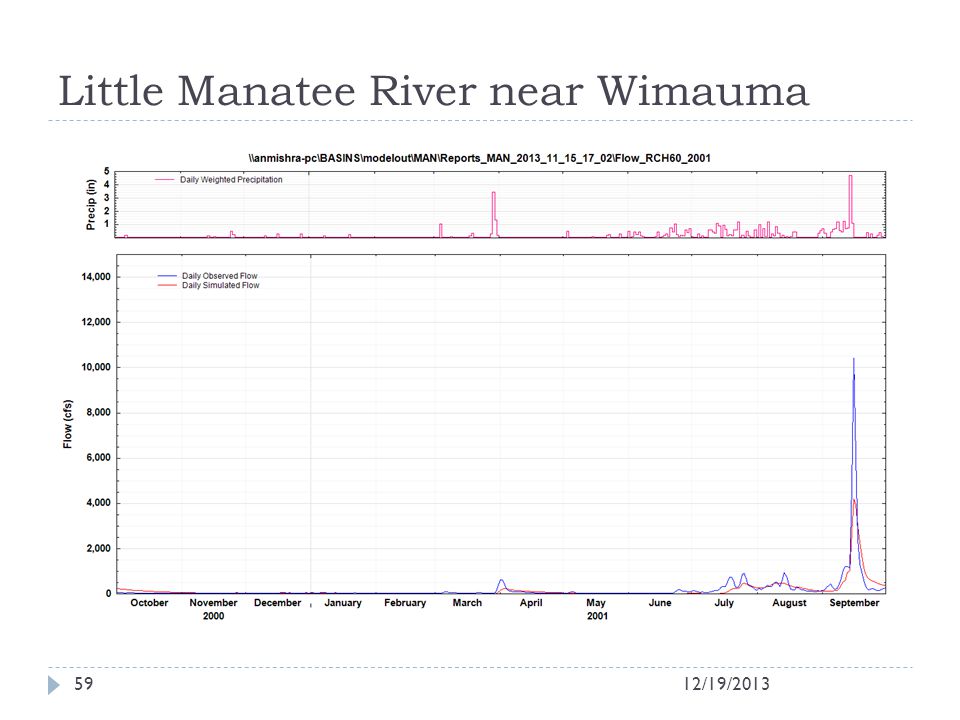

59. Little Manatee River near Wimauma 12/19/201359

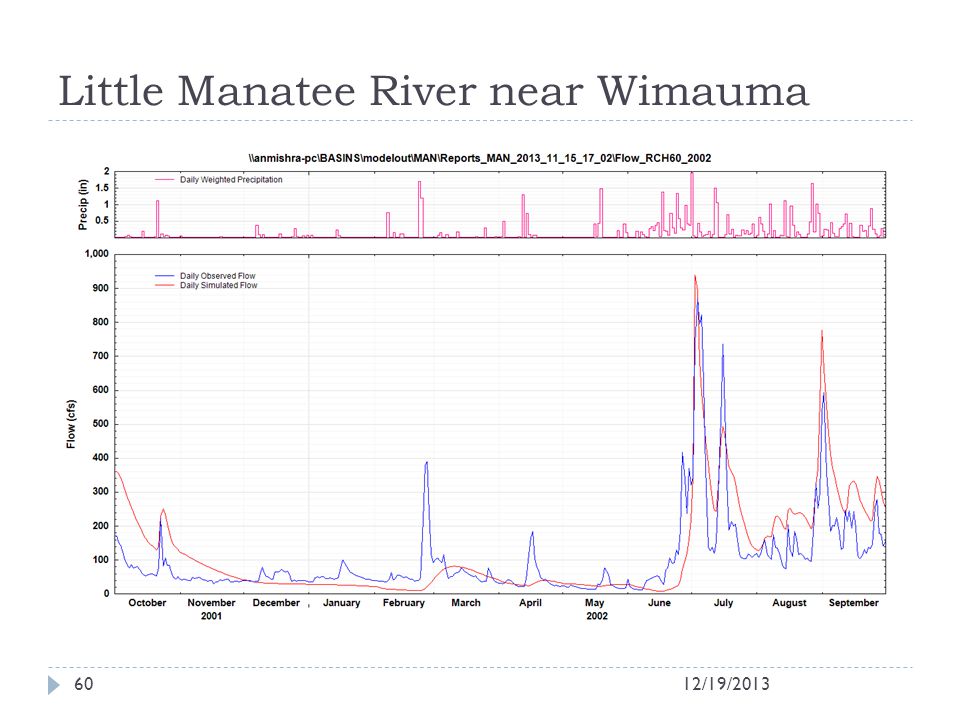

60. Little Manatee River near Wimauma 12/19/201360

61. Little Manatee River near Wimauma 12/19/201361

62. Little Manatee River near Wimauma 12/19/201362

63. Little Manatee River near Wimauma 12/19/201363

64. Little Manatee River near Wimauma 12/19/201364

65. Other Calibration Metrics 12/19/201365  Water Balance  Target ET  Baseflow Separation

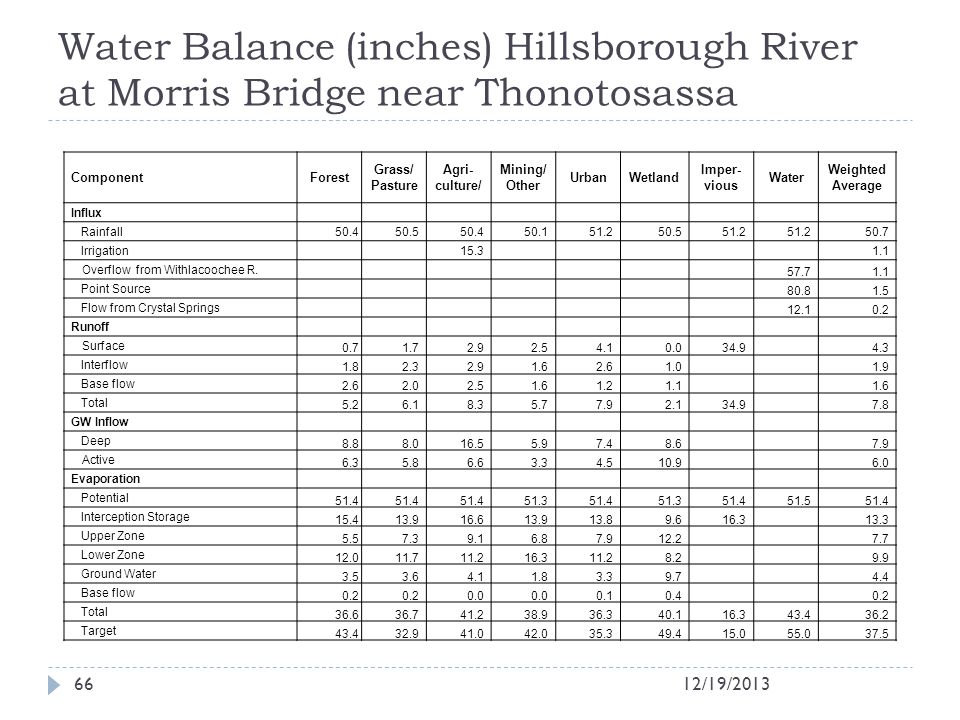

66. Water Balance (inches) Hillsborough River at Morris Bridge near Thonotosassa 12/19/201366 ComponentForest Grass/ Pasture Agri- culture/ Mining/ Other UrbanWetland Imper- vious Water Weighted Average Influx Rainfall50.450.550.450.151.250.551.2 50.7 Irrigation15.31.1 Overflow from Withlacoochee R. 57.71.1 Point Source 80.81.5 Flow from Crystal Springs 12.10.2 Runoff Surface 0.71.72.92.54.10.034.94.3 Interflow 1.82.32.91.62.61.01.9 Base flow 2.62.02.51.61.21.11.6 Total 5.26.18.35.77.92.134.97.8 GW Inflow Deep 8.88.016.55.97.48.67.9 Active 6.35.86.63.34.510.96.0 Evaporation Potential 51.4 51.351.451.351.451.551.4 Interception Storage 15.413.916.613.913.89.616.313.3 Upper Zone 5.57.39.16.87.912.27.7 Lower Zone 12.011.711.216.311.28.29.9 Ground Water 3.53.64.11.83.39.74.4 Base flow 0.2 0.0 0.10.40.2 Total 36.636.741.238.936.340.116.343.436.2 Target 43.432.941.042.035.349.415.055.037.5

67. Area-Weighted Target ET (inches/year) and Simulated Errors for Selected Watersheds 12/19/201367 Site NameSite IDForest Error (%) Grass/ Pasture Error (%) Agric./ Irrigated Error (%) Mining/ Other Error (%) Urban Error (%) Wetland Error (%) Imperv Error (%) Hillsborough River Area Hillsborough R at Morris Br0230333043.4-16%32.912%41.00%42.0-7%35.33%49.4-19% 15.9% Cypress Ck nr Sulphur Springs0230380041.9-10%31.913%42.5-6%42.0-9%35.20%47.9-11% 15.7% Alafia River Area Bullfrog Creek nr Wimauma02300700 42.8-20%32.13%42.5-16%42.0-12%35.8-10%47.7-7% 15.11% Alafia R at Lithia02301500 40.8-15%31.97%43.9-20%42.0-5%36.0-8%44.9-10% 15.7% Crystal-Pithlachascotee River Area Anclote R nr Elfers02310000 42.927%32.6-4%41.78%42.016%36.35%48.318% 15.25% Withlacoochee River Withlacoochee R nr Cumpressco02310947 43.9-18%32.910%44.31%42.0-10%37.1-7%48.1-21% 15.11% Little Withlacoochee R at Rerdell0231220044.7-13%33.613%42.64%42.0-9%37.4-16%49.4-16% 15.47% Withlacoochee R nr Holder02313000 38.81%29.231%38.217%42.0-8%31.711%45.8-11% 15.41% Waccasassa River Waccasassa R nr Gulf Hammock 02313700 36.68%26.543%43.51%42.0-11%30.323%42.3-6% 15.10% Oklawaha River Big Ck nr Clermont 0223650035.011%26.045%43.7-10%42.0-11%30.025%40.0-6% 15.33% Apopka-Beauclair Canal nr Astatula 0223770035.05%26.037%40.5-5%42.0-11%30.119%40.0-14% 15.30% Haynes Ck at Lisbon 0223800035.08%26.041%38.71%42.0-11%30.022%40.0-11% 15.28% Ocklawaha R nr Conner 0224000035.29%26.145%40.2-3%42.0-11%30.125%40.4-10% 15.30% Orange Ck at Orange Springs 0224300039.0-1%35.26%26.150%42.0-11%30.127%40.6-7% 15.27% Manatee River Area Little Manatee R nr Wimauma0230050044.2-14%33.77%44.1-9%42.0-14%37.6-4%49.3-14% 15.14% Manatee R near Myakka Head0229995040.5-9%30.613%44.1-14%42.0-21%34.5-2%45.9-1% 15.17% Myakka River & Sarasota Area Myakka R nr Sarasota0229883040.4-7%30.819%43.8-5%42.0-17%34.29%46.8-12% 15.17% Peace River & Charlotte Harbor Saddle Ck at St. Hwy 542 nr Lakeland0229421743.8-11%32.716%40.219%42.0-14%36.24%48.1-16% 15.32% Bowlegs Ck nr Fort Meade0229501340.6-5%3122%44.80%n/a 35.36%46.7-12% 15.27% Charlie Ck nr Gardner0229650039.8-6%29.922%42.82%42.0-14%33.85%44.8-13% 15.33% Peace R at Arcadia0229675040.6-6%30.521%43.90%42.0-11%34.96%45.5-10% 15.45% Horse Ck nr Arcadia0229731040.2-3%30.325%44.12%42.0-10%34.111%45.5-5% 15.35% Kissimmee River Shingle Ck at Airport nr Kissimmee0226380040.6-23%30.02%38.3-13%42.0-15%34.0-33%44.8-39% 15.20% Catfish Ck nr Lake Wales0226700036.82%28.127%44.1-10%42.0-16%31.712%41.40% 15.32% Tiger Ck nr Babson Park0226839036.52%28.426%44.4-10%42.0-18%31.713%40.66% 15.33% Carter Ck nr Sebring0227000038.9-2%29.424%44-9%n/a 33.58%43.52% 15.47% Josephine Ck nr De Soto City0227150038.7-4%29.121%43.8-13%42.0-14%32.78%43.3-5% 15.33% Western Okeechobee Fisheating Ck at Lakeport0225700040.9-11%30.211%44.7-20%42.0-20%33.8-2%46.3-11% 15.14% Caloosahatchee River Caloosahatchee R at S-79, nr. Olga0229290042.41%31.8-23%45.0-1%42.011%37.0-2%47.515% 15.18%

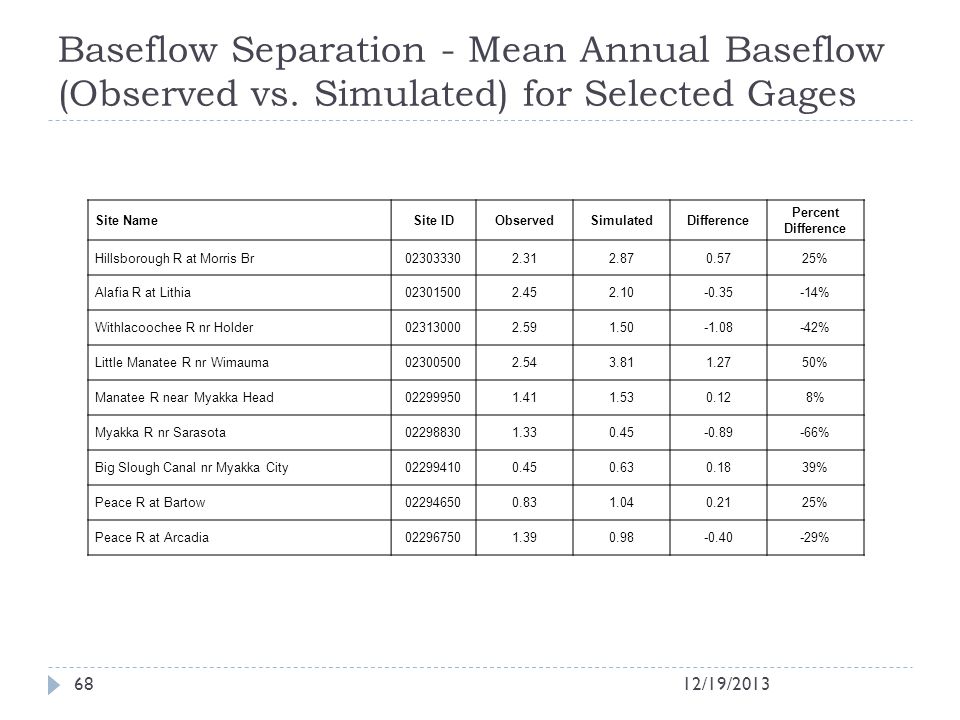

68. Baseflow Separation - Mean Annual Baseflow (Observed vs. Simulated) for Selected Gages 12/19/201368 Site NameSite IDObservedSimulatedDifference Percent Difference Hillsborough R at Morris Br023033302.312.870.5725% Alafia R at Lithia023015002.452.10-0.35-14% Withlacoochee R nr Holder023130002.591.50-1.08-42% Little Manatee R nr Wimauma023005002.543.811.2750% Manatee R near Myakka Head022999501.411.530.128% Myakka R nr Sarasota022988301.330.45-0.89-66% Big Slough Canal nr Myakka City022994100.450.630.1839% Peace R at Bartow022946500.831.040.2125% Peace R at Arcadia022967501.390.98-0.40-29%

69. Model Performance Summary 12/19/201369  Statistical measures of calibration indicate that many of the main river basins are fairly well calibrated at the outlets; correlation coefficients for daily flows at these gages range from 0.75 (Poor) for the Peace River to 0.91 (Good) for the Withlacoochee River, based on typical hydrology calibration criteria.  Average daily correlation coefficient at all gages: 0.783  The monthly flow correlation coefficients at the major gages are generally better, and are all above 0.90 (Good). Results at the smaller gages are variable, with some poor statistical comparisons and some good. Average: 0.894  Errors in total flow and 25%/50% high flows are small, and flow frequency comparisons are good at higher flows  Some of the calibration error is attributable to apparent errors in the principal hydrological input (rainfall). The NEXRAD rainfall dataset appears to be lower than gage-based rainfall in the earlier years of the model calibration period (WY 1996- 2006), and higher in the later years, specifically it is higher in 2004-06, and lower prior to 2004  Low flow years are over-simulated and high flow years are under-simulated in many watersheds

70. HSPF: HYDROLOGIC SIMULATION PROGRAM - FORTRAN Continuous simulation model Natural and developed watersheds and water systems Land surface and subsurface hydrology and quality processes Stream/lake hydraulics and water quality processes Time series data management and storage Core watershed model in EPA BASINS Development and maintenance activities sponsored by U.S. EPA and U.S. Geological Survey

71. CONTINUOUS SIMULATION Represent hydrologic processes, storages, and pathways for a watershed, continuously for many days to multiple years, with time steps of one day or less, usually in the range of minutes to hours

72. 72 of 32 RESULTS FROM CONTINUOUS SIMULATION Daily FlowFlow Duration/Frequency Storm Hydrographs

73. HSPF APPLICATION & UTILITY MODULES PERLND IMPLNDRCHRES Snow Hydraulics Water Conservative SedimentSolidsTemperature Quality Sediment PesticideNonconservative NitrogenBOD/DO PhosphorusNitrogen TracerPhosphorus Carbon Plankton BMP Flow Any constituent simulated in PERLND, IMPLND or RCHRES APPLICATION MODULES UTILITY MODULES COPY, MUTSIN, PLTGEN, DURANL, GENER, DISPLY, REPORT

74. HSPF - STRENGTHS Comprehensive representation of watershed land and stream processes Comprehensive representation of watershed pollutant sources, including nonpoint sources (by multiple land uses), point sources, atmospheric, etc. Flexibility and adaptability to a wide range of watershed conditions Well-designed code modularity and structure Companion database and support programs to assist model users (e.g., BASINS, WDMUtil, WinHSPF, GenScn, HSPEXP+) Development and support by U.S. EPA and USGS

75. HSPF - LIMITATIONS AND WEAKNESSES Extensive data requirements User training normally required Lack of comprehensive parameter guidance Large number of parameters Limited spatial definition (i.e., lumped parameter approach) Hydraulics limited to non-tidal freshwater systems and unidirectional flow Simplified representation of urban drainage systems

76. HSPF APPLICATION PROCESS Study definition Development of modeling strategy Learn how to use HSPF Development of time series data Parameter development Calibration/validation Analysis of alternate scenarios

77. HSPF HYDROLOGY  PROCESSES  PARAMETERS  CALIBRATION

78. 78 of 35 THE HYDROLOGIC CYCLE

79. HYDROLOGIC COMPONENTS Hydrologic Components: Rainfall Interception Depression storage Evapotranspiration Infiltration Surface storage Runoff Interflow Groundwater flow Evapotranspiration Interceptio n Depression storage Ground surface Capillary rise Precipitation Infiltration Soil moisture Percolation Groundwater storage Underground flow into or out of the area Ground water flow Streamflow Interflow Surface runoff Channel pptn.

80. WATER BALANCE Water balance equation  R = P - ET - IG - Δ S where:P=Precipitation R=Runoff ET=Evapotranspiration IG=Deep/inactive groundwater Δ S=Change in soil storage Inter-relationships between components Variation of components with time consideration of soil condition, cover, antecedent conditions, land practices

81. STANFORD WATERSHED MODEL To Stream Actual ET Potential ET Precipitation Temperature Radiation Wind, Dewpoint Snowmelt Interception Storage Lower Zone Storage Groundwater Storage Interflow Upper Zone Storage Overland Flow Deep or Inactive Groundwater CEPSC* BASETP* AGWETP* DEEPFR* LZSN* INFILT* INTFW* UZSN* AGWRC* NSUR* SLSUR* LSUR* IRC* Delayed Infiltration Direct Infiltration PERC 1 ET 2 3 4 5 LZETP* * Parameters Output Process Input Storage ET -Evapotranspiration n Order taken to meet ET demand Decision

82. PWATER PARAMETERS CEPSC - Interception storage capacity NSUR - Manning’s N for overland flow plane LSUR - Length of assumed overland flow plane SLSUR - Slope of assumed overland flow plane INFILT - Index to infiltration capacity of the soil UZSN - Upper zone nominal soil moisture storage LZSN - Lower zone nominal soil moisture storage LZETP - Lower zone ET parameter; index to density of deep-rooted vegetation

83. PWATER PARAMETERS INTFW - Interflow inflow parameter IRC - Interflow recession parameter (the ratio of interflow outflow rate today / rate yesterday) KVARY - Variable groundwater recession parameter AGWRC - Basic groundwater recession rate (when KVARY is 0) DEEPFR - Fraction of groundwater inflow which will enter deep (inactive) groundwater BASETP - Fraction of remaining potential ET which can be satisfied from baseflow AGWETP - Fraction of remaining potential ET which can be satisfied from active groundwater storage

84. PWATER PARAMETERS INTFW - Interflow inflow parameter IRC - Interflow recession parameter, i.e., the ratio of interflow outflow rate today / rate yesterday LZETP - Lower zone ET parameter; an index to the density of deep-rooted vegetation

85.  Mean runoff volume for simulation period (inches)  Annual and monthly runoff volume (inches)  Daily flow timeseries (cfs)  observed and simulated daily flow  scatter plots  Flow frequency (flow duration) curves (cfs)  Storm hydrographs, hourly or less, (cfs) CALIBRATION/VALIDATION COMPARISONS “Weight-of-Evidence” Approach

86.  Precipitation  Total Runoff (sum of following components)  Overland flow  Interflow  Baseflow  Total Actual Evapotranspiration (ET) (sum of components):  Interception ET  Upper Zone ET  Lower Zone ET  Baseflow ET  Active Groundwater ET  Deep Groundwater Recharge/Losses CALIBRATION/VALIDATION COMPARISONS Water Balance Components

87. Graphical Comparisons:  Timeseries plots of observed and simulated values for fluxes (e.g., flow) or state variables (e.g., stage, sediment concentration, biomass concentration)  Observed and simulated scatter plots, with 45 o linear regression line displayed, for fluxes or state variables  Cumulative frequency distributions of observed and simulated fluxes or state variable (e.g., flow duration curves) Statistical Tests:  Error statistics, e.g., mean error, absolute mean error, relative error, relative bias, standard error of estimate, etc.  Correlation tests, e.g., correlation coefficient, coefficient of model- fit efficiency, etc.  Cumulative Distribution tests, e.g., Kolmogorov-Smirnov (KS) test CALIBRATION/VALIDATION COMPARISONS Graphical/Statistical Procedures & Tests

88. R & R 2 VALUE RANGES FOR MODEL PERFORMANCE Criteria 0.60.70.80.9 PoorFairGoodVery Good PoorFairGoodVery Good 0.750.800.850.900.95 R 2 Daily Flows Monthly Flows R

89. HYDROLOGIC (PWATER) CALIBRATION Annual Water Balance - Runoff = Prec. - Actual ET - Deep Perc. - Δ Storage Key Parameters:Repre. Precipitation (MFACT) LZSN LZETP INFILT DEEPFR Groundwater (Baseflow) Volume and Recession - Runoff = Surface Runoff + Interflow + Baseflow Key Parameters:INFILT AGWRC/KVARY DEEPFR BASETP/AGWETP Surface Runoff + Interflow (Hydrograph Shape) - Key Parameters:UZSN INTFW IRC LSUR, NSUR, SLSUR

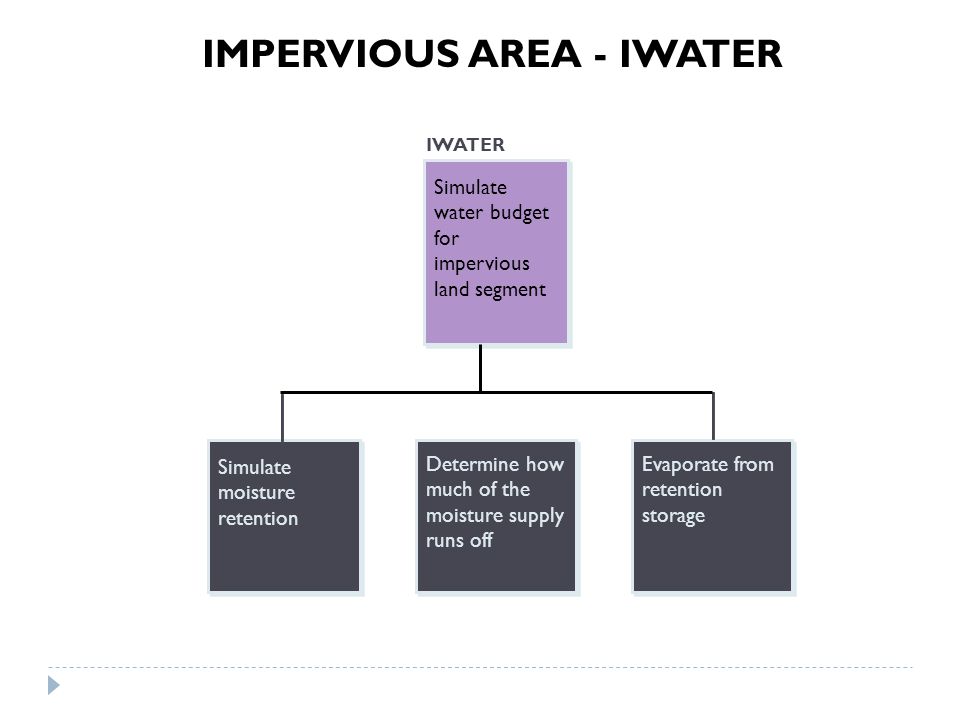

90. IMPERVIOUS AREA - IWATER IWATER Simulate water budget for impervious land segment Simulate moisture retention Determine how much of the moisture supply runs off Evaporate from retention storage

91. IWATER CALIBRATION Impervious area process IWATER parameter Interception RETSC – retention storage Overland flow/runoff LSUR, NSUR, SLSUR Evaporation (no parameter, occurs at PET)

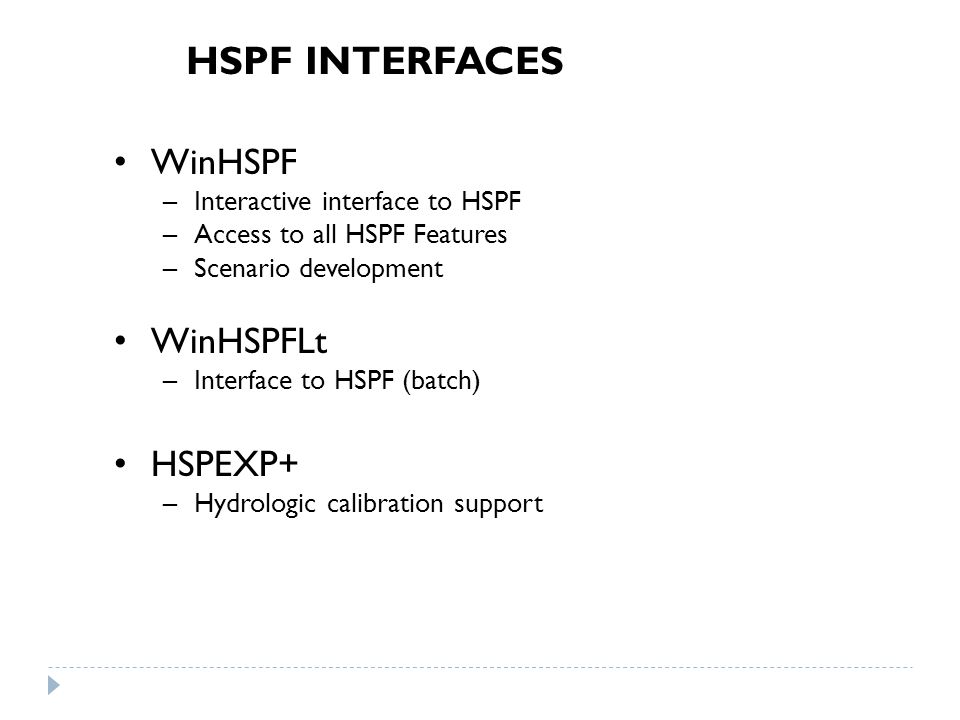

92. HSPF INTERFACES WinHSPF –Interactive interface to HSPF –Access to all HSPF Features –Scenario development WinHSPFLt –Interface to HSPF (batch) HSPEXP+ –Hydrologic calibration support

93. HSPF SUPPORTING PROGRAMS BASINS –Build/maintain WDM time series file and meteorologic data for HSPF and other models –Meteorologic data generation and fill-in –Graphical and tabular display of time series data –Etc. WDMUtil (becoming obsolete) –Build/maintain WDM time series file and meteorologic data for BASINS –Meteorologic data generation and fill-in –Graphical and tabular display of time series data GenScn (becoming obsolete) –Graphical and tabular display of time series data

94. FILES UTILIZED BY HSPF UCI (User’s Control Input) - contains all input except time series data Run Interpreter Output (ECH) - output summary of user’s input Operation Module Output - state variables and fluxes at user-selected intervals for PERLND/IMPLND/RCHRES WDM - time series data input and output (binary format) PLTGEN/MUTSIN/SEQ - Time series data input and output (text format) HSPF Binary Output - Operation module output in binary format Basin Specifications (EXS) - contains information for the HSPF hydrology calibration support program HSPEXP+

95. Recharge and ET Estimation

96. STANFORD WATERSHED MODEL To Stream Actual ET Potential ET Precipitation Temperature Radiation Wind,Dewpoint Snowmelt Interception Storage Lower Zone Storage Groundwater Storage Interflow Upper Zone Storage Overland Flow Deep or Inactive Groundwater CEPSC* BASETP* AGWETP* DEEPFR* LZSN* INFILT* INTFW* UZSN* AGWRC* NSUR* SLSUR* LSUR* IRC* Delayed Infiltration Direct Infiltration PERC 1 ET 2 3 4 5 LZETP* * Parameters Output Process Input Storage ET -Evapotranspiration n Order taken to meet ET demand Decision ETVadose ETSat IGWI AGWI AGWET BASET 9612/19/2013

97. 97 AGWI IGWIBASET AGWET

98. Infiltration, Effective Recharge and ET in MODFLOW I = AGWI + IGWI Vadose Zone R’ I ET Sat Groundwater I = Precip Eff - ET Vadose 9812/19/2013 ET sat = AGWET + BASET =

99. 12/19/201399 Extinction Depth ET at depth d below ET surface ET Surface DEDE d ET From Groundwater ET Max

100. 12/19/2013100 BASINS 4.1 *_REC.WDM File Subbasin AGWI, IAGWI, AGWET, BASET Arc/MAP Shapefiles Landuse, Grid Grid AGWI, IAGWI, AGWET, BASET GW Model Files RCH, EVT

101. 12/19/2013101 BASINS 4.1 *_REC.WDM File Subbasin AGWI, IAGWI, AGWET, BASET Arc/MAP Shapefiles Landuse, Grid Grid AGWI, IAGWI, AGWET, BASET GW Model Files RCH, EVT

102. Processing 12/19/2013102 Model_REC.WDM Text_Grid_Format.txt Subbasin AGWI, IAGWI, AGWET, BASET

103. Step 1: Open BASINS 12/19/2013103

104. Step 2: Select File Type 12/19/2013104 File>Open Data Select a File Type>WDM Time Series> OK

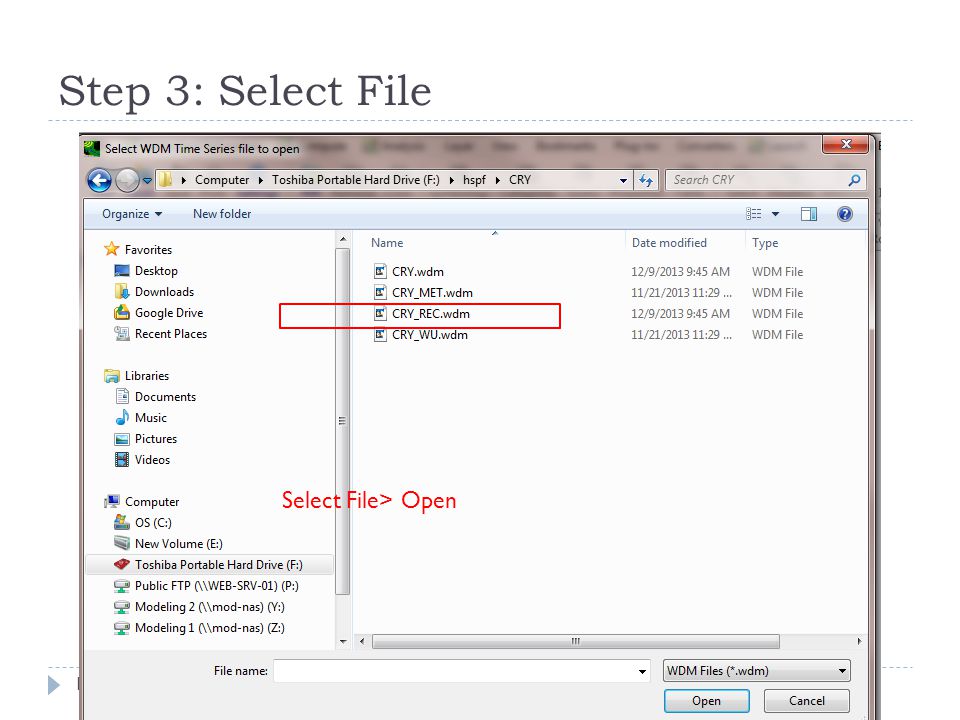

105. Step 3: Select File 12/19/2013105 Select File> Open

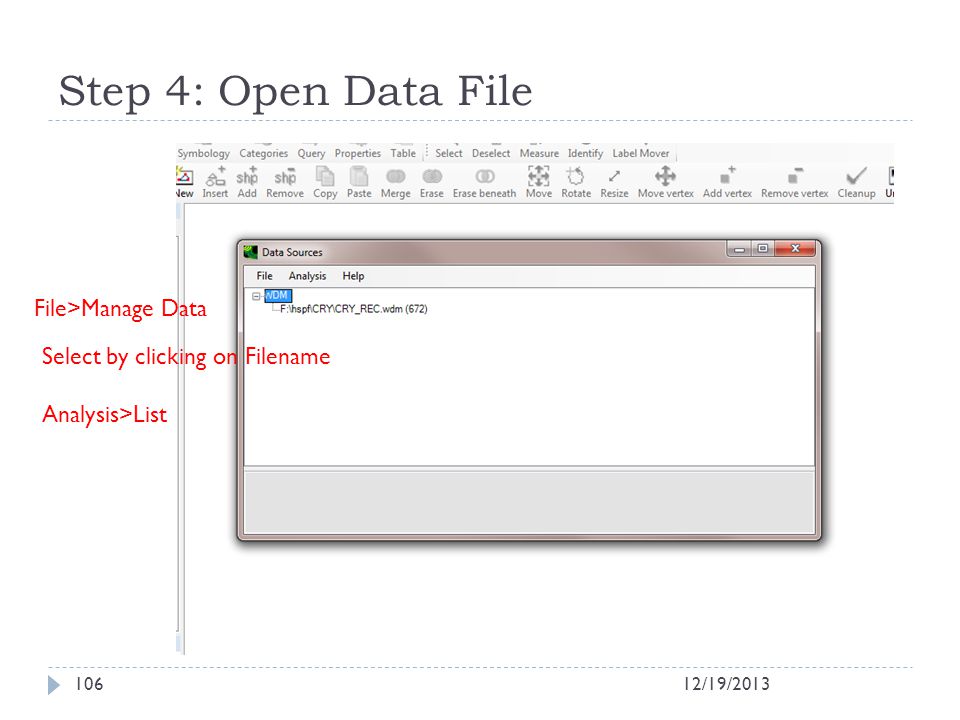

106. Step 4: Open Data File 12/19/2013106 Select by clicking on Filename Analysis>List File>Manage Data

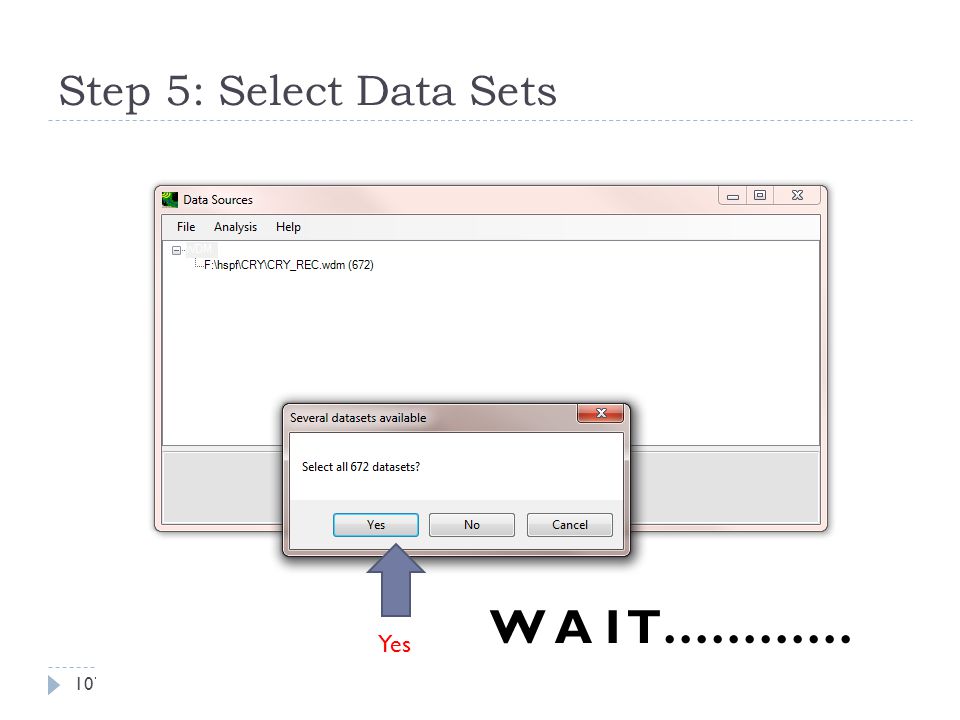

107. Step 5: Select Data Sets 12/19/2013107 Yes W A I T…………

108. Step 6: Select Data to List 12/19/2013108 OK

109. Time Series List 12/19/2013109

110. Adjust Formats 12/19/2013110 Time Series List View> Date and Value Formats

111. Selected Formats 12/19/2013111

112. Select Attributes to be Included 12/19/2013112 Time Series List File>Select Attributes

113. Save Data File as a Text File 12/19/2013113 File>Save Grid as Text

114. Save Data File 12/19/2013114

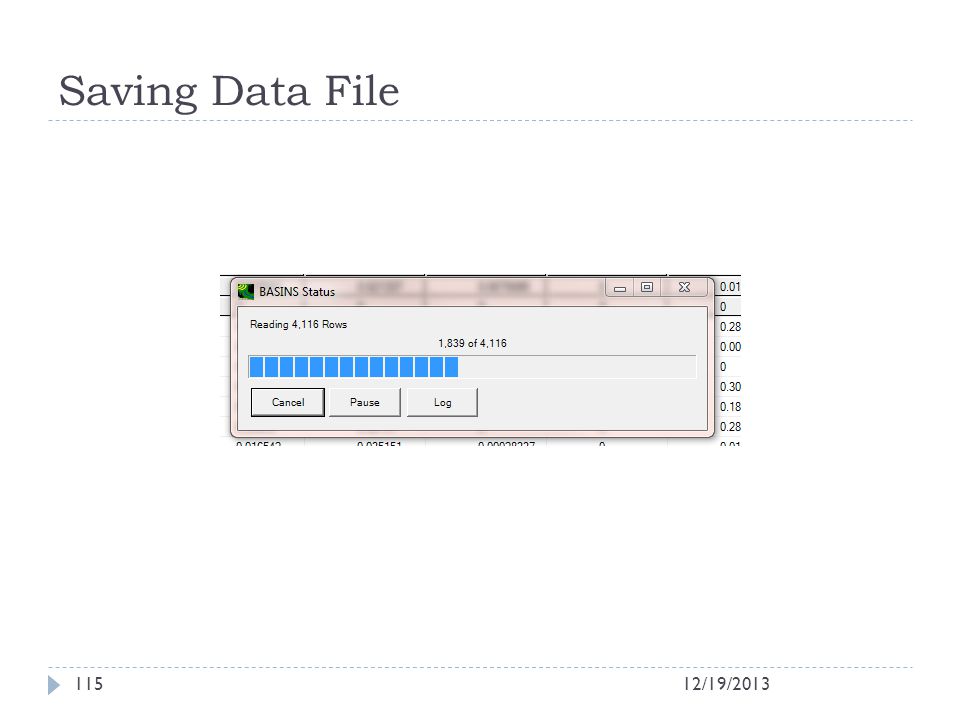

115. Saving Data File 12/19/2013115

116. 12/19/2013116 BASINS 4.1 *_REC.WDM File Subbasin AGWI, IAGWI, AGWET, BASET Arc/MAP Shapefiles Landuse, Grid Grid AGWI, IAGWI, AGWET, BASET GW Model Files RCH, EVT

117. Transfer of Arrays to Grid Cells using ArcMAP 12/19/2013117  Area-Weighted Average of Infil and ET  Apply intersection of Polygons to determine contributions of respective units  Upscale from LU  SubBasin  Basin  Cell SUBASIN i in BASIN j SUBBASIN m in BASIN n LU1 LU2 GRID CELL BASIN n BASIN j

118. 12/19/2013118

119. Plots 12/19/2013119  Annual 1995, 2000, 2004 (Net Recharge)  Annual 1995, 2000, 2004 (I 2)  Annual 1995, 2000, 2004 (ET 2)

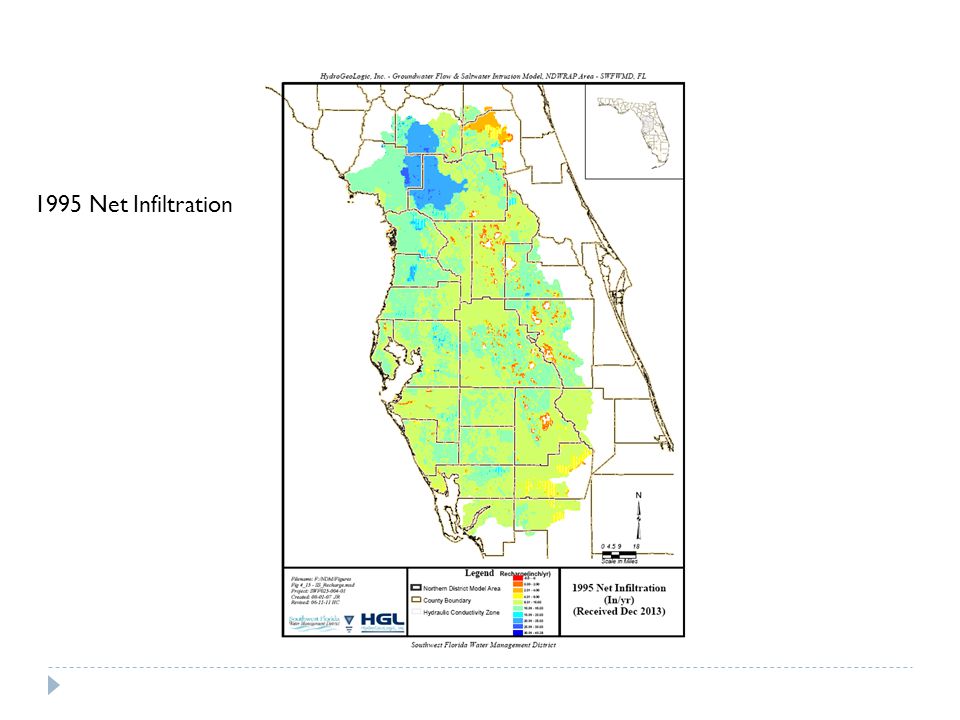

120. 1995 Net Infiltration

121. 2000 Net Infiltration

122. 2004 Net Infiltration

123. 1995 Total Infiltration

124. 2000 Total Infiltration

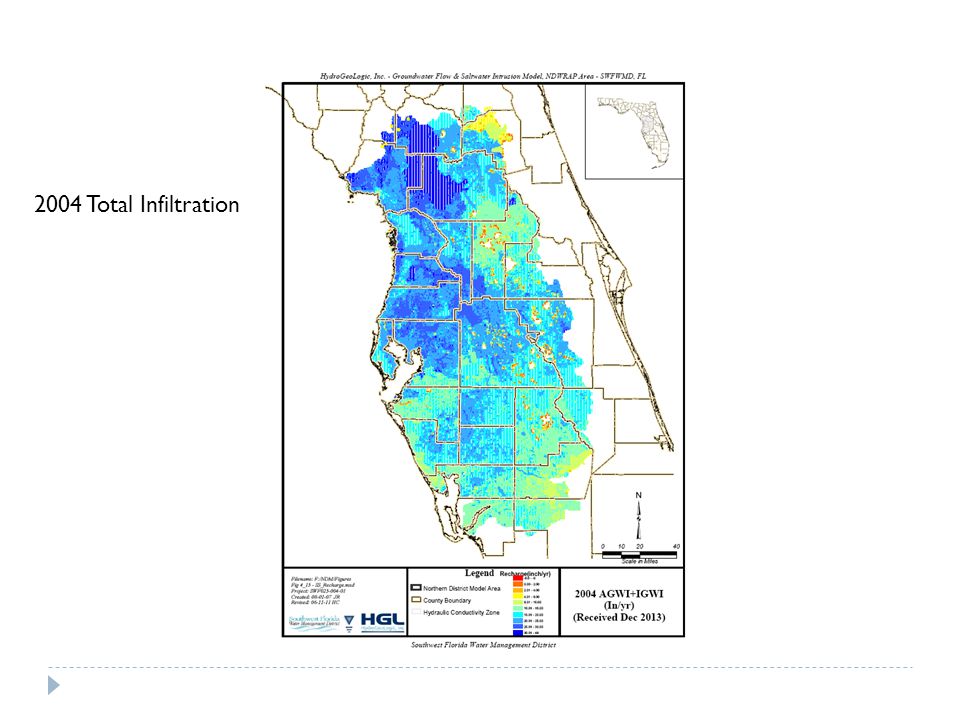

125. 2004 Total Infiltration

126. 1995 ET

127. 2000 ET

128. 2004 ET

129. NonNorthern District Model 12/19/2013129

130. 12/19/2013130 Northern Basin Eastern Basin Central Basin

131. 12/19/2013131

132. 12/19/2013132

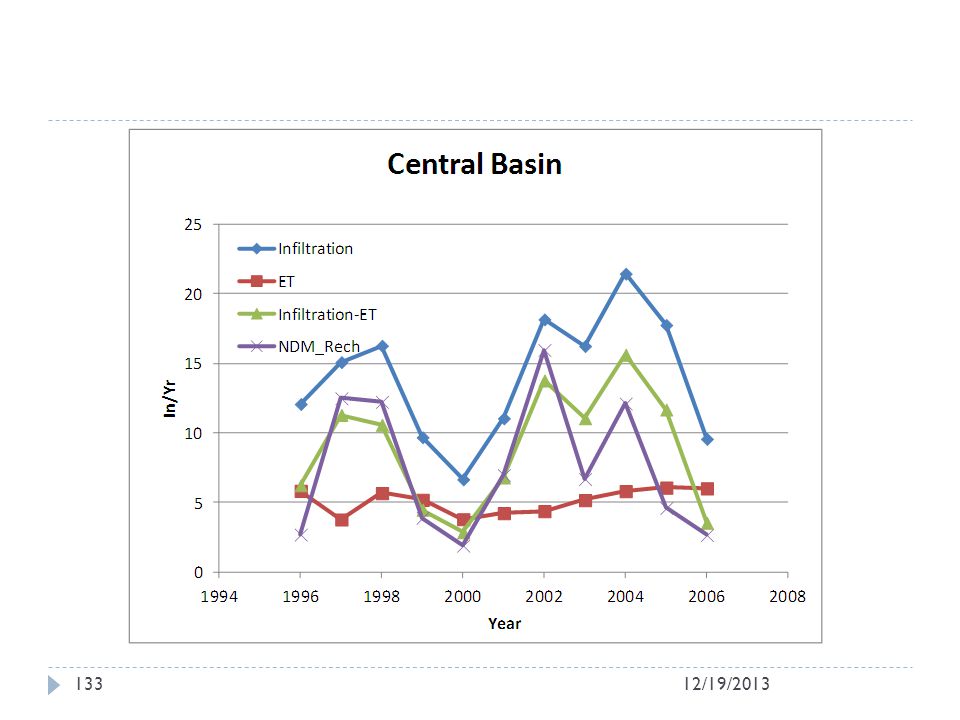

133. 12/19/2013133

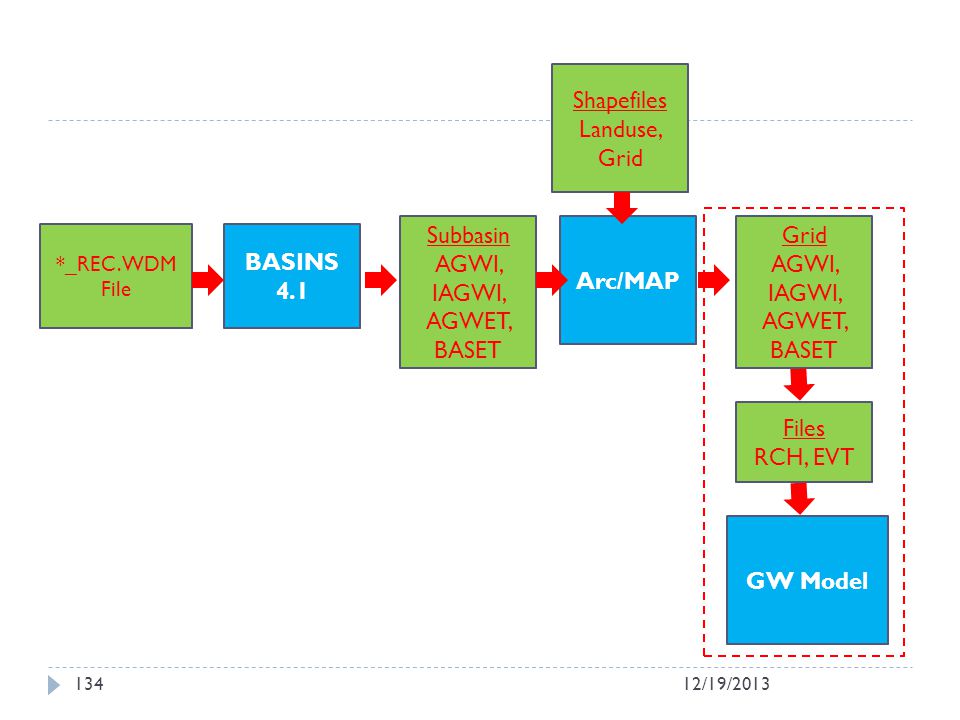

134. 12/19/2013134 BASINS 4.1 *_REC.WDM File Subbasin AGWI, IAGWI, AGWET, BASET Arc/MAP Shapefiles Landuse, Grid Grid AGWI, IAGWI, AGWET, BASET GW Model Files RCH, EVT

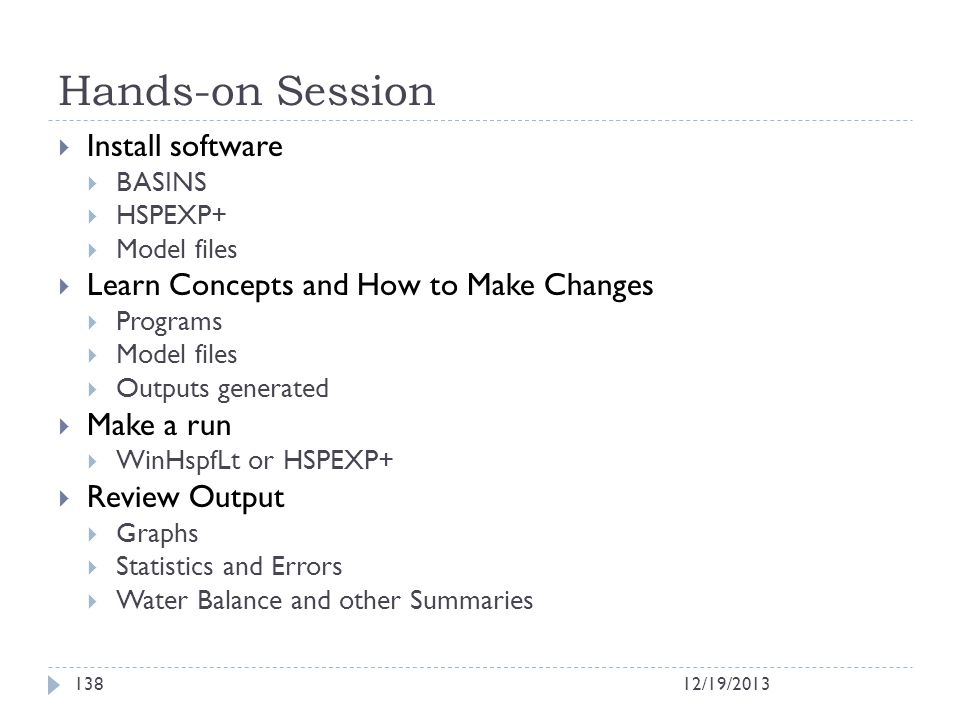

138. Hands-on Session 12/19/2013138  Install software  BASINS  HSPEXP+  Model files  Learn Concepts and How to Make Changes  Programs  Model files  Outputs generated  Make a run  WinHspfLt or HSPEXP+  Review Output  Graphs  Statistics and Errors  Water Balance and other Summaries

139. Install Software 12/19/2013139  Download BASINS package  http://aquaterra.com/basins4/BASINS4.1.2013.04.exx  Change file extension to exe  Uninstall any previous versions of BASINS  Run the file as an administrator to install  Download HSPEXP+  http://aquaterra.com/pub/DSWM/HSPEXP+.zip  Unzip the file and run setup.exe to install  Download Model files  http://aquaterra.com/pub/DSWM/ModelFiles.zip  Unzip the file  Copy the three separate directories (HAT, EXT, OKL) to the C:\BASINS41\modelout directory

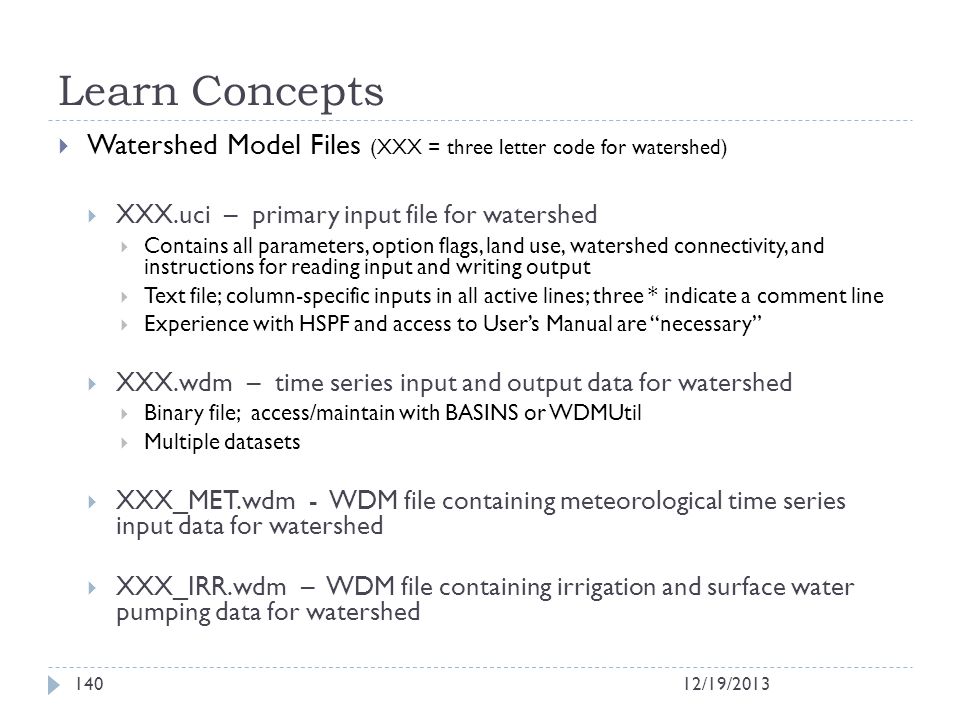

140. Learn Concepts 12/19/2013140  Watershed Model Files (XXX = three letter code for watershed)  XXX.uci – primary input file for watershed  Contains all parameters, option flags, land use, watershed connectivity, and instructions for reading input and writing output  Text file; column-specific inputs in all active lines; three * indicate a comment line  Experience with HSPF and access to User’s Manual are “necessary”  XXX.wdm – time series input and output data for watershed  Binary file; access/maintain with BASINS or WDMUtil  Multiple datasets  XXX_MET.wdm - WDM file containing meteorological time series input data for watershed  XXX_IRR.wdm – WDM file containing irrigation and surface water pumping data for watershed

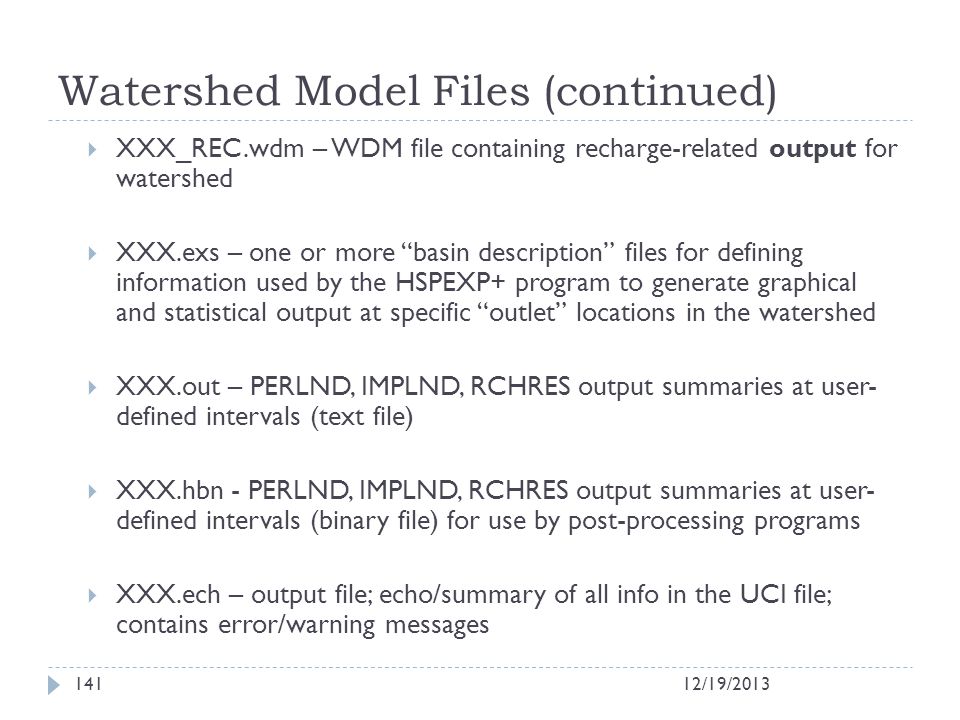

141. Watershed Model Files (continued) 12/19/2013141  XXX_REC.wdm – WDM file containing recharge-related output for watershed  XXX.exs – one or more “basin description” files for defining information used by the HSPEXP+ program to generate graphical and statistical output at specific “outlet” locations in the watershed  XXX.out – PERLND, IMPLND, RCHRES output summaries at user- defined intervals (text file)  XXX.hbn - PERLND, IMPLND, RCHRES output summaries at user- defined intervals (binary file) for use by post-processing programs  XXX.ech – output file; echo/summary of all info in the UCI file; contains error/warning messages

142. Programs (review from earlier) 12/19/2013142  BASINS – display time series data graphically and listing; build/maintain WDM files and datasets; generate meteorological data; much more!  HSPEXP+ - runs simulation; generates statistical and graphical output at locations in watershed; provides hydrology calibration advice  WDMUtil – build/maintain WDM files and datasets; generate meteorological data  WinHspf – run HSPF models; edit UCI file; implement scenarios; set up output locations in model  WinHspfLt – run HSPF model (batch)

143. Outputs Generated by HSPF 12/19/2013143  XXX.out – textfile summaries of state variables and fluxes at user- defined intervals for HSPF operations (PERLND, RCHRES, IMPLND)  XXX.hbn – binary file version of XXX.out (used by HSPEXP or BASINS to generate statistics and other outputs)  XXX.ech – echo of UCI file information; error/warning messages  XXX.wdm – HSPF writes timeseries output to the primary WDM file (flow rates and other information specific to subwatershed outlets)  XXX_REC.wdm – recharge-related timeseries output (AGWET, BASET, AGWI, IGWI)

144. Outputs Generated by HSPEXP+ 12/19/2013144  Look in subdirectory with name:  Reports_201312181302  Hydrographs  Full period, Annual, Log, Monthly  Flow Duration graphs  Cumulative Flow graphs  Statistical Summaries - all are text files  DailyMonthlyFlowStats - *.txt  AnnualFlowStats - *.txt  MonthlyAverageFlowStats - *.txt  Expert System Statistics - *.sts  Expert System Calibration Advice - *.adv

145. Examples - graphs 12/19/2013145

146. Examples – Daily Flow Stats 12/19/2013146  RCH418: Daily  Simulated Observed  Count 4,110 4,110  Mean 305.34 310.06  Geometric Mean 271.89 287.48  Note: TS, Time Series  Correlation Coefficient 0.884  Coefficient of Determination 0.781  Mean Error -4.716  Mean Absolute Error 58.961  RMS Error 81.485  Model Fit Efficiency 0.673  Table 1  TS 1 - EXT RCH418 SIMQ  TS 2 - WEKIVA RIVER NEAR SANFORD, FL

147. Examples – Expert System Statistics 12/19/2013147  Expert System Statistics for EXT.uci  Simulation Period: 3 Water years from 2003/10/01 to 2006/09/30  Site: RCH507  Total (3 year run)  Observed Simulated Simulated Simulated  Total Runoff Total Runoff Surface Runoff Interflow  total (inches) = 236.74 238.17 1.289 5.073  10% high (inches) = 37.895 36.983  25% high (inches) = 77.75 78.459  50% high (inches) = 136.27 138.89  50% low (inches) = 100.48 99.272  25% low (inches) = 47.993 47.04  10% low (inches) = 18.809 18.145  storm volume (inches) = 23.235 22.697 0.78 2.446  average storm peak (cfs) = 277.52 277.57 78.81 50.655  baseflow recession rate = 0.998 0.997  summer volume (inches) = 58.131 58.679  winter volume (inches) = 56.313 56.803  summer storms (inches) = 7.971 8.119 0.044 0.353  winter storms (inches) = 0 0 0 0

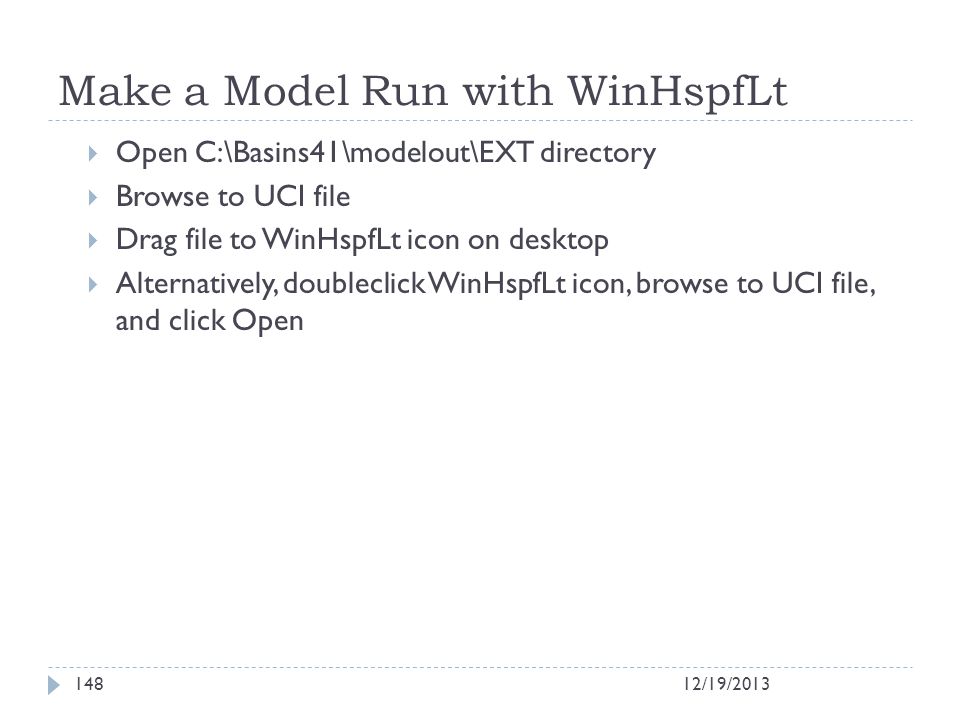

148. Make a Model Run with WinHspfLt 12/19/2013148  Open C:\Basins41\modelout\EXT directory  Browse to UCI file  Drag file to WinHspfLt icon on desktop  Alternatively, doubleclick WinHspfLt icon, browse to UCI file, and click Open

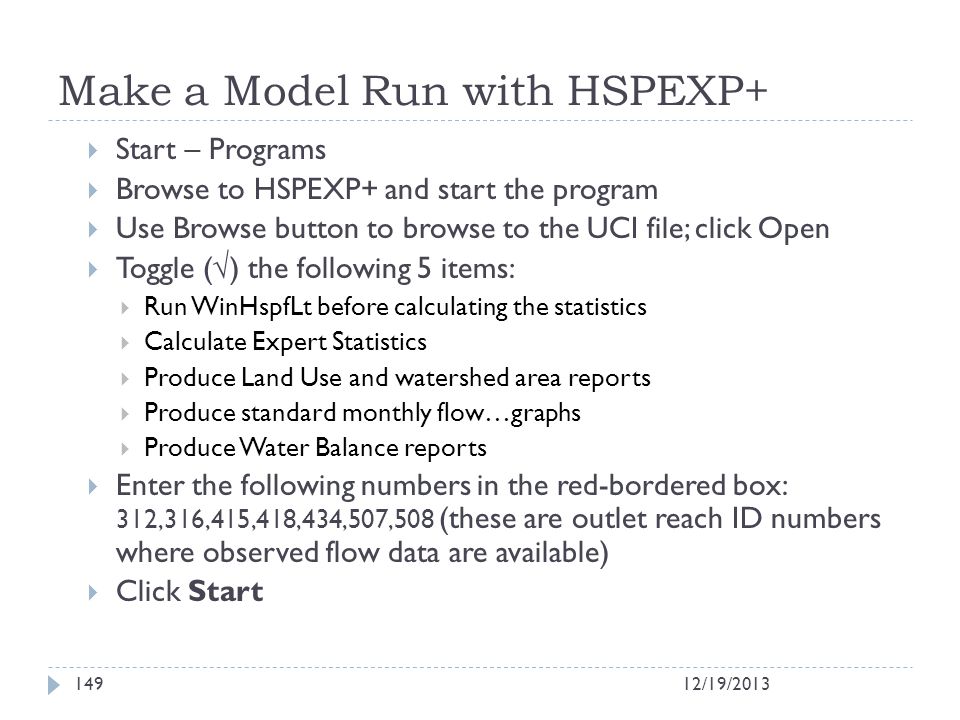

149. Make a Model Run with HSPEXP+ 12/19/2013149  Start – Programs  Browse to HSPEXP+ and start the program  Use Browse button to browse to the UCI file; click Open  Toggle (√) the following 5 items:  Run WinHspfLt before calculating the statistics  Calculate Expert Statistics  Produce Land Use and watershed area reports  Produce standard monthly flow…graphs  Produce Water Balance reports  Enter the following numbers in the red-bordered box: 312,316,415,418,434,507,508 (these are outlet reach ID numbers where observed flow data are available)  Click Start

150. HSPEXP+ 12/19/2013150

151. Create Time Series Graphs with BASINS 4.1  Open BASINS from Start Menu.

152. Go to File  Open Data  Select WDM Time Series  Click OK

153. Browse to Desired WDM Time Series  Click OK

154. View the Data File(s) opened by BASINS 4.1  The file is opened by BASINS 4.1 and you may view the file by going to File  Manage Data

155. Go to Analysis  Graph  From the Data Sources Window or BASINS 4.1 window.

156. Click No at the selection Window

157. Data Selection Window

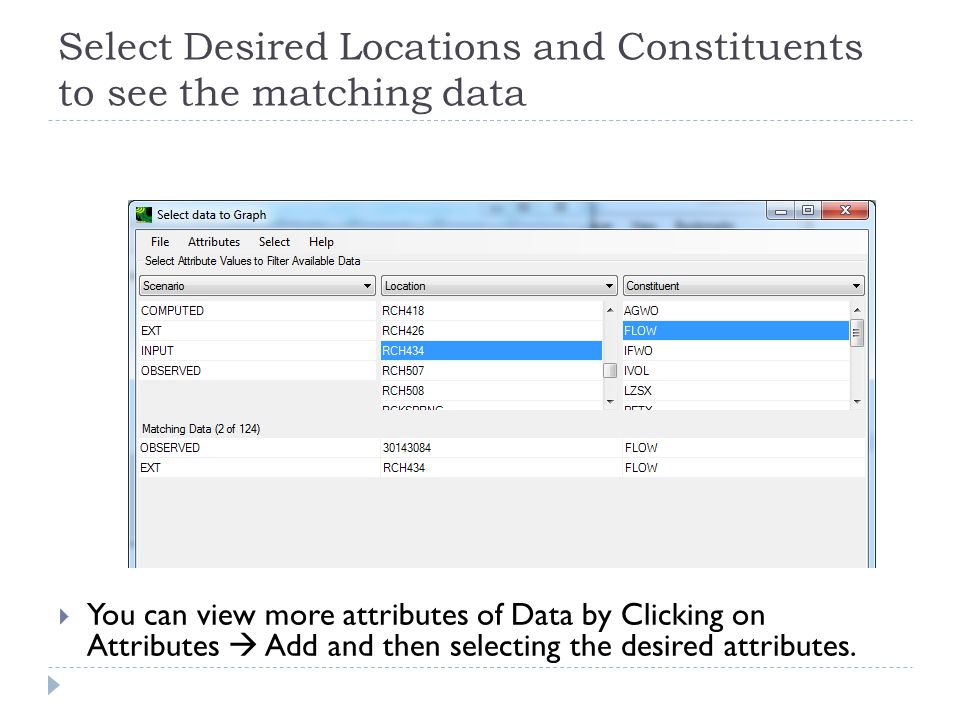

158. Select Desired Locations and Constituents to see the matching data  You can view more attributes of Data by Clicking on Attributes  Add and then selecting the desired attributes.

159. Select Desired Matching Data by Clicking on it. Selected Data shows up on Selection Pane near bottom

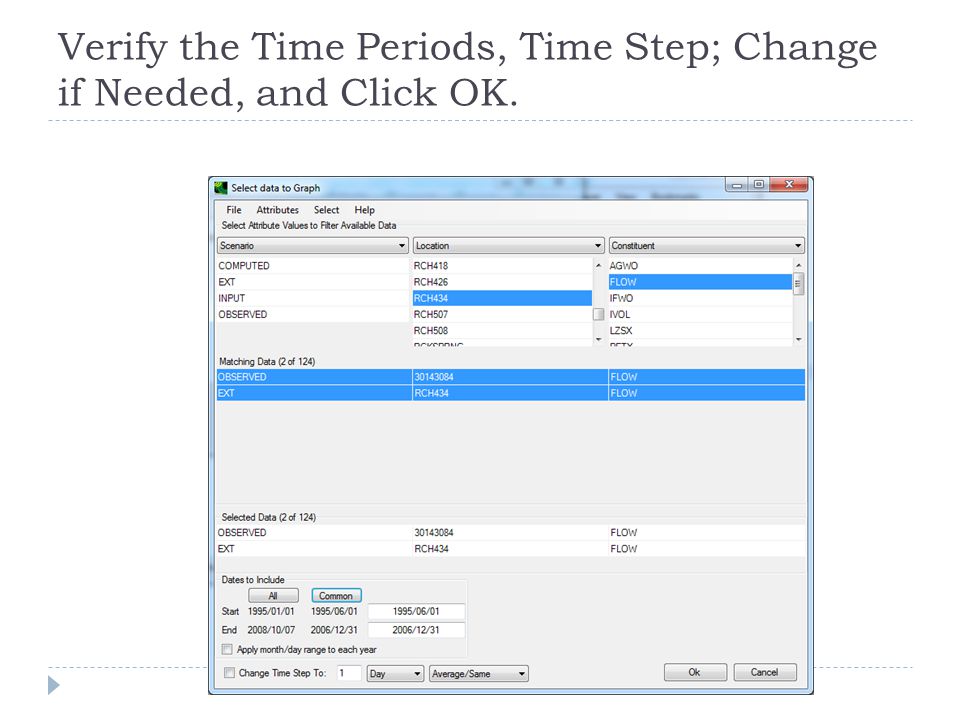

160. Verify the Time Periods, Time Step; Change if Needed, and Click OK.

161. Select the Types of Graphs Desired and Click Generate

162. Selected Graphs are Produced

163. Edit  Graph  This window can be used to edit colors, scale, legend, font, add lines etc.

164. On Scatter Plot go to Edit  Graph  Lines

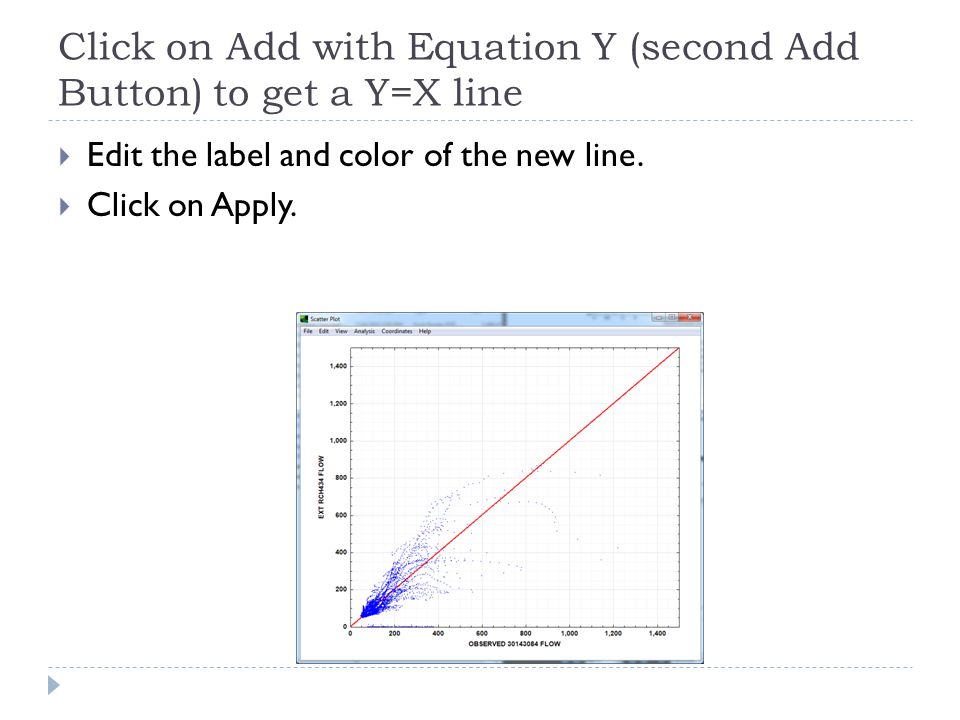

165. Click on Add with Equation Y (second Add Button) to get a Y=X line  Edit the label and color of the new line.  Click on Apply.

166. Make a model run to see the effects of parameter changes 12/19/2013166  EXT model  Adjust parameters for the PERLNDs that contribute to RCHRES 415 (Little Wekiva River)  RCHRES 415 represents SJRWMD gage at Springs Landing  Increase INFILT (PWAT-PARM2 table) to try to reduce the peak flows; make use of comments in UCI file to locate the PERLNDs that contribute to RCHRES 415  Save modified UCI file and then run the model and generate outputs using HSPEXP+  Compare hydrographs, duration plot, cumulative flow graph, and expert statistics for RCHRES 415 for the original run and your new run  See next slide for instructions

167. Run HSPEXP+ 12/19/2013167  Make changes to UCI file with a text editor  Save file  Start HSPEXP+  Browse to EXT.uci  Check the boxes shown in the figure  Enter 415 in the red box  Click Start  Review/compare results for the two runs
