Introduction to Surface Water Hydrology and Watersheds Lecture 1 Philip B. Bedient Rice University November, 2000

2

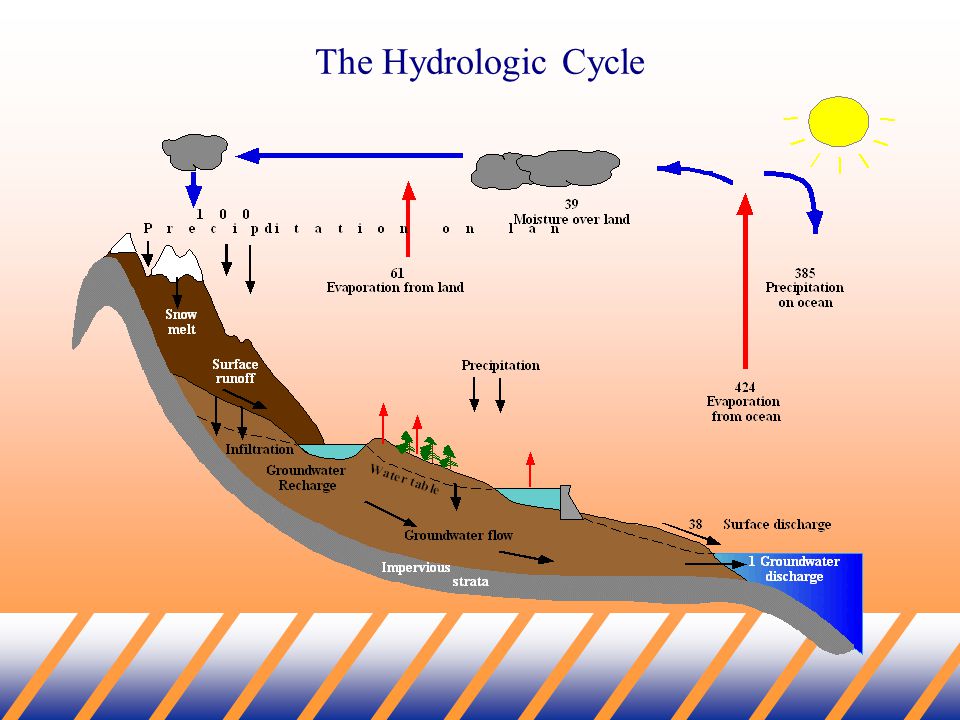

The Hydrologic Cycle

3
Major Hydrologic Processes Precipitation (measured at rain gage) Evaporation or ET (loss to atmosphere) Infiltration (loss to subsurface) Overland Flow Stream Flow (measured at stage gage) Ground Water Flow

4
The Watershed or Basin Area of land that drains to a single outlet and is separated from other watersheds by a drainage divide. Rainfall that falls in a watershed will create runoff to that watershed outlet. All other rainfall falling outside a basin will not affect the runoff response.

5

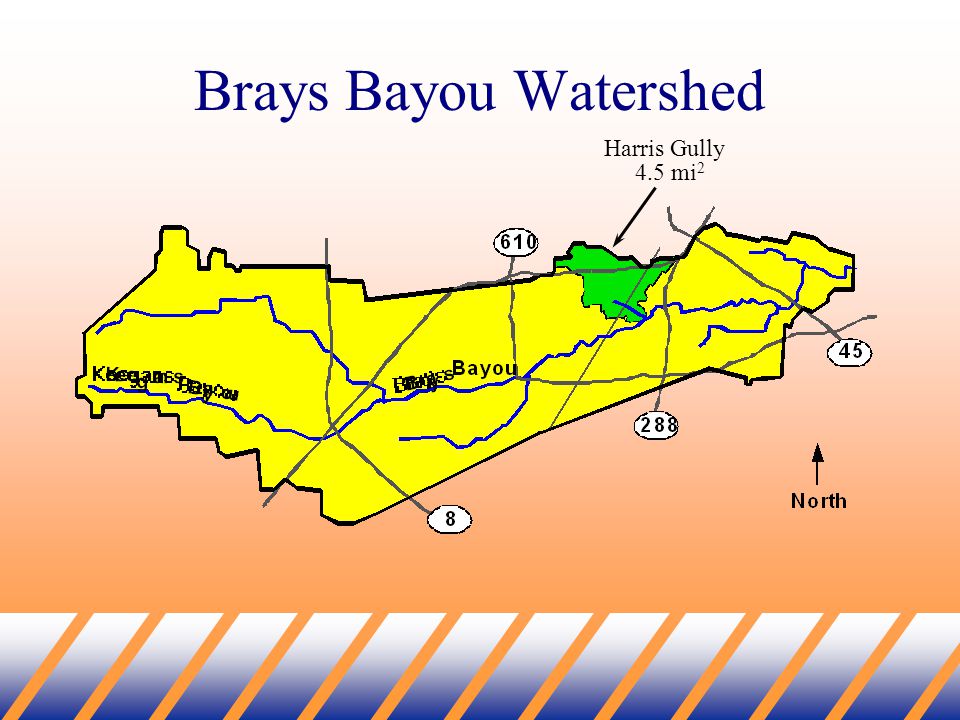

Brays Bayou Watershed 4.5 mi 2 Harris Gully

6

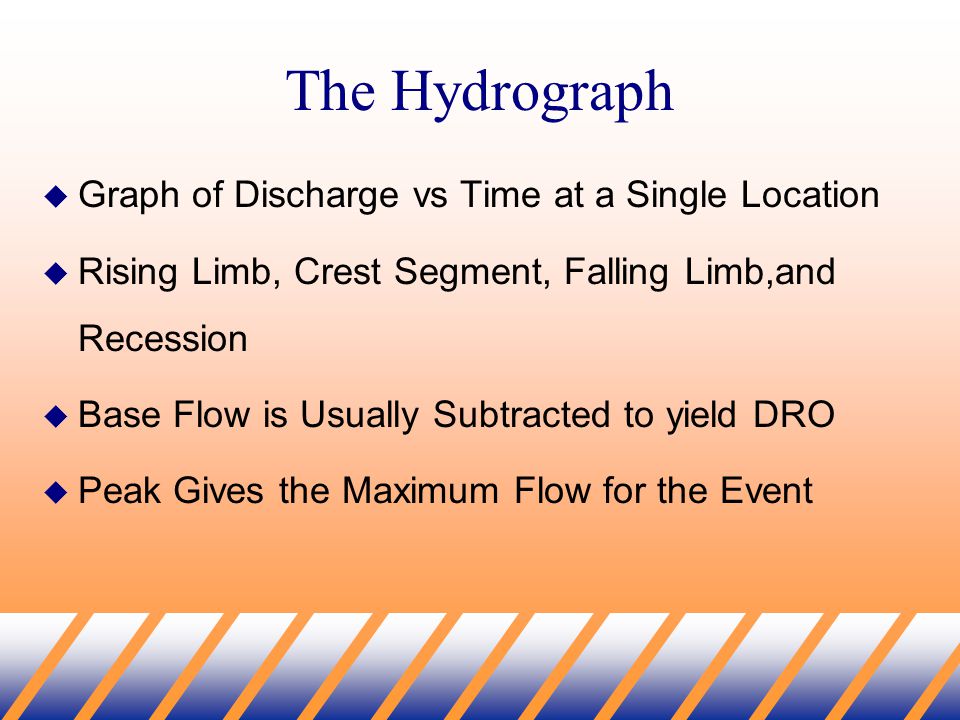

The Hydrograph Graph of Discharge vs Time at a Single Location Rising Limb, Crest Segment, Falling Limb,and Recession Base Flow is Usually Subtracted to yield DRO Peak Gives the Maximum Flow for the Event

7

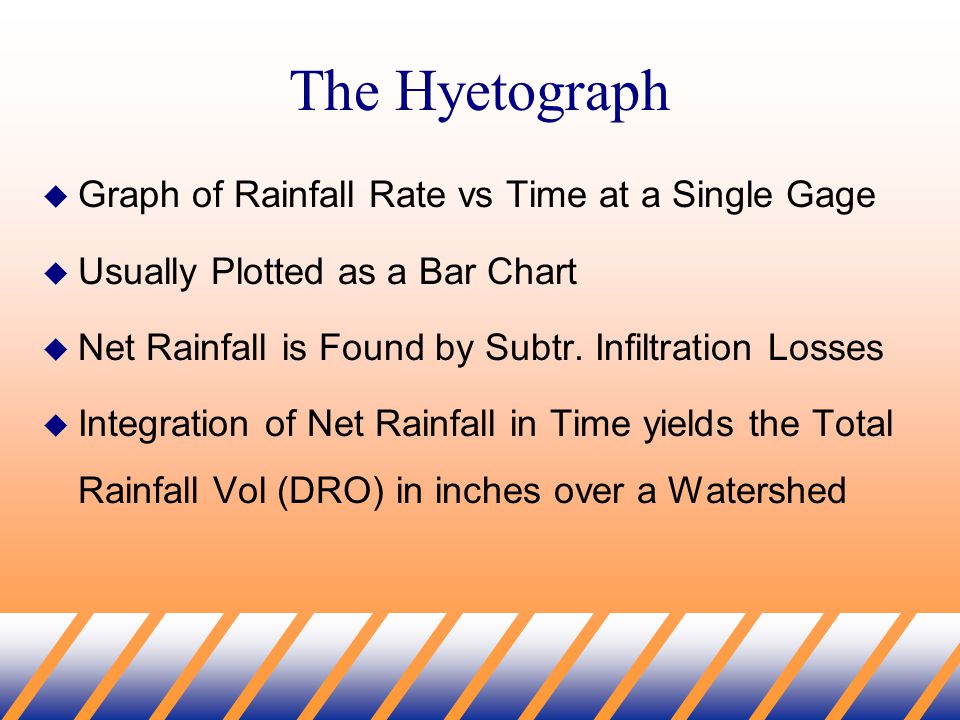

The Hyetograph Graph of Rainfall Rate vs Time at a Single Gage Usually Plotted as a Bar Chart Net Rainfall is Found by Subtr. Infiltration Losses Integration of Net Rainfall in Time yields the Total Rainfall Vol (DRO) in inches over a Watershed

8

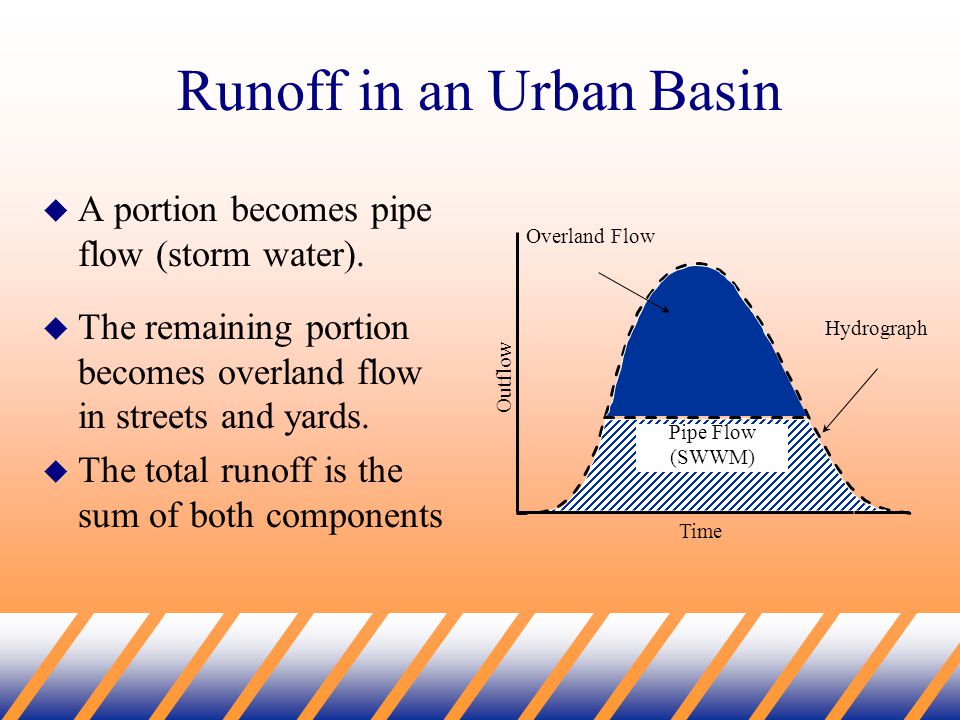

Runoff in an Urban Basin A portion becomes pipe flow (storm water). The remaining portion becomes overland flow in streets and yards. The total runoff is the sum of both components Hydrograph Pipe Flow Overland Flow Outflow Time Pipe Flow (SWWM)

9
Harris Gully Watershed Brays Bayou

10
Major Causes of Flooding (Excess Water that Inundates) Highly Developed (urbanized) Area Intensity and Duration of Rainfall Flat Topography with Little Storage Poor Building Practices - Floodplains

11

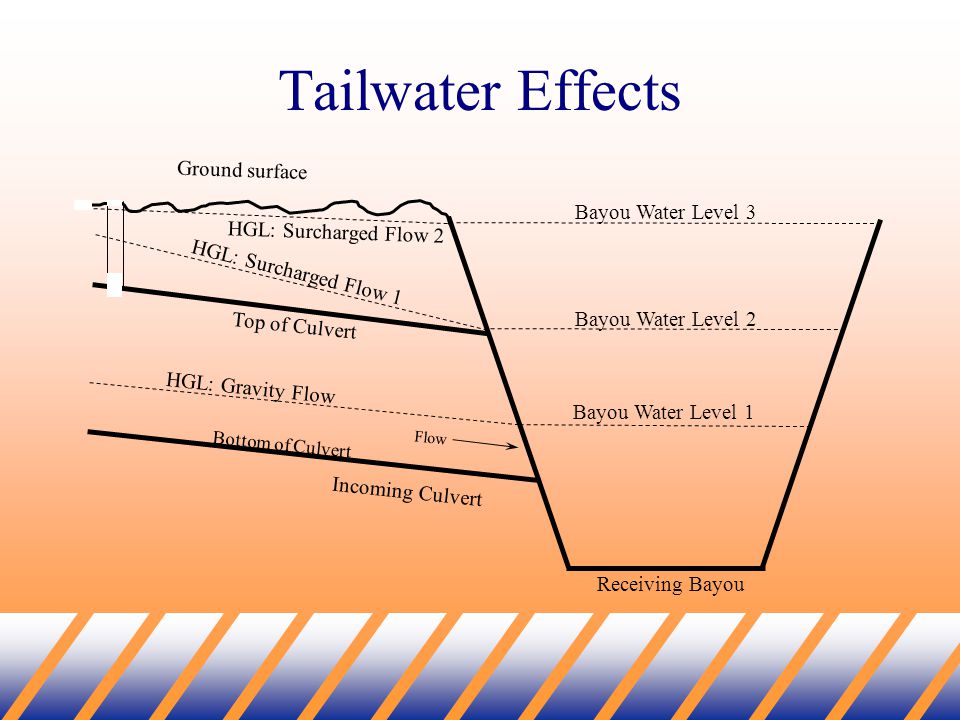

Tailwater Effects HGL: Gravity Flow HGL: Surcharged Flow 1 Ground surface Flow Incoming Culvert Bayou Water Level 1 Receiving Bayou HGL: Surcharged Flow 2 Top of Culvert Bottom of Culvert Bayou Water Level 2 Bayou Water Level 3

12

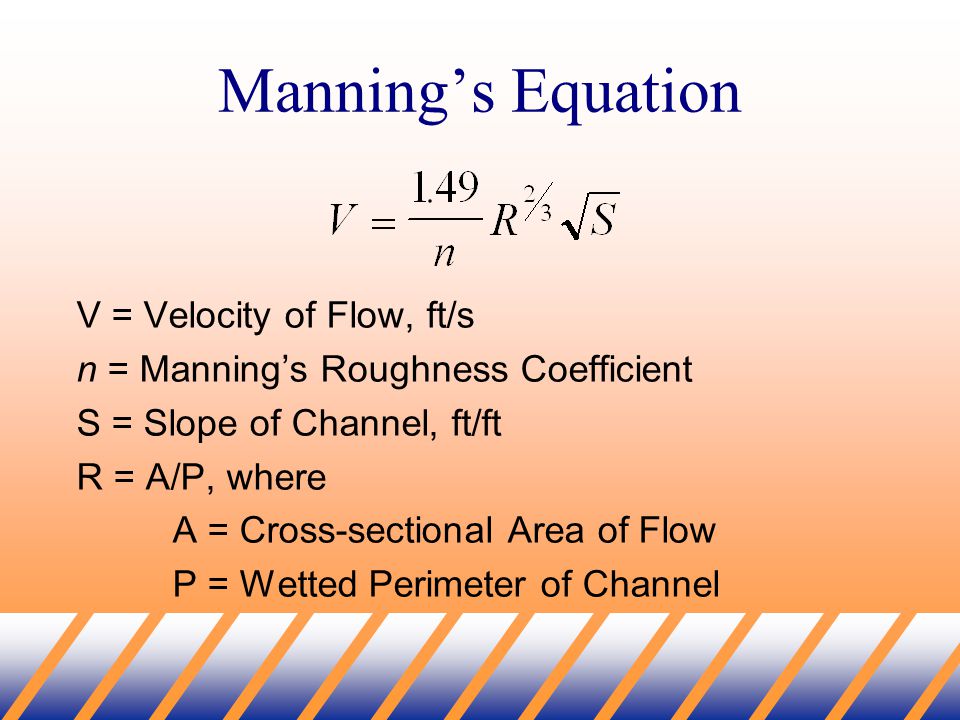

Manning’s Equation V = Velocity of Flow, ft/s n = Manning’s Roughness Coefficient S = Slope of Channel, ft/ft R = A/P, where A = Cross-sectional Area of Flow P = Wetted Perimeter of Channel

13
Backwater Calculation Hydraulic Grade Line Datum (MSL) Flow z2z2 h p2 z1z1 h p1 hLhL z 1 + h p1 + h L = z 2 + h p2

14

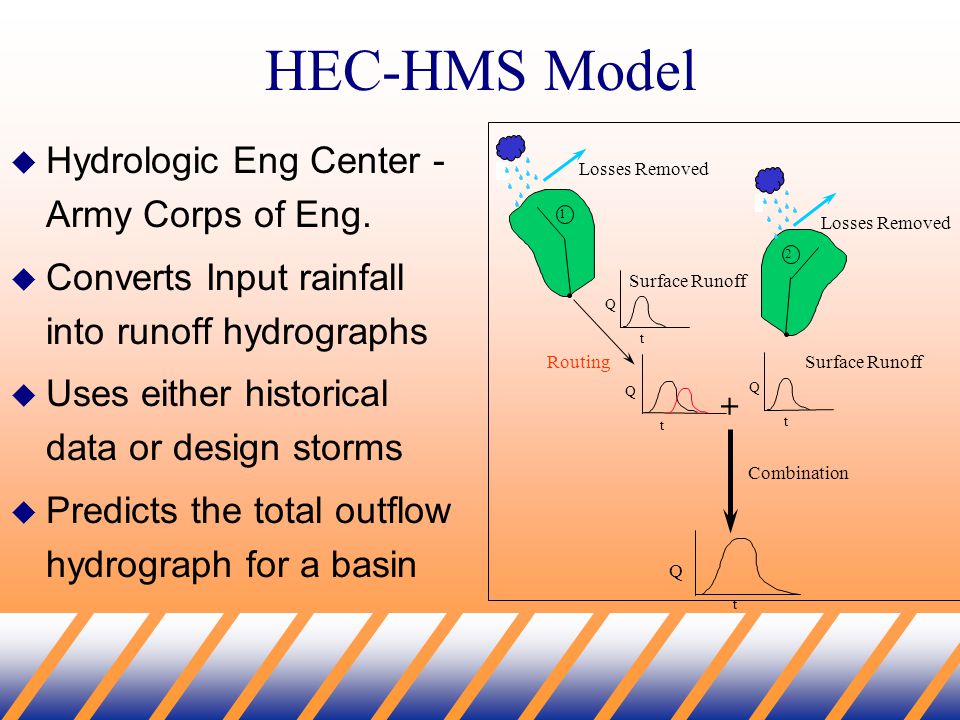

HEC-HMS Model Hydrologic Eng Center - Army Corps of Eng. Converts Input rainfall into runoff hydrographs Uses either historical data or design storms Predicts the total outflow hydrograph for a basin Routing Surface Runoff + Combination Q t Surface Runoff t Q Losses Removed 12 Q t Q t

15

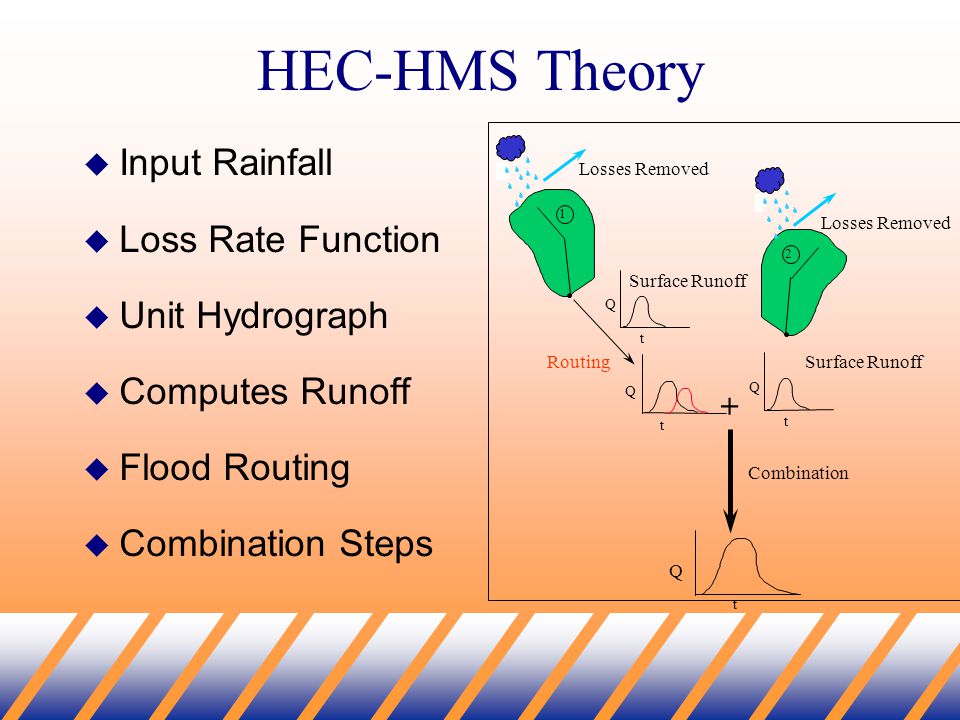

HEC-HMS Theory Input Rainfall Loss Rate Function Unit Hydrograph Computes Runoff Flood Routing Combination Steps Routing Surface Runoff + Combination Q t Surface Runoff t Q Losses Removed 12 Q t Q t

16

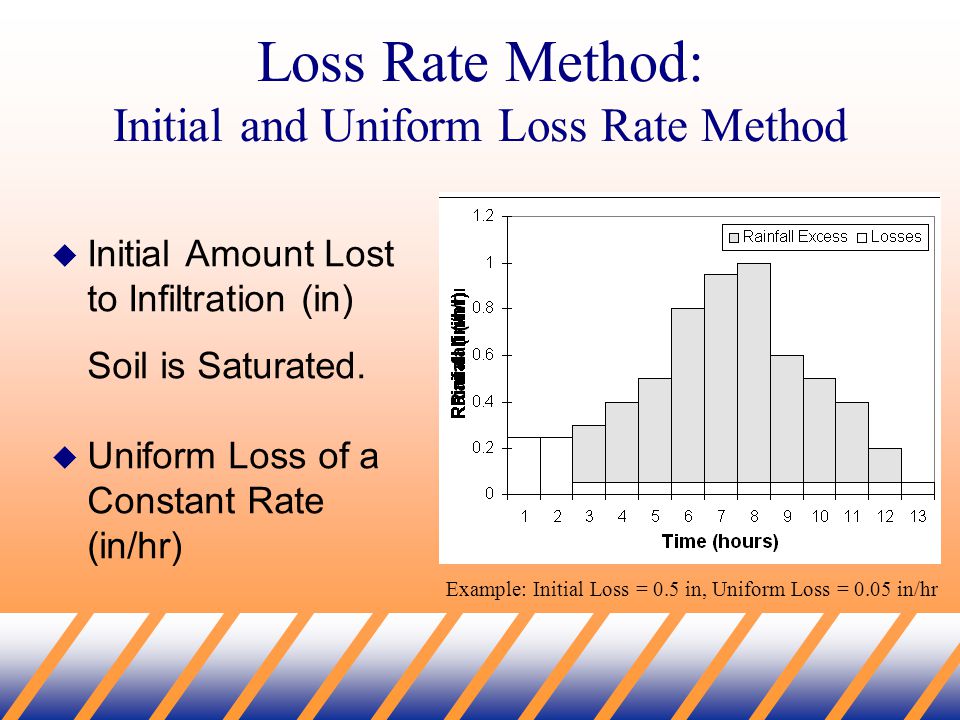

Loss Rate Method: Initial and Uniform Loss Rate Method Initial Amount Lost to Infiltration (in) Soil is Saturated. Uniform Loss of a Constant Rate (in/hr) Example: Initial Loss = 0.5 in, Uniform Loss = 0.05 in/hr

17
Unit Hydrograph Theory The unit hydrograph represents the basin response to 1 inch of uniform net rainfall for a specified duration. Linear method originally devised in 1932. Works best for relatively small subareas. Several computational methods exist.

18
Unit Hydrograph Method Snyder’s Method (1938) Clark TC & R Method (1945) Nash (1958) SCS Method (1964) Espey-Winslow (1968)

19
Surface Runoff Theory: Clark TC & R Method T Q

20
Clark Unit Hydrograph Computation

21

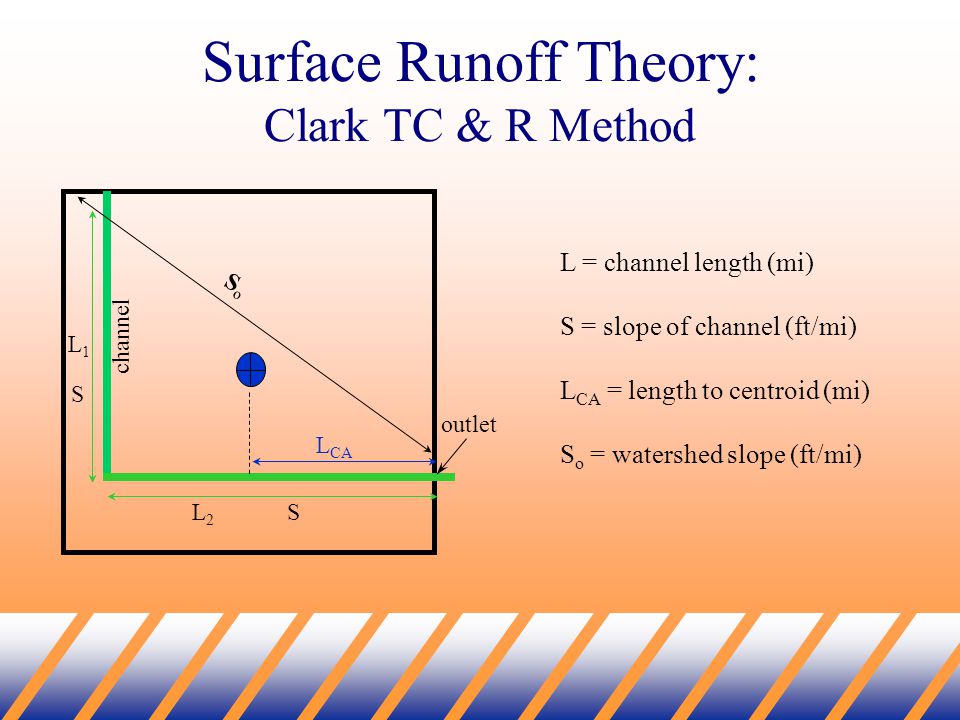

Surface Runoff Theory: Clark TC & R Method L CA L1L1 L2L2 channel SoSo S S outlet L = channel length (mi) S = slope of channel (ft/mi) L CA = length to centroid (mi) S o = watershed slope (ft/mi)

22

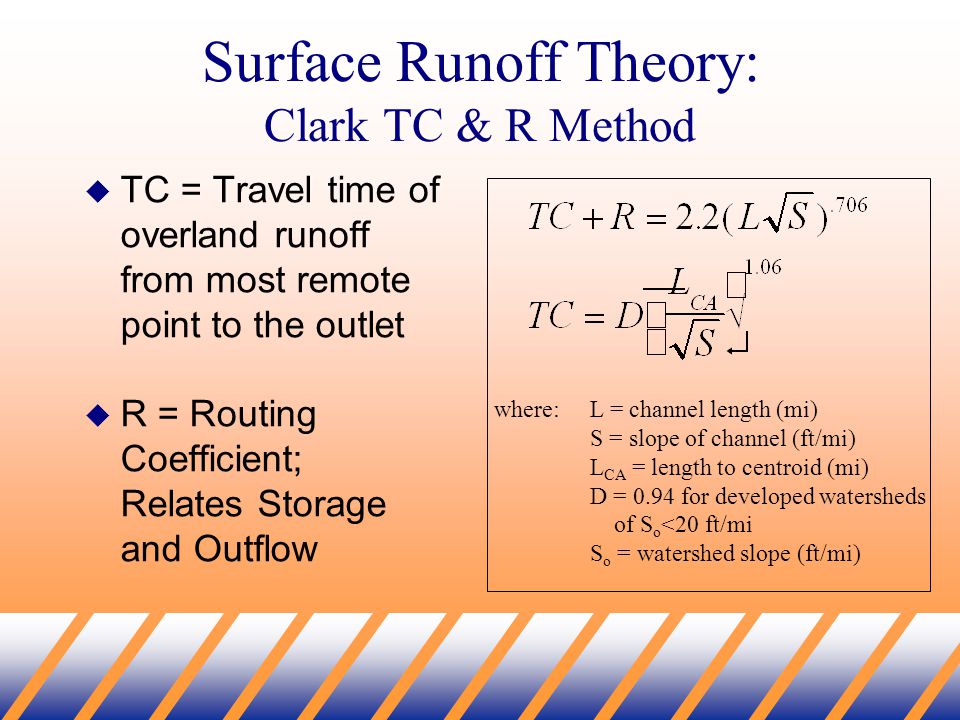

Surface Runoff Theory: Clark TC & R Method TC = Travel time of overland runoff from most remote point to the outlet R = Routing Coefficient; Relates Storage and Outflow where:L = channel length (mi) S = slope of channel (ft/mi) L CA = length to centroid (mi) D = 0.94 for developed watersheds of S o <20 ft/mi S o = watershed slope (ft/mi)

23

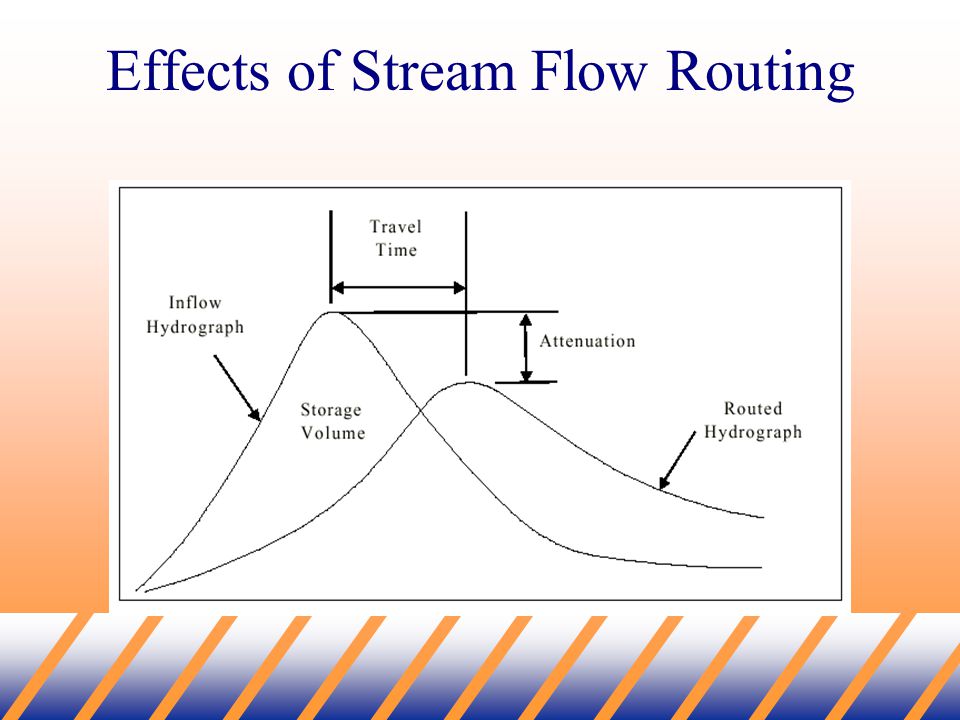

Effects of Stream Flow Routing

24
Routing Theory 1: Muskingum Method K = Travel Time Through the Reach x = Weighting Factor (Storage Coefficient) N = Number of Steps in Computation Outflow Time A B A B

25

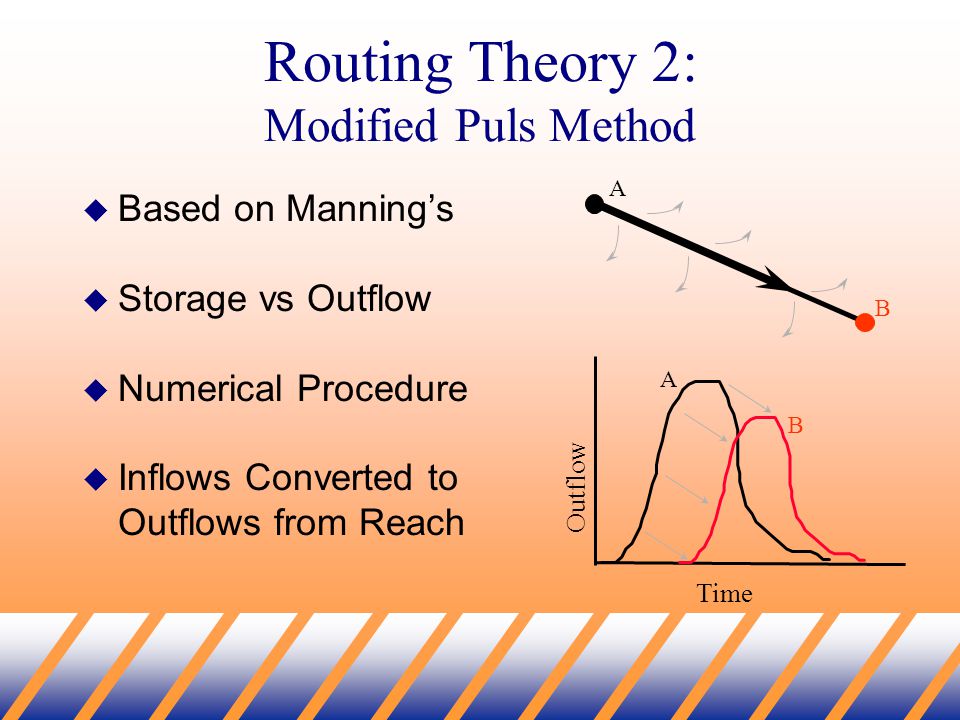

Routing Theory 2: Modified Puls Method Based on Manning’s Storage vs Outflow Numerical Procedure Inflows Converted to Outflows from Reach Outflow Time A B A B

26
Modified Puls (Storage) Storage-Indication Relationship: Solved Numerically in Model

27
Obtaining Storage-Discharge Data

28
Combination Step: Superposition

29
Design Rainfalls Design Storm from HCFCD and NWS Based on Statistical Analysis of Data 5, 10, 25, 50, 100 Year Events Various Durations

30
Harris Gully Watershed Brays Bayou

31

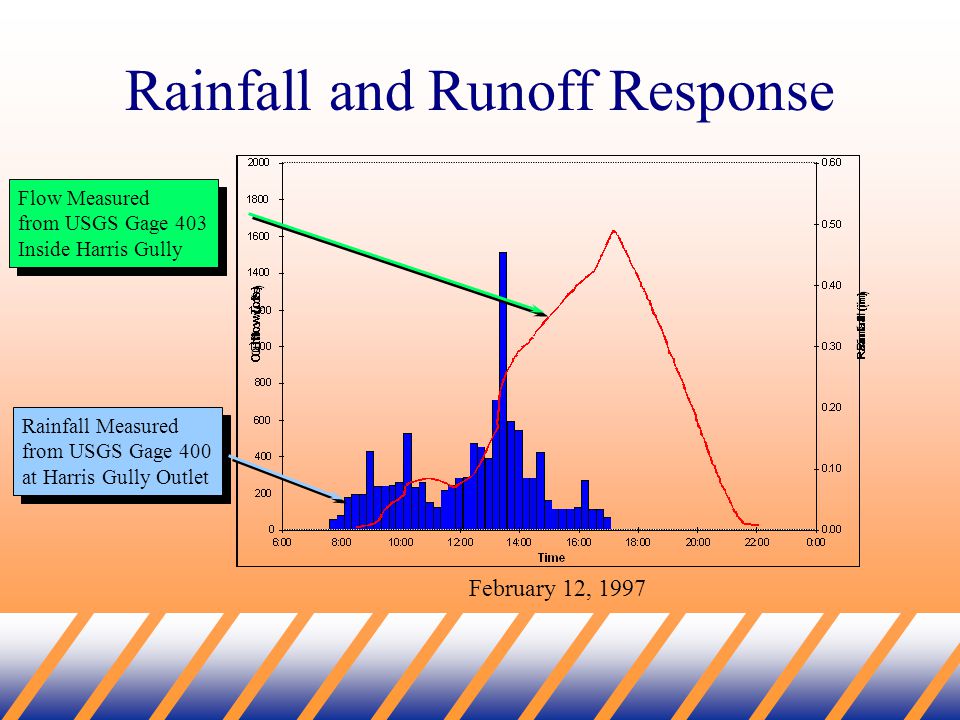

Rainfall and Runoff Response Rainfall Measured from USGS Gage 400 at Harris Gully Outlet Rainfall Measured from USGS Gage 400 at Harris Gully Outlet February 12, 1997 Flow Measured from USGS Gage 403 Inside Harris Gully Flow Measured from USGS Gage 403 Inside Harris Gully

32
Calibration Results Average Errors: Peak Flow: 6% Volume: 4% Peak Time: 0.9 Hours

33
Verification Results Volume Error Could Be Due to Unmeasured Quantities Calibration Successful

34
Urban Basin - Low Flow Bayou Level Inlets to Pipes Pipe Elevations and Sizes Junction Locations Rainfall Pattern

35
Urban Basin - Flood Backflow at Outlet High Bayou Level Flooding Areas Pipe Capacity

36
Harris Gully Models Determine Pipe Capacities at Six Different Tailwater Elevations DIVERT this Amount from Total Runoff Computed in HEC-HMS HEC-HMS Model: Computes Total Runoff, Subtracts Amount Diverted to Pipes, Remaining is Overland Flow

37
HEC-1 Diversion Operation Diversion to Pipes Remaining Overland Runoff Total Runoff capacity

38
Harris Gully at Brays Bayou

39
Overland Flow for Rising Brays Bayou Rainfall: 1.5 in/hr for 3 hours

40
Detention Pond Locations

41
Detention Pond Options 1)50 Acre-ft in Hermann Park 2)100 Acre-ft in Hermann Park 3)100 Acre-ft in Hermann Park AND 50 Acre-ft on Rice Campus

42

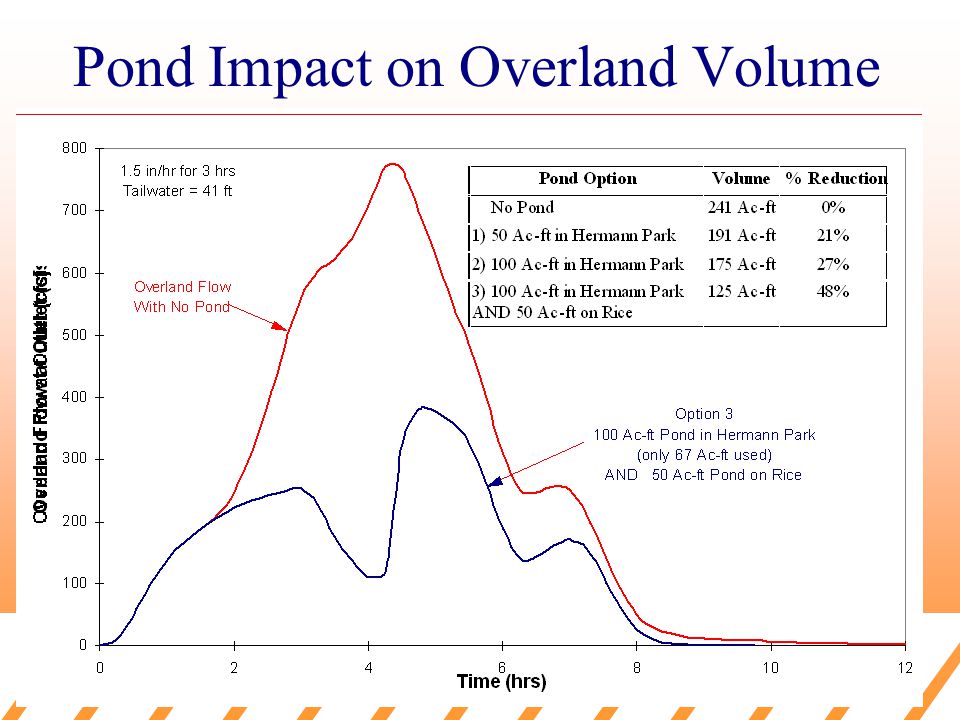

Pond Impact on Overland Volume

43
HEC-HMS Output Tables –Summary –Detailed (Time Series) Hyetograph Plots Sub-Basin Hydrograph Plots Routed Hydrograph Plots Combined Hydrograph Plots Recorded Hydrographs - comparison

44
Viewing Results Hydrograph

45
HEC-HMS Output Sub-Basin Plots –Rainfall –Hydrographs –Abstractions –Base Flow

46
Conclusions for Harris Gully 67 Acre-ft Pond in Hermann Park AND 50 Acre-ft Pond at Rice University would have prevented 48% of Overland Flow in March 1997 Storm Ponds are imperative for Flood Relief!
