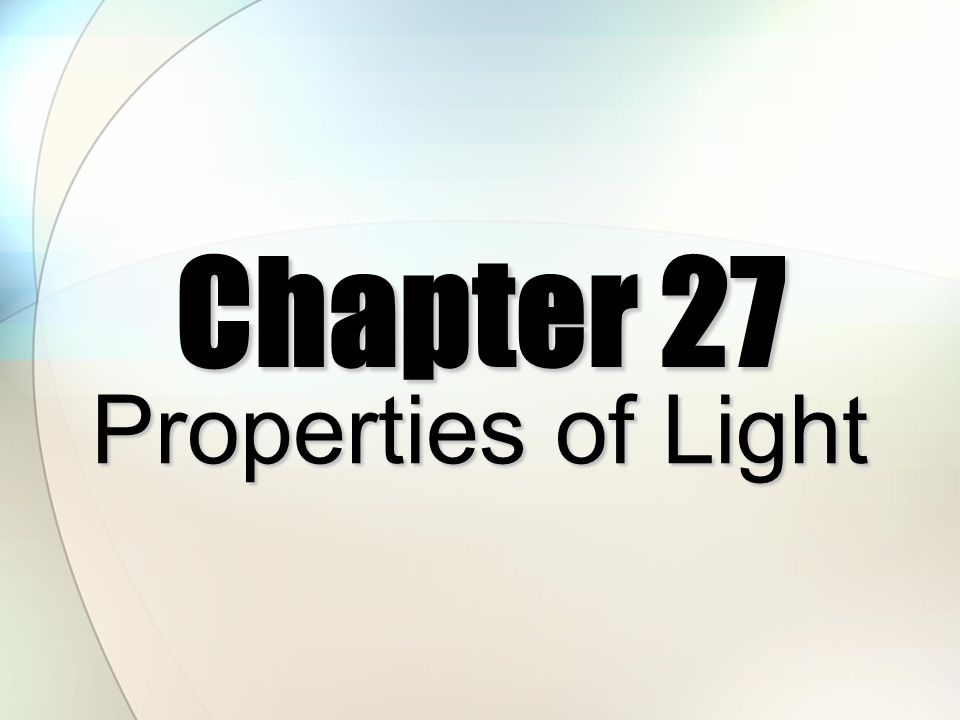

2. Chapter 27 Properties of Light

3. Light Photons ElectromagneticRadiation

4. These three are the same… Light *pure energy Electromagnetic Waves *energy-carrying waves emitted by vibrating electrons Photons *particles of light

7. Electromagnetic Wave Velocity The speed of light is the same for all seven forms of light. It is 300,000,000 meters per second or 186,000 miles per second.

8. Michelson’s 1878 Rotating Mirror Experiment Picture credit German American physicist A.A. Michelson Using this method, Michelson was able to calculate c = 299,792 km/s

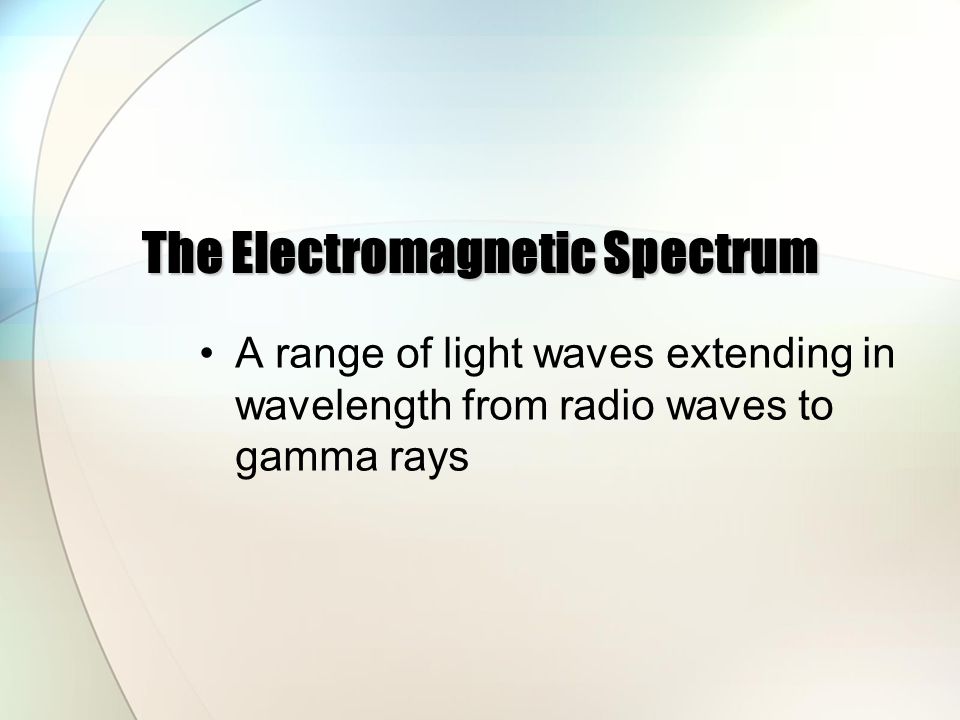

9. The Electromagnetic Spectrum A range of light waves extending in wavelength from radio waves to gamma rays

10. The Electromagnetic Spectrum Radio Waves - communication Microwaves - used to cook Infrared - “heat waves” Visible Light - detected by your eyes Ultraviolet - causes sunburns X-rays - penetrates tissue Gamma Rays - most energetic

12. The Visible Spectrum A range of light waves extending in wavelength from about 400 to 700 namometers.

13. Questions Is it correct to say that radio wave is a low-frequency light wave? Is a radio wave also a sound wave? See question on page 455. *

14. Transparent Materials Transparent - the term applied to materials through which light can pass in straight lines

15. Opaque Materials Opaque - the term applied to materials that absorb light

16. Example Questions Are clouds transparent or opaque to visible light? Answer: opaque Are clouds transparent or opaque to ultraviolet light? Answer: transparent

17. Shadows Umbra - the darker part of a shadow where all the light is blocked Penumbra - a partial shadow These terms also apply to Solar Eclipses and Lunar Eclipses.

18. Penumbra Umbra Partial Shadow Full Shadow Solar Eclipse Sun Moon Earth A solar eclipse occurs when the Moon passes in front of the Sun.

19. Lunar Eclipse Sun Earth Moon A lunar eclipse occurs when the Moon passes into the Earth's shadow.

20. Polarization Electric field only going up and down – say it is linearly polarized. Light can have other types of polarizations such as circularly polarized or elliptically polarized. We will only look at linearly polarized light. Net electric field is zero – Unpolarized light!

21. How do we make Polarized Light? I. Polarizers- Polarizers are made of long chained molecules which absorb light with electric fields perpendicular to the axis.

22. Light is totally polarized when an object with a vertical Polarization axis and another object with a horizontal polarization axis are placed next to each other. This causes no light to be able to get through the lens.

23. Questions Which type of eclipse is dangerous to view with the unprotected eye? Why are lunar eclipses more commonly seen than solar eclipses? See question on page 460. *

24. Chapter 27 Review Questions

25. You will observe a total eclipse of the sun when... (a) you stand in the penumbra of the moon’s shadow (b) you stand in the umbra of the moon’s shadow (c) sunlight diffracts around the moon (d) sunlight reflects from the moon to the earth (b) you stand in the umbra of the moon’s shadow

26. The speed of light... (a) has never been measured (b) is about the same as that of sound (c) is infinitely fast (d) is very fast, but not infinite

27. In the dark at late evening, no color is seen because of lack of stimulation of a. rods. b. cones. c. cornea. d. crystalline lens. b. cones.

28. End of Chapter 25
