1. Deformation Integrity Monitoring for GNSS-Positioning Services including a Scalable Hazard Monitoring by the Karlsruhe Approach (MONIKA) - Concept, Realisation and Results - Speaker: Dipl.Ing. Peter Spohn

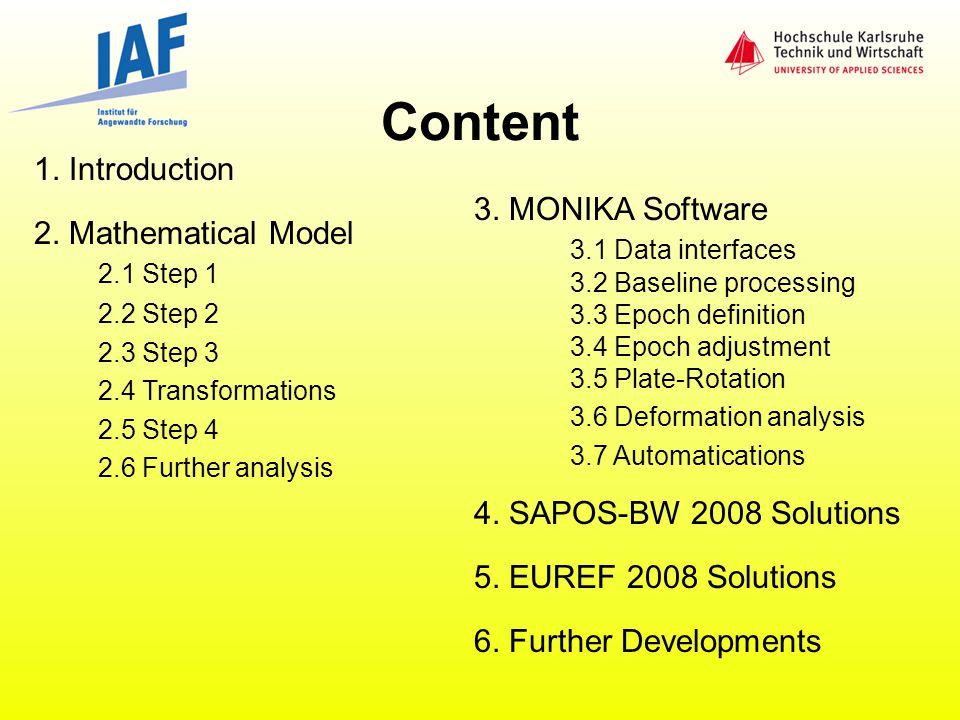

2. Content 1. Introduction 4. SAPOS-BW 2008 Solutions 3. MONIKA Software 3.1 Data interfaces 3.2 Baseline processing 3.3 Epoch definition 3.4 Epoch adjustment 3.5 Plate-Rotation 3.6 Deformation analysis 3.7 Automatications 2. Mathematical Model 2.1 Step 1 2.2 Step 2 2.3 Step 3 2.4 Transformations 2.5 Step 4 2.6 Further analysis 5. EUREF 2008 Solutions 6. Further Developments

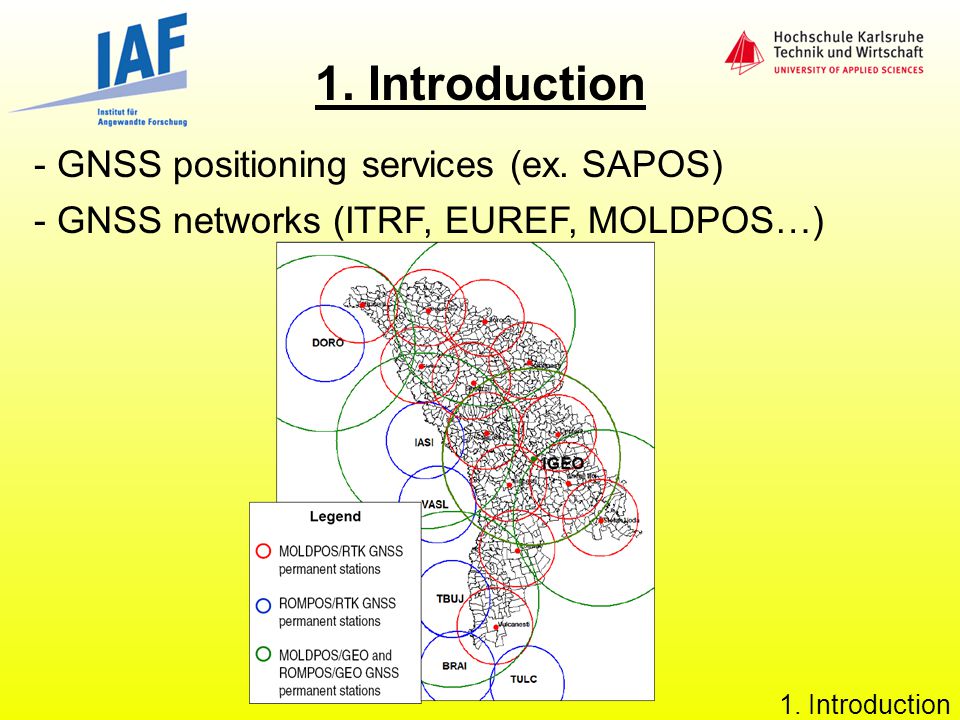

3. 1. Introduction - GNSS positioning services (ex. SAPOS) - GNSS networks (ITRF, EUREF, MOLDPOS…) 1. Introduction

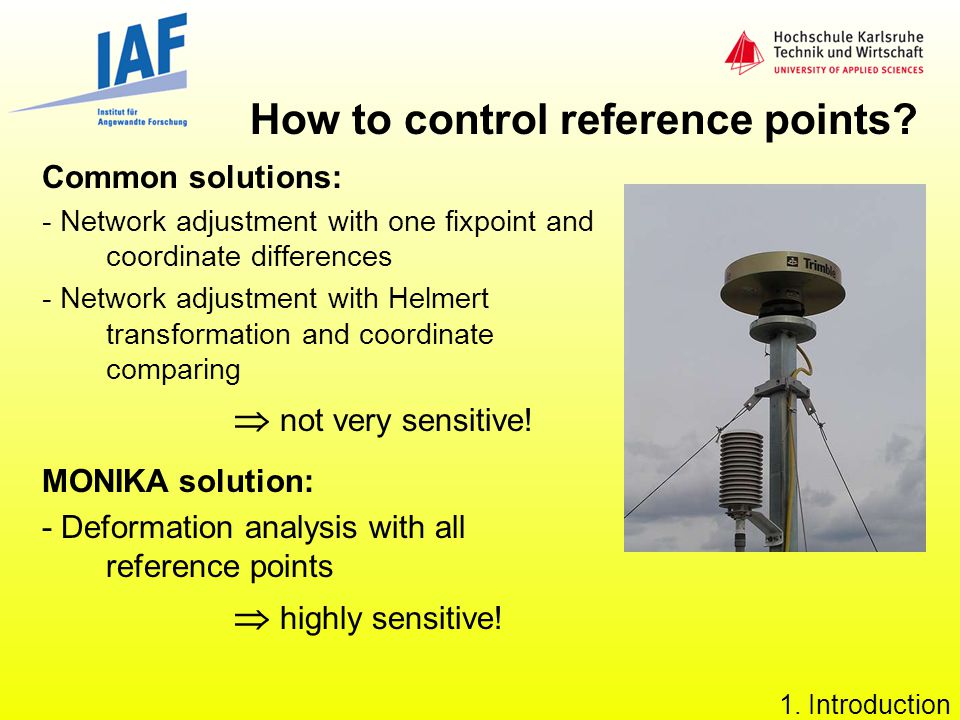

4. Common solutions: - Network adjustment with one fixpoint and coordinate differences - Network adjustment with Helmert transformation and coordinate comparing  not very sensitive! How to control reference points? MONIKA solution: - Deformation analysis with all reference points  highly sensitive!

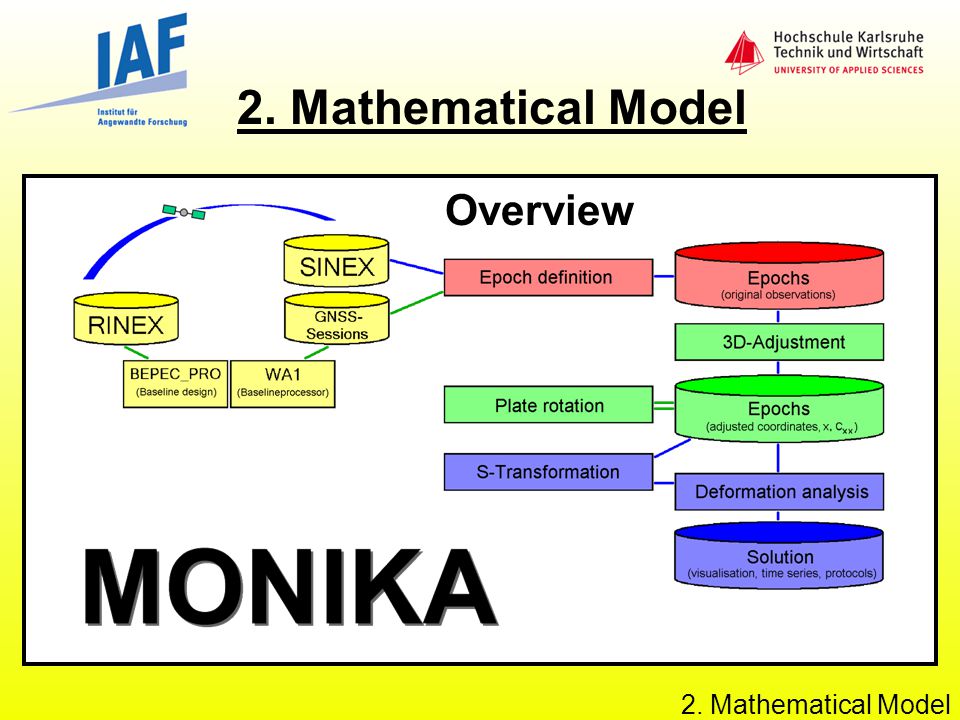

5. 2. Mathematical Model Overview

6. 2. Mathematical Model 2.2 Step 2 - Epoch definition suggested deformations total time span of the analysis 2.1 Step 1 - Raw-Data-Processing RINEX-Data to baselines / networks

7. 2. Mathematical Model Input: Baselines/Sessions 3D Network adjustment Quality control Output: Epochs 2.3 Step 3 - 3D Network-Adjustment

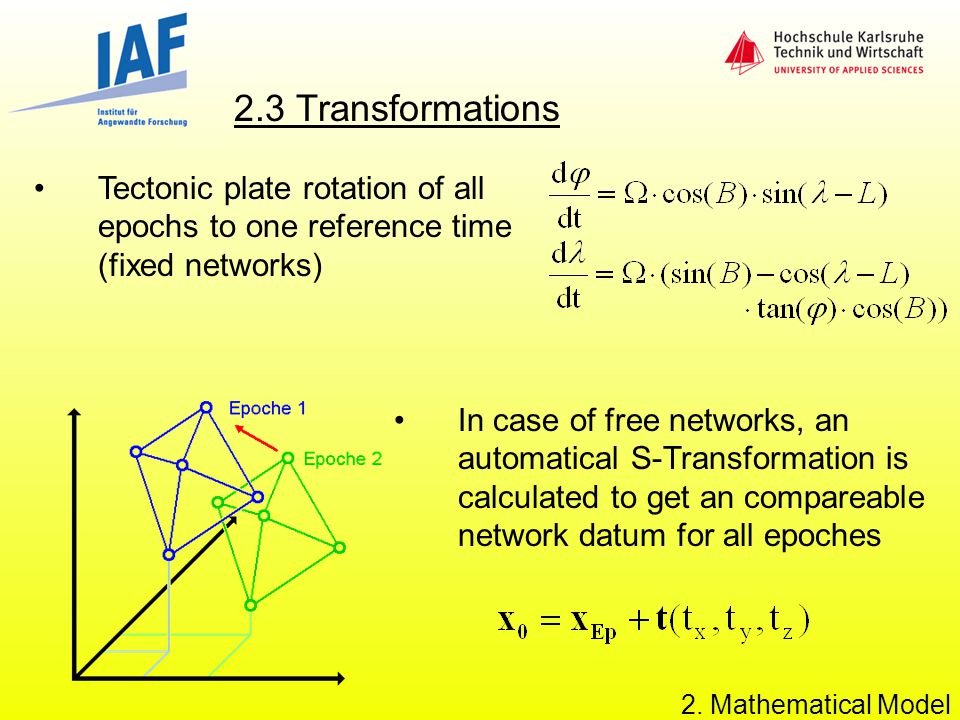

8. 2. Mathematical Model Tectonic plate rotation of all epochs to one reference time (fixed networks) 2.3 Transformations In case of free networks, an automatical S-Transformation is calculated to get an compareable network datum for all epoches

9. 2. Mathematical Model Model of a multiepochal and multivariate, coordinate depending deformation analysis 2.4 Step 3 - Deformation Analysis

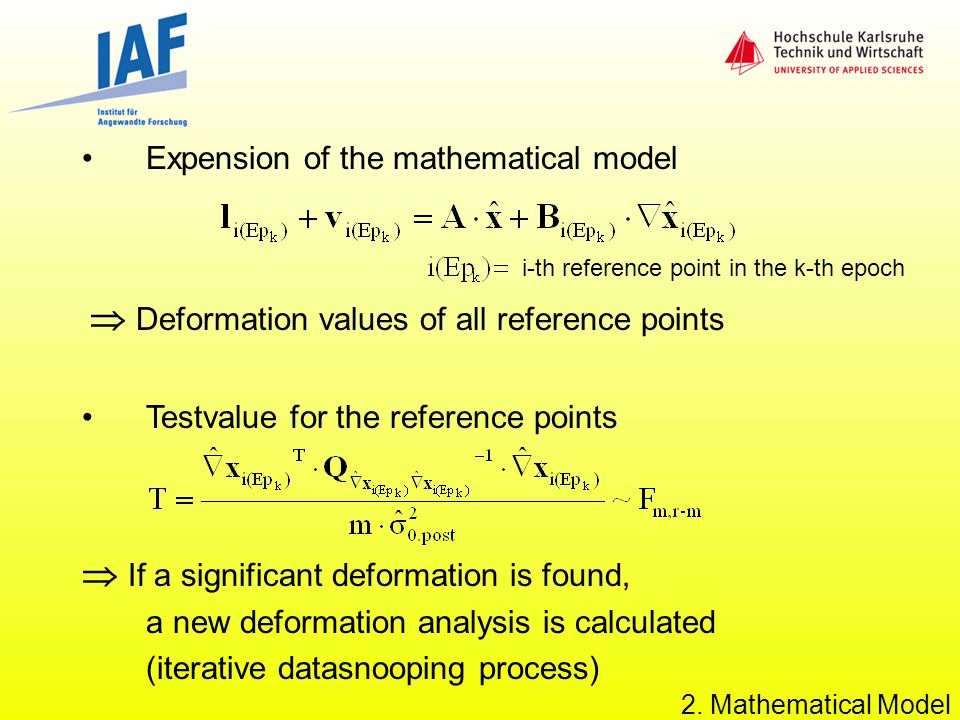

10. 2. Mathematical Model Expension of the mathematical model i-th reference point in the k-th epoch  Deformation values of all reference points Testvalue for the reference points  If a significant deformation is found, a new deformation analysis is calculated (iterative datasnooping process)

11. 2. Mathematical Model Further calculations Multiple coordinate differences 3D/2D confidence areas Network sensivity Object point tests Epoch tests

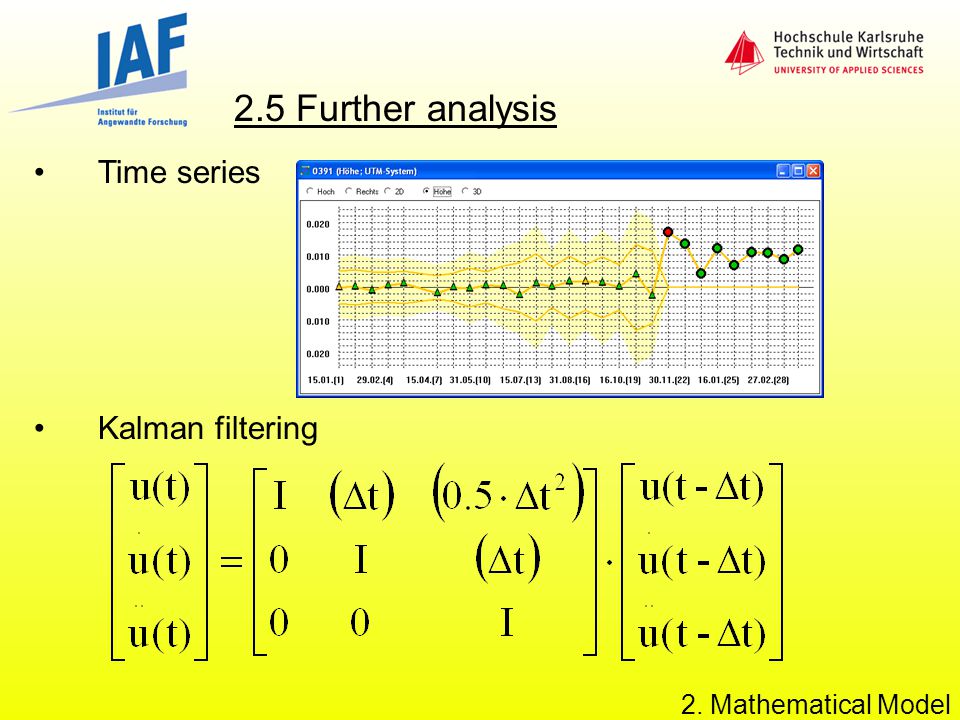

12. 2. Mathematical Model Time series 2.5 Further analysis Kalman filtering

13. 3. MONIKA Software Overview 3. MONIKA Software

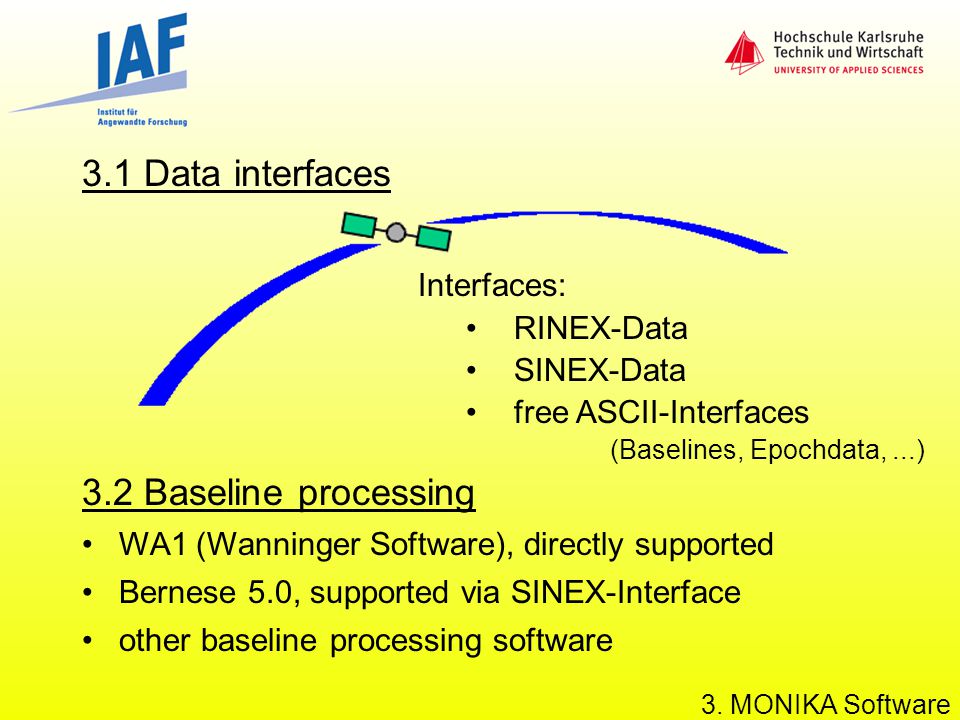

14. 3.1 Data interfaces 3.2 Baseline processing WA1 (Wanninger Software), directly supported Bernese 5.0, supported via SINEX-Interface other baseline processing software Interfaces: RINEX-Data SINEX-Data free ASCII-Interfaces (Baselines, Epochdata,...)

15. 3. MONIKA Software Input-Data –Sessions/Baselines –SINEX-Data with timestamps Expected deformations? 3.3 Epoch definition

16. 3. MONIKA Software Input-Data –Sessions/Baselines –SINEX-Data –Epoch timespan 3D Epoch adjustment with GPS3D Output-Data –Coordinates with covariance matrix (epoch) –Detailed HTML-protocol and visualization 3.4 Epoch adjustment

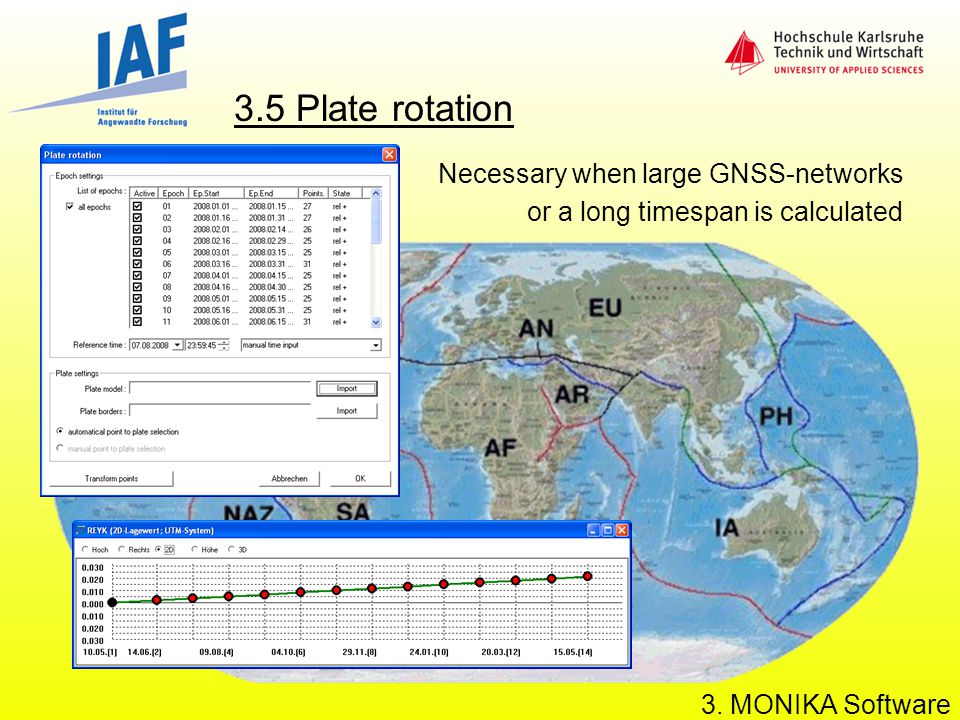

17. 3. MONIKA Software Necessary when large GNSS-networks or a long timespan is calculated 3.5 Plate rotation

18. 3. MONIKA Software Input-Data –Epochs (free interface) Deformation Analysis –Iterative datasnooping –Final deformation analysis Output-Data –Coordinates, Cxx matrix –GOCA-Interface –Visualization –Time series –HTML-Protocol –GoogleEarth 3.6 Deformation Analysis

19. 3. MONIKA Software Overview

20. 3. MONIKA Software Automatic epoch generation –Input: SINEX-Data –Output: Epochs Automatic deformation analysis calculation –Input: Epochs –Output: Solutions are saved in a MONIKA-Savefile, HTML-Protocol, individual Interface-Files Automatic visualisation (GOCA-Earth, Addon) –Input: Interface file –Output: Visualisation in GoogleEarth 3.7 Automatications + flexible folder-based file handling

21. 4. SAPOS-BW 2008 Solutions 4. SAPOS-BW 2008 GNSS reference network in Germany Baden-Württemberg - area: 200 x 200 km - 36 stations - free network

22. 4. SAPOS-BW 2008 Solutions 4. SAPOS-BW 2008 horizontal sensitivity ~ 2 mm seasonal movement in the summer months

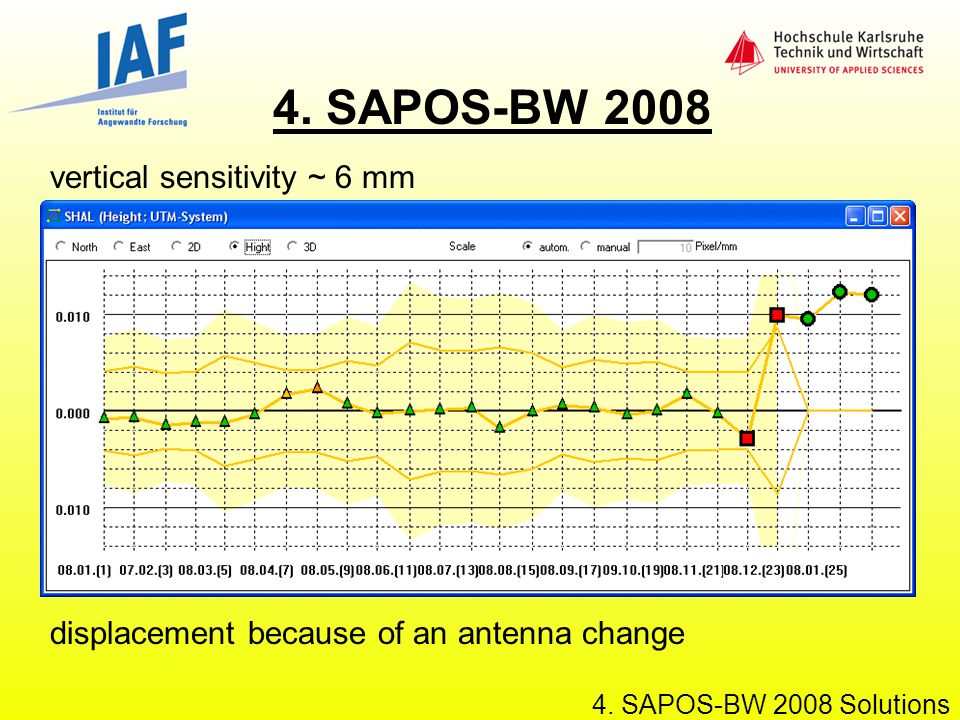

23. 4. SAPOS-BW 2008 Solutions 4. SAPOS-BW 2008 vertical sensitivity ~ 6 mm displacement because of an antenna change

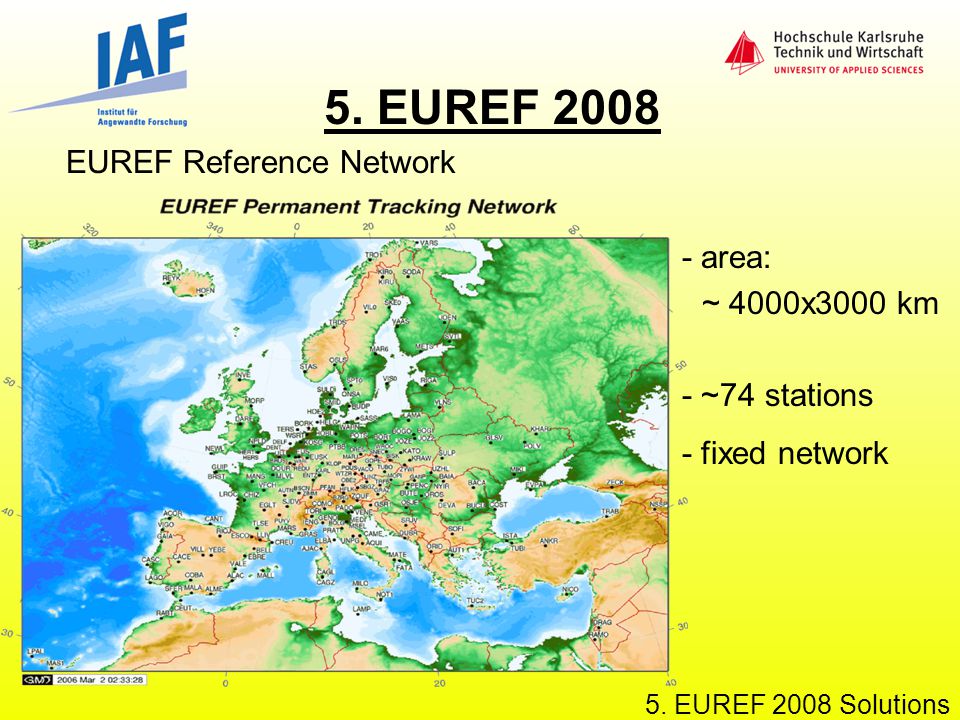

24. 5. EUREF 2008 Solutions 5. EUREF 2008 EUREF Reference Network - area: ~ 4000x3000 km - ~74 stations - fixed network

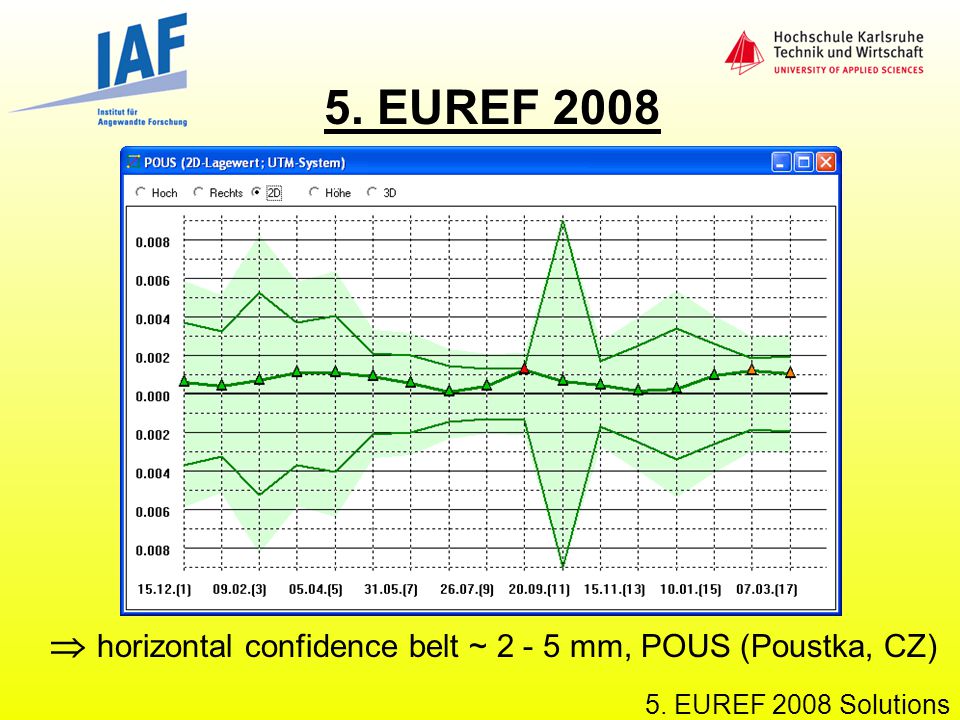

25. 5. EUREF 2008 Solutions 5. EUREF 2008  horizontal confidence belt ~ 2 - 5 mm, POUS (Poustka, CZ)

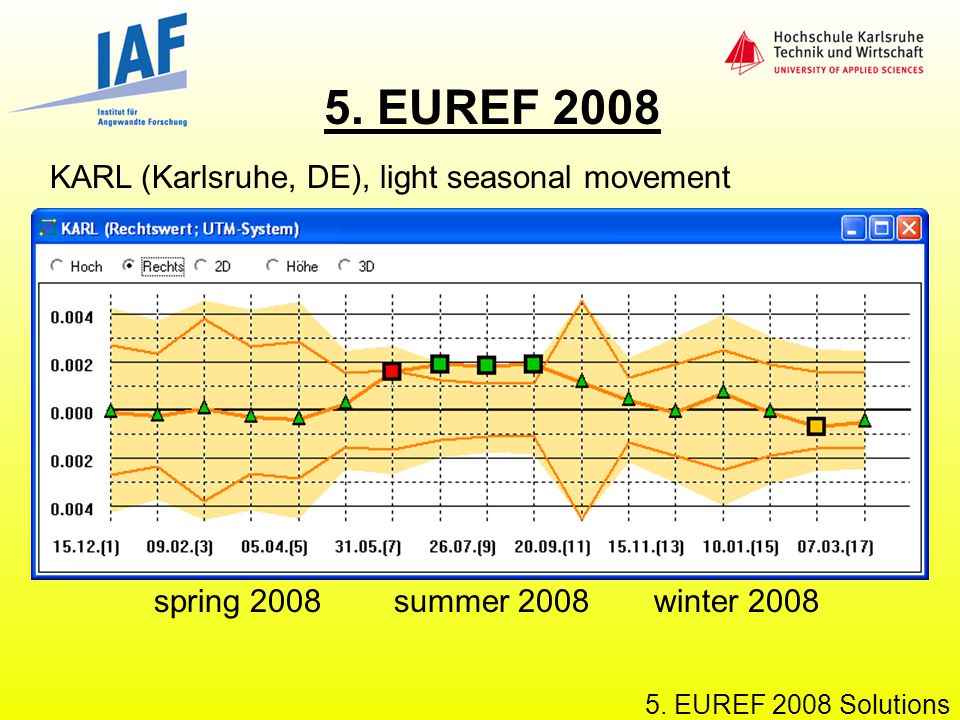

26. 5. EUREF 2008 Solutions 5. EUREF 2008 KARL (Karlsruhe, DE), light seasonal movement spring 2008summer 2008winter 2008

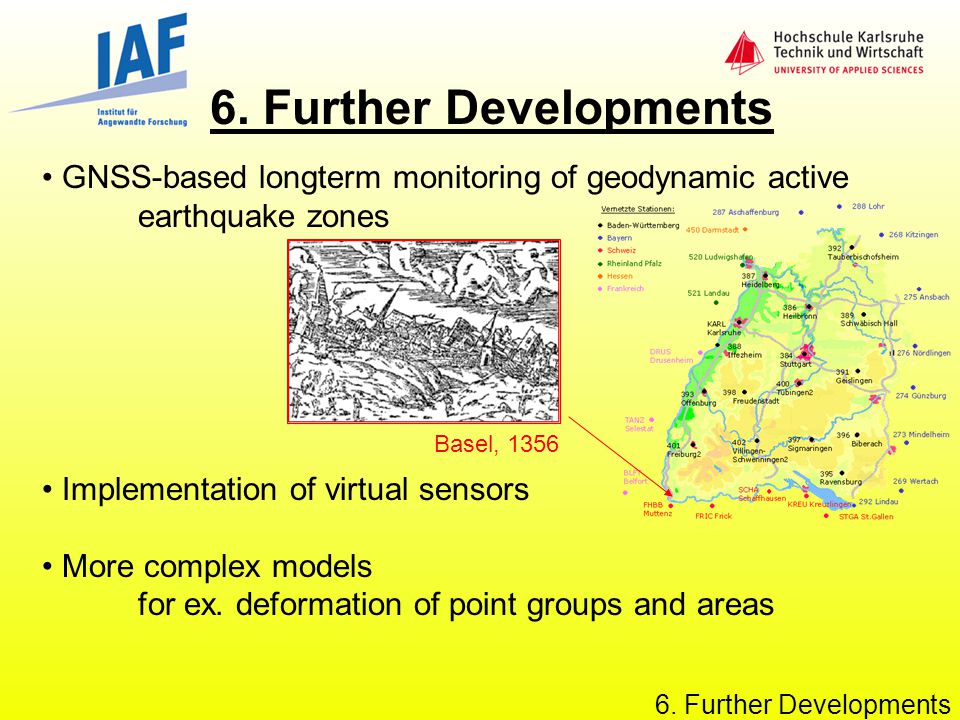

27. 6. Further Developments GNSS-based longterm monitoring of geodynamic active earthquake zones Implementation of virtual sensors More complex models for ex. deformation of point groups and areas Basel, 1356

28. MONIKA

29. End Thank you for your attention ! Any questions?
