1. Service Training K-VK-36 mz 06/01 Convenience system remote central locking and anti-theft system 1

2. Service Training K-VK-36 mz 06/01 06/00 to 7.97  pneumatic locking from 8.97  electric motor locking (CL) Interior monitoring is part of the anti-theft system - visual function display (LED) - with SAFE function (lock once) LED actuation 50 ms on and 950 ms off - without SAFE (lock twice) LED is extinguished Self-diagnosis capable : Address word 46 Convenience system central locking with anti-theft system 2

3. Service Training K-VK-36 mz 06/01 Central control unit Convenience system 3

4. Service Training K-VK-36 mz 06/01 Functions of central control unit J333 Bootlid/tailgate central locking Interior lighting control Radio remote control Sliding/tilting sunroof Convenience control Anti-theft system Self-diagnosis address word "46" Vehicle electrical system interface Central locking of rear doors if mechanical window regulators are installed in rear. Convenience system 4

5. Service Training K-VK-36 mz 06/01 Contents Additional functions of central control unit CAN data exchange Driver seat memory and... Mirror adjustment Convenience system 5

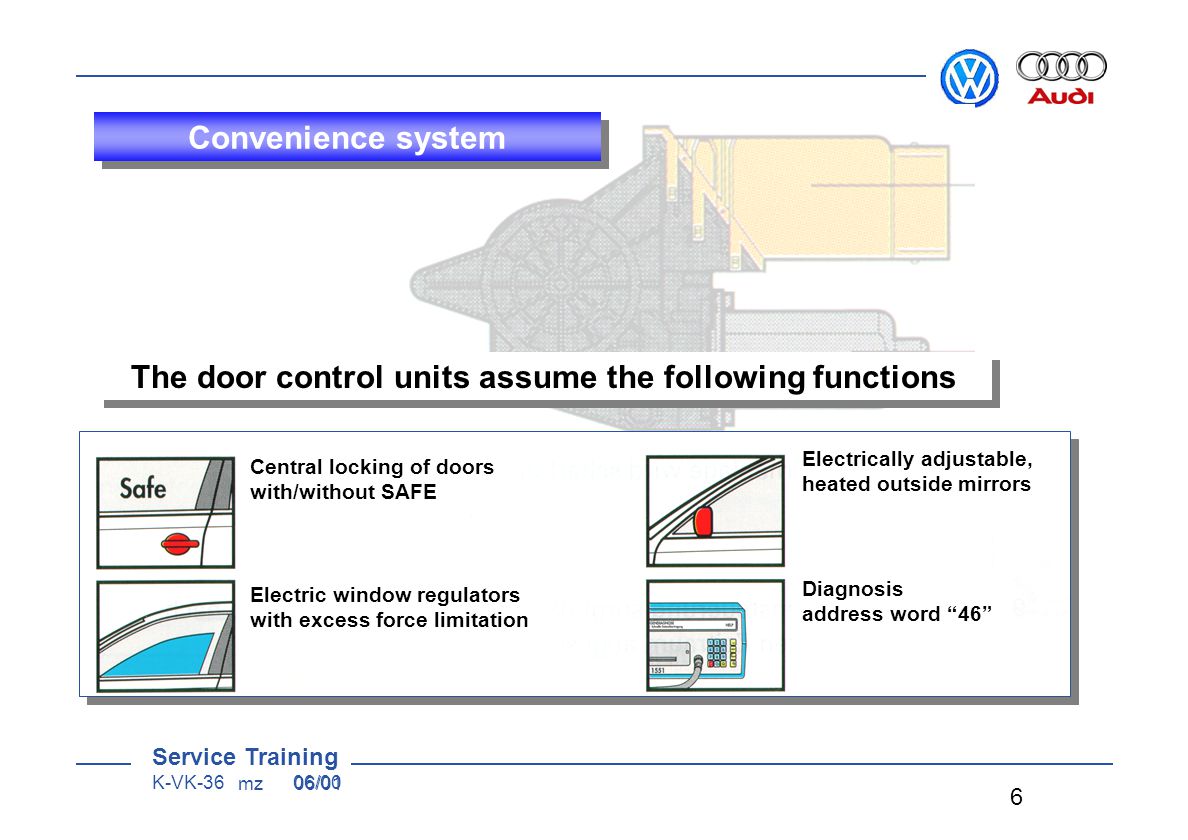

6. Service Training K-VK-36 mz 06/01 06/00 The door control units assume the following functions Convenience system 6 Central locking of doors with/without SAFE Electric window regulators with excess force limitation Electrically adjustable, heated outside mirrors Diagnosis address word “46”

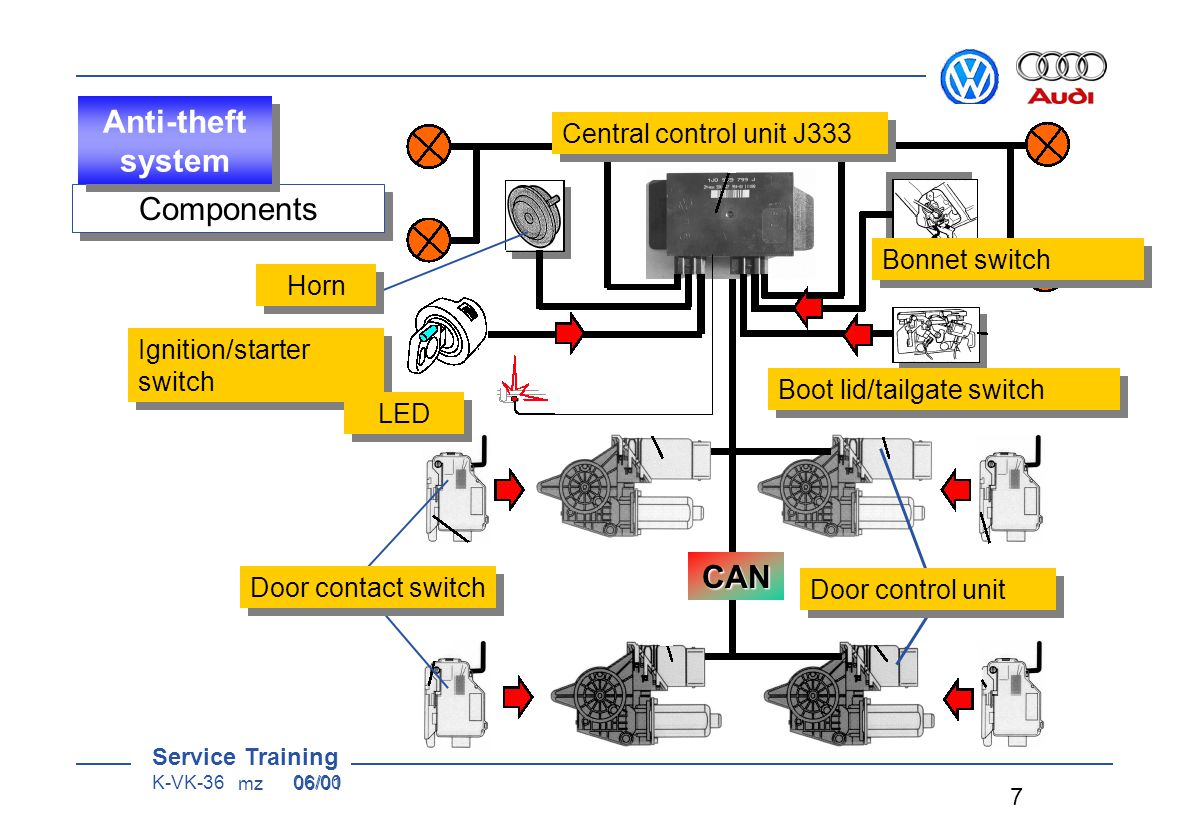

7. Service Training K-VK-36 mz 06/01 06/00 Components CAN Ignition/starter switch Central control unit J333 Bonnet switch Boot lid/tailgate switch Door control unit Horn LED Door contact switch Anti-theft system 7

8. Service Training K-VK-36 mz 06/01 Anti-theft system with interior monitoring 8 Ignition/starter switch Central control unit for convenience system J393 Backup horn Door lock or Convenience CAN with integrated lithium battery Ultrasonic sensors

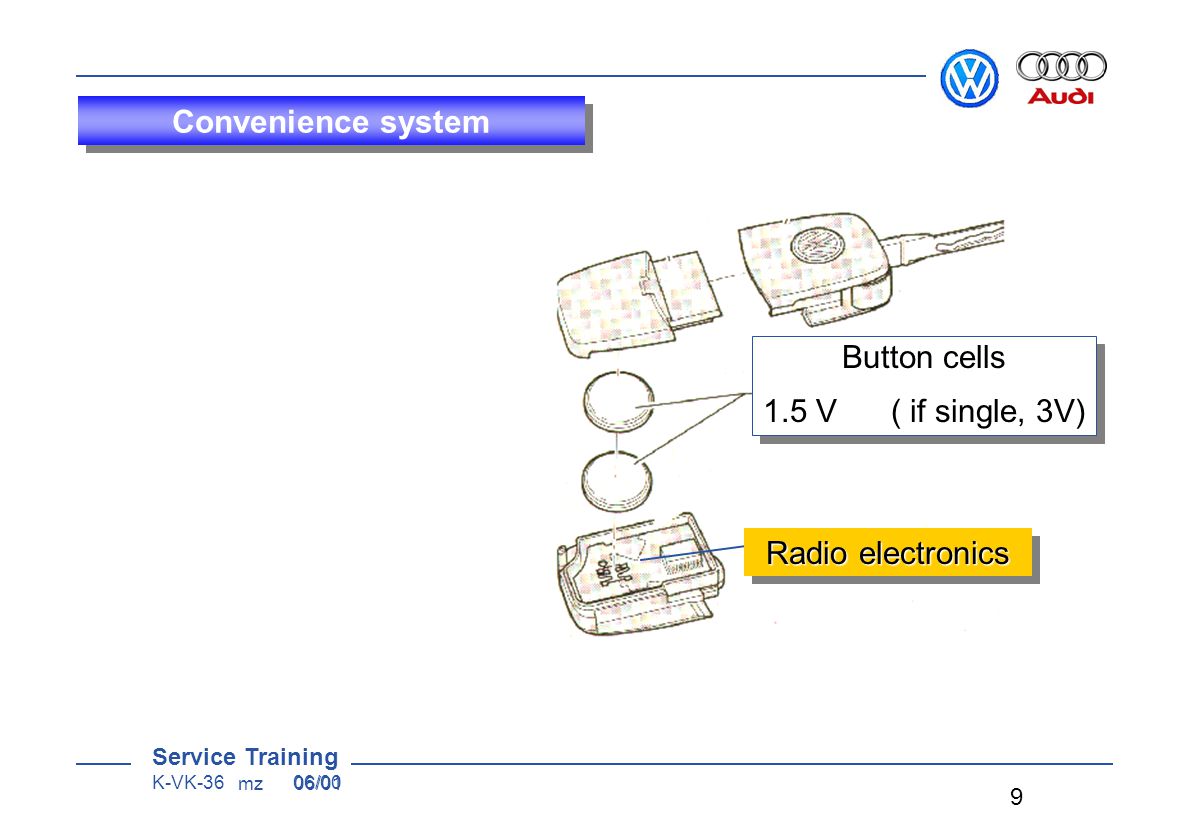

9. Service Training K-VK-36 mz 06/01 06/00 Button cells 1.5 V ( if single, 3V) Button cells 1.5 V ( if single, 3V) Convenience system 9 Radio electronics

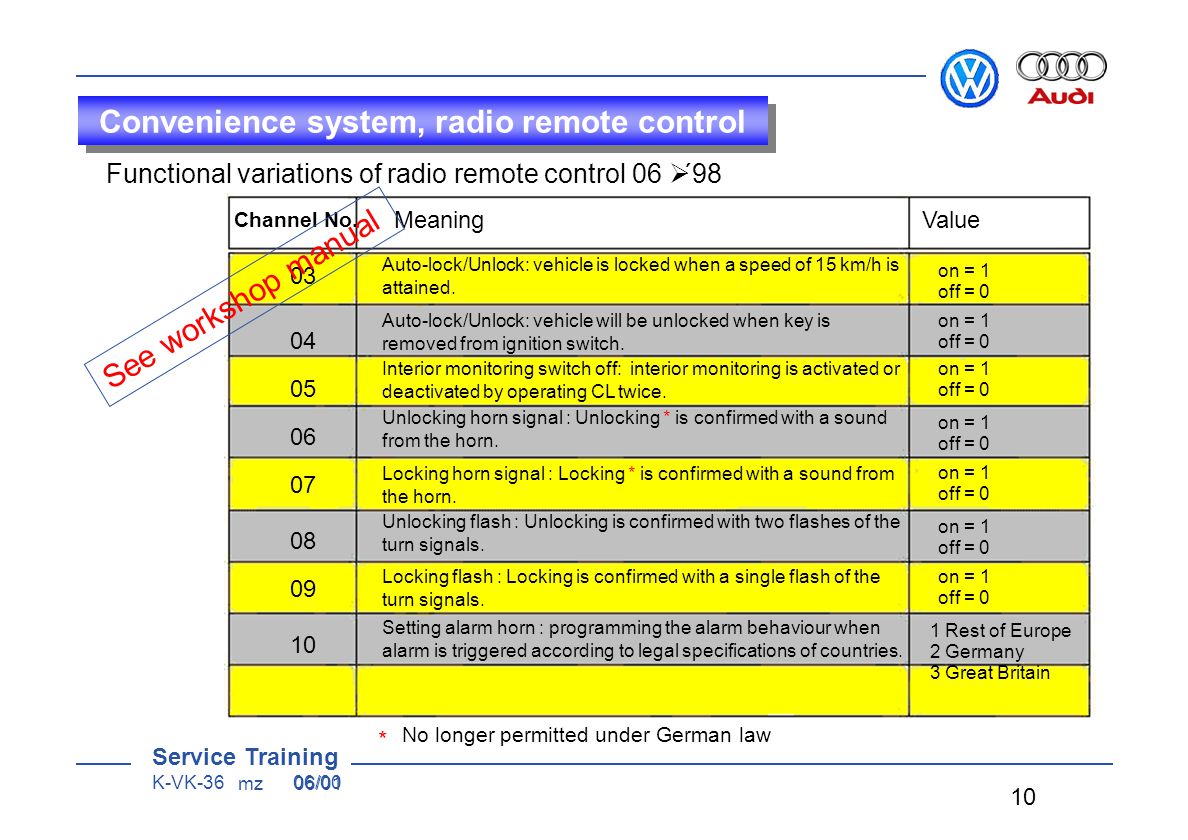

10. Service Training K-VK-36 mz 06/01 06/00 Functional variations of radio remote control 06  ´98 Channel No. MeaningValue Auto-lock/Unlock: vehicle is locked when a speed of 15 km/h is attained. Auto-lock/Unlock: vehicle will be unlocked when key is removed from ignition switch. Interior monitoring switch off: interior monitoring is activated or deactivated by operating CL twice. Unlocking horn signal : Unlocking * is confirmed with a sound from the horn. Locking horn signal : Locking * is confirmed with a sound from the horn. Unlocking flash : Unlocking is confirmed with two flashes of the turn signals. Locking flash : Locking is confirmed with a single flash of the turn signals. Setting alarm horn : programming the alarm behaviour when alarm is triggered according to legal specifications of countries. 03 04 05 06 07 08 09 10 on = 1 off = 0 on = 1 off = 0 on = 1 off = 0 on = 1 off = 0 on = 1 off = 0 on = 1 off = 0 on = 1 off = 0 1 Rest of Europe 2 Germany 3 Great Britain * No longer permitted under German law See workshop manual Convenience system, radio remote control 10

11. Service Training K-VK-36 mz 06/01 06/00 4099 Convenience system, central locking 11 Vehicle self-diagnosis 02 - Interrogate fault memory 03 - Final control diagnosis 04 - Basic setting 05 - Erase fault memory 06 - End output 07 - Code control unit 08 - Read measured value block 09 - Read single measured value 10 - Adaptation 11 - Login procedure 15 - Readiness code Enable (PIN) Adaptation channel 50 (PIN) Select diagnosis function 46 - Convenience system cent. Mod. 1J0959799AH 4L Central-CU-Conven. 0001 Coding 4099 (4099) Dealership number 1317

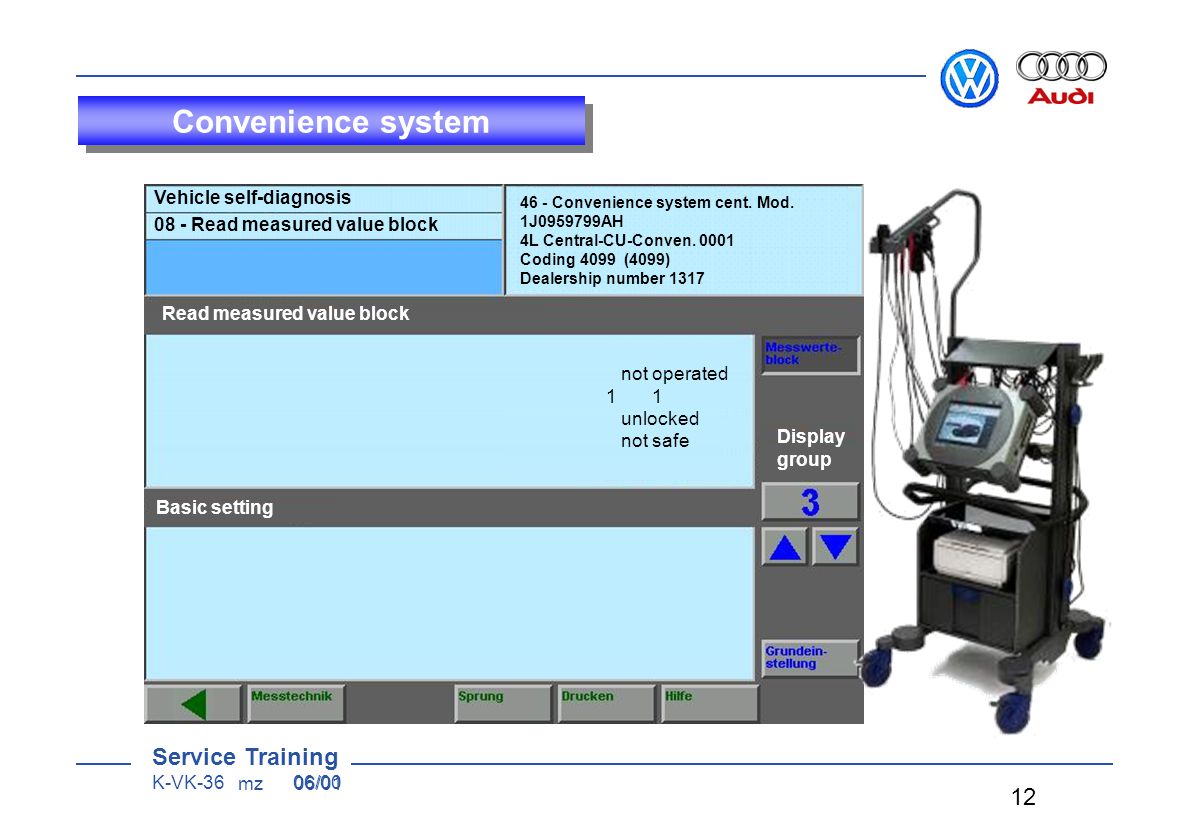

12. Service Training K-VK-36 mz 06/01 06/00 Convenience system 12 Vehicle self-diagnosis 08 - Read measured value block 46 - Convenience system cent. Mod. 1J0959799AH 4L Central-CU-Conven. 0001 Coding 4099 (4099) Dealership number 1317 Read measured value block Basic setting Display group not operated 1 unlocked not safe

13. Service Training K-VK-36 mz 06/01 06/00 Convenience system, anti-theft system Ultrasonic sensors 13 Read measured value block Measured value blocks ? Vehicle self-diagnosis Basic setting Read measured value block Display group Coding Dealership number 1317 08 - Read measured value block

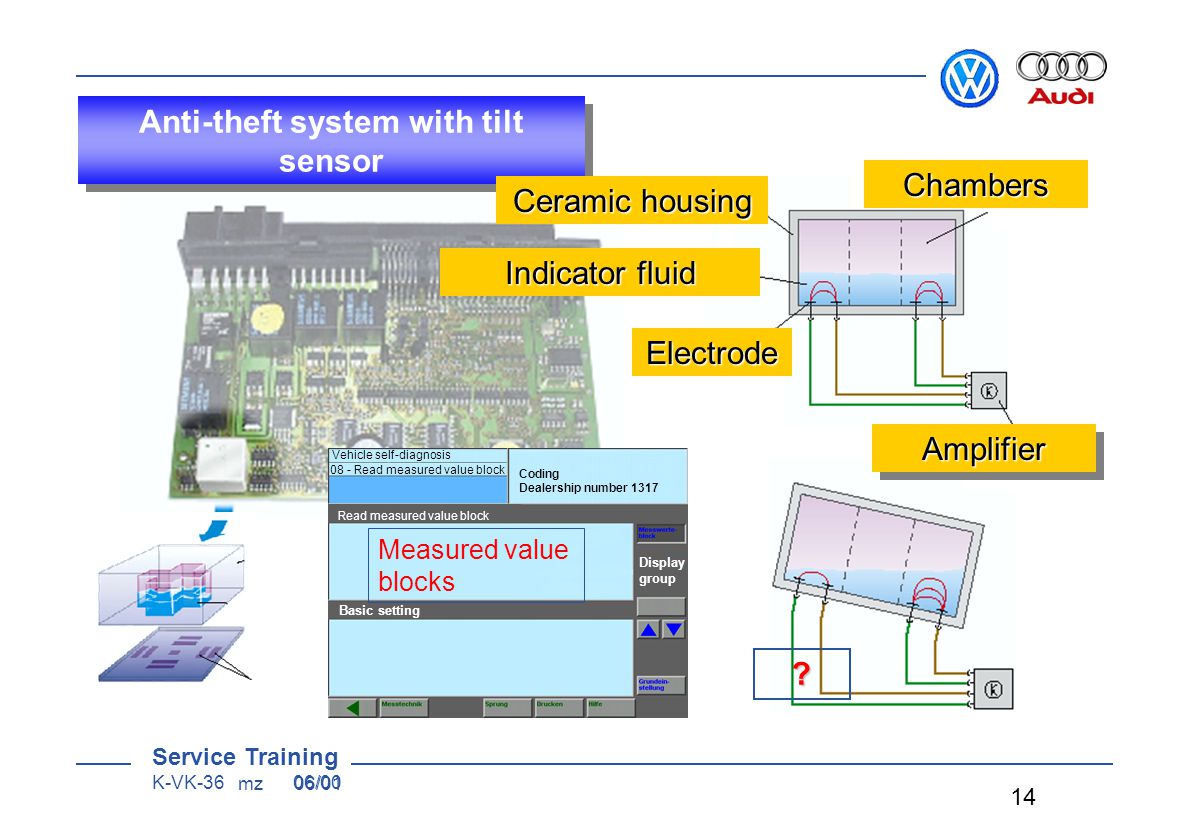

14. Service Training K-VK-36 mz 06/01 06/00 Anti-theft system with tilt sensor 14 Electrode AmplifierAmplifier Indicator fluid Ceramic housing Chambers Measured value blocks ? Vehicle self-diagnosis Read measured value block Display group Coding Dealership number 1317 08 - Read measured value block Basic setting Display group

15. Service Training K-VK-36 mz 06/01 06/00 12 CAN BusBus n.OK rr Rear equipment Convenience system 15 Vehicle self-diagnosis 08 - Read measured value block Coding Dealership number 1317 Read measured value block Basic setting Display group

16. Service Training K-VK-36 mz 06/01 06/00 15 Last alarm source 32 Convenience system 16 Read measured value block Basic setting Display group Vehicle self-diagnosis 08 - Read measured value block Coding Dealership number 1317

17. Service Training K-VK-36 mz 06/01 06/00 17 Convenience system
