Code Visual to Flowchart Basem AL-yasouri 200820364 Ayad R Meshalmeha 200920110 Fadi Alalean 200720475 Loay abu odah.

Similar presentations


Presentation on theme: "Code Visual to Flowchart Basem AL-yasouri 200820364 Ayad R Meshalmeha 200920110 Fadi Alalean 200720475 Loay abu odah."— Presentation transcript:

1 Code Visual to Flowchart Basem AL-yasouri 200820364 Ayad R Meshalmeha 200920110 Fadi Alalean 200720475 Loay abu odah

2 Introduction Code Visual to Flowchart is a code maintain and understand software that is capable to rapidly analyze source code and to display in the flowchart window the graphical presentation of currently edited code. Code Visual to Flowchart is composed of a code editor and a flowchart Window.The flowchart engine is so fast that the flowchart can be constantly displayed as the alternative view of the currently edited source code. You can export flowchart of current edited code as Bitmap on any flowchart expand level you like,Help you to create code flowchart document easily.

3 Code Visual to Flowchart supports all primary program languages,such as C,C++,Java,JavaScript,VB,BASIC, Qbasic,ASP,Vbscript,Delphi,Pascal,PHP,C#,VB.NET,Perl... Code Visual to Flowchart is composed of a code editor and a flowChart window. In the various implementations of flow charts, they are usually displayed in a way that all the source code is partitioned in fragments and displayed inside the drawn blocks. Code Visual to Flowchart is based on different philosophy. The Flow Chart engine is so fast that the Flow Chart can be constantly displayed as the alternative view of the currently edited source code. Code Visual to Flowchart does not display code in flow charts. Since flow charts can always be synchronized with Editor, it is enough to display the code structure from the source inside of the flow chart. The real code can always be edited in its natural way - inside of the Editor window.

4 Another strategy with which Code Visual to Flowchart fights against enormously large flow charts is the concept of expand levels. The maximum depth of displaying the enclosed blocks can always be specified and easily changed. Code Visual to Flowchart features the quickest navigation of source code and it is also a good assistant when you are working on a program IDE.

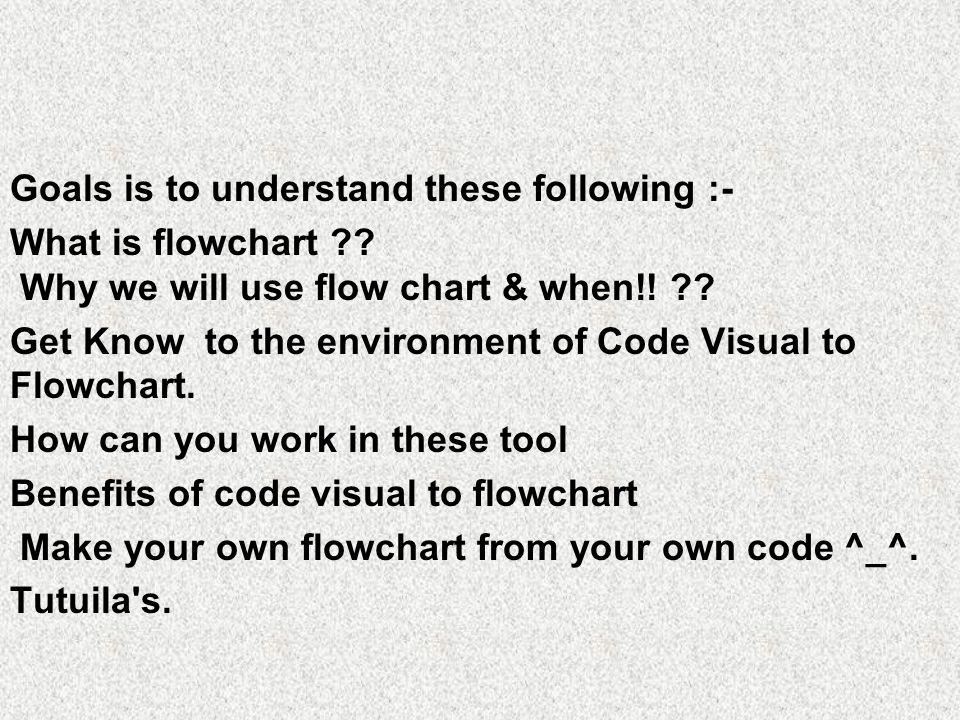

5 Goals is to understand these following :- What is flowchart ?? Why we will use flow chart & when!! ?? Get Know to the environment of Code Visual to Flowchart. How can you work in these tool Benefits of code visual to flowchart Make your own flowchart from your own code ^_^. Tutuila's.

6 What is a Flowchart? A flowchart is a diagram that depicts(“yosor”) the “flow” of a program. The figure shown here is a flowchart for the pay- calculating program in Chapter 1. START Display message “How many hours did you work?” Read Hours Display message “How much do you get paid per hour?” Read Pay Rate Multiply Hours by Pay Rate. Store result in Gross Pay. Display Gross Pay END

7 Basic Flowchart Symbols Notice there are three types of symbols in this flowchart: –rounded rectangles –parallelograms –a rectangle Each symbol represents a different type of operation. START Display message “How many hours did you work?” Read Hours Display message “How much do you get paid per hour?” Read Pay Rate Multiply Hours by Pay Rate. Store result in Gross Pay. Display Gross Pay END Rounded Rectangle Parallelogra m Rectangle Rounded Rectangle

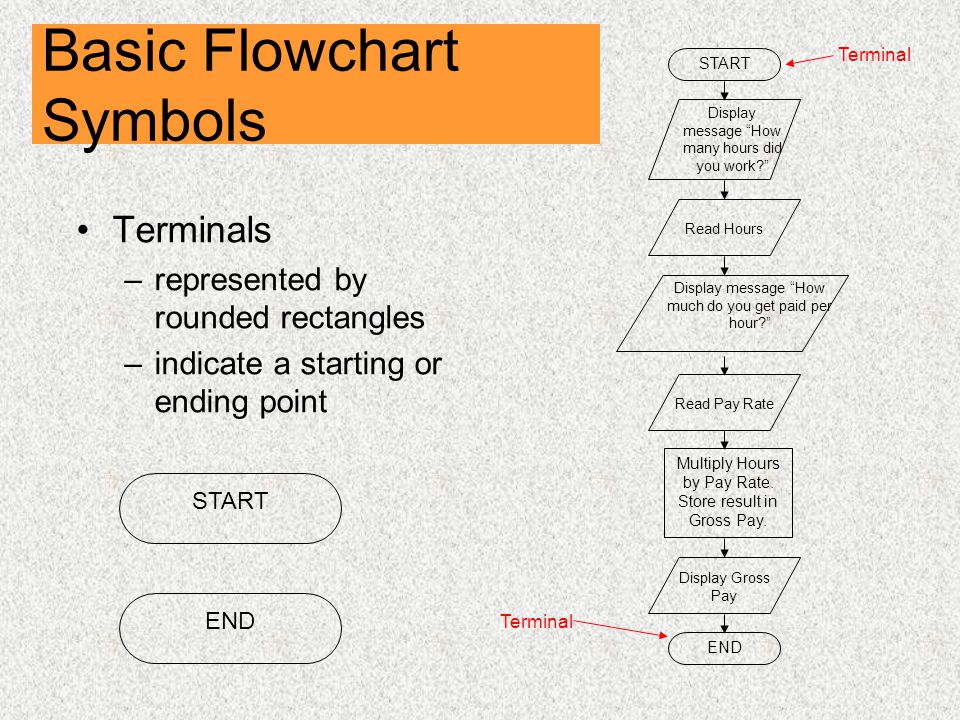

8 Basic Flowchart Symbols Terminals –represented by rounded rectangles –indicate a starting or ending point START Display message “How many hours did you work?” Read Hours Display message “How much do you get paid per hour?” Read Pay Rate Multiply Hours by Pay Rate. Store result in Gross Pay. Display Gross Pay END Terminal STARTEND Terminal

9 Basic Flowchart Symbols Input/Output Operations –represented by parallelograms –indicate an input or output operation START Display message “How many hours did you work?” Read Hours Display message “How much do you get paid per hour?” Read Pay Rate Multiply Hours by Pay Rate. Store result in Gross Pay. Display Gross Pay END Display message “How many hours did you work?” Read Hours Input/Output Operation

10 Basic Flowchart Symbols Processes –represented by rectangles –indicates a process such as a mathematical computation or variable assignment START Display message “How many hours did you work?” Read Hours Display message “How much do you get paid per hour?” Read Pay Rate Multiply Hours by Pay Rate. Store result in Gross Pay. Display Gross Pay END Multiply Hours by Pay Rate. Store result in Gross Pay. Process

11 Stepping Through the Flowchart How many hours did you work? START Display message “How many hours did you work?” Read Hours Display message “How much do you get paid per hour?” Read Pay Rate Multiply Hours by Pay Rate. Store result in Gross Pay. Display Gross Pay END Variable Contents: Hours: ? Pay Rate: ? Gross Pay: ? Output Operation Stepping Through the Flowchart

12 How many hours did you work? 40 START Display message “How many hours did you work?” Read Hours Display message “How much do you get paid per hour?” Read Pay Rate Multiply Hours by Pay Rate. Store result in Gross Pay. Display Gross Pay END Variable Contents: Hours: 40 Pay Rate: ? Gross Pay: ? Input Operation (User types 40) Stepping Through the Flowchart

13 How much do you get paid per hour? START Display message “How many hours did you work?” Read Hours Display message “How much do you get paid per hour?” Read Pay Rate Multiply Hours by Pay Rate. Store result in Gross Pay. Display Gross Pay END Variable Contents: Hours: 40 Pay Rate: ? Gross Pay: ? Output Operation Stepping Through the Flowchart

14 How much do you get paid per hour? 20 START Display message “How many hours did you work?” Read Hours Display message “How much do you get paid per hour?” Read Pay Rate Multiply Hours by Pay Rate. Store result in Gross Pay. Display Gross Pay END Variable Contents: Hours: 40 Pay Rate: 20 Gross Pay: ? Input Operation (User types 20) Stepping Through the Flowchart

15 How much do you get paid per hour? START Display message “How many hours did you work?” Read Hours Display message “How much do you get paid per hour?” Read Pay Rate Multiply Hours by Pay Rate. Store result in Gross Pay. Display Gross Pay END Variable Contents: Hours: 40 Pay Rate: 20 Gross Pay: 800 Process: The product of 40 times 20 is stored in Gross Pay Stepping Through the Flowchart

16 Your gross pay is 800 START Display message “How many hours did you work?” Read Hours Display message “How much do you get paid per hour?” Read Pay Rate Multiply Hours by Pay Rate. Store result in Gross Pay. Display Gross Pay END Variable Contents: Hours: 40 Pay Rate: 20 Gross Pay: 800 Output Operation

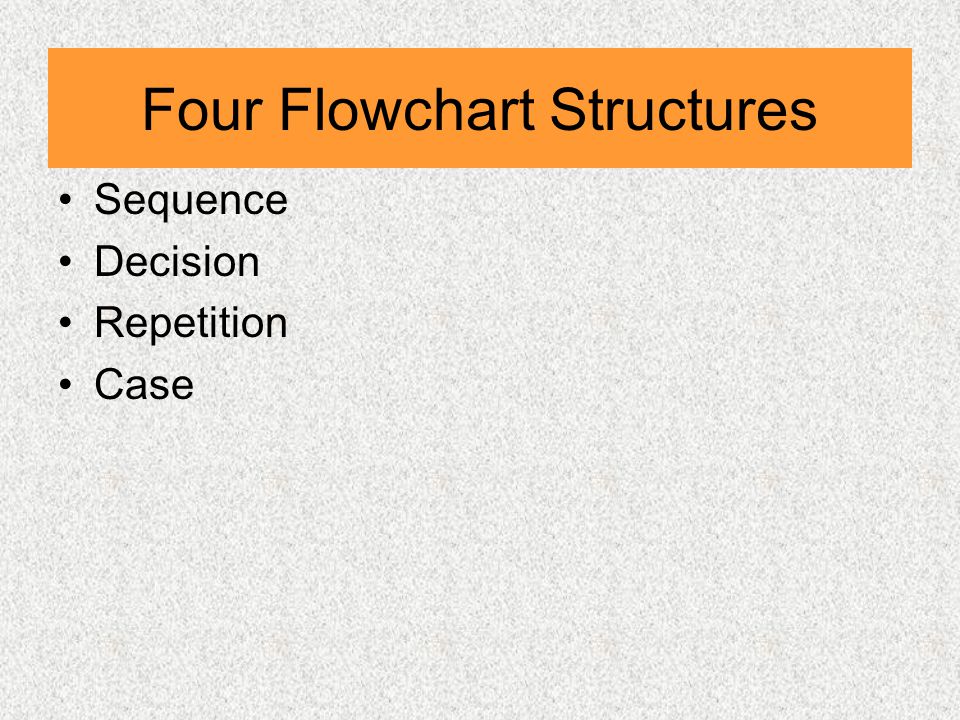

17 Four Flowchart Structures Sequence Decision Repetition Case

18 Sequence Structure a series of actions are performed in sequence The pay-calculating example was a sequence flowchart.

19 Decision Structure One of two possible actions is taken, depending on a condition.

20 Decision Structure A new symbol, the diamond, indicates a yes/no question. If the answer to the question is yes, the flow follows one path. If the answer is no, the flow follows another path YESNO

21 Decision Structure In the flowchart segment below, the question “is x < y?” is asked. If the answer is no, then process A is performed. If the answer is yes, then process B is performed. YESNO x < y? Process B Process A

22 Decision Structure The flowchart segment below shows how a decision structure is expressed in C++ as an if/else statement. YESNO x < y? Calculate a as x times 2. Calculate a as x plus y. if (x < y) a = x * 2; else a = x + y; FlowchartC++ Code

23 Decision Structure The flowchart segment below shows a decision structure with only one action to perform. It is expressed as an if statement in C++ code. if (x < y) a = x * 2; FlowchartC++ Code YESNO x < y? Calculate a as x times 2.

24 Repetition Structure A repetition structure represents part of the program that repeats. This type of structure is commonly known as a loop.

25 Repetition Structure Notice the use of the diamond symbol. A loop tests a condition, and if the condition exists, it performs an action. Then it tests the condition again. If the condition still exists, the action is repeated. This continues until the condition no longer exists.

26 Repetition Structure In the flowchart segment, the question “is x < y?” is asked. If the answer is yes, then Process A is performed. The question “is x < y?” is asked again. Process A is repeated as long as x is less than y. When x is no longer less than y, the repetition stops and the structure is exited. x < y? Process A YES

27 Repetition Structure The flowchart segment below shows a repetition structure expressed in C++ as a while loop. while (x < y) x++; FlowchartC++ Code x < y? Add 1 to x YES

28 Controlling a Repetition Structure The action performed by a repetition structure must eventually cause the loop to terminate. Otherwise, an infinite loop is created. In this flowchart segment, x is never changed. Once the loop starts, it will never end. QUESTION: How can this flowchart be modified so it is no longer an infinite loop? x < y? Display x YES

29 Controlling a Repetition Structure ANSWER: By adding an action within the repetition that changes the value of x. x < y? Display x Add 1 to x YES

30 A Pre-Test Repetition Structure This type of structure is known as a pre-test repetition structure. The condition is tested BEFORE any actions are performed. x < y? Display x Add 1 to x YES

31 A Pre-Test Repetition Structure In a pre-test repetition structure, if the condition does not exist, the loop will never begin. x < y? Display x Add 1 to x YES

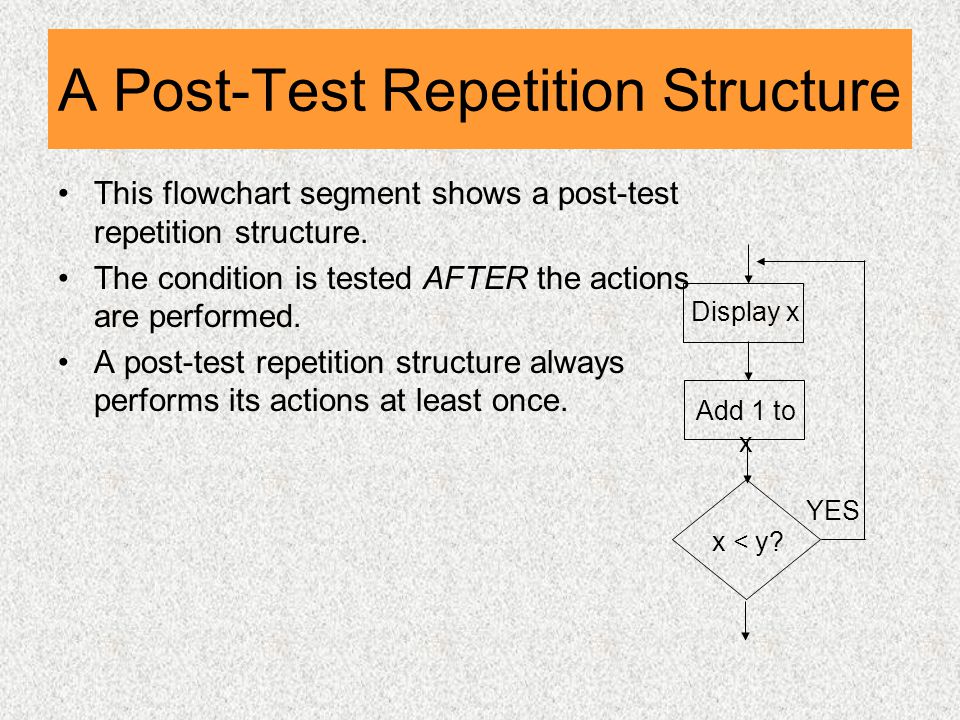

32 A Post-Test Repetition Structure This flowchart segment shows a post-test repetition structure. The condition is tested AFTER the actions are performed. A post-test repetition structure always performs its actions at least once. Display x Add 1 to x YES x < y?

33 A Post-Test Repetition Structure The flowchart segment below shows a post-test repetition structure expressed in C++ as a do-while loop. do { cout << x << endl; x++; } while (x < y); Flowchart C++ Code Display x Add 1 to x YES x < y?

34 Case Structure One of several possible actions is taken, depending on the contents of a variable.

35 Case Structure The structure below indicates actions to perform depending on the value in years_employed. CASE years_employed 1 2 3 Other bonus = 100 bonus = 200 bonus = 400 bonus = 800

36 Case Structure CASE years_employed 1 2 3 Other bonus = 100 bonus = 200 bonus = 400 bonus = 800 If years_employed = 1, bonus is set to 100 If years_employed = 2, bonus is set to 200 If years_employed = 3, bonus is set to 400 If years_employed is any other value, bonus is set to 800

37 Combining Structures Structures are commonly combined to create more complex algorithms. The flowchart segment below combines a decision structure with a sequence structure. x < y? Display x Add 1 to x YES

38 This flowchart segment shows two decision structures combined. Combining Structures Display “x is within limits.” Display “x is outside the limits.” YESNO x > min? x < max? YES NO Display “x is outside the limits.”

39 features and benefits of this full- featured visual code editor 1. Code Visual to Flowchart is a widely used automatic flow chart generator software that can reverse engineering a program, create programming flowchart from code, mostly used on flowcharting a progress 2. Code Visual to Flowchart can generate Bmp, PNG, Visio, Word, Excel and PowerPoint flowcharts document, help programmers to document, visualize and understand source code. 3. Code Visual to Flowchart works with the following programming languages: C, C++, VC++ (Visual C++.NET), VB (Visual Basic), VBA, Qbasic (quickbasic), VBScript (VBS), ASP, Visual C# (C sharp), Visual Basic.NET (VB.NET), Visual J#.NET, VC++.NET, ASP.NET, Java, JSP, JavaScript (JScript), Delphi (Object Pascal), PowerBuilder (PowerScript), Peoplesoft SQR, PHP, Visual FoxPro, PL/SQL, T-SQL (Transact-sql) and Perl.and documenting source code.

40 4. Code Visual to Flowchart works with flowchart window to help programmers to edit complex source code easily. We can click on any part of the edited code,and then the related part of flowchart will be highlighted. Flowcharts can be exported in MS Visio or BMP formats on any flowchart expand level. So developers can create code flowchart documents easily. 5. Current edited code can directly be printed or be exported as RTF or HTML with colors and the format is just the same as its appearance in editor. That is real what you see is what you get. 6. Code Visual to Flowchart has 2 kinds of flowcharts: The first one is displayed in a way that all the source code is partitioned in fragments and displayed inside the drawn blocks. The other one does not display code in flow chart. Since flow chart can always be synchronized with Editor, it is enough to display the code structure from the source inside of the flow chart. The real code can always be edited in its natural way - inside of the Editor window.

41 Type 1Type 2

42 Another strategy with which Code Visual to Flowchart fights against enormously large flow chart is the concept of expands levels. The maximum depth of displaying the enclosed blocks can always be specified and easily changed. Code Visual to Flowcharts features the quickest navigation of source code and it is also a good assistant when we are working on a programming IDE.

43 7. Additional features of Code Visual to Flowchart include: Synchronization between flowchart and source code in editor; unlimited programming flow chart expand levels; Syntax highlighting for Source code; Support all Windows system, include Vista and so on.

44 The Top 5 Reasons To Use Flowcharts (why we use flow chart ) Sometimes it's more effective to visualize something graphically that it is to describe it with words. That is the essence of what flowcharts do for you. Flowcharts explain a process clearly through symbols and text. Moreover, flowcharts give you the gist of the process flow in a single glance. The following are some of the more salient reasons to use flowcharts.

45 Process Documentation / Training Materials Another common use for flowcharts is to create process documentation. Although this reason overlaps with regulatory and quality management requirements (below), many non-regulated businesses use flowcharts for their documentation as well. These can range in form from high-level procedures to low-level, detailed work instructions. You may think that this applies mainly to large organizations, but small companies can greatly benefit from flowcharting their processes as well. Small enterprises need to be nimble and organized. Standardizing their processes is a great way to achieve this.

46 Workflow Management and Continuous Improvement Workflows don't manage themselves. To ensure that you are meeting your customers' needs, you need to take control of your business processes. The first step to workflow management is to define the current state of your processes by creating an "As-Is Flowchart". That allows you to analyze your processes for waste and inefficiency. After you have identified areas for process improvement, you can then craft new flowcharts to document the leaner processes.

47 Programming Information technology played a big influence on the use and spread of flowcharts in the 20th century. While Dr. W. Edwards Deming was advocating their use in quality management, professionals in the data processing world were using them to flesh out their programming logic. Flowcharts were a mainstay of procedural programming, however, and with the advent of object oriented programming and various modeling tools, the use of flowcharts for programming is no longer as commonplace as it once was.

48 Notation :- The “Code Visual to Flowchart” is Upper case tools (support analysis and design phases) So its process analysis tools

49 End
