1 MIT Concrete Sustainability Hub Bruce McIntosh, Portland Cement Association

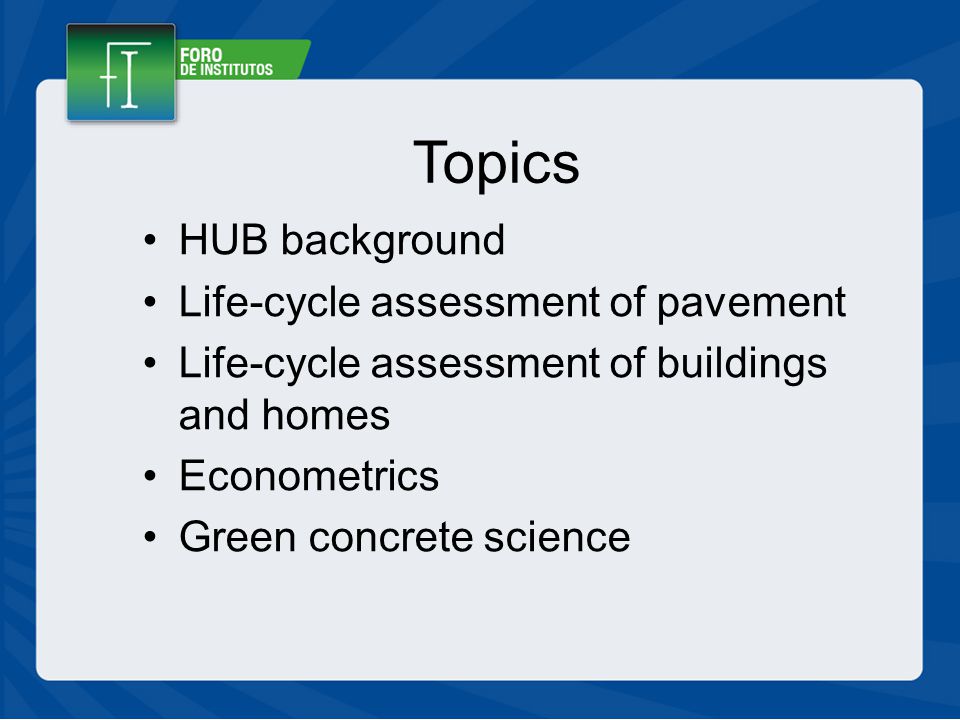

2 Topics HUB background Life-cycle assessment of pavement Life-cycle assessment of buildings and homes Econometrics Green concrete science

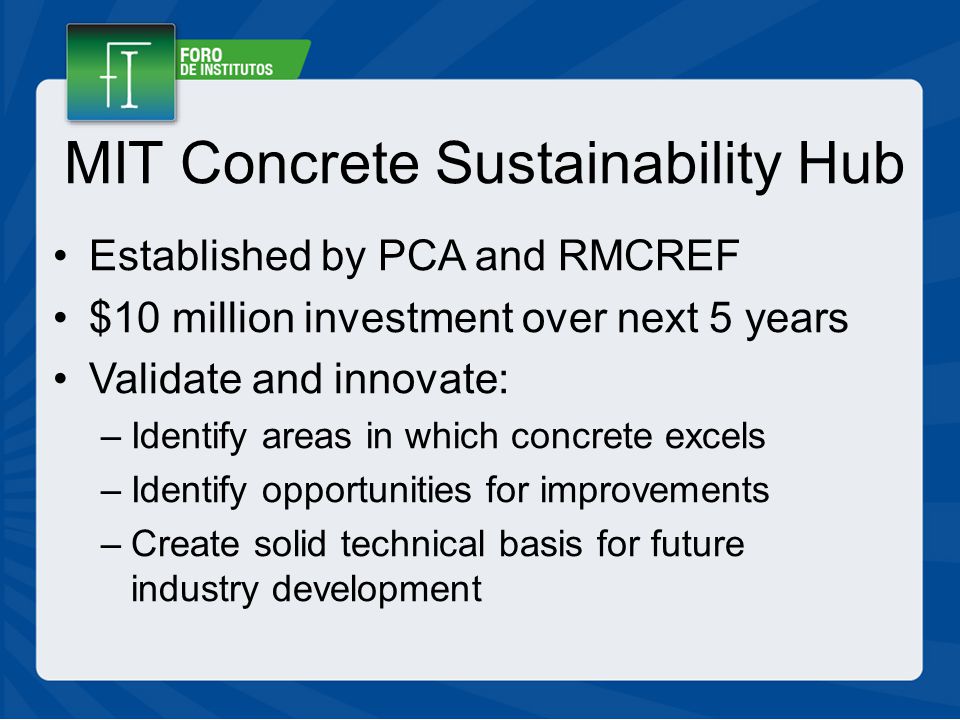

3 MIT Concrete Sustainability Hub Established by PCA and RMCREF $10 million investment over next 5 years Validate and innovate: –Identify areas in which concrete excels –Identify opportunities for improvements –Create solid technical basis for future industry development

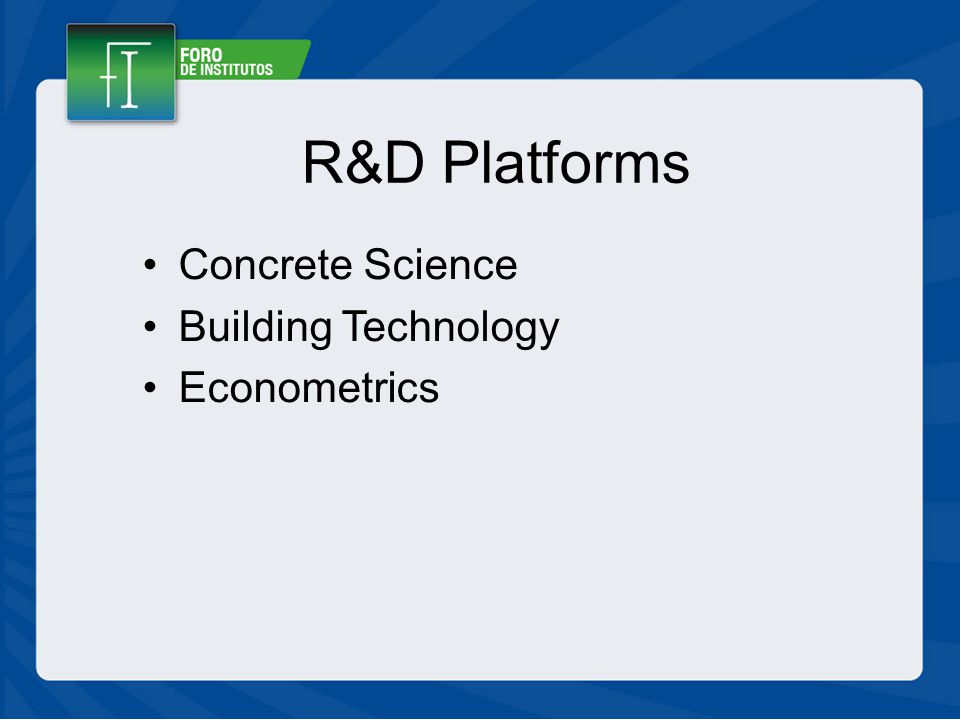

4 R&D Platforms Concrete Science Building Technology Econometrics

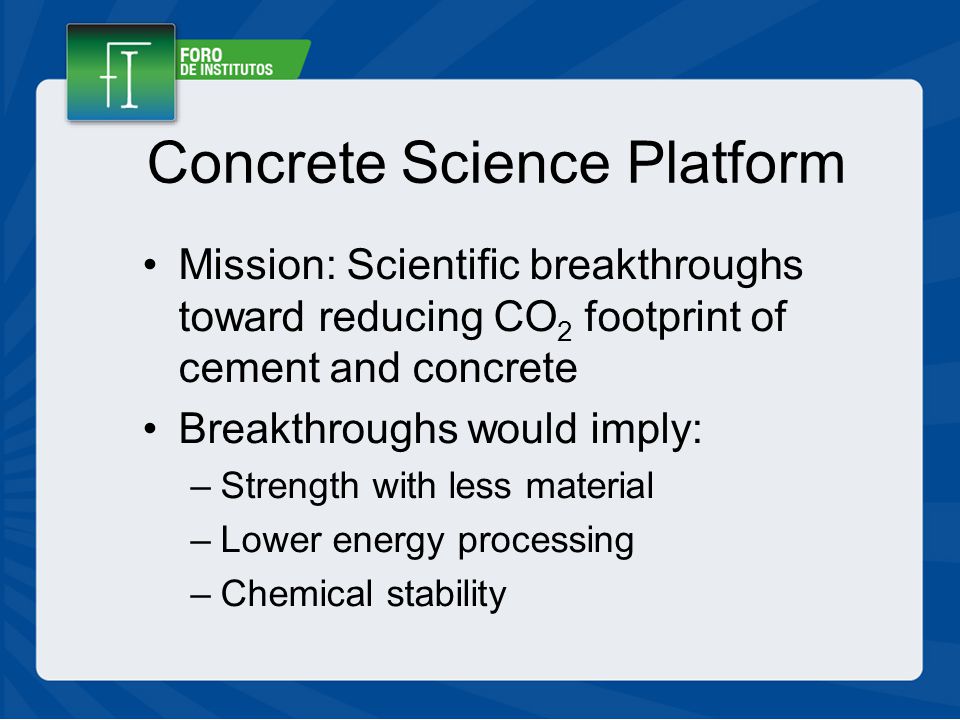

5 Concrete Science Platform Mission: Scientific breakthroughs toward reducing CO 2 footprint of cement and concrete Breakthroughs would imply: –Strength with less material –Lower energy processing –Chemical stability

6 Building Technology Platform Mission: Life-cycle assessment (LCA) of concrete buildings and pavements to identify impacts and opportunities

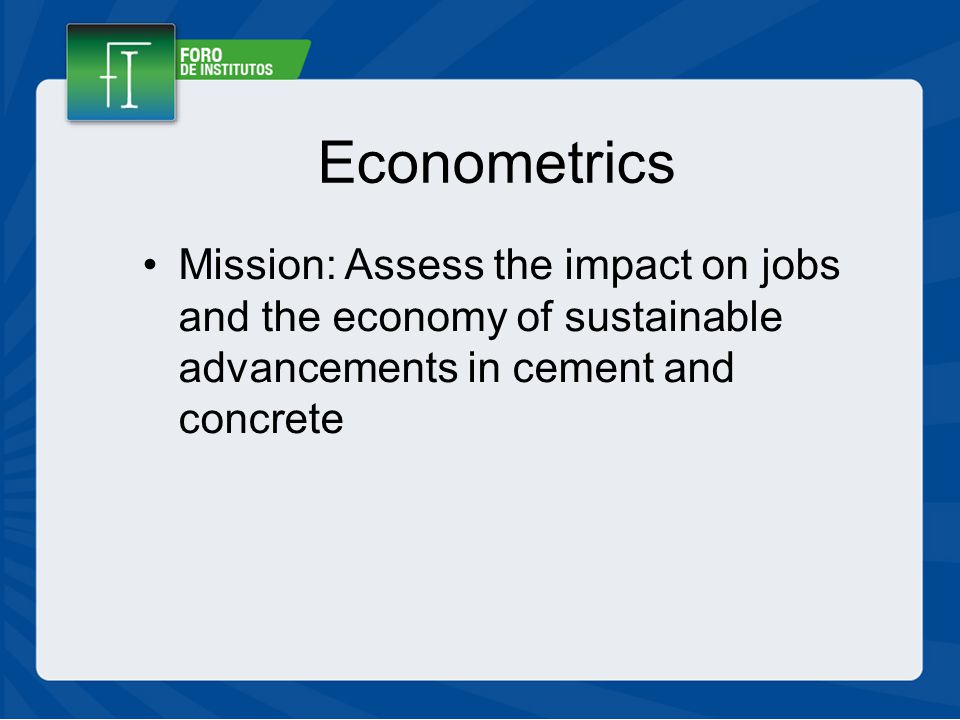

7 Econometrics Mission: Assess the impact on jobs and the economy of sustainable advancements in cement and concrete

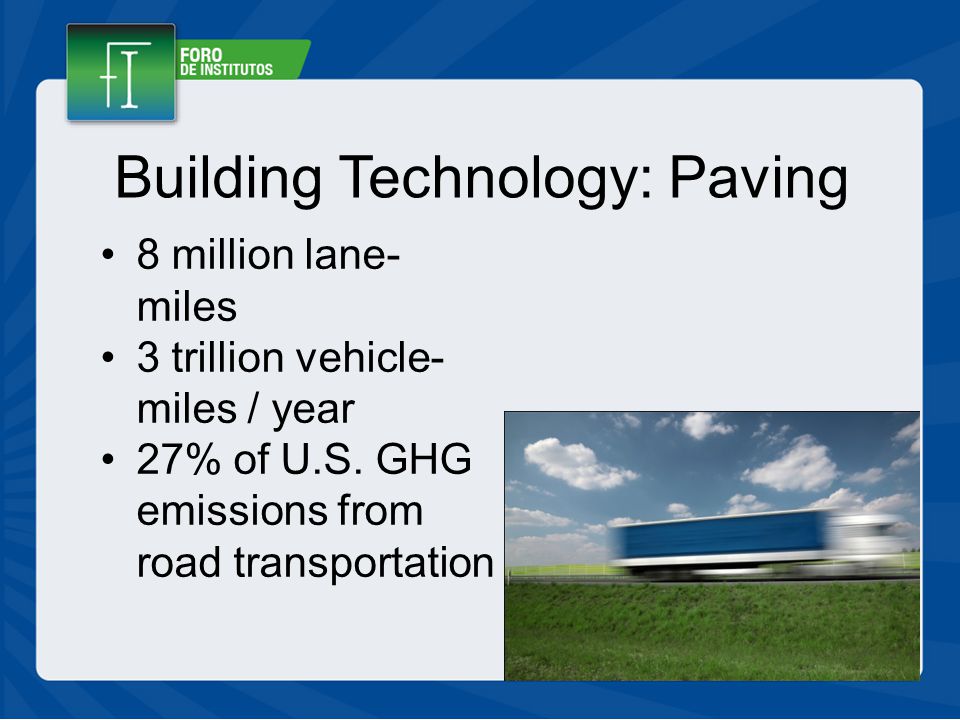

8 Building Technology: Paving 8 million lane- miles 3 trillion vehicle- miles / year 27% of U.S. GHG emissions from road transportation

9 Improving Paving Performance Comprehensive methodology for pavement LCA Quantifying greenhouse gases Investigate pavement- vehicle interaction

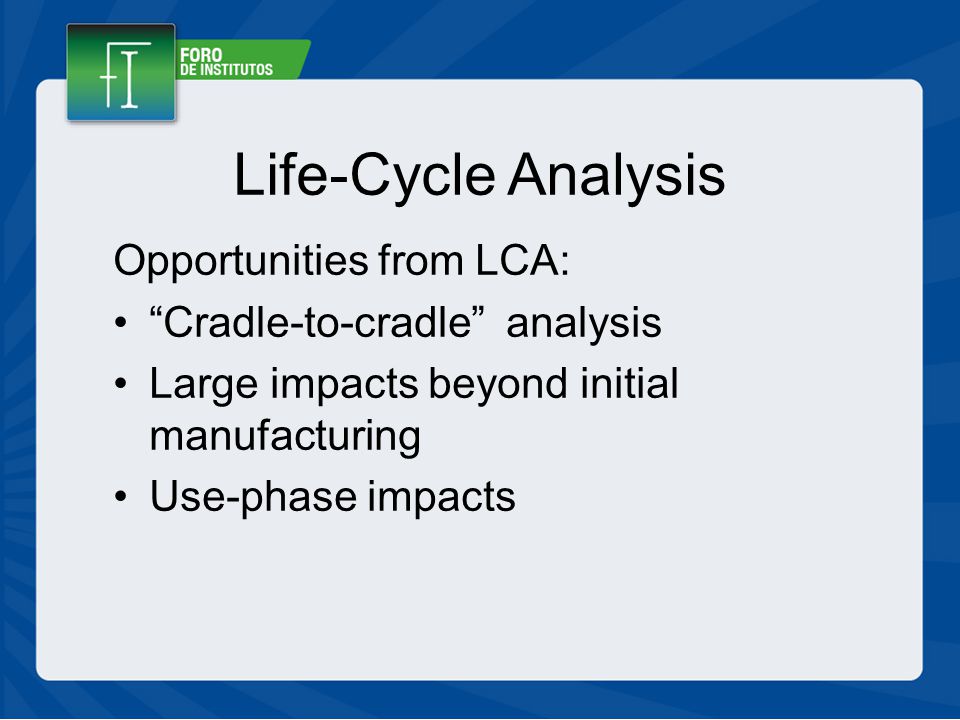

10 Life-Cycle Analysis Opportunities from LCA: “Cradle-to-cradle” analysis Large impacts beyond initial manufacturing Use-phase impacts

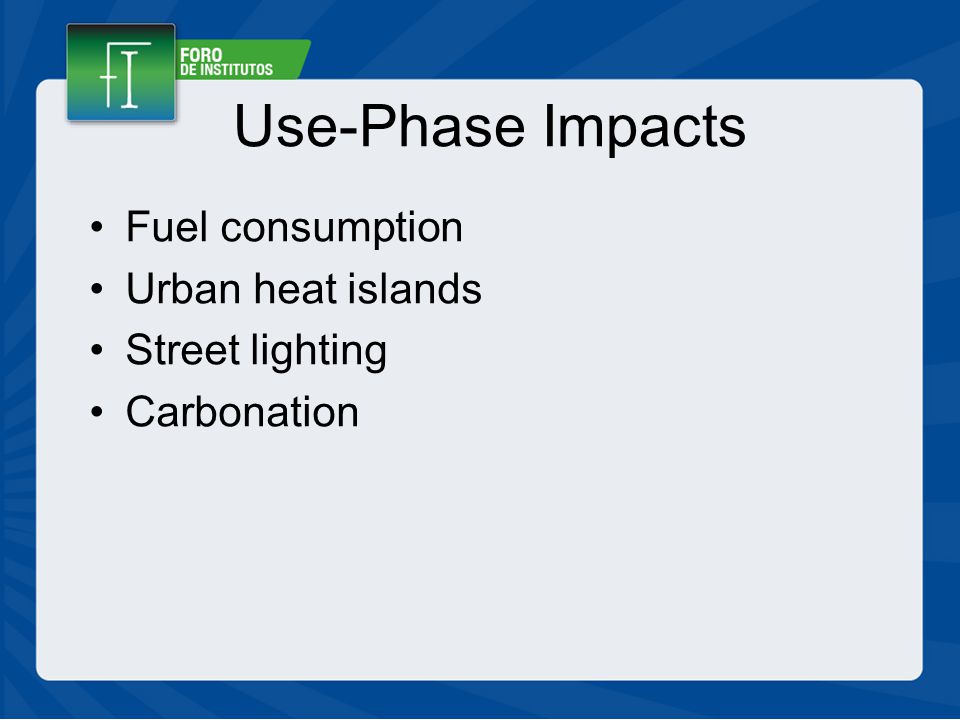

11 Use-Phase Impacts Fuel consumption Urban heat islands Street lighting Carbonation

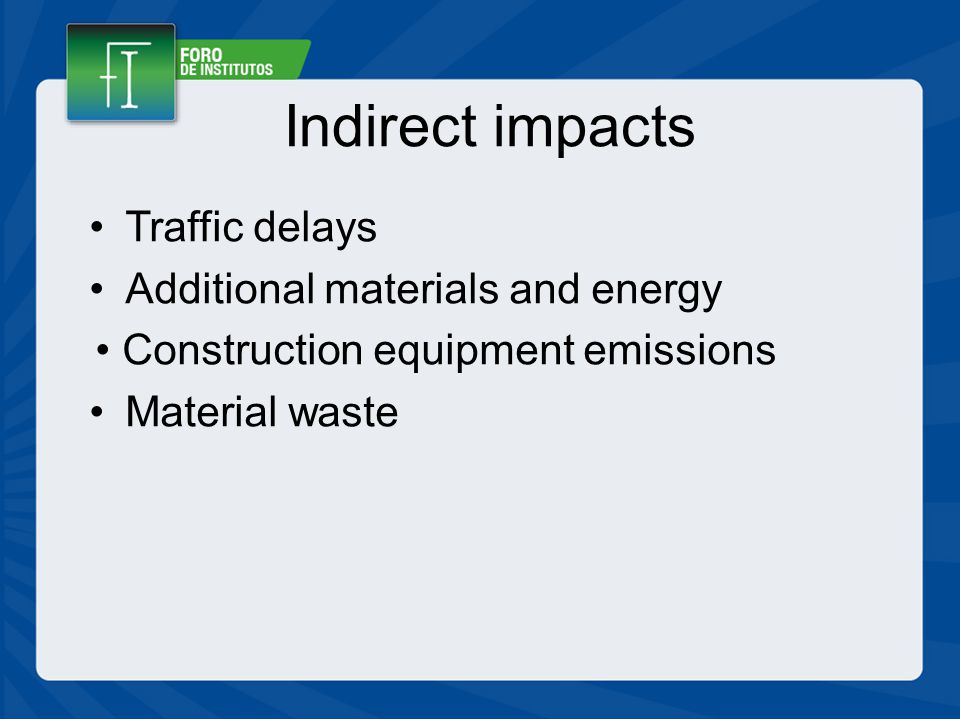

12 Indirect impacts Traffic delays Additional materials and energy Construction equipment emissions Material waste

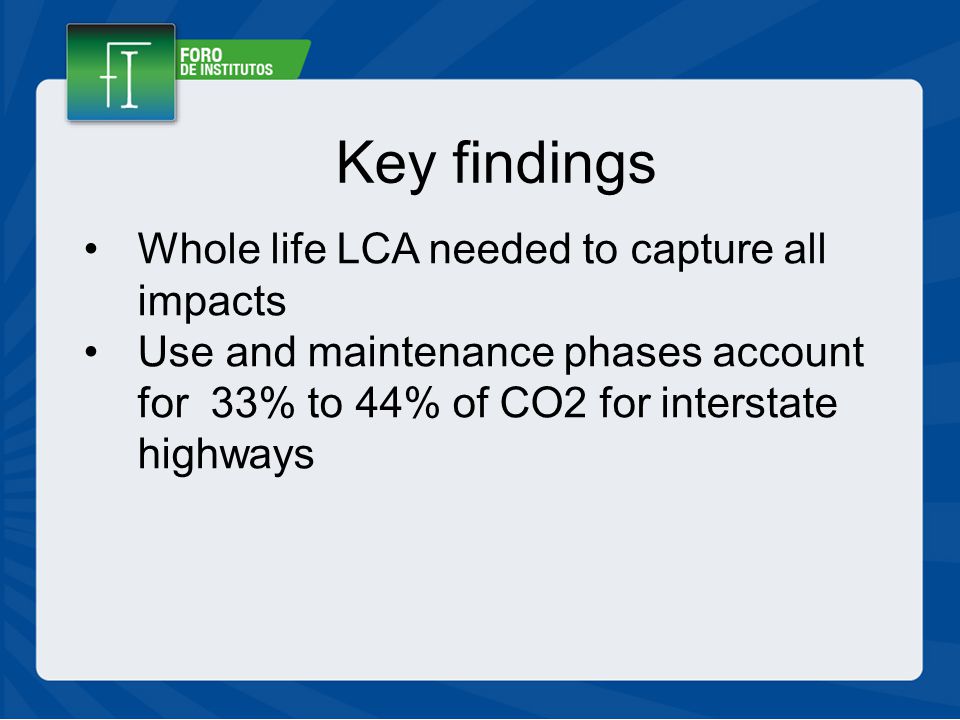

13 Key findings Whole life LCA needed to capture all impacts Use and maintenance phases account for 33% to 44% of CO2 for interstate highways

14 Pavement-Vehicle Interaction Demonstrates of fuel savings with concrete Two factors: stiffness and roughness Stiffness Roughness

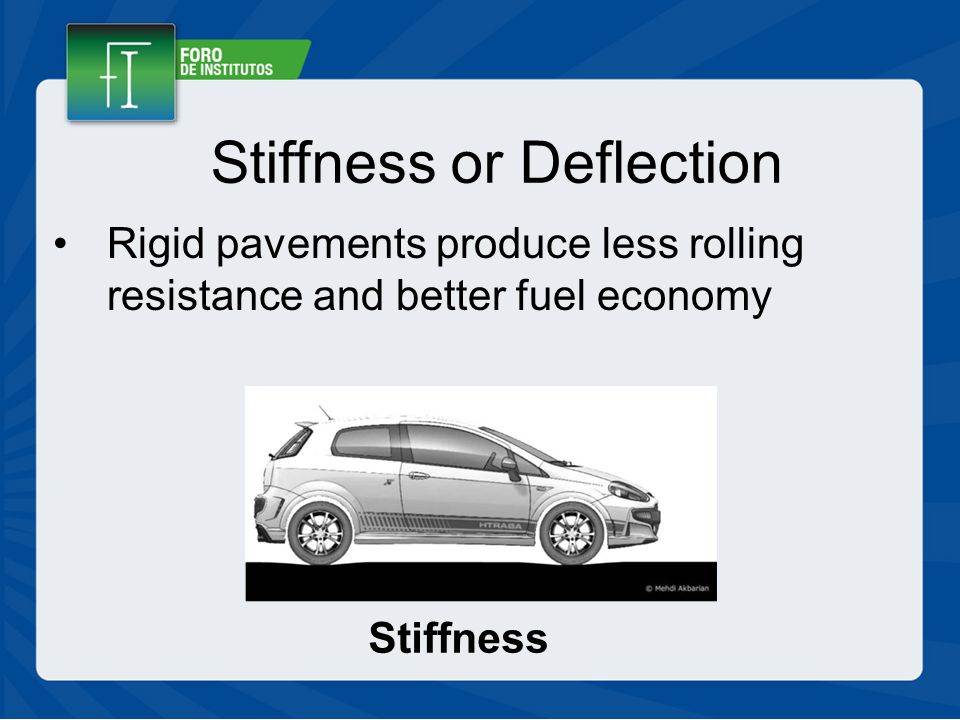

15 Stiffness or Deflection Rigid pavements produce less rolling resistance and better fuel economy Stiffness

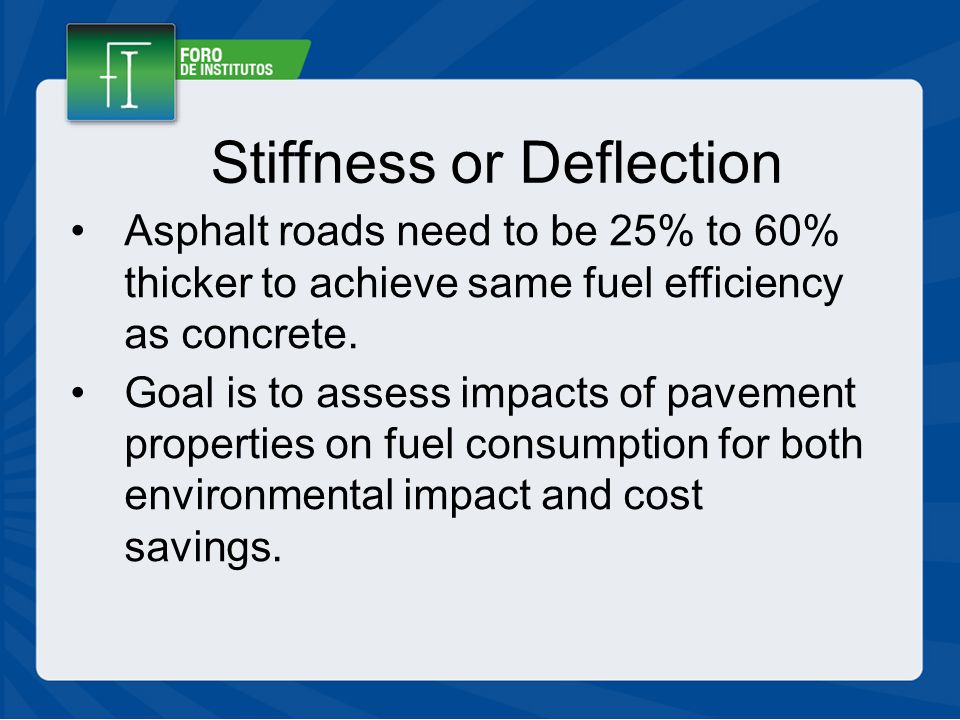

16 Stiffness or Deflection Asphalt roads need to be 25% to 60% thicker to achieve same fuel efficiency as concrete. Goal is to assess impacts of pavement properties on fuel consumption for both environmental impact and cost savings.

17 50-year GHG Emissions High VolumeArterial

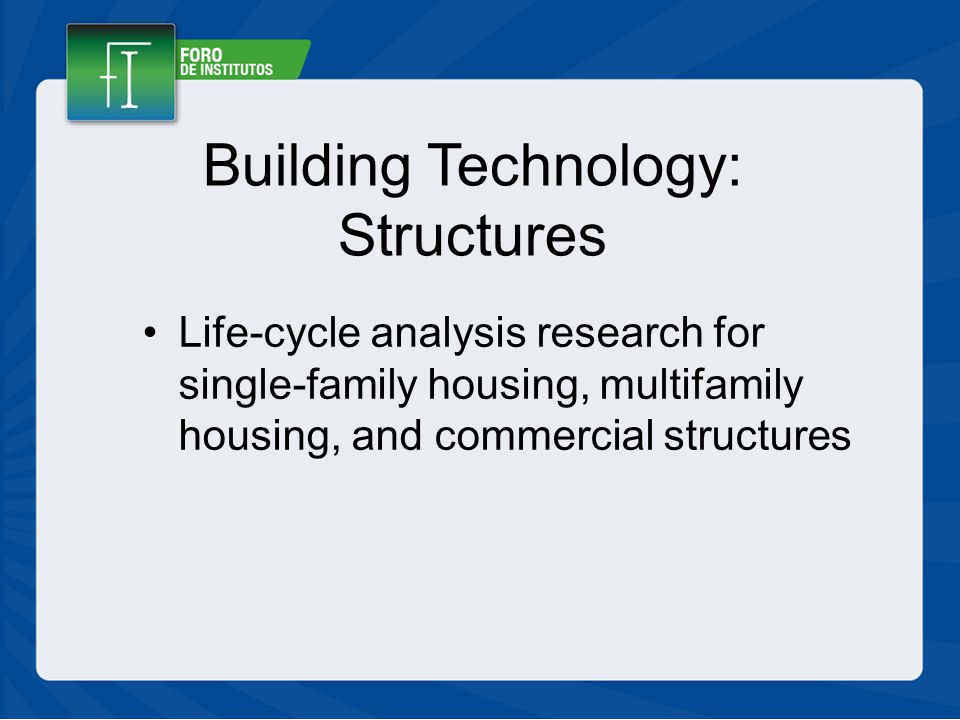

18 Building Technology: Structures Life-cycle analysis research for single-family housing, multifamily housing, and commercial structures

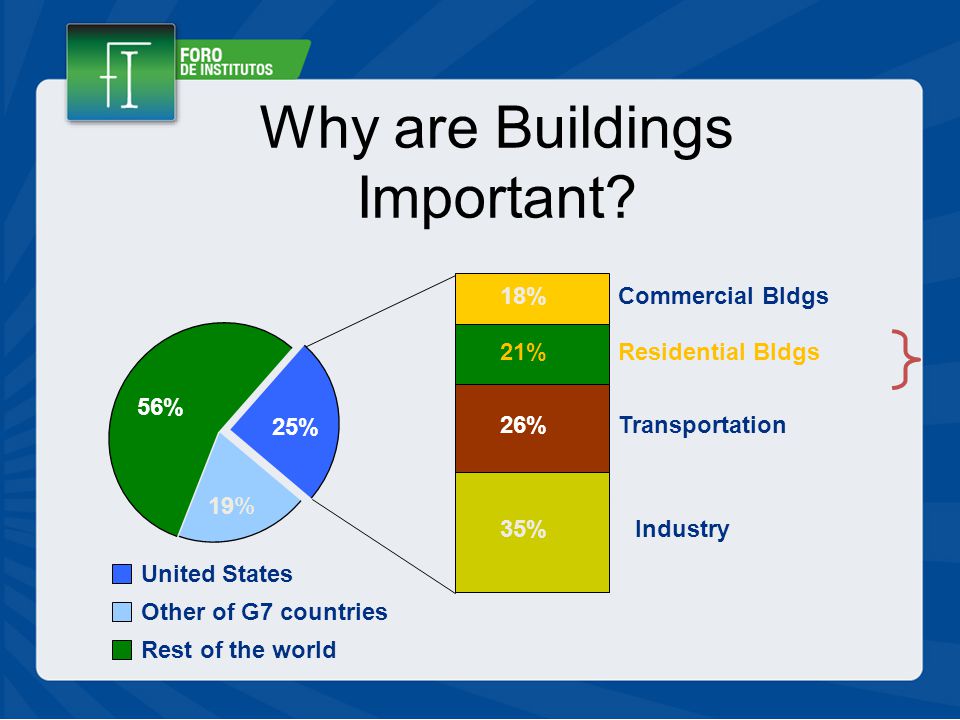

19 Residential Bldgs Commercial Bldgs Industry Transportation 21% 18% 35% 26% United States Other of G7 countries Rest of the world 25% 19% 56% Why are Buildings Important?

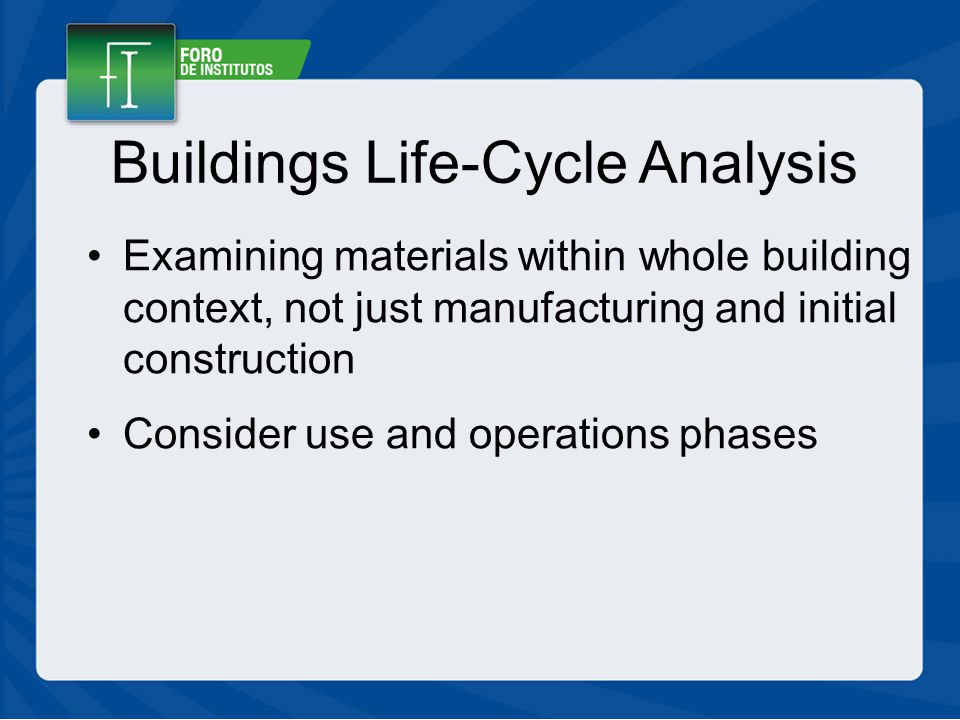

20 Buildings Life-Cycle Analysis Examining materials within whole building context, not just manufacturing and initial construction Consider use and operations phases

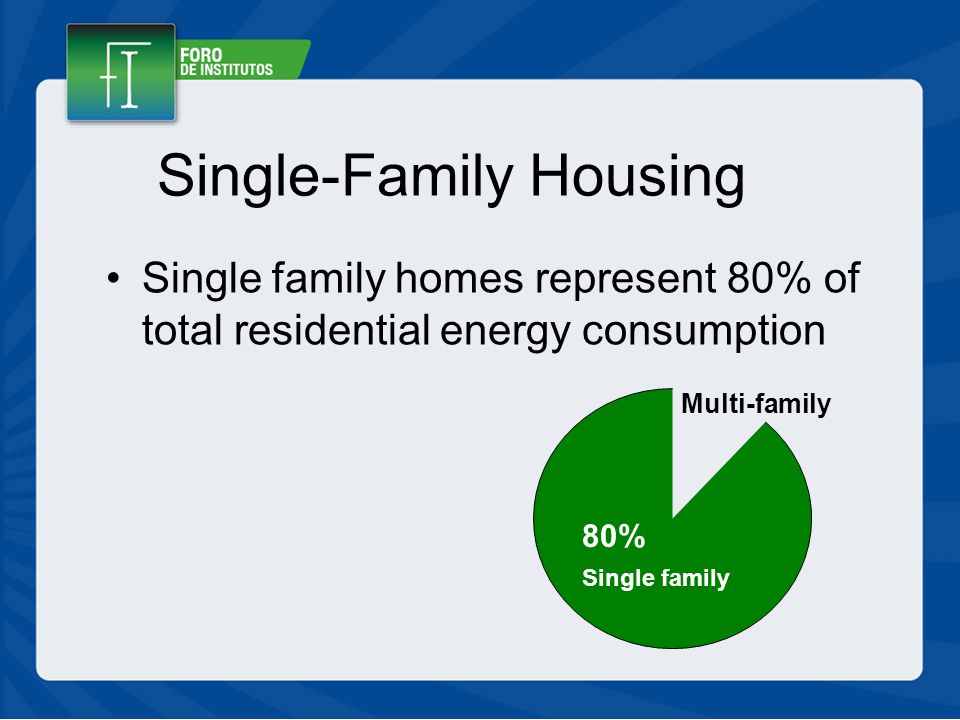

21 Single-Family Housing Single family homes represent 80% of total residential energy consumption 80% Single family Multi-family

22 Single-Family LCA Exterior walls Wood frame and insulating concrete forms Quantity of insulation Thermal mass

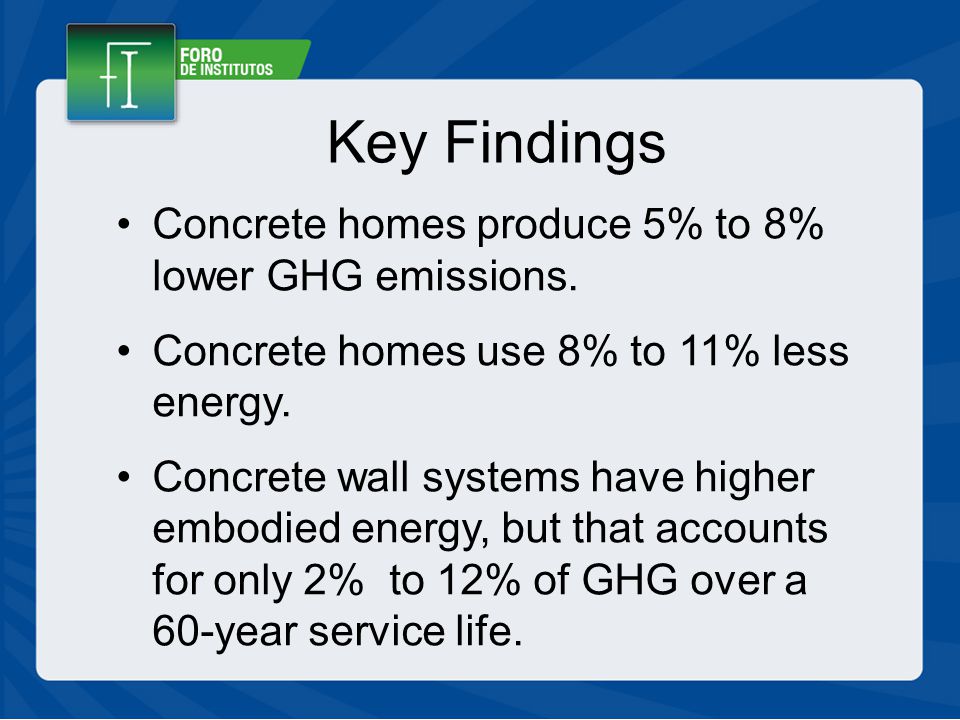

23 Key Findings Concrete homes produce 5% to 8% lower GHG emissions. Concrete homes use 8% to 11% less energy. Concrete wall systems have higher embodied energy, but that accounts for only 2% to 12% of GHG over a 60-year service life.

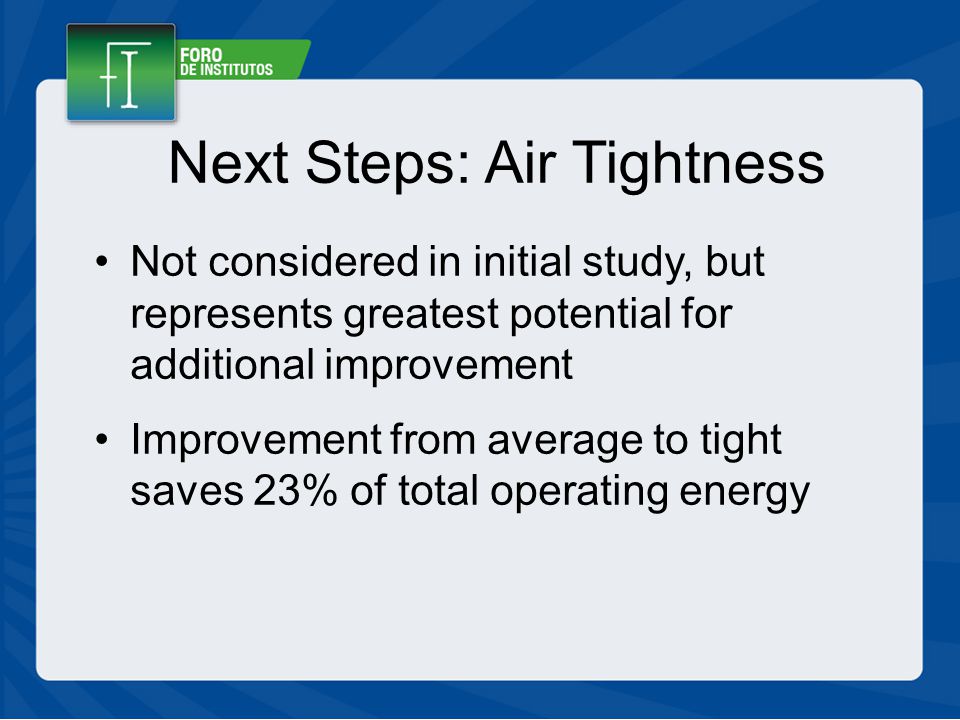

24 Next Steps: Air Tightness Not considered in initial study, but represents greatest potential for additional improvement Improvement from average to tight saves 23% of total operating energy

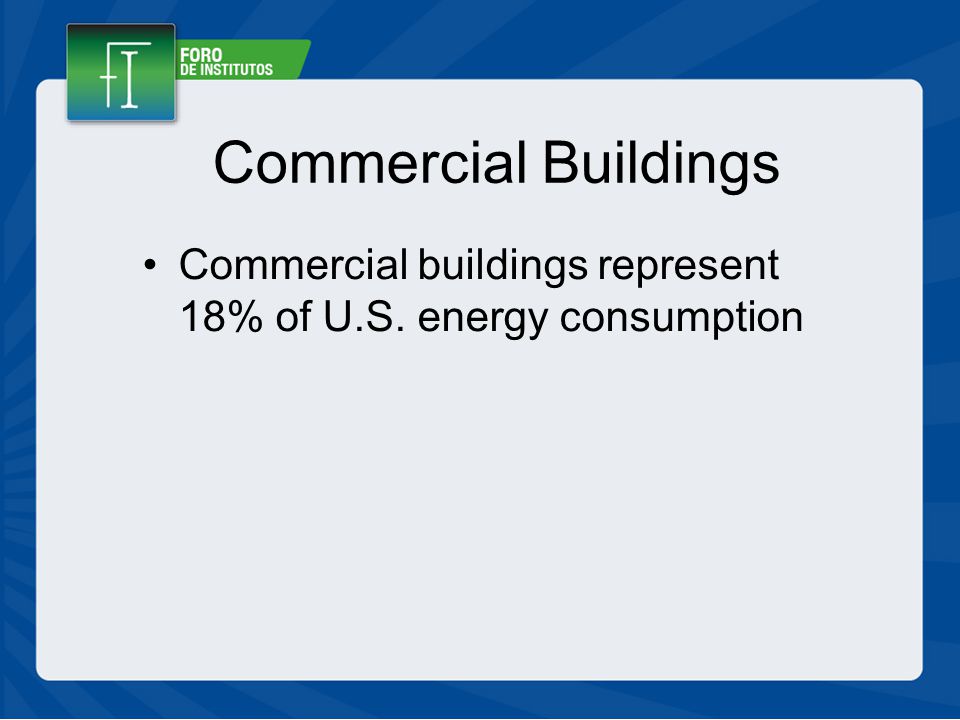

25 Commercial Buildings Commercial buildings represent 18% of U.S. energy consumption

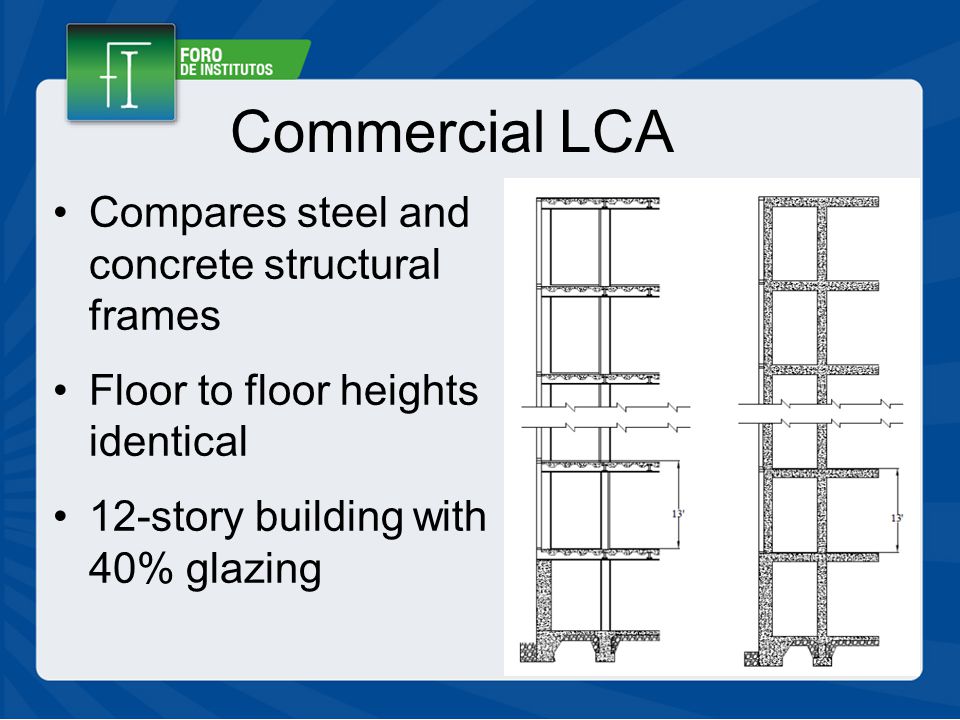

26 Commercial LCA Compares steel and concrete structural frames Floor to floor heights identical 12-story building with 40% glazing 12-

27 Key Findings No greater embodied energy than comparable steel frames Energy savings when concrete frame is exposed are 3%; when covered by finishes, 2%. Active use of the thermal mass capability of concrete slabs could result in significant savings

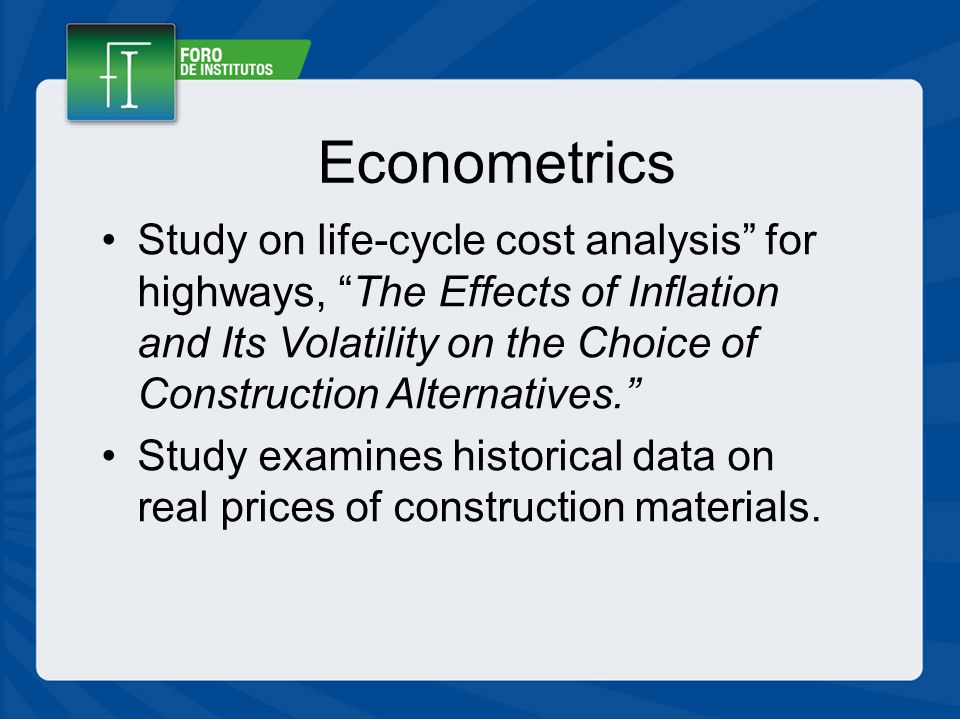

28 Econometrics Study on life-cycle cost analysis” for highways, “The Effects of Inflation and Its Volatility on the Choice of Construction Alternatives.” Study examines historical data on real prices of construction materials.

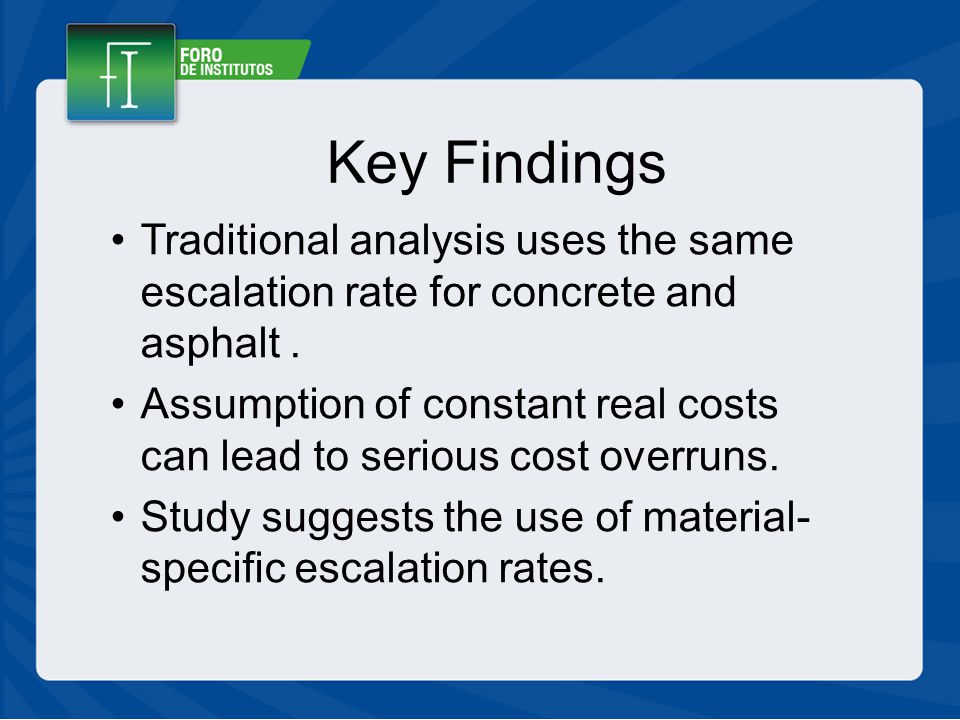

29 Key Findings Traditional analysis uses the same escalation rate for concrete and asphalt. Assumption of constant real costs can lead to serious cost overruns. Study suggests the use of material- specific escalation rates.

30 Advocacy and Promotion Working with state and federal officials to incorporate MIT findings in life-cycle analysis models Focus of ad campaign Goal: Level playing field for concrete and asphalt.

31 Ad Campaign

32 Concrete Science Platform 1.Alite/belite reactivity 2.Aluminate reactivity 3.Alkali effects 4.Water and dissolved components 5.Mechanical properties of materials

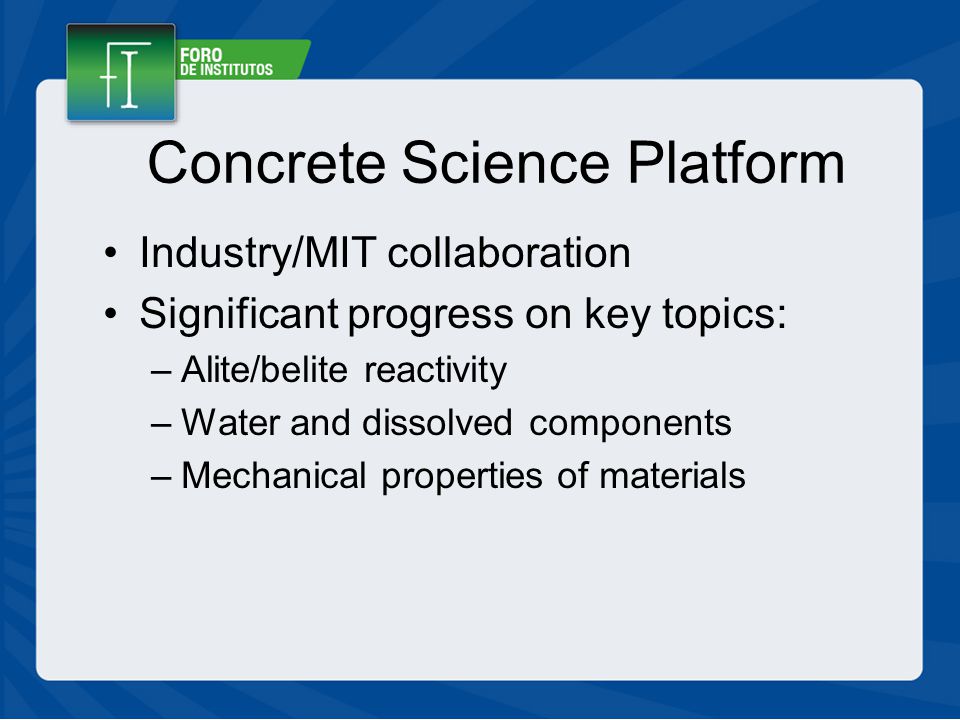

33 Concrete Science Platform Industry/MIT collaboration Significant progress on key topics: –Alite/belite reactivity –Water and dissolved components –Mechanical properties of materials

34 More Information http://web.mit.edu/cshub/

35 MIT Concrete Sustainability Hub Bruce McIntosh, Portland Cement Association
