1. D3D12 A new meaning for efficiency and performance
Dave Oldcorn, AMD
Stephan Hodes, AMD
Max McMullen, Microsoft
Dan Baker, Oxide
5th March 2015

2. D3D11 to D3D12
Assume that most people here are familiar with D3D11 (more so than 12)

3. D3D12 is primarily a software change
What hasn’t changed
D3D12 is primarily a software change
Hardware programming model is still the same
Few new rendering features
D3D12 is primarily a software change
[Obviously; all D3D11.2 hardware supported]
Hardware programming model is still the same
[VS, DS, HS, PS, rasteriser, depth, colour etc.]
Few new rendering features

4. The software model has changed a lot
What has changed
The software model has changed a lot
Not just in the API, but also in the underlying philosophy
Closer to the hardware
Give more control to the application

5. Application is arbiter of correct rendering
Trades off safety for power
If D3D11 is Javascript, D3D12 is C++
Large areas of undefined
... where behaviour will change with future GPUs
Use the debug layer
Stay away from the corners, don’t take risks
Expect “morality guides”
... once we know what people keep doing wrong

6. Broad stroke changes D3D11 -> 12
Sequential API
Queues, Command Lists
Small state blocks
State object for pipeline
Resource binding: individual objects
Resource binding: tables
Automatic synchronisation, driver tracks resource state
Manual synchronisation, app must avoid overwrites
Implicit memory management by OS & driver
Explicit memory management by application

7. New in D3D12

8. Each command list is executed strictly sequentially
Command lists
Each command list is executed strictly sequentially
Command lists can call out to second-level command lists (“bundles”)
Some restrictions on bundles
Replaying bundles is OK
Top level command lists can be replayed too
But not until the previous submit has retired
Size them right
100s draws for direct lists; 10+ draws for bundle
[Can view this as the existing sequential model with manual flushing, if that’s all that’s required]
Bundles: [particularly with what data is inherited from the enclosing command list]

9. Command lists enable CPU side threading
Command lists can be built on arbitrary threads
And very quickly too
Submit is thread-safe
Submit in batches
Consider task oriented engines
Divide rendering into tasks
Run CPU tasks to build command lists
Use dependencies to order GPU submission
Also helps with resource barriers
Tasks: with clear CPU and GPU side dependencies

10. Allocator and list memory management
Lists / Allocators manage memory
Hang on to their resources when reset
Must be destroyed to fully release memory
Reuse lists / allocators on ‘similar’ data
Destroy if data is very dissimilar
Don’t use pool of lists / allocators for all possible uses
List / Allocator memory usage
Initial
100 draws
Reset
Same 100 draws
(Guaranteed no new allocations)
5 draws
Different 100 draws
200 draws

11. Pipeline State Object (PSO)
Collates most D3D11 renderstates
Compiled into hardware registers at Create time
Can easily be tens of ms, so use asynchronous threads
All state set onto command buffer in one go
Keep adjacent PSOs similar
Use sensible defaults for don’t care fields
Example: Rasterizer state
INT DepthBias;
FLOAT DepthBiasClamp;
FLOAT SlopeScaledDepthBias;
BOOL DepthClipEnable;
[No driver threading!]
None of this matters if depth test is off

12. D3D11: Bind individual resources
Resource binding in D3D11
D3D11: Bind individual resources
Addressing is by shader stage, type and slot
[This is a huge space! 6*4*128 is 3072 slots, and each slot is 4+ DWORDs. Very inefficient]
Changes to resources propagate automatically
Renaming
Synchronisation

13. D3D12 Resource Binding 1 Table driven Shared across all shader stages
Root
Signature
Descriptor
Table
Table driven
Shared across all shader stages
Two-level table
Root Signature describes a top-level layout
Pointers to descriptor tables
Direct pointers to constant buffers
Inline constants
Changing which table is pointed to is cheap
It’s just writing a pointer; no synchronisation cost
Changing contents of table is harder
Can’t change table in flight on the hardware; no automatic renaming
Table Pointer
CB view
Root
Constant
Buffer
View
CB view
SR view
UA view
Descriptor
Table
32-bit
constant
Table pointer
SR view
SR view
Table pointer
SR view
SR view
Table pointer

14. Tables should be grouped by frequency of change
D3D12 Resource Binding 2
Tables should be grouped by frequency of change
Per-draw, per-material, per-light, per-frame
Hint update frequency to driver by placing most frequent changes early in root signature

15. D3D12 Resource Binding tips
Don’t overload root signature size
CBVs and constants in root signature should probably be changing every draw call
Bulk constant data should be in CBs not root constants
Use static tables where possible
Associate with object and prebuild
Don’t overload root signature size
CBVs and constants in root signature should probably be changing every draw call
[Otherwise, it may well be cheaper to do instancing yourself than have the driver do it all the time]
Bulk constant data should be in CBs not root constants
[Matrices, etc.]
Use static tables where possible
Associate with object and prebuild
[at object / world load time]

16. D3D12 Resource Synchronisation
No automatic synchronisation
Must insert barriers between usage
Three functions of barrier
Format conversion
e.g. antialiasing resolve or depth decompression
Synchronisation
Ensuring correct order of execution; e.g. compute use of a render output could start before colour buffer is finished working on the data, due to pipelining
Visibility
Typically cache flushes, if unit A and unit B do not share the same visibility of the data
Barrier specifies previous and next usage and driver inserts appropriate work

17. Group barriers into same Barrier call
Barrier tips
Group barriers into same Barrier call
Will take the worst case of all, rather than potentially incurring multiple sequential barriers
Set minimal barriers
Barriers must be correct
Will be a gigantic headache for IHVs if not
Avoid GENERIC_READ [except when necessary, and particularly if this barrier’s being inserted every frame]

18. D3D11 was reasonably predictable in profiling
Limited set of accessible bottlenecks
Usually fairly obvious which one you’re hitting
D3D12 environment adds new factors
API features: flexible resource binding, concurrency
Hardware limits that were pretty much impossible to bump against in D3D11
Even PCIe® and system memory bus
Different hardware much more likely to have divergent behaviour
Test on a wide range of hardware
[application, driver thread, tessellation, shader core, ROP covers most real-world cases]
[if you know your app and GPUView]
[Should be tools to help with this]
Different hardware [even from same IHV]
[Listen to IHV devrel; accept that we may have slightly different answers]

19. Concurrency in D3D12

20. Graphics, compute and copy queues Each is a superset
Must specify executing queue type at record time
Compute
Copy
[The recorded buffer to be sent to hardware may need to be quite different]

21. Multiple queues of the same type supported
Within queue: work is ordered
Between separate queues work can be arbitrarily reordered
Use Fences to define work order
Graphics
Queue 1
Shadowmap L0
Lighting L0
Graphics
Queue 2
Shadowmap L1
Lighting L1
Graphics engine
Shadowmap L0
Shadowmap L1
Lighting L1
Lighting L0
[This is a way to tell the driver „I don‘t care about the execution order“]

22. gAME Engine Workflow Heap Defragmentation Streaming
Dynamic Data Update
Physics
Shadowmap
Rendering
Prepare
G-buffer Rendering
Lighting & Shading
TressFX
Particle
Multiple cascades
Point/Spotlights
e.g. generate Min/Max Mips
[light blue: represents areas of work which we showed can be successfully ported to compute]
Solid Post Processing
Transparent Obj Rendering
Post Processing
UI Rendering
Present
e.g. Particle Rendering

23. Graphics, compute and / or copy may run in parallel
Concurrency
Graphics, compute and / or copy may run in parallel
Profile to verify
Very familiar to console programmers
Graphics
Engine
Shadowmaps
G-buffer
Transparent UI
Compute
Engine
Physics
Prepare SM
TileDeferred
AA/AO
Tonemap
Copy
Engine
Dynamic Data Update
Streaming
Defragmentation

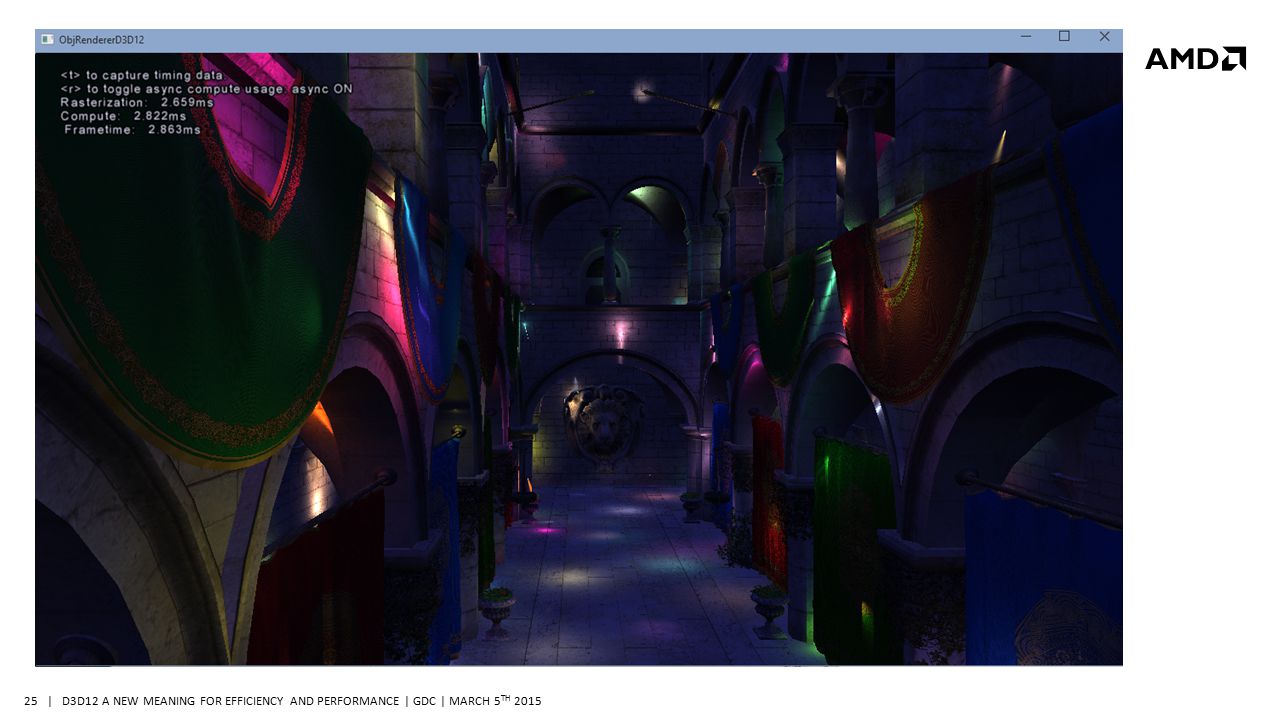

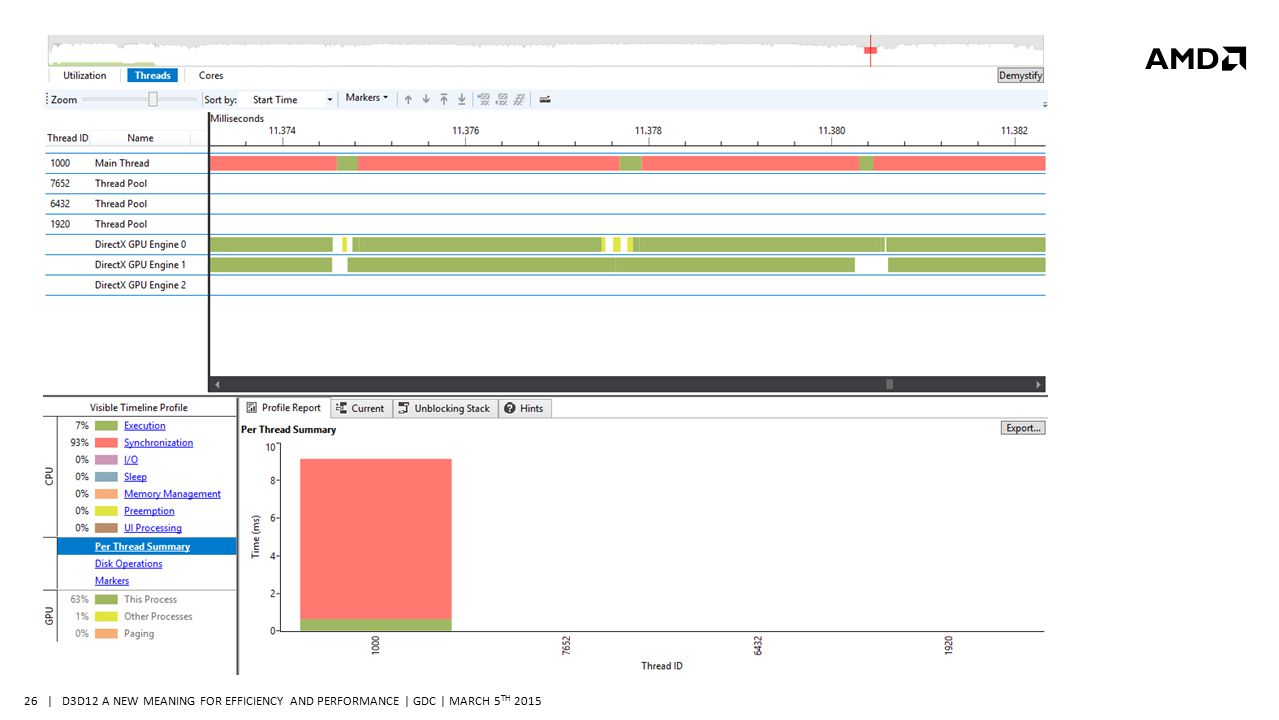

24. Example of gains from async compute:
Demo TIME!
Example of gains from async compute:
Interleaving 2 frames
Sample code will be available
Sample based on DX11 work by Jason Stewart & Gareth Thomas
G-buffer Rendering 1
G-buffer Rendering 2
G-buffer Rendering 3
Lighting & Shading 0
Lighting & Shading 1
Lighting & Shading 2

27. Parallelise unalike workloads
Engines may compete for resources
Bus bandwidth
Shader core, texture fetch for compute / graphics
GPRs, Caches…
The less similar the workload, the faster each runs
Bus dominated
Shader throughput
Geometry dominated
Shadow mapping
ROP heavy workloads
Many G buffer operations
DMA operations
- Texture upload
- Heap defrag
Deferred lighting (usually)
Many postprocessing effects
Most compute tasks
- Texture compression
- Physics
- Simulations
Rendering highly detailed models
[Gbuffer(BUS) and Deferred lighting (ALU) are somewhat different, so we‘d expect some nice gain]

28. Exploiting concurrency
Stream Texture
Animate
Particles
Shadow map
Deferred Lighting
Shadow map
Deferred Lighting
Win!
Stream Texture
Animate Particles
Shadow map
Deferred Lighting
Big Win!
Animate Particles
Stream Texture
[KMD / scheduler overhead + GPU sync]
Profile!
Can align execution across queues with fences
Fences have a significant cost
Don’t overdo this; “a few” per frame at most

29. Barriers and multiple queues
Barrier must be inserted on last queue to write resource
Primarily this is for any required format conversion
Fences contain implicit acquire / release barriers
One of the reasons they have a high cost
[Global visibility of all data implies a lot of cache flushing]

30. Resource Management in D3D12
Max McMullen
Microsoft

31. Direct3D 12 Resource Creation Overview
Direct3D 11 has a simple model, create and use
Works great given the simplicity of the abstraction
A few problems for today’s titles
Unpredictable performance differences due to driver workarounds
No high performance reuse of memory in a given frame
Tiled Resources added on to the original abstraction
Lots of fine-grained allocations are more difficult to manage, CPU overhead

32. Direct3D 11 API Buffer Texture3D Texture2D Texture2D DDI GPU VA GPU VA
Physical Pages
Physical Pages
Physical Pages
Physical Pages

33. Direct3D 12 Resource Heaps
Direct3D 12 separates allocation of GPU physical pages and GPU virtual addresses from resources
Applications can better amortize the cost of physical page allocation
Reuse memory for temporaries
Repurpose memory when the scene no longer requires it

34. Direct3D 12 Resource Heaps
Buffer
Texture3D
Texture2D
Texture2D
API
Resource Heap
DDI
GPU VA
Physical Pages
Physical Pages

35. Resource Heap Properties
Memory Pool
L0 – Closest to CPU
L1 – Closest to GPU (Discrete GPU only)
CPU Page Properties
Not Accessible (L0 & L1)
Write Combine (L0 Only)
Write Back (L0 Only)
Alignment
64 KB (Default)
1 MB (Enable MSAA)
Resource Heap Properties
L0 is equivalent to “local” memory residency budget.
L1 is equivalent to “non-local” memory residency budget.
Heaps actually are both a physical memory allocation and a virtual address range to span the entire heap. They are optimized for creation on background threads, localizing the creation expense to the background thread instead of the threads recording or executing command lists.
APIs are available to help applications size the heaps for a certain configuration of resources.
Custom heap type exists to control memory pool and CPU page properties. Together with adapter architecture caps, this allows applications to optimize for UMA GPU characteristics, where the previous rules of thumbs aren’t so strong. Instead, applications can save power on mobile devices by optimizing unnecessary GPU copies.

36. Write Combine Write Back* Write Back Usage Frequent GPU Read/Write
Simplified Heap Types
DEFAULT
UPLOAD
READBACK
Memory Pool
L1 (Discrete)
L0 (Integrated) L0
CPU Properties
No CPU access
Write Combine Write Back*
Write Back
Usage
Frequent GPU Read/Write
Max GPU Bandwidth
CPU Write Once, GPU Read Once
Max CPU Write Bandwidth
GPU Write Once, CPU Read
Max CPU Read Bandwidth
Simplified Heap Types
These rules haven’t really changed since D3D10:
Default heaps experience the maximum amount of GPU bandwidth available when using them. They are good for repeated GPU read & write operations.
Upload heaps experience the maximum amount of CPU bandwidth for CPU writes. A good rule of thumb is to use them for CPU write-once and GPU read-once scenarios, like uploading texture data. However, GPU read-once is the most conservative recommendation. Discrete GPUs have caches to avoid re-reading from system memory across PCI-e bus for every memory access, so smaller buffers that hold indexed vertices and constants can reside here. But, some usage scenarios will be better of from locating the data in a default heap before extensive GPU usage.
Readback heaps experience the maximum amount of CPU bandwidth for CPU reads. A good rule of thumb is to use them for marshalling data back to the CPU; and only using such heaps as the destination of GPU copy operations.
* Cache Coherent UMA only

37. Direct3D 12 Resource Creation APIs
Three types of resource create
Committed
Placed
Reserved
Each has a different pattern of GPU VA and Physical Page usage to enable different scenarios

38. Direct3D 12 Resource Creation APIs
Committed
Placed
Reserved
Buffer
Texture3D
Texture2D
Resource Heap
Resource Heap
GPU VA
GPU VA
Physical Pages
Physical Pages
Physical Pages

39. Prefer default heaps populated by upload heaps
Efficient Heap Usage
Prefer default heaps populated by upload heaps
Build a ring buffer out of one or more committed upload buffer resources, and leave each buffer perpetually mapped for CPU access
Sequentially write data into each buffer with the CPU, aligning offsets as needed
Instruct the GPU to signal an increasing fence value at the end of each frame
Do not overwrite the data in the upload heap until the fence value indicates the GPU has finished reading the data
Reuse upload heaps for dynamic data sent to GPU throughout rendering
How do you initialize and copy data to heaps
CopyTextureRegion requires the texture data in buffer resources to be located at an offset aligned to 512.
Constant buffer descriptor usage requires the data in buffer resources to be located at an offset aligned to 256.
Etc.

40. Physical Memory Reuse
Both reserved and placed resources must follow the same rules as Direct3D 11 tiled resources:
An aliasing barrier must be queued when physical memory is reused with a new resource
The application must initialize the resource memory with either a Clear or Copy operation when first using or re-using physical memory with a render target or depth stencil resource

41. Efficient Memory Use in D3D12
Dan Baker
Co-Founder of Oxide Games

42. D3D12 provides explicit control over memory mapping
D3D12 MEMORY control
D3D11 – much guesswork in driver/API on where data went, how it was referenced
ConstantBuffer dynamic map difficult to stream huge quantities of data efficiently
D3D12 provides explicit control over memory mapping
Can create one large buffer per frame and stage all data
No specific need for a constant buffer – becomes application construct if desired

43. High throughput rendering
To get advantage of draw call, must be hooked into game logic
For each unit, turret, missile trail, CPU calculates information like position or color
This data must be uploaded to the GPU – quickly as possible

44. FAST data streaming to GPU
CPU
L1 Data Cache
GPU Memory
GPU
L2/L3 Cache
CPU
Memory

45. GPU memory is not write-cached, do not read
Streaming the data
GPU memory is not write-cached, do not read
Should always write whole cache-lines out
_mm_stream_si128
Writes cache-line at a time
Will bypass L2 and L3 Cache

46. Ashes of the Singularity – new mega RTS from Oxide and Stardock
Real-World D3D12 example
Ashes of the Singularity – new mega RTS from Oxide and Stardock
Player may have thousands of units
Every turret, bullet and missile simulated by engine
On heavy frame, Ashes uploads mb/s of data to GPU, 60fps = 3 GB/s
~20% of system bandwidth on DDR3
If stored in CPU memory with GPU fetch, would be doubled

47. What a frame looks like in Ashes
Current Frame
Next Frame
Sim Job
Sim Job
Sim Job
Sim Job
D3D12 CMD Job
D3D12 CMD Job
Game Job
Core 1
Sim Job
D3D12 CMD Job
D3D12 CMD Job
AI Job
Core 2
Sim Job
Sim Job
Sim Job
D3D12 CMD Job
D3D12 CMD Job
AI Job
Core 3
Sim Job
Sim Job
Sim Job
D3D12 CMD Job
D3D12 CMD Job
Game Job
Core 4
Sim Job
Sim Job
Sim Job
D3D12 CMD Job
D3D12 CMD Job
D3D12 Present Job
Core 5
GPU Memory

48. Demo of Ashes of the Singularity
D3D12 Demo
Demo of Ashes of the Singularity

49. Contact: Nicolas.Thibieroz@amd.com
Questions
We are hiring!
Contact:

50. Disclaimer & Attribution
The information presented in this document is for informational purposes only and may contain technical inaccuracies, omissions and typographical errors. The information contained herein is subject to change and may be rendered inaccurate for many reasons, including but not limited to product and roadmap changes, component and motherboard version changes, new model and/or product releases, product differences between differing manufacturers, software changes, BIOS flashes, firmware upgrades, or the like. AMD assumes no obligation to update or otherwise correct or revise this information. However, AMD reserves the right to revise this information and to make changes from time to time to the content hereof without obligation of AMD to notify any person of such revisions or changes. AMD MAKES NO REPRESENTATIONS OR WARRANTIES WITH RESPECT TO THE CONTENTS HEREOF AND ASSUMES NO RESPONSIBILITY FOR ANY INACCURACIES, ERRORS OR OMISSIONS THAT MAY APPEAR IN THIS INFORMATION. AMD SPECIFICALLY DISCLAIMS ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE. IN NO EVENT WILL AMD BE LIABLE TO ANY PERSON FOR ANY DIRECT, INDIRECT, SPECIAL OR OTHER CONSEQUENTIAL DAMAGES ARISING FROM THE USE OF ANY INFORMATION CONTAINED HEREIN, EVEN IF AMD IS EXPRESSLY ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. ATTRIBUTION © 2015 Advanced Micro Devices, Inc. All rights reserved. AMD, the AMD Arrow logo and combinations thereof are trademarks of Advanced Micro Devices, Inc. in the United States and/or other jurisdictions. Other names are for informational purposes only and may be trademarks of their respective owners.
