1. Pre-Bid Conference on BASELINE ENERGY AUDIT under Perform, Achieve & Trade (PAT) Scheme S P Garnaik Energy Economist Bureau of Energy Efficiency, Ministry of Power, GOI

2. NATIONAL MISSION ON ENHANCED ENERGY EFFICIENCY (NMEEE)  The National Action Plan on Climate Change was released by Honorable Prime Minister of India in June 2008  The Action Plan Outlines 8 Missions including National Mission on Enhanced Energy Efficiency (NMEEE)8 Missions  The Mission has outlined specific goalsgoals

3. Chronology of Events of NMEEE  30 th June 2008 : Hon’able PM releases the National Action Plan of Climate Change  September 2008 : NMEEE endorsed by steering Committee, MoP  3 rd October 2008 : Discussion on Draft outline in PMO  14 th Nov 2008 : First consultation workshop at Mumbai  24 th August 2009 : PM’s council on Climate Change approves NMEEE in principle  1 st December 2009 : EFC recommends the implementation plan of NMEEE to Cabinet with a financial outlay of Rs. 235.35 crores  May 2010 : Cabinet approves the financial outlay  Ammendment to EC Act, 2001 passed in parliament

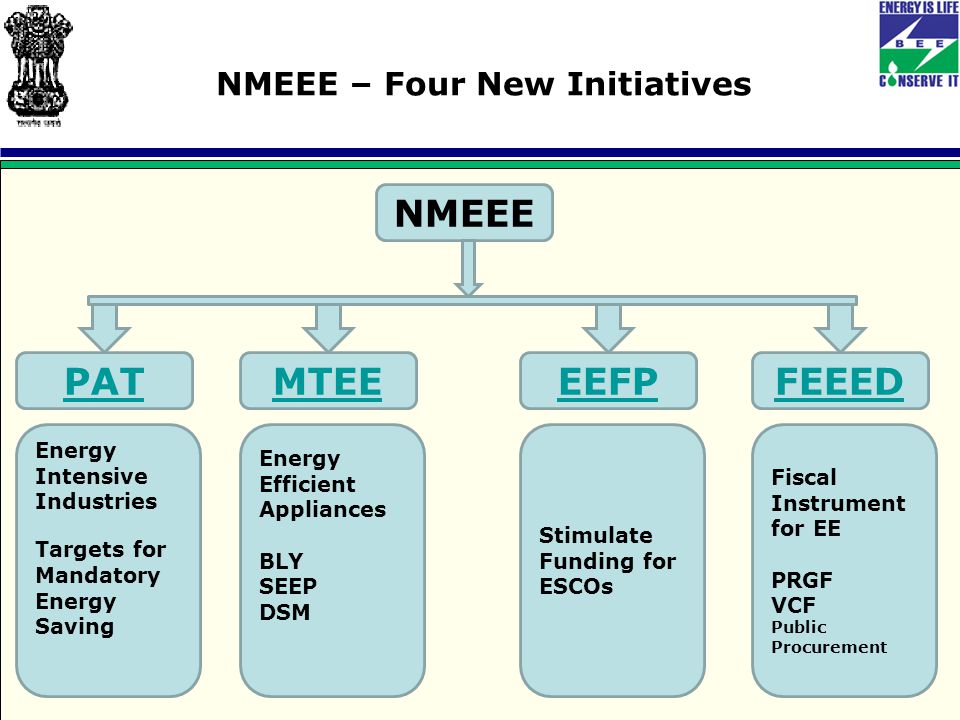

4. NMEEE – Four New Initiatives NMEEE PATMTEEEEFPFEEED Energy Intensive Industries Targets for Mandatory Energy Saving Energy Efficient Appliances BLY SEEP DSM Stimulate Funding for ESCOs Fiscal Instrument for EE PRGF VCF Public Procurement

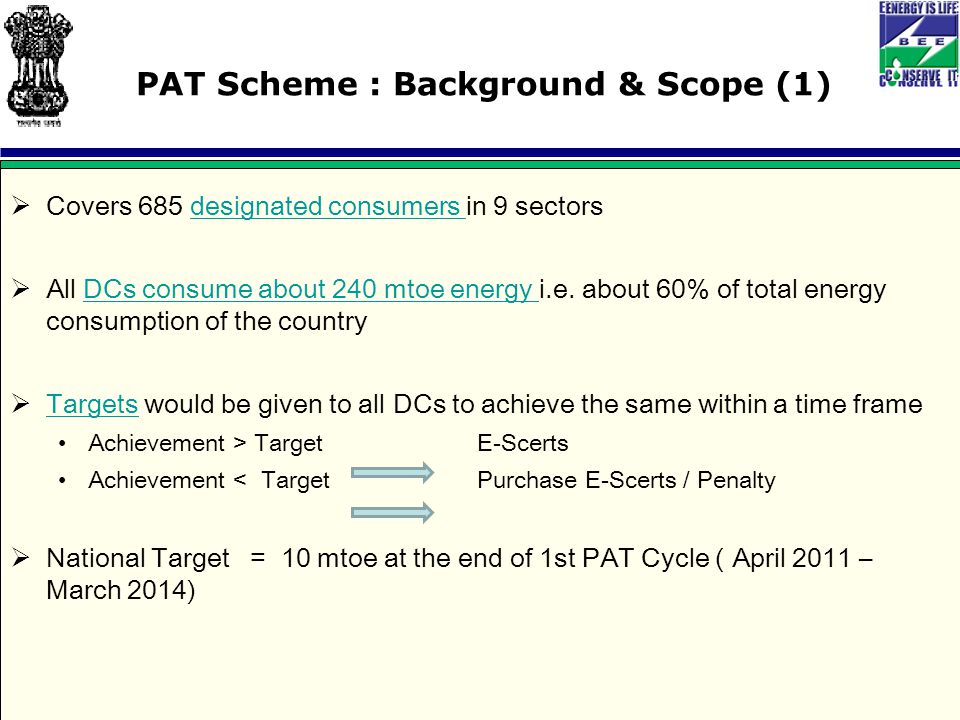

5. PAT Scheme : Background & Scope (1)  Covers 685 designated consumers in 9 sectorsdesignated consumers  All DCs consume about 240 mtoe energy i.e. about 60% of total energy consumption of the countryDCs consume about 240 mtoe energy  Targets would be given to all DCs to achieve the same within a time frame Targets Achievement > Target E-Scerts Achievement < Target Purchase E-Scerts / Penalty  National Target = 10 mtoe at the end of 1st PAT Cycle ( April 2011 – March 2014)

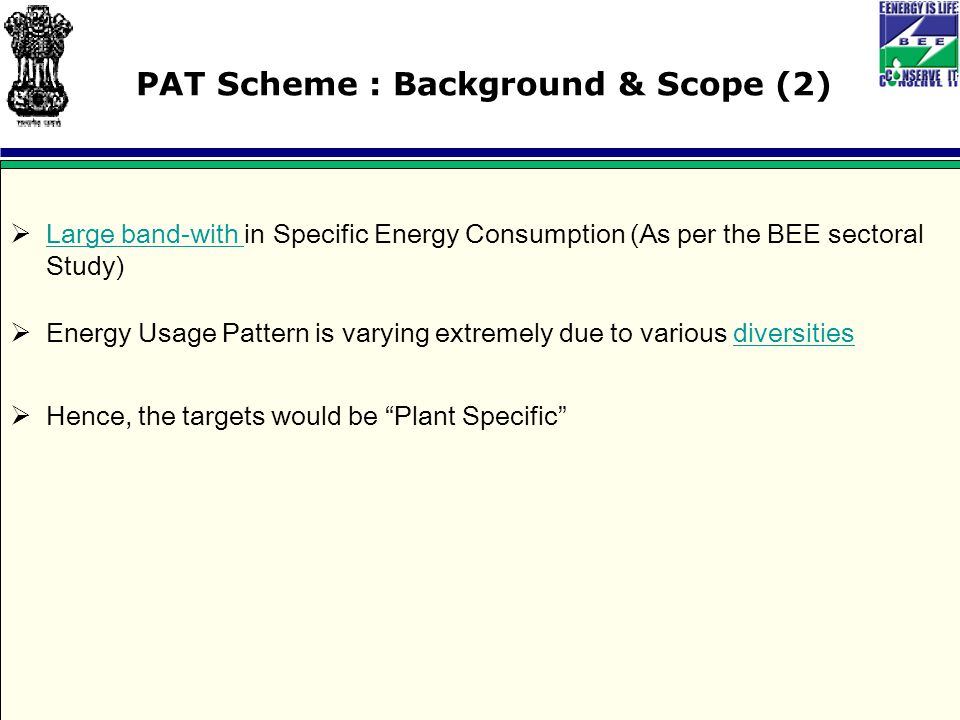

6. PAT Scheme : Background & Scope (2)  Large band-with in Specific Energy Consumption (As per the BEE sectoral Study) Large band-with  Energy Usage Pattern is varying extremely due to various diversitiesdiversities  Hence, the targets would be “Plant Specific”

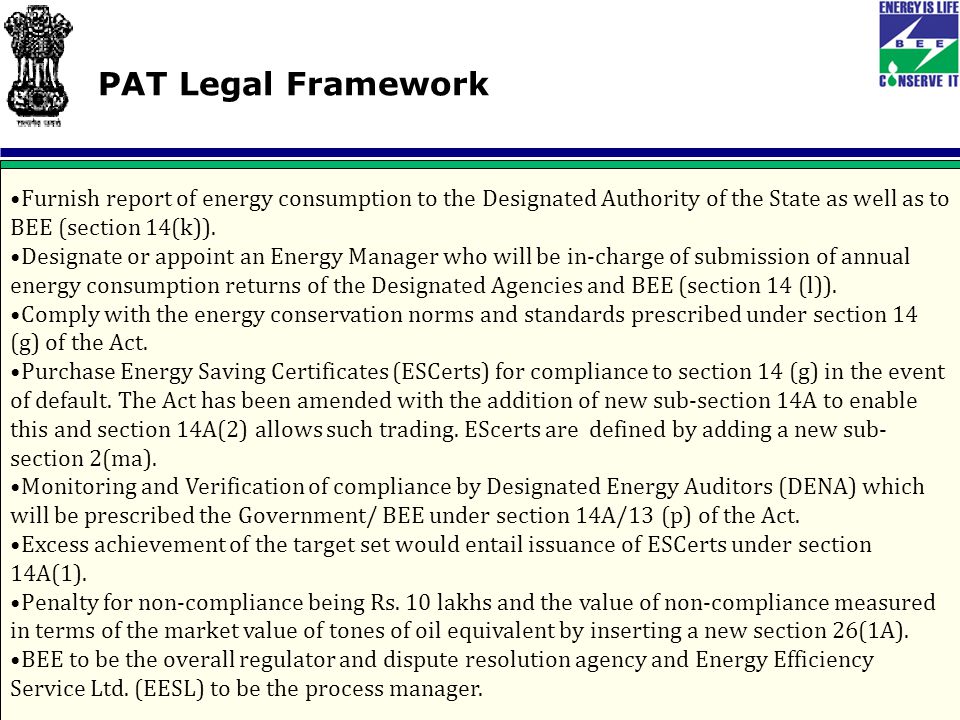

7. PAT Legal Framework Furnish report of energy consumption to the Designated Authority of the State as well as to BEE (section 14(k)). Designate or appoint an Energy Manager who will be in-charge of submission of annual energy consumption returns of the Designated Agencies and BEE (section 14 (l)). Comply with the energy conservation norms and standards prescribed under section 14 (g) of the Act. Purchase Energy Saving Certificates (ESCerts) for compliance to section 14 (g) in the event of default. The Act has been amended with the addition of new sub-section 14A to enable this and section 14A(2) allows such trading. EScerts are defined by adding a new sub- section 2(ma). Monitoring and Verification of compliance by Designated Energy Auditors (DENA) which will be prescribed the Government/ BEE under section 14A/13 (p) of the Act. Excess achievement of the target set would entail issuance of ESCerts under section 14A(1). Penalty for non-compliance being Rs. 10 lakhs and the value of non-compliance measured in terms of the market value of tones of oil equivalent by inserting a new section 26(1A). BEE to be the overall regulator and dispute resolution agency and Energy Efficiency Service Ltd. (EESL) to be the process manager.

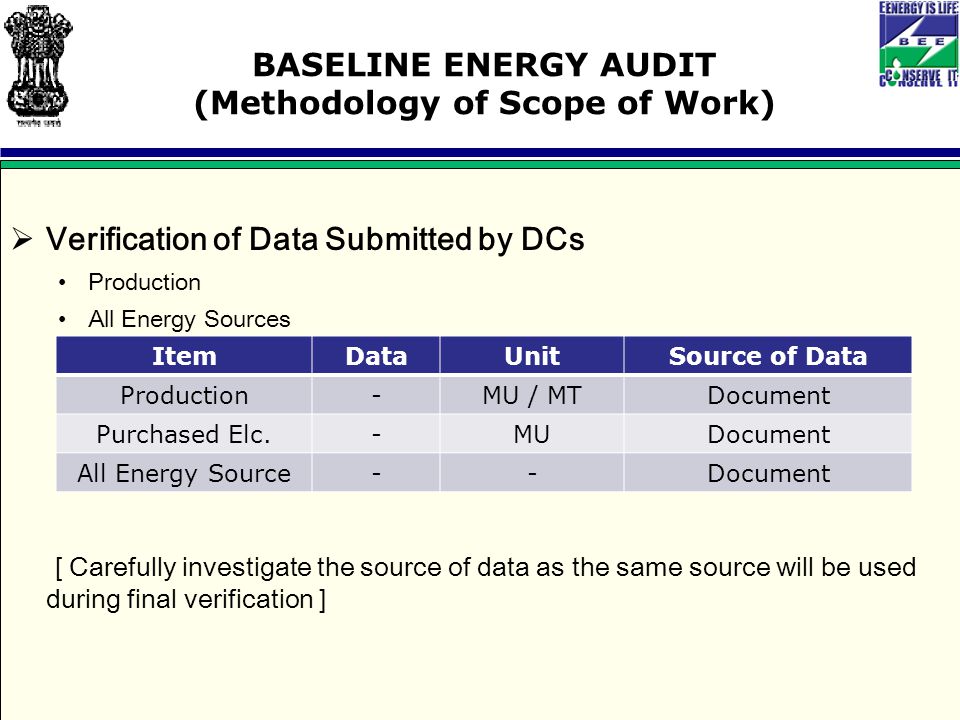

8. BASELINE ENERGY AUDIT (Methodology of Scope of Work)  Verification of Data Submitted by DCs Production All Energy Sources [ Carefully investigate the source of data as the same source will be used during final verification ] ItemDataUnitSource of Data Production-MU / MTDocument Purchased Elc.-MUDocument All Energy Source--Document

9. BASELINE ENERGY AUDIT (Methodology of Scope of Work)  Define the Plant Boundary (Gate-to-Gate Concept) Physical Boundary Process Boundary Investigate the exclusions like colony power, construction related, internal transportation etc. with the submitted data [ The plant boundary needs to be discussed with Plant Management ]

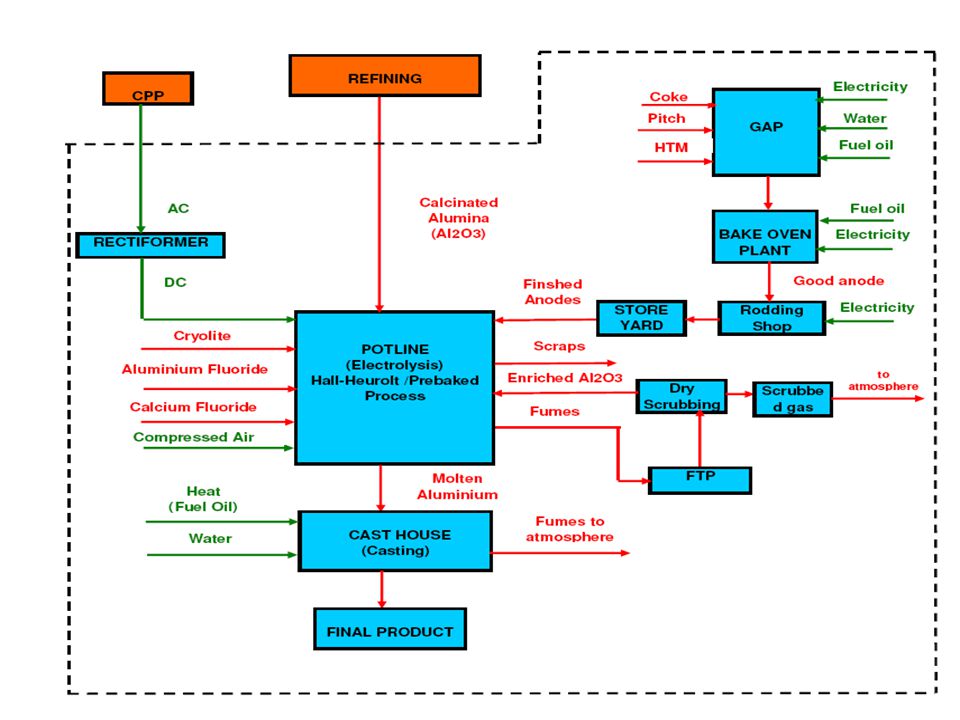

10. BASELINE ENERGY AUDIT (Methodology of Scope of Work)  Develop Process Flow Diagram Define sub-processes (Block Diagrams) Put operating parameters like Temp / Pressure / Flow / mass etc. in the process flow diagram with designed value  Develop the energy balance diagram of each sub-process

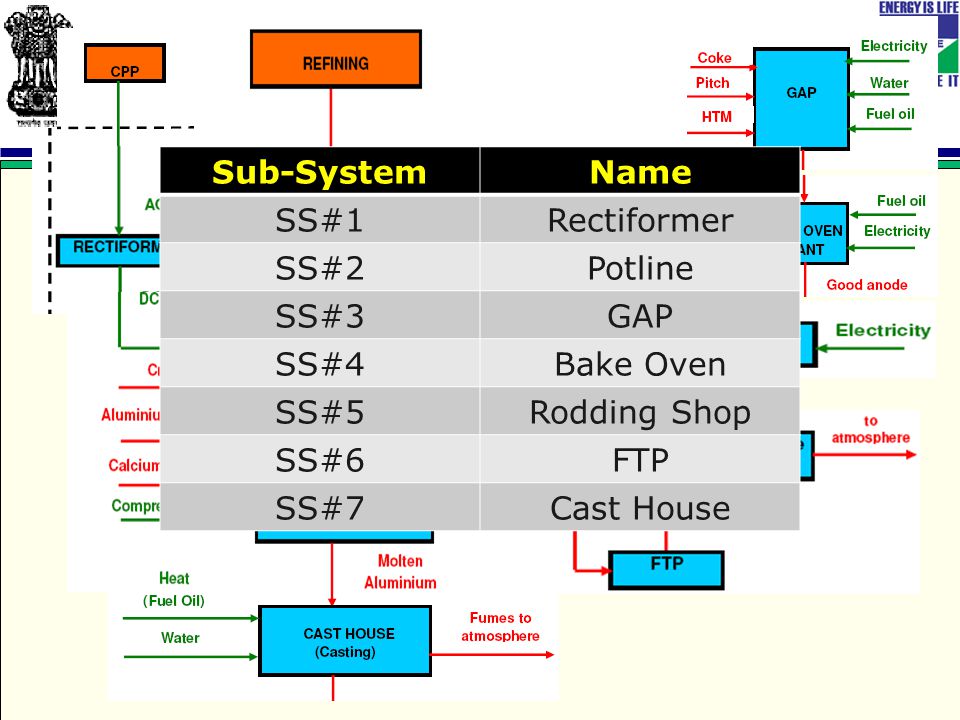

12. Sub-SystemName SS#1Rectiformer SS#2Potline SS#3GAP SS#4Bake Oven SS#5Rodding Shop SS#6FTP SS#7Cast House

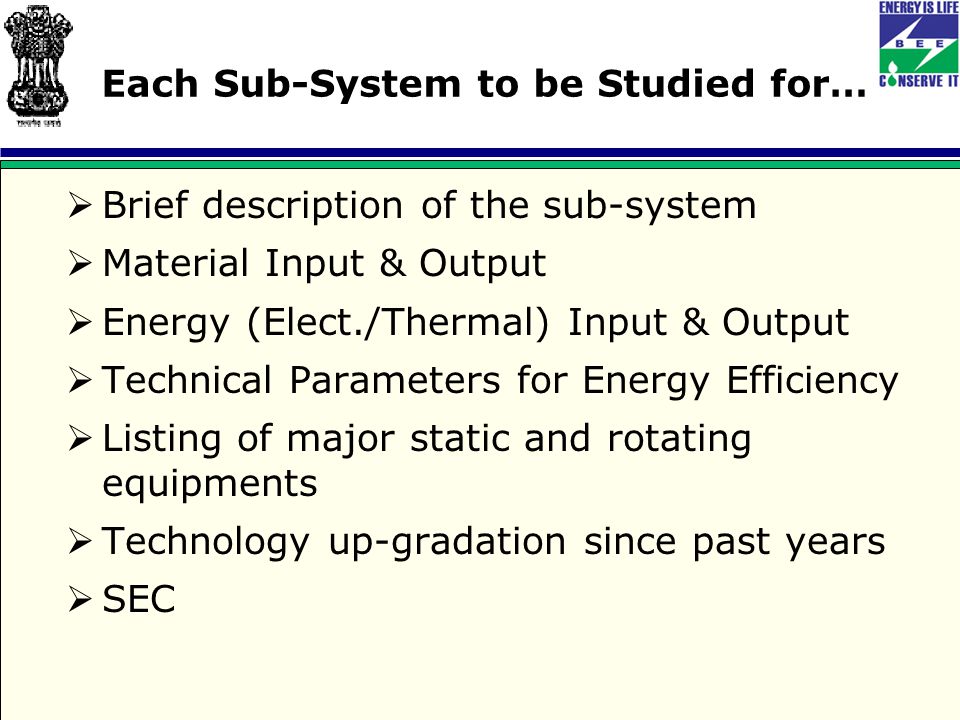

13. Each Sub-System to be Studied for…  Brief description of the sub-system  Material Input & Output  Energy (Elect./Thermal) Input & Output  Technical Parameters for Energy Efficiency  Listing of major static and rotating equipments  Technology up-gradation since past years  SEC

14. BASELINE ENERGY AUDIT (Methodology of Scope of Work)  Find out major energy consuming equipments in each sub- system Investigate the technology List out critical parameters which affect the efficiency and energy consumption Operating vs. Designed value [ Measurements may be required at this stage. However, past energy audit reports, performance assessment reports may be referred to ]

15. BASELINE ENERGY AUDIT (Methodology of Scope of Work)  Example : Pot-line of an Aluminium Smelter Technology : Pre-Bake Parameters : Pot capacity Pot voltage Current Density ACD Anode Effect Factor

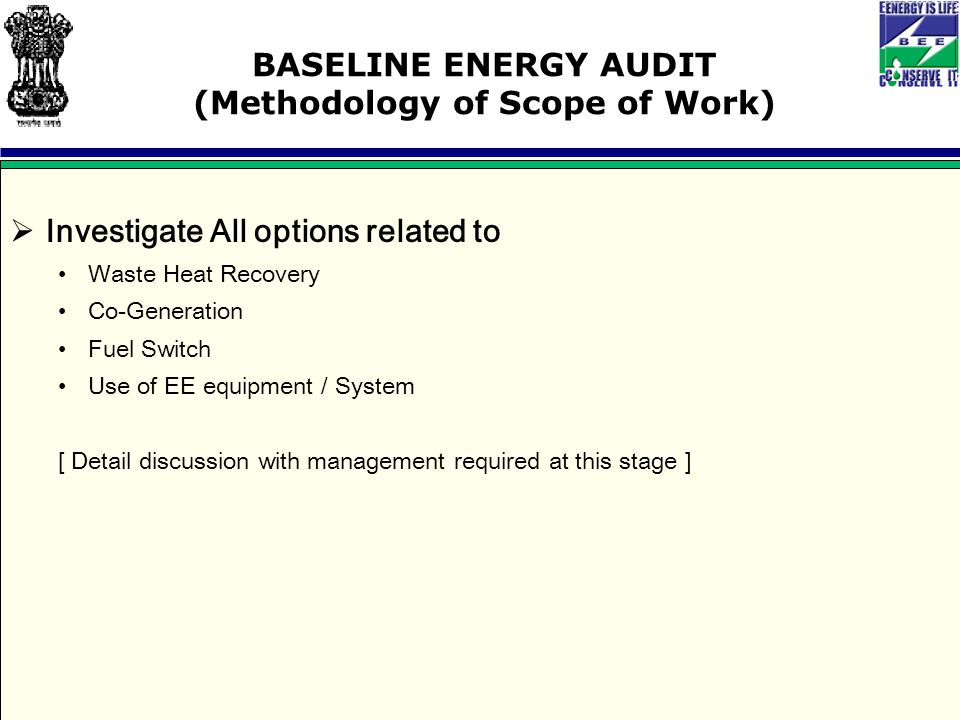

16. BASELINE ENERGY AUDIT (Methodology of Scope of Work)  Investigate All options related to Waste Heat Recovery Co-Generation Fuel Switch Use of EE equipment / System [ Detail discussion with management required at this stage ]

17. BASELINE ENERGY AUDIT (Methodology of Scope of Work)  Review the Past Energy efficiency Measures  Review the Future Energy Efficiency Approach/Strategy Detail discussion with plant management required  Preparation of Audit Report Potential evaluation with tentative cost-benefit analysis TechnologySub-SystemCategoryEnergy Saving Monetary Saving Investment TU PM O&M Others

18. Thanks …. For further information Please Contact S.P.Garnaik Energy Economist Bureau of Energy Efficiency Ministry of Power, GOI 4 th Floor, Sewa Bhawan, R.K.Puram NEW DELHI – 110066 Ph.: 011-26179699 Fax :26178352 Email : sgarnaik@beenet.in

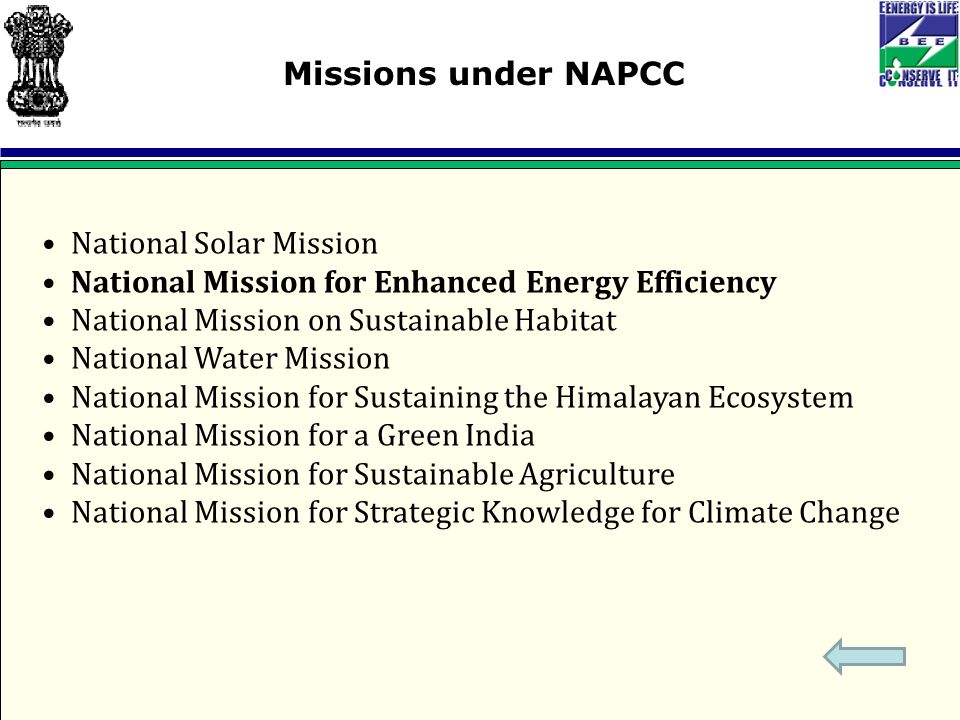

19. National Solar Mission National Mission for Enhanced Energy Efficiency National Mission on Sustainable Habitat National Water Mission National Mission for Sustaining the Himalayan Ecosystem National Mission for a Green India National Mission for Sustainable Agriculture National Mission for Strategic Knowledge for Climate Change Missions under NAPCC

20. Mission Goals  Market-based approaches to unlock energy efficiency opportunities, estimated to be about Rs. 74,000 Crores  By 2014-15: Annual fuel savings in excess of 23 million toe Cumulative avoided electricity capacity addition of 19,000 MW CO 2 emission mitigation of 98 million tons per year

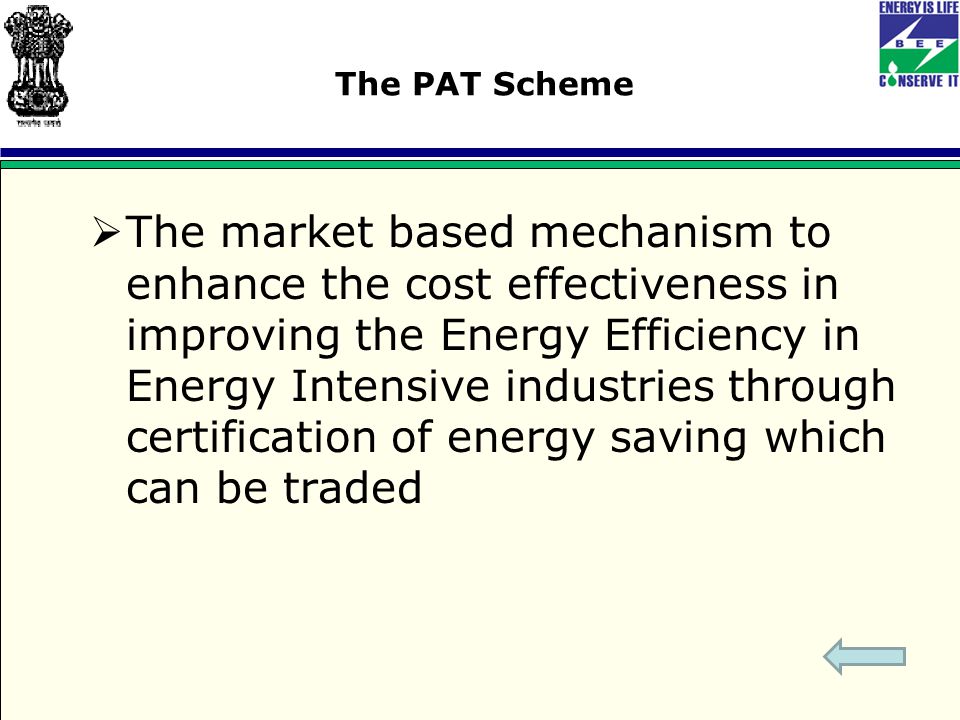

21. The PAT Scheme  The market based mechanism to enhance the cost effectiveness in improving the Energy Efficiency in Energy Intensive industries through certification of energy saving which can be traded

22. Market Transformation for Energy Efficiency (MTEE)  Accelerating the shift to energy efficient appliances in designated sectors through innovative measures to make the products more affordable.

23. Energy Efficiency Financing Platform (EEFP)  Creation of mechanisms that would help finance demand side management programmes in all sectors by capturing future energy savings.

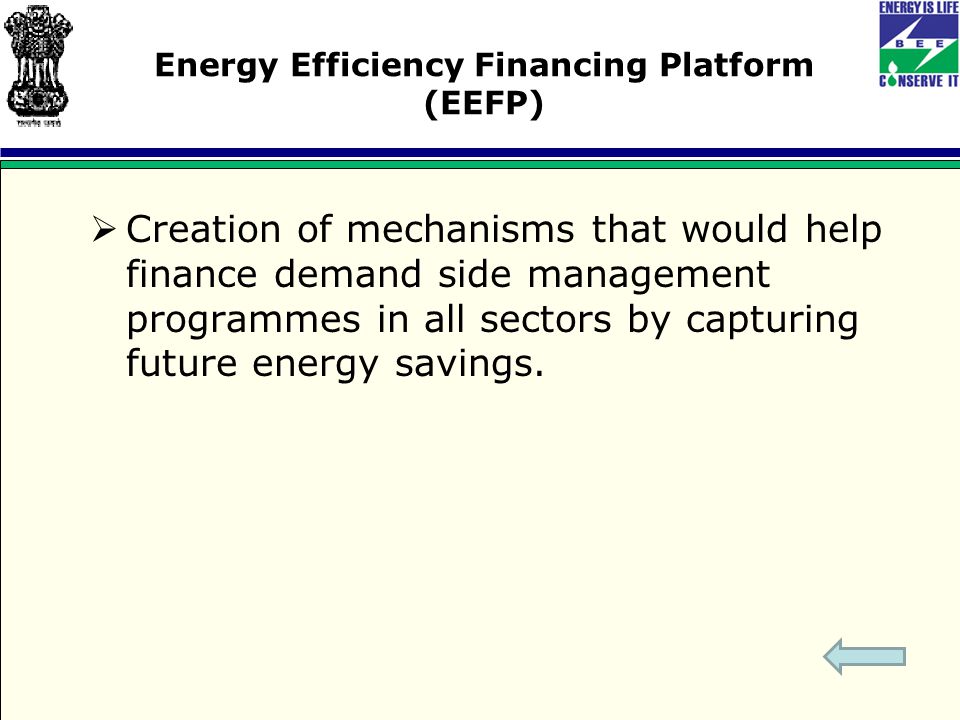

24. Framework for Energy Efficient Economic Development (FEEED)  Developing fiscal instruments to promote energy efficiency

25. Industry SectorAnnual Energy Consumption Norm to be DC (mtoe) No. of Identified DCs Aluminum750011 Cement3000092 Chlor-Alkali1200023 Fertilizer3000022 Pulp & Paper3000070 Power30000154 Iron & Steel30000110 Textiles3000197 Railways300008 List of DCs

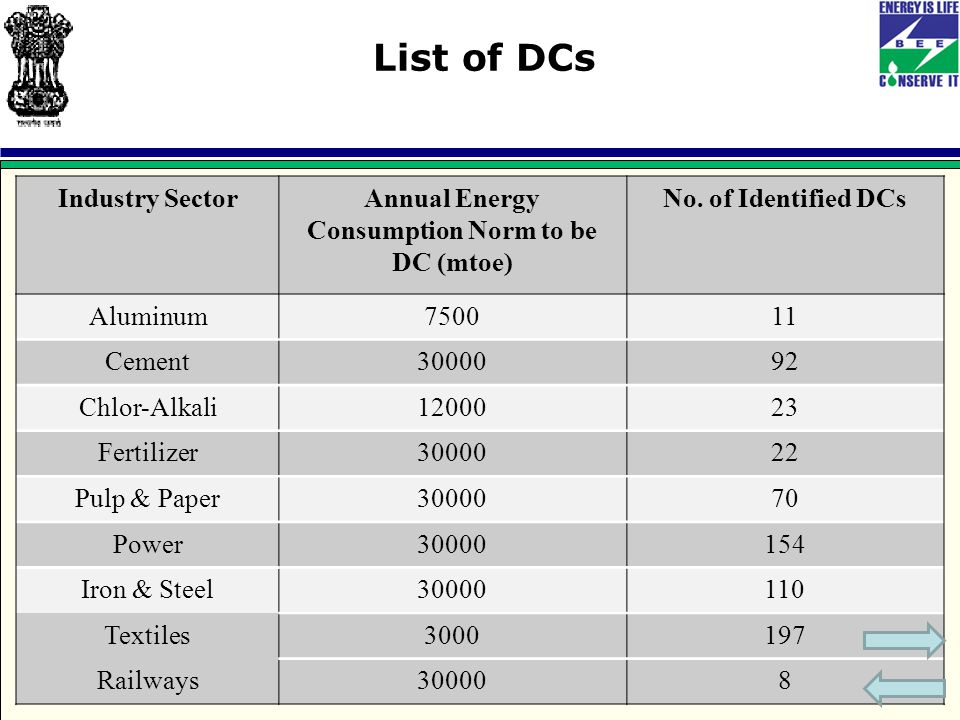

26. State-wise DCs (2009-10)

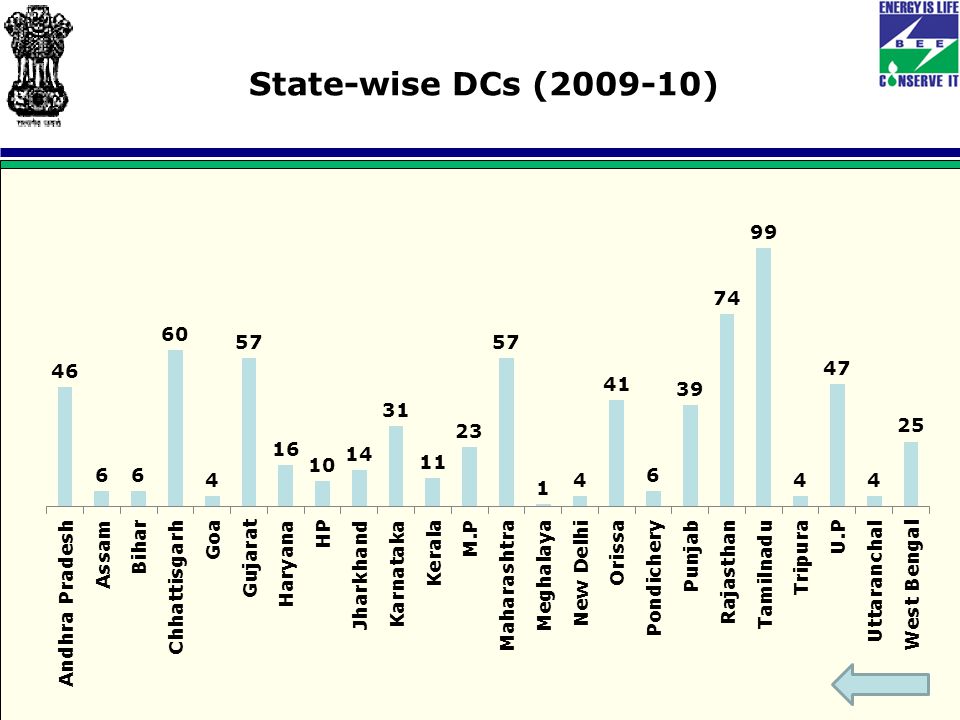

27. SectorMTOE Power (Thermal)160.3 Integrated Steel26.98 Cement14.47 Fertilizer11.95 Sponge Iron9.1 Textile3.5 Aluminium2.42 Paper1.38 Chlor-Alkali0.43 TOTAL230.53 Estimated Energy Consumption in DCs About 55% of DCs Contribute 96% of Total Consumption About 45% of DCs contribute rest 4% of Total Consumption Railways : 9.8 MTOE additional

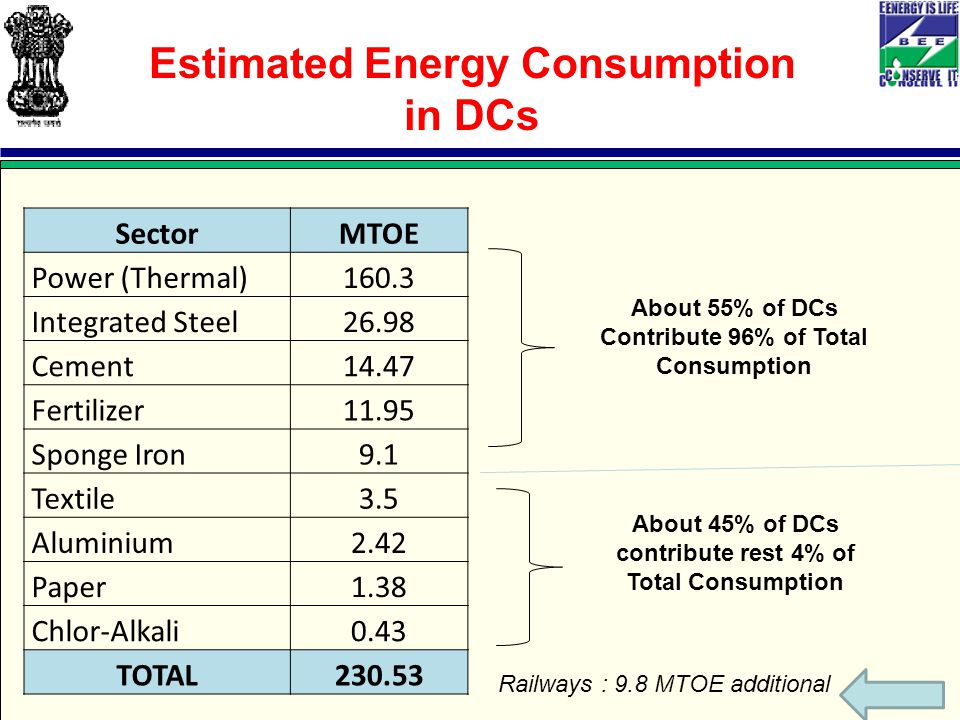

28. Target in PAT Target is defined as the % reduction of ‘Specific Energy Consumption (SEC)’ from Baseline value. Plant System Boundary All forms of EnergyProduct EP SEC = E / P SECSEC Y1Y2Y3 Baseline SEC Target SEC Reduction in SEC Expressed in %

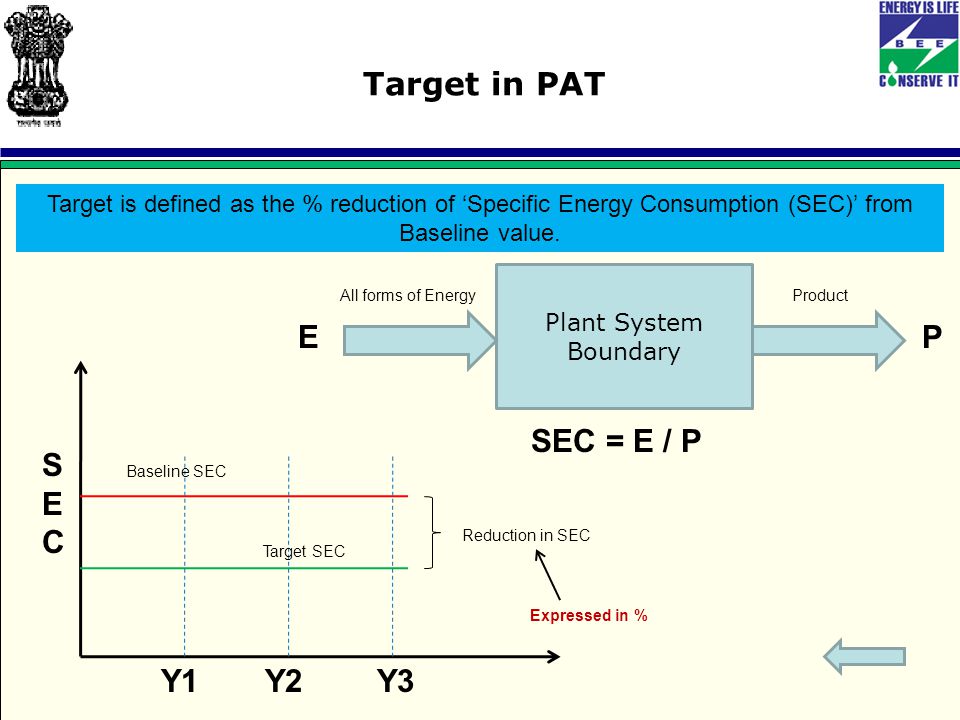

30. Sectoral studies by BEE on ‘Setting Up of Sectoral Bandwidth for DCs’ have revealed the impact on SEC due to above diversities SectorRange of SEC Power plant2300 – 3400 kcal / kwh Fertilizer5.86 – 9.11 Gcal/T of Urea Cement 665 – 900 Kcal/Kg of Clinker (Thermal) 66 – 127 KWH/ T (Elect) Integrated Steel6.15 – 8.18 Gcal / tcs Sponge Iron 4.4 – 7.6 Gcal / T (Thermal) 72 – 135 KWH/T (Elect) Aluminium (Smelter) Aluminium (Refinery) 15875 – 17083 KWH/T 3.28 – 4.12 MKcal / T of Alumina Pulp & Paper25.3 – 121 GJ/T Textile 3000 – 16100 Kcal/kg (Thermal) 0.25 – 10 KWH/Kg (Elect) Chlor-Alkali2300 – 2600 kwh/ T of caustic soda

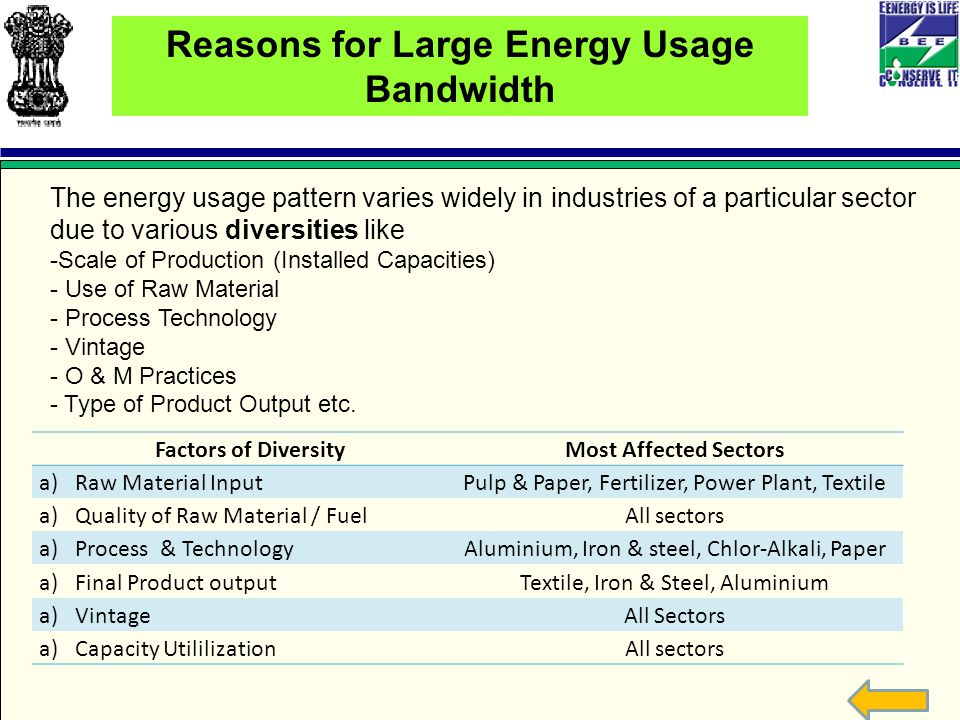

31. The energy usage pattern varies widely in industries of a particular sector due to various diversities like -Scale of Production (Installed Capacities) - Use of Raw Material - Process Technology - Vintage - O & M Practices - Type of Product Output etc. Reasons for Large Energy Usage Bandwidth Factors of DiversityMost Affected Sectors a)Raw Material InputPulp & Paper, Fertilizer, Power Plant, Textile a)Quality of Raw Material / FuelAll sectors a)Process & TechnologyAluminium, Iron & steel, Chlor-Alkali, Paper a)Final Product outputTextile, Iron & Steel, Aluminium a)VintageAll Sectors a)Capacity UtililizationAll sectors

32. Approach for Setting Targets Depends upon the Objective of the Scheme Total Saving Objective = 10 mMTOE Setting Sector Targets based on available saving potential of Industries and Program Objectives SN Sector Energy Consumption Share of Consumption Apportioned Energy reduction No. of identified DCs (mMTOE)(%)(mMTOE) 1Power (Thermal) 160.3066.64% 6.66 154 2Iron & Steel 36.0815.00% 1.50 110 3Cement 14.476.02% 0.60 92 4Fertilizers 11.954.97% 0.50 22 5Railways (Approximated) 9.003.74% 0.37 8 6Textile (Approximated) 4.501.87% 0.19 197 7Aluminium 2.421.01% 0.10 11 8Paper & pulp 1.380.57% 0.06 70 9Chlor-Alkali 0.430.18% 0.02 23 Total 240.53100.00%10.00 687

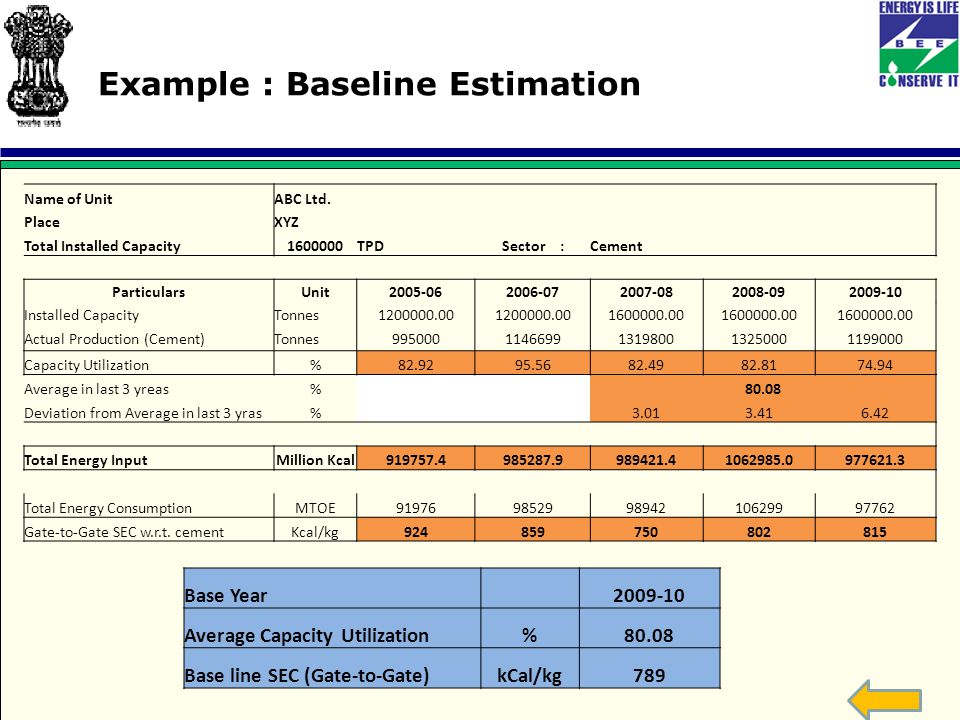

33. Example : Baseline Estimation Name of UnitABC Ltd. PlaceXYZ Total Installed Capacity1600000TPDSector :Cement ParticularsUnit2005-062006-072007-082008-092009-10 Installed CapacityTonnes1200000.00 1600000.00 Actual Production (Cement)Tonnes9950001146699131980013250001199000 Capacity Utilization%82.9295.5682.4982.8174.94 Average in last 3 yreas% 80.08 Deviation from Average in last 3 yras% 3.013.416.42 Total Energy InputMillion Kcal919757.4985287.9989421.41062985.0977621.3 Total Energy ConsumptionMTOE91976985299894210629997762 Gate-to-Gate SEC w.r.t. cementKcal/kg924859750802815 Base Year 2009-10 Average Capacity Utilization%80.08 Base line SEC (Gate-to-Gate)kCal/kg789

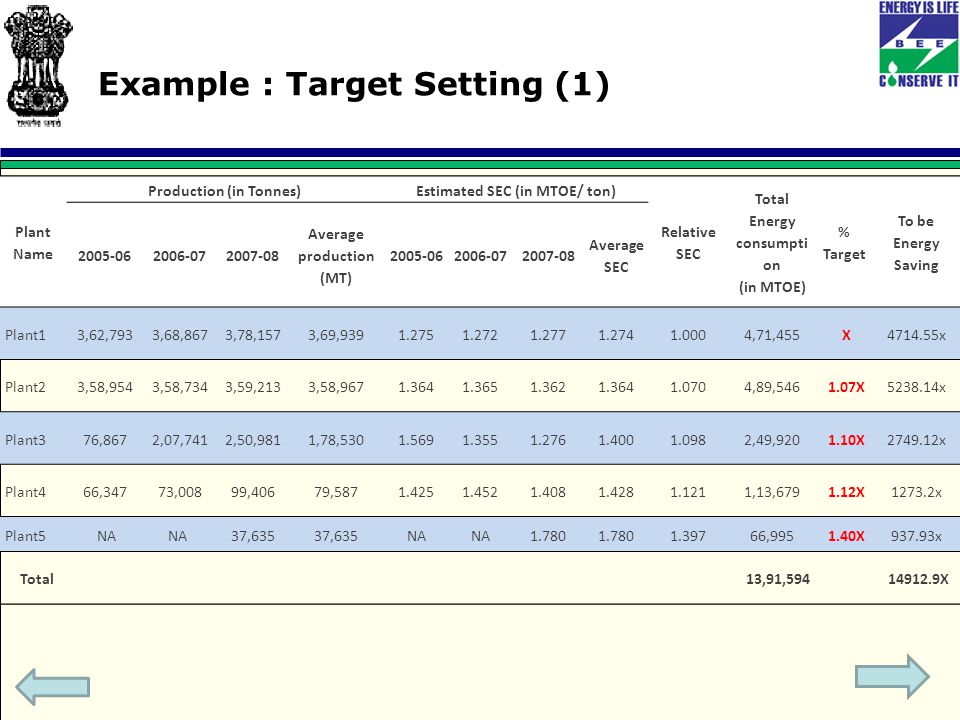

34. Example : Target Setting (1) Plant Name Production (in Tonnes)Estimated SEC (in MTOE/ ton) Relative SEC Total Energy consumpti on (in MTOE) % Target To be Energy Saving 2005-062006-072007-08 Average production (MT) 2005-062006-072007-08 Average SEC Plant13,62,7933,68,8673,78,1573,69,9391.2751.2721.2771.2741.0004,71,455 X4714.55x Plant23,58,9543,58,7343,59,2133,58,9671.3641.3651.3621.3641.0704,89,546 1.07X5238.14x Plant376,8672,07,7412,50,9811,78,5301.5691.3551.2761.4001.0982,49,920 1.10X2749.12x Plant466,34773,00899,40679,5871.4251.4521.4081.4281.1211,13,679 1.12X1273.2x Plant5 NA 37,635 NA 1.780 1.39766,995 1.40X937.93x Total 13,91,594 14912.9X

35. Example : Target Setting (2) Total Saving14912.94xMTOE Target Saving 62000MTOE X4.15% Plant Name Baseline SEC Target (%)To be SECTo be MTOE Plan11.2744.151.224,51,889 Plan21.3644.441.304,67,806 Plant31.4004.561.342,38,527 Plant41.4284.651.361,08,391 Plant51.7805.801.6863,111 Total energy consumption at the end of 3 years (in MTOE)13,29,725 Total present energy consumption (in MTOE)13,91,594 Energy saving during the period61,870

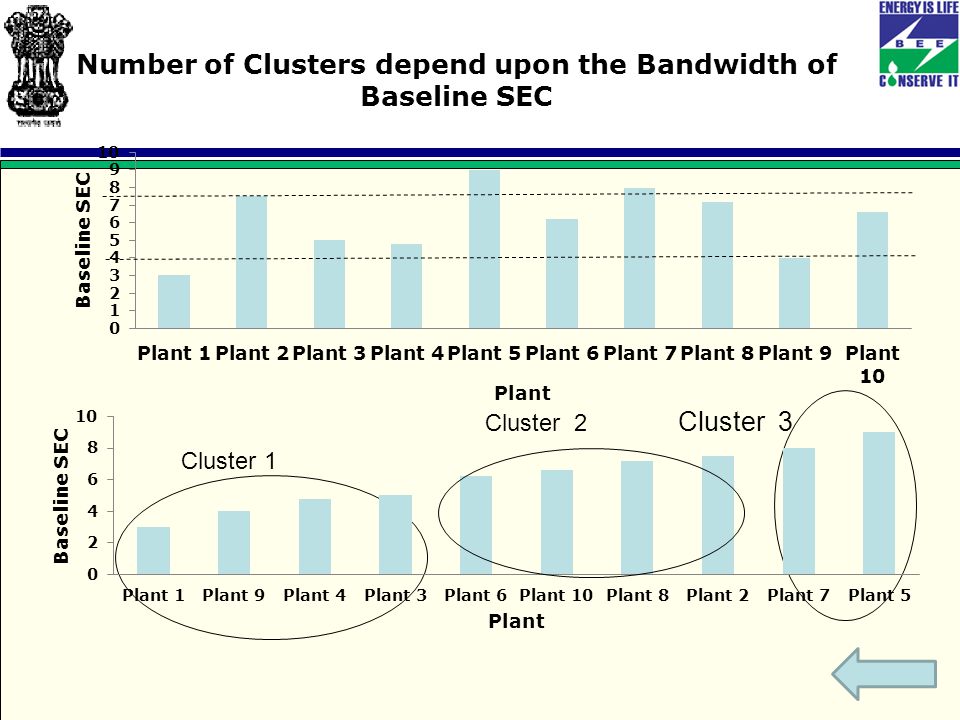

36. Number of Clusters depend upon the Bandwidth of Baseline SEC Cluster 1 Cluster 2

37. THE PAT SCHEME ….. Approach INDUSTRY (DC) Establish Baseline Review of Present Energy Scenario & Bandwidth (Completed) Development of Baseline Formats with System Boundaries Data Collection, Compilation & Analysis Verification of Data Set Targets for SEC Reduction Achieve the Target Technology Transfer, EE Technology, R&M, R&D Verification Protocol Trade the higher achieved saving through E-Certs

38. Activity Flow Sheet Finanalization of DC List Getting information through “Form#1” Designated Consumer Prepare PAT Assessment Document (PAD) BEE Verification of PAD through DENA Validation of PAD through DENA Recommendation for e-certification Issue of e-Certs after successful M&V Baseline Format Design Getting Information Through Base Line Format Data Compilation/ Evaluation Target Setting [Declaration of Base Year, Target Year ] Baseline & Target Setting

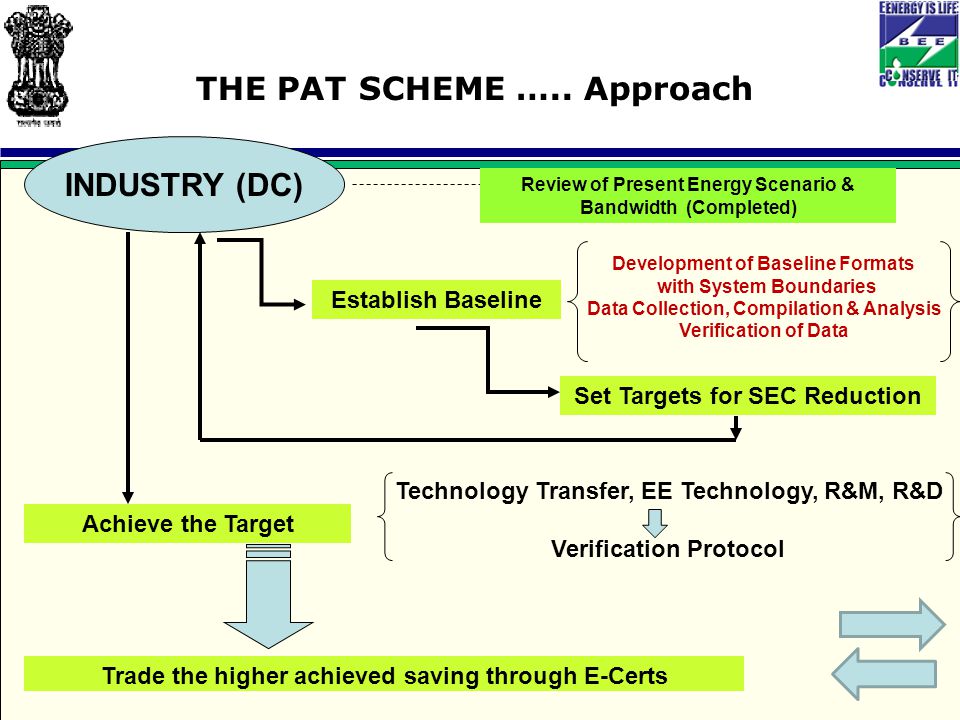

39. Variation in Net Station Heat Rate from Design Net Heat Rate Reduction Target for % deviation in the Net Station Heat Rate % Reduction Target in Net Station Heat Rate Upto 5%10%0.5 More than 5% and upto 10%15%0.75 to 1.5 More than 10% and upto 20%20%2.0 to 4.0 More than 20%25%5 and above Target Setting for Power Station

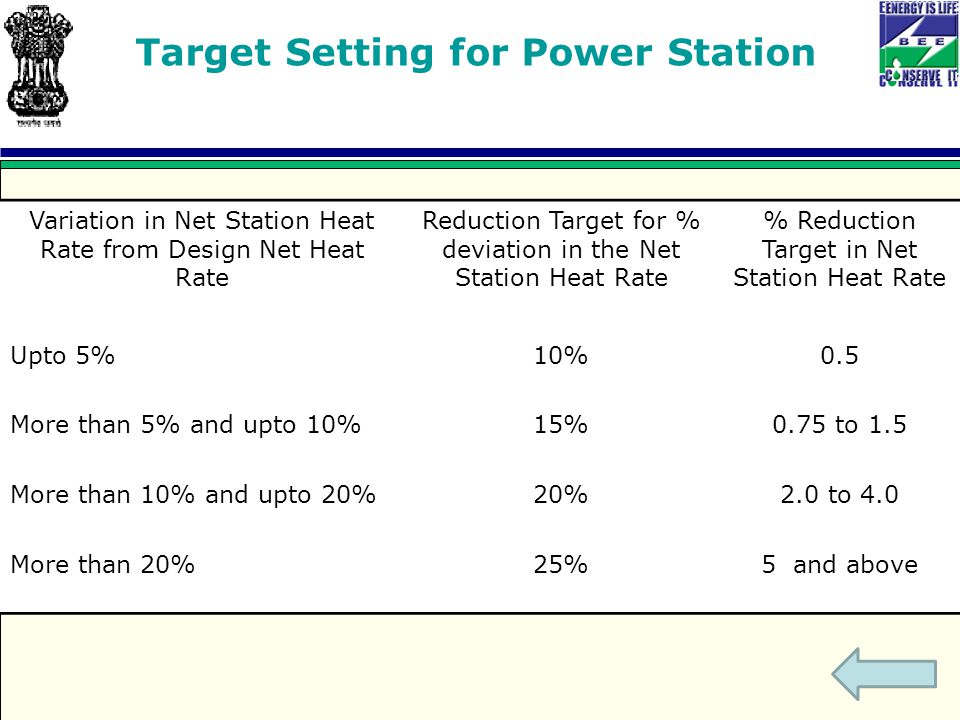

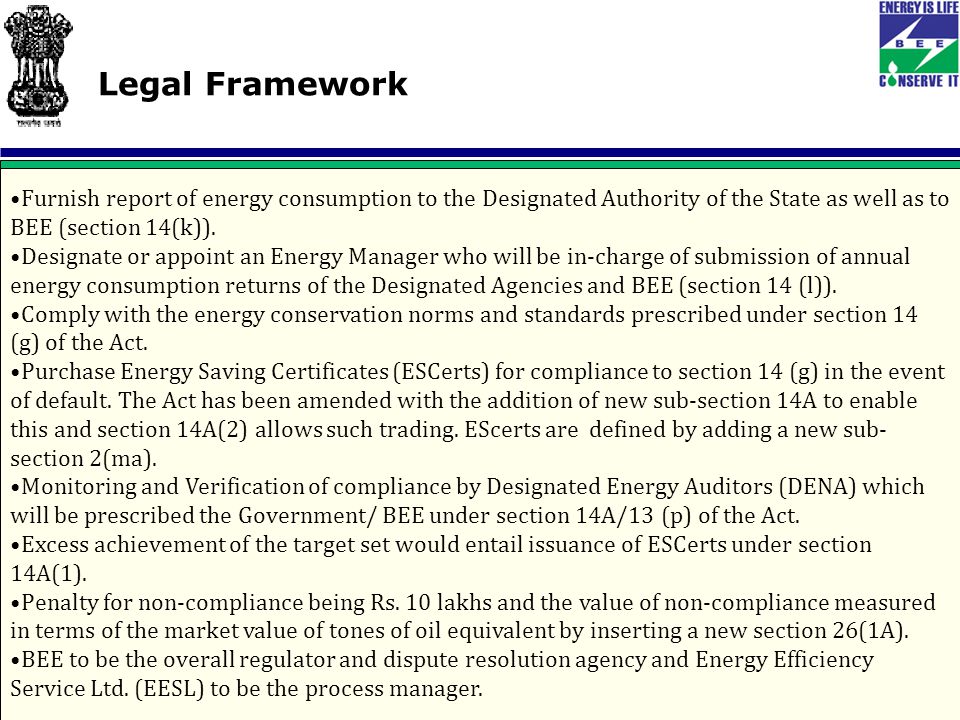

40. Legal Framework Furnish report of energy consumption to the Designated Authority of the State as well as to BEE (section 14(k)). Designate or appoint an Energy Manager who will be in-charge of submission of annual energy consumption returns of the Designated Agencies and BEE (section 14 (l)). Comply with the energy conservation norms and standards prescribed under section 14 (g) of the Act. Purchase Energy Saving Certificates (ESCerts) for compliance to section 14 (g) in the event of default. The Act has been amended with the addition of new sub-section 14A to enable this and section 14A(2) allows such trading. EScerts are defined by adding a new sub- section 2(ma). Monitoring and Verification of compliance by Designated Energy Auditors (DENA) which will be prescribed the Government/ BEE under section 14A/13 (p) of the Act. Excess achievement of the target set would entail issuance of ESCerts under section 14A(1). Penalty for non-compliance being Rs. 10 lakhs and the value of non-compliance measured in terms of the market value of tones of oil equivalent by inserting a new section 26(1A). BEE to be the overall regulator and dispute resolution agency and Energy Efficiency Service Ltd. (EESL) to be the process manager.
