1 An Overview to Building Management System

2 Our Solution Partner Connected Buildings

3 What is BMS? A micro-processor based system which centralizes and simplifies… ◈ Controlling ◈ Monitoring ◈ Operation and … ◈ Management …of heating, air-conditioning, ventilation & other building services to achieve… TemperatureHumidityValve Control  safe and comfortable working environment  energy saving & efficient operation  at reduced time & cost

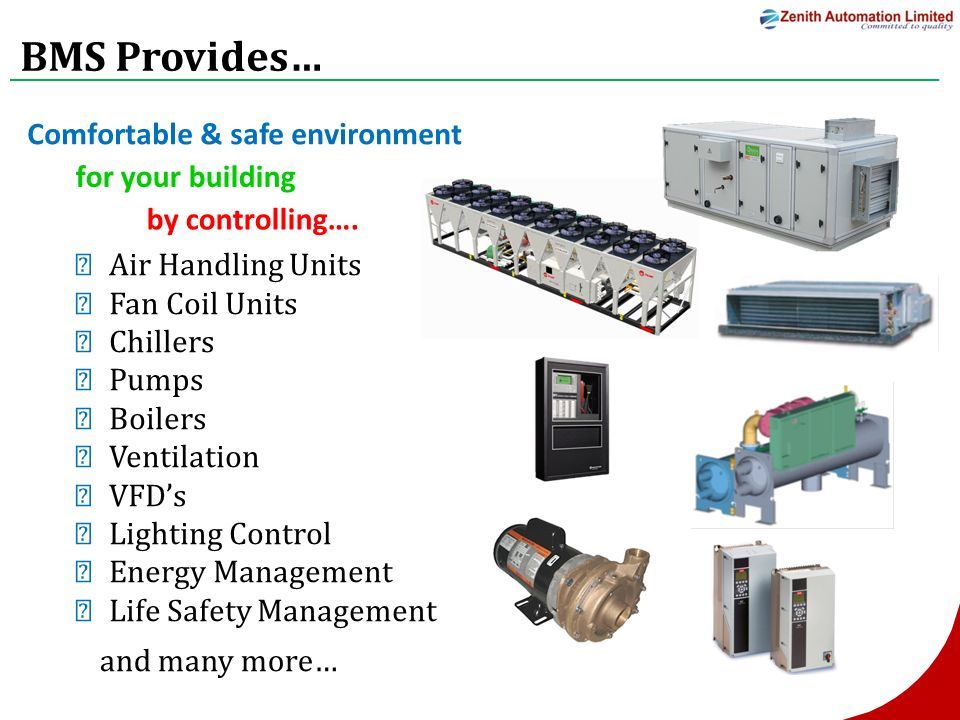

4 BMS Provides… Comfortable & safe environment for your building by controlling…. ◈ Air Handling Units ◈ Fan Coil Units ◈ Chillers ◈ Pumps ◈ Boilers ◈ Ventilation ◈ VFD’s ◈ Lighting Control ◈ Energy Management ◈ Life Safety Management and many more…

5 Components of BMS BMS Software Enterprise Building Integrator …. > EBI-R430 > EBI-R500 > EBI-R600 Brand: Honeywell Origin: USA  Large integration  Huge expansion capacity  Standard protocol: BACnet, LonMark, OPC and Modbus  21 CFR Part 11 compliance  Web-based graphically monitoring user interface User Interface  Audit Trail Report  Point Data Report  Customize Report as per user requirement

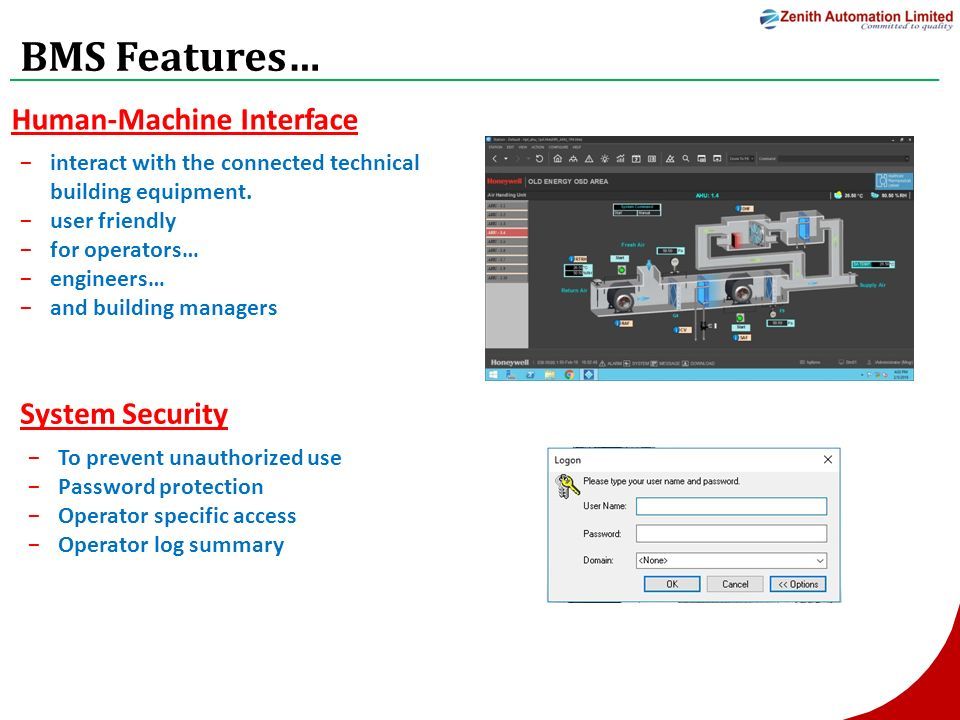

6 BMS Features… Human-Machine Interface −interact with the connected technical building equipment. −user friendly −for operators… −engineers… −and building managers System Security −To prevent unauthorized use −Password protection −Operator specific access −Operator log summary

7 BMS Features… User-Friendly Data Presentation −Co-ordination of the flow of information through the system by implementing customized graphics. −Floor plans of the building. −Graphical representation of the equipment. Alarm Management −The presentation in the sequence of importance and time of.. Potentially dangerous situations Process value deviations −Guiding the operator to take appropriate action through.. Audible and visual indications Email, SMS −Alarm summary Time, date, priority & description

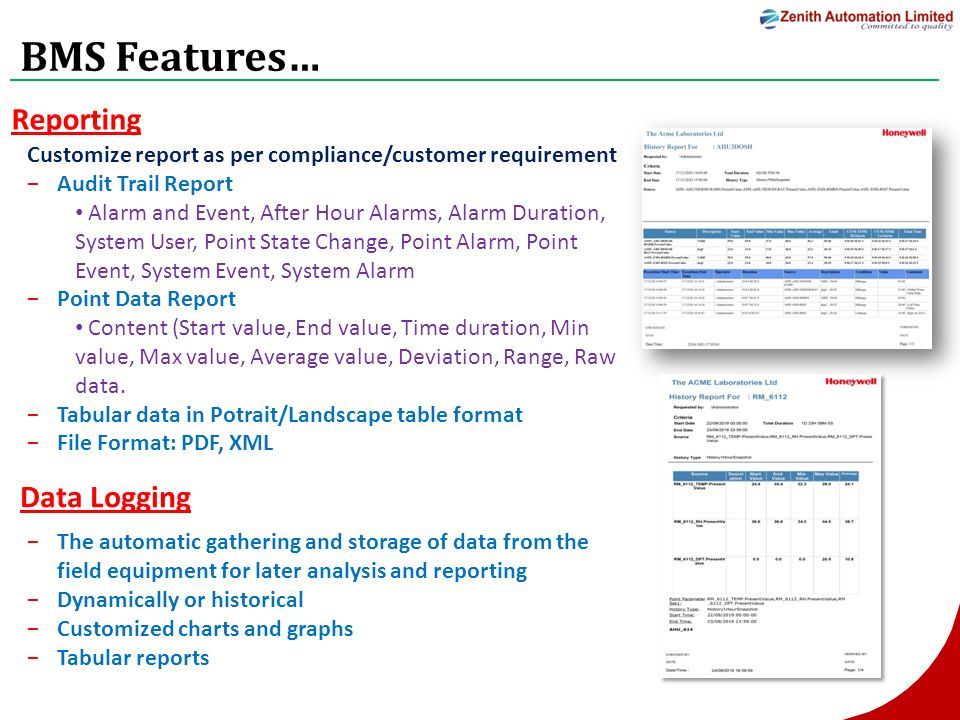

8 BMS Features… Reporting Customize report as per compliance/customer requirement −Audit Trail Report Alarm and Event, After Hour Alarms, Alarm Duration, System User, Point State Change, Point Alarm, Point Event, System Event, System Alarm −Point Data Report Content (Start value, End value, Time duration, Min value, Max value, Average value, Deviation, Range, Raw data. −Tabular data in Potrait/Landscape table format −File Format: PDF, XML Data Logging −The automatic gathering and storage of data from the field equipment for later analysis and reporting −Dynamically or historical −Customized charts and graphs −Tabular reports

9 BMS Features… Time Scheduling −Time-based start/stop of the equipment −Saves energy cost and efficient operation −Effective for lighting, occupancy control −Can be as daily, weekly, for holidays or events Event Recording −Automatic logging of… Operator activities and commands Processes related to connected devices Workstations and printers.

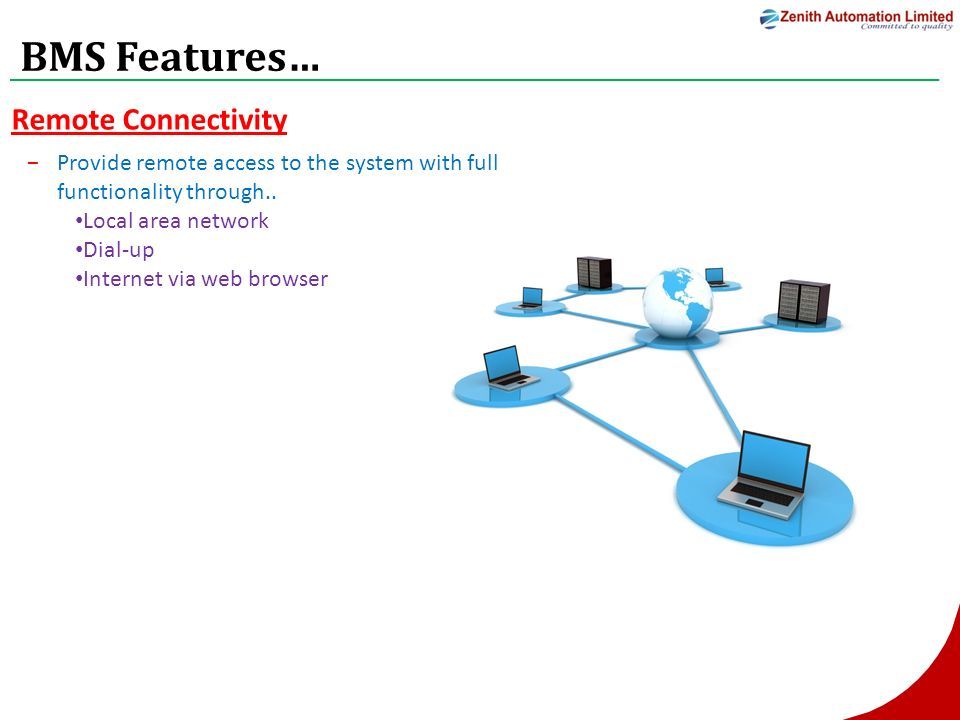

10 BMS Features… Remote Connectivity −Provide remote access to the system with full functionality through.. Local area network Dial-up Internet via web browser

11 BMS For Commercial Building…  Access controllers and access card readers  Security intrusion detection panels  Life safety monitoring and control  Energy management – monitoring and control  Digital Video Manager network viewing and control  Time and attendance

12 Enterprise Dashboard EDB - Summary  EBI / CCS / HEM integrated offering compatible with R500 and 600  HTML5 based – platform independent  HTTPS web protocol used

13 DDC Controllers ComfortPoint TM Open series DDC Controller Plant Controller Native BACnet Building Controller BACnet standard 135 version 1.14 Four independent RS485 interface DDR3l RAM: 1 Gbyte Support 90 Modbus devices Model: CPO-PC200 IO Expansion Controller Model: CPO-RL5 Freely programmable BACnet MS/TP controller CPU: 32-bit MK24FN Freescale Kinetis Cortex M4 24 points (UI: 10, AO: 6, Relays: 4, Triacs: 4) CPO-RL5

14 DDC Controllers ComfortPoint TM Open series DDC Controller IO Expansion Controller Model: CP-EXPIO IO Expansion Controller Model: CP-DIO Freely programmable BACnet MS/TP controller CPU: 32-bit MK24FN Freescale Kinetis Cortex M4 24 points (UI: 10, AO: 6, Relays: 4, Triacs: 4) CP-DIO Expansion I/O controller 8 Universal Inputs 6 Analog Outputs, 0-10 Vdc 6 Digital Input Potential-free contact 4 Digital Output (Triac output)

15 Thank You!!!
