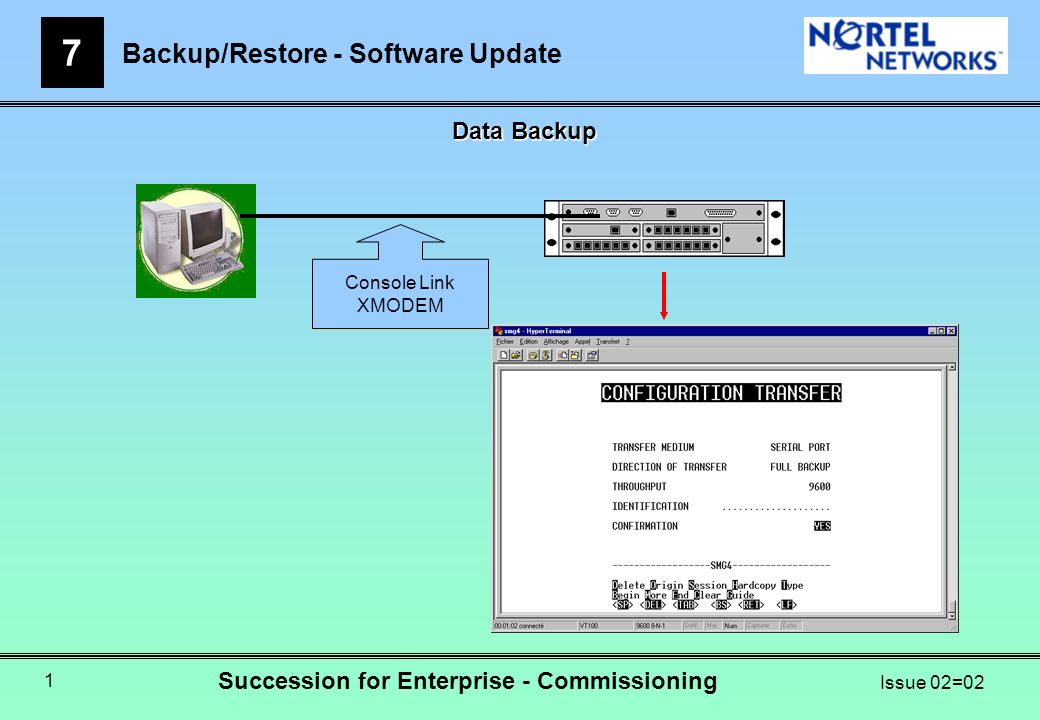

1. Backup/Restore - Software Update 7 Succession for Enterprise - Commissioning Issue 02=02 1 Data Backup Console Link XMODEM

2. Backup/Restore - Software Update 7 Succession for Enterprise - Commissioning Issue 02=02 2 Data Restore Console Link XMODEM

3. Backup/Restore - Software Update 7 Succession for Enterprise - Commissioning Issue 02=02 3 Parallel Backup

4. Backup/Restore - Software Update 7 Succession for Enterprise - Commissioning Issue 02=02 4 Call Manager backup.exe for the backup

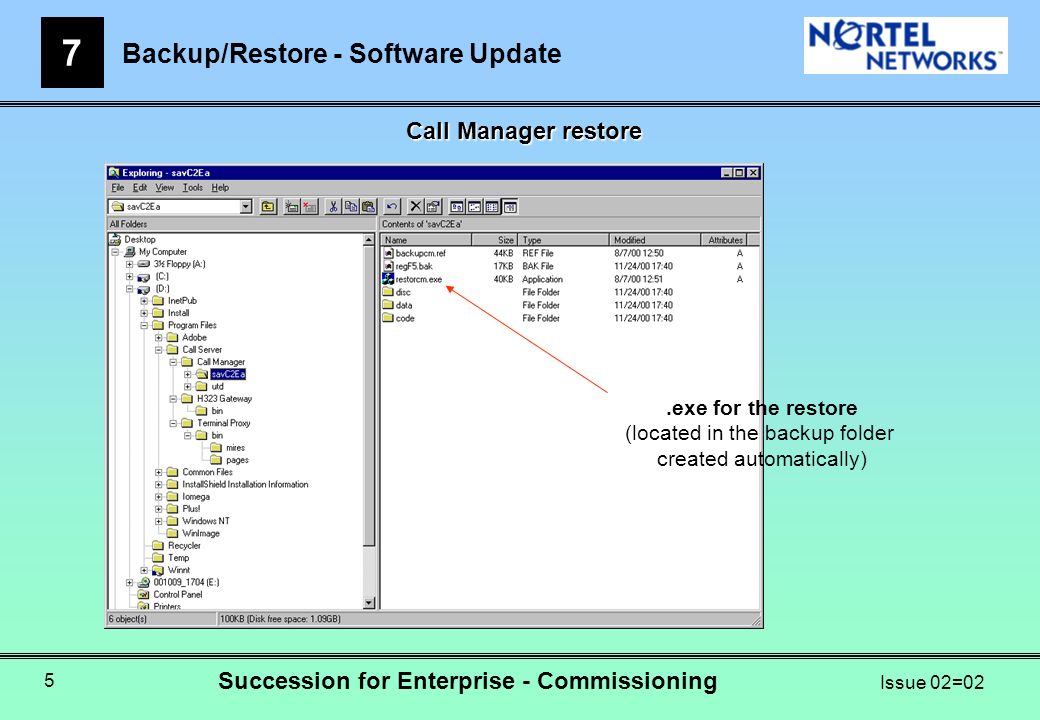

5. Backup/Restore - Software Update 7 Succession for Enterprise - Commissioning Issue 02=02 5 Call Manager restore.exe for the restore (located in the backup folder created automatically)

6. Backup/Restore - Software Update 7 Succession for Enterprise - Commissioning Issue 02=02 6 Connections for firmware update and parallel backup/restore of a SMG VT100 or PC + + 1/N N/N Floppy disks: PC Tools (1 floppy disk) Software : System (1 floppy disk) Application (5 floppy disks) To CHP1 board Parallel port PC

7. Backup/Restore - Software Update 7 Succession for Enterprise - Commissioning Issue 02=02 7 Changing the software version Sauvegarde des données dOCKA Data backup Passage des VUs Customer Database updating Parallel port of the PC CHP1 console Restitution des données dans OCKB Customer database restore Chargement Progiciel Application dans OCKB Application software loading on OCT3B I Chargement Progiciel Système dans OCKB System Software loading on OCT3B I console exploitation « CO », then password CHP1 RESET New version of the software New version of the software + + 1/N N/N Software disks System and/or Application disks Parallel port of the PC

8. Backup/Restore - Software Update 7 Succession for Enterprise - Commissioning Issue 02=02 8 Upgrading the software on a Call Manager automatic configuration backup software version upgrade configuration restore

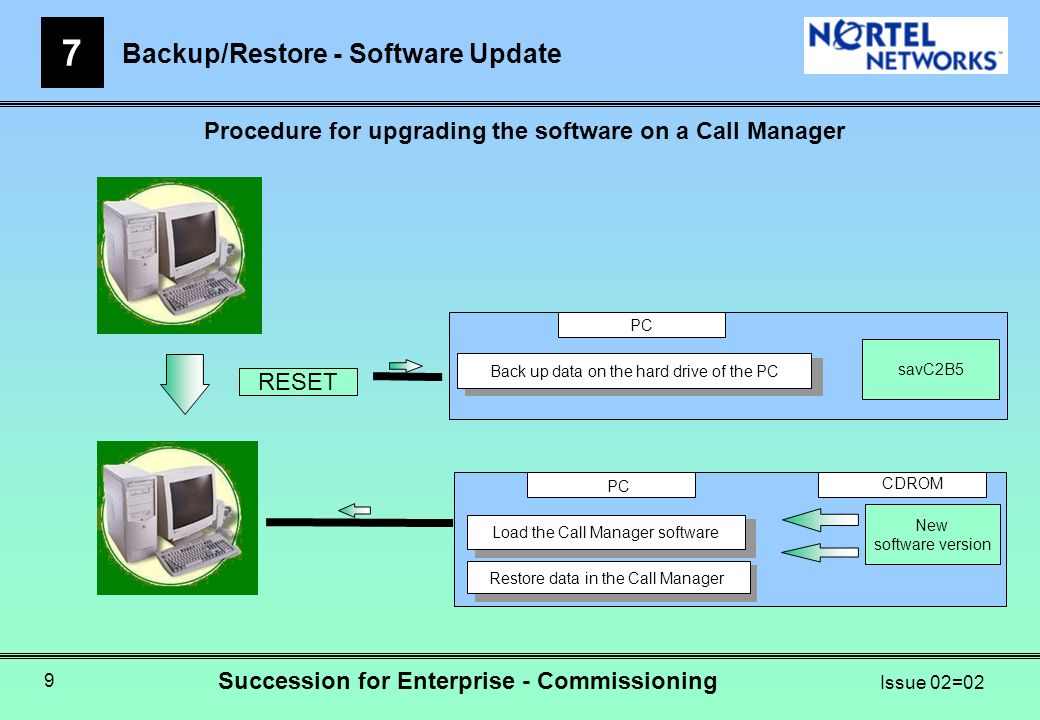

9. Backup/Restore - Software Update 7 Succession for Enterprise - Commissioning Issue 02=02 9 Procedure for upgrading the software on a Call Manager Sauvegarde des données dOCKA Back up data on the hard drive of the PC PC Restitution des données dans OCKB Restore data in the Call Manager PC RESET savC2B5 New software version CDROM Load the Call Manager software
