1. Liaison Report JEDEC JC-61
September 2002
Liaison Report JEDEC JC-61
Benno Ritter
Philips
September 13th 2002
Benno Ritter, Philips

2. Month 2002
doc.: IEEE /xxxr0
September 2002
Status
Currently 42 member companies with a total of >120 participating members and alternates
Last meeting in Sunnyvale, CA on September 5th and 6th
22 participating companies
Next meeting in September 7th – 8th in Koloa, HI before the IEEE meeting (same hotel)
Documents finished:
Procedure and Operating Rules
MRD for both interface
TRD for both interfaces
Welcome Information Package
Benno Ritter, Philips
John Doe, His Company

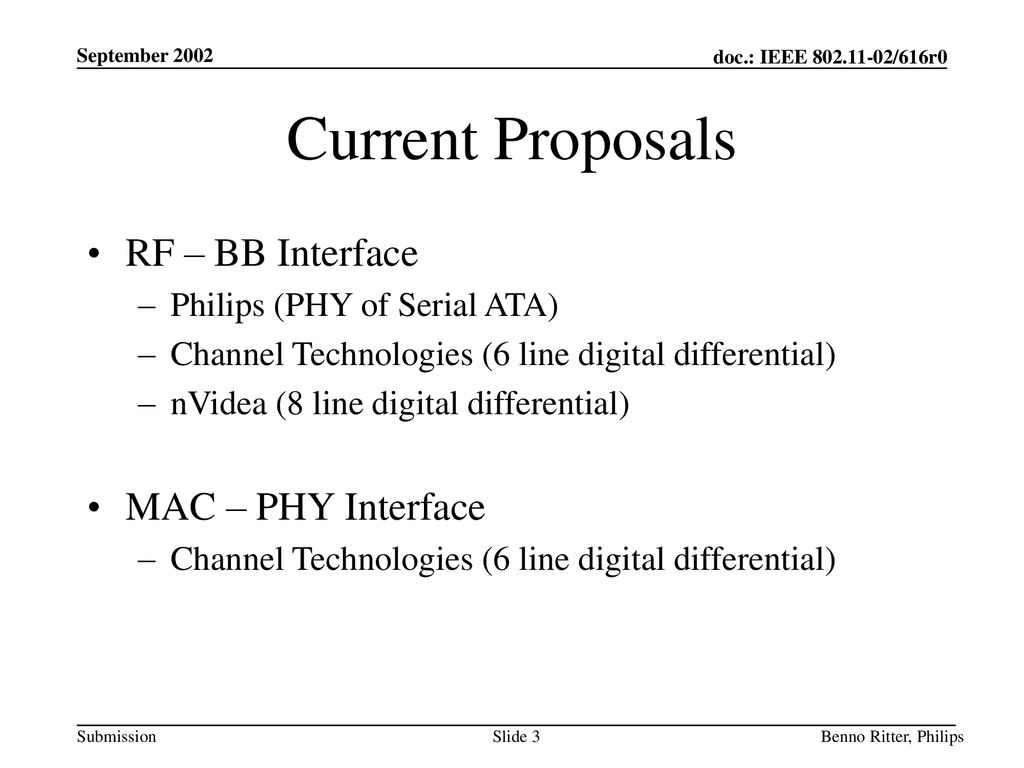

3. Current Proposals RF – BB Interface MAC – PHY Interface
September 2002
Current Proposals
RF – BB Interface
Philips (PHY of Serial ATA)
Channel Technologies (6 line digital differential)
nVidea (8 line digital differential)
MAC – PHY Interface
Benno Ritter, Philips

4. Characteristics All proposals Differences High speed serial data
September 2002
Characteristics
All proposals
High speed serial data
Differential ( for >50cm distance )
Data rates in the order of 1.2 – 1.6 Gbps
Extension to higher data rates by adding lines
Protocols are very similar
Differences
Embedded versus separate clock (additional lines)
3 of PLLs
Reusability of existing IP blocks
Clock frequency
Necessary logic for data packetizing/de-packetizing
Benno Ritter, Philips

5. September 2002
Next Steps
Discuss system implications of embedded versus non-embedded clock
Continue to foster merger opportunities
Clarification of IP situation for proposals
Ballot on clocking scheme
 Leads to baseline proposal before the November meeting
Benno Ritter, Philips

6. Proposed Timeline Public Call for Proposals Approve MRD & TRD
September 2002
Proposed Timeline
Q2’02
Q3’02
Q4’02
Q1’03
Public Call for Proposals
Approve MRD & TRD
Review Proposals
Select Idea by Vote
Match Idea to MRD/TRD
Create Written Standard
Approve Standard
Benno Ritter, Philips
