1. Interfacing with I/O Devices

2. Interfacing with I/O devices
Overview
Memory mapped vs programmatic I/O
Organization of a memory mapped I/O device
Polled I/O
Interrupt-driven I/O
ISR’s
Shared IRQ’s
Vectored interrupts
CEG 320/520
Interfacing with I/O devices

3. Interfacing with I/O devices
I/O Device Models
CPU
Memory
I/O
Programmed I/O
Special instructions to read and write from I/O devices
Memory-mapped I/O
I/O devices live at memory addresses
For example: MOVE.B $8000,D0 might get a byte from an I/O device and not memory.
CEG 320/520
Interfacing with I/O devices

4. I/O Models for Common Processors
MC68000 – Memory mapped.
Intel CPUs – Programmed I/O
Separate instructions for I/O read/writes
Can also memory-map some devices
PowerPC – Memory mapped, but uses a separate address space
A special control register controls which address space is being accessed.
CEG 320/520
Interfacing with I/O devices

5. Organization of an I/O device
Base memory location
Jumpers, PnP, etc.
Status register
Sin – A word is waiting in the input register
Sout – The device is ready for output
The device knows when a register is written to or read from
Device Controller
$8000
Input register
$8002
Output register
$8004 1
Status register
Sout
Sin
Device
CEG 320/520
Interfacing with I/O devices

6. Interfacing with I/O devices
Polled I/O
New instruction: BTST.L #bit,Dn
Set Z according to bit of register Dn
BEQ will branch if bit = 0, BNE if bit = 1
GETCH LEA BUFFER,A0
POLLI MOVE.B $8004,D0
BTST.B #0,D0
BEQ POLLI
MOVE.B $8000,(A0)+
PUTCH MOVE.B $8004,D1
BTST.B #1,D1
BEQ PUTCH
MOVE.B D0,$8002
Device Controller
$8000
Input register
$8002
Output register
$8004
Status reg. 1
Sout
Sin
Device
CEG 320/520
Interfacing with I/O devices

7. Drawbacks of Polled I/O
The CPU can’t do anything else while it is polling.
You must explicitly check every device in the system.
How often should you check the modem to see if there is a ring?
No way for devices to get the attention of the CPU until it is their “turn”.
No way to assure fast response to external events.
CEG 320/520
Interfacing with I/O devices

8. Interfacing with I/O devices
Interrupt-driven I/O
CPU
Memory
I/O
IRQ
IACK
When IRQ goes active, jump to a special memory location: the ISR, or interrupt service routine.
Activate IACK to tell the device that the interrupt is being serviced, and it can stop activating the IRQ line.
CEG 320/520
Interfacing with I/O devices

9. An ISR for a keyboard driver
KBINIT MOVE.L #KBUF,KBPTR
RTS
KBISR MOVEM.L D0/A0-A1,-(SP)
MOVEA.L KBPTR,A0
MOVE.B $8000,D0
CMPI.B #$0D,D0 ; CR?
BEQ PROC_INPUT
MOVEA.L A0,A1
SUBA.L #KBUF,A1
CMPA.L #KBSIZE,A1
BGE KB_OVERFLOW
MOVE.B D0,(A0)+
MOVEA.L A0,KBPTR
DONE MOVEM.L (SP)+,D0/A0-A1
RTE ; a new instr
KBSIZE EQU 132
KBUF DS.B KBSIZE
KBPTR DS.L 1
CPU
MEM
I/O
IRQ
IACK
Device Controller
$8000
Input register
$8002
Output register
$8004
Status reg 1
Sout
Sin
CEG 320/520
Interfacing with I/O devices

10. ISR’s: Even more transparent
May be called at any time.
Must be completely invisible to the current running program.
Must save all register values & restore them.
Some systems do this in hardware, some rely on the ISR to take care of it. The splits up the work…
The SR and the PC are saved when an INTR is triggered
The ISR must save and restore any other registers used
The RTE instruction restores the SR and the PC
CEG 320/520
Interfacing with I/O devices

11. What happens on an interrupt
SR:
When an interrupt is activated, the CPU:
Pushes the PC (L) and the SR (W) on the stack
Switches to supervisor mode (S=1)
Jumps to the ISR
In supervisor mode, we can write to the status register and use the supervisor stack! T S I I I X N Z V C
Trace
Interrupt priority
Condition codes
Supervisor
CEG 320/520
Interfacing with I/O devices

12. Interfacing with I/O devices
The RTE instruction
When the ISR is done servicing the interrupt, it returns using the RTE (return from exception) instruction.
This instruction is similar to RTS, but it does more. RTE does the following:
SR  [[SP]]
SP  [SP] + 2
PC  [[SP]]
SP  [SP] + 4
This will restore the S bit along with the rest of the SR. If we were in user mode, before the interrupt, we are back in user mode when we return from the ISR.
CEG 320/520
Interfacing with I/O devices

13. Interrupts from multiple devices
Bus
CPU
Memory
I/O 1
I/O 2
I/O 3
I/O 4
IRQ
Device Controller
When IRQ is activated, the CPU checks bit I in the status register of each device to see which one (or more) need an IRQ serviced.
The order is fixed, so the first device polled has higher de facto priority
Input register
Output register 1 1 I
Sout
Sin
CEG 320/520
Interfacing with I/O devices

14. Interfacing with I/O devices
Vectored Interrupts
If we have multiple devices, we need a very large ISR that knows how to deal with all of them!
Using vectored interrupts, we can have a different ISR for each device.
Each I/O device has a special register where it keeps a special number called the interrupt vector.
The vector tells the CPU where to look for the ISR.
CEG 320/520
Interfacing with I/O devices

15. A vectored-interrupt device
Device Controller
$8000
Input register
… Sin Sout
$8002
Output register
IESIN IESOUT
$8004
Status register
$8006 67
Interrupt Vector Register
When I trigger an interrupt, look up address number 67 in the vector table, and jump to that address.
CEG 320/520
Interfacing with I/O devices

16. Getting the interrupt vector
INTA
Memory
CPU
I/O 1
I/O 2
I/O 3
I/O 4
IRQ
INTA tells a device to put the interrupt vector on the bus
INTA is daisy chained so only one device will respond
CEG 320/520
Interfacing with I/O devices

17. Interfacing with I/O devices
The Vector Table
The interrupt vector table is stored in memory addresses $0000 through $03FC.
The contents of the vector table are addresses to jump to when each vectored interrupt occurs. (Absolute long)
$0000
0 – Reset SP
$0004
1 – Reset PC
$0008
2 – Access Fault
$000C
3 – Address Err
$0010
4 – Illegal Instr
$0014
5 – Div by zero … …
$0100
64 – 255 …
user defined…
$03FC
CEG 320/520
Interfacing with I/O devices

18. Interfacing with I/O devices
The Vector table
Each entry in the vector table is the address of an ISR.
Each entry takes 2 words, so the location of vector n is address (n × 4)
When we do TRAP #14 we jump to the address stored here!
CEG 320/520
Interfacing with I/O devices

19. Installing a vectored interrupt device
Step 1: Write an ISR and store it in memory.
The ISR must know the addresses of the registers in the device
Step 2: Put the address of the ISR somewhere in the vector table
Step 3: Put the vector number in the Vector Register of the device
KBISR LEA BUFFER,A0
MOVE.B $8000,D0
CMPI.B #0D,D0 ; CR?
BEQ PROCESS
MOVE.B D0,(A0)+ …
RTE
MOVE.L #KBISR, $100
;$100 = 256 = 64 * 4
MOVE.L #64, $8006
;$8006 = Vect. Reg.
CEG 320/520
Interfacing with I/O devices

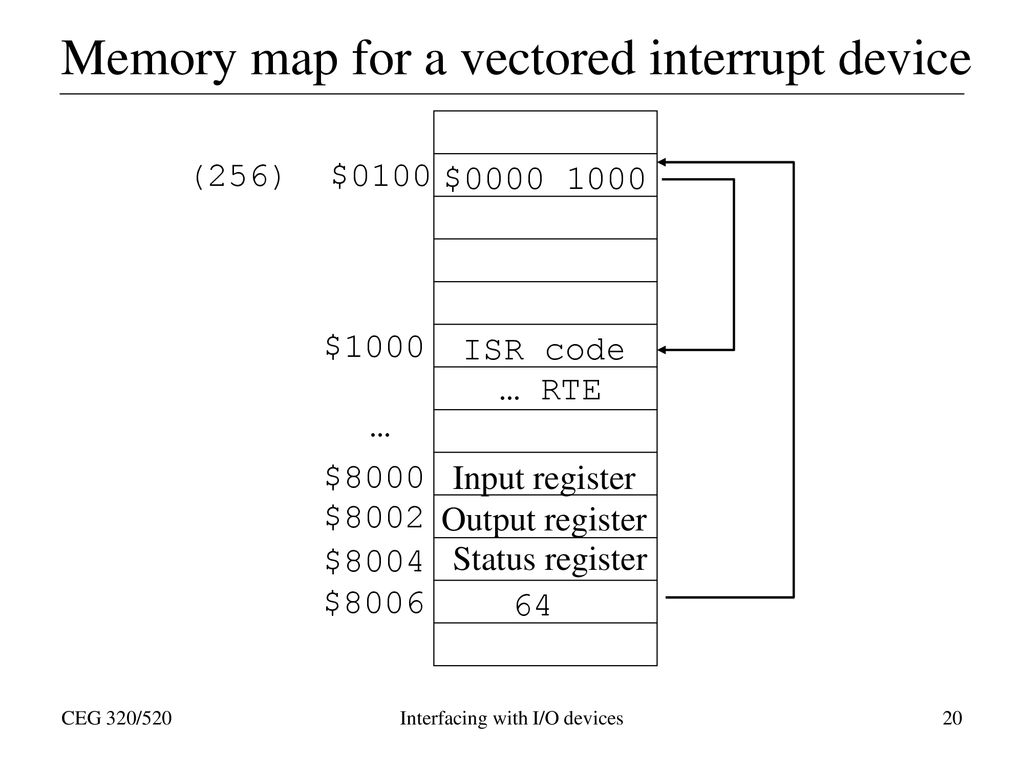

20. Memory map for a vectored interrupt device
(256) $0100 $
$1000
ISR code
… RTE …
$8000
Input register
$8002
Output register
$8004
Status register
$8006 64
CEG 320/520
Interfacing with I/O devices

21. A simple keyboard driver
DATAIN EQU $8000
DATAOUT EQU $8002
STATUS EQU $8004
VECTOR EQU $8006
LINE DS.B 81
PNTR DS.L 1
MOVE.L #26, VECTOR
; 26 x 4 = 104 = $68
$8000
Input register
$8002
Ouptut register
$8004
Status register
$8006
Ivec = 26
CEG 320/520
Interfacing with I/O devices

22. Priority Interrupts Only!
What do we do if we are processing an interrupt and another device signals an interrupt?
We can disable (mask) all interrupts while processing an interrupt (IE bit in the SR)
Some devices require very low interrupt latency (e.g. system clock) while some can tolerate long latency (e.g. keyboard).
The has 8 interrupt priorities.
While processing an interrupt of level n, interrupts from other devices of level n and lower are ignored. Only higher priority interrupts are allowed.
CEG 320/520
Interfacing with I/O devices

23. Interfacing with I/O devices
Interrupt Priorities T S I I I X N Z V C
Trace
Interrupt priority
Condition codes
Supervisor
An ISR can set the interrupt mask (or interrupt priority bits) by directly changing the contents of the status register.
MOVE.W xx,SR is a privileged instruction. Which means it is only allowed in supervisor mode.
68000: An interrupt at level 7 is always accepted
A level 7 interrupt is a nonmaskable interrupt.
CEG 320/520
Interfacing with I/O devices

24. Interfacing with I/O devices
Software interrupts
Interrupts can be triggered by more than just I/O devices:
Program errors, like division by zero, can trigger interrupts.
The OS uses interrupts for multitasking and other purposes.
68000: The TRAP instruction triggers a software interrupt
You can assign any ISR you wish to the vector entries for TRAP #0 through TRAP #15
CEG 320/520
Interfacing with I/O devices

25. Direct Memory Access (DMA)
Even with interrupts, a lot of CPU effort is expended just moving bytes around from I/O devices to/from memory
Modem – interrupt every time a byte arrives?
DMA allows devices to access memory directly
A large amount of data can be stored to a memory location, and then an interrupt can be triggered to process all the data at once.
CEG 320/520
Interfacing with I/O devices

26. A DMA Controller
A DMA controller can transfer a large amount of data between a device and memory
Example – send a stream of print data to a printer, and notify the CPU when done
The controller needs to know:
Where in memory should the data be found/put?
How many bytes of data should be transferred?
Starting address
Byte count
Status and control register:
IRQ IE
R/W
Done
Printer
Disk
Bus
CPU
Memory
CEG 320/520
Interfacing with I/O devices

27. Interfacing with I/O devices
Bus Arbitration
Both the CPU and the DMA controller can use the bus
There are often multiple DMA controllers
No two devices can use the bus at the same time
DMA Controller
CPU
Printer
Disk
Bus
Memory
CEG 320/520
Interfacing with I/O devices

28. Bus Arbitration Details
CPU
BBSY BR
DMA Controller 1
DMA Controller 2
BG1
BG2
Signal Bus Request (BR) to request the bus
CPU asserts Bus Granted (BG)
If DMA controller didn’t request the bus, pass it on to BG2, BG3, etc.
Controller asserts Bus Busy (BBSY) until done
CEG 320/520
Interfacing with I/O devices

29. Bus Arbitration Policies
No one can use the bus (not even the CPU) while BBSY is asserted, except for the DMA controller that is the current “bus master”.
Cycle stealing – When you get the bus, perform a few transfers and then release it
High-speed peripherals, like disks, get bus priority
Block mode – Perform an entire transfer before releasing the bus.
CEG 320/520
Interfacing with I/O devices

30. Interfacing with I/O devices
You should know…
General concepts for I/O devices:
Programmatic vs. memory-mapped I/O
Polling vs. Interrupt-driven I/O
Vectored interrupts, interrupt priorities
DMA, Bus Arbitration
Details for the 68000
Exactly what happens in the CPU on an interrupt
What does the RTE instruction do?
How to write a simple ISR
How to initialize the I/O device and the vector table
CEG 320/520
Interfacing with I/O devices

31. Interfacing with I/O devices
68000 Pinouts
CEG 320/520
Interfacing with I/O devices
