1. CSC 313 Data Structures And Algorithms Supplementary Lecture Note by Aborisade D.O.

2. Course Contents List Linked List Application of Linked List Stack and Its Applications Queues and its Applications Recursion and its Applications Trees and Binary Trees References

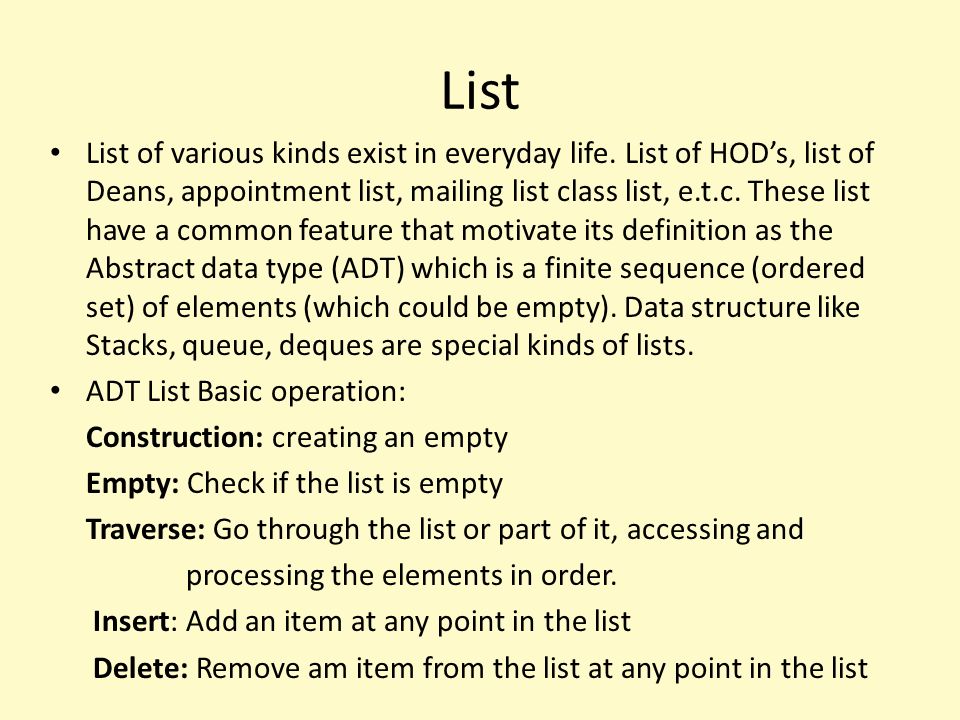

3. List List of various kinds exist in everyday life. List of HOD’s, list of Deans, appointment list, mailing list class list, e.t.c. These list have a common feature that motivate its definition as the Abstract data type (ADT) which is a finite sequence (ordered set) of elements (which could be empty). Data structure like Stacks, queue, deques are special kinds of lists. ADT List Basic operation: Construction: creating an empty Empty: Check if the list is empty Traverse: Go through the list or part of it, accessing and processing the elements in order. Insert: Add an item at any point in the list Delete: Remove am item from the list at any point in the list

4. List Storage Structure of List a1 a2 a3 …….., an a[0] a[1] a[2] ……….. a[n-1] a[n] …………………………………………..a[CAPACITY-1] This implementation of a list is referred to as sequential-storage implementation.

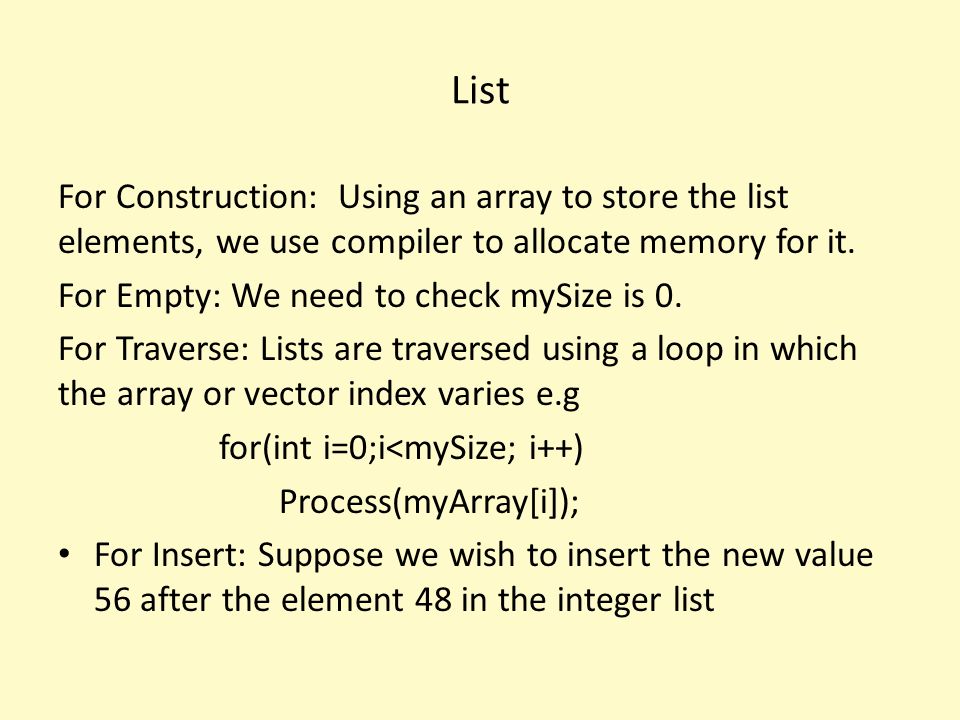

5. List For Construction: Using an array to store the list elements, we use compiler to allocate memory for it. For Empty: We need to check mySize is 0. For Traverse: Lists are traversed using a loop in which the array or vector index varies e.g for(int i=0;i<mySize; i++) Process(myArray[i]); For Insert: Suppose we wish to insert the new value 56 after the element 48 in the integer list

6. List 23, 25, 34, 48,61,79,82,89,91,99 to produce the new list 23, 25,34,48,56,61,79,82,89,91,99 it is somewhat complicated to insert, because of the fixed size of the array used as the storage structure limits the size of the list. Therefore, to insert a new item it would be necessary to move array elements to make room for it. For Delete: Implementing the delete operation also requires shifting array elements if list elements are to be stored in consecutive array locations.

7. 23 25 34 48 56 61 79 82 89 91 99 23 25 34 48 61 79 82 89 91 99 List 23 25 34 48 56 61 79 82 89 91 99 23 34 48 56 61 79 82 89 91 99

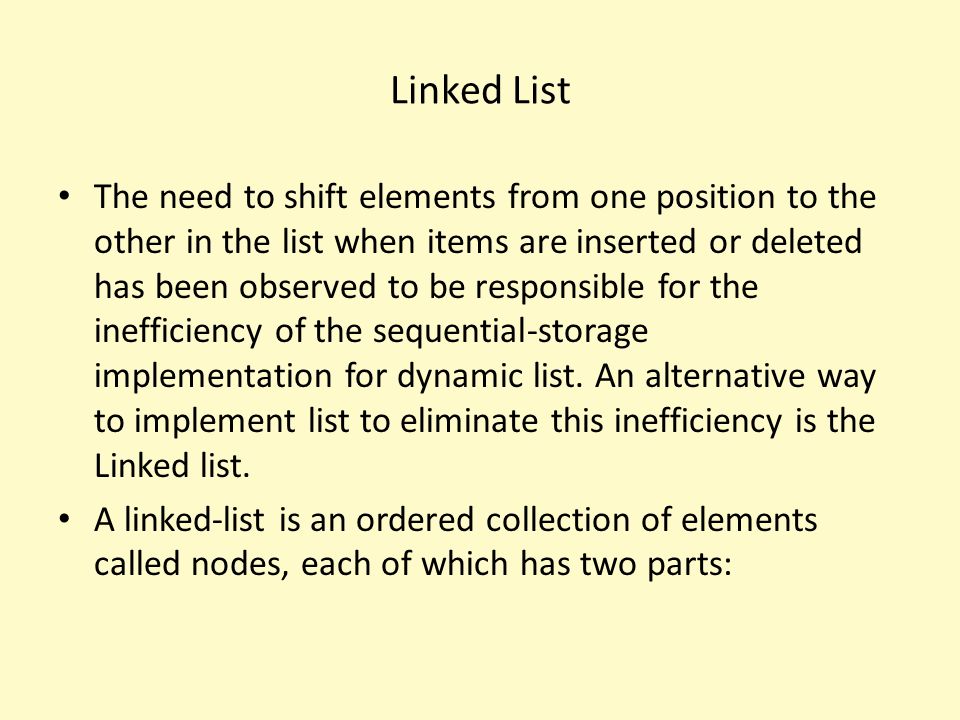

8. Linked List The need to shift elements from one position to the other in the list when items are inserted or deleted has been observed to be responsible for the inefficiency of the sequential-storage implementation for dynamic list. An alternative way to implement list to eliminate this inefficiency is the Linked list. A linked-list is an ordered collection of elements called nodes, each of which has two parts:

9. Linked list - a data part that stores an element of the list. -a next part that stores a link or pointer that indicates the location of the node containing the next list element. If there is no next element then a null value is used e.g to represent 9, 17, 22, 26,34 can be represented as follows: data first next 9 17222634

10. Linked list A linked list could also be described as list whose nodes contain two fields: an integer value and a link to the next node, whereby the last node is linked to a terminator used to signify the end of the list. Doubly Linked list: is a linked list whose nodes contain three fields namely an integer value, the link forward, and the link backward to the previous node. 151238 X

11. Doubly linked list Multiply Linked list: Each node contains two or more link fields, each field being used to connect the same set of data records in a different order (e.g., by name, by department, by date of birth, etc.). (While doubly linked lists can be seen as special cases of multiply linked list, the fact that the two orders are opposite to each other leads to simpler and more efficient algorithms, so they are usually treated as a separate case.) 403150 X X

12. Multiply(Multi-linked list) Doubly-linked lists are a special case of Multi-linked lists; it is special in two ways: (1) each node has just 2 pointers. (2)the pointers are exact inverses of each other In multiply (or multi- linked list) each node can have any number of pointers to other nodes, and there may or may not be inverses for each pointer. Multi-linked list is to organize a collection of elements in two different ways. For example, suppose my elements include the name of a person and his/her age. e.g. (FRED,19) (MARY,16) (JACK,21) (JILL,18)

13. Multi linked list to order Name and Age

14. Multi linked list for Sparse Matrix X = 1 2 3 ---------- Y=1 | 0 88 0 Y=2 | 0 0 0 Y=3 | 27 0 0 Y=4 | 19 0 66

15. Multi linked list-Sparse Matrix The sparse matrix is represented by having linked lists for each row and each column. Because each node is in exactly one row and one column it will appear in exactly two lists - one row list and one column. So it needs two pointers: Next-in-this-row and Next-in-this-column.

16. Multi linked list-Sparse Matrix

17. Stack attributes Is a LIFO data structure Stack functions in the following ways; (i)If an item is added to the stack, those below are pushed down and cannot be accessed. (ii)If an item is removed from the stack, those below it are poped up by one position. (iii)The stack becomes empty when there is no item in it. (iv) The stack is full if there is no room in it for anymore item.

18. Stack-OPERATIONS Basic operations in stack includes: Construct: Build or design a stack Check: Find out if a stack is empty. Push: Add an item to a stack. Pop: Remove an item from a stack. Top: Retrieve the top element of stack

19. Construction for the stack class class Stack { /**********Function Members *****/ public: /*----------Constructor------ * Precondition: A stack has been declared. * Postcondition: The stack has been constructed as an empty stack ********************************************************* Stack(); /**********Data Members*************/ private: StackElement myArray[STACK_CAPACITY]; Int myTop; //--------Definition of Class Constructor inLine Stack: : Stack() {myTop=-1} #endif

20. Stack-Application Areas Function calls Reverse Polish Notation

21. Queues A queue is a “waiting line” such as; - a line of persons waiting to check out at a supermarket. -a line of vehicles at a toll gate. -a line of planes waiting to land at airport e.t.c. In each of the above, the items are serviced in the order in which they arrive. Hence, it FIFO or FCFS. In a queue, insertion and deletion are restricted to the ends of the list. The items are removed from a queue at the end called the front(head) and elements are added only at the other end called back(tail or rear)

22. Queues operations Construct a queue. Check if a queue is empty. AddQ: Add an item at the back of a queue. Front: Retrieve the element at the front of the queue. RemoveQ: Remove the element at the font of the queue. Deque: is a double-ended queue. It is the data structure where insertions and deletion takes place at both ends.

23. Application areas Queue: Information Centre Simulation Deque: * Scrolling of windows * Entering of data through keyboard and deleting it with backspace.

24. Queue- Algorithm Algorithm for Arrival of New Call 1. Generate a random integer x in the range 0 to 100. 2. If x<simVals.arrivaRate a. Increment simVals.callsReceived by 1 b. Generate a new random number x. c. Set i to 1 d. While x> simVals.servicePercent(i) Increment i by 1 e. Construct the newCall with its timeOfArrival initialized to t.Minutes() and its serviceTime initialized to i. f. Add newCall to the incomingCalls queue.

25. Recursion Recursion is a programming concept whereby a function is made to call itself. Types of recursion are: - Direct recursion: where a function calls itself. - Indirect recursion: where a function is called is called by the chains of function calls initiated by itself. A common example is the program for calculating a factorial of a number.

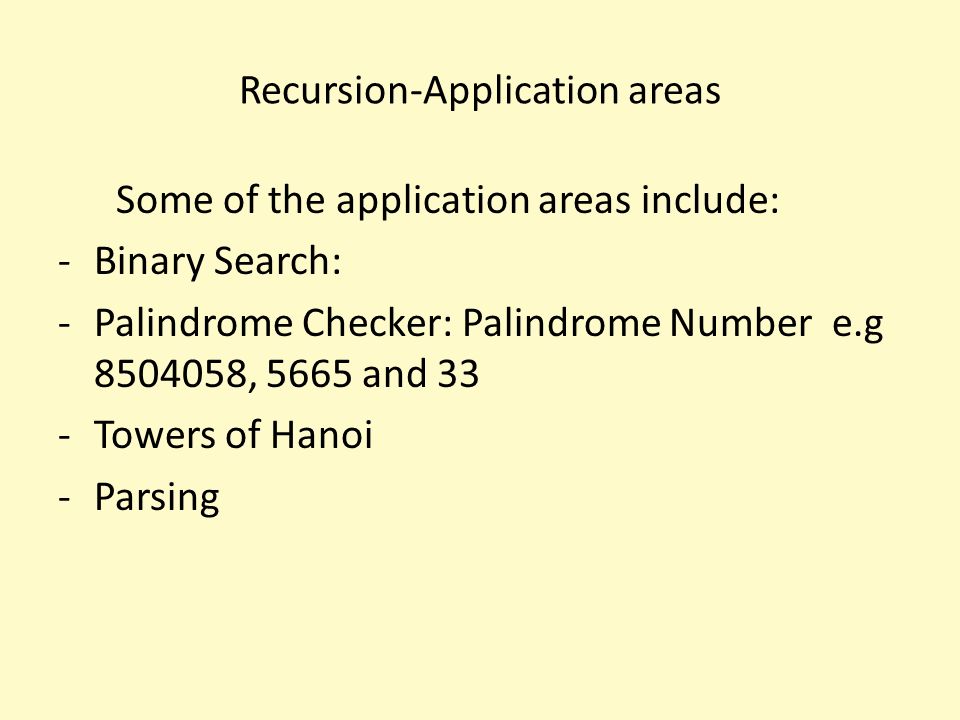

26. Recursion-Application areas Some of the application areas include: -Binary Search: -Palindrome Checker: Palindrome Number e.g 8504058, 5665 and 33 -Towers of Hanoi -Parsing

27. Recursion-Algorithm Algorithm for Recursive Palindrome Checker 1. If numDigits ≤ 1 Return the value true 2. Divide number by 10 numDigits-1 to obtain firstDigit. 3. Set lastDigit equal to number % 10 4. If firstDigit ≠last Digit Return the value false 5. Apply the algorithm recursively to number with firstDigit and lastDigit removed that is, to Number % 10numberDigit-1/10, and numDigits-2.

28. Trees A tree is made up of a finite set of elements called nodes or vertices and a finite set of directed arcs that connect pairs of nodes. It is a data structure that is suitable for modeling hierarchical data. 1 3 7 6 5 2 4 9 8

29. Trees 9 Vertices (Vertex 1= Root) Leaves( Vertex with no outgoing arc). Children (Nodes that are directly accessible from a given node with only one directed arc). Parent (Nodes from which a child or children emanate). Siblings (Nodes or vertices of the same parent).

30. Binary Trees Trees in which each node has at most two children are called Binary Trees. They can be used to solve a variety of problems. They are mostly used in modeling processes in which some experiments or tests with two possible outcomes (e.g off or on, 0 or 1, false or true, down or up) is performed repeatedly. An example is the possible outcomes of flipping a coin three times.

31. Binary Tree As Recursive Data Structure: Owing to the recursive nature of Binary Tree, many basic operations can be simply performed on it using recursive algorithms e.g using NLR(Preorder) while traversing. where N means Visit the root and process the data in it. L MEANS traverse the left subtree of a node, and R means traverse the right subtree of a node. We also have LNR (Inorder), and LRN (Postorder).

32. Binary Trees Example: Represent the binary tree (expression tree) below in its (i) inorder (ii) preorder and (iii) postorder traversal. + D - * A BC

33. Binary tree-Solution Inorder traversal: A-B*C+D Preorder traversal: +-A*BCD Postorder traversal: ABC*-D+

34. References Malik, D.S.: Data Structures using C++ 2 ND Edition. 2009. Clliford, A.S :Data Structures and Algorithm Analysis Using C++ (Third Edtion).
