Data Structures Grade 12 Computer Studies HG

2 Data Types An important concept in most programming languages is that of data types Each variable or attribute that is declared needs an associated type A type identifies a certain set or collection of values that a variable can store

3 Type Examples For instance if we want to store counting numbers we could declare a variable of type int We do this because the int (or integer) data type can store any whole number from -2,147,483,648 to 2,147,483,647 Another example is if we wanted to represent whether someone is married or not we could declare a variable of type boolean We choose boolean because we can store two values with a boolean (true or false) which is all we need in this particular case

4 Java numeric data types
Java has the following data types: byte to 127 short to 32767 int -2,147,483,648 to 2,147,483,647 long -9,223,372,036,854,775,808 to 9,223,372,036,854,775,807 float 1.4 x to 3.4 x 1038 double 4.9 x to 1.7 x 10308 char any unicode character

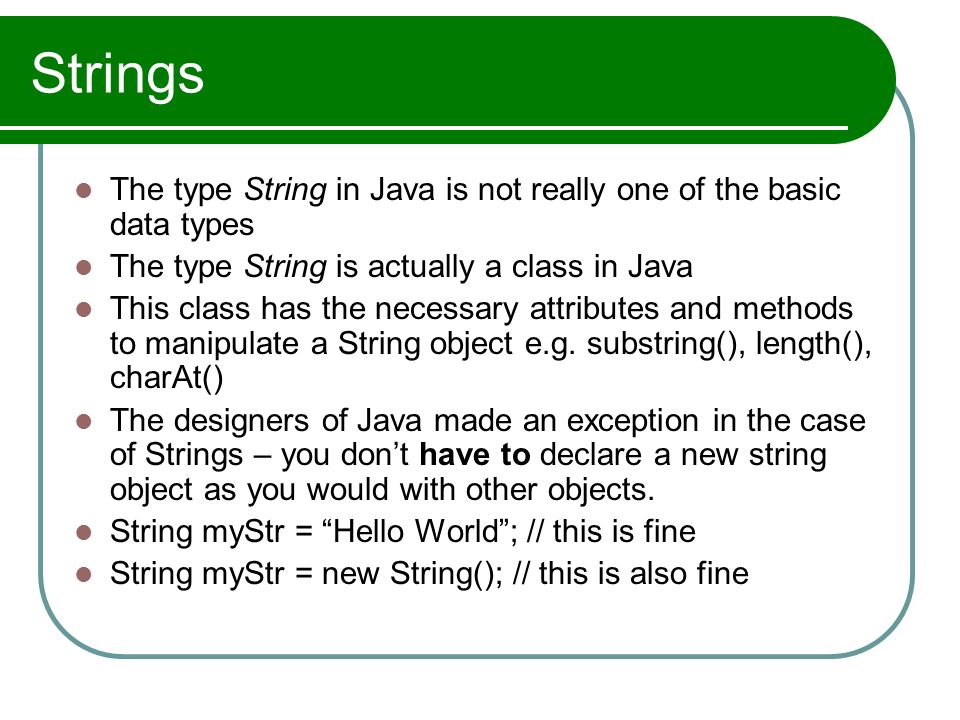

5 Strings The type String in Java is not really one of the basic data types The type String is actually a class in Java This class has the necessary attributes and methods to manipulate a String object e.g. substring(), length(), charAt() The designers of Java made an exception in the case of Strings – you don’t have to declare a new string object as you would with other objects. String myStr = “Hello World”; // this is fine String myStr = new String(); // this is also fine

6 Dynamic Variable Declaration
Programming languages that support dynamic variable declaration can have variable declarations anywhere in the program Java supports this type of variable declaration You can have the line int num1; anywhere in your program so long as it is in scope when it is needed In other words the only restriction for declaration is that the variable is visible when it is needed

7 Static Variable Declaration
Believe it or not some languages don’t use dynamic declaration like Java does Instead all variables need to be declared in a predefined section of the code. This section is usually above all other code and all variables need to be declared in that section

8 The need for multi-valued variables
Sometimes we need to store a collection of data of the same type Often having a separate variable for each value is cumbersome For instance if we wanted to store the temperature for everyday in June we don’t want to declare 30 separate variables (temp1, temp2… temp30) The ideal situation would be to have one variable that could store 30 values such that we can choose which value we want to retrieve or store/change Luckily most programming languages provide us with this feature.

9 Arrays 1 An array is one variable
The array can store as many data items as the programmer chooses Each data item must be of the same type (homogenous) Every data item is stored separately in the array We can specify the location of the data item we want to change or look at

10 Arrays 2 We can represent an array called fiveInt of 5 integers as follows: The data in position 2 is the number 6 and the data in position number 4 is 72 Notice how the numbering of the positions starts at 0 and ends at 4 So even though the array has 5 data items there is no position 5 in the array 23 34 6 56 72 1 2 3 4 position

11 Arrays 3 We can represent an array called myStrings of 4 Strings as follows: The data in position 0 is the word “dog” and the data in position number 3 is “frog” Position 2 has a null value. Note that this is not the word “null” but a way of indicating that the 2nd position in the array is empty “dog” “cat” null “frog” 1 2 3 position

12 Arrays in Java 1 Arrays are declared in a similar way to normal integers: int[] myArray = new int[4]; An array of int’s allocates memory holds 4 items called myArray

13 The int’s to place in each position
Arrays in Java 2 The array from the following slide can be filled with values as follows: myArray[3] = 34; myArray[1] = 23; myArray[0] = 87; myArray[2] = 33; The int’s to place in each position Position in the array to place the data

14 Arrays in Java 3 We can use the values in the arrays as follows:
myArray[0] = myArray[2] + 34 * 69; adds the data in position 2 to 34 * 69 and stores the result in position 0 System.out.println(myArray[0]); prints out the value of the integer in position 0 of the array (that is 2433)

15 Arrays in Java 4 Why would the following lines of code not work with the previously declared array? myArray[4] = 78; myArray[0] = “bob”; myArray = 45; Can you correct the lines?

16 Static Structures Arrays are static data structures because their size is determined when the code is being written The size of the array cannot be changed during the execution of the program If we declare an array of 12 integers then once the program starts running we cannot store any more than 12 integers in the array Once memory has been allocated for the array it is fixed during execution of the program Static data structures are like hose-pipes. If you get a bigger garden then too bad. Buy a new hose-pipe! Static means motionless or inactive

17 Dynamic Data Structures
These data structures can change size during execution of a program Dynamic data structures grow and shrink as required by the program The size of the structure is determined during run-time Dynamic data structures are like Kreepy-Krauly pipes. Getting a bigger pool? Just add more pipes :) Dynamic means active or changing

18 Example If we wanted to write a school database and we wanted to declare a structure to store Student objects what size would we make it? Option 1 – 1300? This is fine but what if we get more students next year? Option 2 – 5000? This is way too big. We might never get that many students Option 3 – Dynamic Data Structure. Perfect this would grow and shrink depending on the amount of data items needed

19 The story so far… We’ve looked at the basic data types in Java
int, float, double, byte, long char String Arrays of all of the above We’ve looked at the sizes of data structures Static and Dynamic In the next episode of Data Structures Advanced Data Types (ADT’s)

20 Advanced Data Types (ADT’s)
ADT’s provide us with extra functionality in programming languages. Some ADT’s come standard with Java and others need to be implemented by the programmer. Either way they are fairly complex to code. The ADT’s that we will examine are the most widely used ADT’s in programming.

21 Lists Lists are everyday occurences.
Telephone directories Shopping lists To Do lists Class lists Definition: A list is a sequence of items of the same type Ordered lists have their items in a predefined order. i.e. Alphabetically or numerically The size of a list is how many items it contains at any given time

22 Linked Lists Linked Lists are a dynamic data structure
Each item in a linked list is referred to as a node. Each node consists of two parts: Data (Item) Field – This is the actually data stored in that position of the list (e.g. “dog”, 23) Next Field – Contains a pointer to the next node in the list

23 Diagram of a node 34 Data Field Next Field

24 Design of a Linked List Each node is connected to the next node via the next field of each node. The first node is indicated by a head node which contains no data field but only a next field. The last node’s next field always points to null. head 45 67 89 99 null

25 Operations on a Linked List
Create an empty list Check if list is empty Get number of items in the list Copy one list to another list Traverse the list Retrieve an item, given it’s position Search for an item Insert an item Delete an item

26 Adding We need to be careful when adding items to a linked list because if we lose a next field of any of the nodes we lose all nodes after that node. 5 Steps: Create the new node with a pointer to it. Find the position where the node is to be inserted (call it position x). Create a temporary pointer to the node after the position (i.e. the node in position x + 1). Make the next field of node (x-1) point to the new item. Make the new items next field point to temporary pointer.

27 Adding: Step 1 head 45 67 89 99 null new 72

28 Adding: Step 2 position x head 45 67 89 99 null new 72

29 Adding: Step 3 temp head 45 67 89 99 null new 72

30 Adding: Step 4 temp head 45 67 89 99 null new 72

31 Adding: Step 5 temp head 45 67 89 99 null new 72

32 Deleting Deleting is much easier 2 Steps
Chose the item to be deleted (position x) Point the next field of node at (x-1) to the node after position x (x+1)

33 Deleting: Step 1 position x head 45 67 89 99 null

34 Deleting: Step 2 head 45 67 89 99 null

35 Stacks Stacks are data structures that allow data items to be added and removed at the top only. For this reason stacks are called LIFO (Last In First Out) structures because the last item to be added to the stack is the first item to be removed. Just like a stack of plates at a restaurant. Inserting an item at the top of a stack is referred to as pushing. Removing an item off the top is referred to as popping.

36 Example Consider the following operations: push “R”; push “T”; push “Y”; pop; push “J”; pop; pop; R T R Y T R T R J T R T R R Output: Y J T

37 Stack Operations Empty the stack Check if the stack is empty
Determine size of the stack Look at the top item Push Pop

38 Uses of the Stack Recursion Postfix Notation

39 Queues Queues are structures that allow data items to inserted at the rear and removed from the front only. Known as FIFO (First In First Out) structures because the first item to be inserted into the queue will be the first item to be removed. These queues are no different from the queues in everyday life (e.g. shopping centers)

40 Example Consider the following operations insert “A” insert “B” insert “C” remove an element remove an element A A B Output: A B A B C B C C

41 Uses Print Queues Real-life Simulation Statistics:
Average number of element in queue Average time spent in queue Probability that queue will be longer than x Probability that waiting time will be greater than x Minimum and maximum length of a queue of a period of time Minimum and maximum waiting time over a period of time

42 Implementation: Stacks and Queues
Option 1: Using arrays Programmer has to keep track of where the front (top) and rear of the structure is. Only homogenous items can be stored FIXED SIZE! Queues and stacks grow and shrink during execution Option 2: Using a dynamic structure Linked list!

43 Trees In a tree each node may have one or more next field.
This results in a tree-like structure. N F Q E G T

44 Naming Conventions Root Node – The first node
Child Node – Node beneath another node (each node has only one parent) Parent Node – A node with nodes beneath it Leaf Node – Nodes with no children Siblings – Adjacent nodes

45 Naming Conventions N Root node and parent of F and Q F Q Sibling of Q
Child node of N and Parent of T E G T Leaf node

46 Binary Trees Binary trees are trees in which each node may have at most two sub trees. These are called left and right sub trees. Each node has three elements: Data (Item Field) Left Pointer Right Pointer The left children of a parent always have smaller values than their parents. The right children of a parent always have larger values that their parents.

47 Example Insert the following into a binary tree:
50, 34, 12, 78, 36, 30, 67, 44, 52 N, A, Y, T, F, D, S, R, R

48 Binary Tree Traversal Pre-Order In-Order Post-Order Visit the root
Traverse the left sub-tree in pre-order Traverse the right sub-tree in pre-order In-Order Traverse the left sub-tree in in-order Traverse the right sub-tree in in-order Post-Order Traverse the left sub-tree in post-order Traverse the right sub-tree in post-order

49 Examples Traverse both previous trees in in-order, pre-order and post-order. What do you notice about in-order traversals?

50 Uses Representing mathematical expressions Compilers Searching Sorting

51 End
