1. © 2009 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. HP ProCurve 8206zl Switch and HP ProCurve 8200zl/5400zl Switch New zl Modules Oct 2009

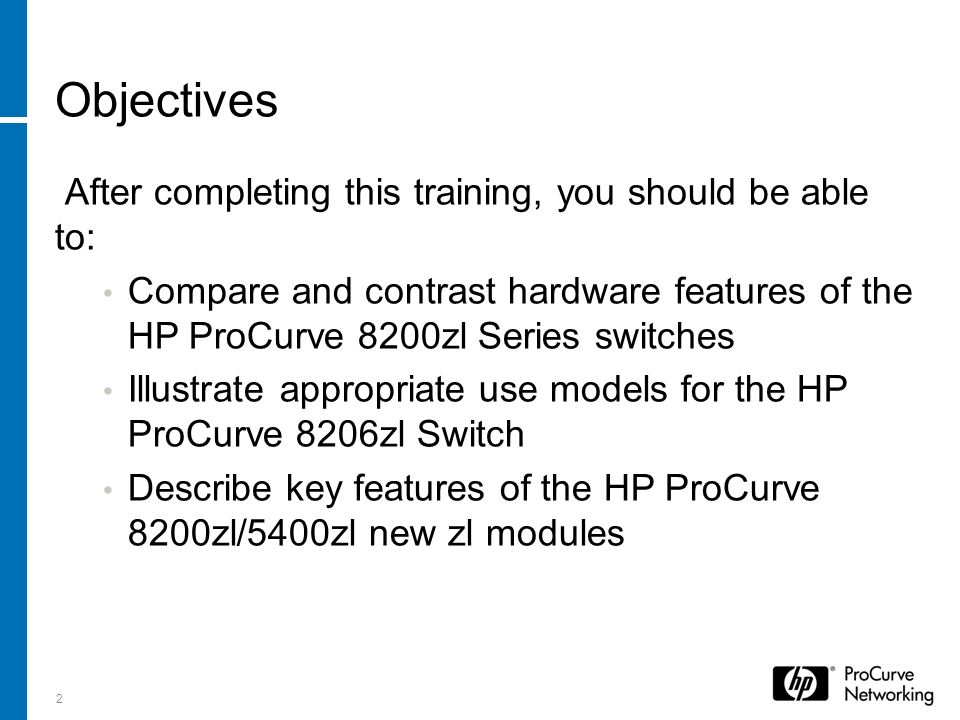

2. 2 Objectives After completing this training, you should be able to: Compare and contrast hardware features of the HP ProCurve 8200zl Series switches Illustrate appropriate use models for the HP ProCurve 8206zl Switch Describe key features of the HP ProCurve 8200zl/5400zl new zl modules

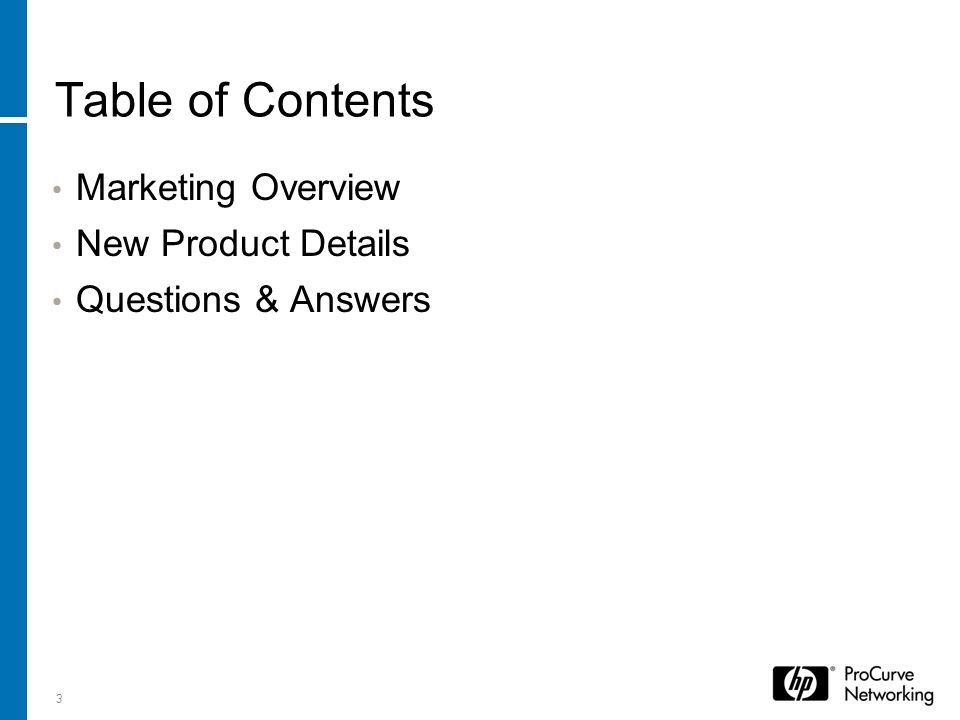

3. 3 Table of Contents Marketing Overview New Product Details Questions & Answers

4. © 2009 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. Marketing Overview

5. 5 HP ProCurve 8206zl Switch Overview Lower-cost, space-efficient alternative to the 8212zl Moderate port-count network deployments: −LAN mid-size core/distribution: Small/medium enterprise HQ, large enterprise branch LAN −LAN highly available access layer: Medium/large enterprise −Data center end-of-row access/aggregation layer Like the HP ProCurve 8212zl Switch: − Highly available core/distribution and access layer switch −Flexible, scalable chassis form factor

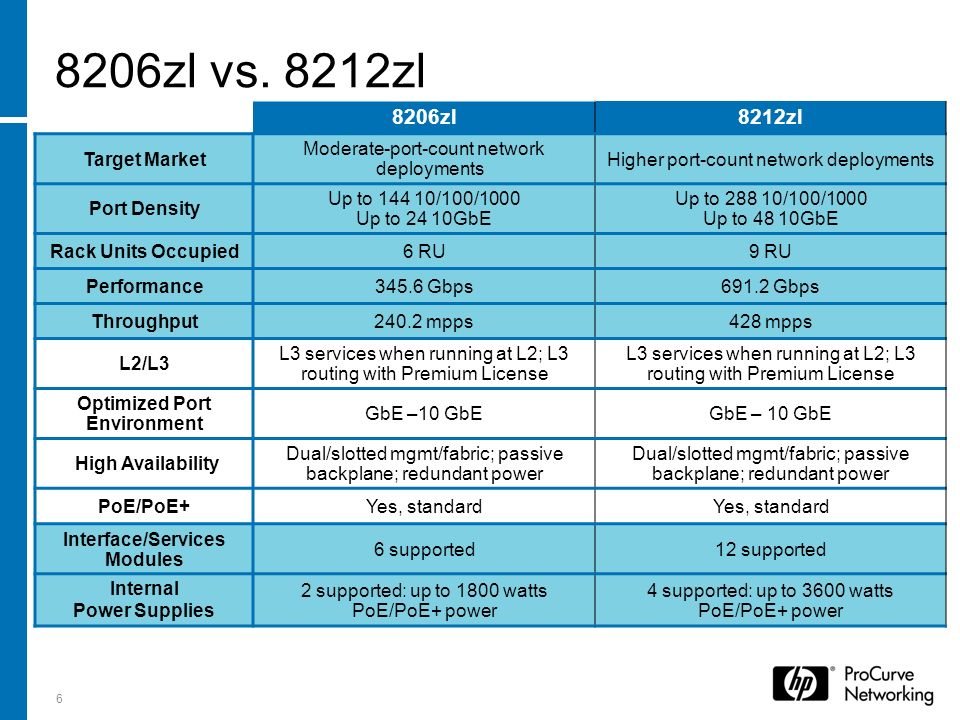

6. 6 8206zl vs. 8212zl 8206zl8212zl Target Market Moderate-port-count network deployments Higher port-count network deployments Port Density Up to 144 10/100/1000 Up to 24 10GbE Up to 288 10/100/1000 Up to 48 10GbE Rack Units Occupied6 RU9 RU Performance345.6 Gbps691.2 Gbps Throughput240.2 mpps428 mpps L2/L3 L3 services when running at L2; L3 routing with Premium License Optimized Port Environment GbE –10 GbE High Availability Dual/slotted mgmt/fabric; passive backplane; redundant power PoE/PoE+Yes, standard Interface/Services Modules 6 supported12 supported Internal Power Supplies 2 supported: up to 1800 watts PoE/PoE+ power 4 supported: up to 3600 watts PoE/PoE+ power

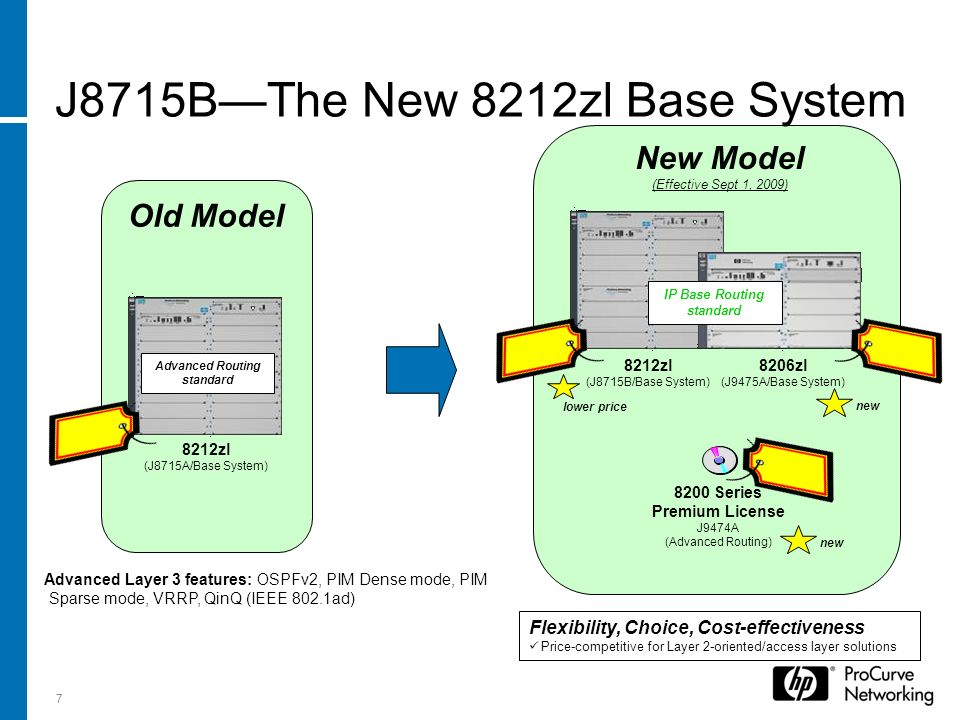

7. 7 8212zl (J8715A/Base System) Old Model Advanced Layer 3 features: OSPFv2, PIM Dense mode, PIM Sparse mode, VRRP, QinQ (IEEE 802.1ad) 8212zl (J8715B/Base System) 8206zl (J9475A/Base System) New Model (Effective Sept 1, 2009) lower price 8200 Series Premium License J9474A (Advanced Routing) new Advanced Routing standard IP Base Routing standard new Flexibility, Choice, Cost-effectiveness Price-competitive for Layer 2-oriented/access layer solutions J8715B—The New 8212zl Base System

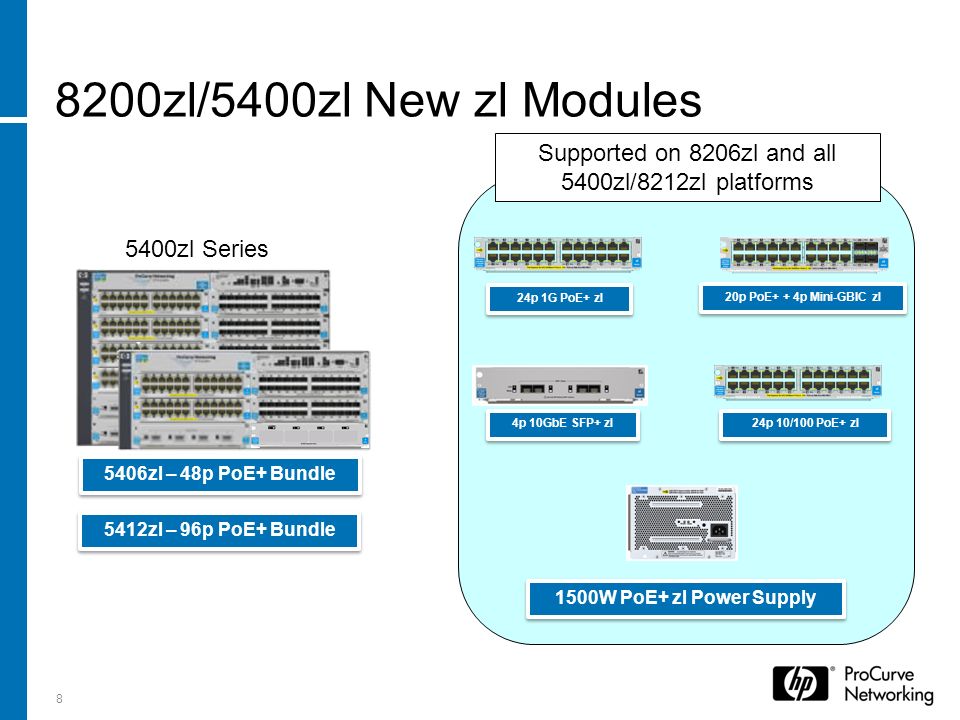

8. 8 5400zl Series 5406zl – 48p PoE+ Bundle 5412zl – 96p PoE+ Bundle 4p 10GbE SFP+ zl 24p 1G PoE+ zl 20p PoE+ + 4p Mini-GBIC zl 24p 10/100 PoE+ zl 1500W PoE+ zl Power Supply Supported on 8206zl and all 5400zl/8212zl platforms 8200zl/5400zl New zl Modules

9. © 2009 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. New Product Details

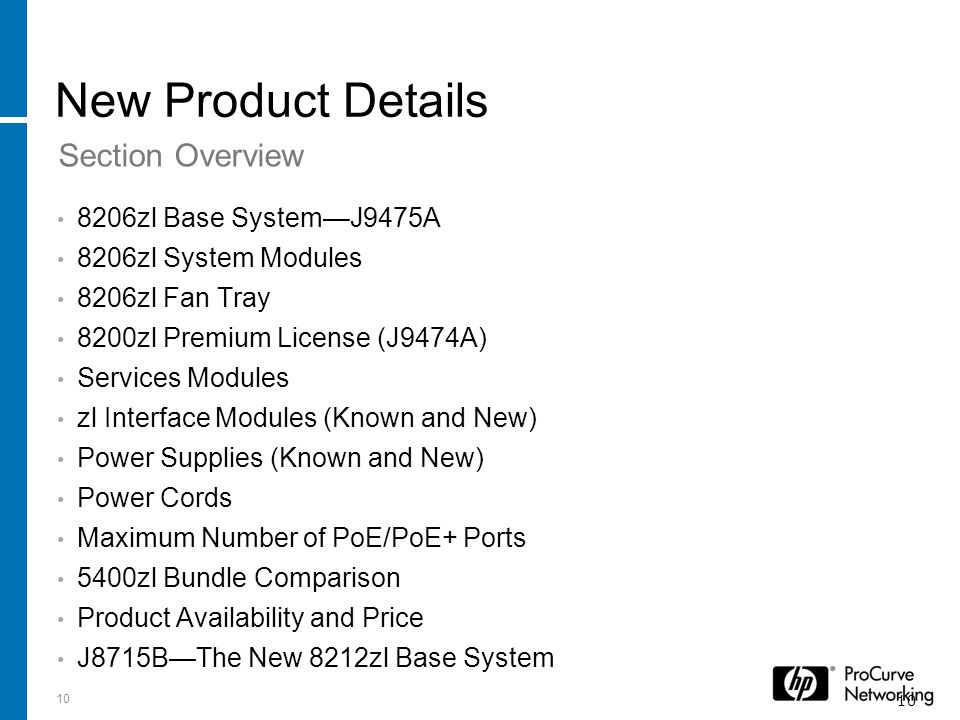

10. 8206zl Base System—J9475A 8206zl System Modules 8206zl Fan Tray 8200zl Premium License (J9474A) Services Modules zl Interface Modules (Known and New) Power Supplies (Known and New) Power Cords Maximum Number of PoE/PoE+ Ports 5400zl Bundle Comparison Product Availability and Price J8715B—The New 8212zl Base System 10 Section Overview

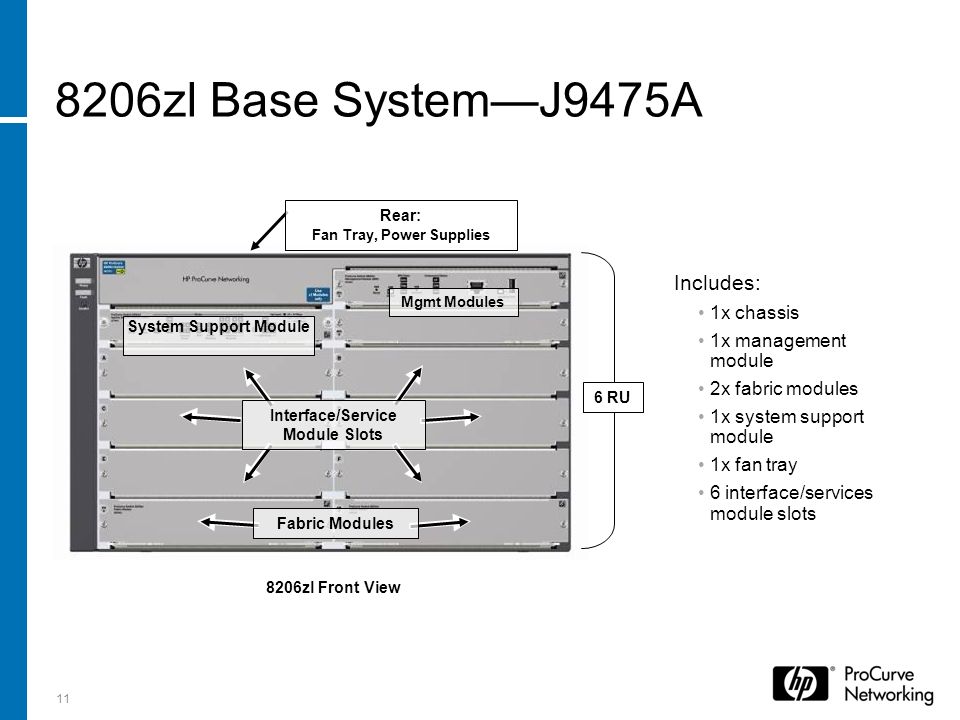

11. 11 8206zl Base System—J9475A Includes: 1x chassis 1x management module 2x fabric modules 1x system support module 1x fan tray 6 interface/services module slots Mgmt Modules System Support Module Interface/Service Module Slots Fabric Modules Rear: Fan Tray, Power Supplies 6 RU 8206zl Front View

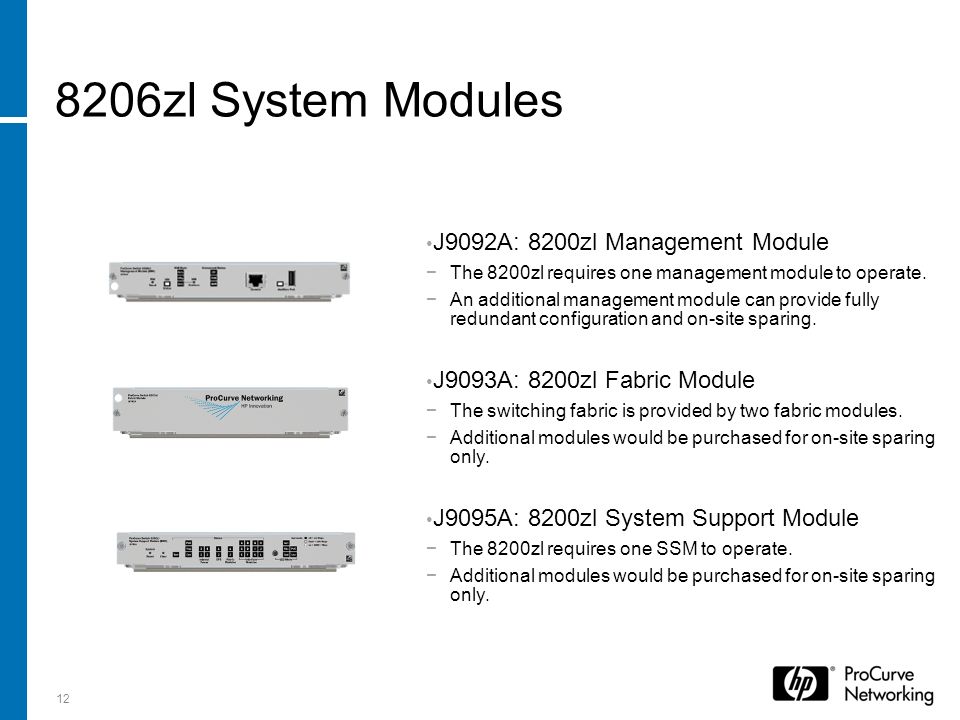

12. 12 8206zl System Modules J9092A: 8200zl Management Module −The 8200zl requires one management module to operate. −An additional management module can provide fully redundant configuration and on-site sparing. J9093A: 8200zl Fabric Module −The switching fabric is provided by two fabric modules. −Additional modules would be purchased for on-site sparing only. J9095A: 8200zl System Support Module −The 8200zl requires one SSM to operate. −Additional modules would be purchased for on-site sparing only.

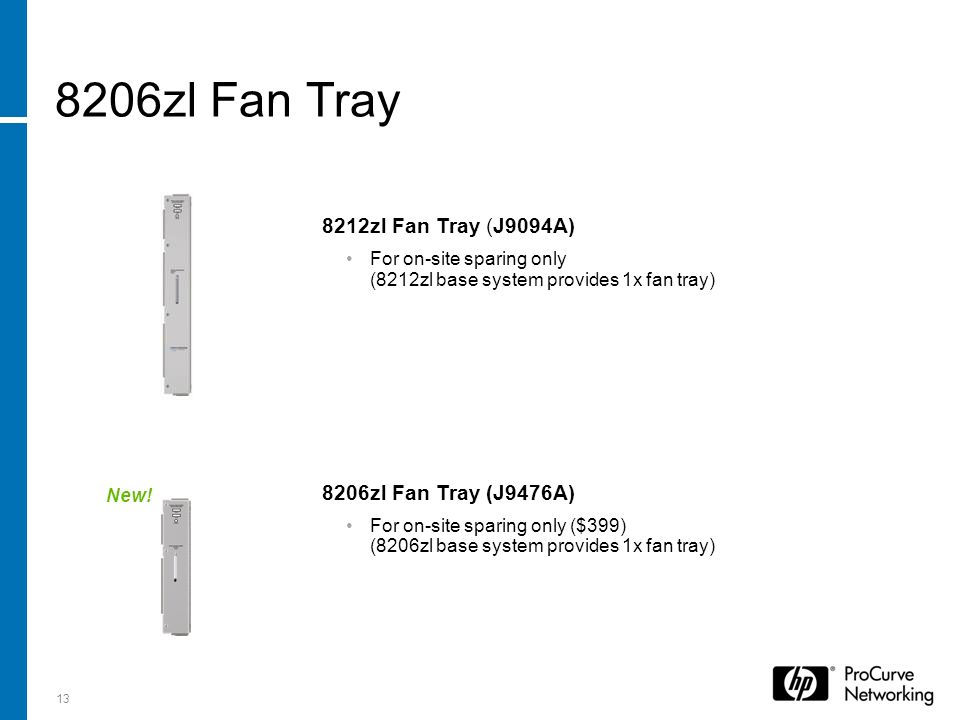

13. 13 8206zl Fan Tray 8212zl Fan Tray (J9094A) For on-site sparing only (8212zl base system provides 1x fan tray) 8206zl Fan Tray (J9476A) For on-site sparing only ($399) (8206zl base system provides 1x fan tray) New!

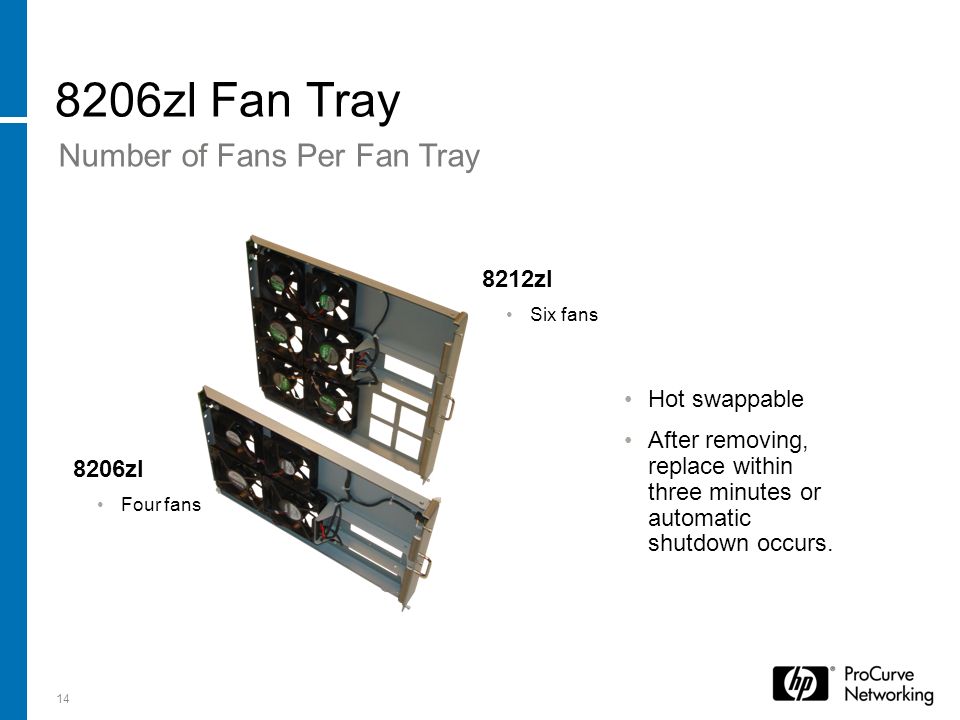

14. 14 8206zl Fan Tray 8212zl Six fans 8206zl Four fans Number of Fans Per Fan Tray Hot swappable After removing, replace within three minutes or automatic shutdown occurs.

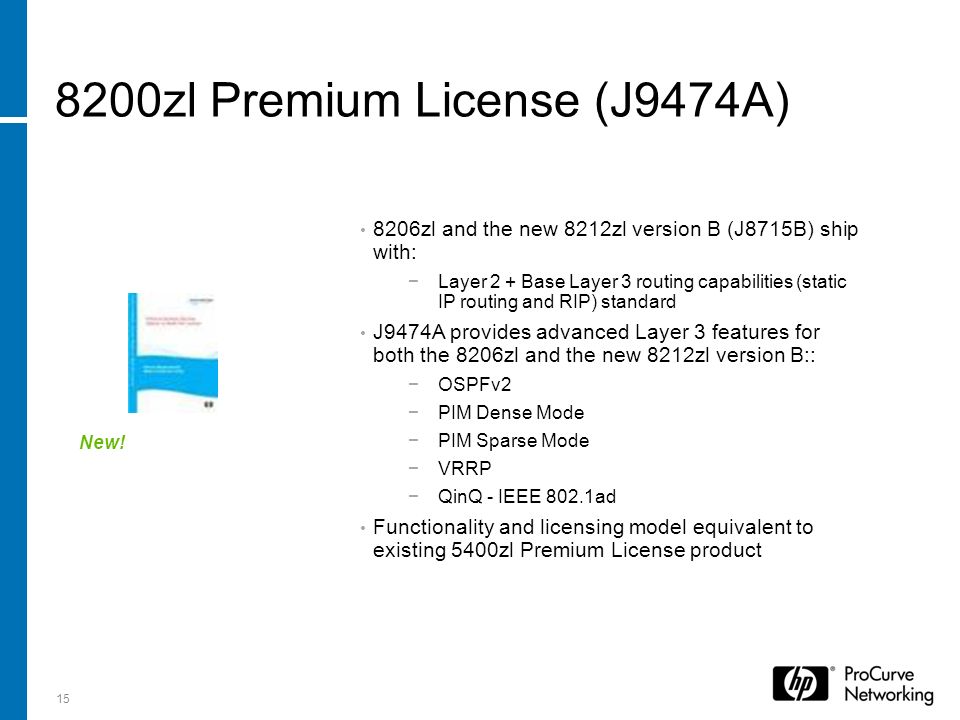

15. 15 8200zl Premium License (J9474A) New! 8206zl and the new 8212zl version B (J8715B) ship with: −Layer 2 + Base Layer 3 routing capabilities (static IP routing and RIP) standard J9474A provides advanced Layer 3 features for both the 8206zl and the new 8212zl version B:: −OSPFv2 −PIM Dense Mode −PIM Sparse Mode −VRRP −QinQ - IEEE 802.1ad Functionality and licensing model equivalent to existing 5400zl Premium License product

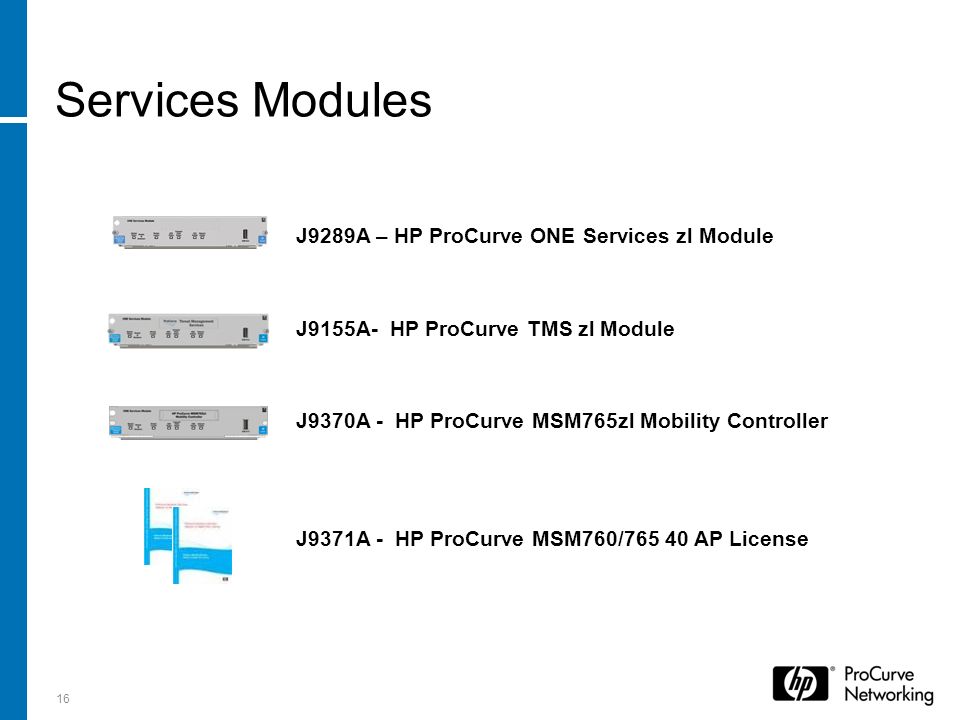

16. 16 Services Modules J9289A – HP ProCurve ONE Services zl Module J9155A- HP ProCurve TMS zl Module J9370A - HP ProCurve MSM765zl Mobility Controller J9371A - HP ProCurve MSM760/765 40 AP License

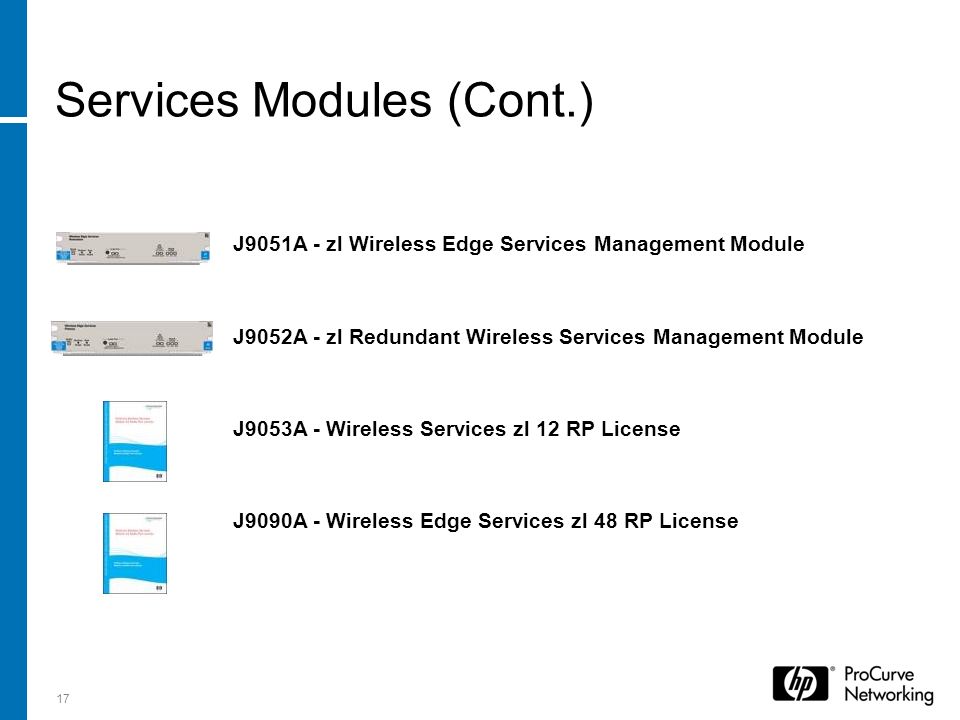

17. 17 Services Modules (Cont.) J9051A - zl Wireless Edge Services Management Module J9052A - zl Redundant Wireless Services Management Module J9053A - Wireless Services zl 12 RP License J9090A - Wireless Edge Services zl 48 RP License

18. 18 Known zl Interface Modules J8702A: 24-Port 10/100/1000 PoE zl Module J8705A: 20-Port 10/100/1000 PoE + 4-Port Mini-GBIC/SFP zl Module LH-LC, LX-LC, SX-LC, BX, 1000Base-T Mini-GBIC/SFP support 100-Meg xcvrs (100-FX) for SFP slots J8706A: 24-Port Mini-GBIC zl Module LH-LC, LX-LC, SX-LC, BX, 1000Base-T Mini-GBIC support J8707A: 4-Port 10GbE X2 zl Module CX4, SR, LR, J8707A - zl 4-Port LRM, or ER optics support J8708A - 4-Port 10GbE CX4 zl Module CX4, SR, LR, J8707A - zl 4-Port LRM, or ER optics support Used with both the 8200zl and 5400zl switches

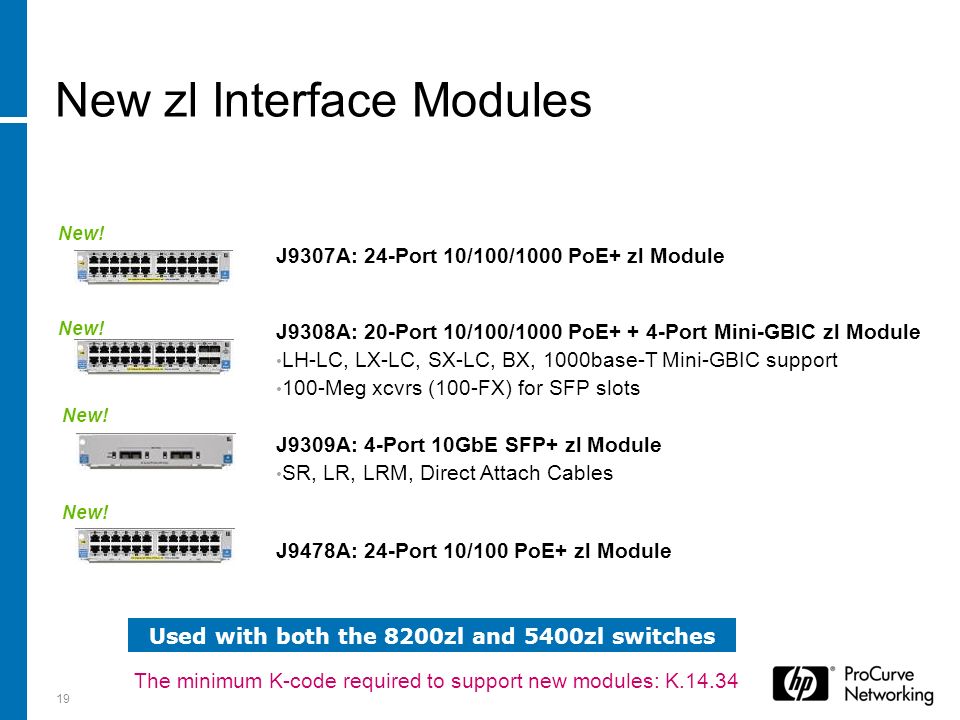

19. 19 New zl Interface Modules J9307A: 24-Port 10/100/1000 PoE+ zl Module J9308A: 20-Port 10/100/1000 PoE+ + 4-Port Mini-GBIC zl Module LH-LC, LX-LC, SX-LC, BX, 1000base-T Mini-GBIC support 100-Meg xcvrs (100-FX) for SFP slots J9309A: 4-Port 10GbE SFP+ zl Module SR, LR, LRM, Direct Attach Cables J9478A: 24-Port 10/100 PoE+ zl Module New! Used with both the 8200zl and 5400zl switches The minimum K-code required to support new modules: K.14.34

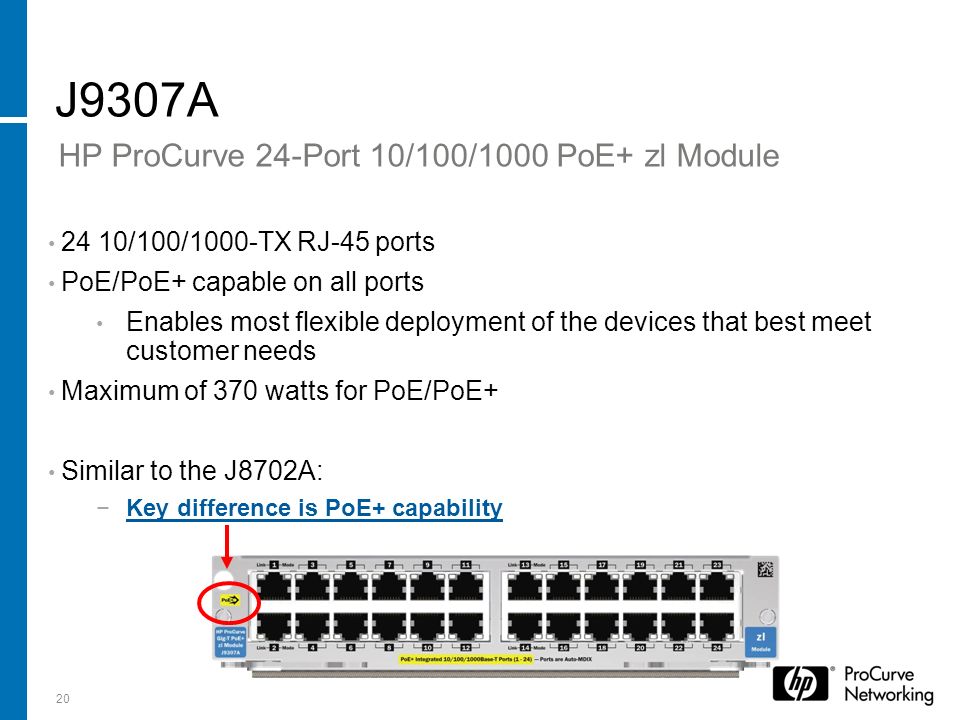

20. 20 24 10/100/1000-TX RJ-45 ports PoE/PoE+ capable on all ports Enables most flexible deployment of the devices that best meet customer needs Maximum of 370 watts for PoE/PoE+ Similar to the J8702A: −Key difference is PoE+ capability HP ProCurve 24-Port 10/100/1000 PoE+ zl Module J9307A

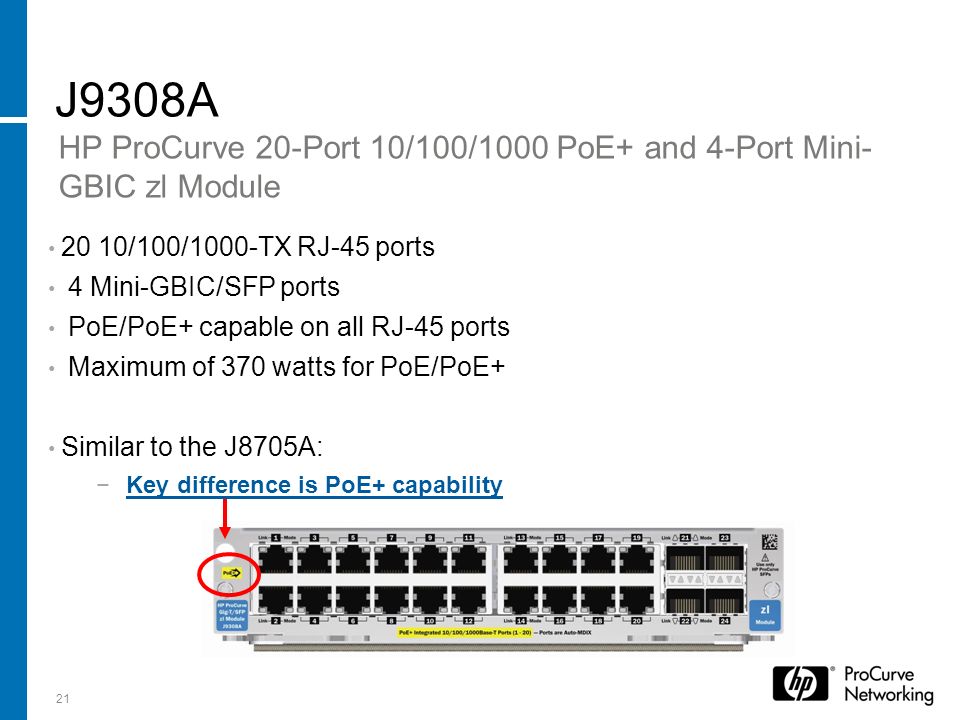

21. HP ProCurve 20-Port 10/100/1000 PoE+ and 4-Port Mini- GBIC zl Module 21 20 10/100/1000-TX RJ-45 ports 4 Mini-GBIC/SFP ports PoE/PoE+ capable on all RJ-45 ports Maximum of 370 watts for PoE/PoE+ Similar to the J8705A: −Key difference is PoE+ capability J9308A

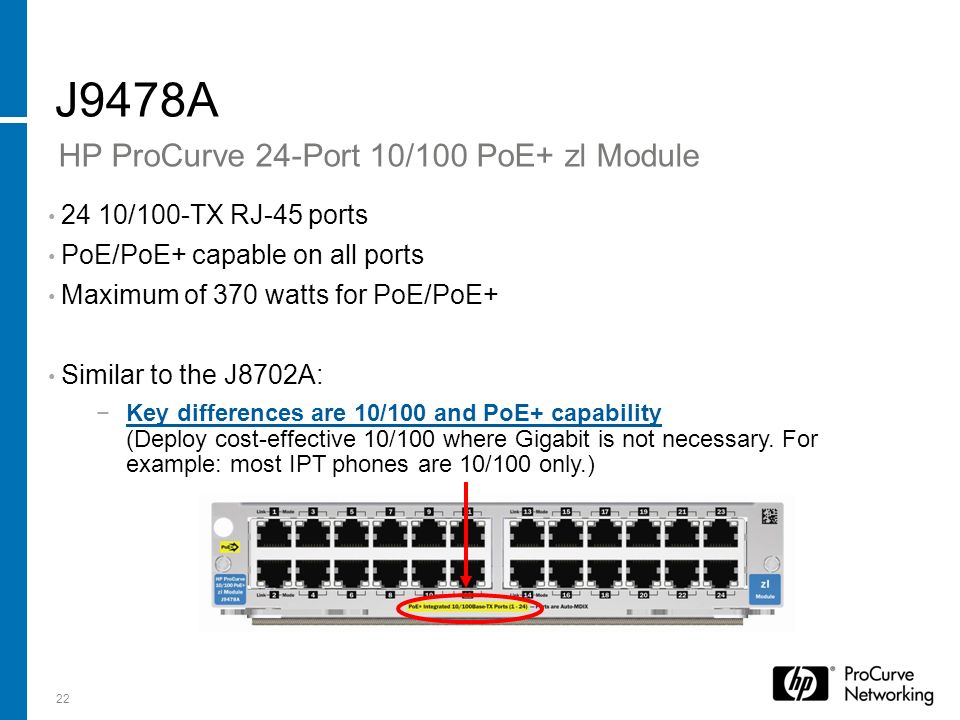

22. 22 HP ProCurve 24-Port 10/100 PoE+ zl Module J9478A 24 10/100-TX RJ-45 ports PoE/PoE+ capable on all ports Maximum of 370 watts for PoE/PoE+ Similar to the J8702A: −Key differences are 10/100 and PoE+ capability (Deploy cost-effective 10/100 where Gigabit is not necessary. For example: most IPT phones are 10/100 only.)

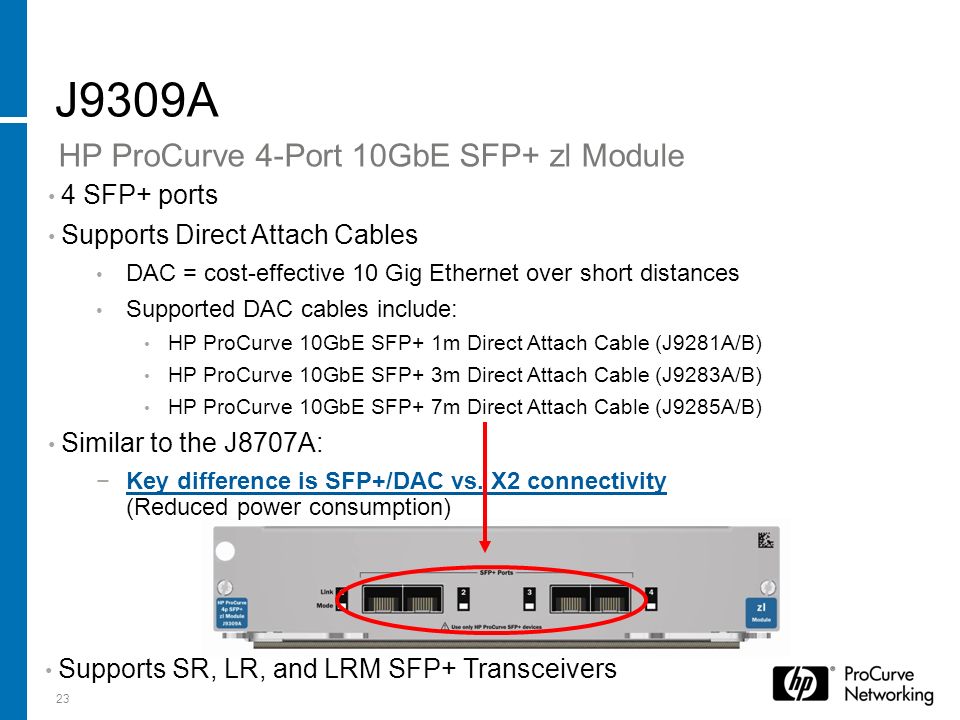

23. Supports SR, LR, and LRM SFP+ Transceivers 23 4 SFP+ ports Supports Direct Attach Cables DAC = cost-effective 10 Gig Ethernet over short distances Supported DAC cables include: HP ProCurve 10GbE SFP+ 1m Direct Attach Cable (J9281A/B) HP ProCurve 10GbE SFP+ 3m Direct Attach Cable (J9283A/B) HP ProCurve 10GbE SFP+ 7m Direct Attach Cable (J9285A/B) Similar to the J8707A: −Key difference is SFP+/DAC vs. X2 connectivity (Reduced power consumption) HP ProCurve 4-Port 10GbE SFP+ zl Module J9309A

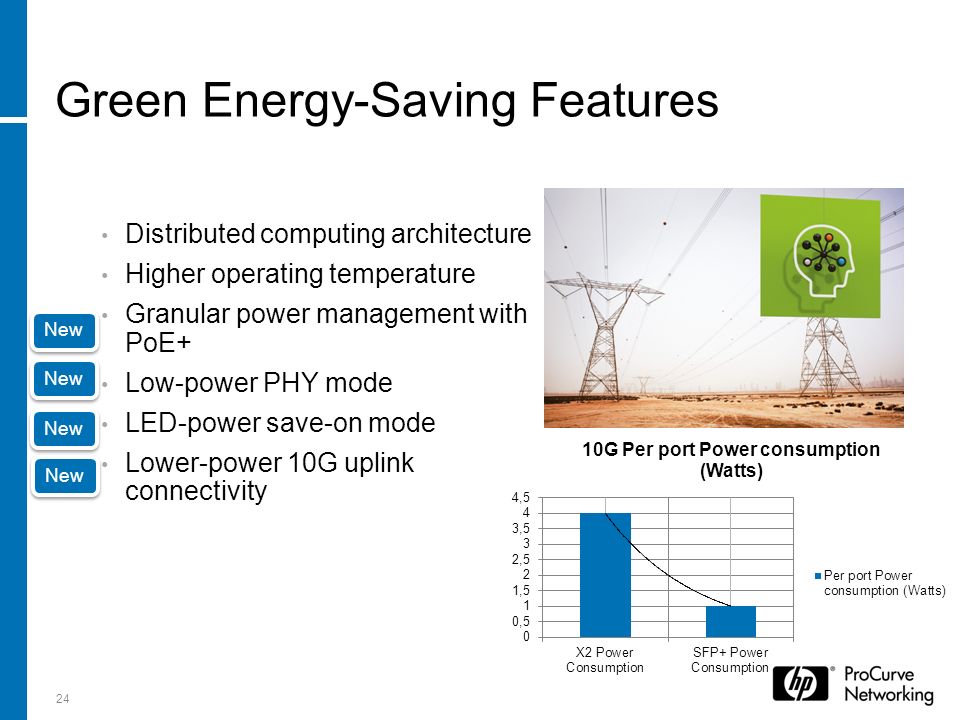

24. 24 Green Energy-Saving Features Distributed computing architecture Higher operating temperature Granular power management with PoE+ Low-power PHY mode LED-power save-on mode Lower-power 10G uplink connectivity New

25. 25 HP ProCurve zl Power Supplies New! Used with both 8200zl and 5400zl 8212zl/5412zl: Up to 4 power supplies, 3600W PoE/PoE+ (5400 watts with Power Supply Shelf) 8206zl/5406zl: Up to 2 power supplies, 1800W PoE/PoE+ (3600W with Power Supply Shelf) Chassis Power PoE Power PoE+ Power 875W Power Supply J8712A (110-127/ 200-240 VAC) 600W273W— 1500W Power Supply J8713A (220 VAC only) 600W900W— 1500W Power Supply J9306A (110-127/ 200-240 VAC) 600W 300W/9 00W Power Supply Shelf J8714A 0 Up to 1800W

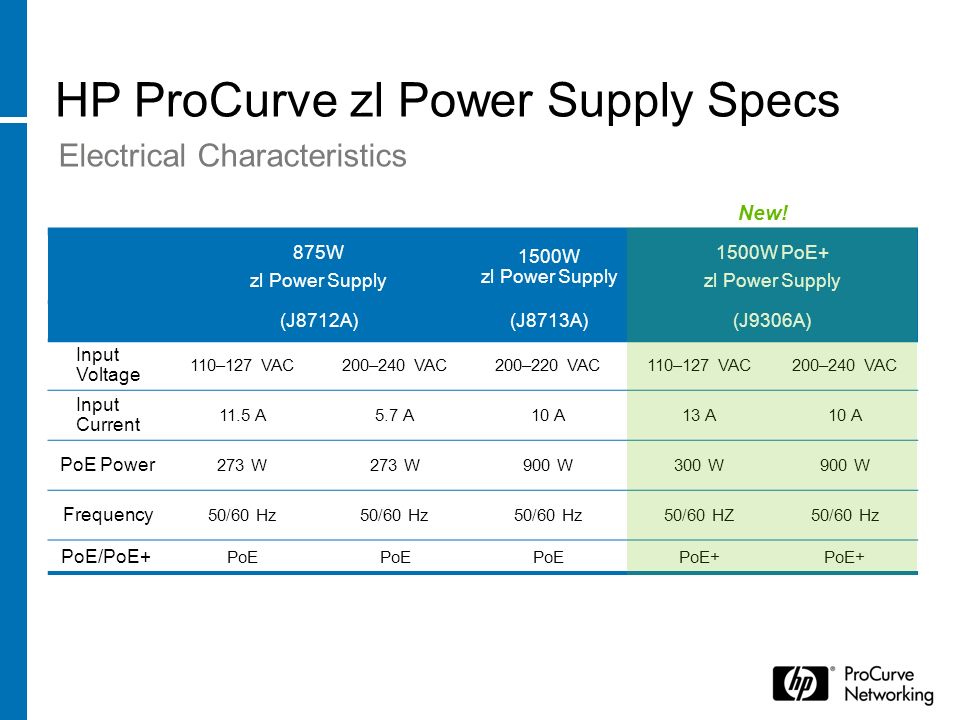

26. 875W zl Power Supply 1500W zl Power Supply 1500W PoE+ zl Power Supply (J8712A)(J8713A)(J9306A) Input Voltage 110–127 VAC200–240 VAC200–220 VAC110–127 VAC200–240 VAC Input Current 11.5 A5.7 A10 A13 A10 A PoE Power 273 W 900 W300 W900 W Frequency 50/60 Hz 50/60 HZ50/60 Hz PoE/PoE+ PoE PoE+ HP ProCurve zl Power Supply Specs Electrical Characteristics New!

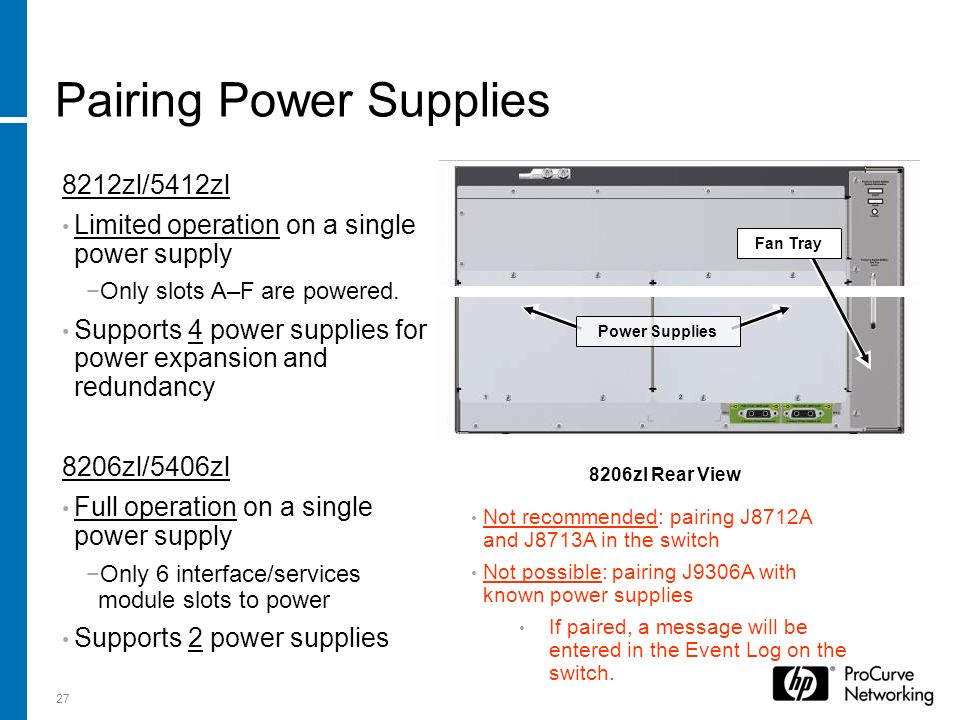

27. 8206zl Rear View Power Supplies Pairing Power Supplies Fan Tray 27 Not recommended: pairing J8712A and J8713A in the switch Not possible: pairing J9306A with known power supplies If paired, a message will be entered in the Event Log on the switch. 8212zl/5412zl Limited operation on a single power supply −Only slots A–F are powered. Supports 4 power supplies for power expansion and redundancy 8206zl/5406zl Full operation on a single power supply −Only 6 interface/services module slots to power Supports 2 power supplies

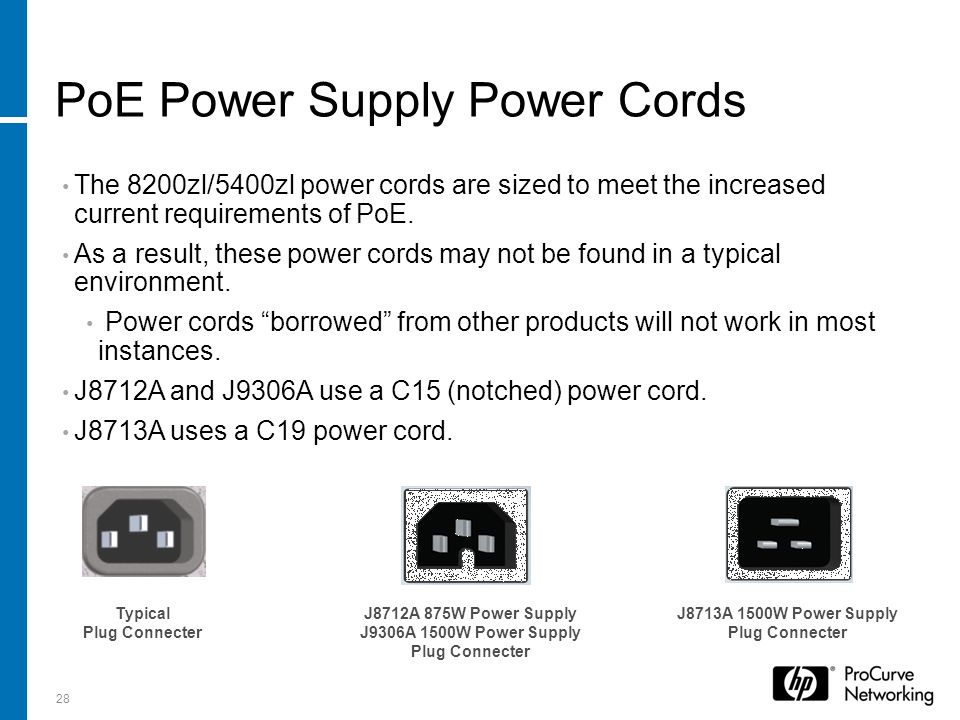

28. The 8200zl/5400zl power cords are sized to meet the increased current requirements of PoE. As a result, these power cords may not be found in a typical environment. Power cords “borrowed” from other products will not work in most instances. J8712A and J9306A use a C15 (notched) power cord. J8713A uses a C19 power cord. PoE Power Supply Power Cords 28 J8713A 1500W Power Supply Plug Connecter J8712A 875W Power Supply J9306A 1500W Power Supply Plug Connecter Typical Plug Connecter

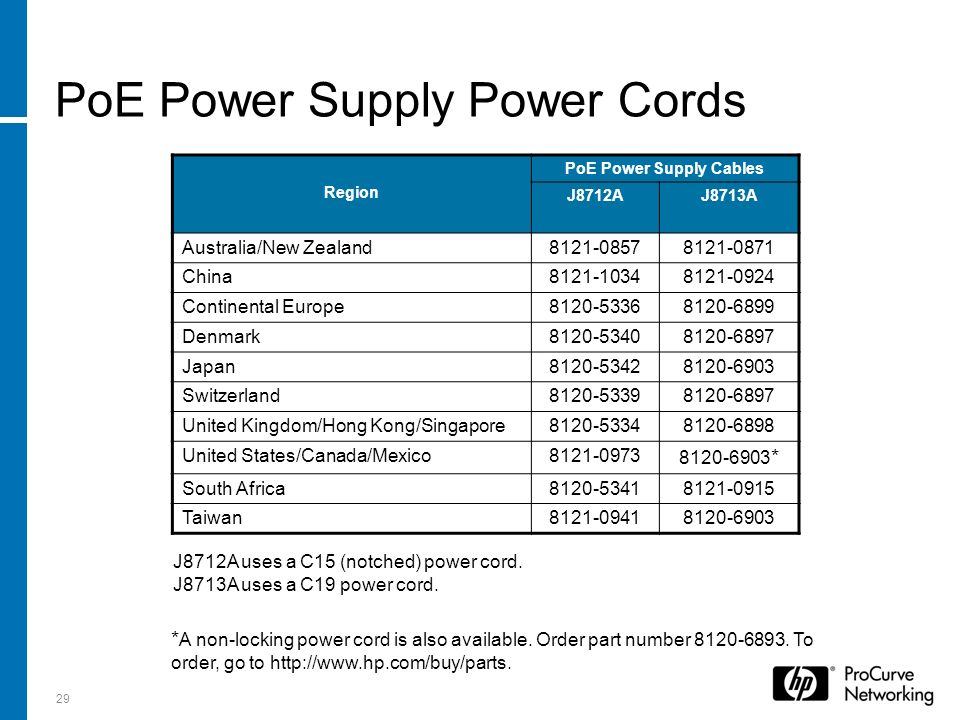

29. PoE Power Supply Power Cords Region PoE Power Supply Cables J8712AJ8713A Australia/New Zealand8121-08578121-0871 China8121-10348121-0924 Continental Europe8120-53368120-6899 Denmark8120-53408120-6897 Japan8120-53428120-6903 Switzerland8120-53398120-6897 United Kingdom/Hong Kong/Singapore8120-53348120-6898 United States/Canada/Mexico8121-0973 8120-6903 * South Africa8120-53418121-0915 Taiwan8121-09418120-6903 29 * A non-locking power cord is also available. Order part number 8120-6893. To order, go to http://www.hp.com/buy/parts. J8712A uses a C15 (notched) power cord. J8713A uses a C19 power cord.

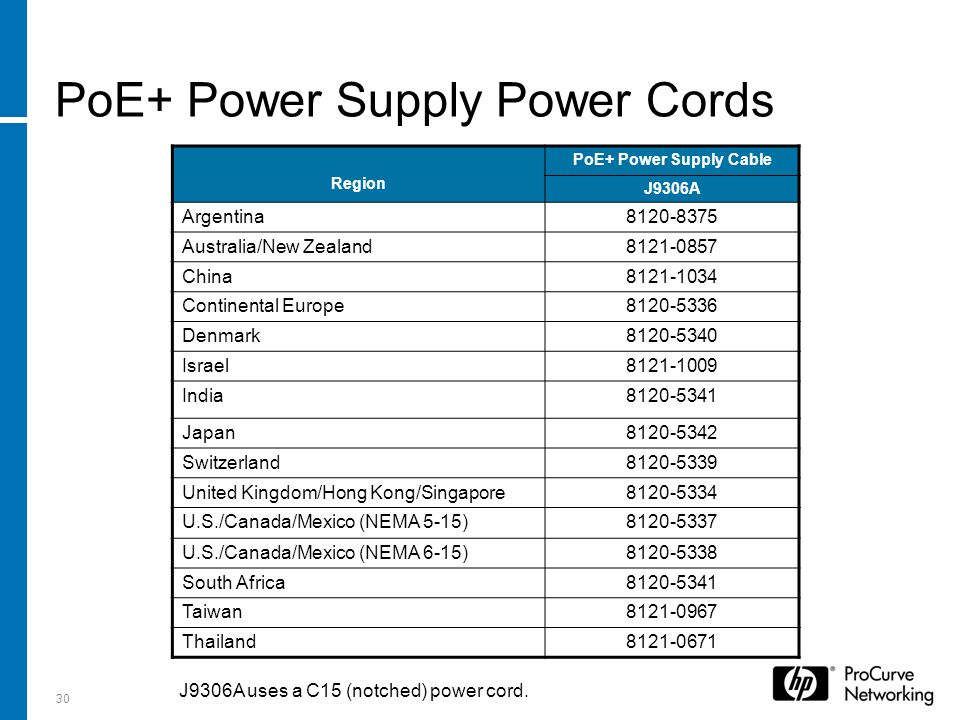

30. PoE+ Power Supply Power Cords 30 Region PoE+ Power Supply Cable J9306A Argentina8120-8375 Australia/New Zealand8121-0857 China8121-1034 Continental Europe8120-5336 Denmark8120-5340 Israel8121-1009 India8120-5341 Japan8120-5342 Switzerland8120-5339 United Kingdom/Hong Kong/Singapore8120-5334 U.S./Canada/Mexico (NEMA 5-15)8120-5337 U.S./Canada/Mexico (NEMA 6-15)8120-5338 South Africa8120-5341 Taiwan8121-0967 Thailand8121-0671 J9306A uses a C15 (notched) power cord.

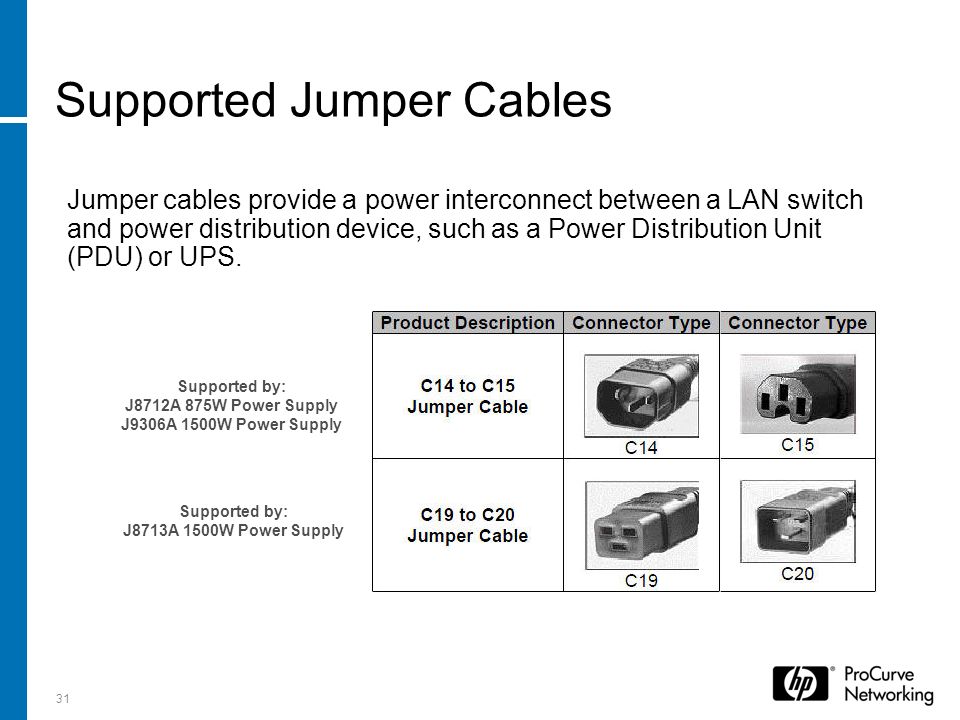

31. Jumper cables provide a power interconnect between a LAN switch and power distribution device, such as a Power Distribution Unit (PDU) or UPS. Supported Jumper Cables 31 Supported by: J8713A 1500W Power Supply Supported by: J8712A 875W Power Supply J9306A 1500W Power Supply

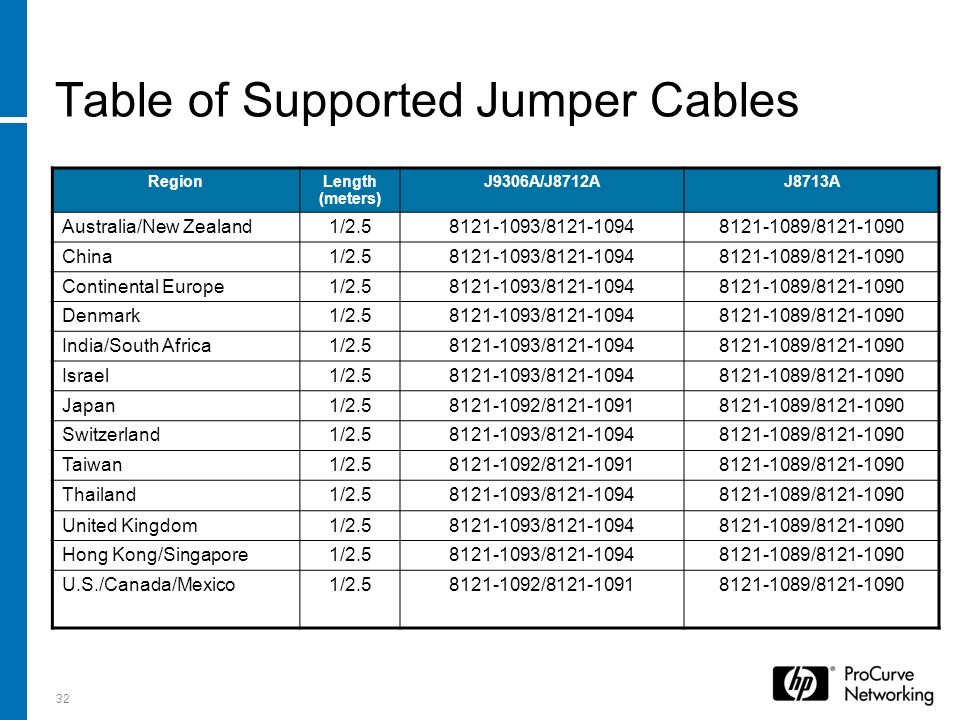

32. Table of Supported Jumper Cables 32 RegionLength (meters) J9306A/J8712AJ8713A Australia/New Zealand1/2.58121-1093/8121-10948121-1089/8121-1090 China1/2.58121-1093/8121-10948121-1089/8121-1090 Continental Europe1/2.58121-1093/8121-10948121-1089/8121-1090 Denmark1/2.58121-1093/8121-10948121-1089/8121-1090 India/South Africa1/2.58121-1093/8121-10948121-1089/8121-1090 Israel1/2.58121-1093/8121-10948121-1089/8121-1090 Japan1/2.58121-1092/8121-10918121-1089/8121-1090 Switzerland1/2.58121-1093/8121-10948121-1089/8121-1090 Taiwan1/2.58121-1092/8121-10918121-1089/8121-1090 Thailand1/2.58121-1093/8121-10948121-1089/8121-1090 United Kingdom1/2.58121-1093/8121-10948121-1089/8121-1090 Hong Kong/Singapore1/2.58121-1093/8121-10948121-1089/8121-1090 U.S./Canada/Mexico1/2.58121-1092/8121-10918121-1089/8121-1090

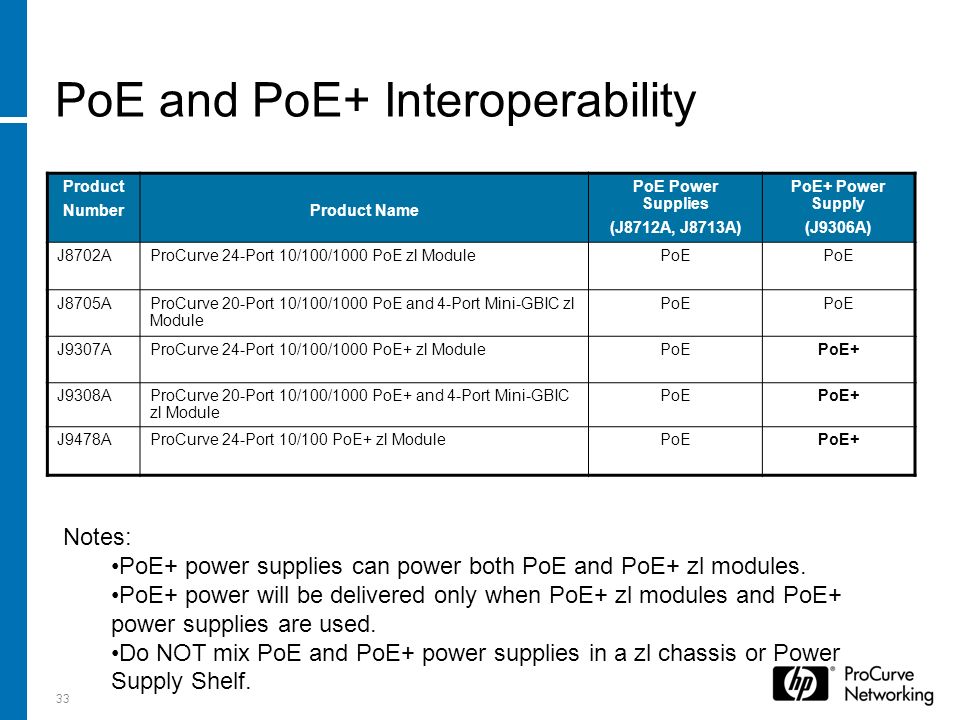

33. PoE and PoE+ Interoperability Product NumberProduct Name PoE Power Supplies (J8712A, J8713A) PoE+ Power Supply (J9306A) J8702AProCurve 24-Port 10/100/1000 PoE zl ModulePoE J8705AProCurve 20-Port 10/100/1000 PoE and 4-Port Mini-GBIC zl Module PoE J9307AProCurve 24-Port 10/100/1000 PoE+ zl ModulePoEPoE+ J9308AProCurve 20-Port 10/100/1000 PoE+ and 4-Port Mini-GBIC zl Module PoEPoE+ J9478AProCurve 24-Port 10/100 PoE+ zl ModulePoEPoE+ Notes: PoE+ power supplies can power both PoE and PoE+ zl modules. PoE+ power will be delivered only when PoE+ zl modules and PoE+ power supplies are used. Do NOT mix PoE and PoE+ power supplies in a zl chassis or Power Supply Shelf. 33

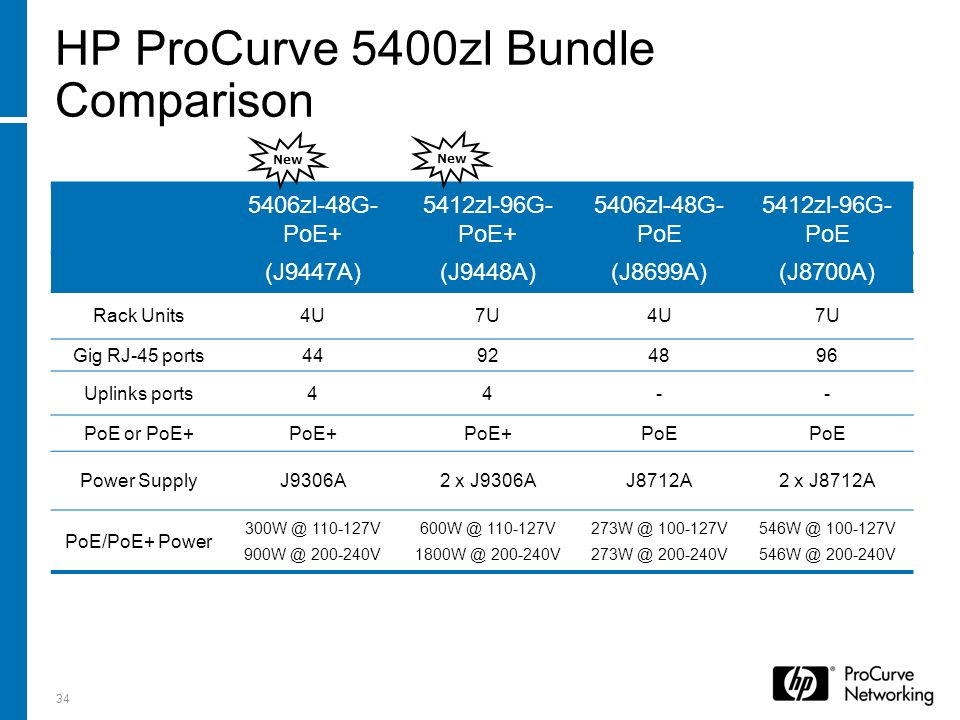

34. HP ProCurve 5400zl Bundle Comparison 5406zl-48G- PoE+ 5412zl-96G- PoE+ 5406zl-48G- PoE 5412zl-96G- PoE (J9447A)(J9448A)(J8699A)(J8700A) Rack Units4U7U4U7U Gig RJ-45 ports44924896 Uplinks ports44-- PoE or PoE+PoE+ PoE Power SupplyJ9306A2 x J9306AJ8712A2 x J8712A PoE/PoE+ Power 300W @ 110-127V 900W @ 200-240V 600W @ 110-127V 1800W @ 200-240V 273W @ 100-127V 273W @ 200-240V 546W @ 100-127V 546W @ 200-240V New 34

35. © 2009 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. Questions & Answers

36. Technology for better business outcomes
