1. Golgi Apparatus Stacked and flattened membranous sacs Stacked and flattened membranous sacs Functions in modification, concentration, and packaging of proteins Functions in modification, concentration, and packaging of proteins Transport vessels from the ER fuse with the cis face of the Golgi apparatus Transport vessels from the ER fuse with the cis face of the Golgi apparatus

2. Golgi Apparatus Proteins then pass through the Golgi apparatus to the trans face Proteins then pass through the Golgi apparatus to the trans face Secretory vesicles leave the trans face of the Golgi stack and move to designated parts of the cell Secretory vesicles leave the trans face of the Golgi stack and move to designated parts of the cell

3. Golgi Apparatus Figure 3.20a

4. Role of the Golgi Apparatus Figure 3.21 Secretion by exocytosis Extracellular fluid Plasma membrane Vesicle incorporated into plasma membrane Coatomer coat Lysosomes containing acid hydrolase enzymes Phagosome Proteins in cisterna Membrane Vesicle Pathway 3 Pathway 2 Secretory vesicles Proteins Pathway 1 Golgi apparatus Cisterna Rough ER

5. Lysosomes Spherical membranous bags containing digestive enzymes Spherical membranous bags containing digestive enzymes Digest ingested bacteria, viruses, and toxins Digest ingested bacteria, viruses, and toxins Degrade nonfunctional organelles Degrade nonfunctional organelles Breakdown glycogen and release thyroid hormone Breakdown glycogen and release thyroid hormone

6. Lysosomes Breakdown nonuseful tissue Breakdown nonuseful tissue Breakdown bone to release Ca2 + Breakdown bone to release Ca2 + Secretory lysosomes are found in white blood cells, immune cells, and melanocytes Secretory lysosomes are found in white blood cells, immune cells, and melanocytes

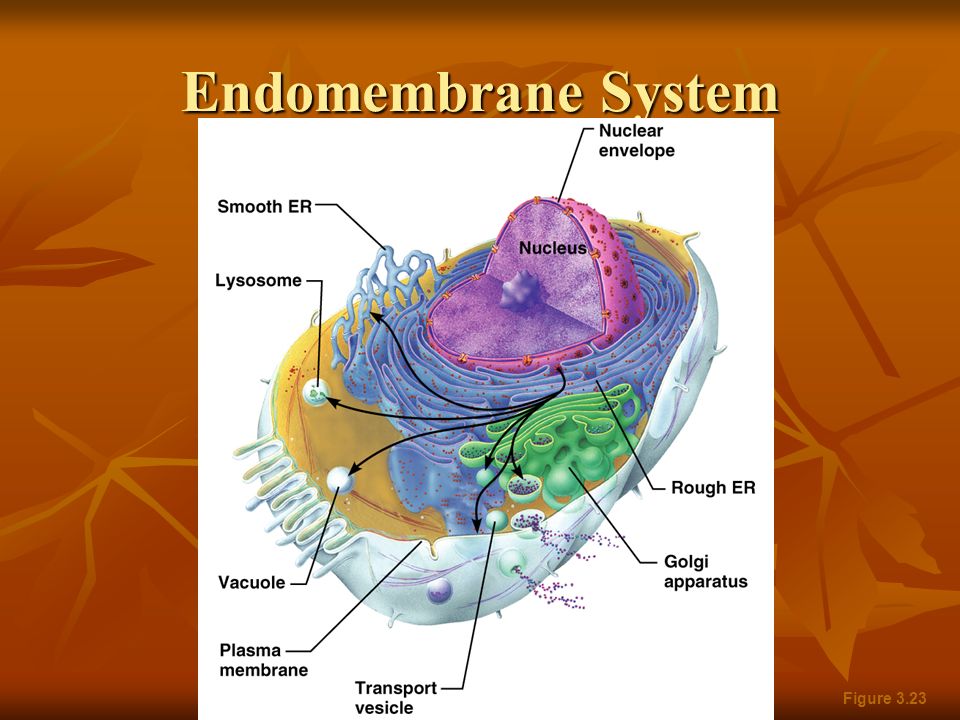

7. Endomembrane System System of organelles that function to: System of organelles that function to: Produce, store, and export biological molecules Produce, store, and export biological molecules Degrade potentially harmful substances Degrade potentially harmful substances System includes: System includes: Nuclear envelope, smooth and rough ER, lysosomes, vacuoles, transport vesicles, Golgi apparatus, and the plasma membrane Nuclear envelope, smooth and rough ER, lysosomes, vacuoles, transport vesicles, Golgi apparatus, and the plasma membrane PLAY Endomembrane System

8. Figure 3.23

9. Peroxisomes Membranous sacs containing oxidases and catalases Membranous sacs containing oxidases and catalases Detoxify harmful or toxic substances Detoxify harmful or toxic substances Neutralize dangerous free radicals Neutralize dangerous free radicals Free radicals – highly reactive chemicals with unpaired electrons (i.e., O 2 – ) Free radicals – highly reactive chemicals with unpaired electrons (i.e., O 2 – )

10. Cytoskeleton The “skeleton” of the cell The “skeleton” of the cell Dynamic, elaborate series of rods running through the cytosol Dynamic, elaborate series of rods running through the cytosol Consists of microtubules, microfilaments, and intermediate filaments Consists of microtubules, microfilaments, and intermediate filaments

11. Cytoskeleton Figure 3.24a-b

12. Cytoskeleton Figure 3.24c

13. Microtubules Dynamic, hollow tubes made of the spherical protein tubulin Dynamic, hollow tubes made of the spherical protein tubulin Determine the overall shape of the cell and distribution of organelles Determine the overall shape of the cell and distribution of organelles

14. Microfilaments Dynamic strands of the protein actin Dynamic strands of the protein actin Attached to the cytoplasmic side of the plasma membrane Attached to the cytoplasmic side of the plasma membrane Braces and strengthens the cell surface Braces and strengthens the cell surface Attach to CAMs and function in endocytosis and exocytosis Attach to CAMs and function in endocytosis and exocytosis

15. Intermediate Filaments Tough, insoluble protein fibers with high tensile strength Tough, insoluble protein fibers with high tensile strength Resist pulling forces on the cell and help form desmosomes Resist pulling forces on the cell and help form desmosomes

16. Motor Molecules Protein complexes that function in motility Protein complexes that function in motility Powered by ATP Powered by ATP Attach to receptors on organelles Attach to receptors on organelles

17. Motor Molecules Figure 3.25a

18. Motor Molecules Figure 3.25b

19. Centrioles Small barrel-shaped organelles located in the centrosome near the nucleus Small barrel-shaped organelles located in the centrosome near the nucleus Pinwheel array of nine triplets of microtubules Pinwheel array of nine triplets of microtubules Organize mitotic spindle during mitosis Organize mitotic spindle during mitosis Form the bases of cilia and flagella Form the bases of cilia and flagella

20. Centrioles Figure 3.26a, b

21. Cilia Whip-like, motile cellular extensions on exposed surfaces of certain cells Whip-like, motile cellular extensions on exposed surfaces of certain cells Move substances in one direction across cell surfaces Move substances in one direction across cell surfaces PLAY Cilia and Flagella

22. Cilia Figure 3.27a

23. Cilia Figure 3.27b

24. Cilia Figure 3.27c

25. Nucleus Contains nuclear envelope, nucleoli, chromatin, and distinct compartments rich in specific protein sets Contains nuclear envelope, nucleoli, chromatin, and distinct compartments rich in specific protein sets Gene-containing control center of the cell Gene-containing control center of the cell Contains the genetic library with blueprints for nearly all cellular proteins Contains the genetic library with blueprints for nearly all cellular proteins Dictates the kinds and amounts of proteins to be synthesized Dictates the kinds and amounts of proteins to be synthesized

26. Nucleus Figure 3.28a

27. Nuclear Envelope Selectively permeable double membrane barrier containing pores Selectively permeable double membrane barrier containing pores Encloses jellylike nucleoplasm, which contains essential solutes Encloses jellylike nucleoplasm, which contains essential solutes

28. Nuclear Envelope Outer membrane is continuous with the rough ER and is studded with ribosomes Outer membrane is continuous with the rough ER and is studded with ribosomes Inner membrane is lined with the nuclear lamina, which maintains the shape of the nucleus Inner membrane is lined with the nuclear lamina, which maintains the shape of the nucleus Pore complex regulates transport of large molecules into and out of the nucleus Pore complex regulates transport of large molecules into and out of the nucleus

29. Nucleoli Dark-staining spherical bodies within the nucleus Dark-staining spherical bodies within the nucleus Site of ribosome production Site of ribosome production

30. Chromatin Threadlike strands of DNA and histones Threadlike strands of DNA and histones Arranged in fundamental units called nucleosomes Arranged in fundamental units called nucleosomes Form condensed, barlike bodies of chromosomes when the nucleus starts to divide Form condensed, barlike bodies of chromosomes when the nucleus starts to divide Figure 3.29

31. Figure 3.30 Cell Cycle Interphase Interphase Growth (G 1 ), synthesis (S), growth (G 2 ) Growth (G 1 ), synthesis (S), growth (G 2 ) Mitotic phase Mitotic phase Mitosis and cytokinesis Mitosis and cytokinesis

32. Interphase G 1 (gap 1) – metabolic activity and vigorous growth G 1 (gap 1) – metabolic activity and vigorous growth G 0 – cells that permanently cease dividing G 0 – cells that permanently cease dividing S (synthetic) – DNA replication S (synthetic) – DNA replication G 2 (gap 2) – preparation for division G 2 (gap 2) – preparation for division PLAY Late Interphase
