1. GRID REFERENCES NORTHINGS AND EASTINGS

2.  NOT THE SAME AS LATITUDE AND LONGITUDE  Used to help you locate a specific spot on a flat map  Uses a grid of lines crossing at right angles  On the map the LINES are numbered not the spaces

3. NORTHINGS AND EASTINGS  EASTINGS:  Vertical lines on the grid system  # from west to east on the map (left to right)  #’s increase towards the east

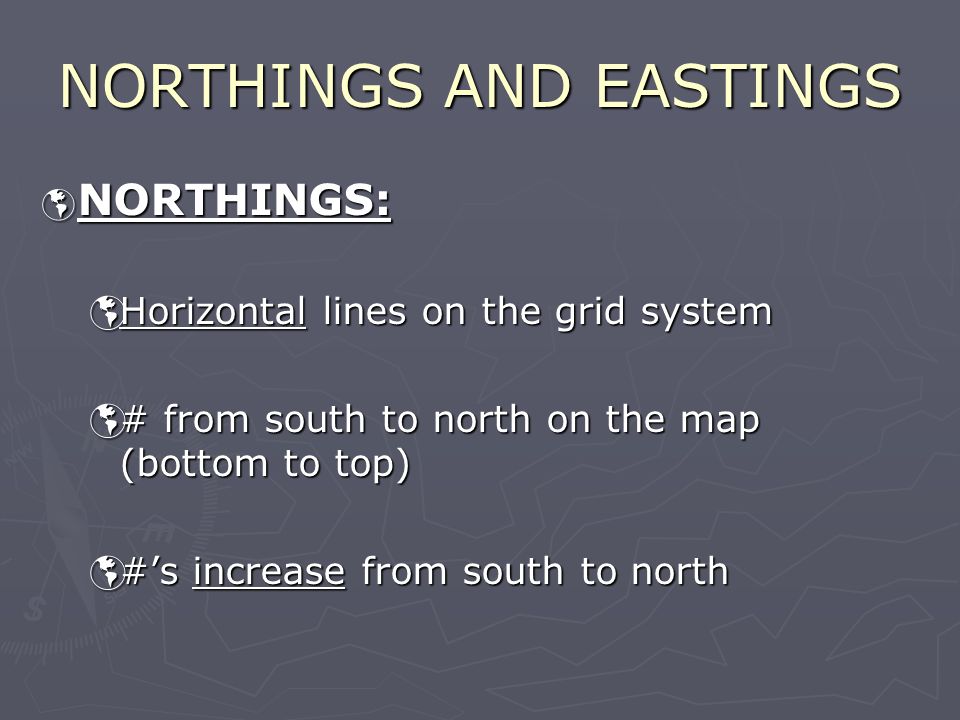

4. NORTHINGS AND EASTINGS  NORTHINGS:  Horizontal lines on the grid system  # from south to north on the map (bottom to top)  #’s increase from south to north

5. EASTINGS NORTHINGSNORTHINGS

6. 4 FIGURE GRID REFERENCE  Gives us a general position on the map (i.e. the whole box)  Use the #’s of the two lines that cross in the SW corner (bottom left) of the box  Easting # is written first  Northing # is written second  i.e. A =

7. 31 28 27 26 25 24 30 29 0812131415091011 A

8. 4 FIGURE GRID REFERENCE  Gives us a general position on the map (i.e. the whole box)  Use the #’s of the two lines that cross in the SW corner (bottom left) of the box  Easting # is written first  Northing # is written second  i.e. A = 0927 B =

9. 31 28 27 26 25 24 30 29 0812131415091011 A B

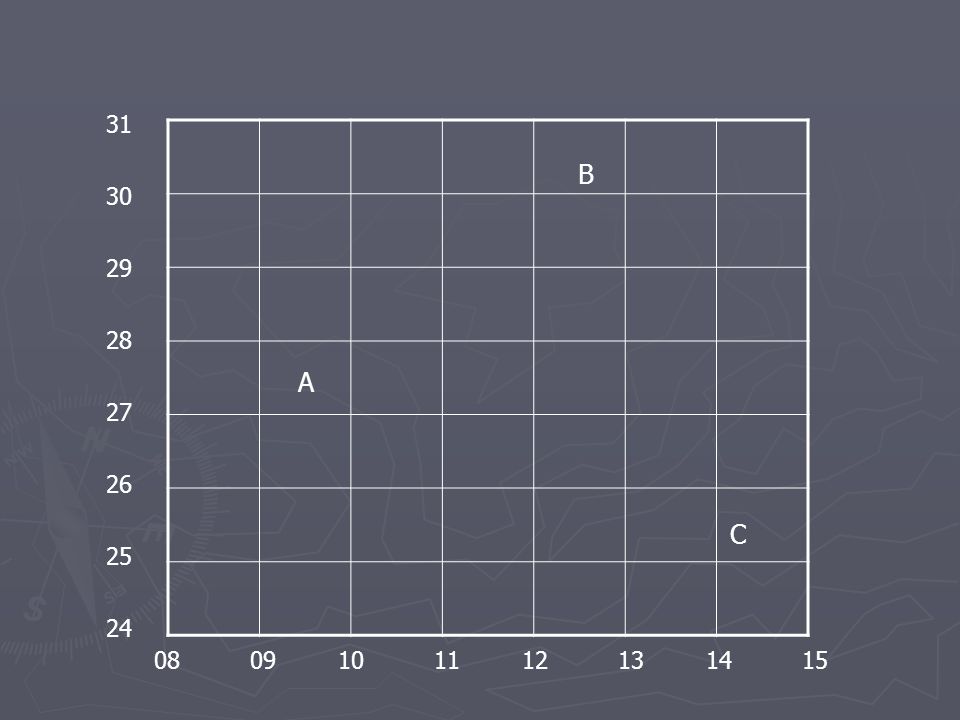

10. 4 FIGURE GRID REFERENCE  Gives us a general position on the map (i.e. the whole box)  Use the #’s of the two lines that cross in the SW corner (bottom left) of the box  Easting # is written first  Northing # is written second  i.e. A = 0927 B = 1230 C =

11. 31 28 27 26 25 24 30 29 0812131415091011 A B C

12. 4 FIGURE GRID REFERENCE  Gives us a general position on the map (i.e. the whole box)  Use the #’s of the two lines that cross in the SW corner (bottom left) of the box  Easting # is written first  Northing # is written second  i.e. A = 0927 B = 1230 C = 1425

13. 6 FIGURE GRID REFERENCE  Each square can be further divided into 10 equal parts  This gives a more specific location (i.e. a point within the box)  i.e.Y =

14. 31 28 27 26 25 24 30 29 0812131415091011 A B C  Y

15. 24 08 1 7 5 6 4 3 2 56789 9 8 1234

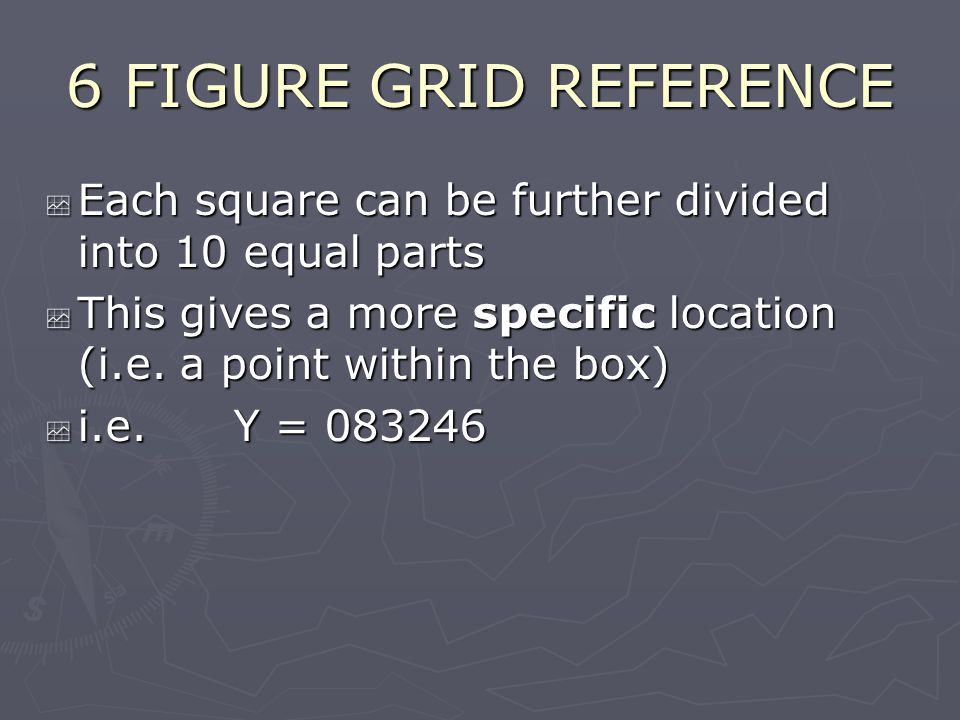

16. 6 FIGURE GRID REFERENCE  Each square can be further divided into 10 equal parts  This gives a more specific location (i.e. a point within the box)  i.e.Y = 083246

17. 6 FIGURE GRID REFERENCE  Find the 6 figure grid references for the following points:  D =

18. 31 28 27 26 25 24 30 29 0812131415091011 A B C  Y  D

19. 6 FIGURE GRID REFERENCE  Find the 6 figure grid references for the following points:  D = 135275  E =

20. 31 28 27 26 25 24 30 29 0812131415091011 A B C  Y  D E 

21. 6 FIGURE GRID REFERENCE  Find the 6 figure grid references for the following points:  D = 135275  E = 119289  F =

22. 31 28 27 26 25 24 30 29 0812131415091011 A B C  Y  D E  F 

23. 6 FIGURE GRID REFERENCE  Find the 6 figure grid references for the following points:  D = 135275  E = 119289  F = 099301  G =

24. 31 28 27 26 25 24 30 29 0812131415091011 A B C  Y  D E  F   G

25. 6 FIGURE GRID REFERENCE  Find the 6 figure grid references for the following points:  D = 135275  E = 119289  F = 099301  G = 101258  H =

26. 31 28 27 26 25 24 30 29 0812131415091011 A B C  Y  D E  F   G HH

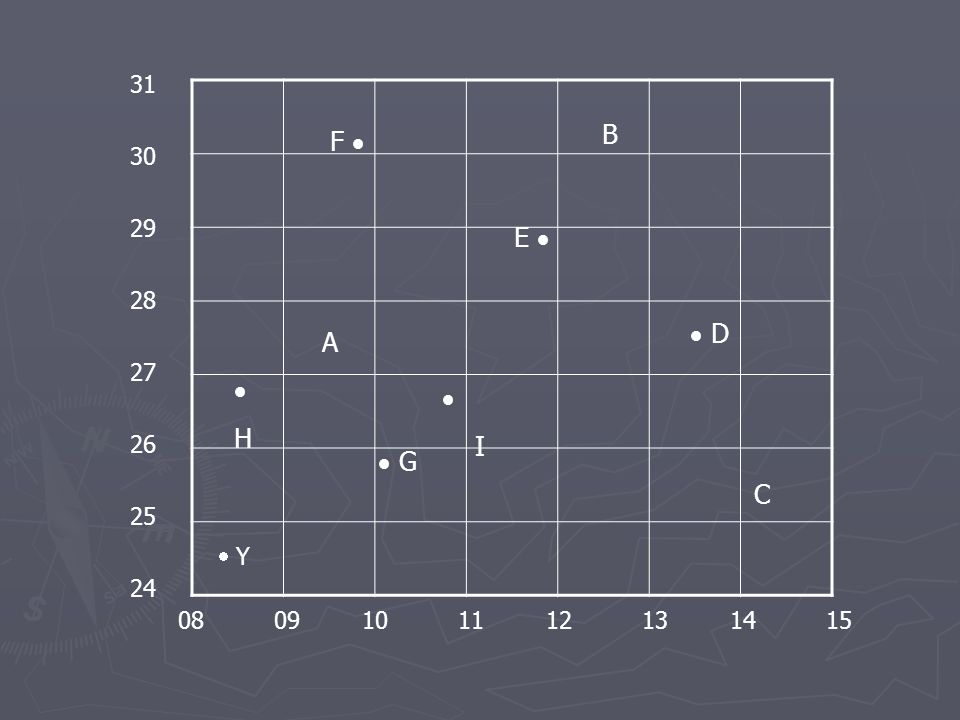

27. 6 FIGURE GRID REFERENCE  Find the 6 figure grid references for the following points:  D = 135275  E = 119289  F = 099301  G = 101258  H = 085269  I =

28. 31 28 27 26 25 24 30 29 0812131415091011 A B C  Y  D E  F   G HH  I

29. 6 FIGURE GRID REFERENCE  Find the 6 figure grid references for the following points:  D = 135275  E = 119289  F = 099301  G = 101258  H = 085269  I = 109268 Do Geolab 16 (#1 -3), Geolab 13 (all)
