1. Gorrie Details Acronym Energy Assessments and the Energy Code Eddy Trevino, P.E. State Energy Conservation Office Saleem Khan, P.E. Texas Energy Engineering Service, Inc. 1

2. Typical Energy Consumption 2

3. Question Who was granted the first U.S. Patent for mechanical refrigeration in 1851? ▫John Gorrie ▫Willis Carrier ▫James Trane ▫John Gorrie 3

4. John Gorrie 1837 - physician for the Marine Hospital Service in Florida Worked with malaria and yellow fever victims – needed to lower their body temperatures Believed these diseases were caused by extreme heat and humidity Believed that cold was a healer and advocated the cooling of sickrooms 4

5. John Gorrie 5

6. Ice had to be brought by boat from the northern lakes Ice was expensive and Gorrie wanted a cheaper way to get the ice Developed the first steam-driven compressor to cool air, which led to development of the first ice-making machine Saw cooling potential for buildings and ships (preserving “organic matter”) 6

7. 7

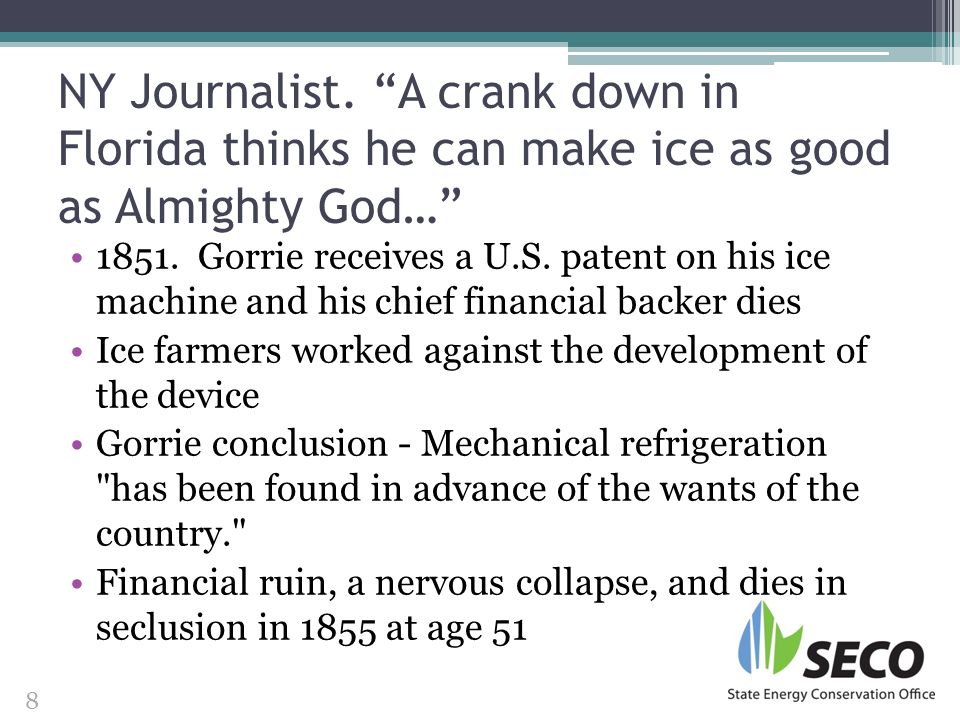

8. NY Journalist. “A crank down in Florida thinks he can make ice as good as Almighty God…” 1851. Gorrie receives a U.S. patent on his ice machine and his chief financial backer dies Ice farmers worked against the development of the device Gorrie conclusion - Mechanical refrigeration "has been found in advance of the wants of the country." Financial ruin, a nervous collapse, and dies in seclusion in 1855 at age 51 8

9. 9

10. Principles to Remember Use of the money you pay to the utility company to improve your facilities Structure your projects so that there is useful life left in the retrofit measures after the loan is paid Mix shorter payback measures with longer payback measures to get a more comprehensive project 10

11. Preliminary Energy Audits SECO provides this service at no cost to the participating public entity through the “School Energy Program“ ▫ASHRAE Level – II Audits ▫Technical Assistance 11

12. Preliminary Energy Audits Preliminary Energy Analysis ▫Initial Energy Audit or Survey ▫Walkthrough Survey/Assessment ▫Preliminary Energy Assessment (PEA) Detailed Energy Analysis (DEA) ▫Comprehensive Energy Analysis (CEA) ▫Investment Grade Audit (IGA) ▫Utility Assessment Report (UAR) ASHRAE categories: ▫Level I – Walkthrough Assessment ▫Level II – Energy Survey and Analysis ▫Level III – Detailed Analysis of Capital-Intensive Modifications 12

13. 13

14. Where was air conditioning first introduced? Office Buildings Theaters Schools 1924 (Palace Theater in Dallas and Iris theaters in Houston - first southern movie houses to install air conditioning theaters now didn’t have to close for the summer) 14

15. 15

16. When did school start becoming air conditioned? 1950s 1960s 1970s 1980s 1960s 16

17. 1910 17

18. 1950s 18

19. Mid 1960s, 1970s, and 1980s 19

20. 1990s 20

21. 1990s 21

22. 2000s 22

23. 23

24. Detailed Energy Analysis Preliminary Energy Analysis (PEA) ▫Initial Energy Audit or Survey ▫Walkthrough Survey/Assessment Detailed Energy Analysis (DEA) ▫Comprehensive Energy Analysis (CEA) ▫Investment Grade Audit (IGA) ▫Utility Assessment Report (UAR) ASHRAE categories: ▫Level I – Walkthrough Assessment ▫Level II – Energy Survey and Analysis ▫Level III – Detailed Analysis of Capital- Intensive Modifications 24

25. Energy Analysis Type Comparison Preliminary Energy AnalysisDetailed Energy Analysis Snapshot View of Facilities Level of Complexity based on Auditor Experience Energy Saving ▫Average utility Costs ▫Payback Project Costs ▫Rule of Thumb Analysis ▫RS Means Estimates Time Frame 30 – 45 days Comprehensive View Level of Complexity based on Auditor Experience Energy Savings ▫Detailed Breakdown ▫Payback Utility Rate Analysis ▫Effective Utility Rates Retrofit Costs ▫Itemized Cost Breakdown Time Frame 120 +/- days 25

26. 26

27. Acronym Terminology ECRM - Energy Cost Reduction Measures UCRM – Utility Cost Reduction Measures ECO - Energy Conservation Opportunities O&M – Operation and Maintenance EER/SEER – Energy Efficiency Ratio / Seasonal E. E. R. EUI – Energy Utilization Index ECI – Energy Cost Index COP - Coefficient of Performance EFLH - Equivalent Full Load Hours FC – Foot Candles LF - Load Factor PF - Power Factor 27

28. Were you listening? ECRM UCRM ECO O&M EER/SEER EUI ECI COP EFLH FC LF PF 28

29. 29

30. Principles to Remember Use of the money you pay to the utility company to improve your facilities Structure your projects so that there is useful life left in the retrofit measures after the loan is paid Mix shorter payback measures with longer payback measures to get a more comprehensive project April and October 30

31. Redirecting Utility Dollars Energy savings pay for loan principal and interest Use of the money you pay to the utility company to improve your facilities 31

32. How long does it take to pay for the retrofit? Low Cost/No Cost Measures Lighting Power Factor Improvements HVAC Energy Management Systems Building Envelope Commissioning Steam Systems Water & Wastewater 0 – 6 months 1 to 8 years 3 – 8 years 7 to 20 years 4 to 12 years 12 + years 1.5 to 6.5 years 3 years + 3 to 8 years 32

33. 33

34. Residential Energy Code Update HB1736 Signed by Governor Abbott on June 16 th Beginning September 1, 2016, 2015 International Residential Code is adopted as the energy code in this state for single-family residential construction September 1, 2021 ▫6 years ▫> 9 months for effective date 34

35. Commercial Energy Code Update HB1736 Some statutes authorize certain state agencies and commissions to create rules to help administer and carry out the law. Rules are compiled and organized by subject matter as the Texas Administrative Code.Texas Administrative Code Before changes can be made to the Texas Administrative Code, any proposed changes are first published in the Texas Register,Texas Administrative Code Texas Register 35

36. Commercial Energy Code Update HB1736 Planning to publish Texas Administrative Code rule change in Texas Register in July ▫Building Codes effective September 1, 2016 ▫2016 International Energy Conservation Code (IECC) 30 days for public comment Compile public comments Republish Texas Administrative Code rule change in Texas Register 20 days becomes effective 36

37. Request for Preliminary Energy Assessment http://www.seco.cpa.state.tx.us/sch-gov/pea.php Sign up to receive funding opportunity notices http://www.seco.cpa.state.tx.us/funding/ Sign up to receive energy code updates http://www.seco.cpa.state.tx.us/tbec/ 37

38. State Energy Conservation Office Eddy Trevino, P.E. eddy.trevino@cpa.texas.gov 512-463-1876 Stephen Ross (Preliminary Energy Assessments) Stephen.ross@cpa.texas.gov 512-463-1770 Texas Energy Engineering Services Inc. (PEA Consultant) Saleem Khan, PE saleem@teesi.com 512- 328-2533 Ext 208 38
