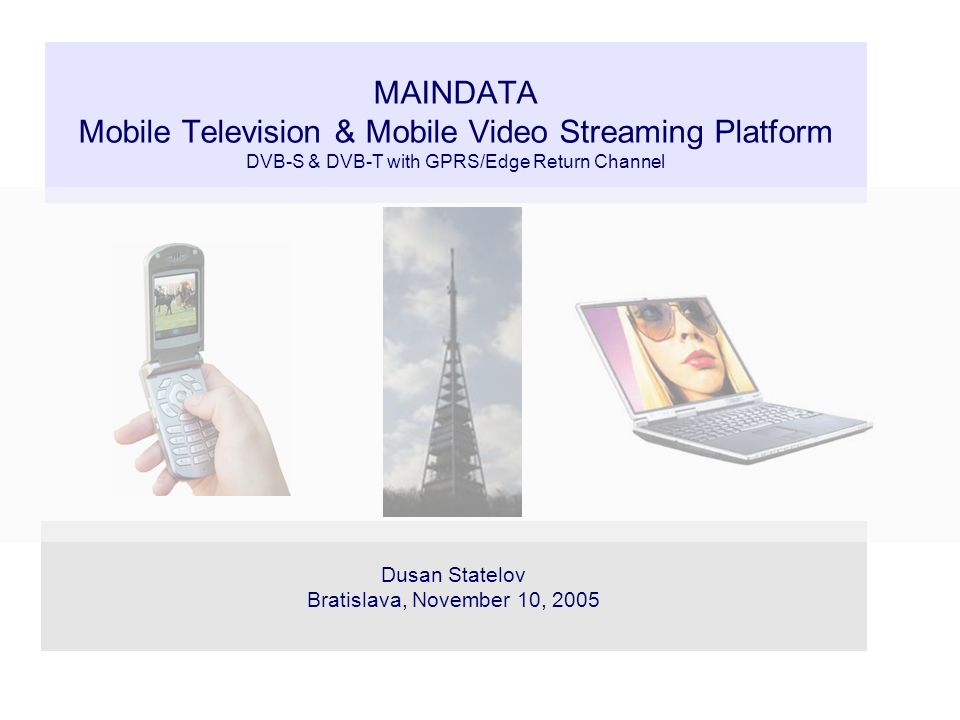

2. MAINDATA Dusan Statelov Bratislava, November 10, 2005 MAINDATA Mobile Television & Mobile Video Streaming Platform DVB-S & DVB-T with GPRS/Edge Return Channel

3. 2 www.maindata.info MAINDATA Mobile TV, Mobile Video Streaming and Broadband Portable Internet Contents: 1) 1) MAINDATA background 2) 2) DVB-H & 3GPP platform for Mobile “TV & Video Streaming” 3) 3) Portable Broadband Internet DVB-T/S with GPRS return channel

4. 3 www.maindata.info MAINDATA Mobile TV, Mobile Video Streaming and Broadband Portable Internet MAINDATA Background & References MAINDATA was established in 1996 as a spin-off from FINSAT a joint-venture for real-time financial data distribution. MAINDATA is focused at IP DataCasting Technologies. In 1996 MAINDATA started providing DataCasting services via Analog TV inserting data into a VBI (vertical blanking interval) via VTV Television at Eutelsat Satellite. In 1998 MAINDATA developed DVB based platform HYBRID-NET ® allowing provide Broadband Satellite Internet services. Over the years it was installed for customers arround the world: -1999 World Bank (I.B.R.D.) USA for African Virtual University, at Comcast Teleport in Maryland, via NSS6 satellite at C band - - 2000 Citra Sari Makmur a VSAT operator, Indonesia, up-link in Jakarta and Hawai - - 2000 PDMC a Digital TV operator based in Taiwan, Taipei, Ku Band Panamsat - - 2001 China Education TV Beijing - - 2001 AMOS satellite operator in Tel Aviv, Israel - - 2002 Katelco, a VSAT operator Ku Band Intelsat 706, Almaty, Kazakhstan - - 2003 Telconsult, Essex, UK a terrestrial DVB system - - 2003 ISAT platform, Orlando Florida, operating 4 up-links, 2 in Atlanta Crawford Communication, 2 in Baltimore SES Americom up-link, AMC5, AMC6, Hispasat Ku band and C band transponders. 4000 satellite subscribers. - - 2004 Horizon Satellite Services, Dubai, UAE with uplinks in Cologne, Germany, and Luxembourg - - 2004 India, HCL, second largest Indian VSAT operator - - 2004 Uganda, One2Net a satellite services provider - - 2005 Gulfsat, Kuwait company acquired TV station ShowNet and Satellite Internet provider - - 2005 Synergistics, Florida, USA - company acquired assets of ISAT, 3 up-links covering USA and Latin America - - 2005 SATCOINX, Spain - - 2005 AL-SABAH Group, Kuwait - - 2005 RatioConsulta, Milan, Italy

5. 4 www.maindata.info MAINDATA Mobile TV, Mobile Video Streaming and Broadband Portable Internet Selected MAINDATA References: WORLD BANK Washington D.C., USA PDMC, Taipei TaiwanKATELCO, Almaty, Kazakhstan ISAT Platform Orlando, USA One2Net /WBS Kampala, Uganda HSS, Dubai, UAE HCL Noida, India SatCoinx, Barcelona, SpainRatioConsulta, Milan, Italy Gulfsat, Sharq, Kuwait Al-Sabah, Sharq, Kuwait CSM Jakarta, Indonesia TelConsult, Essex, UK Synergistics Comm, Orlando, USA

6. 5 www.maindata.info MAINDATA Mobile TV, Mobile Video Streaming and Broadband Portable Internet 2000 MAINDATA was awarded with a grant for SMART EDU project in Leonardo da Vinci program of European Commission, and managed this 3 years project for developing Distance Education platform with 6 partners from 4 EU countries 2001 MAINDATA as the only private company cooperated with Telecommunication Research Institute in Banska Bystrica at project for deploying DVB-T services in Slovakia 2002 due to MAINDATA’s vast expertise in DVB DATA services with extensive portfolio of products. 2003 MAINDATA C.E.O. Mr. Dusan Statelov had the only speach at IBC conference Amsterdam 2003 New Delivery Methods Session – one of the top world broadcasting events, about DVB-H – enhancing 2G, and 3G networks. 2005 MAINDATA exhibits at IBC new Mobile Zone in Technological Center DVB-H & 3GPP platform for Mobile – TV & Video Streaming. MAINDATA Background & References

7. 6 www.maindata.info MAINDATA Mobile TV, Mobile Video Streaming and Broadband Portable Internet SMART EDU a distance education platform Broadband DVB Internet MD Product evolution VBI data broadcasting 199619971998199920002001200220032004 DVB/IP GW Hybrid-Net BNMS, BFTP Win NT version RS422 ISA board DVB-ASI interface to DVB/IP GW Multiplexor FEC incorporation to BFTP PSI/SI generator PUSH e-mail TCP/IP accelerator Linux embedded IPE PC Screen SE Remote Studio SE LMS SE Video, audio encoder PUSH FTP Download Center TCP/IP accelerator SE Client SE Receiver SE Chat DVB-H IPE 2005

8. MAINDATA MAINDATA Exhibits DVB-H & 3GPP platform at IBC 2005 Mobile Zone, Technology Center MAINDATA Logo

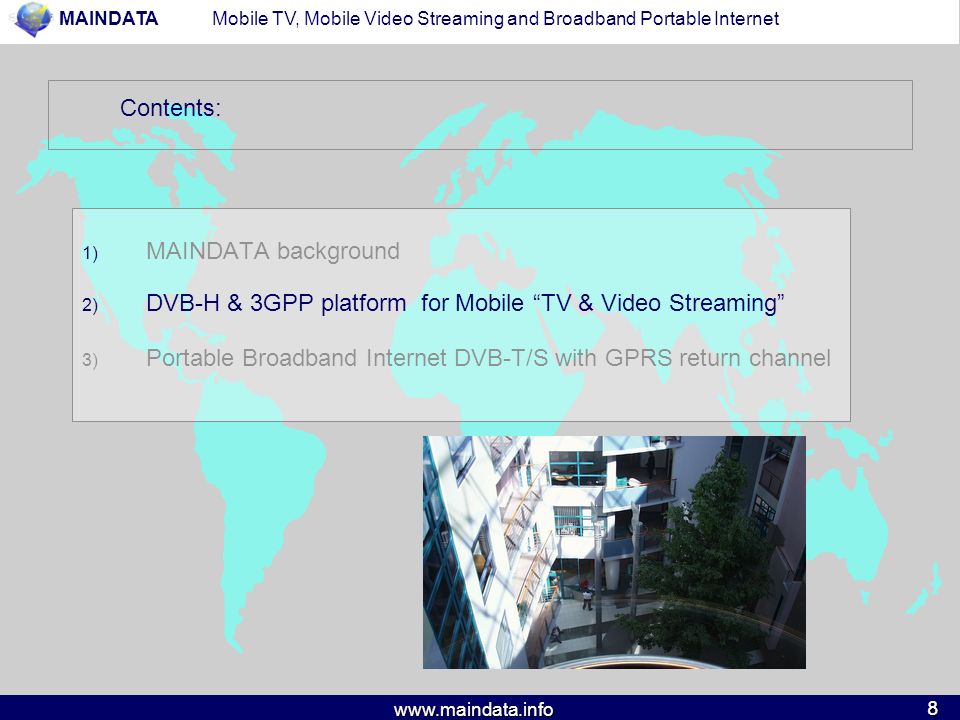

9. 8 www.maindata.info MAINDATA Mobile TV, Mobile Video Streaming and Broadband Portable Internet Contents: 1) 1) MAINDATA background 2) 2) DVB-H & 3GPP platform for Mobile “TV & Video Streaming” 3) 3) Portable Broadband Internet DVB-T/S with GPRS return channel

10. 9 www.maindata.info MAINDATA Mobile TV, Mobile Video Streaming and Broadband Portable Internet BWA Data rate vs. Mobility WLAN Data Rate [Mbps] 1101000,1 Mobility Bluetooth 2G Outdoor Fixed Walk Vehicle Indoor >100 LAN 3G 3G < 384 kbps DVB-H 2-10 Mbps DVB-H Mobile Services

11. 10 www.maindata.info MAINDATA Mobile TV, Mobile Video Streaming and Broadband Portable Internet DVB-H standard evolution: DAB / DMB Digital TV MPEG DVB DVB-T DVB-H [IPDC] Time Slicing Time Interleaving 4 FK mode Enhanced PSI/SI tables DVB-CBMS Group-ESG, DRM DVB-SDVB-C ATSC USA ISDB Japan Not designed for mobile but high bitrate Better mobile reception due to the time interleaving Better mobile reception due to time interleaving

12. 11 www.maindata.info MAINDATA Mobile TV, Mobile Video Streaming and Broadband Portable Internet DVB-H accomplishes Reception to Mobile Handsets by modifying DVB-T transmission by adding: 1) Time Slicing 2) MPE FEC 3) Time Interleaving 4) 4k COFDM mode These features are incorporated in different elements of the network. How DVB-H achieves Mobile reception ?

13. 12 www.maindata.info MAINDATA Mobile TV, Mobile Video Streaming and Broadband Portable Internet DVB-H enables delivery of Mobile TV (news, sport, music) to a light, battery powered mobiles handsets- like GSM phones. DVB-H channel bandwidth can range from 2 to 10 Mbps while single small screen TV channel bandwidth H.264 encoded is roughly 200 kbps. So DVB-H can carry 10- 50 TV services over a single transport stream. DVB-H is low-cost delivery mechanism for mobile TV services to complement existing mobile phone services. DVB-H can be broadcast over DVB-T networks launched already Mobile TV presents a new media wave. Why DVB-H ?

14. 13 www.maindata.info MAINDATA Mobile TV, Mobile Video Streaming and Broadband Portable Internet 3G networks are unable to accommodate large numbers of users as well as provide high enough bitrate for TV services (HSDPA enhancement is required). DVB-H requires moderate investment to existing network It is vital for mobile operators to seize first- mover advantage and take a proactive role in defining the future value chain. Why DVB-H ?

15. 14 www.maindata.info MAINDATA Mobile TV, Mobile Video Streaming and Broadband Portable Internet There are numerous trials and demos of DVB-H networks around the world in 2004, 2005: USA, Pittsburg Berlin Finland Singapore UK O2 Australia Spain Switzerland Hungary First commercial deployments are expected in 2006 when variety of DVB-H handsets will be available. DVB-H services launch timing

16. 15 www.maindata.info MAINDATA Mobile TV, Mobile Video Streaming and Broadband Portable Internet MD DVB-H & 3GPP Platform for Mobile Television & Video Streaming DVB-H is suited for Mobile TV IP Multicast services 3GPP – 3 rd Generation Partnership GSM 3GPP networks are suited for Video Streaming – Unicast These services are compliant to each other. While Television services does not make sense to broadcast via multiple Unicast connections but rather via DVB-H, video-on- demand or private video streaming (e.g. home supervision) does not make sense to transmit over DVB- H network but rather via Unicast 3GPP network. Both standards have a common IP layer both use RTP (IP Real Time Protocol) and similar ESG (electronic service guide) and DRM (Digital Right Management). Integration of both networks makes perfect sense to simplify Mobile Service Provider operation and content management.

17. 16 www.maindata.info MAINDATA Mobile TV, Mobile Video Streaming and Broadband Portable Internet MD DVB-H & 3GPP Platform - COMPONENTS Existing: IP Encapsulator S6000, T6100 TS Library Video/Audio Encoder H.263/4 - TS distribution - DVB ASI via IP Gateway Planned: - - Redundancy – Redundancy switch 1:1 - - Content Management – ESG – Electronic Service Guide DRM – Digital Rights Mngm. Statistics & Billing FLUTE Server (File Multicast) Satellite TS distribution - Physical layer - COFDM Modulator - Network Monitoring - COFDM Receiver for Network Monitoring DVB-H Analyzer

18. 17 www.maindata.info MAINDATA Mobile TV, Mobile Video Streaming and Broadband Portable Internet MD DVB-H IP Encapsulator DVB-H Specific Features (EN 301 192 ver. 1.4.1): Time Slicing MPE Reed Solomon FEC computing and insertion (up to 40 Mbps) Cell-to-Cell Handover Support Extended PSI/SI tables Generation PAT, PMT,SDT, NIT, INT (EN 300 468 ver. 1.6.1) Parallel DVB-T and DVB-H operation IPE Generic Features: DVB-ASI output - physical layer (EN50083-9) MPEG-2 Transport Stream output (ISO 13818-1) 2x Gigabit Ethernet input IP Encapsulation (100 Mbps) MPE (EN 301 192 ver. 1.4.1) Section Packing Precise PCR < 5 ppm and < 50 ppm Embedded OS incl. NAT, firewall Remote Control & Monitoring Real-time via Remote Setup Client (a Windows application) Static via BNMS Web Interface (allocating resources at multiple levels) Bootable CD installs and recovers entire IPE including OS Test Features (optional) Channel errors emulation (Enables test MPE FEC decoder performance) Record Transport Stream Play Transport Stream from a file Library of Transport Streams files with various DVB-H parameters (Bandwidth Burst Size, Video Codecs (H.264, H.263), Audio Codecs (AAC, MP3, AMR), MPE FEC Strength Settings, Induced Bit Errors - bursts, spread IPE S6000 Series IPE T6100 Series

19. 18 www.maindata.info MAINDATA Mobile TV, Mobile Video Streaming and Broadband Portable Internet Time Slicing – To prolong a battery life - a key DVB-H feature ! Mobile DVB-H Handsets has to be able to operate for at least 90 minutes with a goal of 3 hours. When transmission is split to time slices, handset can perform most energy demanding operations like reception, FEC etc, only during a fraction of time, only when service for given handset is transmitted. Thus time slicing provides effective method for reducing power consumption. Thus by time slicing handset can save 90 % of energy. time bandwidth

20. 19 www.maindata.info MAINDATA Mobile TV, Mobile Video Streaming and Broadband Portable Internet Time Slicing – Reduces power consumption – a key DVB-H feature ! Source: TeamCast, Mr.Gerard Faria

21. 20 www.maindata.info MAINDATA Mobile TV, Mobile Video Streaming and Broadband Portable Internet Time Interleaving – Impuls Noise protection Time Interleaving is currently implemented in Japanese ISDB-T standard and European DAB (Digital Audio Broadcast) standard This feature effectively protects signal against impuls noise. Both of these standards were better than DVB-T for mobile reception. By adopting this technique into DVB-H standard it becomes adequately suitable for mobile transmission.

22. 21 www.maindata.info MAINDATA Mobile TV, Mobile Video Streaming and Broadband Portable Internet MPE FEC MPE FEC provides 21-58 Hz benefit in TU6 with maximum Doppler frequency MPE FEC provides 7-8 dB benefit with impulse noise DTG6 Source: TeamCast, Mr.Gerard Faria

23. 22 www.maindata.info MAINDATA Mobile TV, Mobile Video Streaming and Broadband Portable Internet 4k mode - to fill a gap between 2k and 8k Currently DVB-T standardizes either 2k or 8 k mode (# of subcarriers). 2k is more robust for mobile transmission while 8 k has higher bitrate and larger coverage area. ISDB-T currently supports 4k mode which seems to be better trade-off for mobile services. Source: TeamCast, Mr.Gerard Faria

24. 23 www.maindata.info MAINDATA Mobile TV, Mobile Video Streaming and Broadband Portable Internet GSM networks: Total 380 kbps, 11 kbps per connection Small Cell size- 2-way Only Point-to-point communication Total 2-10 Mbps Big Cell size (up to 7- 40 km), 1-way Supports IP Multicast DVB-H networks: Networks complement each other … Complementary networks

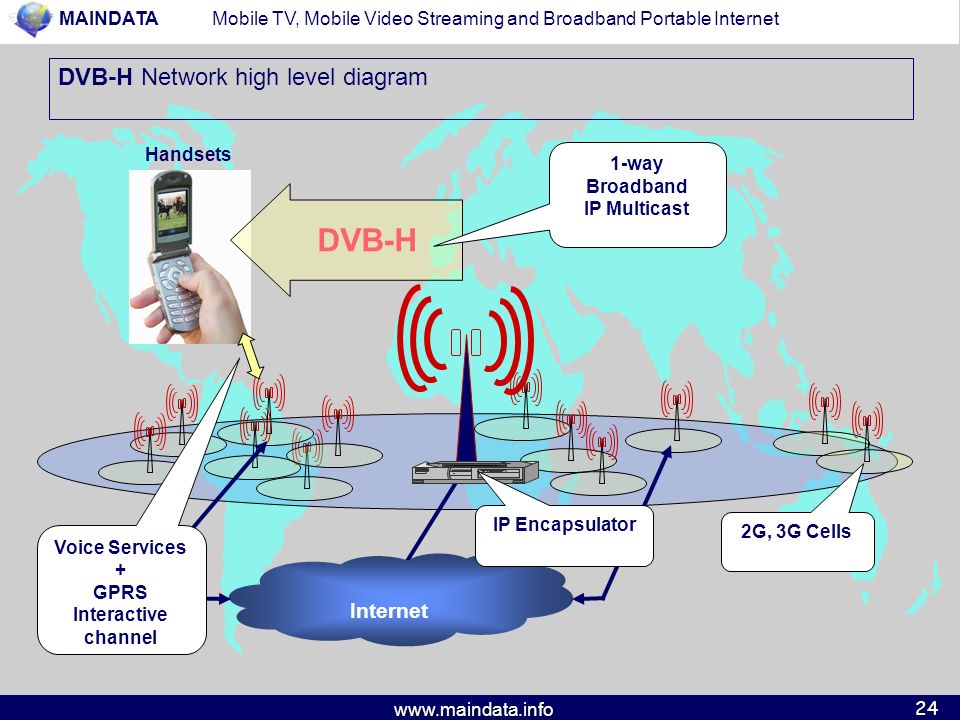

25. 24 www.maindata.info MAINDATA Mobile TV, Mobile Video Streaming and Broadband Portable Internet DVB-H Network high level diagram 2G, 3G Cells Internet Handsets DVB-H 1-way Broadband IP Multicast Voice Services + GPRS Interactive channel IP Encapsulator

26. 25 www.maindata.info MAINDATA Mobile TV, Mobile Video Streaming and Broadband Portable Internet Enabling DVB-H equipments: Broadcast side: 1) MD DVB-H IPE Time Slicing TDMA (energy savings), FEC 2) MD DVB-H modulator Time interleaving & 4k FTT mode, Hierarchical modulation (for mixed static and mobile services) DVB-H Handsets  Time Slicing TDMA (energy savings)  MPE FEC  Time interleaving  4k FTT mode  ESG, DRM

27. 26 www.maindata.info MAINDATA Mobile TV, Mobile Video Streaming and Broadband Portable Internet Build up a trial DVB-H network in country. UHF Frequency for DVB-T There is approved frequency planning for Digital TV services since 2002, for Bratislava 56 channel Build up 1 pilot DVB-H cell, transmission side consist from: DVB-H IPE DVB-H modulator DVB-T transmitter Antenna system MPEG-4 video coding Handsets Provide pilot handsets for trial Launch Commercial DVB-H network Build up 4 DVB-H cells Bratislava, Banská Bystrica, Košice, Žilina Add Subscriber Management Network Monitoring Statistics & Billing Conditional Access Handsets for commercial launch Available from Nokia, Texas Instruments introduced Hollywood chip, Ericsson, Samsung, Divicom MAINDATA will provide local technical support during a launch as well as during operation directly in Bratislava MAINDATA proposal for DVB-H service launch:

28. 27 www.maindata.info MAINDATA Mobile TV, Mobile Video Streaming and Broadband Portable Internet Contents: 1) 1) MAINDATA background 2) 2) DVB-H & 3GPP platform for Mobile “TV & Video Streaming” 3) 3) Portable Broadband Internet DVB-T/S with GPRS return channel

29. 28 www.maindata.info MAINDATA Mobile TV, Mobile Video Streaming and Broadband Portable Internet DVB-T/H modulator SMART EDU Media Casting MPEG-4 encoder Subscriber Management Statistics & Billing MD IP to DVB Gateway 4-28 Mbps GPRS return channel Internet

30. 29 www.maindata.info MAINDATA Mobile TV, Mobile Video Streaming and Broadband Portable Internet Network high level diagram 2G, 3G Cells Internet 1-way Broadband Broadcast Multicast Channel GPRS Interactive channel IPE Notebook / PC User Platform DVB-T

31. 30 www.maindata.info MAINDATA Mobile TV, Mobile Video Streaming and Broadband Portable Internet Hybrid-Net GW „S“ & IP Connection Manager LAN version LAN User Router DVB modulator or multiplexor Hybrid-Net GW „S“ & IP Connection Manager SINGLE USER Single User Hybrid-Net GW „S“ & DVB/IP GW Return channels Dial-up VSAT UMTS GPRS Internet Ded.Line Data Server HYBRID-NET ® configuration alternatives

32. 31 www.maindata.info MAINDATA Mobile TV, Mobile Video Streaming and Broadband Portable Internet Build up a DVB-S transmission run satellite internet services: MD IPE MD modulator DVB-S up-link Receivers DVB-S, T receivers, PCI, USB or Ethernet interface with GPRS return channel MAINDATA can provide local technical support during a launch as well as during operation directly in Bratislava MAINDATA proposal for DVB-T, S with GPRS service launch:

33. 32 www.maindata.info MAINDATA Mobile TV, Mobile Video Streaming and Broadband Portable Internet Statistics & Biling PUSH FTP PUSH e-mail TCP/IP Accelerator BNMS MAINDATA DVB/IP GW Hybrid-Net GW “S” DVB-S modulator BFTP+ Server Download Center GPRS/ Internet IP Connection Manager Hybrid-Net GW „R“ PUSH Client (Win) AutoUpdateServer BFTP+ Client (Lin, Win)

34. 33 www.maindata.info MAINDATA Mobile TV, Mobile Video Streaming and Broadband Portable Internet Contact : e-mail:statelov@maindata.sk www.smartedu.tv www.maindata.info GSM: +421 905 606 027 Image of Middle Slovakia from a hot air balloon perspective
