1. VARIODYN D1 Product Introduction

2. Overview
Components
Features
Summary

3. VARIODYN D1 - Components
Digital Output Module with 8 loudspeaker lines DOM4-8
Digital Output Module with 24 loudspeaker lines DOM4-24
Comprio 4-8 and Comprio 4-24 (compact solution)
Digital Call Station DCS and DCSF
Universal Interface Module UIM
System Communication Unit SCU
Digital Power Amplifier with EN54-16 certification
4x125W 4XD125B
2x250W 2XD250
2x400W 2XD400
4x500W 4XD500
All controlled and supervised by DOM

4. Digital Output Module DOM4-8 DOM4-24
For connection to max. 4 amplifier channels, 2 lines each
Max 500 Watt per channel
DOM4-24
For connection to max. 4 amplifier channels, 6 lines each
Max 500 Watt per channel

5. Digital Output Module
DAL-Bus
NOW 1 HOUR

6. Comprio

7. Compatible to all D1 components
VARIODYN D1 Comprio
Compatible to all D1 components

8. VARIODYN D1 Comprio DOM, UIM, DCSF and VCM functionality
Programmable with Designer
Loop technology compatible
In- and outputs (audio and digital IO contact’s)
8 or 24 speaker lines
Ethernet integrated
19“ form factors; 3U
12 free programmable keys
Optional handheld microphone

9. See the
4XD125B and Comprio
Webinar

10. Digital Output Module DOM 4-8
AMP 1
AMP 2
DAL-Bus

11. Digital Output Module DOM 4-24
AMP 1
AMP 2
DAL-Bus

12. Digital Output Module DOM 4-24
AMP 1
AMP 2
Backup amplifier
DAL-Bus

13. Modular concept
Rack 1
Rack 2
Rack 3

14. Back up summary Backup is recommended – not mandatory in all cases
AB cabling to two DOMs is a technical substitution for Backup AMPs
One DOM 4-24 can backup max 5 or 11 other DOMs and him self
One DOM 4-24 can backup max 23 or 46 AMP channels

15. Conventional vs. VARIODYN D1

16. Conventional vs. VARIODYN D1

17. Conventional vs. VARIODYN D1

18. Conventional vs. VARIODYN D1
Zone 1 
„A“ 
„B“
Zone 1 and 2 still -3dB 
Zone 2 
„A“
„B“

19. No Backup AMP needed with A/B Line
Zone 1
Ch 1 – Line 1
„A“
Ch 2 – Line 1  
„B“
Ch 1 – Line 2
Ch 2 – Line 1
Zone 1 and 2 still -3dB 
Zone 2 
„A“
„B“

20. A/B Cabling Options

21. Speaker Loop

22. NOTIFIER Annual Distributor Conference
October 4-7, 2009
Better to Best
Loop Technology ?
A/B
Star ? ? ? ?

23.  Loop Technology VARIODYN D1 Loop technology Short circuit Loop
Isolator
Modul
Loop
Isolator
Modul
VARIODYN D1
Loop technology
Loop
Isolator
Modul
EOL
DOM
Loop
Isolator
Modul
Short circuit

24. Loop Isolator Module (LIM) 583342
Standard OBO housing for the Loop Isolator Module (LIM)
85 x 85 x 40.5 mm outside diameter
IP 66 possible
No special DOM’s needed!

25. Advantages Higher security than A/B Cabling
No speaker loss in case of cable break
Loss of max. one segment in case of short circuit
Technically substitution for fire resistant cables
Decrease security and availability
Differentiator
Topic to discuss with consultants and partners

26. Call station

27. DCS Digital call station DCS15 (12 buttons, one audio in-/output)
Digital call station DCS2 (one button)
Key module DKM18
(with 18 buttons; max. 6 on one DCS / 120 buttons in total)

28. DCSF Fire Control PA Panel DCSF12 (12 buttons)

29. Intercom between call stations
OCC
Gate A
Gate C
Gate B

30. Intercom between call stations
OCC
Gate A
Gate C
Gate B

31. DCS-DOM 4 DAL buses per DOM! Call stations connected via DAL bus
Up to 300m - minimum CAT5 STP
Over 300m and up to 2km fiber:
Duplex SC plug, multimode fiber
DCS call station needs additional 24V PSU

32. Call station housing 584961/62 For one DCSF12 or DCSF1 (584961) or
For two DCSF12 or DCSF1
Or one DCSF and one DKM18 (584962)

33. HMI PC Call Station (PAMMI)
DOM

34. PC Call Station with HMI (PAMMI)
DOM

35. Features Individual graphical overview Phase boarding support
Logging data base (incl. Audio!)
Composing automatic announcements
Multiple languages
Recording of announcement and playback
Scheduler and call stacker

36. Simple call station DIGIM1 and DIGIM4

37. Simple call station DIGIM1 and DIGIM42 3
Max 40

38. Simple call station DIGIM1 and DIGIM4
1 + 2: Power
3 + 4: Audio IN
(one channel)
5 – 8: 4 x Zone
9: PTT button
9pin D-Sub connector

39. Simple call station DIGIM1 and DIGIM4
1 or 4 button call station
Max. 4 different zones each UIM Input
Up to 40 call stations in total each UIM Input
One call in the same UIM input
No call stacker function
Daisy chain or star cabling possible

40. Amplifier

41. Power AMPs with EN54-16 Digital Power Amplifier:
4x125B (Class D) 4XD125B (1:3 Backup)
4x125B (Class D) 4XD250B (1:3 Backup) (*
2x250W (Class D) 2XD250
2x400W (Class D) 2XD400
4x500W (Class D) 4XD (No 1:3 Backup)
(* coming soon

42. Power Amplifier Robust design (low thermal factors)
Higher reliability (no or low ventilation)
Less maintenance (less dust inside)
Low BTU (heating)
Low power consumption > For the amplifier itself and for rack cooling!
“B” Model includes battery charger

43. Nomenclature of AMPs
2XH500
2XD250
2XD400
4XD125B
4XD500
4XV300
4XV500

44. 4XD125B

45. VARIODYN D1 4XD 125B
Available

46. No additional UPS needed!
VARIODYN D1 4XD 125B
Four channels - each with 125W (4x250W is in the roadmap)
Only 1U
1 to 3 backup possible (!)
Battery charger included
(max 65 Ah battery capacity)
No additional UPS needed!

47. Decentralized solution with 4XD125B
1 x DOM 4-8
1 x 4XD125B
2 x batteries
Each of these units
for three or four floors / zones

48. See the
Amplifier and Backup
Webinar

49. Network

50. Ethernet Network Ethernet is THE worldwide network standard
Components can be installed anywhere
Using Ethernet vs. proprietary cabling means reducing
design cost
cabling cost
training efforts
the cable length of loudspeaker lines,
and re-using existing cables

51. Ethernet network

52. Audio latency Challenges solved:
Protocol critical to time delays
QoS (Quality of Service)
Internal switches (system heterogeneity)
The number of announcements is limited by the bandwidth available (0.5MBit per announcement) up to 120ch. in a 100Mbit network
Network is permanently monitored
Up to 250 DOM

53. Input to output:
Between DOM:
0,23 ms (!)
30,3 ms

54. Audio latency
Low latency is important only to stereo applications in theater, concert hall, etc.
In VA/PA applications not relevant:
Sound wave run in 30ms are about 9,9m (0.03s*330m/s)
Usually there are several speakers and reflections around
This cause many reflections with a delay of much more than 30ms.

55. Audio In- and outputs UIM, audio inputs Analog audio inputs
CD Player
UIM, audio inputs
CD-Player
Configuration
LAN TCP/IP
Analog audio inputs
via UIM (2 lines)
- via DCS15 (1 line)
Analog audio outputs
via UIM (2x)
- via DCS15 (1x)

56. SIP / VoIP / RoIP Interface
CD Player
LAN TCP/IP
Telephone interface:
VoIP
RoIP
SIP
- One telephone number to one
or two destination’s ( a speaker
line or a group of lines)
Selection of over DTMF - Dual-tone
multi-frequency

57. Analog telephone interface
CD Player
local loop
(analog telephone)
LAN TCP/IP
1 x NF Signal
4 x dry contacts
Analog telephone interface:
Local Loop connector
One telephone number to one
to four destinations ( a speaker line or
or a group of lines)
Selection of over DTMF - Dual-tone
multi-frequency

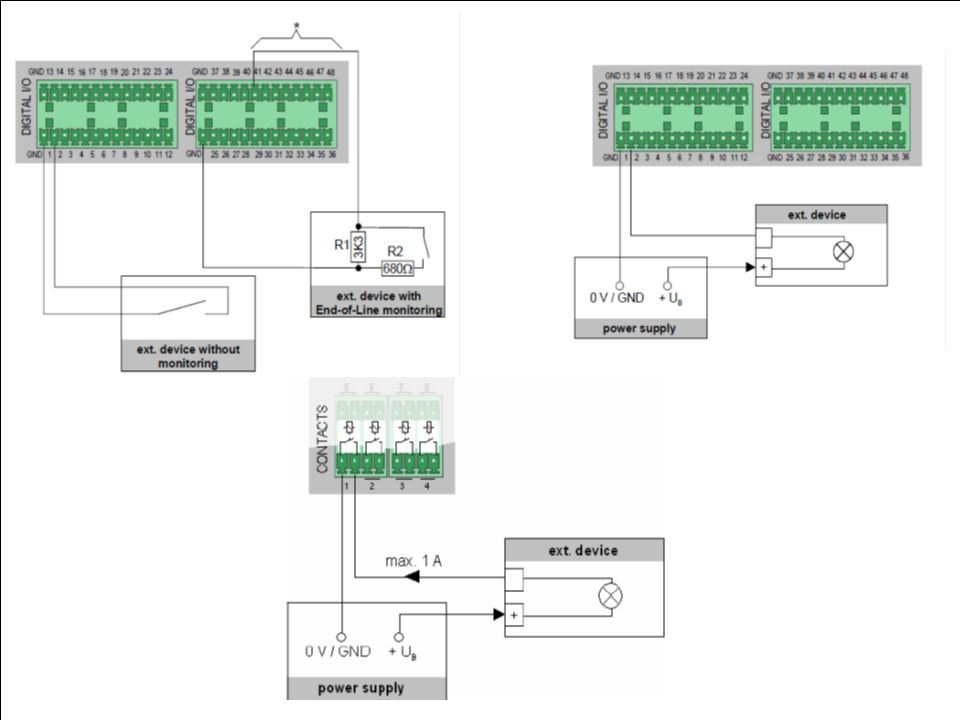

58. Dry contacts Control contacts UIM LAN TCP-IP 48 contacts
Usable as in- or outputs
Control outputs DOM
8 configurable outputs 8x
Control contacts CIM
8 contacts
BMZ oder z.B.
VARIODYN® 3000
System
Usable as in- or outputs

60. Dry contacts Control contacts UIM LAN TCP/IP 48 contacts
Usable as in- or outputs
Monitored
Control outputs DOM
8 configurable outputs 8x
Control contacts CIM
8 contacts
FAS or VARIODYN® 3000
System for example
Usable as in- or outputs
Monitored

61. Audio memory Audio memory DOM 16 memory places Overall 1hour per DOM
LAN TCP/IP
Audio memory SCU
Audio memory
More than 60 channels can be played or recorded
Call stacker function
DVA function
- Storage capacity of approx. 120 min. for alarm messages
- 60,000 memory spaces
Storage capacity of approx. 150 hours for less critical messages like commercial messages

62. Interfaces and Features

63. Redundante Connection to Fire Panels
DCS15
DAL
Ethernet
NOTI•FIRE•NET

64. Redundante Connection to Fire Panels
Optional Redundant

65. Redundante Connection to Fire Panels
VARIODYN® D1
FlexES control
IQ8 control

66. Redundante Connection to Fire Panels
Escape route control possible
Zone evacuation in large buildings is now possible
Redundant high level interface for safety
One system for detection and voice evacuation

67. Interfaces Serial to several fire panels Via LAN to any other system
(VARIODYN PA protocol)
LAN TCP/IP ?
FAS or
VARIODYN® 3000
System for example ?

68. Two protocols * PA Server is Public (with NDA)
„PA-Server Control Protocol“*
Client
High sophisticate graphical user interface
„Public Address Protocol Version 10“ (PA-DOM Protocol)*

69. DAL, audio signal processing
CD Player
Configuration
LAN TCP/IP
Audio signal processing
Per audio stream on DAL bus
- Volume
Configurable limiter for microphones (DCS, DCSF)

70. PA, audio signal processing
CD Player
Configuration
LAN TCP/IP
Per power amplifier channel
- Volume
High-pass 2nd, 4th, 6th order (frequency response: Hz-20kHz)
Low-pass 2nd, 4th, 6th order (frequency response: Hz-20kHz)
Delay (0-2,000 msec)
Parametric equalizer, 8 bands

71. Volume Control Volume control, AVC - Via buttons, contacts
CD Player
Configuration
LAN TCP/IP
- Via buttons, contacts
- Time-controlled, e.g. lower volume at tram stations during night time
- Control commands via PC
Audio memory
Automatic (AVC)
by using sensor microphones, also background music

72. Permanent monitoring - Microphone capsule acoustically monitored
CD Player
- Microphone capsule acoustically monitored
DAL bus (DCS, UIM)
Monitoring of the communication unit between DOMs, SCU in the entire network
Monitoring of amplifier channels and backup amplifiers via pilot tone
Monitoring of the connected loudspeaker zones for cable breaks, short circuits or impedance faults
Monitoring of contacts
LAN TCP/IP
Audio memory

73. More features Pre-defined user rights (root, user, and power user)
Manual or automatic latching of announcements (SCU)
Remote control and maintenance
Time synchronization DOM, SCU
Power-saving mode (in UPS Mode)
LAN TCP/IP
NTP
FAS or
VARIODYN® 3000
System for example

74. D1 Designer Graphical programming platform Easy, intuitive handling
Programming of
In- and outputs
Time triggers
Contact closures
Etc.

75. Configuration parameters
LAN TCP-IP
Configuration parameters for an announcement

76. Cabling

77. Easy and fast!

78. See the
Cable
Webinar

79. Summary

80. VARIODYN D1 - Summary Minimum number of components Easy to design
Fully monitored in real time
Highly sophisticated interface to fire panels
Network based, scalable
High-quality audio
GUI including DVA

81. VARIODYN D1 - Summary More than 120 simulating channels
Intercom (full duplex) between call stations
Time triggered internal events
Quick cabling and installing
EN compliant
EN certified
UL60950 (Information Technology Equipment Including Electrical Business Equipment)

82. Thank You for Your Attention
