1. Group X Thigh, Lateral view Human:

2. Group X Thigh, Lateral view 1.Semitendinosus 2.Biceps Femoris 3.Caudofemoralis **no homolog in humans 4.Gluteus Maximus 5.Gluteus Medius 6.Tensor Fasciae Latae 7.Sartorius Head 

3. Group X Thigh, Posterior view Human:

4. Group X Thigh, Anterior view Human:

5. Group X Thigh, Medial view 1.Sartorius 2.Gracilis 3.Omit – Skippy's Scrotum 4.Semitendinosus 5.Gastrocnemius 6.Plantaris 7.Soleus Head 

6. Group XI Lower Leg, Deep Lateral view Human:

7. Group XI Lower Leg, Deep Lateral view Human:

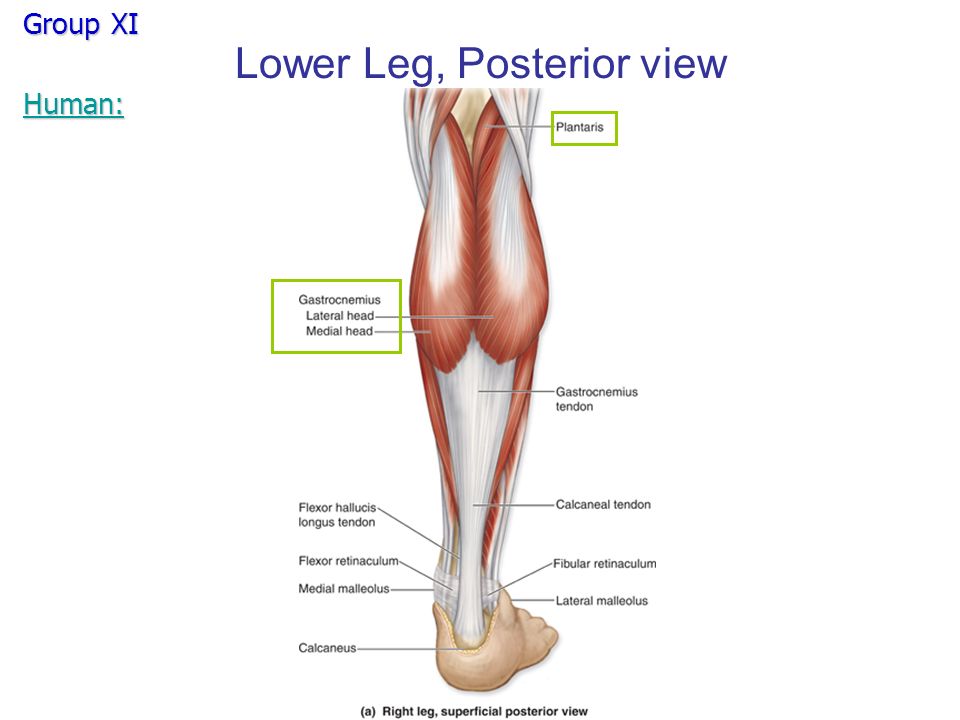

8. Group XI Lower Leg, Posterior view Human:

9. Group XI Lower Leg, Deep Posterior view Human:

10. Group XI Lower Leg (cat = shank), Deep Lateral view 1.Tibialis Anterior 2.Extensor Digitorum Longus 3.Peroneus (Fibularis) Brevis 4.Peroneus (Fibularis) Longus 5.Peroneus (Fibularis) Tertius 6.Soleus 7.Gastrocnemius 8.Biceps Femoris (Reflected) 9.Semitendinosus 10.Semimembranosus 11.Adductor Femoris 12.Vastus Lateralis Head 

11. Group XI Lower Leg (cat = shank), Deep Lateral view **Tenuissimus 1.Biceps Femoris (Reflected) 2.Caudofemoralis (Reflected) ** 3.Gluteus Maximus (Reflected) 4.Gluteus Medius 5.Tensor Fasciae Latae (Ref.) 6.Semitendinosus 7.Semimembranosus 8.Adductor Femoris **no homolog 9.Sciatic Nerve 10.Vastus Lateralis 11.Sartorius 12.Tibialis Anterior 13.Extensor Digitorum Longus 14.Peroneus (Fibularis) Complex 15.Soleus 16.Gastrocnemius ** Head 

12. Group XI Lower Leg (cat = shank), Deep Medial view 1.Gastrocnemius 2.Plantaris 3.Soleus 4.Flexor Digitorum Longus 5.Tibia (Bone) 6.Tibialis Anterior 7.Calcaneus Tendon (Achilles Tendon) 8.Lucky Kitty's Foot Head 

13. Group X Thigh, Deep Anterior view Human:

14. Group X Thigh, Deep Anterior view Human:

15. Group X Thigh, Deep Posterior view Human:

16. Group X Thigh, Deep Medial view 1.Sartorius 2.Vastus Lateralis 3.Rectus Femoris 4.Vastus Medialis 5.omit – iliopsoas Complex 6.Pectineus 7.Adductor Longus 8.Adductor Femoris (2 Heads) ** 9.Semimembranosus 10.Semitendinosus 11.Gastrocnemius Head 

18. Posterior thigh Semimembranosus Iliotibial band Gracilis Semitendinosus Adductor magnus Biceps femoris Lateral head of gastrocnemius Gluteus maximus

19. Anteriomedial thigh Adductor longus Iliotibial band Gracilis Femoral artery and vein Pectineus Adductor brevis Sartorius Vastus lateralis Vastus medialis Tensor fascia lata

20. Lateral compartment of leg Tibialis anterior Soleus Fibularis longus Fibularis brevis Extensor digitorum longus Fibularis tertius Gastrocnemius Head of fibula

21. Anteriomedial thigh Inguinal ligament Iliopsoas Tensor fascia lata Spermatic cord Gracilis Pectineus Adductor longus Vastus lateralis Rectus femoris Vastus medialis Quadriceps tendon Sartorius Patella

22. 04_Cat_018-L

23. 04_Cat_013-L

24. 04_Cat_010-L
