1 CAD PROBLEMS IE 433

2 Chapter 1  1-Exercise 1 Draw the sketch of the model shown in Figure A. The sketch to be drawn is shown in Figure B. Do not dimension the sketch, as the solid model and the dimensions are given only for your reference. (Expected time: 30 min) Figure A Solid model for Exercise 1 Figure B Sketch of the model

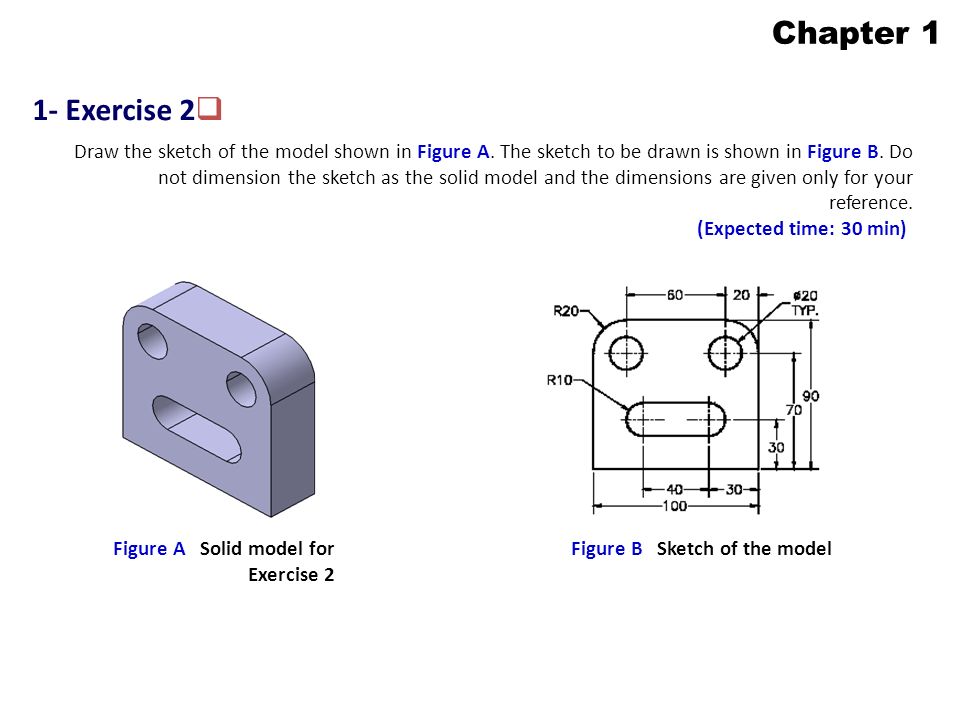

3 Chapter 1  1- Exercise 2 Draw the sketch of the model shown in Figure A. The sketch to be drawn is shown in Figure B. Do not dimension the sketch as the solid model and the dimensions are given only for your reference. (Expected time: 30 min) Figure A Solid model for Exercise 2 Figure B Sketch of the model

4  2-Exercise 1 Draw the sketch of the model shown in Figure A. The sketch to be drawn is shown in Figure B. Do not dimension the sketch, as the solid model and the dimensions are given only for your reference. (Expected time: 30 min) Figure A Model for Exercise 1 Figure B The sketch for Exercise 1

5  2-Exercise 2 Draw the sketch of the model shown in Figure A. The sketch to be drawn is shown in Figure B. Do not dimension the sketch as the solid model and the dimensions are given only for your reference. (Expected time: 30 min) Figure A Solid model for Exercise 2 Figure B Sketch of the model

6  3-Exercise 1 Create the model, as shown in Figure A. The dimensions of the model are shown in Figure B. (Expected time: 30 min) Figure A Solid Model for Exercise 1 Figure B Views and dimensions for Exercise 1

7  3- Exercise 2 Create the model, as shown in Figure A. The dimensions of the model are shown in Figure B. (Expected time: 30 min) Figure A Solid model for Exercise 2 Figure B Views and dimensions for Exercise 2

8  4- Exercise 1 Create the model, as shown in Figure A. The dimensions of the model are shown in Figure B. (Expected time: 30 min) Figure A Model for Exercise 1 Figure B Views and dimensions for Exercise 1

9  4- Exercise 2 Create the model, as shown in Figure A. The dimensions of the model are shown in Figure B. (Expected time: 30 min) Figure A Model for Exercise 2 Figure B Views and dimensions for Exercise 2

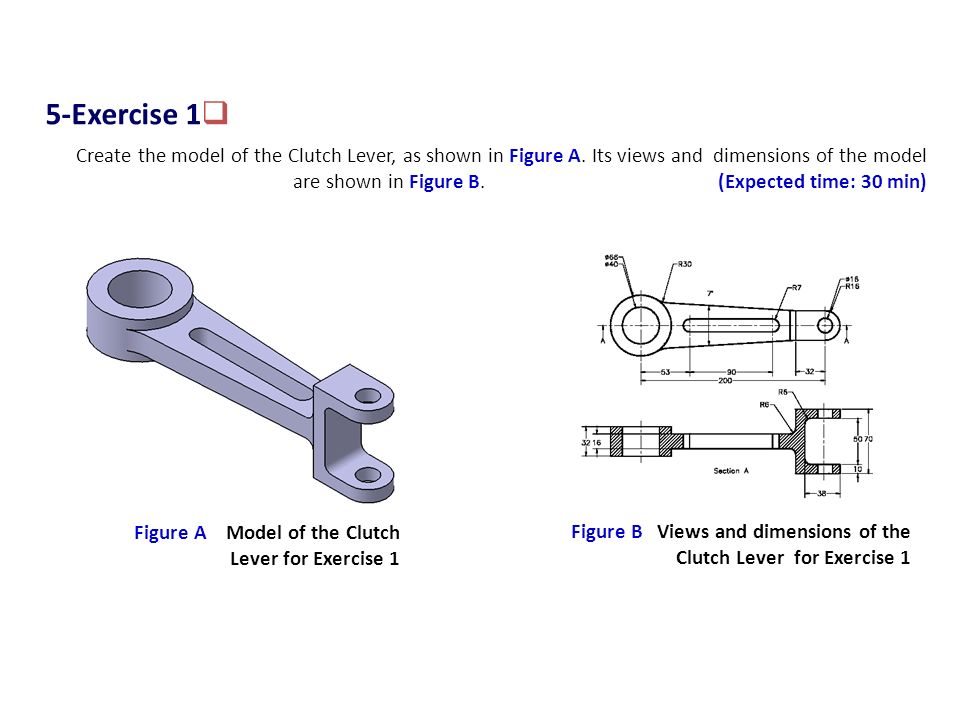

10  5-Exercise 1 Create the model of the Clutch Lever, as shown in Figure A. Its views and dimensions of the model are shown in Figure B. (Expected time: 30 min) Figure A Model of the Clutch Lever for Exercise 1 Figure B Views and dimensions of the Clutch Lever for Exercise 1

11  2-Exercise 2 Create the model of the Clamp Stop, as shown in Figure A. The dimensions of the model are shown in Figure B. (Expected time: 60 min) Figure A Model of the Clamp Stop for Exercise 2 Figure B Views and dimensions of the Clamp Stop for Exercise 2

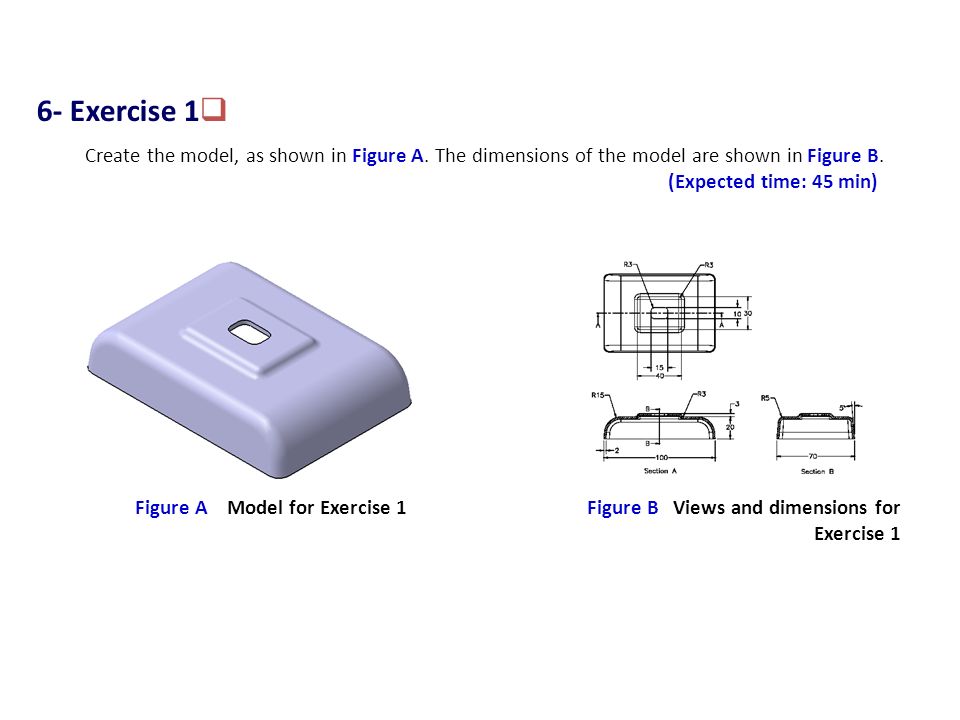

12  6- Exercise 1 Create the model, as shown in Figure A. The dimensions of the model are shown in Figure B. (Expected time: 45 min) Figure A Model for Exercise 1Figure B Views and dimensions for Exercise 1

13  6- Exercise 2 Create the model, as shown in Figure A. The views and dimensions of the model are shown in Figure B. (Expected time: 30 min) Figure A Model for Exercise 2Figure B Views and dimensions for Exercise 2

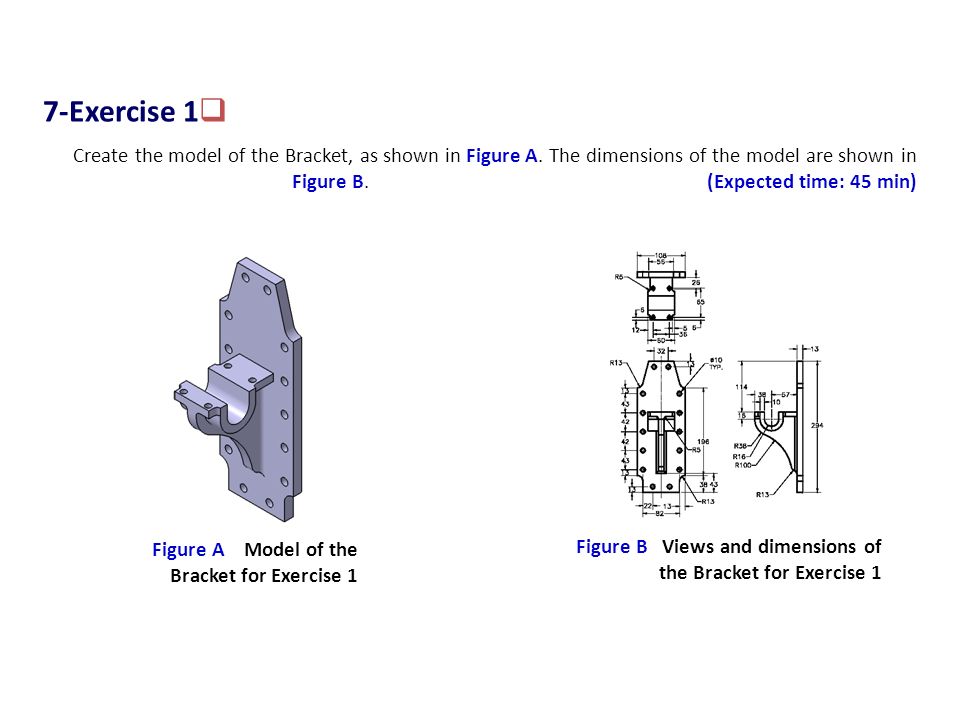

14  7-Exercise 1 Create the model of the Bracket, as shown in Figure A. The dimensions of the model are shown in Figure B. (Expected time: 45 min) Figure A Model of the Bracket for Exercise 1 Figure B Views and dimensions of the Bracket for Exercise 1

15  7- Exercise 2 Create the model of the Valve Body, as shown in Figure A. The views and dimensions of the model are shown in Figure B. (Expected time: 45 min) Figure A Model of Valve Body for Exercise 2 Figure B Views and dimensions of the Valve Body for Exercise 2

16  8- Exercise 1 Create the model of the Angle Flange, as shown in Figure A. Its views and dimensions of the model are shown in Figure B. (Expected time: 45 min) Figure A Model of the Angle Flange for Exercise 1 Figure B Views and dimensions for Exercise 1

17  8- Exercise 2 Create the model of the Carburetor Cover, as shown in Figure A. The views and dimensions of the model are shown in Figure B. (Expected time: 45 min) Figure A Model of Carburetor Cover for Exercise 2 Figure B Views and dimensions for Exercise 2

18  9- Exercise 1 In this exercise, you will create the surface model, as shown in Figure A. The orthographic views of the surface model are shown in Figure B. (Expected time: 30 min) Figure A The isometric view of the model Figure B The views of the model

19  9- Exercise 2 In this exercise, you will create the surface model, as shown in Figure A. The orthographic views of the surface model are shown in Figure B. (Expected time: 45 min) Figure A The isometric view of the model Figure B The views of the model

20  10- Exercise 1 Create the model of the Cover, as shown in Figure A. The views and dimension of the model are shown in Figure B. (Expected time: 30 min) Figure A Model of the cover Figure B Views and dimensions of the model
