1. 2N Net Audio system

2. 2N Net Audio system What it is?
Complete public address and voice alarm
Background music
VoIP Paging
In-Store Radio
over IP
over IP
over IP
over IP

3. 2N® IP Audio systems Benefits No limits on distance
Central management,
monitoring and audio synchronization
Native integration with traditional telephony systems through VoIP
Simple integration with 3rd party SW (http, xml)

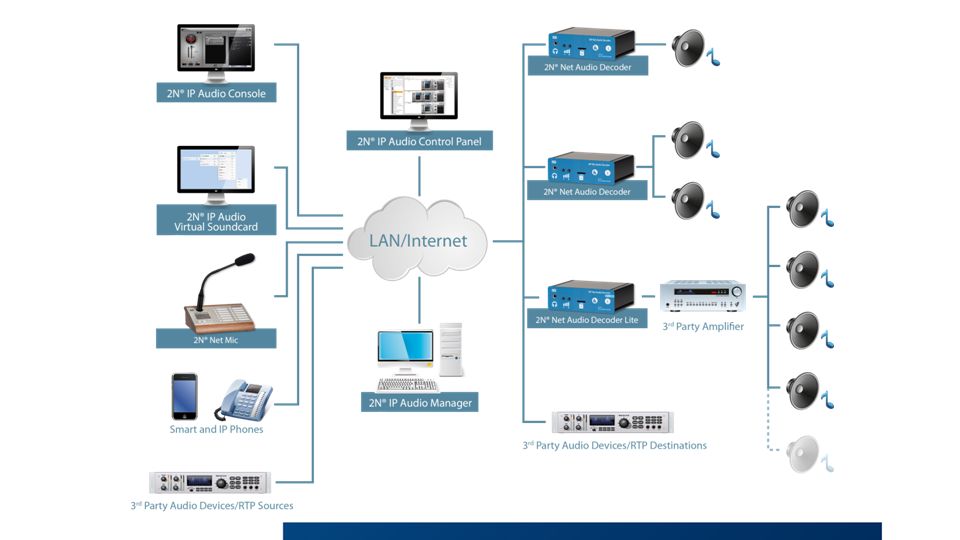

4. 2N IP Audio systems 2N® IP Audio Manager (SW) 2N IP Audio end-points
Zoning (100 zones)
1 000 end-points
10 priority levels
Volume control
FW upgrade of all units
Scheduling of pre-recorded announcements
Audio synchronization
3rd party devices control
2N IP Audio end-points

6. 2N Net Audio end-points

7. 2N® Net Audio Decoder IP ->Analog audio decoder & amplifier
Built-in amplifier 14 W (PoE 8W)
MPEG-1 Layer II ( kbits/s)
Stereo Line out / Headphones
2 user buttons (volume/channels)
Slot for microSD card
1x digital input & output
PoE or 12V/2A power

8. 2N® Net Audio Decoder Lite
IP ->Analog audio decoder
No amplifier
Stereo Line out / Headphones
2 user buttons (volume/channels)
Slot for microSD card
1x digital input & output
12V/2A power

9. 2N® Net Audio Encoder Analog audio ->IP encoder
Line-in (FM tuner, CD player, MP3 player)
MIC/XLR for microphone
Paging button conector
Central Management
PoE

10. 2N® NetMic Hardware console Live paging Pre-recorded messages
Priority assignment
Zones selection
Zones status indicator
12 buttons
PoE

11. 2N® Net Speaker, Wall Mount
2N® Net Audio Decoder in a loudspeaker
PoE or 12V/2A adapter
Possibility to connect 2nd speaker
Black or White
SPLmax 100 dB
PoE (SPLmax 97dB)

12. 2N® Net Speaker, Ceiling 2N® Net Audio Decoder in a loudspeaker
PoE or 12V/2A adapter
8’’
Indoor use
SPLmax 105 dB
PoE (SPLmax 101dB)
IR remote control option

13. 2N® Mobile Audio Gateway
GSM <-> analog audio converter
Fast and effective way to inform the public from a mobile phone
Ability to set the highest priority
Secured access
Battery Back-up

14. Software

15. Software 2N® IP Audio Control Panel 2N® IP Audio Console
2N® IP Audio Virtual Sound Card
2N® IP Audio Remote Control
Typical users
Receptionist
Office Manager
Dispatcher

16. 2N® IP Audio Control Panel
Drag-and-drop system configuration
2N Net Audio end-points setting
Zone & Destination creating
Managing the audio inputs
Creating of audio sessions
Event scheduling
User management
Typical users
Receptionist
Office Manager
Dispatcher

17. 2N® IP Audio Console SW paging console
Zone selection according to users rights
Live announcement from PC mic
Audio content streaming from user’s PC
Typical users
Receptionist
Office Manager
Dispatcher

18. 2N® IP Audio Virtual sound card
Audio streaming from any multimedia player
iTunes
Windows media player
Winamp
Zones selection
Easy to use
Typical users
Receptionist
Office Manager
Dispatcher

19. 2N® IP Audio Remote Control
Full Control of Zones and Volume
Zones and Audio content control
Easy to use
Android
iOS

20. When to offer 2N IP Audio IP infrastructure is ready
Multiple buildings, remote locations
High number of zones (10+)
Extending current 100V systems
Scheduled announcements -

21. 2N IP Audio solutions audio content distribution with no limits on distance
