1. CLX-3170 Series training

2. Agenda I.General Specification I.Product Overview II.Product General Specification III.Review II.Feature Details I.UI (Control Panel / Menu Structure) II.F/W Upgrade III.Reports IV.Messages V.Special Operation VI.Tech Mode

3. Part. General Specification Part. Ⅰ General Specification

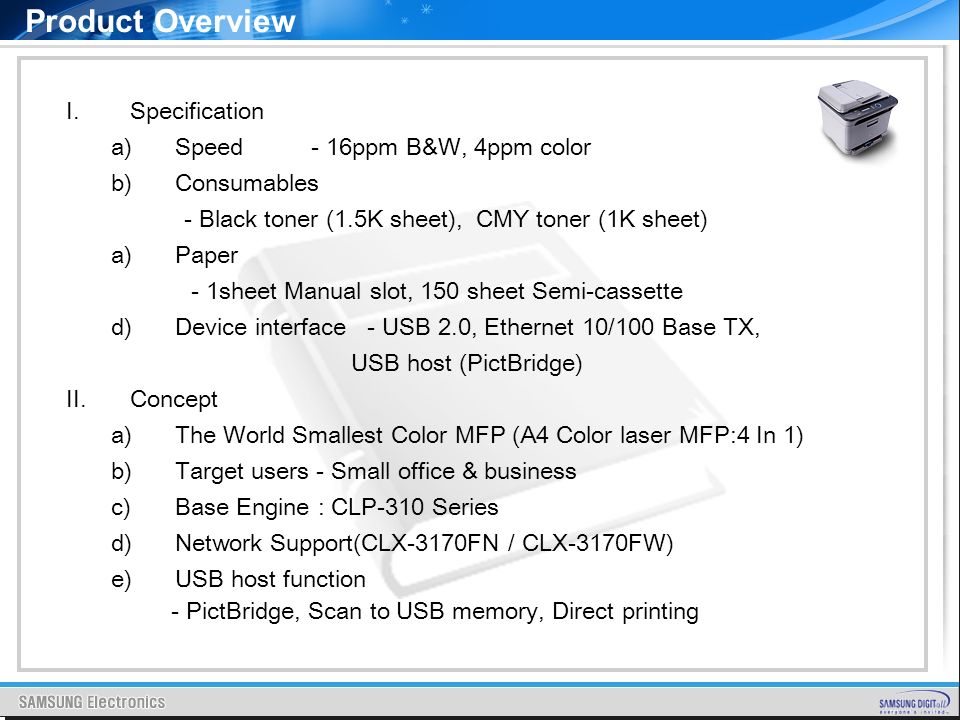

4. I.Specification a)Speed - 16ppm B&W, 4ppm color b)Consumables - Black toner (1.5K sheet), CMY toner (1K sheet) a)Paper - 1sheet Manual slot, 150 sheet Semi-cassette d)Device interface - USB 2.0, Ethernet 10/100 Base TX, USB host (PictBridge) II.Concept a)The World Smallest Color MFP (A4 Color laser MFP:4 In 1) b)Target users - Small office & business c)Base Engine : CLP-310 Series d)Network Support(CLX-3170FN / CLX-3170FW) e)USB host function - PictBridge, Scan to USB memory, Direct printing Product Overview

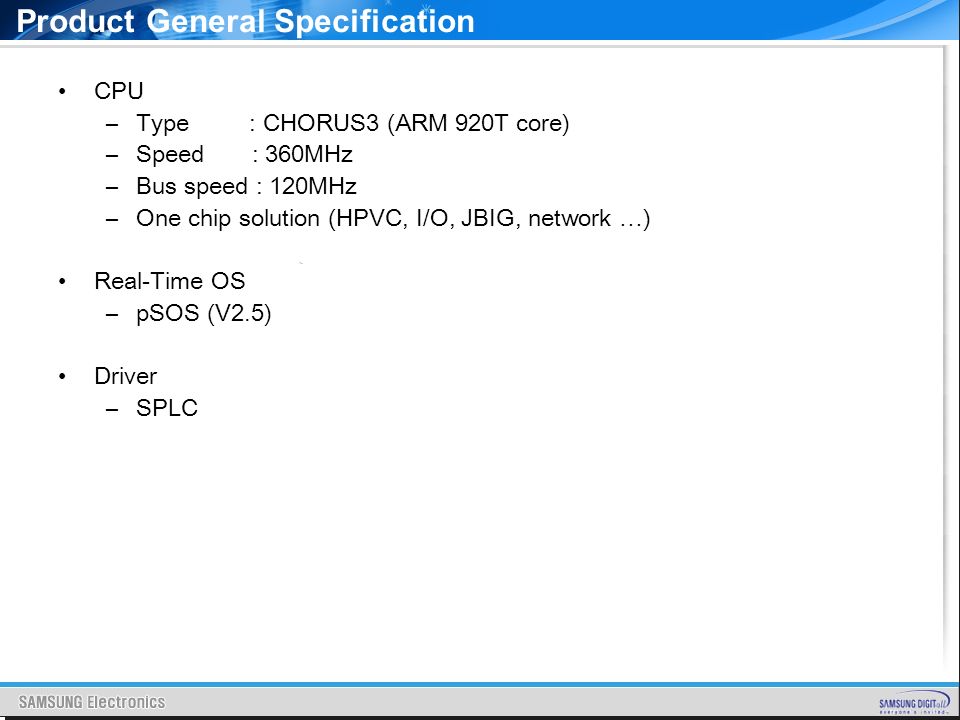

5. Product General Specification CPU –Type : CHORUS3 (ARM 920T core) –Speed : 360MHz –Bus speed : 120MHz –One chip solution (HPVC, I/O, JBIG, network …) Real-Time OS –pSOS (V2.5) Driver –SPLC

6. Product Series

7. ItemsCLX-3170 Series Model Name CLX-3170CLX-3170N Print Printer Language SPL-C (Samsung Printer Language Color) SPL-C (Samsung Printer Language Color) FontsN/A OP UI2 x 16 LCD, AUI Scan Resolution 600 x 1200dpi (Optical) 4800dpi x 4800dpi (Enhanced) 600 x 1200dpi (Optical) 4800dpi x 4800dpi (Enhanced) Depth Color(24bits), Mono(1bit), Gray(8bits) Color(24bits), Mono(1bit), Gray(8bits) Scan ToApplication, USB Application, Network scan, USB Copy Multi Copy1~99 Darkness Control3 level Zoom Range Platen: 25 ~ 400% ADF: 25 ~ 100% Platen: 25 ~ 400% ADF: 25 ~ 100% Special Copy ID, Auto Fit, Clone, Poster, 2-up, 4-up ID, Auto Fit, Clone, Poster 2-up, 4-up, NetworkPrintN/AWire USB Direct PrintYes( JPG, TIFF, BMP) PictBridgeYes Fax CompressionN/A Color FaxN/A Sound ControlN/A Product General Specification

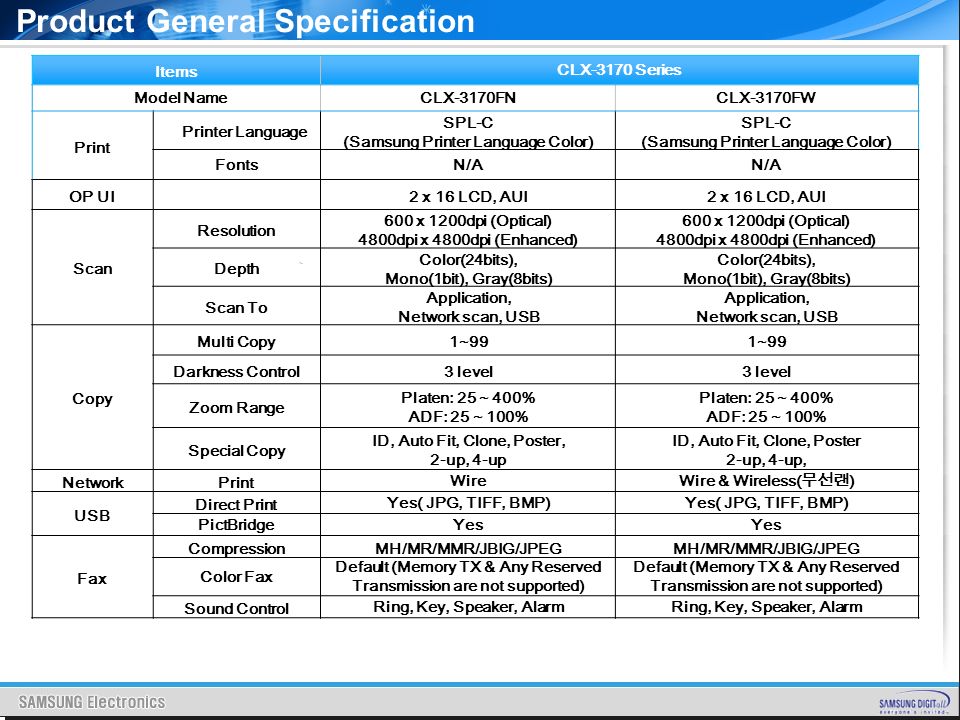

8. ItemsCLX-3170 Series Model Name CLX-3170FNCLX-3170FW Print Printer Language SPL-C (Samsung Printer Language Color) SPL-C (Samsung Printer Language Color) FontsN/A OP UI2 x 16 LCD, AUI Scan Resolution 600 x 1200dpi (Optical) 4800dpi x 4800dpi (Enhanced) 600 x 1200dpi (Optical) 4800dpi x 4800dpi (Enhanced) Depth Color(24bits), Mono(1bit), Gray(8bits) Color(24bits), Mono(1bit), Gray(8bits) Scan To Application, Network scan, USB Application, Network scan, USB Copy Multi Copy1~99 Darkness Control3 level Zoom Range Platen: 25 ~ 400% ADF: 25 ~ 100% Platen: 25 ~ 400% ADF: 25 ~ 100% Special Copy ID, Auto Fit, Clone, Poster, 2-up, 4-up ID, Auto Fit, Clone, Poster 2-up, 4-up, NetworkPrintWire Wire & Wireless( 무선랜 ) USB Direct PrintYes( JPG, TIFF, BMP) PictBridgeYes Fax CompressionMH/MR/MMR/JBIG/JPEG Color Fax Default (Memory TX & Any Reserved Transmission are not supported) Sound ControlRing, Key, Speaker, Alarm Product General Specification

9. Part. Feature Details Part. Ⅱ Feature Details

10. UI(1) – Control Panel Overview STATUSDESCRIPTION Off The machine is powered off-line. The machine is in power save mode. When data is received, or any button is pressed, it switches to on-line automatically. Wireless function can not be used. GreenBlinking When the green LED slowly blinks, the machine is receiving data from the computer. When the green LED rapidly brinks, the machine is printing data. On The machine is powered on and can be used. Wireless function can be used. RedBlinking A minor error has occurred and the machine is waiting for the error to be cleared. Check the display message, and solve the problem referring to "Understanding display messages" on page 71. The toner cartridge is low. Order a new toner cartridge, see "Ordering supplies" on page 82. You can temporarily improve print quality by redistributing the toner. (See "Replacing the toner cartridge" on page 63.) On A problem has occurred such as a paper jam, cover is open or no paper in the tray, so that the machine cannot continue the job. Check the message on the display, and refer to "Understanding display messages" on page 71 to solve the problem. The toner cartridge is empty, exhausted, or needs to be changed. (See "Understanding display messages" on page 71.)

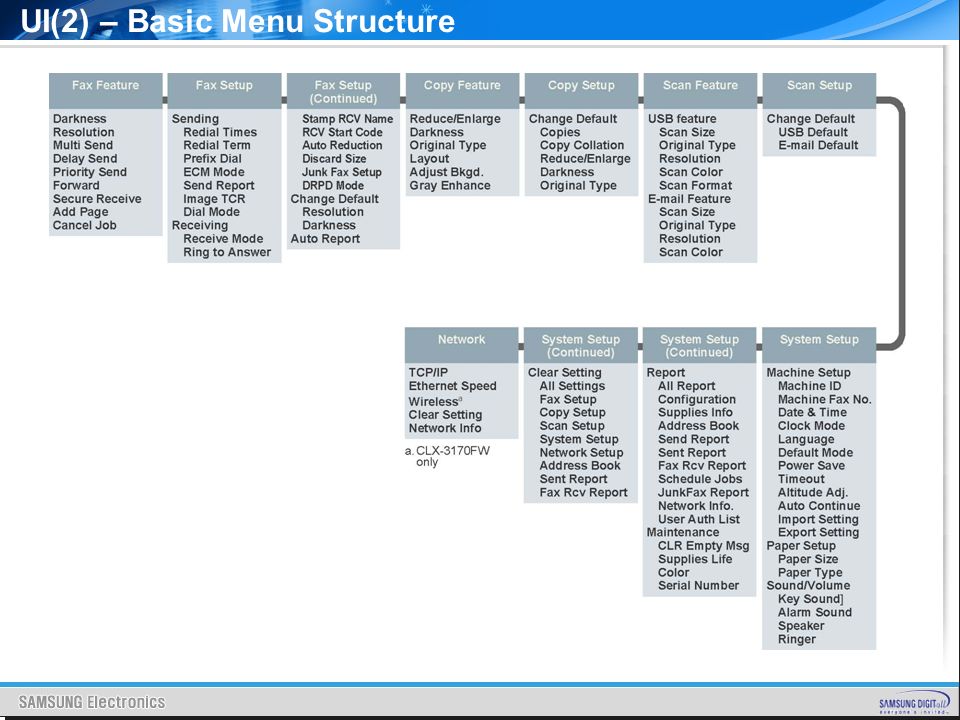

11. UI(2) – Basic Menu Structure

12. F/W Upgrade It is possible to update F/W via USB and Network port Support updating F/W using Network applications software (SWAS, SWS) Normal Update Send ROM image file to MFP in Ready (Idle) state via USB or Network port Special Mode Update  Power ON with pressing Stop Key  MFP Set enter the status of Download Mode  Download F/W to MFP Set via ONLY USB 3. After download F/W, MFP Set will conduct Rom update and also reboot system by itself

13. Reports (Configuration Report) The added Items in Tech.Mode -. Send Level -. Dial Mode -. Modem Speed -. Error Rate

14. Reports (Supplier Info.) The addes items in Tech.Mode -.Some items in Toner Information

15. Messages (Printer & Engine) Service call error Etc. Invalid Yellow(M/C/K) Toner, Install Yellow(M/C/K) Toner Door Open, Replace/Install Waste Toner Unit Paper Low Heat Error. Cycle Power, Overheat Error. Cycle Power, LSU Motor Error. Cycle Power, LSU Hsync Error. Cycle Power, Open Heat Error. Cycle Power, Main Motor Locked, Fuser Fan Locked Paper Jam 0. Open/Close Door, Paper Jam 1. Open/Close Door, Paper Jam 2. Check Inside, Paper Mismatch in the Tray 1, Tray 1 Paper Empty

16. Special Operation Toner Supply Mode Altitude Auto continue In case of paper mismatch, different paper size between installed paper in tray and user set paper, Printing start after 30 sec if the Auto Continue option is ON state. To set different printing density as Altitude When the new toner kit is installed in MFP set, the main motor is running to supply toner - Max. 20sec for each toner - Just One time (new toner)

17. Tech Mode Instruction Method of entering service mode Menu->#->1->9->3->4 Check F/W version Menu->#->1->9->3-># Data Setup Clear All Mem. Clear Count : Total Page / FLT Scan / Imaging Unit / Transfer Belt /Fuser / TransferRoller / Tray Roller Report Machine Test Switch Test / Dram Test / Rom Test / Shading Test Configuration / Error Info / Usage Page / Component Check Service Support

18. Method of checking Error ??? Check ‘Error message’ displayed in Smart Panel (or LCD) !!!! Check ‘Error Log’ page to check error history happened in set !!! Review ‘Supplies Information Report’ for supplies problem !!! Can not send color documents ? 1. Check supporting color image the other fax machine (Receiving fax) 2. Check sending fax by On-Hook dial ? Check list for communication error in fax ? 1. Check ‘System Data Report’ ( setup value ) 2. Check Protocol Dump List Copy image is poor ??? 1. At first, print Demo Page to check printing quality (If the demo page print out is normal, Printing function is also normal) 2. Print using shading & print and check other strange image in printed data 3. Check pattern (Dirty material, CIS level,….) 4. Check copy setup values

20. Prob 1) Which one is the best way to send color fax documents ? 1 1. On-Hook dial + Color Start 2. One-Touch dial 3. Speed Dial 4. Digit Dial + Start Prob 2) Which one is wrong way to check communication error ? 4 1. Check setup values related with FAX in System Data List 2. Check Fax status as reviewing protocol Dump List 3. Check the other Fax (Receive or Send) support communication type 4. Print Demo Page Prob 3) Which one is wrong way to check Copy Quality ? 4 1. At first, print Demo Page to check printing quality (If the demo page print out is normal, Printing function is also normal) 2. Print using shading & print and check other strange image in printed data 3. Check copy setup values 4. Check Fax setup values reviewing system data list
